Horton C287-1 User Manual

A U T O M A T I C S

®

4242 Baldwin Boulevard
Corpus Christi, Texas
USA 78405-3399
Tel: [phone]
Fax: [phone]

www.hortondoors.com

The Automatic Choice

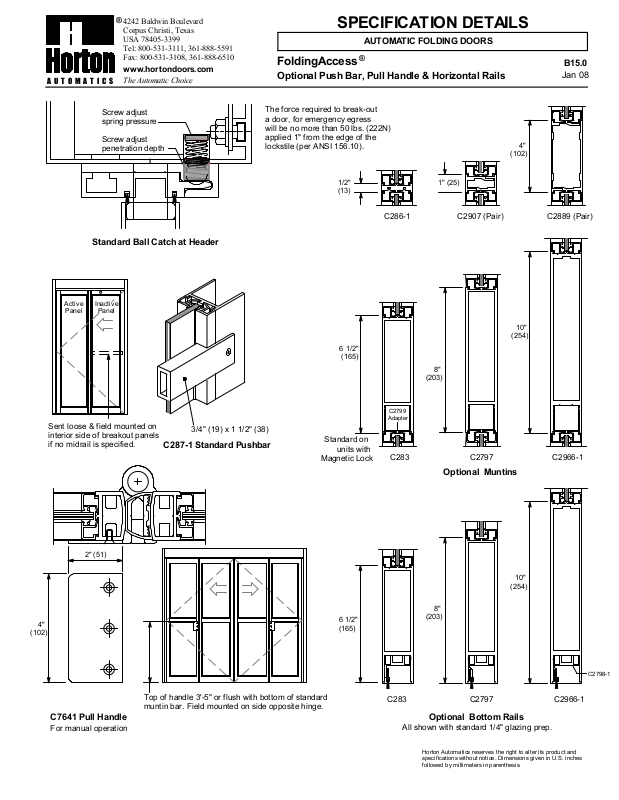

SPECIFICATION DETAILS

AUTOMATIC FOLDING DOORS

FoldingAccess

Optional Push Bar, Pull Handle & Horizontal Rails

®

B15.0

Jan 08

Screw adjust
spring pressure

Screw adjust
penetration depth

Standard Ball Catch at Header

Active

Inactiv e

Panel

Panel

The force required to break-out
a door, for emergency egress
will be no more than 50 lbs. (222N)
applied 1" from the edge of the
lockstile (per ANSI 156.10).

1/2"
(13)

C286-1

6 1/2"

(165)

8"

(203)

1" (25)

C2907 (Pair)

4"

(102)

C2889 (Pair)

10"

(254)

Sent loose & field mounted on
interior side of breakout panels
if no midrail is specified.

2" (51)

4"

(102)

C7641 Pull Handle

For manual operation

3/4" (19) x 1 1/2" (38)

C287-1 Standard Pushbar

Magnetic Lock

Top of handle 3'-5" or flush with bottom of standard
muntin bar. Field mounted on side opposite hinge.

Standard on

units with

6 1/2"
(165)

C2799

Adapter

C2797 C283

Optional Muntins

10"

(254)

8"

(203)

C2797 C283

Optional Bottom Rails

All shown with standard 1/4" glazing prep.

C2966-1

C2798-1

C2966-1

Horton Automatics reserv es the right to alter its product and
specifications without notice. Dimensions giv en in U.S. inches
followed by millimeters in parenthesis.
