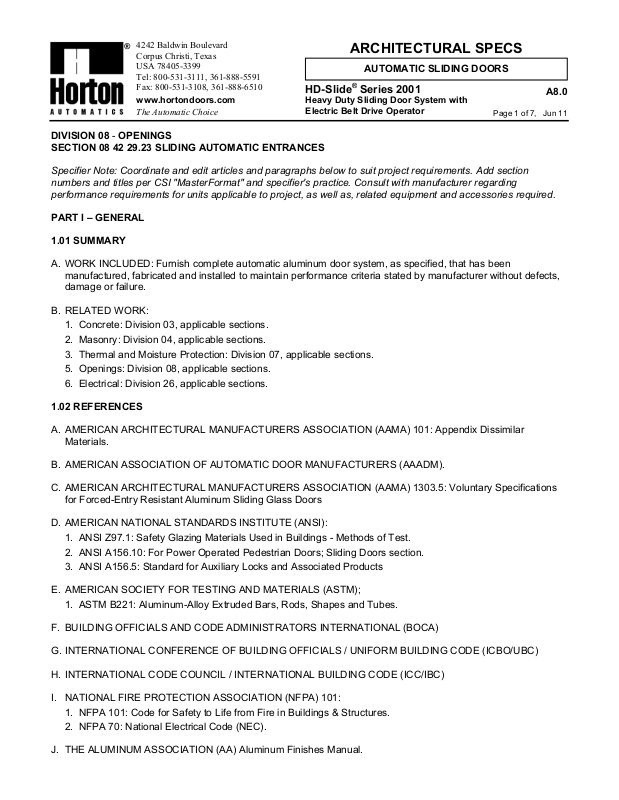

DIVISION 08 - OPENINGS
SECTION 08 42 29.23 SLIDING AUTOMATIC ENTRANCES

Specifier Note: Coordinate and edit articles and paragraphs below to suit project requirements. Add section
numbers and titles per CSI "MasterFormat" and specifier's practice. Consult with manufacturer regarding
performance requirements for units applicable to project, as well as, related equipment and accessories required.

PART I – GENERAL

1.01 SUMMARY

A. WORK INCLUDED: Furnish complete automatic aluminum door system, as specified, that has been

manufactured, fabricated and installed to maintain performance criteria stated by manufacturer without defects,
damage or failure.

B. RELATED WORK:

1. Concrete: Division 03, applicable sections.

2. Masonry: Division 04, applicable sections.

3. Thermal and Moisture Protection: Division 07, applicable sections.

5. Openings: Division 08, applicable sections.

6. Electrical: Division 26, applicable sections.

1.02 REFERENCES

A. AMERICAN ARCHITECTURAL MANUFACTURERS ASSOCIATION (AAMA) 101: Appendix Dissimilar

Materials.

B. AMERICAN ASSOCIATION OF AUTOMATIC DOOR MANUFACTURERS (AAADM).

C. AMERICAN ARCHITECTURAL MANUFACTURERS ASSOCIATION (AAMA) 1303.5: Voluntary Specifications

for Forced-Entry Resistant Aluminum Sliding Glass Doors

D. AMERICAN NATIONAL STANDARDS INSTITUTE (ANSI):

1. ANSI Z97.1: Safety Glazing Materials Used in Buildings - Methods of Test.

2. ANSI A156.10: For Power Operated Pedestrian Doors; Sliding Doors section.

3. ANSI A156.5: Standard for Auxiliary Locks and Associated Products

E. AMERICAN SOCIETY FOR TESTING AND MATERIALS (ASTM);

1. ASTM B221: Aluminum-Alloy Extruded Bars, Rods, Shapes and Tubes.

F. BUILDING OFFICIALS AND CODE ADMINISTRATORS INTERNATIONAL (BOCA)

G. INTERNATIONAL CONFERENCE OF BUILDING OFFICIALS / UNIFORM BUILDING CODE (ICBO/UBC)

H. INTERNATIONAL CODE COUNCIL / INTERNATIONAL BUILDING CODE (ICC/IBC)

I. NATIONAL FIRE PROTECTION ASSOCIATION (NFPA) 101:

1. NFPA 101: Code for Safety to Life from Fire in Buildings & Structures.

2. NFPA 70: National Electrical Code (NEC).

J. THE ALUMINUM ASSOCIATION (AA) Aluminum Finishes Manual.

®

Corpus Christi, Texas
USA 78405-3399
Tel: [phone]
Fax: [phone]

www.hortondoors.com

The Automatic Choice

RCHITECTURAL SPECS

AUTOMATIC SLIDING DOORS

HD-Slide

Heavy Duty Sliding Door System with
Electric Belt Drive Operator

Series 2001

Page 1 of 7,

A8.0

Jun 11

4242 Baldwin Boulevard

A

®

2

®

Corpus Christi, Texas
USA 78405-3399
Tel: [phone]
Fax: [phone]

www.hortondoors.com

The Automatic Choice

RCHITECTURAL SPECS

AUTOMATIC SLIDING DOORS

HD-Slide

Heavy Duty Sliding Door System with
Electric Belt Drive Operator

Series 2001

Page 2 of 7,

A8.1

Jun 11

K. UNDERWRITERS LABORATORY, INC. (USA & CANADA) UL 325: Electrical Door, Drapery, Gate, Louver, and

Window Operators and Systems.

1.03 SUBMITTALS

A. PRODUCT DATA: Submit manufacturer's complete product and installation data.

B. SHOP DRAWINGS: Submit drawings showing layout, profiles, product components including anchorage,

accessories, finish and glazing details (where required).

C. CLOSEOUT SUBMITTALS: Submit the following:

1. Owner’s Manual.

2. Warranty document as specified herein.

3. AAADM inspection compliance form completed and signed by certified AAADM inspector prior to doors being
placed in operation as proof of compliance with ANSI A156.10.

1.04 QUALITY ASSURANCE AND PERFORMANCE REQUIREMENTS

A. INSTALLERS QUALIFICATIONS: Installer shall be factory trained, certified by AAADM, and experienced to

perform work of this section.

B. MANUFACTURER’S QUALIFICATIONS: Manufacturer to have minimum (5) five years successful experience in

the fabrication of automatic doors of the type required for this project. Manufacturer capable of providing field
service representation during installation, approving acceptable installer and approving application method.

C. CERTIFICATIONS: Automatic sliding door systems and options shall be factory certified to meet performance

design criteria in accordance with the following standards:

1. ANSI A156.10: For Power Operated Pedestrian Doors; Sliding Doors section.

2. NFPA 101: Code for Safety to Life from Fire in Buildings & Structures.

3. UL 325: Electrical Door, Drapery, Gate, Louver, and Window Operators and Systems.

4. BOCA: Means of Egress, Power Operated Doors

5. ICBO/UBC: Egress Through Lobbies

6. ICC/IBC: Egress Section

F. OPENING FORCE REQUIREMENTS FOR EMERGENCY EGRESS:

1. Slide-swing panels shall require no more than 50 lbf. (222 N) of force to swing open. Slide-swing panels shall
be capable of swinging out 90° from any position of slide movement.

2. Slide-swing panels and swing-out sidelites shall have torsion spring designed to re-close panel if pushed
open in the direction of egress.

3. If power fails, slide panels can be manually slid open with no more than 15 lbf (222 N) of force.

4. Units are UL listed as an exit way and are compliant with NFPA 101.

G. CLOSING FORCE REQUIREMENTS: Maximum force required to prevent sliding panel from closing = 28 lbf.

(124.5 N) Adjustable Reversing Circuit will reopen door unit if closing path is obstructed.

H. HEADER CAPACITY: Header shall be capable of supporting:

1. Biparting: Up to 300 lbs. (136 kg) per slide panel over spans up to 16’-0” (4877mm) without intermediate
supports.

2. Single Slide: Up to 500 lbs. (227 kg) per slide panel over spans up to 9’-0” (2743mm) without intermediate
supports

4242 Baldwin Boulevard

A

®

3

®

Corpus Christi, Texas
USA 78405-3399
Tel: [phone]
Fax: [phone]

www.hortondoors.com

The Automatic Choice

RCHITECTURAL SPECS

AUTOMATIC SLIDING DOORS

HD-Slide

Heavy Duty Sliding Door System with
Electric Belt Drive Operator

Series 2001

Page 3 of 7,

A8.2

Jun 11

1.05 WARRANTIES

A. MANUFACTURER'S WARRANTY: Units to be warranted against defect in material and workmanship for a

period of one year from the Date of Substantial Completion.
Manufacturer's warranty is in addition to, and not a limitation of, other rights owner may have under Contract
Documents.

B. DISTRIBUTOR'S WARRANTY: One year warranty: Labor & transportation charges for defective parts

replacement.

1.06 PROJECT CONDITIONS

FIELD MEASUREMENTS: Verify actual dimensions/openings by field measurements before fabrication and record
on shop drawings. Coordinate with fabrication and construction schedule to avoid construction delays.

1.07 DELIVERY, STORAGE AND HANDLING

A. ORDERING AND DELIVERY: Comply with factory's ordering instructions and lead time requirements. Delivery

shall be in factory's original, unopened, undamaged containers with identification labels intact.

B. STORAGE AND PROTECTION: Provide protection from exposure to harmful weather conditions and vandalism.

PART II – PRODUCTS

2.01 MANUFACTURER

HORTON AUTOMATICS, a division of Overhead Door Corporation, shall manufacture automatic sliding door(s) of
type(s) and size(s) specified on plans and door schedule.

2.02 EQUIPMENT

A. MANUFACTURED DOOR UNITS: Shall include operator, header with roller track, carrier assemblies, framing

jambs, sliding door panel(s), sidelite(s), activation, safety devices and accessories required for complete
installation.

1. Configuration: Single Slide or Biparting

2. Mounting Type:
a. Perimeter mounted within rough opening with sliding panel(s) sliding along sidelite.
b. Surface mounted with sliding panel(s) sliding along wall eliminating need for sidelite.

3. Door Type:
a. Type 010: Sliding panel(s) ‘X’ shall slide along interior side.
b. Type 110: Slide-swing panel(s) ‘SX’ shall slide along exterior side.
c. Type 310: Slide-swing panel(s) ‘SX’ shall slide along interior side. Unit has Swing-out sidelite ‘SO’.

B. OPERATOR: The Electric Operating Mechanism shall be HD-Slide

®

Series 2001 Belt Drive. Maximum current

draw shall not exceed 3.15 amps. The heavy duty operator shall be mounted and concealed within the header.

1. Operating force shall be accomplished through a 1/8 HP DC permanent magnet motor with heavy duty worm
gear transmission and 1800 RPM working with reinforced drive belt, attached 1/4” thick steel door hangers,
and idler pulley (1/4 HP motor required for door panels weighing 500 lbs). Drive belt to be steel reinforced
nylon, 1" (25.4 mm) wide. Idler pulley to be reinforced, metallic material.

2. Master Control shall be 16 bit microprocessor controller with dual on-board seven-segment alphanumeric
diagnostic display and position encoder. The encoder shall monitor revolutions of the operator shaft and send
