Horstmann C27 User Manual

Download

1.SET indicator 10.Central heating ON indicator

2.Time of day 11.SET positions

3.Switch Period symbol 12.PROGRAMME positions

4.SET Button 13.BOOST symbol

5.Hot water BOOST or adjust (-) button 14.ADVANCE symbol

6.Central heating ADVANCE or adjust (+) button 15.AM/PM symbol

7.Hot water (HW) select or ENTER Button 16.Day of week indicator

8.Central heating (CH) select or COPY button 17.PROGRAMME indicators

9.Hot water ON indicator

CCEENNTTAAUURRPPLLUUSS CC2277

UUSSEERR IINNSSTTRRUUCCTTIIOONNSS

QQUUEESSTTIIOONNSS AANNDD AANNSSWWEERRSS

The unit display has become frozen

The indicator neon fails to illuminate on Hot water or Central heating channel

The indicator neon will illuminate but the pump and/or boiler fails to operate

There is no display on the programmer

How do I know if the programmer is still under warranty

How is the programmer removed from the wall

This could be due to local electrical interference Using the RESET procedure may rectify the fault.

Using the RESET procedure may rectify the fault. If the problem persists the programmer will need replacing.

This may indicate a problem elsewhere in your system; E.g. A zone valve, etc. please contact a registered installer for advice.

Try the RESET procedure on page 2, if this fails to rectify the problem please have the mains supply checked

The CentaurPlus range comes with a 2 year guarantee from the date of manufacture. This date is located on the rear of the unit, indicated by a month over a year

WWAARRNNIINNGG::

The CentaurPlus programmer must only be removed from it’s backplate by either a qualified electrician or heating engineer; The programmer plugs in to a 6 pin backplate located on the rear of the unit and is secured using 2 screws located on the bottom surface of the unit. Undo these screws and pull forward and up in an arc motion

LEAFLET No P60498

ISSUE 4

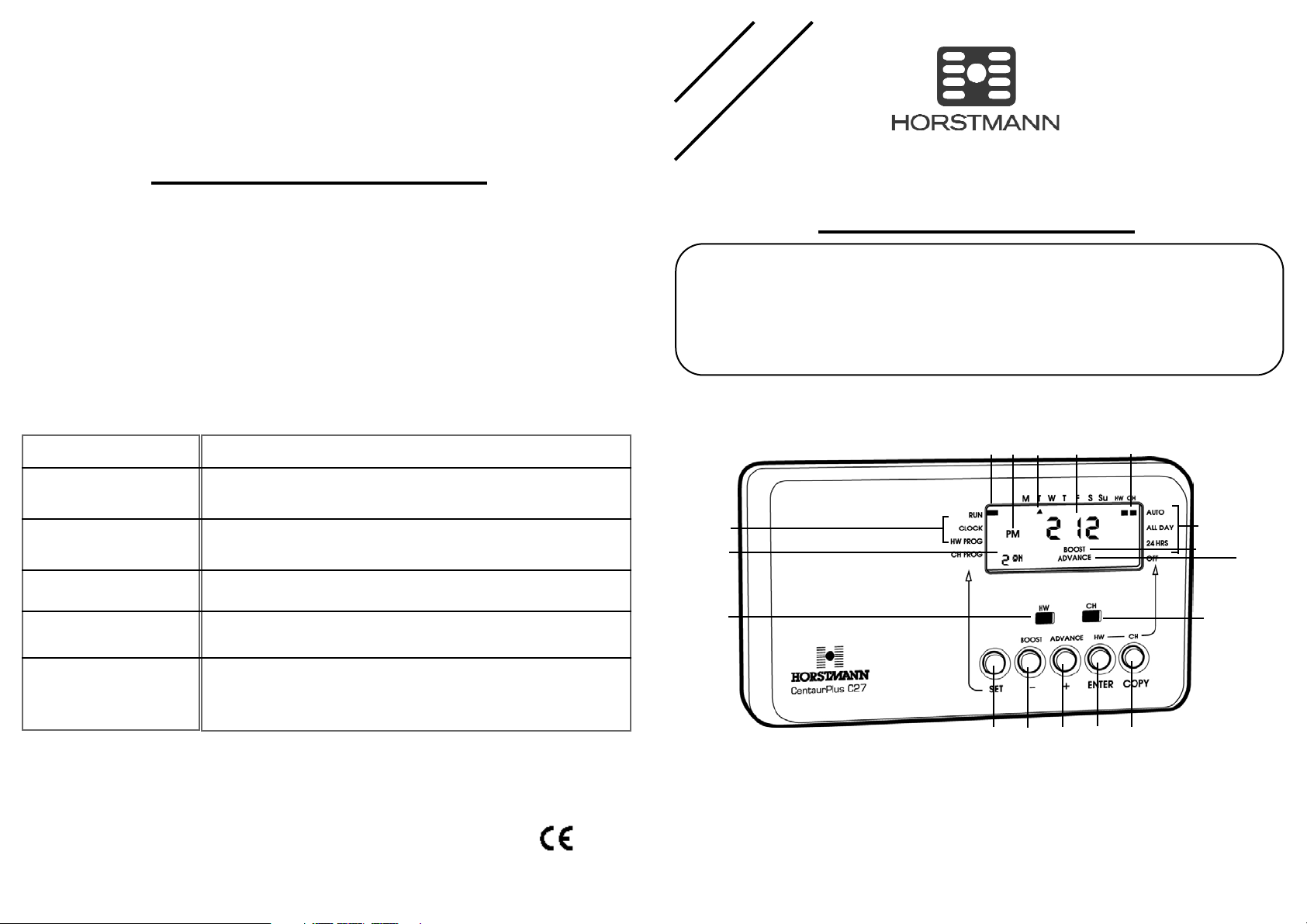

FRONT VIEW OF PROGRAMMER

PPaaggee 11

PPaaggee 44

TThhee ffoolllloowwiinngg aarree ssoommee ooff tthhee eeaassyy ttoo ooppeerraattee ffeeaattuurreess::--

FFlleexxiibbllee 77 DDaayy CCoonnttrrooll

11 HHoouurr BBoooosstt oonn HHoott WWaatteerr

IInnddeeppeennddeenntt ttiimmiinngg oonn HHoott WWaatteerr aanndd HHeeaattiinngg

CCeennttrraall HHeeaattiinngg AAddvvaannccee ggiivveess iinnssttaanntt OOnn//OOffff oovveerrrriiddee

UUpp ttoo 33 OOnn//OOffff ppeerriiooddss ppeerr cchhaannnneell iinn eeaacchh 2244HHrr ooppeerraattiioonn..

PPrrooggrraammmmee ooppttiioonnss:: AAuuttoo // AAllll ddaayy // 2244 HHoouurrss // OOffff

SSEERRVVIICCEE AANNDD RREEPPAAIIRR

This programmer is NOT user serviceable. Please do not dismantle the unit. In the unlikely event of a fault developing please refer to the RESETTING THE PROGRAMMER section of this user guide located on page 2. If this fails to resolve the problem please contact a local heating engineer or a qualified electrician.

BBAATTTTEERRYY

The programmer is fitted with a non-rechargeable, long life battery, which will maintain the programmed time settings for a minimum of ten months with the supply disconnected. THIS SHOULD BE SUFFICIENT TO COVER POWER INTERRUPTIONS DURING THE LIFE OF THE UNIT. During power interruptions the display will be blank, after 3 days the current time of day will be lost. These measures are to prolong the battery life.

HHoorrssttmmaannnn’’ss CC2277 -- TTwwoo CChhaannnneell PPrrooggrraammmmeerr

Offers up to three programmed operating periods per day, seven days a week, with Hot water Boost and Heating Advance control on a fully pumped system.

15316

Horstmann Controls Limited

Bristol

BS4 1UP

Email: sales@horstmann.co.uk

Website: www.horstmann.co.uk

TThhee ssiimmppllee iinnssttrruuccttiioonnss bbeellooww aarree ddeessiiggnneedd ttoo hheellpp wwiitthh tthhee pprrooggrraammmmiinngg ooff tthhee uunniitt..

Electronic equipment can in some circumstances be affected by electrical interference. If the programmer’s display becomes frozen or scrambled; or if you wish to revert back to the default time settings please use the following procedure.

SETTING DAY AND TIME OF DAY

Should you encounter any problems, please refer to the

QQuueessttiioonn aanndd AAnnsswweerr

section located on page 4.

RESETTING THE PROGRAMMER

Press SELECT once.

Programme goes from

AUTO to ALL DAY

Press SELECT again.

Programme goes from

ALL DAY to 24 HRS

Press SELECT again.

Programme goes from

24 HRS to OFF

Press SELECT again.

Programme goes from

OFF to AUTO

Channel will operate

from first ON until last

OFF period

Channel will be continuously ON

Channel will be

continuously OFF

Programmer will return

to normal ON and OFF

times

BOOST FUNCTION - 1hour temporary override

Press BOOST button:

Your Hot Water will be

Boosted for 1 hour

At any time during a BOOST period press BOOST again to

return to normal

programming

ADVANCE FUNCTION - Brings forward next ON or OFF operation

Press ADVANCE button

to move to the next

Heating ON/OFF time

To cancel the advance press the ADVANCE

button again. This will return the unit to

its normal programme

INFORMATION AND ADVICE

Programming ON/OFF times

If a Heating or Hot water period is not required it can be cancelled by setting the ON and OFF

settings to the same time. Example ON 10:00am OFF 10:00am

FULLY PUMPED OR GRAVITY SYSTEM

The installer will have set the programmer to suit the installed system. If this is a Fully pumped system this will allow independent control of the Central heating and Hot water, however on a Gravity system the Central heating and Hot water are linked so that it is not possible to use the Central heating independently. This will allow only one common time setting for both Hot Water and Central Heating.

PPaaggee 22

PPaaggee 33

Press the SET

button until the SET

indicator is next to the

CLOCK position.

Use

PLUS and

MINUS

buttons to

adjust time

Use PLUS

and MINUS

buttons to

adjust day

Press

ENTER

Press SET button

until the SET

indicator is next to

the Central Heating

or Hot Water

position

Repeat this

process for 2nd

and 3rd settings

Press

ENTER

Press

ENTER

Press

ENTER

SETTING THE ON AND OFF TIMES

The SET indicator must remain in the RUN position for the following instructions.

The following actions work independently on either Hot Water or Central Heating.

SPECIAL FEATURES

Use PLUS

and MINUS

buttons to adjust day

Use PLUS and

MINUS buttons to adjust the 1st ON time.

Use the PLUS

and MINUS buttons to adjust the 1st OFF time.

Programme the remaining days.

If you require this programme on any other day of the week use the

PLUS and MINUS buttons to

select day and press COPY

Press the SET

button until the SET

indicator is next to the

RUN position.

Press

ENTER

Press SET button

until the SET

indicator is returned

to RUN position

6:35

M T W T F S Su

SET

M T W T F S Su

AUTO ALL DAY 24 HRS OFF

HW CH

12:00

RUN

CLOCK

HW PROG

CH PROG

M T W T F S Su

DAY

RUN

CLOCK

HW PROG

CH PROG

M T W T F S Su

6:30

RUN

CLOCK

HW PROG

CH PROG

RUN

CLOCK

HW PROG

CH PROG

6:35

AUTO ALL DAY 24 HRS OFF

6:35

RUN

CLOCK

HW PROG

CH PROG

BOOST

M T W T F S Su

AUTO ALL DAY 24 HRS OFF

6:35

RUN

CLOCK

HW PROG

CH PROG

ADVANCE

HW CH

Press the SET and CH buttons together then release the buttons and the programmer will return to preset factory settings.

MON-FRI

SAT/SUN

1st ON 1st OFF 2nd ON 2nd OFF 3rd ON 3rd OFF
