Horizon Hobby Manta Blade Instruction Manual

Page 1

Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni

Page 2

• Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always move the throttle fully down at rotor strike.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

Age Recommendation: Not for children under 14 years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace a Spektrum component found in a Horizon Hobby product, always purchase from

Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and

warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury. CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury. WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of

superﬁ cial injury.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

Safety Precautions and Warnings

As of this printing, you are required to register with the FAA if you own this product.

For up-to-date information on how to register with the FAA, please visit https://registermyuas.faa.gov/. For additional assistance on regulations and guidance on UAS usage, visit knowbeforeyouﬂ y.org/.

If you are operating this product in North America, you are required to have an Amateur Radio (HAM) license. Visit www.arrl.org for more information.

Page 3

Box Contents:

• Manta FPV Wing

-C enter section with electronic components installed

-Right and left wing panels

-Main spar

-2 leading edge spars

-2 pushrods with clevises

-Motor mounting plate

-Standard up-swept wingtips

-Optional ﬂ at wingtips

-Video antenna support

-Propeller adapter

-2 5.5 x 4.5 propellers

-3 decal sheets

Needed to Complete:

• CA, Epoxy or Polyurethane adhesive

• Battery (3S, 2100mAh or 4S, 1300-1800mAh LiPo)

• LiPo compatible charger

• Propeller (6 x 4 for 3S setup, 5.5 x 4.5 for 4S setup)

• DSM2

/DSMX® compatible,

full range transmitter

• 5.8GHz FPV headset

Wingspan

43 in (670mm)

Length

19.5 in (215mm)

Flying Weight

25.4 oz (850 g)

Speciﬁ cations

To receive product updates, special offers and more, register your product at www.bladehelis.com.

Table of Contents

First Flight Preparation .......................................................................................4

Flying Checklist ..................................................................................................4

Assembly ........................................................................................................... 4

Transmitter Setup ..............................................................................................7

Flight Battery Installation and ESC Arming ..........................................................7

Transmitter and Receiver Binding .......................................................................7

Control Surface Centering ..................................................................................8

AS3X

Control Direction Test .............................................................................. 8

Install the Propeller ............................................................................................8

Balance the Airframe ..........................................................................................8

Flying the Manta ................................................................................................9

Post-Flight Inspection and Maintenance .............................................................9

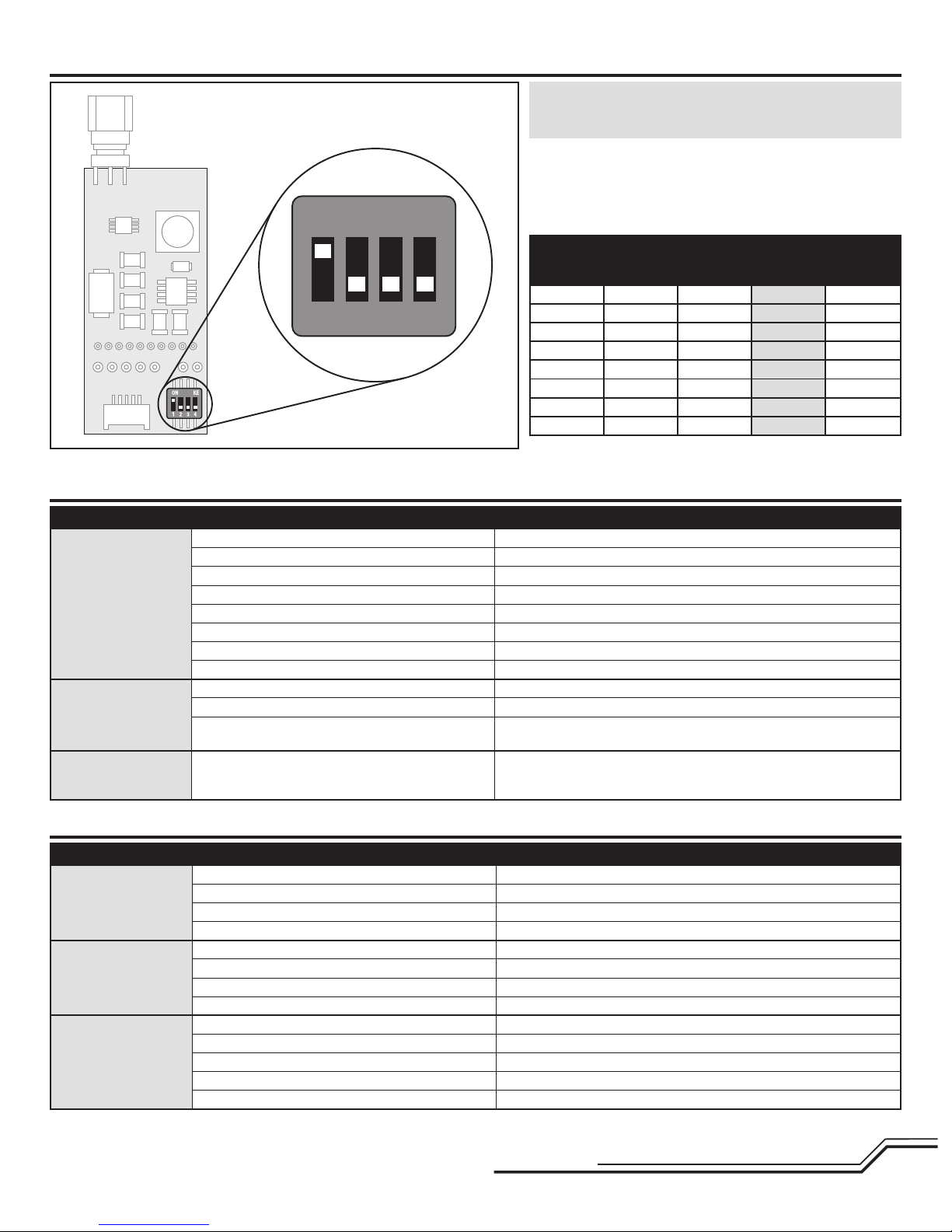

Changing Video Transmitter Frequency .............................................................10

AS3X Troubleshooting Guide .............................................................................10

Troubleshooting Guide ...................................................................................... 10

Parts List..........................................................................................................11

Optional Parts List ............................................................................................11

Limited Warranty ..............................................................................................12

Warranty and Service Contact Information ........................................................12

FCC Information ...............................................................................................13

IC Information ..................................................................................................13

Compliance Information for the European Union ...............................................13

Page 4

First Flight Preparation

• Remove and inspect contents

• Begin charging the ﬂ ight battery

• Assemble the aircraft

• Program your computer transmitter

• Install the ﬂ ight battery in the aircraft (once it has been fully charged)

• Bind your transmitter

• Familiarize yourself with the controls

• Find a suitable area for ﬂ ying

Flying Checklist

❏ Always turn the transmitter on ﬁ rst

❏ Plug the ﬂ ight battery into the lead from the ESC ❏ Allow the ESC to initialize and arm properly ❏ Fly the model ❏ Land the model ❏ Unplug the ﬂ ight battery from the ESC

❏ Always turn the transmitter off last

Assembly

Install the Main Spar

Slide the carbon main spar through the hole in the center wing section until both ends of the spar extend an equal amount. The spar will ﬁ t tightly in the center section. Work slowly and carefully to avoid damaging the foam material.

NOTICE: When using cyanoacrylate (CA) adhesive to join or repair the airframe, DO NOT allow the adhesive to contact or get close to the fpv camera lens. The vapors from the adhesive will permanently fog the camera lens.

Prior to beginning assembly, inspect all of the foam parts. Using a hobby knife or sandpaper, remove any excess ﬂ ash or rough edges.

Install the Motor

NOTICE: The Manta FPV Wing is shipped with the ESC installed and

the motor soldered directly to the circuit board. Care must be taken to not damage the motor wires or the ESC circuit board while handling or installing the motor to the airframe.

1. Attach the motor mounting plate to the motor using 2.5mm ﬂ athead screws and threadlock, with the motor wires oriented as shown in the illustration.

2. Carefully move the motor into position against the motor mount.

3. Attach the motor mounting plate to the motor mount as shown, using

2.5mm screws and threadlock.

Page 5

Install the Wings

1. Apply glue to the mating surfaces of the wing panel and center

section. DO NOT apply glue to the end of the elevon or to the center section where the elevon meets it.

2. Carefully slide the wing panel fully onto the main spar until the wing panel and center section line up.

3. Use masking tape to hold the wing and center section together until the glue fully cures.

4. Repeat steps 1-3 for the other wing panel.

Install the Wingtips

The Manta FPV Wing inludes two styles of wingtips. The standard, upswept wingtip is shown in the illustrations. The ﬂ at wingtips are provided so the pilot can custom design his or her own vertical tip plates.

NOTICE: Attempting to ﬂ y the Manta without either the standard wingtip or ﬂ at wingtip with vertical tip plates installed will make the aircraft unstable and may cause a crash. Crash damage is not

covered under warranty.

1. Glue the wingtip to the wing panel. DO NOT apply glue to the end of the elevon or to the wingtip where the elevon meets it.

2. Use masking tape to hold the wingtip to the wing panel until the glue fully cures.

3. Repeat steps 1-2 for the other wing panel.

NO GLUE

Install the Leading Edge Spar

1. Glue the leading edge spar into the slot as shown. Be sure to insert the spar fully into the slot. Bend the spar slightly as it is inserted to follow the curve of the slot. The spar should extend from the wingtip through the wing panel and into the center section.

2. Allow the glue to cure fully.

3. Repeat for the other wing panel.

Page 6

Install the Optional Camera

The center section of the wing has space provided for the addition of an optional video camera.

1. Remove the center section cover by turning the latches as shown.

2. Insert your camera as shown, lining the lens up with the opening in the wing. Soft foam can be used if necessary to help hold the camera in place and dampen vibration.

3. Replace the center section cover.

Install the Control Rods

1. Install the control rods as shown. The control rods should be placed in the outermost holes in both the elevon control horns and servo arms.

2. Place a small piece of silicone tubing over the clevis to keep the clevis from opening in ﬂ ight.

3. Repeat steps 1-2 for the other wing panel.

Install the Video Antenna Support

1. Ensure the video transmitter antenna connection is tight. If the antenna has loosened during shipping, remove the video transmitter cover and tighten the antenna.

2. Carefully ﬂ ex the antenna cable until it is upright, perpendicular to the upper surface of the wing.

3. Slide the antenna support through the bottom of the wing around the antenna cable as shown.

4. Apply a piece of tape over the support to secure it in place.

Locked

Unlocked

Page 7

Program Your Transmitter

1. Set the model type to “Airplane.”

2. Assign channel 5 (Gear) to a 3-position switch. In the table at left,

switch B is used.

3. Leave all other settings at the default values.

Switch B will now control the ﬂ ight mode function. If, after ﬂ ying the aircraft, more or less exponential or dual rate values

are desired, those may be adjusted up or down to suit your ﬂ ying style.

Transmitter Setup

Timer Mode Count Down Time 5:00 Start Throttle Out Over 25% One Time Inhibit

Chan Travel Reverse THR 100/100 Normal AIL 100/100 Normal ELE 100/100 Normal

Chan Travel Reverse RUD 100/100 Normal GER 100/100 Normal AUX1 100/100 Normal

Servo Setup

FUNCTION LIST

D/R & Expo

Chan

Switch (B)

Pos D/R Expo

AILE

0 100/100 0 1 100/100 0 2 100/100 0

ELEV

0 100/100 0 1 100/100 0 2 100/100 0

SETUP LIST

F-Mode Setup Switch 1 Inhibit Switch 2 Inhibit

Model Type

Airplane

Channel Assign

Channel Input Conﬁ g 1 Throttle 2 Aileron 3 Elevator 4 Rudder 5 Gear Switch B 6 Aux 1

Frame Rate

22ms DSMX

DX6, DX7 (Gen 2), DX8 (Gen 2), DX9, DX18, DX20

1. Remove the center section cover by turning the latches as shown.

2. Insert the ﬂ ight battery as shown. The use of hook and loop tape is recommended to secure the battery in the compartment.

3. Connect the battery connector to the ESC power lead, noting correct polarity. The ESC is now armed.

4. Keep the aircraft out of the wind and immobile for approximately 5 seconds, until the receiver initializes. The ESC will emit a series of tones and the LED on the receiver will light. If the receiver LED ﬂ ashes rapidly, proceed to the Transmitter and Receiver Binding section.

5. Replace the center section cover.

Flight Battery Installation and ESC Arming

Locked

Unlocked

NOTICE: Do not install the propeller and propeller adapter to the motor shaft prior to binding to prevent injury or damage due to unexpected motor startup during binding.

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identiﬁ er) code of a single speciﬁ c transmitter. You need to ‘bind’ your chosen Spektrum™ DSM2®/DSMX® technology equipped aircraft transmitter to the receiver for proper operation.

If you encounter problems, obey binding instructions and refer to your transmitter troubleshooting guide for other instructions. If needed, contact the appropriate Horizon Product Support ofﬁ ce.

Transmitter and Receiver Binding

Binding Procedure

1. Insert the bind plug in the BIND port on the receiver.

2. Connect the battery connector to the ESC power lead. The orange LED on the receiver ﬂ ashes rapidly, indicating the receiver is in bind mode.

3. Lower the throttle stick to the lowest position. Set all trims to the center position.

4. Follow the procedures of your speciﬁ c transmitter to enter Bind Mode. The system will connect within a few seconds. Binding is complete when the orange LED on the receiver glows solid.

5. Remove the bind plug from the BIND/PROG port, and store it in a convenient place.

6. Disconnect the battery from the ESC power lead.

7. Power off the transmitter.

BIND Throttle Right Elevon Left Elevon

LED

WARNING: You must move the throttle to the LOW/OFF position prior to binding. Failure to do so may cause the motor to start unexpectedly during binding, which could result in damage to property and injury.

NOTICE: Remove the bind plug to prevent the system from entering bind mode the next time the power is turned on.

Page 8

NOTICE: Remove the propeller and propeller adapter from the motor shaft during control surface adjustments. Any movement of the throttle (even accidental) will cause the propeller to spin.

With the receiver powered on, center the controls and trims. When the controls are neutral, the elevons should have a slight upward deﬂ ection. The bottom of the trailing edge of the elevon should align with the top of the trailing edge of the center section, as shown in the illustration. Disconnect the clevis from the control horn and adjust the clevis on the control rod mechanically until the deﬂ ection of the elevon is correct.

When the elevon neutral position is correct, power off the receiver.

This test ensures that the AS3X control system is functioning properly. Assemble the aircraft and make sure your transmitter is properly bound to the receiver before performing this test.

1. Firmly grip the airframe, keeping hands and loose clothing away from the propeller.

2. Advance the throttle to just above 25% and then lower the throttle to activate the AS3X system.

3. Move the entire aircraft as shown, paying attention to the elevons as you move it. The elevons should move in the directions indicated in the illustration. If they do not respond as shown, DO NOT ﬂ y the aircraft. Refer to the receiver manual for information on how to reverse the elevon channels.

Once the AS3X system is activated, the control surfaces may move rapidly. This is normal. The AS3X system is active until the battery is disconnected.

After completing the control direction test, power off the receiver.

Control Surface Centering

AS3X® Control Direction Test

Aircraft Movement Elevon Reaction

Page 9

Install the Propeller

Balance the Airframe

Flight Modes Explained

If you are using a 4S battery, a 5.5’ x 4.5’ propeller is recommended. If you are using a 3S battery, a 6’ x 4’ propeller is recommended.

Install the propeller adapter, propeller, washer and nut on the motor shaft as shown. The front of the propeller should face toward the motor and the front of the aircraft. Placing the propeller on backwards will cause a dramatic decrease in performance.

Do not overtighten the nut as damage to the propeller or propeller adapter may result.

NOTICE: DO NOT omit this step. Failure to balance the airframe properly will make the aircraft uncontrolable and will cause a crash. Crash damage is not covered under warranty.

1. The center of gravity is located 5 in (125mm) from the leading edge of the center section at the front edge of the center throwing hole as shown. Add weight to either the front or rear of the center section until proper balance is achieved. If you elected to not install an optional video camera, you will need to add weight to the front compartment to achieve proper balance.

2. Check the lateral balance. If necessary, add weight to the light wingtip in very small increments.

The Manta FPV Wing has three ﬂ ight modes pre-programmed into the receiver:

Launch Mode (switch position 0)

In Launch Mode the aircraft will self level and has bank and pitch limiting. At full throttle, the aircraft will have a gradual climbing attitude. Pull back on the elevator stick if a faster rate of climb is needed or desired.

Launch mode can also be used as an attitude recovery mode. If the aircraft is in an unknown or unexpected attitude while in Intermediate or Experienced mode, change to Launch mode and release the sticks to return the aircraft to upright and level ﬂ ight.

NOTICE: The aircraft must have sufﬁ cient altitude and enough distance away from any obstacles to return to upright level ﬂ ight.

Intermediate Mode (switch position 1)

In Intermediate Mode the aircraft has bank and pitch limiting to help prevent the pilot from over-controlling. The aircraft dampens any outside forces to give a smooth ﬂ ight performance, even in moderate wind and turbulence. This mode does not have self leveling. Use this mode to help get the feel of the aircraft before moving on to more advanced aerobatic ﬂ ight.

Experienced Mode (switch position 2)

Experienced Mode has no bank or pitch limiting, giving an unlimited ﬂ ight envelope. The aircraft dampens any outside forces to give a smooth ﬂ ight performance, even in moderate wind and turbulence.

5 in.

(125mm)

Page 10

Flying the Manta

Consult local laws and ordinances before choosing a ﬂ ying location.

Range Check your Radio System

Before you ﬂ y, range check the radio system. Refer to your speciﬁ c transmitter instruction manual for range test information.

Oscillation

Once the AS3X system is active (after advancing the throttle for the ﬁ rst time), you will normally see the control surfaces react to aircraft movement. In some ﬂ ight conditions you may see oscillation (the aircraft rocks back and forth on one axis due to overcontrol). If oscillation occurs, refer to the Troubleshooting Guide for more information.

Flying

We recommend ﬂ ying the Manta using line of sight for the ﬁ rst few ﬂ ights, until you are familiar with characteristics of the aircraft. Once you are comfortable, you may proceed to ﬂ ying the aircraft using FPV. Always choose a wide-open space for ﬂ ying. Due to the higher speeds of this aircraft, it does require more room to ﬂ y than average foam models. It is ideal for you to ﬂ y at a sanctioned ﬂ ying ﬁ eld. If you are not ﬂ ying at an approved site, always avoid ﬂ ying near houses, trees, wires and buildings. You should also be careful to avoid ﬂ ying in areas where there are many people, such as busy parks, schoolyards, or soccer ﬁ elds.

Hand Launching

For the ﬁ rst few ﬂ ights, we recommend you use the help of a friend to hand launch the model. Hold the aircraft with the ﬁ nger grips on the underside of the center section. Set the ﬂ ight mode to Launch Mode. With the throttle off, give the aircraft a ﬁ rm throw directly into the wind at a slight upward angle (10 degrees above the horizon). As you let go of the aircraft, advance the throttle and climb out.

CAUTION: DO NOT advance the throttle before tossing the aircraft. Serious injury may result from the spinning propeller hitting your throwing

hand or arm. Always FIRST toss the aircraft, and THEN advance the throttle.

In ﬂ ight trimming

During your ﬁ rst ﬂ ight, while ﬂ ying in either Intermediate or Experienced Mode, trim the aircraft for level ﬂ ight at 3/4 throttle. Make small trim adjustments with your transmitter trim switches to straighten the aircraft’s ﬂ ight path.

NOTICE: DO NOT attempt to trim the aircraft in Launch Mode. After landing, adjust the linkages mechanically to account for trim changes and

then reset the trims to neutral. Ensure the aircraft will ﬂ y straight and level with no trim or sub-trim.

Landing

For your ﬁ rst ﬂ ights with the recommended battery pack, set your transmitter timer to 3 minutes. After three minutes, land the aircraft. Adjust your timer for longer or shorter ﬂ ights once you have ﬂ own the model. If at any time the motor pulses, land the aircraft immediately to recharge the ﬂ ight battery. See the Low Voltage Cutoff (LVC) section for more details on maximizing battery health and run time. Land the aircraft into the wind in a soft area, such as tall grass. Use a small amount of throttle for the initial approach. Once the aircraft is on a proper approach angle, and the aircraft will land in the proper area, remove all throttle, but maintain the descent. During approach and landing, keep the wings level and the aircraft pointed into the wind. As you approach 2-3 feet in altitude, begin your ﬂ are. Continue easing back on the elevator to bring the aircraft down gently on the belly.

NOTICE: If a crash is imminent, reduce the throttle and trim fully. Failure to do so could result in extra damage to the airframe, as well as damage to the ESC and motor.

NOTICE: After any impact, always ensure the receiver is secure in the fuselage. If you replace the receiver, install the new receiver in the same orientation as the original receiver or damage may result.

NOTICE: Crash damage is not covered under warranty. NOTICE: When you are ﬁ nished ﬂ ying, never leave the aircraft in direct sunlight

or in a hot, enclosed area such as a car. Doing so can damage the aircraft.

Low Voltage Cutoff (LVC)

When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The ESC protects the ﬂ ight battery from over-discharge using Low Voltage Cutoff (LVC). Before the battery charge decreases too much, LVC removes power supplied to the motor. Power to the motor pulses, showing that some battery power is reserved for ﬂ ight control and safe landing. Disconnect and remove the Li-Po battery from the aircraft after use to prevent trickle discharge. Charge your Li-Po battery to about half capacity before storage. During storage, make sure the battery charge does not fall below 3V per cell. LVC does not prevent the battery from over-discharge during storage.

NOTICE: Repeated ﬂ ying to LVC will damage the battery.

Repairs

Repairs to the foam can be made using virtually any adhesive (hot glue, CA, epoxy, etc). When parts are not repairable, see the Parts List for ordering a replacement airframe. For a listing of all replacement components and optional parts, refer to the list at the end of this manual.

NOTICE: When using cyanoacrylate (CA) adhesive to join or repair the airframe, DO NOT allow the adhesive to contact or get close to the fpv camera lens. The

vapors from the adhesive will permanently fog the camera lens.

Post-Flight Inspection

Cleaning Make sure the battery is not connected before cleaning. Remove dust and debris with a soft brush or a dry lint free cloth.

Airframe

Check the airframe for any cracks or other damage. Minor repairs to the foam can be made using CA or epoxy. Badly damaged parts should be replaced.

Control Linkages

Make sure the control horns are secure. Make sure the control rods are secure in the control horns. Make sure the clevises are tight and the silicone retainers are in place.

Wiring Make sure wiring does not contact moving parts. Replace damaged wiring and loose connectors.

Fasteners

Make sure there are no loose screws, other fasteners or connectors. Do not over tighten metal screws in plastic parts. Tighten screw so parts are mated together, then turn screw only 1/8th of a turn more.

Propeller

Make sure there is no damage to the propeller blades. Damage includes cracks, burrs, chips or scratches. Replace damaged parts before the next ﬂ ight.

Receiver

Make sure the AR636 receiver is securely attached to the frame. Replace the double-sided tape when necessary. The aircraft will crash if the receiver separates from the frame.

Page 11

AS3X Troubleshooting Guide

Changing Video Transmitter Frequency

Troubleshooting Guide

Problem Possible Cause Solution

Oscillation in ﬂ ight

Damaged propeller Replace propeller Propeller out of balance Balance the propeller Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed Loose receiver Align and secure receiver in fuselage Loose aircraft controls Tighten or otherwise secure parts (servo, arm, linkage, horn and control surface) Worn parts Replace worn parts (especially propeller or servo) Irregular servo movement Replace servo Too high of gain value in AR636 Refer to the AR636 manual to reduce gain value.

Inconsistent ﬂ ight performance

Trim is not at neutral If you adjust trim more than 8 clicks, adjust the clevis to remove trim Sub-Trim is not at neutral No Sub-Trim is allowed. Adjust the servo linkage Aircraft was not kept immobile for 5 seconds after battery

connection.

With the throttle stick in lowest position. Disconnect battery, then reconnect battery and keep the aircraft still for 5 seconds

Incorrect response to the AS3X Control Direction Test

Incorrect direction settings in the receiver, which can cause a crash

DO NOT ﬂ y. Correct the direction settings (refer to the receiver manual)

Problem Possible Cause Solution

Aircraft will not respond to throttle but responds to other controls

Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater Throttle channel is reversed Reverse throttle channel on transmitter Motor disconnected from ESC Make sure motor is connected to the ESC

Extra propeller noise or extra vibration

Damaged propeller and spinner, collet or motor Replace damaged parts Propeller is out of balance Balance or replace propeller Prop nut is too loose Tighten the prop nut Spinner is not tight or fully seated in place Tighten the spinner or remove the spinner and turn it 180 degrees

Reduced ﬂ ight time or aircraft underpowered

Flight battery charge is low Completely recharge ﬂ ight battery Propeller installed backwards Install propeller with numbers facing forward Flight battery damaged Replace ﬂ ight battery and follow ﬂ ight battery instructions Flight conditions may be too cold Make sure battery is warm before use Battery capacity too low for ﬂ ight conditions Replace battery or use a larger capacity battery

NOTICE: Do not remove the clear plastic shrink wrap from around the video transmitter. Removal may result in damage to the components attached to the board.

The supplied video transmitter is capable of transmitting on various frequencies within the 5.8GHz band. Changing between frequencies is accomplished by changing 3 of the 4 dip switches on the transmitter board.

The 4th switch is not used, so its position is irrelevant.

Follow the table below to select the desired video frequency.

Switch Number

Frequency

(MHz)

1234

(not used)

OFF OFF OFF 5860

ON OFF OFF 5860 ON ON OFF 5820

ON ON ON 5740 OFF OFF ON 5800 OFF ON ON 5760

ON OFF ON 5780 OFF ON OFF 5840

ON KE

234

If you are operating this product in North America, you are required to have an Amateur Radio (HAM) license. Visit www.arrl.org for more information.

Page 12

Replacement Parts

Optional Parts

Problem Possible Cause Solution

Aircraft will not Bind to transmitter (during binding)

Transmitter too near aircraft during binding process

Move powered transmitter a few feet from aircraft, disconnect and reconnect ﬂ ight battery to aircraft

Aircraft or transmitter is too close to large metal object, wireless source or another transmitter

Move aircraft and transmitter to another location and attempt binding again

The bind plug is not installed correctly in the bind port Install bind plug in bind port and bind the aircraft to the transmitter Flight battery/transmitter battery charge is too low Replace/recharge batteries

Bind switch or button not held long enough during bind process

Power off transmitter and repeat bind process. Hold transmitter bind button or switch until receiver is bound

Aircraft will not connect to transmitter (after binding)

Transmitter too near aircraft during connecting process

Move powered transmitter a few feet from aircraft, disconnect and reconnect ﬂ ight battery to aircraft

Aircraft or transmitter is too close to large metal object, wireless source or another transmitter

Move aircraft and transmitter to another location and attempt connecting again

Bind plug left installed in bind port Rebind transmitter to the aircraft and remove the bind plug before cycling power Aircraft bound to different model memory

(ModelMatch

radios only)

Select correct model memory on transmitter

Flight battery/Transmitter battery charge is too low Replace/recharge batteries Transmitter may have been bound to a different aircraft

using different DSM protocol

Bind aircraft to transmitter

Control surface does not move

Control surface, control horn, linkage or servo damage Replace or repair damaged parts and adjust controls Wire damaged or connections loose Do a check of wires and connections, connect or replace as needed Transmitter is not bound correctly or the incorrect airplanes

was selected

Re-bind or select correct airplanes in transmitter

Flight battery charge is low Fully recharge ﬂ ight battery BEC (Battery Elimination Circuit) of the ESC is damaged Replace ESC

Controls reversed Transmitter settings are reversed Set all transmitter control directions to normal

Motor power pulses then motor loses power

ESC uses default soft Low Voltage Cutoff (LVC) Recharge ﬂ ight battery or replace battery that is no longer performing Weather conditions might be too cold Postpone ﬂ ight until weather is warmer Battery is old, worn out, or damaged Replace battery Battery C rating might be too small Use recommended battery

Horizontal lines in the headset display

Digital interference on the selected channel Choose a cleaner channel

Static or “snow” in the FPV feed

The aircraft has reached the range limit for the video transmitter and receiver

Fly the aircraft back to within video range

There is an obstruction between the aircraft and the video receiver

Do not ﬂ y behind objects such as buildings or trees

Static on all video channels

Video transmitter power is off

Connect the ﬂ ight battery to the ESC. Check the video transmitter power connection

Blurry Image Image is out of focus Rotate the camera lens slowly to focus the camera

Part # Description

BLH01001 Manta Airframe Only BLH01002 2221-1800kv Brushless Out-Runner Motor SPMSH3050 H3050 Sub-Micro Digital Heli Cyclic MG Servo IRL2101 600mW 5.8GHz A/V Transmitter

Part # Description

IRLSN5G8RHSET SpiroNet 5.8GHz RHCP Ant Set (2pc) CSE010012200 Talon 35 Helicopter ESC FSV1204 700TVL WDR CMOS Fixed Mount FPV Camera with wide angle lens SPMAR636 AR636 6-Ch AS3X Sport Receiver

Part # Description

EFLB22003S50 2200mAh 3S 11.1V 50C LiPo 13AWG EC3 EFLRB13004S35 Thrust

™

14.8V 1300mAh 35C 4S LiPo Battery APC06040 Sport Propeller, 6 x 4 APC05545 Speed 400 Propeller, 5.5 x 4.5 SPMVR2500 Focal

™

FPV Wireless Headset

Page 13

Limited Warranty

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modiﬁ cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with applicable technical regulations, or (vii) use that violates any applicable laws, rules, or regulations. OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, ﬁ nal assembly, modiﬁ cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conﬂ ict of law principals). This warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must

contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_service-center_render-servicecenter. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship Li-Po batteries to Horizon. If you have any issue with a Li-Po battery, please contact the appropriate Horizon Product Support ofﬁ ce.

Warranty Requirements For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been

met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service Should your service not be covered by warranty, service will be completed and payment will be required without notiﬁ cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting

the item for service you are agreeing to payment of the service without notiﬁ cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby.com/ content/_service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold non-compliant Product for a period of 60 days from notiﬁ cation, after which it will be discarded. 10/15

Warranty and Service Contact Information

Country of Purchase Horizon Hobby Contact Information Address

United States of America

Horizon Service Center (Repairs and Repair Requests)

servicecenter.horizonhobby.com/RequestForm/

4105 Fieldstone Rd Champaign, Illinois, 61822 USA

Horizon Product Support (Product Technical Assistance)

productsupport@horizonhobby.com 877-504-0233

Sales

websales@horizonhobby.com 800-338-4639

United Kingdom

Service/Parts/Sales: Horizon Hobby Limited

sales@horizonhobby.co.uk

Units 1–4 , Ployters Rd, Staple Tye Harlow, Essex, CM18 7NS, United Kingdom

+44 (0) 1279 641 097

Germany

Horizon Technischer Service service@horizonhobby.de

Christian-Junge-Straße 1 25337 Elmshorn, Germany

Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100

France

Service/Parts/Sales: Horizon Hobby SAS

infofrance@horizonhobby.com

11 Rue Georges Charpak 77127 Lieusaint, France

+33 (0) 1 60 18 34 90

Page 14

Compliance Information for the European Union

This equipment has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTICE: Modiﬁ cations to this product will void the user’s authority to operate this equipment.

FCC Information

IC Information

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.”

EU Compliance Statement:

Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the R&TTE and EMC Directives.

A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance.

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and make sure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city ofﬁ ce, your household waste disposal service or where you purchased the product.

Page 15

©2016 Horizon Hobby, LLC. Blade, DSM, DSM2, DSMX, AS3X, ModelMatch, Bind-N-Fly, the BNF logo, Thrust, Focal and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners. Patents pending. Created 5/16 52563 BLH01000
