Horizon Hobby F-4 Phantom 80mm EDF Instruction Manual
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
SAFE® Select Technology, Optional Flight Envelope Protection
EN
F-4 Phantom 80mm EDF
2
Safety Precautions and Warnings
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit
www.horizonhobby.com and click on the support tab for this product.
14+
AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.
MEANING OF SPECIAL LANGUAGE:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of
superfi cial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can
result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product
in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult
supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains
instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the
property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffi c
and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach
of children.
• Always avoid water exposure to all equipment not specifi cally designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from
Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and
warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
EN
3
Box Contents
Table of ContentsSpecifi cations
53.7 in (1364mm)
35.8 in (910mm)
~101–106 oz
(~2866–3006g)
If you own this product, you may be required to register with the FAA.
For up-to-date information on how to register with the FAA, please visit
https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage,
visit knowbeforeyoufl y.org/.
Prefl ight .................................................................................................................4
SAFE
®
Select Switch Designation ...........................................................................5
Using SAFE
®
Select With the DX6 and DX6e Transmitters
With a 6 Channel Aircraft .......................................................................................5
Model Assembly ....................................................................................................5
Flaps .....................................................................................................................7
Optional Scale External Stores Installation ..............................................................7
PNP Receiver Selection and Installation .................................................................7

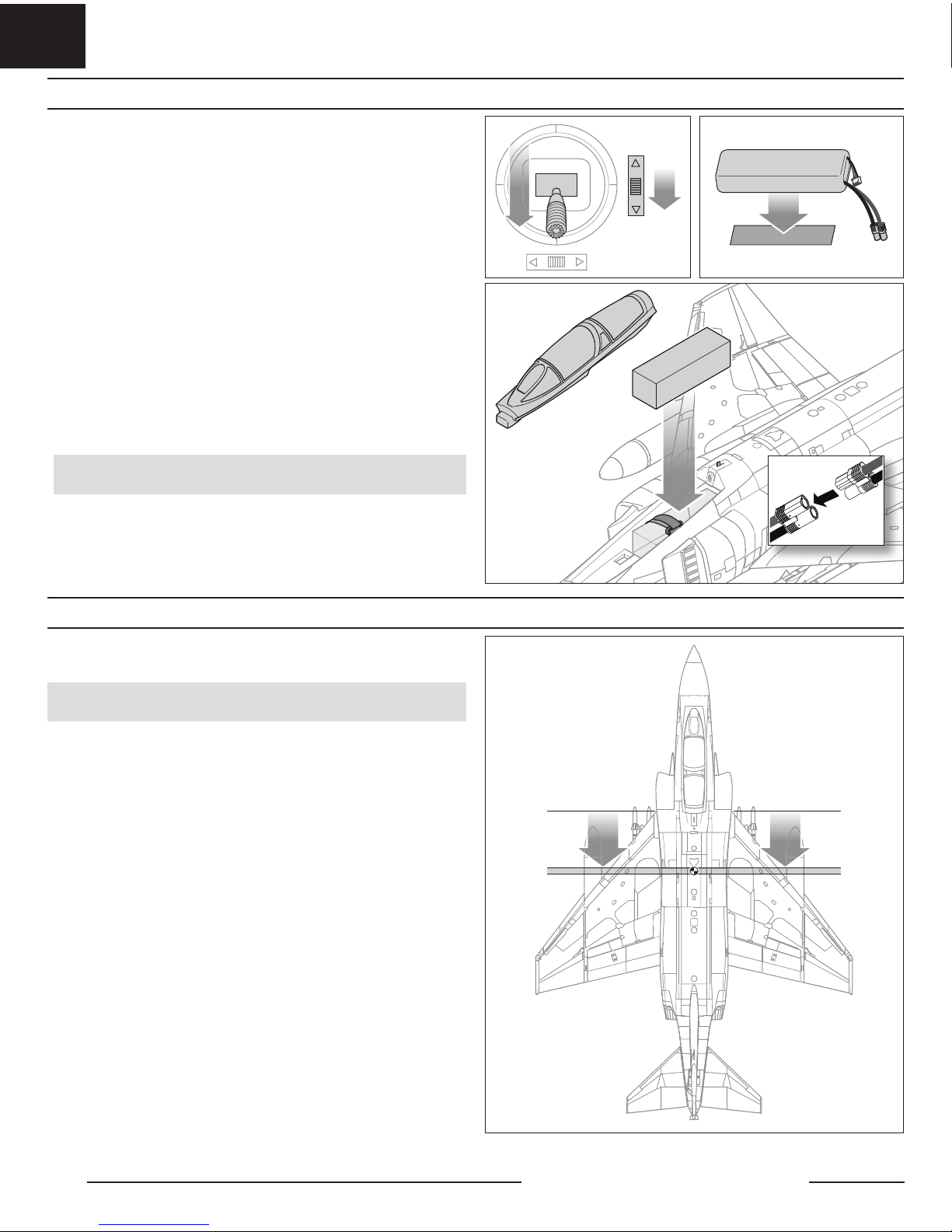

Battery Installation and ESC Arming .......................................................................8
Center of Gravity (CG) ...........................................................................................8
Transmitter and Receiver Binding / Enabling and Disabling SAFE Select .................9
Control Surface Centering ....................................................................................10
Control Surface Direction .....................................................................................10
Dual Rates and Control Throws ............................................................................10
Control Horn and Servo Arm Settings ...................................................................10
In Flight Trimming ................................................................................................11
Flying Tips and Repairs ........................................................................................11
Post Flight............................................................................................................12

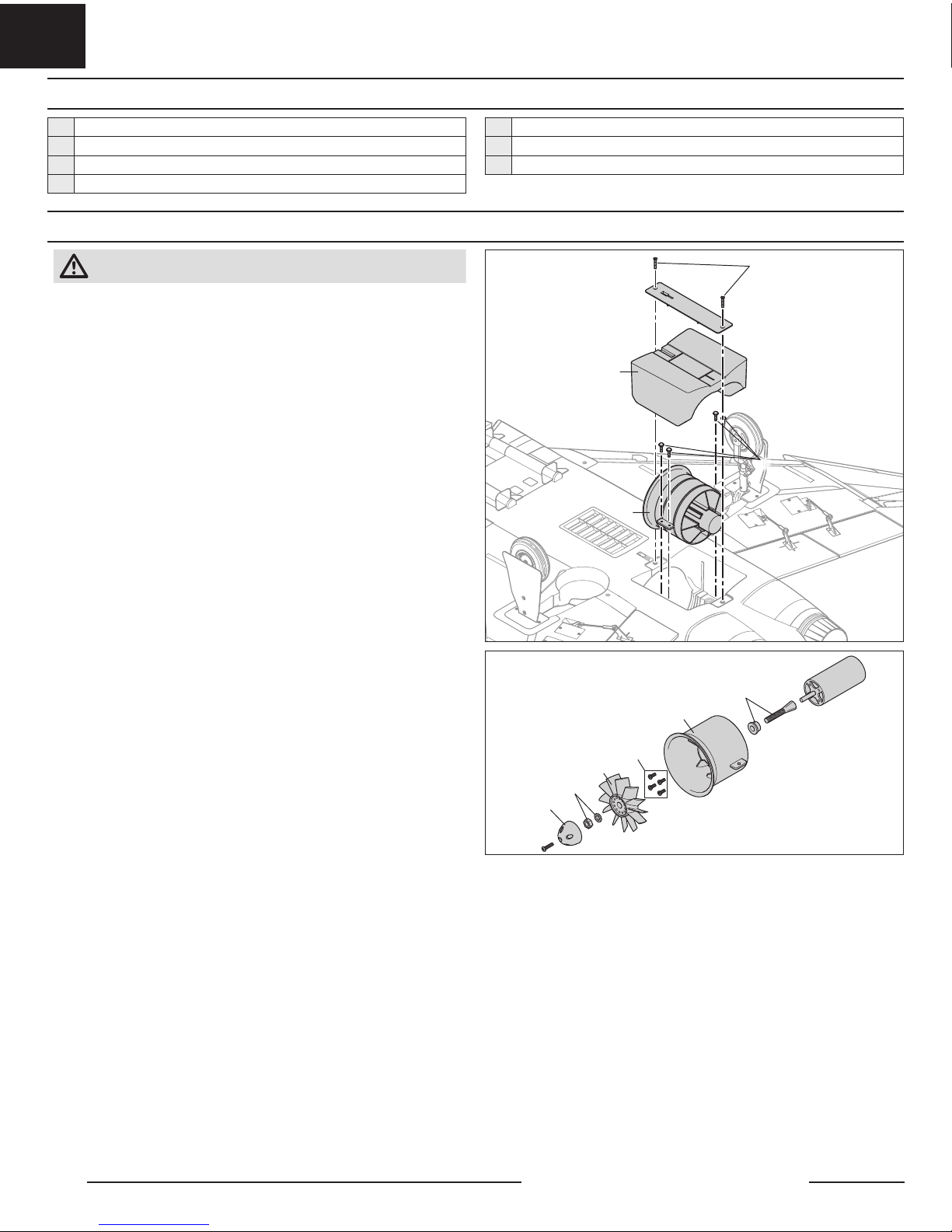

Power Components Service .................................................................................12
Troubleshooting Guide AS3X ................................................................................13
Troubleshooting Guide .........................................................................................13
Replacement Parts ...............................................................................................14
Recommended Parts ............................................................................................14
Optional Parts ......................................................................................................14
AMA National Model Aircraft Safety Code .............................................................15
Limited Warranty .................................................................................................16
Warranty and Service Contact Information ...........................................................16
FCC Information ...................................................................................................17
IC Information ......................................................................................................17
Compliance Information for the European Union ...................................................17
Quick Start Information
Transmitter Setup
1. Blank (Acro) Model
2. Wing Type: 1 Aileron, 1 Flap
3. Servo Reversing: Gear Reversed, All Others Normal
4. Travel Adjust (All Surfaces): 100%
Dual Rates*
High Rate Low Rate
Aileron
= 20mm
= 20mm
= 15mm
= 15mm
Elevator
= 30mm
= 20mm
= 25mm
= 12mm
Rudder
= 15mm
= 15mm
= 10mm
= 10mm
Flap Travel
Half = 25mm Full = 45mm
EXPO
(Soft center)
High Rate Low Rate
Aileron 10% 5%
Elevator 15% 5%
Rudder 10% 5%
Center of Gravity (CG)
180–190mm back from the leading edge,
measured at the wing root
Flight Timer Setting 3.5 minutes
Motor: Brushless, 3270-2000Kv (EFLM2000DF)
Installed Installed
Fan Unit: 80mm Ducted Fan Unit (EFLA8012DF)
Installed Installed
ESC: 100A Pro Switching Mod
e (EFLA10100EC5)
Installed Installed
Servos: 13 and 23g Analog Metal Gear (SPMSA450, SPMSA460)
Installed Installed
Retracts: Nose and Main Gear (
EFLG315, EFLG316
)
Installed Installed
Receiver: Spektrum™ AR636 6-Channel Sport Receiver
(SPMAR636)
Installed
Required to
Complete
Recommended Battery: 22.2V 4000–5000mAh 30-40C
6SLiPo with EC5
™
connector
Required to
Complete
Required to
Complete
Recommended Battery Charger:
6-cell Li-Po battery balancing charger
Required to
Complete
Required to
Complete
Recommended Transmitter:
6+ channel, Full-Range 2.4GHz with Spektrum
™
DSM2®/
DSMX
®
technology and adjustable dual rates
Required to
Complete
Required to
Complete
EN
F-4 Phantom 80mm EDF
4
Prefl ight
1 Remove and inspect contents.
2 Read this instruction manual thoroughly.
3 Charge the fl ight battery.
4 Fully assemble the aircraft.
5 Install the fl ight battery in the aircraft (once it has been fully charged).
6 Check the Center of Gravity (CG).
7 Bind the aircraft to your transmitter.
8 Make sure all linkages move freely.
9 Perform the control direction test with the transmitter.
10 Adjust the fl ight controls and transmitter as needed.
11 Perform a radio system range test.
12 Find a safe open area to fl y.
13 Plan fl ight for fl ying fi eld conditions.
Transmitter Setup (BNF)
IMPORTANT: After you set up your model, always rebind the transmitter and
receiver to set the desired failsafe positions.
If your transmitter allows it, enable the throttle cut feature. Always engage throttle
cut before approaching the aircraft.
Dual Rates
Low rate is recommended for the initial fl ights.
NOTICE: To ensure AS3X
®
technology functions properly, do not lower rate
values below 50%. If lower rates are desired, manually adjust the position of the
pushrods on the servo arm.
NOTICE: If oscillation occurs at high speed, refer to the Troubleshooting Guide for
more information.
Expo
After fi rst fl ights, you may adjust expo in your transmitter.
Computerized Transmitter Setup
(DX6i, DX6e‡, DX6‡, DX7, DX7S, DX8, DX9, DX10t, DX18, DX20 and iX12)
Start all transmitter programming with a blank ACRO model (do a model reset),
then name the model.
Set Dual Rates to:
HIGH 100%
LOW 70%
Set Servo Travel to: 100%
DX6i
1. Go to the SETUP LIST MENU
2. Set MODEL TYPE: ACRO
3. Go to ADJUST LIST MENU
4. Set FLAPS: Norm 100 Flap*
LAND –50 Flap*
DX7S
DX8
1. Go to the SYSTEM SETUP
2. Set MODEL TYPE: AIRPLANE
3. Set WING TYPE: 1 AIL 1 FLAP
4. Go to the FUNCTION LIST
5. Set SERVO SETUP: Reverse GEAR
6. Set FLAP SYSTEM: Choose Flap
NORM: –100% FLAP*
MID: –45% FLAP*
LAND: 50% FLAP*
SPEED 2.0S: SWITCH = FLAP
DX6e
‡
DX6
(Gen2)
‡
DX7
(Gen2)
DX8
(Gen2)
DX9
DX10t
DX18
DX20
iX12
†
1. Go to the SYSTEM SETUP (Model Utilities)
†
2. Set MODEL TYPE: AIRPLANE
3. Set AIRCRAFT TYPE (Model Setup, Aircraft Type)
†
:
WING: 1 AIL 1 FLAP
4. Go to the FUNCTION LIST (Model Adjust)
†
5. Set SERVO SETUP: Reverse GEAR
6. Set FLAP SYSTEM:
SELECT SWITCH D:
POS 0: –100% FLAP*
POS 1: –45% FLAP*
POS 2: 50% FLAP*
SPEED 2.0
†
Some of the terminology and function locations used in the iX12 programming
may be slightly different than other Spektrum AirWare™ radios. The names
given in paranthesis correspond to the iX12 programming terminology. Consult
your transmitter manual for specifi c information about programming your
transmitter.
* Flap programming values may vary slightly. For your initial fl ights use the
recommended fl ap travel settings provided in the Flaps section and adjust
the fl ap travel to your preference on subsequent fl ights.
‡
The settings provided above for the DX6 and DX6e do not allow for the use of a SAFE
Select switch. To use a SAFE Select switch on these systems see the section below
for transmitter setup and operation information.
EN
5
Model Assembly
DX6 and DX6e Transmitter Setup for SAFE® Select Operation
Start all transmitter programming with a blank ACRO model (do a model reset), then name
the model.
Set Dual Rates to:
HIGH 100%
LOW 70%
Set Servo Travel to: 100%
DX6e
DX6
(Gen2)
1. Go to the SYSTEM SETUP
2. Set MODEL TYPE: AIRPLANE
3. Set AIRCRAFT TYPE:
WING: 1 AIL 1 FLAP
4. Go to the FUNCTION LIST
5. Set SERVO SETUP: Reverse GEAR
See the SAFE
®
Select Switch Designation section BEFORE setting the
fl ap values.
6. Set FLAP SYSTEM:
SELECT SWITCH D:
POS 0: –100% FLAP*
POS 1: –45% FLAP*
POS 2: 50% FLAP*
SPEED: Norm
SAFE® Select Switch Designation
SAFE® Select technology can be easily assigned to any open switch (2 or 3 position)
on your transmitter. With this feature, you have the fl exibility to enable or disable the
technology while in fl ight.
IMPORTANT: Before assigning your desired switch, ensure that the travel for that
channel is set at 100% in both directions and the aileron, elevator, rudder and
throttle are all on high rate with the travel at 100%. Turn throttle hold OFF if it is
programmed in the transmitter.
CAUTION: Keep all body parts well clear of the rotor, intakes and exhaust tube
and keep the aircraft securely restrained in case of accidental throttle activation.
Assigning a switch
1. Bind the aircraft correctly to activate SAFE Select. This will allow the system to
be assigned to a switch.
2. Hold both transmitter sticks to the inside bottom corners and toggle the desired
switch 5 times (1 toggle = full up and down) to assign that switch. The control
surfaces of the aircraft will move, indicating the switch has been selected.
Repeat the process to assign a different switch or to deactivate the current switch
if desired.
TIP: SAFE Select is assignable on any unused Channels 5–9.
Mode 1 and 2 transmitters
X 5
100%
100%
The SAFE Select switch must be assigned to the Flap switch (switch D) BEFORE
proceeding to the Transmitter Setup and should start from a blank (reset) model.
Failure to assign the SAFE switch prior to programming the other model functions
may prevent the SAFE switch from assigning correctly. Users of the DX6 and DX6e
will have the SAFE Select functionality linked to the fl aps. The values given in the
Transmitter Setup table turn SAFE on when the fl aps are fully deployed. SAFE is off
when the fl aps are not fully deployed.
IMPORTANT: When programming the Flap System function in the transmitter
setup of the DX6 and DX6e, set the Speed value to Norm. Adding any delay to the
deployment of the fl aps will also delay the activation of SAFE.
Using SAFE® Select With the DX6 and DX6e Transmitters With a 6 Channel Aircraft
Horizontal Tail Installation
1. Slide the right and left horizontal stabilizers over the torque rod at the rear of
the fuselage. Ensure the stabilizers are on the correct sides. They should have
a downward angle (anhedral), as shown, when installed correctly.
2. Secure the stabilizers to the torque rod with two M3 x 10mm fl athead screws.
EN
F-4 Phantom 80mm EDF
6
Model Assembly (Continued)
Vertical Fin Installation
1. Connect the rudder servo connector to the extension in the fuselage labeled RUDD.
Secure the connection with a servo connector clip (SPMA3054, not included) or
wrap with tape. Feed the excess servo wire into the fuselage.
2. Insert the front of the vertical fi n into the hole in the fuselage and rotate the fi n
down until it is fully seated on the fuselage.
3. Secure the fi n with two M3 x 16 mm fl athead screws through rear fi n braces
and one M3 x 20mm fl athead screw through the front brace, as shown. Do not
over tighten the screws.
Wing Installation
1. Center the wing tube in the tube socket in the fuselage.
2. Slide the right wing over the tube, ensuring the tube slides fully into the wing
socket.
3. Align the servo connectors at the rear of the wing with the connectors in the
fuselage, and ensure the fuselage alignment pins slide into the holes in the wing.
4. When fully seated against the fuselage, secure the wing with two M3 x 20mm
fl athead screws through the bottom of the wing, into the fuselage alignment pins.
5. Repeat steps 2-4 for the left wing.
Loading...
