Page 1

Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni

Carbon-Z® Cessna 150

SAFE® Select Technology, Optional Flight Envelope Protection

Page 2

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.

• Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, traffic and people.

• Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not specifically designed and protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before flying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury. WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of superﬁ cial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Safety Precautions and Warnings

AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found

in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum.

CAUTION: All instructions and warnings must be followed exactly. Mishandling of Li-Po batteries can result in a ﬁ re, personal injury,

and/or property damage.

• NEVER LEAVE CHARGING BATTERIES UNATTENDED.

• NEVER CHARGE BATTERIES OVERNIGHT.

• By handling, charging or using the included Li-Po battery, you assume all risks associated with lithium batteries.

• If at any time the battery begins to balloon or swell, discontinue use immediately. If charging or discharging, discontinue and disconnect. Continuing to use, charge or discharge a battery that is ballooning or swelling can result in fire.

• Always store the battery at room temperature in a dry area for best results.

• Always transport or temporarily store the battery in a temperature range of 40–120º F (5–49º C). Do not store battery or aircraft in a car or direct sunlight. If stored in a hot car, the battery can be damaged or even catch fire.

• Always charge batteries away from flammable materials.

• Always inspect the battery before charging and never charge dead or damaged batteries.

• Always disconnect the battery after charging, and let the charger cool between charges.

• Always constantly monitor the temperature of the battery pack while charging.

• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO CHARGE LI-PO BATTERIES. Failure to charge the battery with a compatible charger may cause fire resulting in personal injury and/or property damage.

• Never discharge Li-Po cells to below 3V under load.

• Never cover warning labels with hook and loop strips.

• Never charge batteries outside recommended levels.

• Never attempt to dismantle or alter the charger.

• Never allow minors under the age of 14 to charge battery packs.

• Never charge batteries in extremely hot or cold places (recommended between 40–120° F or 5–49° C) or place in direct sunlight.

Charging Warnings

Page 3

Table of ContentsSpeciﬁ cations

8.9-9.9 lb (4-4.5 kg)

61.8 in. (1570 cm)

83.7 in. (2125 mm)

For replacement part numbers see page 80

50-Size Brushless Outrunner Motor 525Kv

Included Included

60-Amp, Switch Mode BEC, Brushless ESC

Installed Installed

(4) 26 g Metal Gear mini Servo

(2) 13 g Metal Gear micro Servo

Installed Installed

Spektrum™ AR636A, 6-Channel AS3X® SAFE Sport Receiver

Installed

6 + Channel

Required to

Complete

Battery: 4-6S 4000-7000mAh

Li-Po

Required to

Complete

Required to

Complete

Battery Charger: 4-6-cell Li-Po

battery balancing charger

Required to

Complete

Required to

Complete

Recommended Transmitter:

Full-Range 6 channel 2.4GHz with Spektrum DSM2®/DSMX® technology with programmable dual rates and exponential.

Required to

Complete

Required to

Complete

1053 sq. in. (68 sq dm)

Box Contents

Quick Start Information

Transmitter

Setup

Blank (Acro) Model

Servo Reversing: Normal

Travel Adjust (All Surfaces): 100%

Dual Rates*

Hi Rates Low Rates

Ail

= 35mm = 35mm

= 28mm

=28mm

Ele

=32mm =32mm

=25mm =25mm

Rud

=60mm =60mm

=45mm =45mm

Flap*

Full Flap Half Flap

60mm  28mm

Center of

Gravity (CG)

95-105mm back from leading edge at

the wing root.

Flight Timer

Setting

6+ minutes

* Measured at the widest point and the root.

As of this printing, you are required to register with the FAA if you own this product. For up-to-date information on how to register with the FAA,

visit https://registermyuas.faa.gov/. For additional assistance on regulations and guidance on UAS usage,

visit knowbeforeyouﬂ y.org/.

Preﬂ ight ...........................................................................................................4

Model Assembly .............................................................................................. 4

Control Surface Centering ................................................................................9

Transmitter and Receiver Binding /

Switching ON and OFF SAFE Select ................................................................ 10

SAFE

Select Switch Designation ................................................................... 11

Control Horn and Servo Arm Settings ............................................................. 11

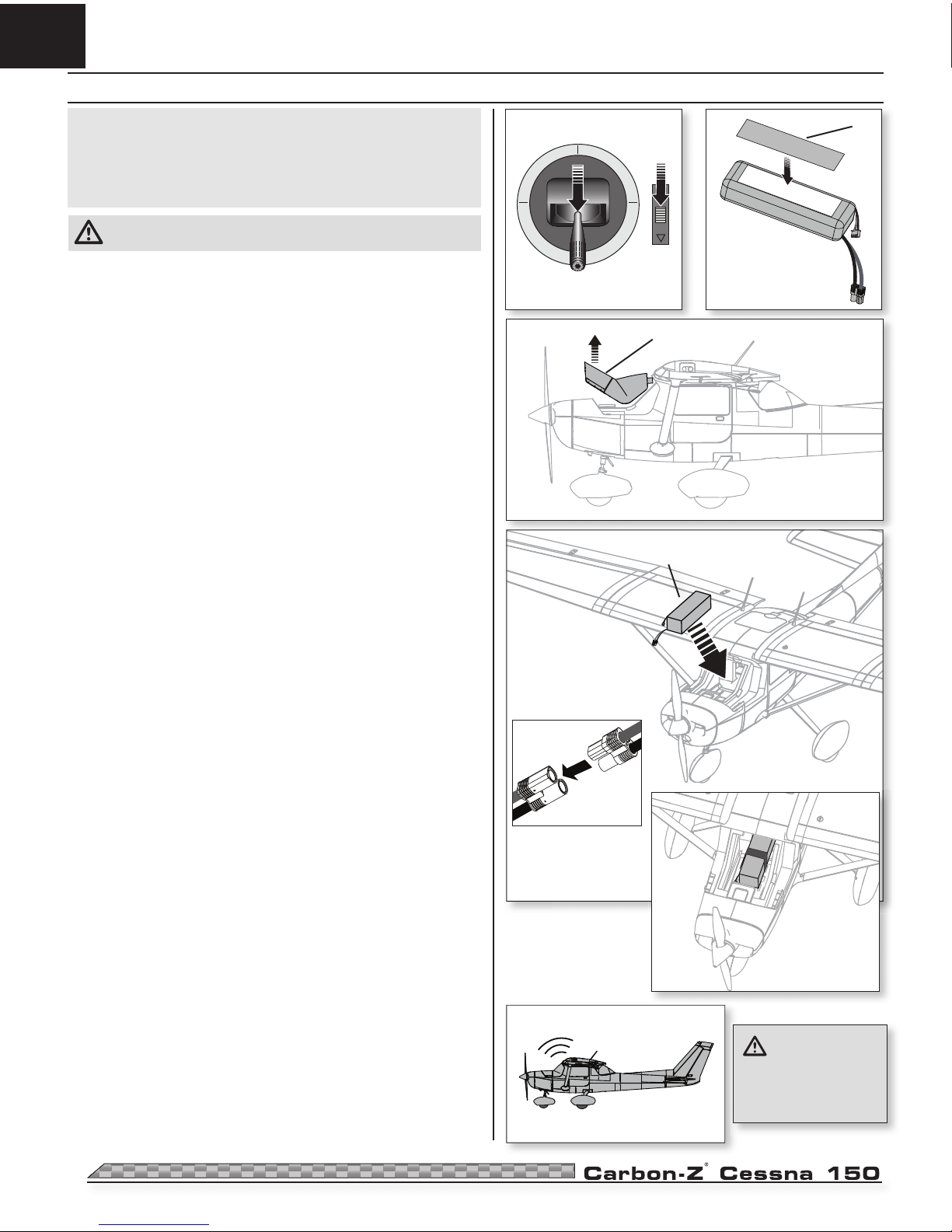

Battery Installation and ESC Arming ...............................................................12

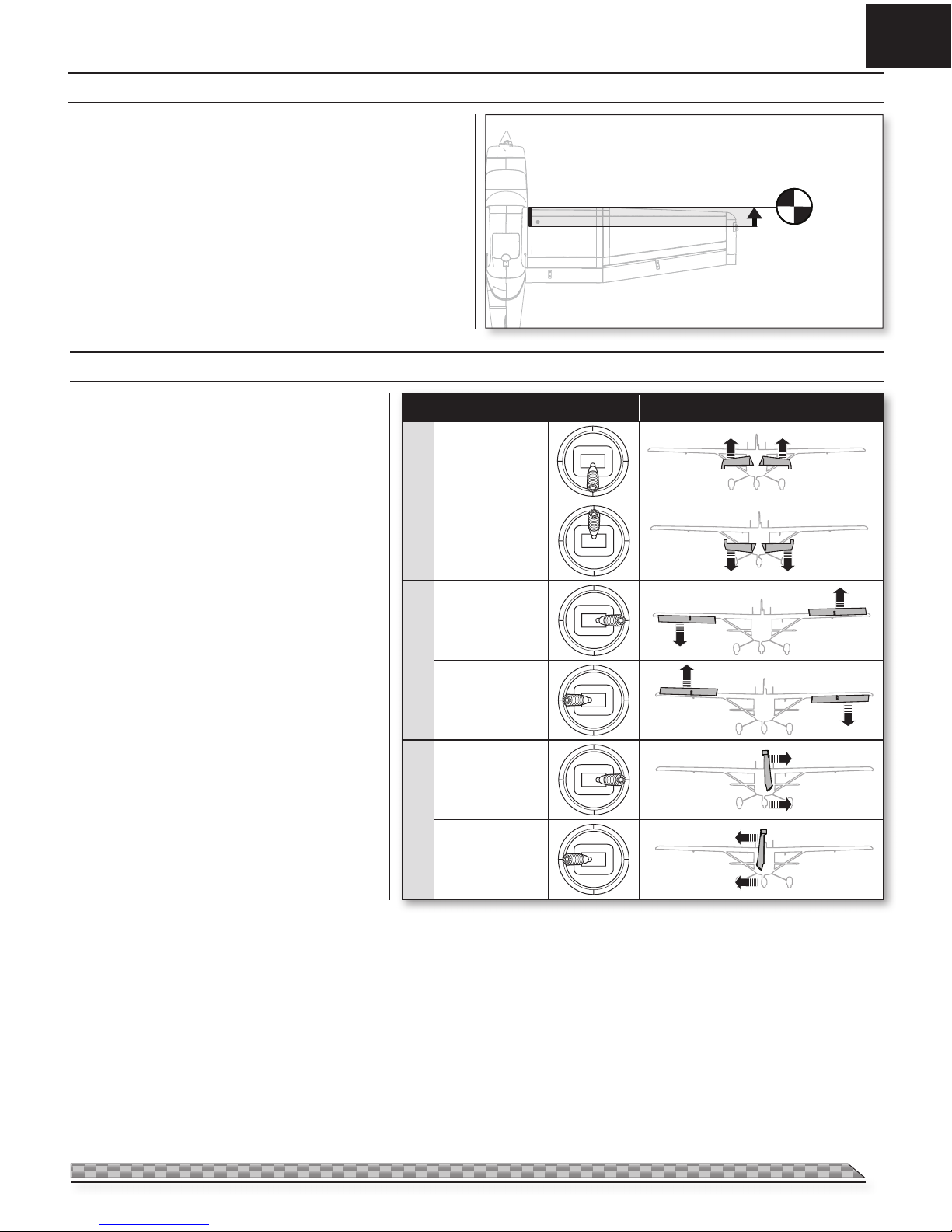

Center of Gravity (CG) ................................................................................... 13

Control Direction Test ................................................................................... 13

AS3X Response Test .................................................................................... 14

In Flight Trimming .......................................................................................... 14

Flying Tips and Repairs .................................................................................. 15

PNP Receiver Selection and Installation ......................................................... 17

Post Flight Checklist ......................................................................................17

Troubleshooting Guide AS3X .......................................................................... 17

Troubleshooting Guide ................................................................................... 18

AMA National Model Aircraft Safety Code ....................................................... 19

Limited Warranty ........................................................................................... 20

Contact Information .......................................................................................21

FCC Information ............................................................................................. 21

IC Information ................................................................................................ 21

Compliance Information for the European Union ............................................. 21

Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio ....78

Optional Parts • Optionale Bauteile • Pièces optionnelles • Pezzi opzionali ....79

To receive product updates, special offers and more,

Page 4

Model Assembly

Main Gear Installation

1. Place the two main landing gear halves (A) into the pocket on the bottom

of the fuselage.

2. Secure them into place using the mounting plate (B) and 6 included screws (C).

When needed, disassemble in reverse order.

Nose Gear Installation

1. Remove the battery hatch (D) to access the

location where the nose assembly screws will be installed.

2. Connect the nose gear pushrod (E) to the nose gear steering arm (F) using the included nut and bolt as shown. Part of the box surrounding the steering arm has been removed to show steering arm.

3. Remove the clasp (G) at the end of the nose gear pushrod and install the nose gear assembly into the fuselage leading with the pushrod.

4. Use the arrows on the bottom of the main mount to install the front gear in the correct direction. The arrows point to the front.

5. Guide the pushrod up into the fuselage to meet with the servo horn.

6. Secure the nose gear assembly into place using the 2 included screws (H).

Continue nose gear installation on next page.

3 X 18mm

3 X 12mm

M2 lock nut

2 x 8mm

Preﬂ ight

1 Remove and inspect contents. 2 Read this instruction manual thoroughly. 3 Charge the ﬂ ight battery. 4 Fully assemble the airplane. 5 Install the ﬂ ight battery in the aircraft (once it has been fully charged). 6 Check the Center of Gravity (CG). 7 Bind the aircraft to your transmitter.

8 Make sure linkages move freely.

9 Perform the Control Direction Test with the transmitter. 10 Perform the AS3X Response Test with the aircraft. 11 Adjust ﬂ ight controls and transmitter. 12 Perform a radio system Range Test. 13 Find a safe open area to ﬂ y. 14 Plan ﬂ ight for ﬂ ying ﬁ eld conditions.

Page 5

Nose Gear Installation Continued

1. Remove the top hatch (A) to access the nose gear/rudder servo arm.

2. Attach the nose gear pushrod (B) to the servo arm (C). Attach the pushrod

to the third outermost hole as shown and re-install the clasp.

When needed, disassemble in reverse order.

Motor Installation

1. Install the motor with the X-mount (D) on the fuselage using 4 screws (E).

2. Correctly align and connect the motor wire colors with the ESC wires. Ensure the motor spins in the correct direction. If motor spins incorrectly, reverse any two wire connections.

CAUTION: Make sure that the propeller is not installed before reversing throttle channel on transmitter.

3. Connect the landing lights (F) and install the cowling (G) using 2 screws (H).

4. Install the collet (I), collar (J) and spinner backplate (K) onto the motor shaft.

5. Install the propeller (L) on the propshaft and secure it in place with the prop nut (M). Use a tool to tighten the nut.

IMPORTANT: The propeller size numbers (

15 x 7) must face out from the motor for

correct propeller operation.

6. Install the spinner (N) onto the prop shaft and secure it into place using the spinner screw (O).

NOTICE: If the propeller is not balanced, the aircraft may vibrate, causing the stabilization system to not operate correctly and/or decrease the life of the servos.

Horizon Hobby does not warrant replacement if the servos are used under extreme vibration or the stabilization system is used with an unbalanced propeller.

For more information, view our propeller balancing video on Horizon Hobby’s YouTube channel https://www.youtube.com/watch?v=OXuNnYQO2s4

CAUTION: Remove the propeller before radio system setup or accidental injury may occur.

2.5 X 8mm

2.5 X 10mm

4 X 20mm

Page 6

Model Assembly Continued

Rudder Installation

1. Slide the rudder’s CA hinges (A) into the hinge slots (B) of the vertical tail. Make sure to place the tail light and wire (C) on the left side of the rudder.

2. Rest the aircraft on its nose, holding the tail up so the thin CA (cyanoacrylate adhesive) will flow into the slots.

3. Bend the hinges by turning the rudder left, then carefully apply thin CA to each hinge in the right side of each slot.

4. When the CA is dry, turn the rudder to the right and apply CA in the left side of each slot.

5. Place the tail light wire in the groove (D) and secure it into place with the included red tape (E).

6. Insert the LED (F) into the tail light housing (G), then secure the tail light housing onto the edge of the rudder using CA.

7. Connect the ball link (H) to the rudder control horn (I) using a screw (J) and nut (K). Ensure the rudder servo arm is in the correct position, then adjust the ball link on the linkage to center the rudder.

When needed, disassemble in reverse order.

Required Adhesives:

Thin CA

M2 lock nut

2 x 8mm

Page 7

Model Assembly Continued

Horizontal Tail Installation

1. Slide the horizontal tail tube (A) into the hole in the rear of the fuselage.

2. Install the 2 piece (left and right) horizontal tail as shown. Ensure the control horn faces down.

3. Install 2 screws (B) in the holes in the bottom of the horizontal tail.

4. Attach the ball link (C) to the elevator control horn’s outermost hole using the included nut (D) and screw (E).

Tip: Use needle-nose pliers or ball link pliers (RV01005) to remove or install a link on a control horn.

5. Ensure the elevator servo arm is in the correct position, then adjust the linkage to center the elevator.

When needed, disassemble in reverse order.

3 X 12mm

M2 lock nut

2 x 8mm

Page 8

Model Assembly Continued

Main Wing Installation

1. Secure each wing strut to the wing using the inluded nut (A) and bolt (B). Note the orientation of the fuselage end of the strut. The wedge end of the strut should be oriented as shown in the illustration.

2. Slide the wing tube (C) into the hole in the wing pocket above the cockpit.

3. Align the wing halves (D) with the recess of the fuselage and fit the wing to the fuselage.

4. Align the wing struts (E) to each side of the fuselage and secure them into place with the pin (F) and R-clip (G).

5. Secure both wing halves into place using the 2 thumb screws (H). Install them from the inside of the fuselage going out into the wing.

6. Re-install the top hatch.

When needed, disassemble in reverse order.

2.5 X 20mm

R-clip

2.5M nut

YES NO

Page 9

Model Assembly Continued

Control Surface Centering

After assembly and transmitter setup, conﬁ rm that the control surfaces are centered. If the control surfaces are not centered, mechanically center the control surfaces by adjusting the linkages.

If adjustment is required, turn the ball link on the linkage to change the length of the linkage between the servo arm and the control horn.

After binding a transmitter to the aircraft receiver, set the trims and sub-trims to 0, then adjust the ball links to center the control surfaces.

• Turn the linkage clockwise or counterclockwise until the control surface is centered.

• Attach the linkage to the servo arm or control horn after adjustment.

Scale Antenna Installation

Install the scale antenna (I) by pushing them into place.

Page 10

Binding Procedure / Switching OFF SAFE Select

IMPORTANT: The included AR636A receiver has been programmed for op- eration speciﬁ cally for this aircraft. Refer to the receiver manual for correct setup if the receiver is replaced or is used in another aircraft.

CAUTION: When using a Futaba® transmitter with a Spektrum DSM

module, you must reverse the throttle channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions. Refer to your Futaba transmitter manual for instructions on reversing the throttle channel.

1. Make sure the transmitter is powered off.

2. Move the transmitter controls to neutral (ﬂ ight controls: rudder, elevators and ailerons) or to low positions (throttle, throttle trim). *

3. Install a bind plug in the receiver bind port.

4. Place the aircraft level on its wheels, connect the ﬂ ight battery to the ESC, then turn ON the switch.

The ESC will produce a series of sounds. One long tone, then 4, 5 or 6 (factory default) short tones (indicating cell count of the battery) conﬁ rm that the LVC is set correctly for the ESC. Conﬁ rm the ESC is correctly programmed for the battery being used (4, 5 or 6 cell LiPo).

The orange bind LED on the receiver will begin to ﬂ ash rapidly.

DO NOT remove the bind plug at this time.

5. Take 3 steps away from the aircraft /receiver and then power ON the transmitter while holding the transmitter bind button or switch. Refer to your transmitter’s manual for speciﬁ c binding instructions. IMPORTANT: Do not to point the transmitter’s antenna directly at the receiver while binding. IMPORTANT: Keep away from large metal objects while binding.

6. The receiver is bound to the transmitter when the orange bind light on the receiver stays orange. The ESC will also produce a series of three ascending tones. The tones indicate the ESC is armed, provided the throttle stick and throttle trim are low enough to trigger arming.

7. Remove the bind plug from the bind port.

IMPORTANT: Once bound, the receiver will retain its bind and last setting until it has been intentionally changed, even when power is cycled ON and OFF. However, if you notice that bind has been lost, simply repeat the binding processs.

SAFE Select OFF Indication

Every time the receiver is powered ON the surfaces will cycle back and forth once to indicate that SAFE Select has been switched OFF.

The throttle will not arm if the transmitter’s throttle control is not put at the lowest position. If you encounter problems, follow the binding instructions and refer to the transmitter troubleshooting guide for other instructions. If needed, contact the appropriate Horizon Product Support ofﬁ ce.

Binding Procedure / Switching ON SAFE Select

IMPORTANT: The included AR636A receiver has been programmed for opera- tion speciﬁ cally for this aircraft. Refer to the receiver manual for correct setup if the receiver is replaced or is used in another aircraft.

CAUTION: When using a Futaba® transmitter with a Spektrum DSM

1. Make sure the transmitter is powered off.

2. Move the transmitter controls to neutral (ﬂ ight controls: rudder, elevators and ailerons) or to low positions (throttle, throttle trim).*

3. Install a bind plug in the receiver bind port.

4. Place the aircraft level on its wheels, connect the ﬂ ight battery to the ESC, then turn ON the switch. The ESC will produce a series of sounds. One long tone, then 4, 5 or 6 (factory default) short tones (indicating cell count of the battery) conﬁ rm that the LVC is set correctly for the ESC. Conﬁ rm the ESC is correctly programmed for the battery being used (4, 5 or 6 cell LiPo). The orange bind LED on the receiver will begin to ﬂ ash rapidly.

5. Remove the bind plug from the bind port.

6. Take 3 steps away from the aircraft /receiver and then power ON the transmitter while holding the transmitter bind button or switch. Refer to your transmitter’s manual for speciﬁ c binding instructions. IMPORTANT: Do not to point the transmitter’s antenna directly at the receiver while binding. IMPORTANT: Keep away from large metal objects while binding.

7. The receiver is bound to the transmitter when the orange bind light on the receiver stays orange. The ESC will also produce a series of three ascending tones. The tones indicate the ESC is armed, provided the throttle stick and throttle trim are low enough to trigger arming.

SAFE Select ON Indication

Every time the receiver is powered ON the surfaces will cycle back and forth twice with a slight pause at neutral position to indicate that SAFE Select is switched ON.

*Failsafe

If the receiver loses transmitter communication, the failsafe will activate. When activated, failsafe moves the throttle channel to its programmed failsafe position (low throttle) that was set during binding. As with most SAFE technology equipped aircraft, the Carbon-Z Cessna 150 is programmed to enter a descending turn on activation of failsafe.

This product requires an approved Spektrum™ DSM2®/DSMX® compatible transmitter. Visit www.bindnﬂ y.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a speciﬁ c manner as described below. IMPORTANT: Before binding a transmitter, read the Transmitter Setup section of this manual to ensure that your transmitter is properly programmed for this aircraft.

Transmitter and Receiver Binding / Switching ON and OFF SAFE Select

Switching OFF SAFE Select Binding Sequence

Install Bind Plug

RX in Bind Mode

Bind TX to RX

Remove Bind Plug

Install Bind Plug

Remove Bind Plug

RX in Bind Mode

Bind TX to RX

Switching ON SAFE Select Binding Sequence

Bind Plug Installation

Page 11

The table to the right shows the factory settings for the control horns and servo arms. Fly the aircraft at factory settings before making changes.

After ﬂ ying, you may choose to adjust the linkage positions for the desired control response. See the table to the right.

IMPORTANT: If control throws are changed from the factory settings, the AR636 gain values may need to be adjusted. Refer to the Spektrum AR636 manual for adjustment of gain values.

Control Horn and Servo Arm Settings

Factory Settings

Horns Arms

Elevator

Rudder

Ailerons

Flaps

More control throw Less control throw

SAFE® Select Switch Designation

SAFE® Select technology can be easily assigned to any open switch (2 or 3 position) on your transmitter. With this new feature, you now have the ﬂ exibility to enable or disable the technology while in ﬂ ight.

IMPORTANT: Before assigning your desired switch, ensure that the travel for that channel is set at 100% in both direction.

Assigning a switch

1. Bind the aircraft correctly to activate SAFE Select. This will allow the system to be assigned to a switch.

2. Hold both transmitter sticks to the inside bottom corners and toggle the desired switch 5 times (1 toggle = full up and down) to assign that switch. The control surfaces of the aircraft will move, indicating the switch has been selected.

Repeat the process to deselect the switch or to assign a different switch if desired.

NOTICE: SAFE Select is assignable on any unusable Channels 5–9.

Mode 1 and 2 Transmitters

x 5

100%

3 position Switch

2 position Switch

Nose Gear

Page 12

Battery Selection

We recommend the E-ﬂ ite® 5000mAh 22.2V 6S 30C Li-Po battery (EFLB50006S30). Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-ﬂ ite Li-Po battery packs to ﬁ t in the fuselage. Be sure the model balances at the recommended CG.

CAUTION: Always keep hands away from the propeller. When armed, the motor will turn the propeller in response to any throttle movement.

CAUTION: Always

keep hands away from the propeller. When armed, the motor will turn the propeller in response to any throttle movement.

Battery Installation and ESC Arming

1. Lower the throttle and throttle trim to the lowest settings. Power on the Transmitter, then wait 5 seconds.

2. It is recommended to apply hook and loop tape (A) to the bottom of your battery.

3. Remove the battery hatch (B) by pulling up on the side tabs.

4. Install the fully charged battery (C) in the battery compartment as shown. See the Adjusting the Center of Gravity instructions for more information.

5. Make sure the flight battery is secured using the hook and loop straps.

6. Connect the battery to the ESC. Turn the switch ON.

7. Keep the aircraft level on its wheels, immobile and away from wind or the system will not initialize.

Once armed:

• The ESC will sound a series of tones (number of tones depend on the

cell count of the battery).

• The control surfaces will cycle once for AS3X or twice for SAFE

technology if it is turn ON.

• An LED will light on the receiver.

8. Reinstall the battery hatch.

When needed, disassemble in reverse order.

IMPORTANT: The ESC comes programmed for a 6-cell battery. To use a battery with a different cell count you must ﬁ rst reprogram your ESC. Refer to your ESC manual for instructions to reprogram the ESC for a different cell count.

Page 13

The CG location is measured back from the leading edge of the wing, at the root. This CG location has been determined with the recommended battery (EFLB50006S30) placed almost all the way to the back of the battery compartment with the model balanced upright. Adjust the battery forward or aft as needed to achieve the proper CG location.

Center of Gravity (CG)

3.74-4.1 in. (95-105mm)

Back from the leading edge of wing.

Control Direction Test

Move the controls on the transmitter to make sure the aircraft control surfaces move in the proper direction.

Transmitter Command Aircraft Reaction

Elevator

Up Elevator

Command

Down

Elevator

Command

Aileron

Stick Right

Stick

Left

Rudder

Stick Right

Stick

Left

Page 14

During your ﬁ rst ﬂ ight, trim the aircraft for level ﬂ ight at 3/4 throttle with ﬂ aps up. Make small trim adjustments with your transmitter’s trim switches to straighten the aircraft’s ﬂ ight path.

After adjusting trim, do not touch the control sticks for 3 seconds. This allows the receiver to learn the correct settings to optimize AS3X performance.

Failure to do so could affect ﬂ ight performance.

In Flight Trimming

3 Seconds

This test ensures that the AS3X® control system is functioning properly. Assemble the aircraft and bind your transmitter to the receiver before performing this test.

1. Raise the throttle just above 25% and then lower the throttle to activate AS3X.

CAUTION: Keep all body parts, hair and loose clothing away from a moving propeller, as these items could become entangled.

2. Move the entire aircraft as shown and ensure the control surfaces move in the direction indicated in the graphic. If the control surfaces do not respond as shown, do not fly the aircraft. Refer to the receiver manual for more information.

3. Once the AS3X system is active, control surfaces may move rapidly. This is normal. AS3X is active until the battery is disconnected.

Aircraft

movement

AS3X Reaction

ElevatorAileronRudder

AS3X Response Test

Page 15

Flying Tips and Repairs

Consult local laws and ordinances before choosing a ﬂ ying location.

Flying Field

Always choose a wide-open space for ﬂ ying your aircraft. It is recommended that you ﬂ y at a designated RC ﬂ ying ﬁ eld. Always avoid ﬂ ying near houses, trees, wires and buildings. Avoid ﬂ ying in areas where there are many people, such as parks, schoolyards, or soccer ﬁ elds.

Range Check your Radio System

Before you ﬂ y, range check the radio system. Refer to your speciﬁ c transmitter instruction manual for range test information.

Understanding Oscillation

Once the AS3X system is active (after advancing the throttle for the ﬁ rst time), you will normally see the control surfaces react to aircraft movement. In some ﬂ ight conditions, you will see oscillation. If oscillation occurs, decrease airspeed. If oscillation persists, refer to the Troubleshooting Guide for more information.

Takeoff

Place the aircraft in position for takeoff (facing into the wind). Set your transmitter to low rate and gradually increase the throttle from 60% to full and steer with the rudder. As the airplane gains speed, gently pull back on the elevator and climb to a comfortable altitude. You may also set ﬂ aps to half travel for shorter takeoffs.

Flying

Fly the airplane and trim it for level ﬂ ight at ¾ throttle with ﬂ aps up. After adjusting trim in ﬂ ight do not touch the control sticks for 3 seconds. This allows the receiver to learn the correct settings to optimize AS3X performance.

Landing

Make sure to land the aircraft into the wind. Start to slow the model down to an approach speed and set the ﬂ aps to half travel. If landing in windy conditions, land at half ﬂ ap travel. If ﬂ ying in light winds, set ﬂ aps to full for ﬁ nal approach.

With ﬂ aps, ﬂ y the aircraft to approximately 36 inches (90 cm) or less above the runway, using a small amount of throttle for the entire descent. Keep the throttle on until the aircraft is ready to ﬂ are. During ﬂ are, keep the wings level and the aircraft pointed into the wind. Gently lower the throttle while pulling back on the elevator to bring the aircraft down on its wheels.

Refer to the Dual Rates and expo chart for proper ﬂ ap to elevator mix to help reduce the pitching tendency from ﬂ aps.

NOTICE: When using ﬂ aps with this airplane, down elevator to ﬂ ap mixing is required. Failure to do so may result in loss of control or a crash.

NOTICE: If a crash is imminent, reduce the throttle and trim fully. Failure to do so could result in extra damage to the airframe, as well as damage to the ESC and motor.

NOTICE: After any impact, always ensure the receiver is secure in the fuselage. If you replace the receiver, install the new receiver in the same orientation as the original receiver or damage may result.

NOTICE: Crash damage is not covered under warranty.

NOTICE: When you are ﬁ nished ﬂ ying, never leave the

airplane in direct sunlight or a hot, enclosed area such as a car. Doing so can damage the foam.

Low Voltage Cutoff (LVC)

The ESC protects the ﬂ ight battery from over-discharge using Low Voltage Cutoff (LVC). Before the battery charge decreases too much, LVC removes power supplied to the motor. Power to the motor pulses, showing that some battery power is reserved for ﬂ ight control and safe landing. Disconnect and remove the Li-Po battery from the aircraft after use to prevent trickle discharge. Charge your Li-Po battery to about half capacity before storage. During storage, make sure the battery charge does not fall below 3V per cell. LVC does not prevent the battery from over-discharge during storage.

NOTICE: Repeated ﬂ ying to LVC will damage the battery.

Tip: Monitor your aircraft battery’s voltage before and after ﬂ ying by using a

Li-Po Cell Voltage Checker (EFLA111, sold separately).

Repairs

Thanks to the Z-Foam™ material in this aircraft, repairs to the foam can be made using virtually any adhesive (hot glue, regular CA, epoxy, etc). When parts are not repairable, see the Replacement Parts List for ordering by item number. For a listing of all replacement and optional parts, refer to the list at the end of this manual.

NOTICE: Use of CA accelerant on your aircraft can damage paint. DO NOT handle the aircraft until accelerant fully dries.

WARNING:

Always decrease throttle at propeller strike.

Page 16

Only use the ﬂ oats if you are comfortable ﬂ ying your aircraft and have repeatedly taken off, ﬂ own and landed with success. Flying off water poses a higher risk to the airplane because the electronics can fail if fully immersed in water.

Always ensure the optional ﬂ oats are secure on the fuselage and that the ﬂ oat rudder system is correctly connected and moves freely before putting the aircraft in water.

To take off on water, steer with the rudder and slowly increase the throttle. Keep the wings level on takeoff. Hold a small amount (1/4–1/3) of up elevator and the aircraft will lift off once ﬂ ying speed is reached.

To land this aircraft on water, ﬂ y the aircraft to a couple of feet off the surface of the water. Reduce throttle and add up elevator to ﬂ are the aircraft. When taxiing, you must use throttle to move the aircraft forward, but steer with the rudder stick. The stick will turn both the aircraft rudder and the small rudder attached to the ﬂ oats.

Avoid taxiing cross wind if there is a breeze, as this can cause the aircraft to ﬂ ip over if wind gets under the upwind wing. Taxi 45 degrees into the direction of the wind (not perpendicular to the wind) and use aileron to hold the upwind wing down. The aircraft will naturally try to face into the wind when taxiing.

Always fully dry the aircraft after landing on water.

CAUTION: Never go alone to get a downed model in the water.

CAUTION: If at any time water splashes in the fuselage while ﬂ ying

from water, bring the airplane to shore, open the battery hatch and immediately remove any water that may have gotten in the fuselage. Leave the battery hatch open overnight to let the inside dry out and to prevent moisture damage to the electronic components. Failure to do so could cause the electronic components to fail, which could result in a crash.

Flying Tips and Repairs Continued

Water Takeoff and Landing Using the Optional Float Set (Float Set EFLA5600 and Wire Mounting Set EFLA5605)

45º

Up Aileron

Down Aileron

Wind

Taxi 45 degrees into the direction of the wind.

SAFE Select Flying

SAFE Select will automatically compensate for pitch up with throttle application and ﬂ aps deployed.

IMPORTANT: If SAFE Select is active, a ﬂ ap to elevator compensation can be used; however a throttle to elevator mix to reduce the pitchup with ﬂ aps deployed should not be used.

During takeoff, apply throttle and hold up some up elevator for short takeoffs, once the desired pitch attitude is reached, hold that amount of elevator, once the elevator stick is returned to center, the aircraft will automatically resume level ﬂ ight. If not doing a short takeoff, apply throttle and let the tail come up and then gently apply up elevator and allow the plane to ﬂ y off the ground.

For landing use the elevator and throttle to adjust your glideslope to the desired landing point. Once at the landing point, just above the ground, reduce throttle and ﬂ are.

Page 17

PNP Receiver Selection and Installation

The Spektrum AR636 receiver is recommended for this airplane. If you choose to install another receiver, ensure that it is at least a 6-channel full range receiver. Refer to your receiver manual for correct installation and operation instructions.

CAUTION: When using a Futaba® transmitter you must reverse the

throttle channel and rebind. Refer to your Futaba transmitter manual for instructions on reversing the throttle channel. Other channels may also need to be reversed.

Installation (AR636 shown)

1. Remove the top hatch from the fuselage.

2. Mount the receiver parallel to the length of the fuselage as shown. Use double-sided servo tape.

3. Attach the appropriate control surfaces to the their respective ports on the receiver using the chart in the illustration.

CAUTION: Incorrect installation of the receiver could cause a crash.

BND/PRG = BIND

1 = Throttle 2 = Aileron 3 = Elevator 4 = Rudder 5 = LEDs 6 = Flaps

1. Turn OFF the switch and disconnect the ﬂ ight battery from the ESC (Required for Safety and battery life).

2. Power OFF the transmitter.

3. Remove the ﬂ ight battery from the aircraft.

4. Recharge the ﬂ ight battery.

5. Repair or replace all damaged parts.

6. Store the ﬂ ight battery apart from the aircraft and monitor the battery charge.

7. Make note of the ﬂ ight conditions and ﬂ ight plan results, planning for future ﬂ ights.

Post Flight Checklist

Troubleshooting Guide AS3X

Problem Possible Cause Solution

Oscillation

Damaged propeller or spinner Replace propeller or spinner

Imbalanced propeller

Balance the propeller. For more information, view John Redman’s propeller balancing video at

www.horizonhobby.com Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed Loose receiver Align and secure receiver in fuselage Loose aircraft controls Tighten or otherwise secure parts (servo, arm, linkage, horn and control surface) Worn parts Replace worn parts (especially propeller, spinner or servo) Irregular servo movement Replace servo

Inconsistent ﬂ ight performance

Trim is not at neutral If you adjust trim more than 8 clicks, adjust the clevis to remove trim Sub-Trim is not at neutral No Sub-Trim is allowed. Adjust the servo linkage Aircraft was not kept immobile for

5 seconds after battery connection

With the throttle stick in lowest position. Disconnect battery, then reconnect battery and keep

the aircraft still for 5 seconds

Incorrect response to the AS3X Control Direction Test

Incorrect direction settings in the receiver, which can cause a crash

DO NOT ﬂ y. Correct the direction settings (refer to the receiver manual), then ﬂ y

Page 18

Problem Possible Cause Solution

Aircraft will not respond to throttle but responds to other controls

Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater

Throttle channel is reversed

Reverse throttle channel on transmitter.

CAUTION:Make sure to remove propeller before reversing throttle

channel on transmitter. ESC is not programmed for battery cell count Refer to ESC manual to program the ESC for your batteries cell count Motor disconnected from ESC Make sure motor is connected to the ESC

Extra propeller noise or extra vibration

Damaged propeller and spinner, collet or motor Replace damaged parts Propeller is out of balance Balance or replace propeller Prop nut is too loose Tighten the prop nut

Reduced ﬂ ight time or aircraft underpowered

Flight battery charge is low Completely recharge ﬂ ight battery Propeller installed backwards Install propeller with numbers facing forward Flight battery damaged Replace ﬂ ight battery and follow ﬂ ight battery instructions Flight conditions may be too cold Make sure battery is warm before use Battery capacity too low for flight conditions Replace battery or use a larger capacity battery

Aircraft will not Bind (during binding) to transmitter

Transmitter too near aircraft during binding process

Move powered transmitter a few feet from aircraft, disconnect and reconnect

ﬂ ight battery to aircraft Aircraft is not upright and on its wheels Place aircraft upright and on its wheels Aircraft or transmitter is too close to large metal

object, wireless source or another transmitter

Move aircraft and transmitter to another location and attempt binding again

The bind plug is not installed correctly in the bind port Install bind plug in bind port and bind the aircraft to the transmitter Flight battery/transmitter battery charge is too low Replace/recharge batteries Bind switch or button not held long enough during bind

process

Power off transmitter and repeat bind process. Hold transmitter bind

button or switch until receiver is bound

Aircraft will not connect (after binding) to transmitter

Transmitter too near aircraft during connecting process

Move powered transmitter a few feet from aircraft, disconnect and reconnect

ﬂ ight battery to aircraft Throttle and trim position may be incorrect Ensure that the throttle and trim are in low postion Aircaft may not have been immobile, upright and on its

wheels

Ensure that the aircraft is immobile, upright and on its wheels

Aircraft or transmitter is too close to large metal object, wireless source or another transmitter

Move aircraft and transmitter to another location and attempt connecting again

Bind plug left installed in bind port Rebind transmitter to the aircraft and remove the bind plug before cycling power Aircraft bound to different model memory

(ModelMatch

radios only)

Select correct model memory on transmitter

Flight battery/Transmitter battery charge is too low Replace/recharge batteries Transmitter may have been bound to a different aircraft

using different DSM protocol

Bind aircraft to transmitter

Control surface does not move

Control surface, control horn, linkage or servo damage Replace or repair damaged parts and adjust controls Wire damaged or connections loose Do a check of wires and connections, connect or replace as needed Transmitter is not bound correctly or the incorrect air-

planes was selected

Re-bind or select correct airplanes in transmitter

Flight battery charge is low Fully recharge ﬂ ight battery BEC (Battery Elimination Circuit) of the ESC is

damaged

Replace ESC

Controls reversed Transmitter settings are reversed

Perform the Control Direction Test and adjust the controls on transmitter

appropriately

Motor power pulses then motor loses power

ESC uses default soft Low Voltage Cutoff (LVC) Recharge ﬂ ight battery or replace battery that is no longer performing Weather conditions might be too cold Postpone flight until weather is warmer Battery is old, worn out, or damaged Replace battery Battery C rating might be too small Use recommended battery

Troubleshooting Guide

Page 19

Effective January 1, 2014

A. GENERAL

A model aircraft is a non-human-carrying aircraft capable of sustained ﬂ ight in the atmosphere. It may not exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition. All model ﬂ ights must be conducted in accordance with this safety code and any additional rules speciﬁ c to the ﬂ ying site.

1. Model aircraft will not be ﬂ own: (a) In a careless or reckless manner. (b) At a location where model aircraft activities are prohibited.

2. M odel aircraft pilots will: (a) Yield the right of way to all man carrying aircraft. (b) See and avoid all aircraft and a spotter must be used when appropriate.

(AMA Document #540-D.)

three (3) miles of an airport, without notifying the airport operator.

(d) Not interfere with operations and trafﬁ c patterns at any airport, heliport

or seaplane base except where there is a mixed use agreement.

(e) Not exceed a takeoff weight, including fuel, of 55 pounds unless

in compliance with the AMA Large Model Aircraft program. (AMA Document 520-A.)

(f) Ensure the aircraft is identiﬁ ed with the name and address or AMA

number of the owner on the inside or afﬁ xed to the outside of the model aircraft. (This does not apply to model aircraft ﬂ own indoors).

(g) Not operate aircraft with metal-blade propellers or with gaseous boosts

except for helicopters operated under the provisions of AMA Document #555.

(h) Not operate model aircraft while under the inﬂ uence of alcohol or while

using any drug which could adversely affect the pilot’s ability to safely control the model.

(i) Not operate model aircraft carrying pyrotechnic devices which explode

or burn, or any device which propels a projectile or drops any object that creates a hazard to persons or property.

Exceptions:

• Free Flight fuses or devices that burn producing smoke and are securely attached to the model aircraft during ﬂ ight.

• Rocket motors (using solid propellant) up to a G-series size may be used provided they remain attached to the model during ﬂ ight. Model rockets may be ﬂ own in accordance with the National Model Rocketry Safety Code but may not be launched from model aircraft.

• Ofﬁ cially designated AMA Air Show Teams (AST) are authorized to use devices and practices as deﬁ ned within the Team AMA Program Document (AMA Document #718).

(j) Not operate a turbine-powered aircraft, unless in compliance with the

AMA turbine regulations. (AMA Document #510-A).

3. Model aircraft will not be ﬂ own in AMA sanctioned events, air shows or model demonstrations unless:

(a) The aircraft, control system and pilot skills have successfully

demonstrated all maneuvers intended or anticipated prior to the speciﬁ c event.

(b) An inexperienced pilot is assisted by an experienced pilot.

4. When and where required by rule, helmets must be properly worn and fastened. They must be OSHA, DOT, ANSI, SNELL or NOCSAE approved or comply with comparable standards.

B. RADIO CONTROL

1. All pilots shall avoid ﬂ ying directly over unprotected people, vessels, vehicles or structures and shall avoid endangerment of life and property of others.

2. A successful radio equipment ground-range check in accordance with manufacturer’s recommendations will be completed before the ﬁ rst ﬂ ight of a new or repaired model aircraft.

3. At all ﬂ ying sites a safety line(s) must be established in front of which all ﬂ ying takes place (AMA Document #706.)

(a) Only personnel associated with ﬂ ying the model aircraft are allowed at

or in front of the safety line.

(b) At air shows or demonstrations, a straight safety line must be

established. (c) An area away from the safety line must be maintained for spectators. (d) Intentional ﬂ ying behind the safety line is prohibited.

4. RC model aircraft must use the radio-control frequencies currently allowed by the Federal Communications Commission (FCC). Only individuals properly licensed by the FCC are authorized to operate equipment on Amateur Band frequencies.

5. RC model aircraft will not operate within three (3) miles of any pre-existing ﬂ ying site without a frequency-management agreement (AMA Documents #922 and #923.)

6. With the exception of events ﬂ own under ofﬁ cial AMA Competition Regulations, excluding takeoff and landing, no powered model may be ﬂ own outdoors closer than 25 feet to any individual, except for the pilot and the pilot’s helper(s) located at the ﬂ ight line.

7. Under no circumstances may a pilot or other person touch a model aircraft in ﬂ ight while it is still under power, except to divert it from striking an individual.

8. RC night ﬂ ying requires a lighting system providing the pilot with a clear view of the model’s attitude and orientation at all times. Hand-held illumination systems are inadequate for night ﬂ ying operations.

9. The pilot of a RC model aircraft shall: (a) Maintain control during the entire ﬂ ight, maintaining visual contact

without enhancement other than by corrective lenses prescribed for the pilot.

(b) Fly using the assistance of a camera or First-Person View (FPV) only in

accordance with the procedures outlined in AMA Document #550.

accordance with the procedures outlined in AMA Document #560.

Please see your local or regional modeling association’s guidelines for proper, safe operation of your model aircraft.

AMA National Model Aircraft Safety Code

Page 20

Limited Warranty

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modiﬁ cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations, or (vii) use that violates any applicable laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, ﬁ nal assembly, modiﬁ cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conﬂ ict of law principals). This warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http:// www.horizonhobby.com/content/_service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support ofﬁ ce.

Warranty Requirements For Warranty consideration, you must include your original sales receipt

verifying the proof-of-purchase date. Provided warranty conditions have

been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service Should your service not be covered by warranty, service will be

completed and payment will be required without notiﬁ cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the

service without notiﬁ cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby.com/ content/service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold non-compliant Product for a period of 60 days from notiﬁ cation, after which it will be discarded.

10/15

Page 21

Contact Information

Country of Purchase Horizon Hobby Phone Number/Email Address Address

United States of

America

Horizon Service Center

(Repairs and Repair Requests)

servicecenter.horizonhobby.com/

RequestForm/

4105 Fieldstone Rd

Champaign, Illinois, 61822 USA

Horizon Product Support

(Product Technical Assistance)

productsupport@horizonhobby.com

877-504-0233

Sales

websales@horizonhobby.com

800-338-4639

United Kingdom

Service/Parts/Sales:

Horizon Hobby Limited

sales@horizonhobby.co.uk

Units 1–4 , Ployters Rd, Staple Tye

Harlow, Essex, CM18 7NS, United Kingdom

+44 (0) 1279 641 097

Germany

Horizon Technischer Service service@horizonhobby.de

Christian-Junge-Straße 1

25337 Elmshorn, Germany

Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100

France

Service/Parts/Sales:

Horizon Hobby SAS

infofrance@horizonhobby.com 11 Rue Georges Charpak

77127 Lieusaint, France

+33 (0) 1 60 18 34 90

Compliance Information for the European Union

FCC Information

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modiﬁ cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.

IC Information

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city ofﬁ ce, your household waste disposal service or where you purchased the product.

IC ID: 6157A-AMRX15

FCC: BRWDASRX15

EFL Carbon-Z Cessna 150 BNF Basic (EFL1450) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions

of the R&TTE and EMC Directive.

EFL Carbon-Z Cessna 150 PNP (EFL1475) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions

of the EMC Directive.

A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance.

Page 22

Part # | Nummer |

Numéro | Codice

Description Beschreibung Description Descrizione

EFL1401 Fuselage: C-Z Cessna 150 Rumpf: C-Z Cessna150 Fuselage: C-Z Cessna 150 Fusoliera: C-Z Cessna 150 EFL1402 Left Wing: C-Z Cessna 150 Linker Flügel: C-Z Cessna150 Aile gauche: C-Z Cessna 150 Ala sinistra: C-Z Cessna 150 EFL1403 Right Wing: C-Z Cessna 150 Rechter Flügel: C-Z Cessna150 Aile droite: C-Z Cessna 150 Ala destra: C-Z Cessna 150

EFL1404 Horizontal Tail Set: C-Z Cessna 150 Höhenleitwerk-Satz: C-Z Cessna150

Empennage horizontal: C-Z Cessna 150

Set impennaggio orizzontale: C-Z Cessna 150

EFL1405 Rudder: C-Z Cessna 150 Seitenruder: C-Z Cessna150

Gouverne de direction: C-Z Cessna 150

Timone: C-Z Cessna 150

EFL1406 Cowling: C-Z Cessna 150 Motorhaube: C-Z Cessna150 Capot: C-Z Cessna 150 Cappottatura: C-Z Cessna 150 EFL1407 Battery Hatch: C-Z Cessna 150 Akku-Abdeckung: C-Z Cessna150 Trappe de batterie: C-Z Cessna 150 Sportello batteria: C-Z Cessna 150

EFL1408

Main Landing Gear w/axles: C-Z Cessna 150

Hauptfahrwerk mit Achsen: C-Z Cessna150

Train d’atterrissage principal avec axes: C-Z Cessna 150

Carrello principale con assali: C-Z Cessna 150

EFL1409 Wing & Stab Tube: C-Z Cessna 150

Flügel und Stabilisatorrohr: C-Z Cessna150

Tube d'aile et de stabilisateur: C-Z Cessna 150

Tubo e stabilizzatore e ala: C-Z Cessna 150

EFL1410

Strut Set W/Hardware: C-Z Cessna 150

Verstrebungssatz mit Hardware: C-Z Cessna150

Haubans avec matériel de ﬁ xation: C-Z Cessna 150

Set montanti con bulloneria: C-Z Cessna 150

EFL1411 Pushrod Set: C-Z Cessna 150 Gestängesatz: C-Z Cessna150

Ensemble de barres de liaisons: C-Z Cessna 150

Set aste di comando: C-Z Cessna 150

EFL1412 Tire Set: C-Z Cessna 150 Radsatz: C-Z Cessna150

Ensemble de pneus: C-Z Cessna 150

Set ruote: C-Z Cessna 150

EFL1413 Hardware Pack: C-Z Cessna 150 Hardwarepaket: C-Z Cessna150 Jeu de montage: C-Z Cessna 150 Pacco bulloneria: C-Z Cessna 150 EFL1414 Decal Set: C-Z Cessna 150 Decal-Satz: C-Z Cessna150 Lot d'autocollants: C-Z Cessna 150 Set decalcomanie: C-Z Cessna 150

EFL1415 Nose Gear Strut: C-Z Cessna 150

Bugfahrwerk-Verstrebung: C-Z Cessna150

Jambe de train avant: C-Z Cessna 150

Montante carrello anteriore: C-Z Cessna 150

EFL1416 Wheel Pant Set: C-Z Cessna 150 Radverkleidungssatz: C-Z Cessna150

Lot de carénages de roues: C-Z Cessna 150

Set copri ruote: C-Z Cessna 150

EFL1417 Top Hatch: C-Z Cessna 150 Obere Abdeckung: C-Z Cessna150 Trappe supérieure: C-Z Cessna 150 Sportello superiore: C-Z Cessna 150

EFL1418 Light Set w/covers: C-Z Cessna 150

Beleuchtungssatz mit Abdeckungen: C-Z Cessna150

Ensemble de phares avec caches: C-Z Cessna 150

Set luci con coperture: C-Z Cessna 150

EFL1419

Wing Thumb Screws: C-Z Cessna 150

Flügel-Daumenschrauben: C-Z Cessna150

Vis à oreilles pour ailes: C-Z Cessna 150

Viti zigrinate ala: C-Z Cessna 150

EFL1420 Spinner 62mm; C-Z Cessna 150 Spinner 62mm; C-Z Cessna 150 Cône 62 mm, C-Z Cessna 150 Ogiva 62 mm; C-Z Cessna 150

EFLM7450

BL50 Brushless Outrunner Motor, 525Kv

BL50 Bürstenloser AußenläuferMotor, 525kV

Moteur à cage tournante sans balais BL50, 525 kV

Motore BL50 Brushless Outrunner, 525 Kv

EFLM74501

Motor Shaft: BL50 Outrunner Motor, 525Kv

Motorwelle: BL50 AußenläuferMotor, 525kV

Arbre de moteur: Moteur à cage tournante BL50, 525 kV

Albero motore: Motore BL50 Outrunner, 525 Kv

EFLA1060B

60-Amp Pro Switch-Mode BEC Brushless ESC (V2)

60A BEC-Pro-Wechselmodus Bürstenloser Geschwindigkeitsregler (V2)

Variateur ESC sans balais avec circuit BEC et commutateur pro 60A (V2)

60-Amp Pro Switch-Mode BEC Brushless ESC (V2)

EFL1025018

Aluminum Motor & Plastic Ring: C-Z Splendor

Aluminium-Motor und Kunststoffring: C-ZSplendor

Moteur en aluminium et bague en plastique: C-Z Splendor

Motore in alluminio e anello in

plastica: C-Z Splendor EFL1045013 Propeller Shaft: Carbon-Z Cub Propellerwelle: Carbon-ZCub Arbre d'hélice: Carbon-Z Cub Albero dell'elica: Carbon-Z Cub EFLP1570E 15 x 7 Electric Propeller Elektrischer Propeller 15 x 7 Hélice bipale 15 x 7 Elica, 15 x 7 2 pale EFLR7145 26g Metal Gear Servo 26g MG Servo Servo 26g à pignons métal Servocomando 26g c/ingran. metallo EFLR7155 13g Metal Gear Servo 13g MG Servo Servo 13g à pignons métal Servocomando 13g c/ingran. metallo SPMAR636A

AR636 6-Channel AS3X Sport Receiver

AR636 6-Kanal AS3X Sport Empfänger Récepteur AR636 6 voies avec AS3X Ricevitore sport AR636 6 canali AS3X

Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio

Page 23

Part # | Nummer |

Numéro | Codice

Description Beschreibung Description Descrizione

EFLA5600

Carbon-Z Float Set Carbon-ZSchwimmersatz Ensemble de ﬂ otteurs Carbon-Z Set galleggianti Carbon-Z

EFLA5605

Wire Mounting Set CZ Cessna 150: Carbon-Z Floats

Kabelbefestigungssatz CZ Cessna 150: Carbon-ZSchwimmer

Ensemble pour montage de câbles CZ Cessna 150: ﬂ otteurs Carbon-Z

Set montaggio ﬁ li CZ Cessna 150 Galleggianti Carbon-Z

WGT201

Wingtote LLC Extreme Little Tote Double 42”x22”x14” Red/Black

Sac de transport d’ailes 106.6 x

55.8 x 35.5 cm

Borsa per ali LLC Extreme Little Tote Double 107x56x36 cm Rosso/Nero

EFLB50004S30

5000mAh 4S 14.8V 30C LiPo, 10AWG EC5

Batterie Li-Po 4S 14.8V 5000mA 30C, prise EC5

5000mAh 4S 14.8V 30C LiPo, 10AWG EC5

EFLB50005S30

5000mAh 5S 18.5V 30C LiPo, 10AWG EC5

Batterie Li-Po 5S 18.5V 5000mA 30C, prise EC5

5000mAh 5S 18.5V 30C LiPo, 10AWG EC5

EFLB44006S30

4400mAh 6S 22.2V 30C LiPo, 10AWG EC5

Batterie Li-Po 6S 22.2V 4400mA 30C, prise EC5

4400mAh 6S 22.2V 30C LiPo, 10AWG EC5

EFLB50006S50

5000mAh 6S 22.2V 50C LiPo, 10AWG EC5

Batterie Li-Po 6S 22.2V 5000mA 50C, prise EC5

5000mAh 6S 22.2V 50C LiPo, 10AWG EC5

EFLB40006S30

4000mAh 6S 22.2V 30C LiPo, 12AWG EC3

Batterie Li-Po 6S 22.2V 4000mA 30C, prise EC3

4000mAh 6S 22.2V 30C LiPo, 12AWG EC3

EFLB50006S30

5000mAh 6S 22.2V 30C LiPo, 12AWG EC3

Batterie Li-Po 6S 22.2V 5000mA 30C, prise EC3

5000mAh 6S 22.2V 30C LiPo, 12AWG EC3

KXSB0029

7000mAh 6S 22.2V 30C LiPo, 12AWG EC3

Batterie Li-Po 6S 22.2V 7000mA 30C, prise EC3

7000mAh 6S 22.2V 30C LiPo, 12AWG EC3

DYNC3010

Passport Ultra Force 220W Touch Battery Charger

Passport Ultra Force 220W Touch Akku Ladegerät

Chargeur Passport Ultra Force 220W tactile

Carica batterie Passport Ultra Force 220W Touch

DYNC4300

Passport Duo 400W Dual AC/ DC Charger

Passport Duo 400W Dual AC/DC Ladegerät

Chargeur Passport Duo 400W double sortie

Carica batterie Passport Duo 400W doppia alim. AC/DC

DYNC0030

Dynamite EC5 Battery To EC3 Device

Dynamite EC5 Akku auf EC Stecker

Adaptateur Dynamite Batterie EC5 vers EC3 Contrôleur

Da batteria Dynamite EC5 a dispositivo EC3

DYNC0014

Dynamite EC3 Battery Series Harness

Dynamite EC3 serielles Kabel

Cordon Dynamite de branchement série, prise EC3

Cablaggio batteria EC3

SPMA3801

AS3X Programming Cable Audio Interface

Spektrum Audio-Interface AS3X Empfänger Programmierkabel

Câble de programmation audio AS3X pour smartphone

Cavo di programmazione AS3X Interfaccia audio

SPMA3065

AS3X Programming Cable USB Interface

Spektrum USB-Interface AS3X Empfänger Programmierkabel

Câble de programmation USB AS3X pour PC

Cavo di programmazione AS3X Interfaccia USB

EFLA111

Li-Po Cell Voltage Checker Li-Po Cell Voltage Checker Testeur de tension d’éléments Li-Po Voltmetro veriﬁ ca batterie LiPo

DYN1405

Li-Po Charge Protection Bag, Large

Dynamite LiPoCharge Protection Bag groß

Sac de charge Li-Po, grand modèle.

Sacchetto grande di protezione

per carica LiPo DX6 DSMX 6-Channel Transmitter Spektrum DX6 DSMX 6-Kanal Sender Emetteur DX6 DSMX 6 voies DX6 DSMX Trasmettitore 6 canali DX7 DSMX 7-Channel Transmitter Spektrum DX7 DSMX 7 Kanal Sender Emetteur DX7 DSMX 7 voies DX7 DSMX Trasmettitore 7 canali DX9 DSMX 9-Channel Transmitter Spektrum DX9 DSMX 9 Kanal Sender Emetteur DX9 DSMX 9 voies DX9 DSMX Trasmettitore 9 canali DX18 DSMX 18-Channel Transmitter

Spektrum DX18 DSMX 18 Kanal Sender

Emetteur DX18 DSMX 18 voies DX18 DSMX Trasmettitore 18 canali

Optional Parts • Optionale Bauteile • Pièces optionnelles • Pezzi opzionali

Page 24

Created 01/17 48144

EFL1450, EFL1475

E-ﬂ ite, Carbon-Z, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, Dynamite, Passport, Prophet, EC3, EC5

and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.

The Spektrum trademark is used with permission of Bachmann Industries, Inc.

Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.

Cessna and Cessna 150 are trademarks or registered trademarks of Textron Innovations, Inc. and are used under license by Horizon Hobby, LLC.

All other trademarks, service marks and logos are property of their respective owners.

US 9,056,667. US 8,672,726. US

8,201,776. Other patents pending.

http://www.e-ﬂ iterc.com/
