ASSEMBLY
WARNING
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the
treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located near the on/off power
switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
SERIAL NUMBER:
MODEL NAME: HORIZON TREADMILL
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
» Be sure to enter both the SERIAL NUMBER and MODEL NAME on your warranty card.
3

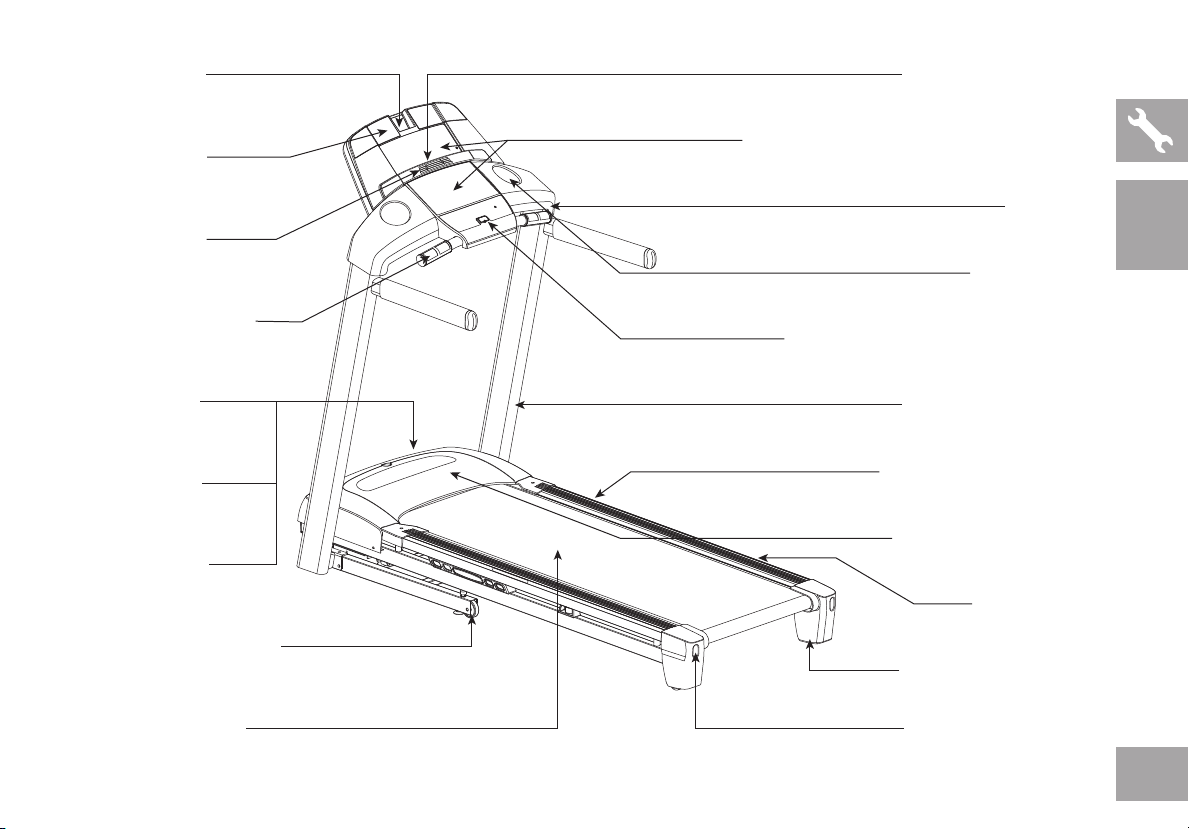

SPEAKE RS
RE AD IN G R AC K
T101
GS950T
CONSO LE FAN
(T101 ONLY)
WATER BOTTLE HO LD ER
GRIP PULSE HANDR AI LS
ON/OFF SWITC H
CIRCUIT BR EAKER
POWER CORD
TRANSPORT WHEEL
TOU CH PAD PANEL AND DISPLAY WINDOWS
CONSO LE
IPOD/MP3 PL AYE R P OC KE T
SAF ETY KE Y PLACE MENT
CONSO LE MA ST
FOOT LO CK LATCH (UNDERN EATH D EC K)
MOTOR COV ER
SIDE RA IL
ROL LE R E ND CA P
RUNNING BE LT / RUNNING DECK
RE AR ROLLE R
ADJ US TM ENT B OLTS
4
IPOD/MP3 PL AYE R P OC KE T
RE AD IN G R AC K
SPEAKE RS
CONSO LE FAN
GRIP PULSE HANDR AI LS
ON/OFF SWITC H
CIRCUIT BR EAKER
POWER CORD
TRANSPORT WHEEL
TOU CH PAD PANEL AND DISPLAY WINDOWS
CONSO LE
WATER BOTTLE HO LD ER
SAF ETY KE Y PLACE MENT
CONSO LE MA ST
FOOT LO CK LATCH (UNDERN EATH D EC K)
MOTOR COV ER
SIDE RA IL
ROL LE R E ND CA P
T102
T103
CT7.1
RUNNING BE LT / RUNNING DECK
RE AR ROLLE R
ADJ US TM ENT B OLTS
5
TOOLS INCLUDED:
F 6 mm T-Wrench
F 5 mm L-Wrench
PRE ASSEMBLY
UNPACKING
ALL
MODELS
PARTS INCLUDED:
F 1 Console Assembly
F 2 Console Masts
F 3 Hardware Bags
F 1 Safety Key
F 1 Audio Adapter Cable
F 1 Bottle of Silicone Lubricant
(for 2 applications)
F 3 iPod
F 1 iPod
®
Dock Inserts (T103 only)
®
Dock Rubber Plug (T103 only)
NEED HELP?
If you have questions or if
there are any missing parts,
contact Customer Tech
Support. Contact information
is located on the back panel
of this manual.
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled and in the upright folded
position, with the lock latch secure. Unpack the unit where it will be used. The enclosed
treadmill is equipped with high-pressure shocks and may spring open if mishandled.
Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill.
WARNING
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
6
ASSEMBLY STEP 1
LEFT
CONSOLE
MAST
HARDWARE BAG 1 CONTENTS :
BOLT (A)
20 mm
Qty: 4
RUNNING D ECK
FLAT WASHERS (C)
SPRING WASHERS (B)
BOLTS (A)
SPRING WASHER (B)
15 mm
Qty: 4
FOOT LATCH
BASE FRAME
FLAT WASHE R (C)
15 mm
Qty: 4
A Cut the yellow banding straps and lift the
running deck upward until the foot
latch locks. Remove all contents from
underneath the running deck.
B Open hardware bag 1.
C With the running deck in the raised
position, attach the left console mast
to the base frame using 4 bolts (a),
4 spring washers (b) and 4 flat
washers (c).
ALL
MODELS
7
ASSEMBLY STEP 2
ALL
MODELS
BOLT (A)
20 mm
Qty: 4
RUNN ING DECK
HARDWARE BAG 2 CONTENTS :
SPRING WASHER (B)
15 mm
Qty: 4
BASE FRAME
FLAT WASHE R (C)
15 mm
Qty: 4
LEAD WIRE
CONSOLE CABLE
RIGHT CON SOLE MAST
BOLTS (A)
SPRIN G WASHER S (B)
FLAT WASHERS (C)
A Open hardware bag 2.
B Pull lead wire through right console
mast. After pulling the lead wire through the
mast, the top of the console cable should
be located at the top of the mast. Detach and
discard the lead wire.
C With the running deck in the raised
position, attach the right console
mast to the base frame using 4 bolts
(a), 4 spring washers (b) and 4 flat
washers (c).
NOTE: Be careful not to pinch any wires
while assembling the right console mast.
8
ASSEMBLY STEP 3
HARDWARE BAG 3 CONTENTS :
BOLT (D)
45 mm
Qty: 4
GS950T, T101 CONSOLE
ASSEM BLE
LEFT SIDE
FIRST
SPRIN G WASHER (B)
15 mm
Qty: 4
CONSOLE
FLAT WASHER (C)
15 mm
Qty: 4
CT7.1,
T102, T103
CONSOLE
CONSOLE CABLES
FLAT WASHERS (C)
SPRING WASHERS (B)
BOLTS (D)
CONSOLE MAST
A Disengage the deck lock latch with your
foot to lower the running deck.
B Open hardware bag 3.
C Gently place the console on top of the
console masts. Attach the left side first
using 2 bolts (d), 2 spring washers (b)
and 2 flat washers (c).
D Connect the console cables, carefully
tucking wires in masts to avoid damage.
E Attach the right side of the console
using 2 bolts (d), 2 spring washers
(b) and 2 flat washers (c).
NOTE: Be careful not to pinch any wires
while assembling the masts.
YOU ARE FINISHED!
ALL
MODELS
9
10
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the
TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION
11
A Q LCBUK
T101
12
INC LIN E
CA LO R IE S
time
distance
calories
TA RG ET S
TI M E
SP EE D
IN CL I NE
DI S TA NC E
HE AR T R AT E
manual
intervals
weight loss
WO RK O UT S
T T
S
1
%
%
10 %9 %8 %7 %6 %5 %4 %3 %2
SELECT
TARGET
COOL
DOWN
HDMI JN F E OV
ENTE R
DISP L AY
FAN
STO P
HOLD TO R ESE T
SELECT
WORKOUT
GO
MP3 RE ADY
1
MPH
GR
PP
10
MPH9 MPH8 MPH7 MPH6 MPH5 MPH4 MPH3 MPH2 MPH
SPE ED

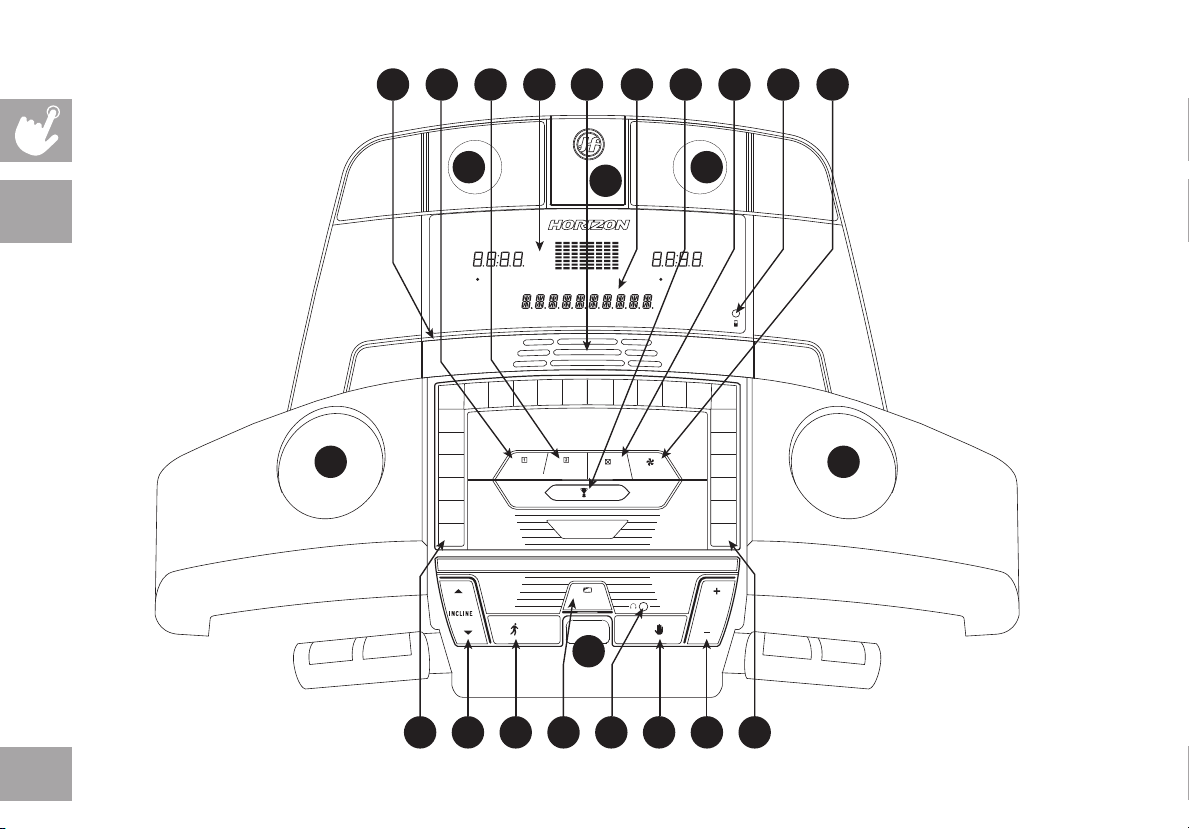

T101 CONSOLE OPERATION
