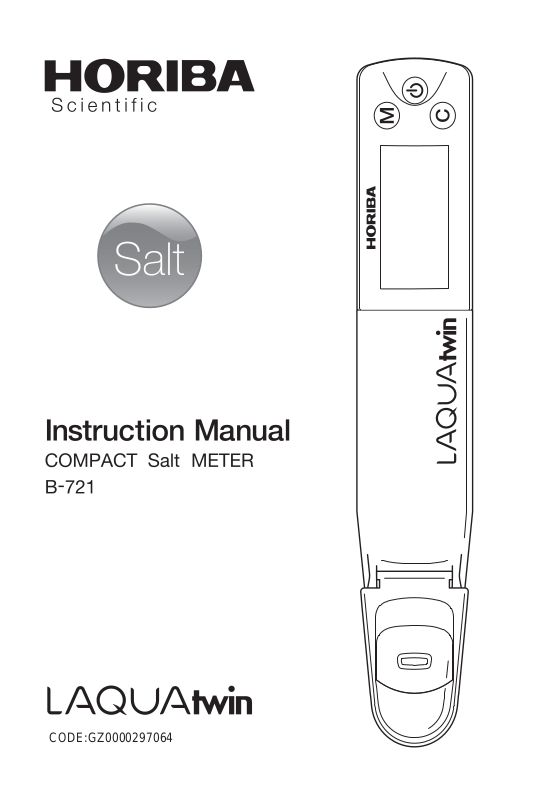

Horiba B-721 Operating Manual

CODE:GZ0000297064

Refer to page 6 to page 23 for detailed instructions.

Preface

This manual describes the operation of the COMPACT Salt METER, B-721. Be sure to read this manual before using the product to ensure proper and safe operation of the instrument. Also safely store the manual so it is readily available whenever necessary.

Product specifications and appearance, as well as the contents of this manual are subject to change without notice.

J Warranty and Responsibility

HORIBA, Ltd. warrants that the Product shall be free from defects in material and workmanship and agrees to repair or replace free of charge, at option of HORIBA, Ltd., any malfunctioned or damaged Product attributable to responsibility of HORIBA, Ltd. for a period of one (1) year from the delivery unless otherwise agreed with a written agreement. In any one of the following cases, none of the warranties set forth herein shall be extended;

z Any malfunction or damage attributable to improper operation z Any malfunction attributable to repair or modification by any person

not authorized by HORIBA, Ltd.

z Any malfunction or damage attributable to the use in an

environment not specified in this manual

z Any malfunction or damage attributable to violation of the

instructions in this manual or operations in the manner not specified in this manual

z Any malfunction or damage attributable to any cause or causes

beyond the reasonable control of HORIBA, Ltd. such as natural disasters

z Any deterioration in appearance attributable to corrosion, rust, and

so on

z Replacement of consumables such as the sensor and standard

solutions

HORIBA, LTD. SHALL NOT BE LIABLE FOR ANY DAMAGES RESULTING FROM ANY MALFUNCTIONS OF THE PRODUCT, ANY ERASURE OF DATA, OR ANY OTHER USES OF THE PRODUCT.

J Trademarks

Generally, company names and brand names are either registered trademarks or trademarks of the respective companies. (R), (TM) symbols may be omitted in this manual.

Regulations

J Conformable Directive

This equipment conforms to the following directives and standards:

Directives: the EMC Directive 2004/108/EC Standards: [the EMC Directive] EN61326-1:2006

Q Information on Disposal of Electrical and Electronic

Equipment and Disposal of Batteries and Accumulators

The crossed out wheeled bin symbol with underbar shown on the product or accompanying documents indicates the product requires appropriate treatment, collection and recycle for waste electrical and electronic equipment (WEEE) under the Directive 2002/96/EC, and/or waste batteries and accumulators under the Directive 2006/66/EC in the European Union. The symbol might be put with one of the chemical symbols below. In this case, it satisfies the requirements of the Directive 2006/66/EC for the object chemical. This product should not be disposed of as unsorted household waste. Your correct disposal of WEEE, waste batteries and accumulators will contribute to reducing wasteful consumption of natural resources, and protecting human health and the environment from potential negative effects caused by hazardous substance in products. Contact your supplier for information on applicable disposal methods.

Class B, Portable test and measurement equipment

J FCC Rules

iἽ ὤὤ Oᴴ㥉㟝 ⵝ㋕䋩㐔ὤ㣄㣠P

Any changes or modifications not expressly approved by the party responsible for compliance shall void the user's authority to operate the equipment.

Q WARNING

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

J Korea Certification

㢨 ὤὤ⏈ ᴴ㥉㟝OiἽPG㤸㣄䑀㤵䚝ὤὤ⦐㉐㨰⦐ ᴴ㥉㜄㉐㇠㟝䚌⏈ ᶷ㡸 ⯝㤵㡰⦐ 䚌⮤SG⯜☔ 㫴㜡㜄㉐㇠㟝䚔㍌㢼㏩⏼␘U

J Taiwan Battery Recycling Mark

Contents

1 Introduction.......................................................................................... 1

1.1 Items in package .........................................................................1

1.2 Consumable parts sold separately ..............................................1

2 Part Names and Functions ................................................................. 2

3 Handling Precautions.......................................................................... 4

4 Basic Handling..................................................................................... 6

4.1 Inserting/removing batteries ........................................................6

4.2 Attaching/detaching the sensor ................................................... 7

4.3 Power ON/OFF ............................................................................8

4.4 Storage ........................................................................................8

5 Calibration............................................................................................ 9

5.1 About calibration ..........................................................................9

5.2 One-point calibration in low concentration .................................10

5.3 One-point calibration in high concentration ...............................10

5.4 Two-point calibration .................................................................11

6 Measurement...................................................................................... 12

6.1 Sample preparation (indirect method) ....................................... 12

6.2 Sample setting ...........................................................................12

6.3 Measurement operations ...........................................................16

7 Special Setting Mode......................................................................... 17

7.1 Temperature display mode ........................................................19

7.2 Calibration point setting .............................................................20

7.3 Sensor voltage display mode ....................................................21

7.4 High calibration value setting .....................................................22

7.5 Initialization mode ......................................................................23

7.6 Software version display mode ..................................................23

8 Appendix ............................................................................................ 24

8.1 Frequently asked questions .......................................................24

8.2 Specifications ............................................................................26

8.3 Interfering ions ...........................................................................27

1 Introduction

The COMPACT Salt METER B-721 incorporates HORIBA original flat sensor and enables accurate measurement of sodium ion (Na tions from a single drop of a sample to convert it to salt concentrations (NaCl weight%).

1.1 Items in package

Meter model B-721

Sensor S021 1 Meter B-721 1 Storage case 1 Batteries CR2032 2

Dedicated standard solutions

Pipette 1 Sampling sheet B 5 sheets 1 Instruction manual Quick-start manual 1

Salt 0.5% 1 Salt 5.0% 1

B-721

1.2 Consumable parts sold separately

Part No. Name Type Application

3200459866 Sensor S021, Salt B-721 3200457722 3200457721 Y021H, 5.0% B-721 (high concentration)

3200459736

3200053858

Standard solutions

Sampling sheet holder cover

Sampling sheet B

Y021L, 0.5% B-721 (low concentration)

Y048 Y046,

100 sheet-pack

B-711, B-712, B-713, B-721, B-722, B-731, B-741, B-742, B-743, B-751

) concentra-

2 Part Names and Functions

No. Name Description

1 Flat sensor

2 Light shield cover

3 Lithium batteries CR2032 (u2)

4 MEAS switch

5 ON/OFF switch Turns ON/OFF the meter. 6 CAL switch 7 Waterproof gasket Makes the meter waterproof.

Place a sample on this sensor. This sensor consists of a liquid junction (A) and response membrane (B). Both A and B must be covered with the sample.

Shields the sensor from light, which affects the sensor. Close the light shield cover before starting measurement. If using the sampling sheet holder cover (refer to page 15), shield the flat sensor from light with an alternative.

Switches the calibration mode to the measurement mode, activates/deactivates the reading locking function in the measurement mode, and starts/applies settings in the special setting mode.

Starts calibration, and switches items/settings in the special setting mode.

No. Name Description

8 Strap eyelet A strap can be attached here.

9 MEAS icon

10 CAL icon

11 Battery alarm icon

T emperature alarm

icon

13 Stability icon Lights up when the measured value is stabilized.

Measured value

display Measurement unit

display

Blinks until the measured value is stabilized, and lights steadily when the measured value is settled, while the reading locking function is active.

Blinks during calibration, and lights steadily when calibration is finished.

Lights up when the batteries are low and need to be changed.

Blinks when the measuring environment temperature does not meet the specified operating temperature (5qC to 40qC).

Displays a measured, set, or status value. A unit symbol lights up corresponding to the valu e displayed

on the measured value display (14). “%” lights up for salt concentrations.
