hopf 6842 GPS Technical Manual

_____________________________________________________________

Technical Manual

Slim Line System

Model 6842 GPS

ENGLISH

Version: 09.01 - 07.09.2009

_____________________________________________________________

Valid for Devices 6842 GPS with FIRMWARE Version: 09.xx

Industriefunkuhren

2 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

INPORTANT NOTES

6842 GPS Slim Line System - V09.01 3 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

Version number (Firmware / Manual)

THE FIRST TWO DIGITS OF THE VERSION NUMBER OF THE TECHNICAL MANUAL AND

THE FIRST TWO DIGITS OF THE FIRMWARE VERSION MUST COMPLY WITH

EACH OTHER. THEY INDICATE THE FUNCTIONAL CORRELATION BETWEEN DEVICE AND

TECHNICAL MANUAL

.

See chapter 3.3 Display after System Start/Reset (Firmware)

THE DIGITS AFTER THE POINT IN THE VERSION NUMBER INDICATE CORRECTIONS IN

THE FIRMWARE

/ MANUAL THAT ARE OF NO SIGNIFICANCE FOR THE FUNCTION.

Downloading Technical Manuals

All current manuals of our products are available free of charge via our homepage on the
Internet.

Homepage: http://www.hopf.com

E-mail: [e-mail]

Symbols and Characters

Operational Reliability

Disregard may cause damages to persons or material.

Functionality

Disregard may impact function of system/device.

Information

Notes and Information.

SERVICE RELIABILITY

4 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

Safety regulations

The safety regulations and observance of the technical data serve to
ensure trouble-free operation of the device and protection of persons and
material. It is therefore of utmost importance to observe and compliance
with these regulations.

If these are not complied with, then no claims may be made under the
terms of the warranty. No liability will be assumed for any ensuing
damage.

Safety of the device

This device has been manufactured in accordance with the latest
technological standards and approved safety regulations

The device should only be put into operation by trained and qualified staff.
Care must be taken that all cable connections are laid and fixed in
position correctly. The device should only be operated with the voltage
supply indicated on the identification label.

The device should only be operated by qualified staff or employees who
have received specific instruction.

If a device must be opened for repair, this should only be carried out by
employees with appropriate qualifications or by

hopf

Elektronik GmbH.

Before a device is opened or a fuse is changed all power supplies must
be disconnected.

If there are reasons to believe that the operational safety can no longer be
guaranteed the device must be taken out of service and labelled
accordingly.

The safety may be impaired when the device does not operate properly or
if it is obviously damaged.

CE-Conformity

This device fulfils the requirements of the EU directive
89/336/EWG "Electromagnetic compatibility" and 73/23/EWG "Low
voltage equipment".

Therefore the device bears the CE identification marking
(CE = Communautés Européennes = European communities)

The CE indicates to the controlling bodies that the product complies with the requirements of
the EU directive - especially with regard to protection of health and safety for the operator
and the user - and may be released for sale within the common markets.

TABLE OF CONTENTS

6842 GPS Slim Line System - V09.01 5 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

Contents Page

1 System Description: 6842 GPS Slim Line (1U) ............................................................ 9

1.1 System 6842 GPS Slim Line (1U) Design................................................................. 11

1.1.1 19" Module Rack (1U)........................................................................................................ 11

1.1.2 Display ............................................................................................................................... 12

1.1.3 Keypad ............................................................................................................................... 12

1.1.4 Status LEDs ....................................................................................................................... 12

1.1.5 System Bus 6000 ............................................................................................................... 13

1.1.6 Function Board Slots.......................................................................................................... 13

1.1.7 Temperature-controlled Forced Ventilation ....................................................................... 13

1.2 Quick Install............................................................................................................... 14

2 Installation..................................................................................................................... 15

2.1 Installation of the 19" Rack........................................................................................ 15

2.2 Earthing..................................................................................................................... 15

2.3 AC Power Supply...................................................................................................... 15

2.3.1 Safety and Warning Instructions ........................................................................................ 16

2.3.2 Power Supply Unit Specifications ...................................................................................... 16

2.3.3 Fusing ................................................................................................................................ 16

2.4 DC Power Supply (Option)........................................................................................ 17

2.4.1 Power Supply Unit Specifications ...................................................................................... 17

2.4.2 Fusing ................................................................................................................................ 17

2.4.3 Reverse Voltage Protection ............................................................................................... 17

2.5 Synchronization Source Connection (GPS).............................................................. 18

2.6 COM0 / COM1 Serial Interfaces Connection ............................................................18

2.7 Error Relays Connection........................................................................................... 18

2.8 DCF77 Antenna Simulation Connection (77.5kHz)................................................... 18

2.9 Function Boards Connection..................................................................................... 18

3 Commissioning............................................................................................................. 19

3.1 General Procedure.................................................................................................... 19

3.2 Switching on the Operating Power Supply................................................................ 19

3.3 Display after System Start/Reset (Firmware)............................................................ 20

3.3.1 Standard Display without Valid Time ................................................................................. 20

3.3.2 Standard Display with Valid Time ...................................................................................... 20

3.4 Keypad Functions ..................................................................................................... 21

3.4.1 Keypad Layout ...................................................................................................................21

3.4.2 Key Assignment ................................................................................................................. 21

3.4.3 Keypad Inputs / Main Menu Activation............................................................................... 22

3.5 Initialization ............................................................................................................... 22

4 System Parameterization and Operation.................................................................... 23

4.1 Menu Structure.......................................................................................................... 23

4.1.1 SET Menu – Basic Settings System 6842 ......................................................................... 25

4.1.1.1 Input Time / Date ........................................................................................................................ 25

4.1.1.2 Input Local Time to UTC Time Offset (Time Zone)..................................................................... 26

4.1.1.3 Input ST/WT Changeover Points of Time ................................................................................... 26

4.1.1.4 Input Position.............................................................................................................................. 28

4.1.1.5 Serial Interface Parameters ........................................................................................................ 29

TABLE OF CONTENTS

6 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

4.1.1.5.1 Selection Frames for COM0 Serial Interface Parameters 29

4.1.1.5.2 Selection Frames for COM1 Serial Interface Parameters 29

4.1.1.5.3 Selection Frames for Optical Interface Parameters 29

4.1.1.6 LAN Board Parameters (Option)................................................................................................. 30

4.1.1.6.1 Selection Frames for LAN Board 1 Parameters 30

4.1.1.6.2 Selection Frames for LAN Board 2 Parameters 30

4.1.1.7 Frequency Output (Option) ......................................................................................................... 31

4.1.1.8 Status and Pulse Output............................................................................................................. 31

4.1.1.9 Selection of the Display and DCF77 Simulation Time Base ....................................................... 32

4.1.1.10 System Status Byte .................................................................................................................... 32

4.1.1.11 Key-Word Function for Keypad................................................................................................... 33

4.1.1.12 Fail-safe Storage of the Input Data.............................................................................................34

4.1.2 SHOW Menu - Display of the System 6842 Base Settings ............................................... 35

4.1.2.1 Time Offset ................................................................................................................................. 35

4.1.2.2 ST/WT Changeover Points of Time ............................................................................................ 35

4.1.2.3 Position....................................................................................................................................... 36

4.1.2.4 Satellite Values (GPS)................................................................................................................ 37

4.1.2.5 Serial Interface Parameters ........................................................................................................ 38

4.1.2.5.1 Display Frames for the COM0 Serial Interface Parameters 38

4.1.2.5.2 Display Frames for the COM1 Serial Interface Parameters 38

4.1.2.5.3 Display Frames for the Optical Interface 38

4.1.2.6 LAN Board Parameters (Option)................................................................................................. 39

4.1.2.6.1 Display Frames for LAN Board 1 Parameters 39

4.1.2.6.2 Display Frames for LAN Board 2 Parameters 39

4.1.2.7 Frequency Output (Option) ......................................................................................................... 40

4.1.2.8 Status and Pulse Output............................................................................................................. 40

4.1.2.9 System Status Byte .................................................................................................................... 40

4.1.2.10 Error Byte.................................................................................................................................... 41

4.1.3 S.CLOCK Menu - Back-up Clock Control with Function Board 7406 ................................ 41

4.1.4 INI Menu - System 6842 Extended Settings/Functions ..................................................... 42

4.1.4.1 Delayed Sync. Status Change.................................................................................................... 42

4.1.4.2 Delayed DCF77 Simulation and DCF77 Pulse Switch-off........................................................... 43

4.1.4.3 DCF77 Pulse Width .................................................................................................................... 44

4.1.4.4 3D / Position-fix GPS Reception and Synchronization Mode...................................................... 45

4.1.4.5 Program Reset............................................................................................................................ 46

4.1.4.6 Master Reset .............................................................................................................................. 46

5 COM0 / COM1 Serial Interfaces ................................................................................... 47

5.1 Configuration of the Serial Interfaces........................................................................ 47

5.1.1 Serial Transmission Parameters........................................................................................ 47

5.1.2 Configuration of the Data String (Mode Byte).................................................................... 49

5.1.2.1 Mode Byte 1 / Bit7 - Local Time or UTC in the Serial Output...................................................... 49

5.1.2.2 Mode Byte 1 / Bit 6 - Serial Output Second Forerun................................................................... 50

5.1.2.3 Mode Byte 1 / Bit 5 - Bit 5 currently no function.......................................................................... 50

5.1.2.4 Mode Byte 1 / Bit 4 - Last Control Character at Second Change (On-Time Mark)..................... 50

5.1.2.5 Mode Byte 1 / Bit 3 - Reverse Control Characters CR and LF.................................................... 50

5.1.2.6 Mode Byte 1 / Bit 2 - Delayed Transmission............................................................................... 50

5.1.2.7 Mode Byte 1 / Bit1-Bit0 - Data String Transmission Point of Time.............................................. 51

5.1.2.8 Mode Byte 2 / Bit7-Bit3: Non-assigned Bits ................................................................................ 51

5.1.2.9 Mode Byte 2 / Bit2-Bit0 - Data String Selection .......................................................................... 51

5.1.3 Serial Transmission Data Format ...................................................................................... 52

5.1.4 Serial Data String Request ................................................................................................ 52

5.1.4.1 Serial Requests with ASCII Characters (

hopf

Standard and

hopf

2000) ............................... 52

5.2 Data String Transmission Points of Time.................................................................. 53

5.3 Data Strings .............................................................................................................. 54

5.3.1 General Information about Data Output of Board 6842 GPS ............................................ 54

5.3.2

hopf

Standard String (6021)............................................................................................. 55

5.3.2.1 Specified Settings....................................................................................................................... 55

5.3.2.2 Structure ..................................................................................................................................... 55

5.3.2.3 Status.......................................................................................................................................... 55

5.3.2.4 Example...................................................................................................................................... 56

5.3.3 NTP (Network Time Protocol) ............................................................................................ 57

TABLE OF CONTENTS

6842 GPS Slim Line System - V09.01 7 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

5.3.3.1 Specified Settings....................................................................................................................... 57

5.3.3.2 Structure ..................................................................................................................................... 57

5.3.3.3 Status.......................................................................................................................................... 57

5.3.3.4 Example...................................................................................................................................... 57

5.3.4 SINEC H1........................................................................................................................... 58

5.3.4.1 Specified Settings....................................................................................................................... 58

5.3.4.2 Structure ..................................................................................................................................... 58

5.3.4.3 Status.......................................................................................................................................... 59

5.3.4.4 Example...................................................................................................................................... 59

5.3.5

hopf

2000 - 4 Digit Year Output........................................................................................ 60

5.3.5.1 Specified Settings....................................................................................................................... 60

5.3.5.2 Structure ..................................................................................................................................... 60

5.3.5.3 Status.......................................................................................................................................... 61

5.3.5.4 Example...................................................................................................................................... 61

5.3.6 T-String .............................................................................................................................. 62

5.3.6.1 Specified Settings....................................................................................................................... 62

5.3.6.2 Structure ..................................................................................................................................... 62

5.3.6.3 Status.......................................................................................................................................... 62

5.3.6.4 Example...................................................................................................................................... 62

5.3.7

hopf

Master/Slave-String.................................................................................................. 63

5.3.7.1 Specified Settings....................................................................................................................... 63

5.3.7.2 Structure ..................................................................................................................................... 64

5.3.7.3 Status.......................................................................................................................................... 65

5.3.7.4 Example...................................................................................................................................... 65

5.3.8 IBM Sysplex Timer Model 1+2 ........................................................................................... 66

5.3.8.1 Specified Settings....................................................................................................................... 66

5.3.8.2 Structure ..................................................................................................................................... 66

5.3.8.3 Status.......................................................................................................................................... 67

5.3.8.4 Example...................................................................................................................................... 67

5.3.9 SINEC H1 Extended .......................................................................................................... 68

5.3.9.1 Specified Settings....................................................................................................................... 68

5.3.9.2 Structure ..................................................................................................................................... 68

5.3.9.3 Status.......................................................................................................................................... 69

5.3.9.4 Example...................................................................................................................................... 69

5.3.10 NMEA - GPRMC ................................................................................................................ 70

5.3.10.1 Specified Settings ....................................................................................................................... 70

5.3.10.2 Structure ..................................................................................................................................... 71

5.3.10.3 Status.......................................................................................................................................... 72

5.3.10.4 Example...................................................................................................................................... 72

5.3.11 TimeServ for Windows NT PCs ......................................................................................... 73

5.3.11.1 Specified Settings ....................................................................................................................... 73

5.3.11.2 Structure ..................................................................................................................................... 73

5.3.11.3 Status.......................................................................................................................................... 73

5.3.11.4 Example...................................................................................................................................... 73

5.3.12 Data String ALOHA............................................................................................................ 74

5.3.12.1 Specified Settings ....................................................................................................................... 74

5.3.12.2 Structure ..................................................................................................................................... 74

5.3.12.3 Status.......................................................................................................................................... 74

5.3.12.4 Example...................................................................................................................................... 74

5.3.13 SAT 1703 Time String........................................................................................................ 75

5.3.13.1 Specified Settings ....................................................................................................................... 75

5.3.13.2 Structure ..................................................................................................................................... 75

5.3.13.3 Status.......................................................................................................................................... 76

5.3.12.5 Example...................................................................................................................................... 76

6 Function Boards ........................................................................................................... 77

6.1 General ..................................................................................................................... 77

6.2 Function Boards for the System 6842 GPS Slim Line (1U) – Summary ................... 78

6.3 Exchanging a Function Board ................................................................................... 79

6.4 Installation of an Additional Function Board.............................................................. 79

6.5 Removing Function Boards....................................................................................... 80

TABLE OF CONTENTS

8 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

7 System Indicators / Fault Analysis / Troubleshooting .............................................. 81

7.1 Status and Fault Indicators ....................................................................................... 81

7.1.1 Status LEDs ....................................................................................................................... 81

7.1.1.1 "Power ON" LED......................................................................................................................... 81

7.1.1.2 "Sync. Status" LEDs ................................................................................................................... 81

7.1.2 LCD-Display ....................................................................................................................... 81

7.1.2.1 System Status on the Display..................................................................................................... 81

7.1.2.2 Number of Satellites ................................................................................................................... 81

7.1.2.3 Position Display .......................................................................................................................... 81

7.1.2.4 Error Byte Display....................................................................................................................... 82

7.1.3 Error Relays ....................................................................................................................... 82

7.1.3.1 "Power" Relay............................................................................................................................. 82

7.1.3.2 "Sync" Relay............................................................................................................................... 82

7.1.4 Send LED........................................................................................................................... 82

7.1.5 Auto-Reset Logic (System Bus)......................................................................................... 82

7.1.6 Serial Output of Data Telegrams ....................................................................................... 83

7.2 Error Patterns............................................................................................................ 83

7.2.1 Complete Failure................................................................................................................83

7.2.2 Power LED "ON" – No Display and No Output.................................................................. 84

7.2.3 Power LED "ON" – No Display but Valid Signal Output .................................................... 84

7.2.4 Power LED "ON" – Cyclical Flickering of the Displays ...................................................... 84

7.2.5 No GPS Reception / No Synchronization .......................................................................... 85

7.2.6 No DCF77 Antenna Simulation / DCF77 Pulse ................................................................. 86

7.2.7 No or Incorrect Serial Output ............................................................................................. 86

7.2.8 Incorrect Time Output ........................................................................................................ 87

7.2.9 No ST/WT Changeover...................................................................................................... 87

7.2.10 Output and Function Errors of Individual Function Boards................................................ 87

7.3 Support from the

hopf

Company .............................................................................88

8 Maintenance / Care ....................................................................................................... 89

8.1 General Guidelines for Cleaning ............................................................................... 89

8.2 Cleaning the Housing................................................................................................ 89

8.3 Cleaning the Display and Keypad ............................................................................. 89

9 Technical Data System 6842 GPS Slim Line (1U) ...................................................... 90

10 System Drawing............................................................................................................ 93

11 Appendix .......................................................................................................................94

11.1 GPS (Global Positioning System) ............................................................................. 94

11.2 DCF77 (German Long-Wave Transmitter Frankfurt 77.5kHz) .................................. 95

11.2.1 DCF77 General.................................................................................................................. 95

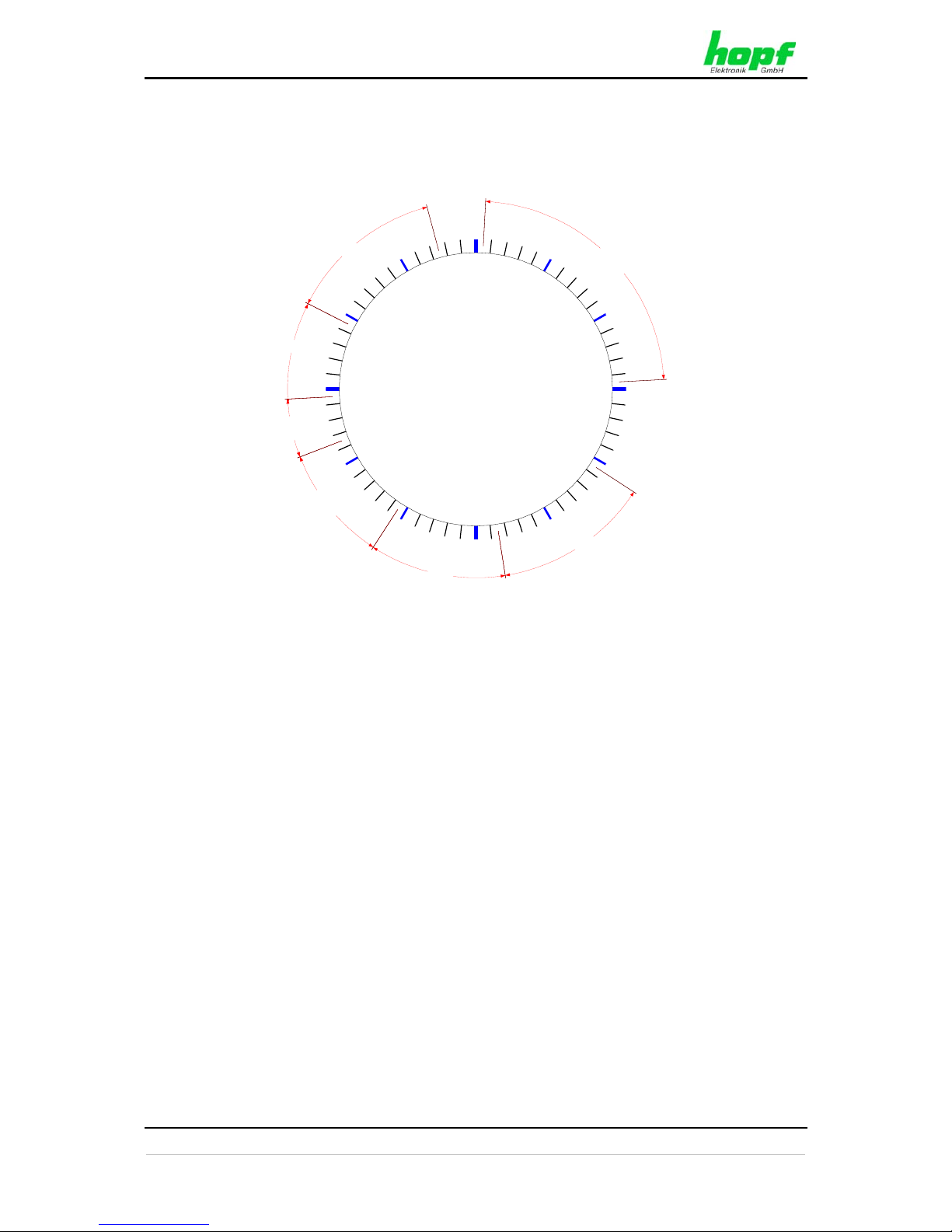

11.2.1.1 DCF77 Signal Structure.............................................................................................................. 95

11.2.1.2 Advantages and Disadvantages DCF77..................................................................................... 97

11.2.2 DCF77 Generation by

hopf

Clocks................................................................................... 97

11.2.2.1 DCF77 Signal Simulation............................................................................................................ 97

11.2.2.2 DCF77 Pulse (1Hz)..................................................................................................................... 97

12 Glossary ........................................................................................................................98

SYSTEM DESCRIPTION: 6842 GPS SLIM LINE (1U)

6842 GPS Slim Line System - V09.01 9 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

1 System Description: 6842 GPS Slim Line (1U)

The proven and tested

hopf

System 6842 GPS has been integrated into an 1U/84HP
housing (U = height unit) in the Slim Line version, which is geared to meet today’s computer
and network technology requirements. In this way, the wide functionality range of the 3U
housing designs is maintained in spite of the reduction in size. In addition, status LEDs to the
front and rear and status (error) relays provide information about the equipment’s operating
condition.

The full modularity of the System 6842 GPS is available in the 1U design. This allows tailor­made solutions to be realized with the System 6842 GPS. The System can be extended
using Function Boards which can be added by the customer. In this way, functionality can be
easily upgraded on site at low cost. Function Boards can also be exchanged directly on site.

A high degree of flexibility and availability is achieved combined with high reliability and
complete freedom from maintenance.

A variety of Function Boards is available to cover almost every requirement, from the simple
pulse output to the NTP time server.

The Slim Line version of the

hopf

System 6842 GPS will further complement the innovative

product range of

hopf

Elektronik GmbH.

SYSTEM DESCRIPTION: 6842 GPS SLIM LINE (1U)

10 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

Some of the System’s base functions:

• Synchronization is possible with one satellite only

• 1U sheet steel housing with robust aluminium front panel

• Simple operation via keypad and LCD-display on the front panel

• All cable connections on the rear side

• Status LEDs on both front and rear sides

• Status output via two relays (dry contacts) for power and synchronization

• Wide voltage input range 100-240V AC - for worldwide application

• DC Power Supply (Option)

• Housing with additional earth screw for cables up to 16mm²

• Active cooling by two temperature-controlled fans

• Power input with mains switch compliant with IEC/EN 60320-1/C14

and EMI network noise filter

• Prepared for retrofitting of Function Boards by the customer

• Up to two independent NTP time servers can be implemented on one System

• Two independent serial interfaces (each in RS232 and RS422 format)

• High freewheel accuracy due to GPS-supported control of the internal quartz base

• DCF77 antenna simulation (77.5kHz) for the synchronization of an additional DCF77

clock system

• Potential isolation of the GPS antenna circuit

• Completely maintenance-free System

• SyncOFF timer (reception failure bypassing) for error message-free operation even in

difficult reception conditions

• Redundant multiple synchronization signal verification for error-free and leap-free
signal evaluation

• Maintenance-free buffered back-up clock for three days

Extension options

• Customer-specific system adaptations for "tailor-made" project solutions.

SYSTEM DESCRIPTION: 6842 GPS SLIM LINE (1U)

6842 GPS Slim Line System - V09.01 11 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

1.1 System 6842 GPS Slim Line (1U) Design

The system can be individually configured for various applications due to its partly modular
design and can be easily upgraded or converted to suit changes in the application
conditions.

1.1.1 19" Module Rack (1U)

The base system consists of the following:

• 1/1 19" module rack 1U/84HP (Slim Line)

• Wide-ranging power supply unit from 100-240V AC / 40VA (47-63Hz)

Other input voltages available

• Voltage input with mains switch and line filter

• Connection for protection earth (PE) cables up to 16mm²

• System front panel with LCD-Display (2x16), keypad (20 keys) and status LEDs

System front panel:

System 6842

GPS Clock

Ser. No.: 6842099999

0456

12

3

789

W

Y

E

N

S

BREAK

ENTER

BACKSPACE

SYNC. STATUS POWER

ON OFF

ON

• Control Board 6842 for:

o Synchronization signal reception and evaluation

o Keypad control

o Display control

o System bus control

o Time distribution in the system

• Two independent serial interfaces

• DCF77 antenna simulation (77.5kHz) via BNC socket

• System bus with two expansion slots

System rear side / connection side:

I O

Bus Bridge Board

(For Replacement by Function Board)

Bus Bridge Board

(For Replacement by Function Board)

COM0 COM1 Error Relays

Antenna

DCF-Sim

(77.5kHz)

Send

Power

Sync.

SYSTEM DESCRIPTION: 6842 GPS SLIM LINE (1U)

12 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

1.1.2 Display

The display consists of a two-line LCD-Display (Liquid Crystal Display) with 2x16 characters
and back-lighting.

The lighting is activated by pressing a key and switches off automatically
after approx. 4 minutes with no action required on the keypad.

For a description of the display functions please see Chapter 4 System Parameterization
and Operation.

1.1.3 Keypad

The alphanumeric keypad with 20 keys provides menu-driven operation of the clock system.

For keypad operation please see Chapter 3.4 Keypad Functions.

1.1.4 Status LEDs

The System has status LEDs on both the front and rear sides. These allow the System
status to be recognized in the installed condition in the control panel, whilst operating via the
front panel as well as whilst checking the cabling on the rear side of the System.

The LEDs indicate the following System conditions:

POWER

ON

Power

Power

(green)

ON The System is in operation
OFF The System is out of operation

(for example, it is switched off, defective or
the power supply has failed)

Front side Rear side

Sync.

(red)

ON The system is not

currently synchronized

by GPS

SYNC. STATUS

ON OFF

Sync.

Sync.

(green)

ON The system is currently synchronized by

GPS or the status delay is active

SYSTEM DESCRIPTION: 6842 GPS SLIM LINE (1U)

6842 GPS Slim Line System - V09.01 13 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

1.1.5 System Bus 6000

The System Bus, consisting of the Bus Board with VG ledges, via which the Control Board
6842 and the Function Boards are connected, can be found in the System 6842.

The System Bus serves to provide:

• Distribution of the time information

• Communication between Control Board 6842 and the Function Boards

• Transmission of the regulated second pulse (PPS). This serves to synchronize the

data output of the implemented Function Boards

• Distribution of the regulated DCF77 pulse (generated by the Control Board 6842)

• Circular auto-reset circuit for ongoing verification of the System Bus Function Boards

to be found in the System

• Power supply for the installed boards

Each active Function Board (transmit and receive) which is linked to the System Bus has a
SEND LED. This LED signals which of the Function Boards is active on the System Bus.

Function Boards which only receive data from the System Bus do not have a SEND LED.

1.1.6 Function Board Slots

Up to two Function Boards can be implemented in the System 6842 GPS Slim Line (1U).

As a basic principle, the slot can be freely selected for each 'Function Board' / 'System Bus
Function Board'.

Exceptions of the slot selection can be found in Chapter 6 Function Boards

Only boards that have been adapted for the 1U Slim Line System can be used in these slots.

Slots that have been prepared for special functions are identified with the letters "A" and

"B".

1.1.7 Temperature-controlled Forced Ventilation

The clock system has two temperature-controlled fans to prevent the operating temperature
rising above the allowed limit as a result of thermal coupling with equipment mounted in the
control panel.

These fans are mounted on the side ventilation apertures and switch in when the
temperature in the equipment reaches approx. 45°C.

The ventilation apertures on the left and right hand sides must not be
covered. Otherwise, active ventilation is ineffective and inadequate
convection and/or thermal coupling with surrounding equipment may cause
the temperature to rise above the equipment’s maximum permissible
operating temperature.

SYSTEM DESCRIPTION: 6842 GPS SLIM LINE (1U)

14 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

1.2 Quick Install

• Earthing System / connect power supply

• Connect GPS antenna

• Switch on power supply

• Input local time and date

• Input time offset

• Input position

• Input changeover point of time S Ö D

• Input changeover point of time D Ö S

• Wait for minute change

• Trigger program reset

• Check for correct acquisition of the time offset using the SHOW function

• Check for correct acquisition of the position using the SHOW function

• Check for correct acquisition of the changeover point of time S Ö D using the

SHOW function

• Check for correct acquisition of the changeover point of time D Ö S using the
SHOW function

• Trigger master reset

The equipment should be synchronous within less than 30 minutes.

This can be checked by means of the:

• LCD-Display

• Status LEDs

• Error relays

INSTALLATION

6842 GPS Slim Line System - V09.01 15 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

2 Installation

The following describes the installation of the System hardware.

2.1 Installation of the 19" Rack

The following steps are to be carried out:

• Place the rack in the control panel and fix to the mounting brackets on the front

side of the rack using 4 screws.

The side ventilation apertures on the right and left hand sides must not be
covered. Otherwise active ventilation will not be effective and lack of
convection and / or thermal coupling with surrounding equipment may give
rise to an excessive equipment operating temperature.

• Ensure that there is sufficient space between the connection side of the rack and

the control panel to allow for the connection of cables to the System.

2.2 Earthing

The System 6842 GPS Slim Line (1U) is usually earthed via the PE cable of the power
supply.

An additional earth cable for surge protection purposes can be connected by means of the
earth screw located on the rear side of the System housing.

2.3 AC Power Supply

The Systems’ standard AC power supply unit is described here. However, the connection
data on the nameplate of the respective unit is always applicable.

Attention should be paid to the following when connecting the power supply:

• Correct voltage type (AC or DC)

• Voltage level

The power feed is via an input connector with mains power switch and EMI filter compliant
with IEC/EN 60320-1/C14

I O

• Check that the mains power switch is in position " 0 " (= off).

• Plug the input connector into the System’s mains power inlet.

• Connect the input connector to the mains power supply and

switch the line circuit breaker on.

The System 6842 can be damaged if incorrect voltage is connected.

INSTALLATION

16 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

2.3.1 Safety and Warning Instructions

Please read these instructions fully in order to guarantee safe operation of the equipment
and to be able to use all the functions.

Caution: Never work on an open unit with live power supply! Danger to life!

The System 6842 GPS Slim Line is an installation device. Installation and commissioning
may only be carried out by suitably qualified specialist personnel. In doing so the respective
country-specific specifications must be observed (e.g. VDE, DIN).

Before commissioning ensure that:

• The power supply has been connected correctly and electrical shock protection is in
place

• The earth wire is connected

• All supply cables are correctly sized and fused

• All output cables are suitably sized or specially fused for the max. output current of

the equipment

• Sufficient convection is guaranteed

The equipment contains life-threatening components and a high level of stored energy.

2.3.2 Power Supply Unit Specifications

All AC power supply specifications are contained in Chapter 9 Technical Data System
6842 GPS Slim Line (1U).

2.3.3 Fusing

Pay attention to the correct fusing of the power supply when connecting the System 6842
GPS Slim Line (1U)

The corresponding performance data can be taken from the equipment nameplate. The
System 6842 GPS Slim Line (1U) is currently fitted with a power supply unit with a power
consumption of max. 40VA.

If the internal fuse (device protection) trips it is highly probable that the
equipment is faulty. In this case the device should be checked in the
factory.

INSTALLATION

6842 GPS Slim Line System - V09.01 17 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

2.4 DC Power Supply (Option)

Ensure that the external power supply is switched off. When connecting the
supply cable make sure that the polarity is correct and the equipment is
earthed.

• The cable of the power supply is connected using a 2-pole plug
connector with additional earth connection and interlocked with
the System 6842 GPS Slim Line (1U):

+Vin: Positive pole (contact 1)
–V

in

: Negative pole (contact 2)

PE: Earth

The System 6842 can be damaged if incorrect voltage is connected.

Earthing:

By default the minus pole (-Vin) and earthing (PE) are connected
system-sided.

2.4.1 Power Supply Unit Specifications

All DC power supply specifications are contained in Chapter 9 Technical Data System
6842 GPS Slim Line (1U).

2.4.2 Fusing

Pay attention to the correct fusing of the power supply when connecting the System 6842
GPS Slim Line (1U).

The corresponding performance data can be taken from the equipment nameplate. The
System 6842 GPS Slim Line (1U) is currently fitted with a power supply unit with a power
consumption of max. 40VA.

If the internal fuse (device protection) trips it is highly probable that the
equipment is faulty. In this case the device should be checked in the
factory.

2.4.3 Reverse Voltage Protection

The version of System 6842 GPS Slim Line (1U) with DC supply has reverse voltage
protection. This protection prevents damage to the equipment due to an incorrectly
connected DC power supply.

Protection is effected by means of a self-resetting fuse. In the case of reverse polarity, it is
necessary to switch the equipment off for approx. 20 seconds after this fuse has tripped. The
power supply can then be connected with the correct polarity.

INSTALLATION

18 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

2.5 Synchronization Source Connection (GPS)

The GPS antenna equipment coaxial cable is connected to the BNC socket marked
"Antenna" on the rear side of the System. More detailed specifications for the installation of
the antenna equipment, such as cable lengths and types, can be found in the manual
"Antenna Equipment GPS".

2.6 COM0 / COM1 Serial Interfaces Connection

The serial interfaces are assigned as follows:

SUB-D connector

9 pin

COM0

Pin Assignment

1
2 RxD RS232
3 TxD RS232
4
5 GND
6 +TxD RS422 (high active)
7 -TxD RS422 (low active)
8 +RxD RS422 (high active)
9 -RxD RS422 (low active)

SUB-D connector

9 pin

COM1

Pin Assignment

1
2 RxD RS232
3 TxD RS232
4
5 GND
6 +TxD RS422 (high active)
7 -TxD RS422 (low active)
8 +RxD RS422 (high active)
9 -RxD RS422 (low active)

2.7 Error Relays Connection

SUB-D connector

9 pin

Error Relays

Pin Assignment

1
2 PWR - REL2 Common contact (c)
3 PWR - REL2 Normally open contact (no)
4
5 GND
6 PWR - REL2 Normally closed contact(nc)
7 SYNC - REL1 Normally closed contact (nc)
8 SYNC - REL1 Common contact (c)
9 SYNC - REL1 Normally open contact (no)

PWR = Power / Operation – SYNC = Synchronous

2.8 DCF77 Antenna Simulation Connection (77.5kHz)

The antenna cable of the DCF77 System to be synchronized is connected to the System’s
BNC socket marked "DCF-Sim". A type RG59 coaxial cable is recommended as standard

for the connection between

hopf

Systems.

2.9 Function Boards Connection

The necessary steps to connect the Function Boards should be consulted in the respective
technical specifications of the Function Boards present in the system.

COMMISSIONING

6842 GPS Slim Line System - V09.01 19 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

3 Commissioning

This chapter describes the commissioning of the system 6842.

3.1 General Procedure

The commissioning procedure is as follows:

• Check the cabling:

o Earth
o Power supply
o GPS antenna equipment
o COM0 / COM1 serial interfaces
o DCF77 antenna simulation (77.5kHz)
o Error relays
o Function Boards

• Isolate all plug connections to the output interfaces and Function Boards
(recommended)

• GPS antenna equipment connection to remain in place

• Switch on System 6842

• Power LEDs light up on front and rear sides

• The start frame appears on the display (for approx. 3 seconds)

• Execute all parameter settings via the SET menu

and also via the INI and S.CLOCK menus when necessary

• Check for successful synchronization of the System 6842

• Commission the Function Boards (where present):

o Set the Function Board(s) parameters
o Re-establish the plug connections
o Check that the connected equipment is receiving the time correctly

3.2 Switching on the Operating Power Supply

AC power supply:

I O

Put the mains power switch into position " I " (on).

The System 6842 GPS Slim Line (1U) runs and the firmware version
and programming date are shown on the display
(see Chapter 3.3 Display after System Start/Reset (Firmware)).

DC power supply:

Switch on external power supply source.

The System 6842 GPS Slim Line (1U) runs and the firmware version
and programming date are shown on the display
(see Chapter 3.3 Display after System Start/Reset (Firmware)).

The Power Status LED and the red Sync LED light up on the front and rear sides for both
types of power supply.

COMMISSIONING

20 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

3.3 Display after System Start/Reset (Firmware)

The following start frame appears on the 2x16 digit LCD-Display for approx. 3 seconds after
switch-on or reset:

V E R S I O N 0 6 . 0 0

Ö Control Board 6842 firmware

2 2 / M A Y / 2 0 0 6

Ö Firmware programming date

3.3.1 Standard Display without Valid Time

The following frame (with incremental seconds) appears on the display on first
commissioning or a longer time without voltage condition and loss of backup clock

information:

L T : 0 0 . 0 0 . 0 1 - - -

- - 0 0 / - - - / 2 0 0 0

After a voltage failure of less than 3 days the display starts up with the
internal back-up clock information, provided that time information was
previously available.

3.3.2 Standard Display with Valid Time

Sample frame for the standard display after system start with valid back-up clock information
or following manual input of the time information:

L T : 1 4 : 5 6 : 2 7 S - C

T U 0 3 / A U G / 2 0 0 4

The meaning of the individual items is as follows:

LT : 08:45:48

On adjustment: show local time on the display.

UT : 06:45:48

On adjustment: show UTC time on the display.

MO - TU - WE - TH -
FR - SA - SU

Display of the weekday in abbreviated form:
corresponds to MONDAY – SUNDAY

12/JUL/2004

Display of the date: Day / Month abbreviation / Year

Status display:

Position 1: X--

"D"
"S"

For summer time (Daylight-saving time)
For winter time (Standard time)

Position 2: -X-

"A"

"−"

Announcement of ST/WT changeover (summer time/ winter
time changeover) to another time zone. This announcement
takes place approx. 1 hour before the time zone change or
Announcement of a leap second. This information takes place
approx. 1 hour before the insertion of the leap second.

Position 3: --X

"C"

"r"

"R"

Display of the internal status of the clock system:

"C" = Clock system is running in quartz operation (C=Crystal)

"r" = Clock system is synchronized with GPS
without internal quartz base control
"R" = Clock system is synchronized with GPS
with internal quartz base control (R=Radio)

COMMISSIONING

6842 GPS Slim Line System - V09.01 21 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

3.4 Keypad Functions

The following describes the keypad design and operation.

3.4.1 Keypad Layout

3.4.2 Key Assignment

Key Function
+ / -

Input of the operational signs for numerical values

0 ... 9

Input of the digits

N, E, S, W

Input keys

Y

Call up menu group selection frame

BREAK

Aborts all key controls. Quits the input menu at any time and in any
position. All inputs following the most recent activation of the ENTER

key are discarded.

BACKSPACE

Deletes the last character entered

ENTER

Calls up the main menu from the standard display.
Completes and accepts the input at the end of an input frame. When

no input is made, pressing ENTER switches through to the next
frame.

COMMISSIONING

22 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

3.4.3 Keypad Inputs / Main Menu Activation

The main menu is activated by pressing the ENTER key.

The display changes from the standard frame to the main menu:

Standard frame:

L T : 1 4 : 5 6 : 2 7 S - C

T U 0 3 / A U G / 2 0 0 4

Main menu:

S E T = 1 S H O W = 2

S . C L O C K = 3 I N I = 4

• The requested menu item is executed by entering the corresponding number.

• The cursor on the frame shows the point at which the next entry can take place.

• An incorrect input number is either directly refused or checked for plausibility after

the ENTER key is pressed. An "INPUT ERROR" message follows. The display
then returns to the standard frame.

• All of the selection functions are not always required or used. The System functions
for which they are effective are indicated in the specification, at the beginning of
each sub-function. If such a function is called up by mistake this can be exited by
pressing the BREAK key.

3.5 Initialization

The base initialization of the equipment is carried out first. This enables the equipment to
synchronize with GPS.

To initialize the System 6842 GPS the menu items presented below are to be parameterized
accordingly (see Chapter 4.1.1 SET Menu – Basic Settings System 6842). In doing so
attention should be paid to System and location specific requirements such as time base,
synchronization source and synchronization parameters.

Menu items required for the base parameterization:

MENU 1: #SET

1.01 TIME

1.02 DIF.-TIME

1.03 CHANGE-OVERDATE (Changeover Standard time / Summer time)

1.04 CHANGE-OVERDATE (Changeover Summer time / Standard time)

1.05 POSITION

1.25 STATUS OR PULSE OUTPUT (only verification)

1.26 TIME OUTPUTS DISPLAY/DCF

All additional settings are to be carried out in accordance with the requirements and use of
the equipment.

SYSTEM PARAMETERIZATION AND OPERATION

6842 GPS Slim Line System - V09.01 23 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

4 System Parameterization and Operation

The following explains the menu structure and the individual menus.

4.1 Menu Structure

The main menu is called up by pressing the ENTER key. This is divided into four different
menu items. These are called up by entering the respective number (1-4). Following this

entry the respective sub-menus are then called up.

The menu structure is constructed as follows:

MENU 1: #SET

1.01 TIME

1.02 DIF.-TIME

1.03

CHANGE-OVERDATE (Changeover Standard time Ö Summer time)

1.04

CHANGE-OVERDATE (Changeover Summertime Ö Standard time)

1.05 POSITION

1.06 COM0 - SERIALPARAMETER

1.07 COM0 - MODE 1

1.08 COM0 - MODE 2

1.09 COM1 - SERIALPARAMETER

1.10 COM1 - MODE 1

1.11 COM1 - MODE 2

1.12 OPTICAL TRANS - SERIALPARAMETER

(No function in this equipment version)

1.13 OPTICAL TRANS - MODE 1

(No function in this equipment version)

1.14 OPTICAL TRANS - MODE 2 (No function in this equipment version)

1.15 LAN1 - ADR

(No Board 7271/7272 in the System Ö no function)

1.16 LAN1 - GATEWAY ( ------------------- " ------------------ )

1.17 LAN1 - NET-MASK

( ------------------- " ------------------ )

1.18 LAN1 - CONTROL-BYTE

( ------------------- " ------------------ )

1.19 LAN2 - ADR (No 2

nd

Board 7271/7272 in the System Ö no function)

1.20 LAN2 - GATEWAY

( ------------------- " --------------------- )

1.21 LAN2 - NET-MASK

( ------------------- " --------------------- )

1.22 LAN2 - CONTROL-BYTE

( ------------------- " --------------------- )

1.23 FREQUENCY

(No Board 7530 in the System Ö no function)

1.24 FREQUENCY OUTPUT DELAY

( ------------------- " ------------------ )

1.25 STATUS OR PULSE OUTPUT

1.26 TIME OUTPUTS DISPLAY/DCF

1.27 SYSTEM STATUS

1.28 KEY-WORD

SYSTEM PARAMETERIZATION AND OPERATION

24 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

MENU 2: #SHOW

2.01 DIF.-TIME

2.02

CHANGE-OVERDATE (changeover point of time Standard Ö Summer)

2.03

CHANGE-OVERDATE (changeover point of time Summer Ö Standard)

2.04 POSITION

2.05 SATELLITES

2.06 COM0 - SERIALPARAMETER

2.07 COM0 - MODE 1

2.08 COM0 - MODE 2

2.09 COM1 - SERIALPARAMETER

2.10 COM1 - MODE 1

2.11 COM1 - MODE 2

2.12 OPTICAL TRANS - SERIALPARAMETER

(No function in this equipment version)

2.13 OPTICAL TRANS - MODE 1

(No function in this equipment version)

2.14 OPTICAL TRANS - MODE 2

(No function in this equipment version)

2.15 LAN1 - ADR (No Board 7271/7272 in the System Ö no function)

2.16 LAN1 - GATEWAY

( ------------------- " ------------------ )

2.17 LAN1 - NET-MASK ( ------------------- " ------------------ )

2.18 LAN1 - CONTROL-BYTE

( ------------------- " ------------------ )

2.19 LAN2 - ADR (No 2

nd

Board 7271/7272 in the System Ö no function)

2.20 LAN2 - GATEWAY

( ------------------- " --------------------- )

2.21 LAN2 - NET-MASK

( ------------------- " --------------------- )

2.22 LAN2 - CONTROL-BYTE ( ------------------- " --------------------- )

2.23 FREQUENCY

(No Board 7530 in the System Ö no function)

2.24 FREQUENCY OUTPUT DELAY ( ------------------- " ------------------ )

2.25 STATUS OR PULSE OUTPUT

2.26 SYSTEM STATUS

2.27 ERROR BYTE

MENU 3: #S.CLOCK

3.01 SLAVE CLOCK NO. 1-4; see Board 7406 manual

(if no Board 7406 in the System Ö no function)

MENU 4: #INI

4.01 TIME-OUT FOR STATUS CHANGE

4.02 TIME-OUT FOR DCF SIMULATION

4.03 DCF-HIGH-PULS

4.04 DCF-LOW-PULS

4.05 POS.-FIX/3-D ACCURACY

4.06 PROGRAMM RESET

4.07 MASTER RESET

SYSTEM PARAMETERIZATION AND OPERATION

6842 GPS Slim Line System - V09.01 25 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

4.1.1 SET Menu – Basic Settings System 6842

Input of the basic setting functions such as Time / Date, Position, Time Offset etc.

Grey lettering on the display corresponds to a possible customer input.

Selection screens are confirmed with 'Y' (yes) or rejected with 'N' (no) or any key other than

'Y' and 'BR'. After entering 'N' the next sub-function is displayed.

4.1.1.1 Input Time / Date

The local time is set with this input function. The entry is made on two lines and must be
complete. For this purpose it is also necessary to input the leading zeros.

Selection frame:

S E T T I M E Y / N

_

Input frame:

T I M E : H H : M M : S S

d . D D / M M / Y Y Y Y

The meaning of the individual items is as follows:

Code Meaning Value Range

HH

Hour 00 ... 23

MM

Minute 00 ... 59

SS

Second 00 ... 59

d

Weekday 1 = Monday ... 7 = Sunday

DD

Day 01 ... 31

MM

Month 01 ... 12

YYYY

Year 1990 ... 2089

The entry is accepted by pressing the ENTER key.

In case of an incorrect input the "INPUT ERROR" message appears for 3 seconds. The
setting function is then exited and the standard frame reappears on the display.

If further entries are required, any key except Y and BREAK can be pressed to switch
through the SET menu.

The setup program is exited by pressing the BREAK key. The standard frame reappears.

The changeover dates are to be entered for countries which change their
time zone during the year.

SYSTEM PARAMETERIZATION AND OPERATION

26 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

4.1.1.2 Input Local Time to UTC Time Offset (Time Zone)

The time offset between the local standard time and the world time (UTC time) is entered
with this function.

Selection frame:

S E T D I F . - T I M E
Y / N _

Input frame:

D I F - T I M E : + 0 1 : 0 0

_

The operational sign indicates the direction in which the local time differs from the world
time:

'+' Corresponds to East of the Null Meridian (Greenwich)
'-' Corresponds to West of the Null Meridian (Greenwich)

Since most countries of the world count their time offset in whole hours, the input is also in
one hour steps:

e.g. + 05:00 or - 11:00

However, some countries also use smaller time intervals. Therefore it is also possible to
input the data in one minute steps:

e.g. + 05:30 or - 08:45

The time offset always relates to the local standard time (winter time),
even if commissioning or input of the time offset takes place during summer
time.

Example for Germany:

UTC Local Time

Time offset to

be set:

Comment

13:00:00 14:00:00 (winter time) +01:00
13:00:00 15:00:00 (summer time) +01:00

The time offset of two hours is
made up of
+01:00h time offset and
+01:00h for the summer time
offset (changeover points of time
must be set for this purpose).

4.1.1.3 Input ST/WT Changeover Points of Time

This input is used to define the points of time at which the changeover is made to summer
time or to winter time throughout the course of the year. The hour, weekday, week and
month in which the ST/WT changeover (summer time / winter time changeover) is to take
place are given here. The exact points of time are then calculated automatically for the
current year.

SYSTEM PARAMETERIZATION AND OPERATION

6842 GPS Slim Line System - V09.01 27 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

The parameters are selected in such a way that the changeover can take place at any point
of time. For control purposes, the exact date for the current year is indicated in the Show
functions.

If the ST/WT changeover is not to be activated all values have to be entered as 0. The
System 6842 then only operates with the standard time (winter time) set via the time offset.

Selection frame:

S E T C H A N G E _ O V E R

For winter / summer time changeover

D A T E S - > D Y / N _

(Standard time Ö Daylight saving time)

Input frame:

S - - > D h h / d / w / M M
> 0 2 / 7 / 5 / 0 3 <

Selection frame:

S E T C H A N G E _ O V E R

For summer / winter time changeover

D A T E D - > S Y / N

(Daylight saving time Ö Standard time)

Input frame:

S - - > D h h / d / w / M M
> 0 3 / 7 / 5 / 1 0 <

The meaning of the individual items is as follows:

hh The hour

in which the changeover is to take place

00 ... 23 hours

d The weekday

on which the changeover is to take place

1 = Mo ... 7 = Su

w the appearance of weekday in the month

on which the changeover is to take place

1 ... 4 Ö 1.-4. appearance
5 Ö last appearance in the month

MM The month

in which the changeover is to take place

The entry is completed by pressing the ENTER key.

Input example for Germany (CET/CEST):

WT (CET) Ö ST (CEST) at the 2

nd

hour on the last Sunday in March. Input: 02.7.5.03

Changeover WT (standard / winter time) Ö ST (summer time)

Local time UTC Offset UTC Ö local time

01:59:58 00:59:58 +1 hour
01:59:59 00:59:59 +1 hour
03:00:00 01:00:00 +2 hours
03:00:01 01:00:01 +2 hours

ST (CEST) Ö WT (CET) at the 3

rd

hour on the last Sunday in October. Input: 03.7.5.10

Changeover ST (summer time) Ö WT (standard / winter time)

Local time UTC Offset UTC Ö local time

02:59:58 00:59:58 +2 hours
02:59:59 00:59:59 +2 hours
02:00:00 01:00:00 +1 hour
02:00:01 01:00:01 +1 hour

SYSTEM PARAMETERIZATION AND OPERATION

28 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

4.1.1.4 Input Position

The geographical position of the equipment is entered with this function. This function is
helpful during the first commissioning and shortens the first synchronization of the GPS
receiver.

Selection frame:

S E T P O S I T I O N
Y / N _

Input frame:

L T . N 5 1 ° 1 2 , 3 6 5 1 '
L N . E 0 0 7 ° 3 7 , 8 4 2 6 '

The entries for the latitude and longitude positions take place in degrees and minutes.

The operational sign for the degrees of latitude - LT. is:

N Northern hemisphere
S Southern hemisphere

and for the degrees of longitude - LN.:

E East of the Null Meridian (Greenwich)
W West of the Null Meridian (Greenwich)

The latitude position is entered first under PGG°MM,SSSS, where the meanings are as
follows:

P N or S, North or South
GG Degrees of Latitude from 00 - 89
MM Minutes of Latitude from 00 - 59
SSSS Minutes of Latitude decimal places 0000 - 9999

There then follows the entry of the longitude position under pGGG°MM,SSSS, where the
meanings are as follows:

p E or W, East or West
GGG Degrees of Longitude from 000 - 179
MM Minutes of Longitude from 00 - 59
SSSS Minutes of Longitude decimal places 0000 - 9999

The position of

hopf

Elektronik GmbH is given in the above example.

The entry is completed by pressing the ENTER key.

In order to speed up the synchronization of the GPS receiver it is sufficient for the position to
be input to an accuracy of 1-2 degrees (without minutes or decimal places).

If the position is unknown 0 should be entered in all places.

If the position is not known during commissioning and the antenna position
is adverse, the GPS evaluation should be changed from Position-fix to 3D
(Chapter 4.1.4.4 3D / Position-fix GPS Reception and Synchronization
Mode). Otherwise this may lead to the output of an imprecise time when
synchronizing with less than four satellites.
After calculating the actual position by means of the clock system, the GPS
evaluation can be changed back to Position-fix.

SYSTEM PARAMETERIZATION AND OPERATION

6842 GPS Slim Line System - V09.01 29 / 98

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

4.1.1.5 Serial Interface Parameters

The serial interface parameters and the output mode can be input separately for each of the
two serial interfaces. The following selection frames appear (for parameterization see
Chapter 5 COM0 / COM1 Serial Interfaces).

4.1.1.5.1 Selection Frames for COM0 Serial Interface Parameters

Setting the Serial Parameters

Selection frame:

S E T C O M _ 0 S E R I A L
P A R A M E T E R Y / N _

The parameters for Baud rate, Word length, Parity bit, Stop bit and HandShake must be
entered in sequence in the following input frame:

Input frame:

B : 0 9 6 0 0 W : 8
P : N S : 1 H S : N _

Setting Mode Byte 1

Selection frame:

S E T C O M _ 0
M O D E _ 1 Y / N _

Input frame:

B I T 7 6 5 4 3 2 1 0
1 1 1 0 1 1 0 0_

Setting Mode Byte 2

Selection frame:

S E T C O M _ 0
M O D E _ 2 Y / N _

Input frame:

B I T 7 6 5 4 3 2 1 0
1 1 1 0 1 1 0 0_

4.1.1.5.2 Selection Frames for COM1 Serial Interface Parameters

S E T C O M _ 1 S E R I A L
P A R A M E T E R Y / N _

The parameters for the COM1 interface are entered in the same way as for COM0.

4.1.1.5.3 Selection Frames for Optical Interface Parameters

S E T O P T I C A L T R N S
P A R A M E T E R Y / N _

The optical interface is not supported in this equipment version. However,
the selection frames are present in the same way as COM0.

SYSTEM PARAMETERIZATION AND OPERATION

30 / 98 6842 GPS Slim Line System - V09.01

hopf

Elektronik GmbH

Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: [phone] • Fax: [phone] • Internet: http://www.hopf.com • E-Mail: [e-mail]

4.1.1.6 LAN Board Parameters (Option)

If the System is extended with one or two LAN Boards, the base parameterization can be
carried out via the keypad. In order to be able to parameterize the LAN Boards they must be
coded as Board 1 and Board 2 (see the respective LAN Board description).

Further information and an explanation of the parameters are available in the respective LAN
Board description.

4.1.1.6.1 Selection Frames for LAN Board 1 Parameters

Setting the IP address

Selection frame:

S E T L A N 1
A D R . Y / N _

Input frame:

L A N 1 > 1 9 2 . 1 6 8 .
0 0 1 . 0 1 0 <

Setting the Gateway address

Selection frame:

S E T L A N 1
G A T E W A Y A D R . Y / N

Input frame:

G . W 1 > 1 9 2 . 1 6 8 .
0 0 1 . 0 0 5 <

Setting the Network Mask

Selection frame:

S E T L A N 1
N E T - M A S K . Y / N _

Input frame:

N E T - M A S K L A N 1

> 2 4 < _

Õ corresponds to 255.000.000.000

Setting the Control Byte

Selection frame:

S E T L A N 1
C N T R L . - B Y T E Y / N

Input frame:

B I T 7 6 5 4 3 2 1 0
1 0 1 0 0 0 0 1_

4.1.1.6.2 Selection Frames for LAN Board 2 Parameters

Selection frame:

S E T L A N 2
A D R . Y / N _

The parameters for LAN Board 2 are entered in the same way as for LAN Board 1.
