Wind Funnel TM
by HOOVER
Congratulations
your purchase!
www.hoover.com
This product was designed for
easy assembly (see page 3)
Owner's Manual
Review this manual before
ENGLISH -_ pp.1-14
operating cleaner
ESPANOL -_ pag. 16-24
FRANGAIS -_ p. 25-33
Fill in and retain
The model and serial number are located on the bottom of the cleaner.
For your personal records, please enter the COMPLETE model and serial number
in the spaces provided and retain this information.
Your cleaner is model
and has serial number
It is suggested that you attach your sales receipt to this owner's manual.
Verification of date of purchase may be required for warranty service of your
HOOVER product.
|mpo a. Safeguards
When using an electrical appliance, always follow
index
Assembling Cleaner .......................... 3-4
Carton Contents .................................... 3
Cleaner Descriptions ............................ 5
How To Use ........................................ 5-7
Cleaning Tools .................................. 7
Embedded DirtFINDER TM Feature....6
If You Have a Problem .................. 13=14

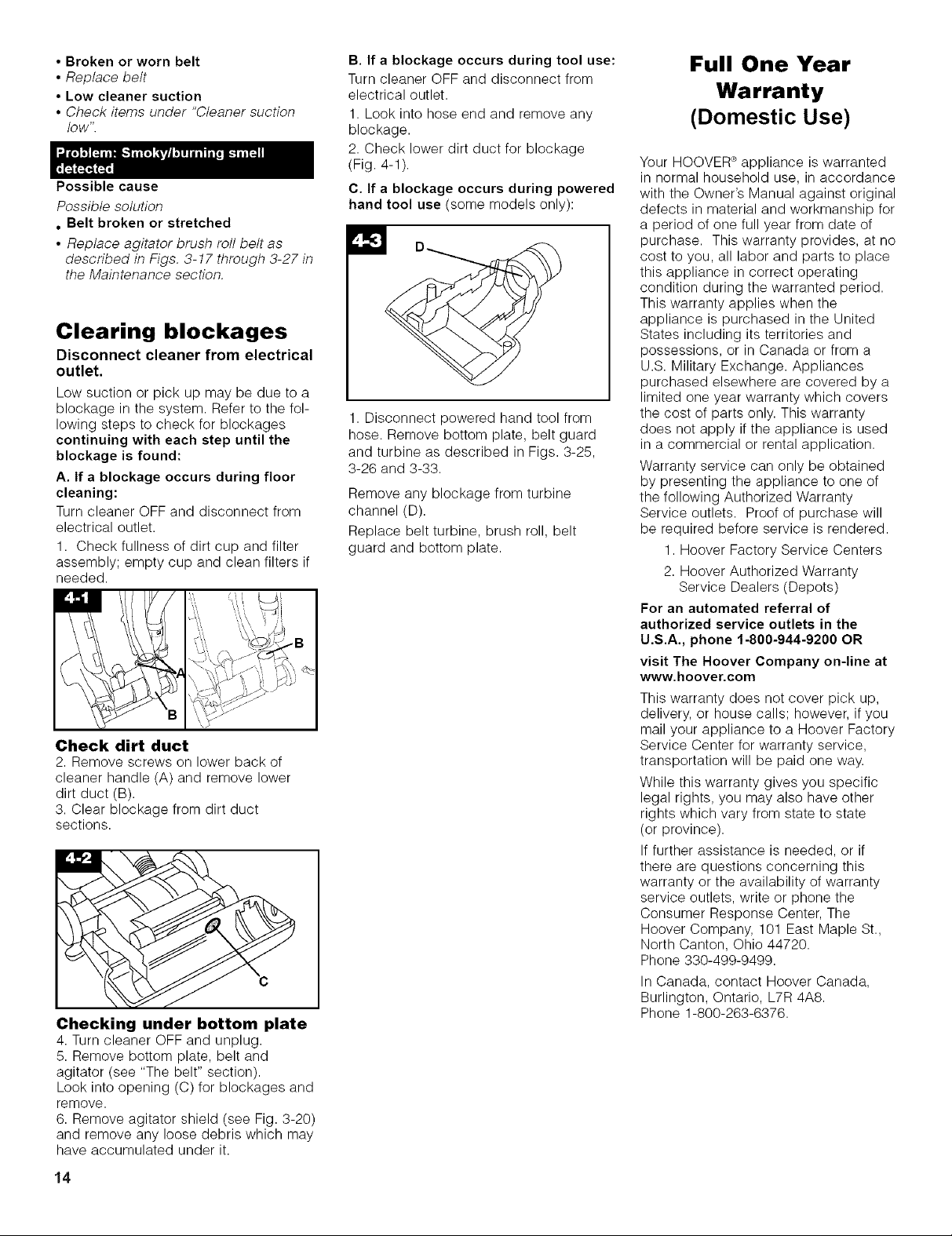

Clearing Blockages ........................ 14
important Safeguards .......................... 2
Lubrication .......................................... 13
Maintenance
Authorized Service .......................... 13
Cleaning filters .............................. 8-9
Emptying Dirt Cup ............................ 8
Replacing Agitator Brush Roll ...... 11
Replacing Power Hand Tool
Agitator Brush Roll ...................... 12
Replacing Belt ............................ 10-11
Replacing Power Hand Tool Belt ..12
Replacing Edge Groomers ............ 11
Replacing Headlight ........................ 10
Thermal Protector .............................. 13
Warranty .............................................. 14
®@
© 2004 The Hoover Company
www.hoover.com
READ ALL INSTRUCTIONS BEFORE USING THiS APPLIANCE
atn=ng- [] To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
Close supervision is necessary when any appliance is used by or near children.
Do not allow vacuum cleaner to be used as a toy or to run unattended at any time.
Keep hair, loose clothing, fingers, feet and all parts of body away from openings,
rotating agitator and other moving parts. Do not operate cleaner in bare feet or
when wearing open toe shoes or sandals.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
Do not use to pick up flammable or combustible materials such as gasoline or fine
wood sandings or use in areas where they may be present.
Avoid picking up hard, sharp objects with the cleaner. They may damage the
cleaner,
• Always turn off this appliance before connecting or disconnecting hose.
• Do not use without dirt cup or filters in place. Empty cup and clean filter frequently
when picking up very fine materials such as powder,
Use extra care when cleaning on stairs.
Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair, or anything that may reduce air flow.
• Do not pul! or carry by cord, use cord as a handle, close door on cord or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away
from heated surfaces.
Always disconnect cord from electrical outlet before servicing the cleaner.
Unplug cleaner when not in use. Turn off all controls before unplugging.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. Never
handle plug or appliance with wet hands.
The use of an extension cord is not recommended.
Do not use with damaged cord or plug. if appliance is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, take it to a Hoover
Factory Service Center or Authorized Hoover Warranty Service Dealer (Depot).
Use vacuum cleaner only for its intended use as described in the instructions.
Use only attachments recommended by The Hoover Company; others may cause
hazards.
basic precautions, including the following:
m
NUMBER
Save these insttuc|ions!
2
Thiscleanerwasinspectedandpackagedcarefullybeforebeingshippedfromthefactory.Ifyou
shouldhappentoneedassistanceduringassemblyoroperation,call:
Visituson-lineatwww.hoover.com to find the service outlet nearest you (click
on the "Service" button) OR
1-800-944-9200 for an automated referral of service outlet locations (U.S. only) OR
1-330-499-9499 to speak with a representative in our Consumer Response Center.
Carton contents
uu
A
Remove all parts from carton and identify each item shown.
Make sure all parts are located before disposing of packing.
A. Handle section
B. Cleaner body
C. Hose, cleaning tools and wands
(packed on cleaner)
D. Powered hand tool (some models)
Note: The white switch lock above the ON/OFF switch aids
in the assembly of your cleaner, Assembly can be continued if
the switch lock is missing, However, do not remove the switch
lock until assembly is completed.
Continued -_ 3
STEP 1 Attach handle
\\
Remove cardboard (A) and screws
from handle section. Discard card-
board.
Slide handle section onto back of
handle.
Push screws into holes on back of
handle.
Tighten screws securely with a
Phillips screwdriver.
Remove powered hand tool (some
models) from plastic bag and return
it to the tool storage area.
Open tool cover on cleaner body
(B).
Remove powered hand tool (some
models).
Remove switch lock (C) above ON/
OFF switch (D) by pulling it straight
out. Dispose of switch lock.
If switch lock has come off during
assembly, make sure switch is in
OFF position (down) before plug-
ging into electrical outlet.
Make sure that the switch is in the
OFF position.
Cleaner description
20\
The assembled cleaner will look like the drawing.
Model with Powered Hand Tool is shown.
1. Handle
2. ON/OFF switch
3. Tool cover
4. Dusting brush
5. Powered hand tool*
or Crevice tool*
(depending on model)
6. Furniture nozzle
7. Dirt cup latch
21
8. Dirt cup lid
9. Dirt cup
10. Dirt cup handle
11. HEPA cartridge filter
12. Pre-filter
13. Final filter
14. Three position handle
release pedal: step on
lever to lower handle to
operating or low positions.
15. Nozzle control knob:
slide knob to correct set-
ting for height of carpet
being cleaned.
16. Furniture guard
17. Headlight
18. DirtFINDER TM display
19. Embedded
DirtFINDER TM sensi-
tivity switch
20. Edge groomers
21. Hose
22. Hose rack
23. Cord hooks: wrap
cord around hooks for
storage. The top hook
can be rotated right or
left for easy cord
release.
24. Carrying handle
25. Extension wands
26. Crevice wand*: stores
in rear wand.
*Some models only
Operate cleaner only at
voltage specified on data
plate on bottom of
cleaner.
This cleaner is intended
for household use.
Polarized plug
Toreduce the risk of electric shock, this
appliance has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install the
proper outlet. Do not change the plug in
any way.
Transporting cleaner
To move your cleaner from room to
room, put handle in upright position, tilt
cleaner back on rear wheels and push
forward.
ON-OFF switch
Plug cord into electrical outlet.
Toturn cleaner ON, push switch up.
Toturn cleaner OFF, push switch down.
_,_,€]
Carrying cleaner
The cleaner can also be moved by
using the carrying handle.
Handle positions
The handle of your cleaner has three
positions; upright for storage and when
using cleaning tools; operating posi-
tion for general operation on carpet
and floors; low for reaching under low
furniture. Step on handle release lever
to lower handle.
Continued -_ 5
Embedded
DirtFINDER TM feature
With red and green lights (A), the
DirtFINDER TM system alerts the user to
areas of carpet that may need more
cleaning attention. It is able to sense
when larger amounts of dirt particles,
especially embedded dirt, are removed.
To let you know that the DirtFINDER TM
feature is ready, the red light will come
on when the cleaner is first turned on.
After a few seconds, the red light will go
off and the green light will come on.
Cleaning may then begin.
The green light will remain on through-
out cleaning, except when the detector
senses that a larger amount of dirt is
being picked up; then the red light will
come on.
When the red light is on, you should
take additional cleaning strokes in the
area until it changes to green.
• The red light may seldom come on
during cleaning, this means that your
cleaner is picking up primarily fine sur-
face dust and lint which the system may
not detect, or that the carpet is generally
clean. To increase the feature's sensi-
tivity to dirt, set the switch (B) to the
"HI" position.
• At other times, the red light may stay
on for a considerable amount of time.
This means that the carpet contains a
high level of dirt which is being removed
by the cleaner. To decrease the fea-
ture's sensitivity to dirt, set the switch
to the "REG." (Regular) position.
D
Carpet height
adjustment
The cleaning of carpet and rugs takes
place at the nozzle (C).
When it is necessary to raise and lower the
nozzle for various carpet pile heights, slide
the nozzle control knob (D) to the desired
setting.
E
Handle position
For ease in sliding knob, place handle
in the upright position and tilt cleaner
foward (E).
The nozzle will not move into the
adjusted position until the cleaner
handle is lowered to the operating
position (F).
IIIIIliil l.l....
Settings
For maximum cleaning performance,
the following carpet height settings are
recommended.
Lowest setting: for bare floors and all
types of carpet
Note: If the cleaner is difficult to push,
slide knob to the next higher setting.
Higher settings: for very deep pile
carpet where easier pushing effort is
desired, while maintaining good cleaning
performance.
P-,5=]
Cleaning lightweight
flexible rugs
Stand on one end of rug and move
cleaner toward other end or edge.
Before reaching edge, push down on
handle. This will lift up the nozzle (front
of cleaner) and will prevent rug from
clinging to cleaner. Continue to lift up
nozzle so that when you have reached
the edge, it is completely off the rug.
Move cleaner back to start again, lower
nozzle, and use only forward strokes.
Edge cleaning
Special edge groomers are provided on
both sides of the nozzle to remove dirt in
carpet near baseboards and furniture.
Guide either side of nozzle parallel to
edge of carpet or furniture.
Cleaning tools
Tools allow for cleaning surfaces above
the floor and for reaching hard to clean
areas.
Handle must be in the upright posi-
tion for tool use.
CAUTION: Agitator continues to rotate
while cleaner handle is in upright
position. Avoid tipping cleaner or
setting it on furniture, fringed area
rugs or carpeted stairs during tool
use.
Stair cleaning
Use the hose and powered hand tool* or
furniture nozzle for stair cleaning. Clean
from bottom to top.
When using cleaning tools, the
agitator will continue to rotate.
CAUTION: To avoid personal injury or
unnecessary wear to carpet, and to
prevent the cleaner from falling,
always place it at bottom of stairs.
*some models only
H
G
Attach wand and tools
Attach tool or wand to tile hose (G).
Attach second wand or tool to wand (H)
by pushing it firmly onto the wand.
Twist wand or tool slightly to tighten or
loosen the connection.
How to clean tools
Toclean tile hose and the powered
hand tool, wipe off dirt with a cloth
dampened in a mild detergent. Rinse
with a damp cloth. Do not submerge
powered hand tool in water.
Cleaning tools may be washed in warm
water with a detergent. Rinse and air dry
before using.
How to attach tool
cover
The tool cover is designed with a "break-
away" feature which allows it to snap free if
it is pushed open too far.
Toreattach, align hinges of cover with slots
on sides of tool storage area.
Push cover down to secure in place.
L | J
M
(....... )1
Select proper tool
I. Dusting brush may be used for
carved furniture, table tops, books,
lamps, lighting fixtures, venetian blinds,
baseboards, shutters, and registers.
J. Furniture nozzle may be used for
upholstered furniture, draperies, mat-
tresses, clothing, automobile interiors,
and carpeted stairs.
K. Powered hand tool* may be used for
upholstered furniture, carpeted stairs
and hard-to-reach places.
N
L. Crevice tool* may be used in tight
spaces, corners and along edges in
such places as dresser drawers, uphol-
stered furniture, stairs and baseboards.
M. Crevice wand* can be used in tight
spaces, corners and along edges in
such places as dresser drawers, uphol-
stered furniture, stairs, and baseboards.
It can also be used for extra reach with
the dusting brush and/or extension
wand.
N. Wands are used to give extra length
to your hose. Use them with any of the
above tools.
*some models
Extra reach hose*
Push ON/OFF switch to OFF position.
Remove regular hose from cleaner. Align
end of extra reach hose with projections
(O) over slots (P) in dirt duct.
Slide hose into (P) and twist hose to lock
it into place. (To detach hose, reverse
procedure.) Attach wands or tools to the
other end of hose.
*Available at additional cost if not includ-
ed with your cleaner.
7
Familiarize yourself with these home
maintenance tasks as proper use and
care of your cleaner will ensure contin-
ued cleaning effectiveness.
Dirt cup
The dirt cup assembly consists of the
following parts:
Lid (A)
Dirt Cup (B)
Pre-filter (C)
HEPA Cartridge Filter (D)
Dirt Inlet Opening (E)
While the cleaner is in operation, the pre-
filter screen will stop larger debris from
entering the HEPA cartridge filter chamber.
This larger debris will be seen collecting in
the left side of the dirt cup. The HEPA car-
tridge filter will collect fine particles that
have passed through the pre-filter screen.
When to empty
Itis recommended that the dirt cup be
emptied before the dirt reaches the dirt
inlet opening on back of dirt cup (Fig. 3-1)
or after every use if preferred.
CAUTION: Very fine materials, such
as face powder or cornstarch, may
seal the filter and cause loss of suc-
tion. When using the cleaner for this
type of dust, empty the cup and clean
the filters often.
How to empty
Disconnect cleaner from electrical
outlet. Do not use cleaner without dirt
cup or filters in place.
Push latch (F) to the left to unlock.
Lift cup slightly and pull straight out to
remove from cleaner.
Remove lid.
Note: It is not necessary to remove the
HEPA cartridge filter to empty the dirt
cup.
Tap side of cup until no more dust
particles fall from the HEPA cartridge
filter.
Replace dirt cup lid.
Slide cup straight into cleaner cavity.
Bottom of cup will rest behind grooves
at bottom of cleaner cavity (G).
Push latch (F) to the right to lock in
place.
Filter assembly
The HEPA cartridge filter and pre-filter
are essentially self-shedding.
Tapping the side of the dirt cup as
described in "How to empty dirt cup"
should sufficiently remove dust and fine
particles from the HEPA cartridge filter
and pre-filter.
The filter assembly can also be removed
for additional cleaning.
N_-.-1
How to clean filter
assembly
Remove dirt cup and dirt cup lid as
described in "How to empty dirt cup."
Grasp pre-filter frame and pull up firmly.
Slide filter assembly out of cup.
GraspendofHEPAcartridgefilterand
pullitawayfrompre-filter.Remove
cartridgefromassembly.
Thepre-filter(C)canbecleanedwitha
brushandthenrinsedwithwater.Allow
pre-filtertodrythoroughly.
/
i
i i
It is recommended that the HEPA
cartridge filter be cleaned by tapping
either of the ends. DO NOT tap soft
pleated sides of HEPA cartridge filter
as this could damage the filter.
Tap filter until no more dust particles fall
from the filter.
DO NOT rinse HEPA cartridge filter
with water.
To re-assemble filter assembly, place
large knob of HEPA cartridge filter in
hole on bottom of pre-filter.
Snap top of HEPA cartridge filter into
place.
!
Align grooves (H) on pre-filter frame with
grooves (I)in dirt cup.
[_5 b]
Slide filter assembly down into cup until
a light snap is felt. Gently pull up on
assembly to ensure that it is seated
properly in the cup. Ensure that no part
of pre-filter screen extends above top
edge of dirt cup.
Replace lid and return cup to cleaner
(Fig. 3-4).
Secondary and final
filters
Cleaning secondary filter
Disconnect cleaner from electrical
outlet.
The secondary filter (J), located behind
the grill in the bottom of cleaner cavity,
protects the motor from dirt particles.
If the filter becomes dirty, remove dirt
cup (Fig. 3-2). Remove screw and pull
grill out. Lift out filter.
Hand wash filter in cold water with mild
detergent, then air dry.
Reposition dry filter, grill and screw.
Replace dirt cup.
Should you want to replace this filter, ask
for HOOVER part No. 38762008.
Cleaning final filter
The final filter assists in the filtration
process to return clean air to the room.
To remove this filter when it becomes
dirty, open the door on the side of the
cleaner.
Lift out filter (K) and hand wash it in cold
water with mild detergent.
Let filter air dry and reposition it on the
side of cleaner. Make sure the white
side of the filter faces outward. Close
door.
Should you want to replace this filter, ask
for HOOVER part No. 40110006.
Do not operate cleaner without any of
the filters in place.
Reattaching filter door
The filter door is designed with a "break-
away" feature which allows it to snap
free if it is pushed open too far.
To reattach, align hinges (L) of cover
with slots on sides of filter area.
Press door back into place.
Continued -P 9
Check agitator shield
Because your cleaner picks up so well,
we strongly recommend you check for
debris accumulation under the agitator
shield each time you clean the filters.
Removing debris under the shield will
help maintain your cleaner's excellent
pick up and suction. Remove debris as
follows:
1. Disconnect cleaner from electrical
outlet.
2. Check for dirt accumulation by
removing bottom plate (Fig. 3-17),
removing agitator (Fig. 3-18), and lifting
agitator shield (Fig. 3-20).
3. Remove any debris and replace
shield, agitator and bottom plate (Figs.
3-20 to 3-22).
Headlight replacement
What to buy
This cleaner uses a 12 volt, wedge base
type 912 bulb, HOOVER part No.
27313101.
Removing lens
Disconnect cleaner from electrical
outlet.
Using a screwdriver, remove tile two
screws as shown and lift off lens.
Installing bulb
Pull old bulb straight out of socket.
Push new bulb straight into socket until
locked in place
Excessive force is not required.
Belt replacement
The belt on your HOOVER cleaner
causes the agitator to rotate and is
important for the effective operation of
the cleaner. The belt is located under
the bottom plate of the cleaner and
should be checked from time to time
to be sure it is in good condition.
When to replace
Disconnect cleaner from electrical
outlet.
To check belt, remove bottom plate as
shown in "How to replace." Replace
belt if it is stretched, cut or broken.
What to buy
To assure effective operation, use only
genuine HOOVER belts with your
cleaner. When purchasing a new belt,
ask for HOOVER part No. 38528033.
Replacing lens
Reposition lens and secure with the two
screws.
How to replace
Disconnect cleaner from electrical
outlet.
Place handle in low position and turn
cleaner over so bottom side is up.
Remove the 4 screws as shown with a
Phillips screw driver.
Lift off bottom plate (A).
Removing belt
Remove agitator brush roll and used
belt.
Discard used belt.
10
D
Installing new belt
With lettering on outside of belt and
positioned as shown in box on (D), slide
new belt over motor pulley (B).
Replacing bottom plate
Reposition bottom plate and 4 Phillips
head screws. Tighten screws securely,
Replacing agitator brush roll
Insert agitator through belt and place
belt in belt guide (C) on agitator.
Should the agitator shield (D) become
dislodged while replacing the belt or the
agitator, reposition it as shown noting the
placement of its belt guide (E).
The agitator brush to||
When to replace
When agitator brushes are worn, the
agitator should be replaced,
To check condition of brushes, discon-
nect cleaner from electrical outlet. Move
edge of a card across bottom plate while
turning agitator. To maintain cleaning
effectiveness, replace agitator if brushes
do not touch card.
What to buy
When purchasing a new agitator, ask for
HOOVER part No. 48414115,
Securing agitator
Grasp agitator firmly and fit it into posi-
tion by first sliding end opposite tile belt
intotile rectangular slot (F) on side of
cleaner.
Pull other side of agitator (G) into place.
Turn agitator making sure belt is not
pinched between agitator and agitator
shield.
How to replace
Disconnect cleaner from electrical
outlet.
Remove bottom plate, belt and agitator
following directions in "The belt" section
beginning with Fig. 3-17.
Discard old agitator.
Continue following the directions in "The
belt" section to reposition belt, new
agitator and bottom plate.
The edge groomers
When to replace
The edge groomers, located on both
sides of the nozzle, should be replaced
when they appear worn.
What to buy
When purchasing edge groomers, ask
for HOOVER part No. 39511004.
How to replace
Disconnect cleaner from electrical
outlet.
Remove bottom plate as described in "The
belt" section (Fig. 3-17).
Installing groomers
Lift off both old edge groomers and slide
new edge groomers into position as
shown.
Reposition bottom plate and secure with
4 Phillips head screws.
11
