Hoover U4219 Owner’s Manual

Fill in and retain!

IIIt'llll'll II II I II1'11111IIIIIl'lllIIIIIIll ' I II II I'LI'H B i

The HOOVER vacuum cleaner you have just purchased is a combina-

tion cleaner. It is used for carpet and rug cleaning and may be used
with attachments for above the floor cleaning.

The model and serial number appear toward the rear of the bottom of
the cleaner.

For your personal records, please enter these numbers in the spaces

provided below and retain in a safe place.

Your cleaner is model

and has serial number

Save!

Index

Assembling Cleaner ............................. 5

Cleaner Description ........................... 3,4

How to Use

Cleaning Tools ............................. 9-12

Special Features .............................. 7

Upright Cleaner ............................. 6-8

If You Have a Problem .......................... 21

Important Safeguards ........................... 2

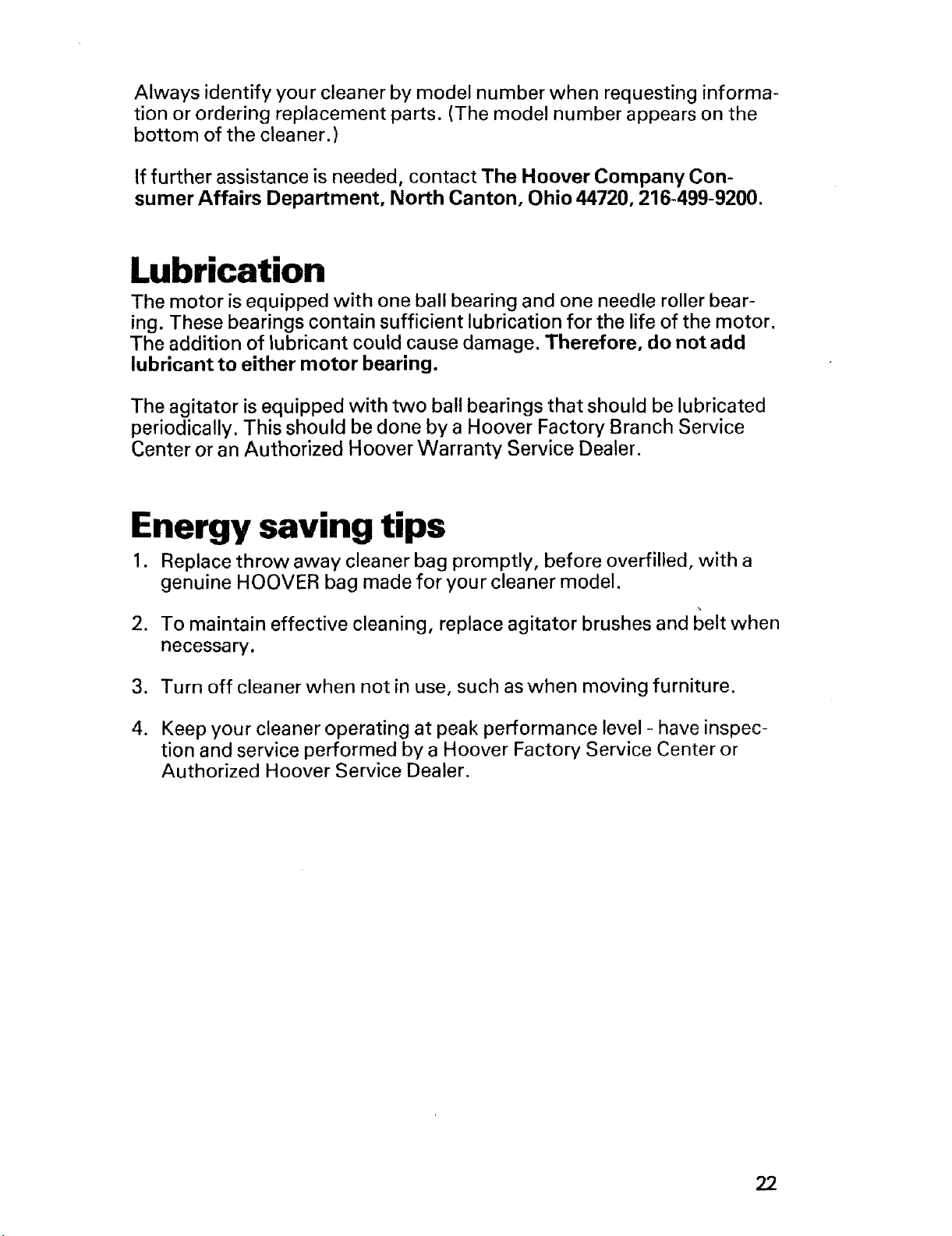

Lubrication ................................... 22

Maintenance

Authorized Hoover Service .................... 21

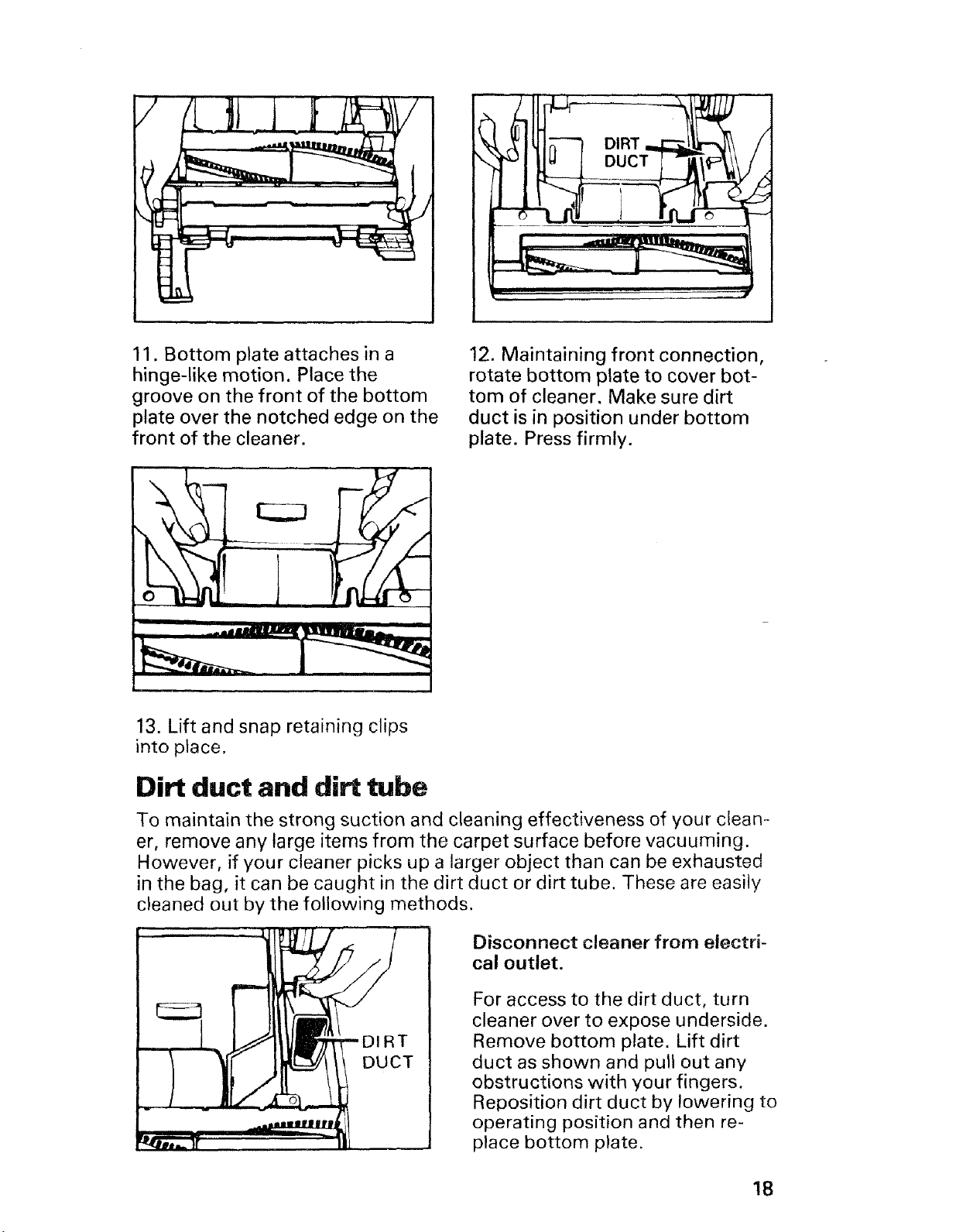

Dirt Duct and Dirt Tube .................... 18,19

Replacing Belts ........................... 15-18

Replacing Brushes ........................ 20,21

Replacing Headlight ....................... 14,15

Replacing Throw Away Bag ................ 12-14

© 1978, 1986 The Hoover Company

Important Safeguards!

• Read all instructions.

• Warning: Electric shock could occur if used outdoors or on wet
surfaces.

Close supervision is necessary when any appliance is used by or

near children. Do not allow vacuum cleaner to be used as a toy or to

run unattended at any time.

Keep hands, feet, loose clothing, and hair away from rotating agita-

tor. Do not operate cleaner in bare feet or when wearing open toe
shoes or sandals.

• Don't run cleaner over cord. It may damage insulation.

• Do not use cleaner to pick up matches, or live ashes and cigarette

butts.
Never vacuum in the presence of flammable or combustible liquids

or fumes.

• Avoid picking up hard, sharp objects with the cleaner. They may

damage the cleaner and the bag.

• Do not allow cleaner to run in a stationary position on non-carpeted
floors; damage could occur to these surfaces.

• Unplug cleaner when not in use. Turn machine off at switch before
unplugging.

• Always disconnect cord from electrical outlet before servicing the
cleaner.

Change bag frequently when picking up very fine materials such as
powder.

Grasp the plug to disconnect from wall outlet to avoid damage to
cord, plug, prongs, or receptacle.

If cleaner has a cord reel, hold on to the plug while cord is being re-
wound to prevent cord from whipping.

o

The use of an extension cord is not recommended,

o

If cleaner is in disrepair, do not attempt to operate,

Have repairs made by the qualified personnel at Hoover Factory

Service Centers or Authorized Hoover Warranty Service Dealers.

• Use vacuum cleaner only for its intended use as described in the

instructions. Use only attachments recommended by the appliance
manufacturer; others may cause hazards.

Save these instructions!

2

Unpacking

Handle

section

Unpack the cleaner from the car-

ton and remove and dispose of
cardboard packing.

7

9

Make a small loop with cord and
place it over the hook at the back
of the handle. When operating,
cord should be positioned as

shown.

3

12

Before operating your cleaner,

identify features and controls
shown in the diagram, then,

read the section on "How to usq

3

1. Edge Cleaning: Brushed edge cleaning is provided on the right side
of the cleaner. Standard edge cleaning is provided on the left side.

2. Handle Release Pedal: step on pedal to lower handle to either

operating or low position.

3. Cord Reel: to unwind cord, pull from cord reel to desired length.

4. Cord Return Button: depress to automatically rewind cord for

storage. Hold plug until cord is rewound.

5. Vinyl Bag Jacket: covering for throw away bag.

6. Bag Spring: place spring ring over hook to support the bag.

7. ON-OFF 'Power Surge' Switch

8. Handle Grip.

9. Air Freshener Dispenser: designed to hold a fragrance tablet and
release a pleasant scent during cleaning.

10.Twin Headlight

I1. Carpet Height Adjustment Lever: choose" LOW/M ED", "P LU S H",

or "SHAG".

12. Molded Furniture Guard

_lote: If using cleaner on new carpet, be sure to change bag frequently.
_ee "Maintenance" section for bag replacement.

)perate cleaner only at voltage specified on data plate on bottom of

_leaner.

4

How to assemble

Remove the tape holding the two
handle attachment screws from

the lower end of the handle. Set
screws aside.

Align handle with ON-OFF switch
to the rear of the cleaner and label

to the front. Fold cord beside cord
tube as shown. Push cord and

tube completely up into handle.

CORD

Insert handle into the cleaner to
the line indicated on label. Inser-
tion to the line is necessary for
proper screw alignment.

Remove paper bag from inside the

vinyl jacket. Then remove dirt tube
by pushing to either side to release

retention clips. Lift tube up and

out,

Lower handle to operating posi-

tion and place spring bag ring over
hook located on handle.

Insert the two screws into the
holes provided inside the front

housing.

Tighten with screwdriver. Snap
dirt duct back into place. Replac_

paper bag. (Follow instructions

on bag. )
Zip vinyl jacket.

5

Check air freshener

dispenser

The small drawer in the top of the
bag cap should not be removed.

If it should become detached,
replace by unhooking the bag

spring and tipping the bottom of
the drawer to insert projections

into back of cap opening. Push
drawer down into position and
hook bag spring.

How to use

To transport

To move your cleaner from room
to room, put the handle in the up-

right position, tilt the cleaner back
on the large rear wheels and push

forward.

Handle adjustment

The handle of your cleaner has
three positions: Upright for stor-

age and when using attachments.

Operating for general operation on
carpet and foors. Low for reaching

under low furniture. The handle
can be lowered by stepping on the

pedal at the rear of the cleaner.

6

ON-OFF "Power Surge"

switch

Operate your cleaner at normal
speed by pushing the switch down
one position. To turn cleaner off,

push switch up.
Normal Speed is to be used for

regular cleaning of carpet and rugs

and when using cleaning tools.

Your cleaner is also equipped with

a Power Surge switch. When the
switch is pushed down as far as

possible it is in the Power Surge

speed.

"Power Surge" Speed is to be
used for extra cleaning power on a
heavily soiled area of carpet. Slide

the switch down as far as possible

and hold it in that position to en-
gage the "POWER SURGE"
speed. When the switch is re-

leased, it will return to the NOR-
MAL speed position.

OFF

NORMAL-a

'POWER

SURGE"

i

i

Note: When cleaning any floor

covering, turn cleaner "OFF"
when unattended, particularly on

non-carpeted floors. The agitator
cleans so thoroughly that opera-

tion while the cleaner is stationary
may mar the floor covering.

Special features

Edge cleaning

Brushed edge cleaning is provided

on the right side of the cleaner to
remove imbedded dirt in carpet

near baseboards and furniture.
Guide the right side of the cleaner

parallel to the edge of carpet or
furniture for brushed edge clean-
ing.

Standard edge cleaning is provid-
ed on the left side of the cleaner.

Standard edge cleaning removes

surface dust and litter.

Adjustment for carpet

pile height

The cleaning of carpet and rugs

takes place at the nozzle. This is
the opening at the bottom of the

cleaner where the agitator is lo-
cated.

NOZZLE

,.u

It is necessary for the nozzle to be

adjusted properly to the various

carpet pile heights. The adjust-
ment lever on the front of the

cleaner may be set on three differ-
ent self-adjusting ranges.

On very dense pile plush or shag
carpet, some difficulty in pushing

the cleaner may occur. In this

case, position the adjustment le-

ver on PLUSH or SHAG. When

cleaning non-carpeted floors, set

adjustment lever to LOW/MEDI-

UM and use Normal Speed. Be-
cause of the vigorous action of

the agitator, do not allow

cleaner to run in a stationary
position on any floor covering, as

marring may occur.

Disconnect cleaner from electri-

cal outlet before making nozzle
adjustment.

To change the nozzle adjustment

grasp the handle and tilt the
cleaner forward. Move the lever

with your hand until it "clicks" in-

to the desired position.

Air freshener dispenser

Lift drawer in the bag cap of your

cleaner and insert the air freshener

tablet that has been packed with
your cleaner. Push drawer down

into position.

The amount of fragrance released
is regulated by sliding the control

to one of three settings shown on
top of the bag cap.

Air freshener tablets may be ob-
tained from your local authorized

Hoover dealer, a Hoover Factory

Min Max

Service Center, or by using the
mail order form packed with your

cleaner.

Cleaning Tools

This cleaner may be used with cleaning tool attachments. The Deluxe or
Standard cleaning tool set may be purchased at additional cost from

Hoover Dealers. The cleaning tools allow you to do above the floor clean.

ing and to clean hard to reach areas.

Deluxe cleaning tool set
U3901 includes vinyl hose, con-

verter, wands, dusting brush, fur-
niture nozzle, wall/floor brush

and crevice tool.

How to assemble hose

and converter

By using this converter attach-
ment, suction is channeled from

the cleaner to the hose and clean-
ing tools.

The converter must first be as-
sembled to the hose by inserting

the converter into the hose con-
nector.

Standard cleaning tool set
U3903 includes lightweight hose,
converter, wand, multi-purpose

brush and crevice tool.

,,, ul i in,ii i, i,,

HOLES

CONNECTOR CONVERTER

9

Push connector and converter to-
gether and twist until the projec-

tions on the converter fit into the

holes on the hose connector. This
unit should remain assembled for

all future tool use.

Using cleaning tools

A. Attach converter

Disconnect cleaner from elec-

trical outlet. Cleaner must not be

plugged in when positioning or
removing converter.

With cleaner in upright position,

grasp handle and lean cleaner
backwards until bag is flat on the

floor and underside is accessible.

Turn lock on converter so that the
serrated portion is in line with the

hose.

Pivot converter until it covers the

opening.

Place projections on converter
onto rim on bottom plate of
cleaner.

Place edge of lock in slot on
cleaner and turn lock to secure

converter.
Raise cleaner to upright position.

10

B. Select proper cleaning

tool

The cleaning tools have many

uses. Select the tool best suited

for the cleaning task from the de-
scriptions below.

1. Wail/floor brush* for walls and
very irregular hard surface floors

such as brick and slate.

2. Furniture nozzle* for uphol-
stered furniture, draperies, tapes-

tries, mattresses, clothing, auto-
mobile interiors and carpeted

stairs.

3. Multi-purpose brush (standard
set only) for dusting surfaces such

as table tops, lamp shades, dra-
peries as well as for cleaning up-

holstered furniture, stairs and au-
tomobile interiors.

3

4

5

6

4. Dusting brush* for carved fur-

niture, table tops, books, lamps,
lighting fixtures, venetian blinds,

baseboards, shutters and registers,

5. Crevice tool for radiators,
dresser drawers, spaces between
kitchen appliances.

6. Wand(s*) used to give extra
length to your hose. They are ideal
to reach ceilings, the top of dra-
peries, high shelves and cup-

boards. Use them with any of the

above tools.

*Included in deluxe set only.

C. Attach tool

The outer plastic ring on the end

of the hose grip has a slot.

Turn the ring until that slot aligns
with the slot in the hose connec-

tor.

1

Insert the tool so that the button
on the tool fits into the aligned

slots.

11

Turn the plastic ring as shown to

lock the too! in place. To remove

tools, reverse the procedure.

LOCK

For additional length, attach wand

to the hose using the same proce-
dure as for attaching tools

Tools attach to the wand in the
same manner.

D. Adjust switch and

handle position

Place handle in the upright posi-
tion, and slide ON-OFF switch to

Normal Speed.

_[V Plug cleaner into electrical outlet.

To clean attachments

To clean the hose wipe off dirt
with a cloth dampened with a liq-

uid detergent. Rinse with a damp
cloth. Cleaning tools may be

washed in warm water with a de-
tergent. Rinse and let dry before

using.

Maintenance

The following sections are concerned with proper maintenance of the

cleaner. Familiarize yourself with these home maintenance tasks and
keep this owner's manual in a convenient place where you can refer to it

when needed. Proper use and care of your cleaner will assure continued

cleaning effectiveness.

The bag

Your cleaner has a durable outer bag which covers the throw away bag.
A light wiping with a damp cloth will keep this outer bag clean.

When to replace the throw away bag

Check the bag from time to time. It is recommended that you change the
bag when the dirt reaches the dotted line on the throw away bag. If you

let more dirt than this accumulate, your cleaner may not operate effec-

tively. Change bag frequently when using cleaner on new carpet, due to

rapid accumulation of carpet fluff. Also check dirt duct (see section fol-
lowing belt replacement) for fluff accumulation.

12

Where to buy bags

Bags may be purchased from your local Authorized Hoover Dealer or

from a Hoover Factory Service Center. When ordering bags, be sure to

give the model number of your cleaner.

What bags to buy

Use HOOVER bag type A with this cleaner.

To assure that your HOOVER cleaner operates at peak per-
formance, it is imperative that you use only genuine

HOOVER throw away bags made by The Hoover Company.
HOOVER bags can be identified by the trademarks -- -- ®

_®

How to change bag

Disconnect cleaner from elec-

trical outlet.

1. To remove old bag, put fingers
behind bag collar, pull off and re-

move.

Dispose of old bag.

Do not try to clean out used bag.
Cleaner will not operate effective-

ly.

13

2. Tuck bottom of new paper bag
in first.

3. Push cardboard bag collar firmly
onto fill tube by first, positioning

bottom of collar, and then top,

onto tube. Make sure the collar is
pushed past the raised portion at

the top and bottom and tightly in
place on the tapered portion of the
tube. This will insure a firmly seal-

ed position.

4. Tuck remainder of bag into
outer jacket. Zip shut.

The headlight

Disconnect cleaner from elec-

trical outlet.
This cleaner uses two 12 volt,

wedge base type 912 bulbs.

1. Lower the handle until the
cleaner is positioned with the bag

flat on the floor.

2. Use screwdriver to lift lens.
Place screwdriver in the two slots
provided at the top edge under

ridge of lens as shown. Turn
screwdriver to loosen lens.

14

3. Lift out lens.

4. Remove bulbs by pulling
straight out of sockets. Replace

by pushing each bulb straight into

the socket until it locks in place.

(Excessive force is not required).

5. Replace lens by inserting plastic
projections into openings in

cleaner.

The belt

-/he belt drives the agitator and is
important for the efficient opera-
tion of your cleaner. Because of

this, when buying a new belt, you
should always insist on a genuine

HOOVER belt. Some other belts
on the market, not manufactured
under the Hoover design and

quality controls, may not operate

the agitator correctly and may

damage your cleaner.

When to replace belt

Check from time to time to be sure
the belt is in good condition. If it

is stretched, cut, or broken, it
should be replaced.

6. Press firmly at center and sides
of lens to snap into place.

AGITATOR BELT

15

How to replace agitator

belt

Disconnect cleaner from electri-

cal outlet before replacing belt.

Place the cleaner on the floor.
For ease in installation, follow the

directions given below and posi-
tion yourself to the left, rear of the

cleaner.

j

1. Turn cleaner over. Release
handle to lowest position. Remove

plate on bottom of cleaner by re-
leasing clips. (See illustration)

2. Remove bottom plate as
shown.

4. Use one hand to remove the
agitator as you use leverage to lift
the agitator with the end of the

screwdriver. Remove old belt.

3. To remove the agitator, use a
screwdriver placed as shown.

PLATES

5. If the end plates have loosened,
tighten them by turning in oppo-

site directions.

16

MOTOR
PULLEY

6. Place one end of the new belt over the metal motor pulley. Lettering
on belt should be visible and not against pulleys. Slip the other end

around the plastic pulley end of the agitator. (See illustration)

AGITATOR END PLATE

7, Grasp the agitator frimly with
one hand. (Be sure you can see
the agitator end plate,) Engage

screwdriver as shown for lever-
age,

9. Quickly roll the other side of
agitator into place.

8. Lift and pull using screwdriver
as a lever. Guide the end opposite

the belt into position first,

10, Press firmly to be sure agitator

is securely in place.

17

• _-- .j

/

J

.t , _y-_--m

11. Bottom plate attaches in a

hinge-like motion. Place the
groove on the front of the bottom

plate over the notched edge on the
front of the cleaner.

13. Lift and snap retaining clips

into place.

Dirt duct and dirt tube

12. Maintaining front connection,
rotate bottom plate to cover bot-

tom of cleaner, Make sure dirt
duct is in position under bottom

plate. Press firmly.

To maintain the strong suction and cleaning effectiveness of your clean-
er, remove any large items from the carpet surface before vacuuming.

However, if your cleaner picks up a larger object than can be exhausted
in the bag, it can be caught in the dirt duct or dirt tube. These are easily
cleaned out by the following methods.

Disconnect cleaner from electri-

cal outlet.

For access to the dirt duct, turn

cleaner over to expose underside.

Remove bottom plate. Lift dirt
duct as shown and pull out any
obstructions with your fingers.
Reposition dirt duct by lowering to
operating position and then re-
place bottom plate.

18

/

For access to the dirt tube, first
remove disposable bag. Then re-

move dirt tube by pushing to
either side to release clips. Lift

dirt tube up and out.

Clean out dirt tube.

To replace dirt tube, position over
lower seal and push down. Insert

one side against retention clips.

Push to snap other side into posi-

tion.

19

Agitator brushes

Disconnect cleaner from electri-
cal outlet before checking

brushes.

When brushes are worn and
bristles do not touch the edge of a

card held across the nozzle, they
should be replaced. Always re-

place both brushes at the same
time to maintain cleaning effec-

tiveness.

To replace brushes

Disconnect cleaner from electri-

cal outlet,

Remove bottom plate, belt and

agitator following directions pre-
viously given.

1. Hold agitator as shown. Turn
end plates in opposite directions
until one end plate comes off.

BAR/BRUSH

ASSEMBLY

END

SECTION

2. Pull or pry out end sections as
shown in illustration.

Note: Pulley end should be re-
moved by pulling straight out.

3. Note position of bar/brush as-
semblies to insure correct re-

placement.
Remove bar/brush assemblies by

pulling them from agitator slots.
Use pliers if necessary.

The word "BAR" is stamped

near the slots on the agitator.
Match the bar side of the bar/

brush assembly with the label on
the agitator shell. Slide the new
assemblies into the slots, while

twisting the assemblies in a
counterclockwise motion. Push

in as far as possible, tapping the

outer end lightly if necessary. Be
sure brushes and bars are aligned
for full length of agitator.

20

LOCATOR

END SECTION

WASH ER

BEARING

4. Reassemble agitator parts.
Line up Iocator on end sections

with slot on agitator. Note: Large

Iocator on pulley end must align

with large notch on agitator.

Screw on end plates and tighten.

5. Should you accidentally dis-
place the bearing during disas-

sembly, reassemble as shown.

Replace belt, agitator and bottom

plate.

If you have a problem

This appliance was inspected thoroughly and was in good operating con-
dition when it was shipped from the factory. If a minor problem develops,

it usually can be remedied quite easily when the cause is identified. Ac-
cordingly, this check list is provided for your convenience.

Problem Possible cause

Cleaner 1. Not firmly plugged in,
won't 2. No voltage in wall plug.

run 3. Blown fuse/tripped

breaker.

Possible solution

1. Plug unit in firmly,

2. Check fuse or breaker.

3. Replace fuse/reset breakeu

won't belt.

pick up 2. Agitator brushes worn.

3, Bag full.

4. Obstruction in cleaner.

5. Bag not opening.

If the problem persists, check the Yellow Pages of your telephone book
under "Vacuum Cleaners - Household" for your nearest Hoover Factory
Service Center or Authorized Warranty Service Dealer where approve(

HOOVER service and genuine HOOVER replacement parts may be ob-

tained. The warranty provided with this product has a listing of the

Hoover Factory Service Centers. If you are unable to obtain the informa-

tion you need from the Yellow Pages, contact a Hoover Factory Service

Center to find your nearest Authorized Warranty Service Dealer. For

service under warranty, follow the instructions in the Warranty provided
with this product.

Do not send your cleaner to The Hoover Company in North Canton for

service as this will only result in delay.

2. Replace brushes.

3. Change throw away bag.

4. Clear pivoting dirt duct

and/or dirt tube.

5. Check for firm bag con-
nection.

21

Always identify your cleaner by model number when requesting informa-

tion or ordering replacement parts. (The model number appears on the

bottom of the cleaner.)
If further assistance is needed, contact The Hoover Company Con-

sumer Affairs Department, North Canton, Ohio 44720, 216-499-9200.

Lubrication

The motor is equipped with one ball bearing and one needle roller bear-
ing. These bearings contain sufficient lubrication for the life of the motor.

The addition of lubricant could cause damage. Therefore, do not add

lubricant to either motor bearing.

The agitator is equipped with two ball bearings that should be lubricated

periodically. This should be done by a Hoover Factory Branch Service
Center or an Authorized Hoover Warranty Service Dealer.

Energy saving tips

1. Replace throw away cleaner bag promptly, before overfilled, with a
genuine HOOVER bag made for your cleaner model.

2. To maintain effective cleaning, replace agitator brushes and belt when
necessary,

3. Turn off cleaner when not in use, such as when moving furniture.

4. Keep your cleaner operating at peak performance level - have inspec-
tion and service performed by a Hoover Factory Service Center or

Authorized Hoover Service Dealer.

22

VCMA VACU UM CLEANER MANUFACTURERS ASSOCIATION

(HOOVER - AN ASSOCIATION MEMBER)

Service To The Consumer Since 19t3

This reformation has been compiled by the Vacuum Cleaner Manufacturers Assoc_
ation from Government and Private Sources concerned with product safety. These
basic guidehnes are for your protechon and convenience,

TO AVOID ELECTRIC SHOCK
Never vacuum damp or wet surfaces or liquids.

Do not store machine outdoors.
Replace worn or frayed power cord immediately.

TO AVOID ACCIDENTS

Never vacuum live ashes or cigarette butts.
Never run machine over or place sharp objects on the power cord.

Never let children use machine as a toy.
Use extra caution when cleaning or) stairs.

Except for hand held cleaners, keep machine on floor not on chairs, tables, etc
When machine is turned on, never allow fingers, eyes, hair, garments, etc. to come

near intake suction ports or revolving brushes.
Never leave machine running or cord plugged in when unattended.
Turn machine off at switch before unplugging from wall outlet.
When unplugging machine, grasp plug not cord; guide cord and plug during

wrapping or cord reel rewinding.
The use of an extension cord is not recommended.

Never vacuum in the presence of flammable or combustible liquids or fumes,
Always unplug power cord from wall outlet before servicing machine or attachir)g

accessories
Store machine promptly after each use to prevent accidents from tripping over power

cord or machine.
Use machine and accessories only _n manner intended by manufacturers.

FOR BEST PERFORMANCE
Keep your machine and all accessories clean and in good operating condition.

Change or clean bags and/or filters as recommended by manufacturer to maintain
optimum cleaning efficiency, after unplugging the power cord.

Periodically check revolving brush for build,up of lint, hair or other foreign material
and remove as necessary, after unpluggirrg the power cord.

Adjust or replace cleaning brushes when worn, after unplugging the power cord.

Have machine checked periodically by manufacturer's authorized service center,
Use only manufacturer's authorized service center for parts or service.
Store machine carefully in a dry area,

For optimum cleanin 9 performance and safety, study and follow your Owner's
Manual -keep it in a handy and safe place for future reference.

THE HOOVER COMPANY, NORTH CANTON, OHIO 44720

5-.86 U4219 LithoUSA 56511-262
