Hoover,
Model
Owner’s
QuikmBroom TM S2029
with Cassette
RI
Manual I
Fill in and retain!
The HOOVER vacuum cleaner you have just purchased is a two speed combination cleaner. It may be used for carpet and floor cleaning and may be
used with cleaning tools for above the floor cleaning.
Your cleaner is model
and has a serial number
For your personal records, please enter the model number and serial number
in the speces provided above and retain in a safe place.
The model number appears adjacent to the ON-OFF switch and the serial
number appears on the top back of the cleaner motor housing.
. ..,...........,............,...................,...................*...*
no
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..*............
l
Save!
1
@The Hoover Company 1970
Imiwtantsafecluards!
l
Read all instructions.
l
Warning: Electric shock could occur if used outdoors or on wet surfaces.
l
Close supervision is necessary when any appliance is used by’or near children.
Do not allow vacuum cleaner to be used as a toy or to run unattended at any
time.
l
Do not use cleaner to pick up matches, or live ashes and cigarette butts.
l
Avoid picking up hard, sharp objects with the cleaner.‘They may damage the
cleaner and the bag.
l
Unplug cleaner when not in use. Turn machine off at switch before
unplugging.
l
Always disconnect cord from electrical outlet before servicing the cleaner.
l
Change bag frequently when picking up very fine materials such as powder.
l
Grasp the plug to disconnect from wall outlet to avoid damage to cord,
plug, prongs, or receptacle.
l
The use of an extension cord is not recommended.
l
If cleaner is in disrepair, do not attempt to operate.
l
Have repairs made by qualified personnel at Hoover Factory Service Centers
or Authorized Hoover Warranty Service Dealers.
l
Use vacuum cleaner only for its intended use as described in the instructions.
The use of attachments not recommended by the appliance manufacturer
may cause hazards.
Save these instructions!
8
UL
0
UNPACKING
Unpack the cleaner from
the carton and identify
the parts shown below.
Remove and dispose of
the cardboard packing.
Handle
1
2-Speed
switch h --
- Cord clip
I- Cord clip
L
/
I
--On-Off
ASSEMBLING
After identifying each
part, you are ready to
begin assembly.
A. Attach handle to
motor housing insert
handle into opening,
lining up slots in handle
latch ring and opening.
Fit metal projection into slot. Turn handle
latch ring clockwise to
secure handle. To remove, turn handle latch
ring counterclockwise
until slot lines up with
metal projection and
slide handle off.
Handle
latch ring
Switch
x Outer bag
assembly
with
throw away
baa (inside)
A
a Wheeled rug
and floor nozzle -
Motor
- housing
I
B. Attach rug and floor
nozzle To attach rug
and floor nozzle, line
slots in nozzle latch ring
and opening. Attach noz-
zle fitting metal projec-
tion into slot. Turn noz-
zle latch ring clockwise
to secure nozzle. To remove, turn nozzle latch
ring counterclockwise
Nozzle
latch ring
/
Rug and
floor nozzle
7
J
/
n
I
Nozzle
/ adiustment
until slot lines up with
metal projection and
slide nozzle off.
up
3

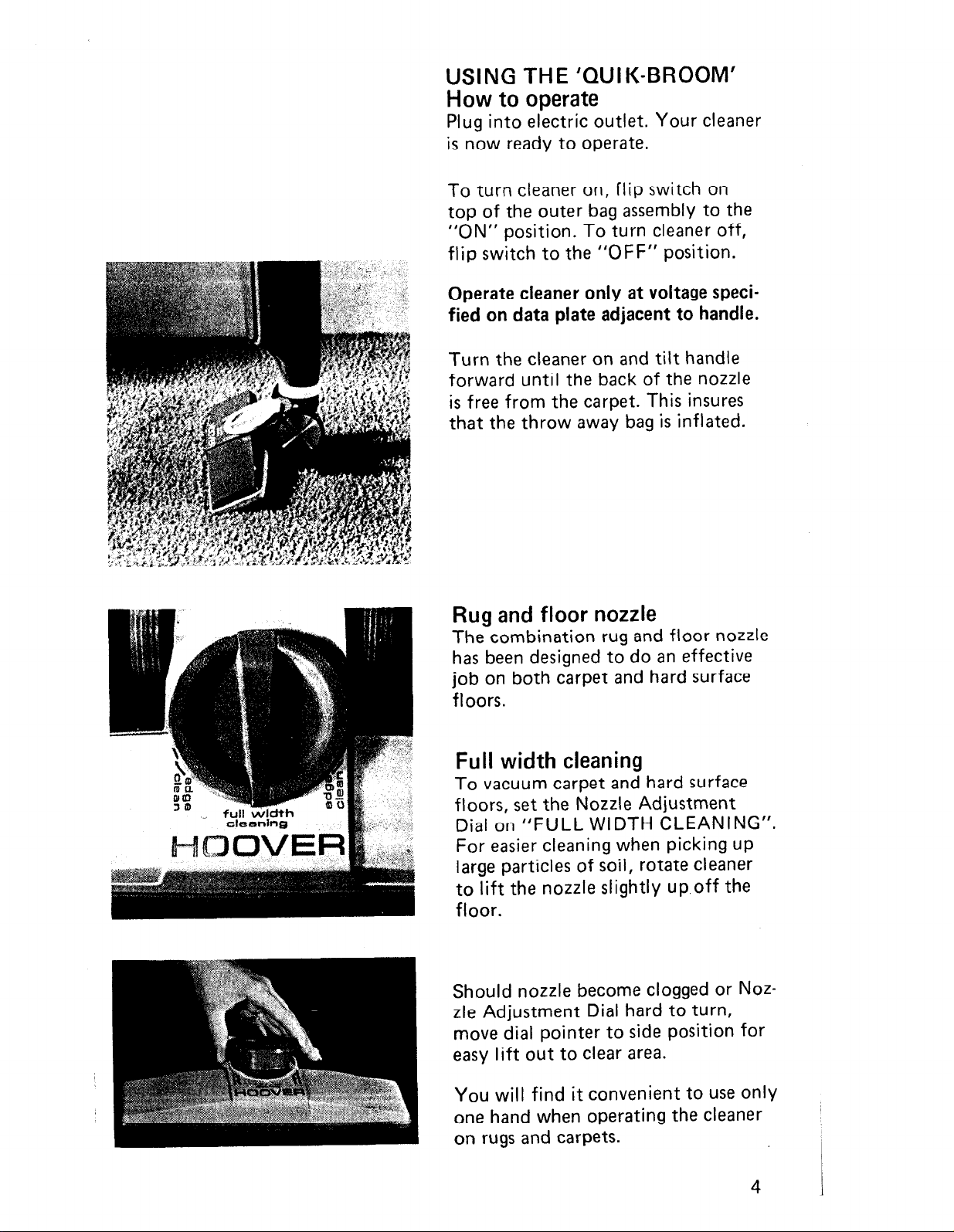

USING THE ‘QUIK-BROOM’
How to operate
Plug into electric outlet. Your cleaner
is now ready to operate.
To turn cleaner on, flip switch on
top of the outer bag assembly to the
“ON” position. To turn cleaner off,
flip switch to the “OFF” position.
Operate cleaner only at voltage specified on data plate adjacent to handle.
Turn the cleaner on and tilt handle
forward until the back of the nozzle
is free from the carpet. This insures
that the throw away bag is inflated.
Rug and floor nozzle
The combination rug and floor nozzle
has been designed to do an effective
job on both carpet and hard surface
floors.
Full width cleaning
To vacuum carpet and hard surface
floors, set the Nozzle Adjustment
Dial on “FULL WIDTH CLEANING”.
For easier cleaning when picking up
large particles of soil, rotate cleaner
to lift the nozzle slightly up,off the
floor.
Should nozzle become clogged or Nozzle Adjustment Dial hard to turn,
move dial pointer to side position for
easy lift out to clear area.
You will find it convenient to use only
one hand when operating the cleaner
on rugs and carpets.
4
Edge cleaning feature
This feature provides for cleaning of
carpet edges near baseboards and sol-
id furniture. Slots on the nozzle bottom plate carry dust from the carpet
edge to the nozzle.
Set the Nozzle Adjustment Dial on
“EDGE CLEAN” to the right or left
for right or left edge cleaning.
Two speed feature
The black switch on the top of the
outer bag assembly controls the
speed of the cleaner. Choose the
“H I GH” or “LOW” setting depend-
ing on amount suction needed for
various cleaning tasks. Use “HIGH”
for general carpet and floor cleaning.
Use “LOW” for lighter cleaning and
above floor cleaning.
Cleaning under low furniture
Your ‘Quik-Broom’ cleaner has been
designed to do an effective job cleaning under low furniture and in hard
to reach areas. Lower the handle to
floor level and proceed with a back
and forth motion.
Storing the ‘Quik-Broom’
When cleaner is not in use, wrap cord
around the two cord clips as shown
in illustration.
To save valuable storage space in your
home, hand the ‘Quik-Broom’ cleaner
on a hook. There is an opening
the top
5
of the handle for this
near
purpose.
CLEANING TOOLS
Model 2921 kit (available at additional cost) provides tools for above-floor
cleaning.
1. ‘Ultraflex’ hose: For flexibility in
using cleaning tools.
2. Extension wand: When you require
extra length for cleaning bare floors or
hard-to-reach places, attach the ex-
tension wand.
3. Upholstery nozzle: For uphol-
stered furniture, draperies, tapestries,
mattresses, clothing, automobile
interiors, stairs.
4. Dusting brush: For carved furni-
ture, table tops, books, lamps, light
fixtures, Venetian blinds, registers,
baseboards.
5. Crevice tool: For upholstered
furniture, edges of wall-to-wall carpet, radiators, dresser drawers.
6.
Carrying strap: For use as an over-
the-shoulder type of cleaner.
Attaching cleaning tools
Remove the handle and the rug and
floor nozzle from the cleaner. Attach
carrying strap by slipping plastic loop
of strap over hose tube before tube
is attached to cleaner.
Attach metal clip in holes provided
in cleaner opening.
Attach ‘Ultraflex’ hose using nozzle
latch ring in same manner as when
attaching the handle and the rug and
floor nozzle. If extra length is needed,
attach extension wand.
Tools may be attached to the exten-
sion wand, ‘Ultralfex’ hose, or the
cleaner.
MAINTENANCE
The following sections are concerned with proper maintenance of your
cleaner. Familiarize yourself with these home maintenance tasks and keep
this owner’s manual in a convenient place where you can refer to it when
needed. Proper use and care of your cleaner will insure continued cleaning
effectiveness.
The Bag
Check the bag from time to time. If the bag is nearly full OR if the cleaner is
not picking up, change the bag. The cleaner will not operate effectively if
the bag is completely full. Discard used bag.
Caution: Very fine materials, such as face powder, cornstarch, fireplace ashes
or fireplace soot, may seal the throw-away bag and may cause it to burst
even though it is only partially full of dirt. When the cleaner is used to remove
material of this nature, the bag should be changed frequently.
What bag to buy
Use only HOOVER Type E bags. Geniune HOOVER bags are made of
specially designed paper for most effective results with your ‘Quik-Broom’.
They are less likely to break or clog.
Where to buy bags
Bags may be purchased from your local Authorized Hoover
Dealer, or from Hoover Factory Service Centers listed on
the white insert.
For top efficiency, use only genuine HOOVER throw away
bags. HOOVER bags can be identified by the trademarks. -
Changing the bag
A. Remove used bag
1. Release metal latch on outer bag
assembly; open outer bag housing and
allow handle to rest on the floor.
2. Pull bag cassette and used bag ou
of housing.
HOOVER a
3. Carry bag and cassette to waste
receptacle. To remove bag, push
cardboard around tube away from
the bag cassette and let used bag fall
into the waste receptacle.
Do not attempt to clean out used
bag and re-use. Your cleaner will not
operate effectively.
7
B. Install throw away bag
7. Place bag cassette on table. With
both hands, grasp the cardboard collar on the bag. Align the.bag opening with the tube on the cassette.
Push hole in cardboard firmly over
the tube, Twist until bag is secure.
Lift bag to partially open pleats on
each side.
2. At opposite end from
opening, tuck top of bag
cardboard
inside top of
bag cassette.
3. Replace bag cassette, with new bag
attached, into the outer bag assembly.
The tube in the bottom of the bag
cassette fits into tube in the bottom
of the outer bag assembly. Push firmly
so that tubes make tight contact.
4. Close outer bag housing and latch.
8
Secondary filter
Check the secondary filter when replacing throw away bag.
If filter is dirty, it should be cleaned
by brushingdirt from the surface.
brush. Then remove it. Fig. 1.
2. Locate new brush tabs in the
springs. Make sure the projections
on the side of the brush base are toward the front of the nozzle. Fig. 2.
3. Remove the combination litter
picker and furniture guard. Replace
with new, positioning the litter pick-
er and furniture guard in the grooves
along the edge of the nozzle with
litter picker towards the front of the
nozzle. Make certain litter picker
and furniture guard are seated properly. Fig. 3.
Position brush and springs. Replace
bottom plate. If bristles are caught
beneath the bottom plate, disengage
with any thin tool.
9

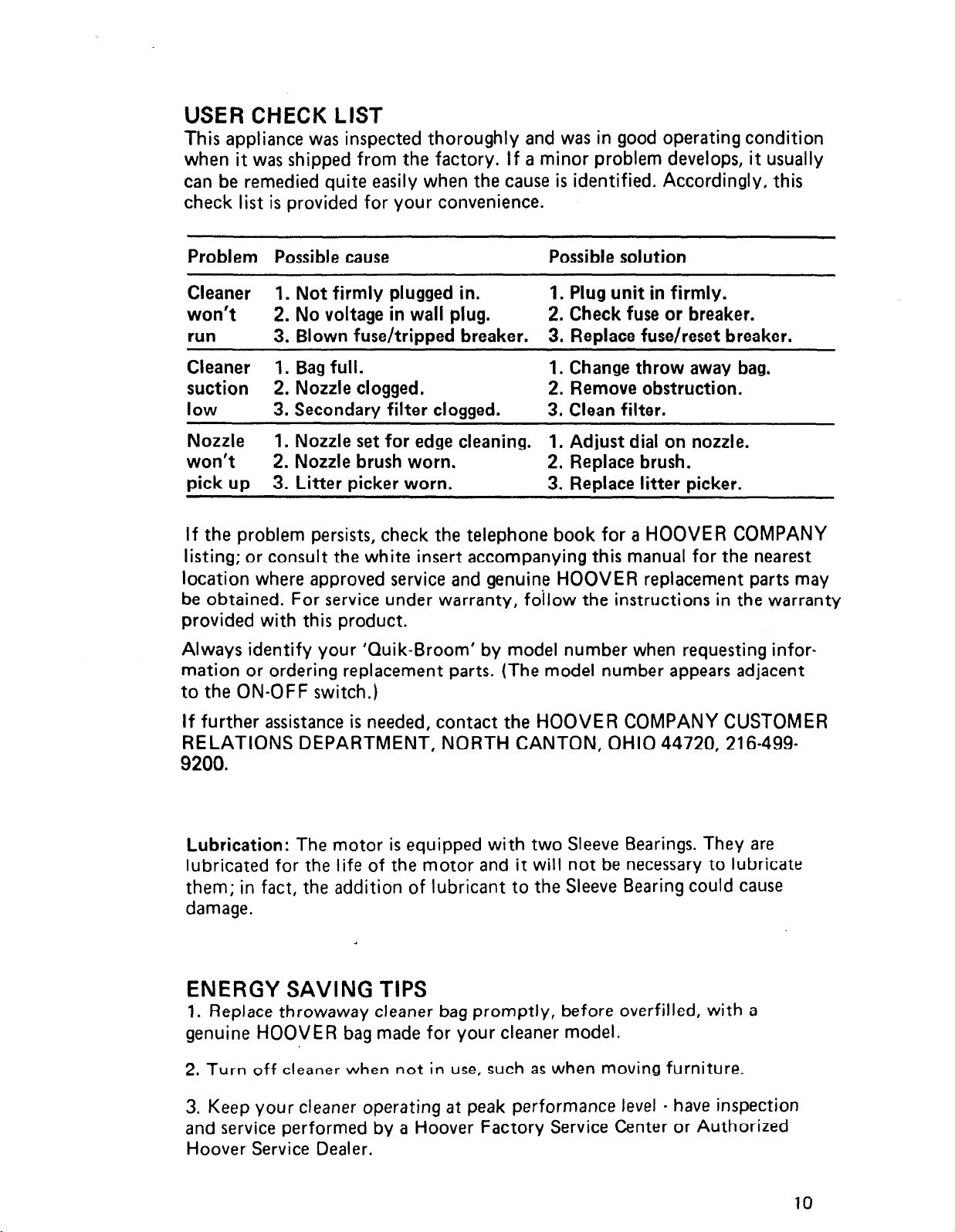

USER CHECK LIST
This appliance was inspected thoroughly and was in good operating condition
when it was shipped from the factory. If a minor problem develops, it usually
can be remedied quite easily when the cause is identified. Accordingly, this
check list is provided for your convenience.
Problem Possible cause
Cleaner 1. Not firmly plugged in.
won’t 2. No voltage in wall plug.
run
3. Blown fuse/tripped breaker.
Cleaner 1. Bag full.
Possible solution
1. Plug unit in firmly.
2. Check fuse or breaker.
3. Replace fuse/reset breaker.
1. Change throw away bag.
suction 2. Nozzle clogged. 2. Remove obstruction.
low
Nozzle
won’t 2. Nozzle brush worn.
pick up 3. Litter picker worn.
If the problem persists, check the telephone book for a
3. Secondary filter clogged.
3. Clean filter.
1. Nozzle set for edge cleaning. 1. Adjust dial on nozzle.
2. Replace brush.
3. Replace litter picker.
HOOVER COMPANY
listing; or consult the white insert accompanying this manual for the nearest
location where approved service and genuine HOOVER replacement parts may
be obtained. For service under warranty, follow the instructions in the warranty
provided with this product.
Always identify your ‘Quik-Broom’ by model number when requesting information or ordering replacement parts. (The model number appears adjacent
to the ON-OFF switch.)
If further assistance is needed, contact the HOOVER
COMPANY CUSTOMER
RELATIONS DEPARTMENT, NORTH CANTON, OHIO 44720,216-499-
9200.
Lubrication: The motor is equipped with two Sleeve Bearings. They are
lubricated for the life of the motor and it will not be necessary to lubricate
them; in fact, the addition of lubricant to the Sleeve Bearing could cause
damage.
ENERGY SAVING TIPS
1. Replace throwaway cleaner bag promptly, before overfilled, with a
genuine HOOVER bag made for your cleaner model.
2. Turn off cleaner when not
3. Keep your cleaner operating at peak performance level - have inspection
and service performed by a Hoover Factory Service Center or Authorized
Hoover Service Dealer.
in use,
such
as when moving furniture.
10

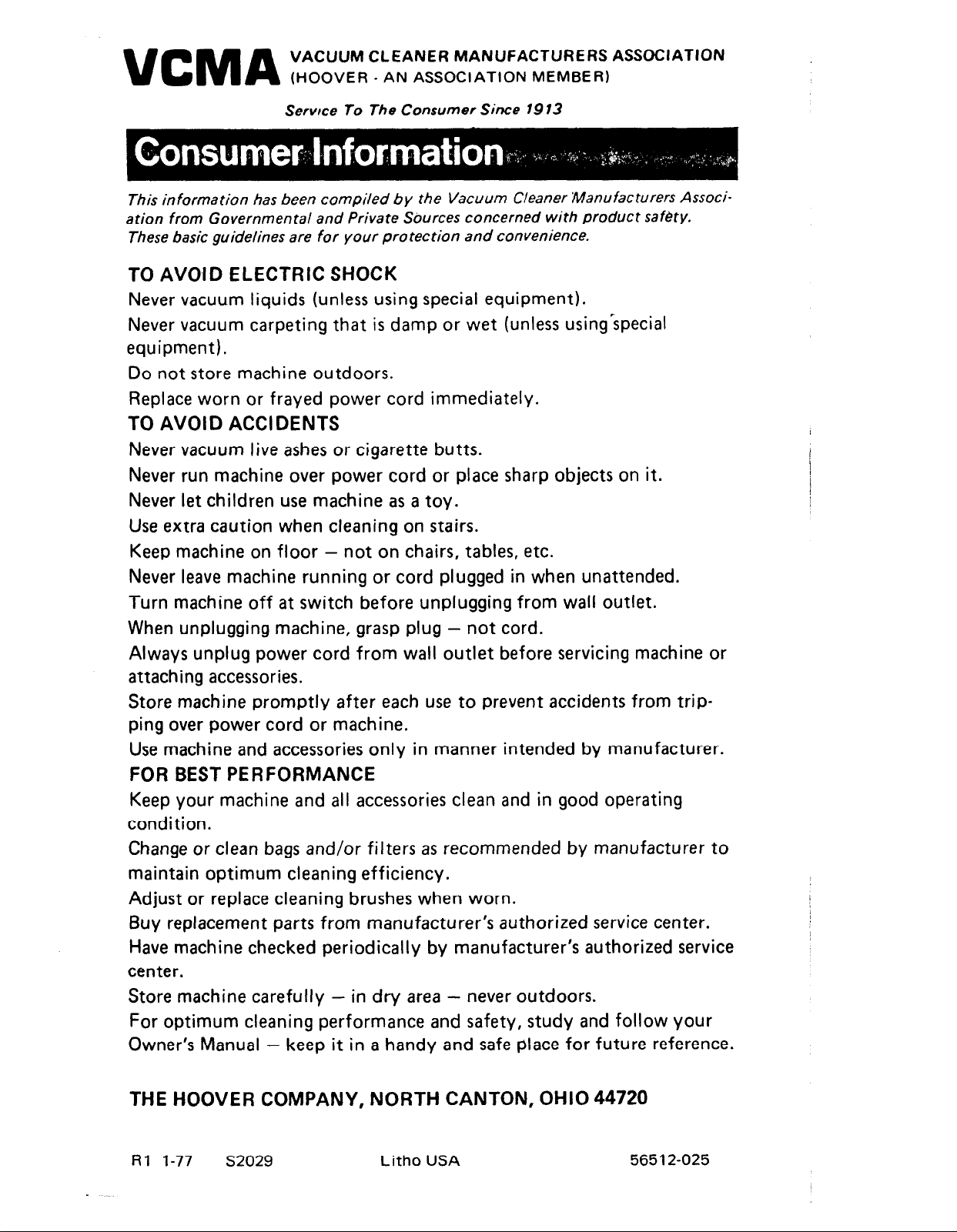

VACUUM CLEANER MANUFACTURERS ASSOCIATION
VCMA
This information has been compiled by the Vacuum Cleaner Manufacturers Associ-
ation from Governmental and Private Sburces concerned with product safety.
These basic guidelines are for your protection and convenience.
TO AVOID ELECTRIC SHOCK
Never vacuum liquids (unless using special equipment).
Never vacuum carpeting that is damp or wet (unless using*special
equipment).
Do not store machine outdoors.
Replace worn or frayed power cord immediately.
TO AVOID ACCIDENTS
Never vacuum live ashes or cigarette butts.
Never run machine over power cord or place sharp objects on it.
Never let children use machine as a toy.
Use extra caution when cleaning on stairs.
Keep machine on floor - not on chairs, tables, etc.
Never leave machine running or cord plugged in when unattended.
Turn machine off at switch before unplugging from wall outlet.
When unplugging machine, grasp plug - not cord.
Always unplug power cord from wall outlet before servicing machine or
attaching accessories.
Store machine promptly after each use to prevent accidents from trip-
ping over power cord or machine.
Use machine and accessories only in manner intended by manufacturer.
FOR BEST PERFORMANCE
Keep your machine and all accessories clean and in good operating
condition.
Change or clean bags and/or filters as recommended by manufacturer to
maintain optimum cleaning efficiency.
Adjust or replace cleaning brushes when worn.
Buy replacement parts from manufacturer’s authorized service center.
Have machine checked periodically by manufacturer’s authorized service
center.
Store machine carefully - in dry area - never outdoors.
For optimum cleaning performance and safety, study and follow your
Owner’s Manual - keep it in a handy and safe place for future reference.
(HOOVER - AN ASSOCIATION MEMBER)
Servlce To The Consumer Since 19 13
THE HOOVER COMPANY, NORTH CANTON, OHIO 44720
Rl l-77
s2029 Litho USA
56512-025
Loading...
