Introduction

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery information

Please check that the following items are delivered with the appliance:

● Instruction manual

● Guarantee card

● Blanking plug

● Inlet hose & hooked end support

(see Unpacking and Installation Instructions)

● Base panel & x2 push clips

● Energy Label

Do’s

● All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.

● To ensure safety when disposing of an old washing machine disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

● This machine is solely for domestic use, i.e. to wash, rinse and spin dry household textiles and garments.

Check that no

damage has

occurred to the

machine during

transit. If it has,

call for service

by GIAS.

40002934Eng.qxd 24/04/2005 13:29 Page 3

Don’ts

● Do not touch the appliance when hands or feet are damp or wet.

● Do not lean on the door when loading the machine or use the door to lift or move the machine.

● Do not use adapters, multiple connectors and/or extensions.

● Do not allow children to play with the machine or its controls.

● Do not try to open the door when water is visible in the drum or the Porte Sécurisée indicator is on.

European directive 2002/96/EC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Failure to

comply with

the above can

compromise the

safety of the

appliance. You may be charged for a service call

if a problem

with your

machine is

caused by

misuse.

If the appliance

is not running

properly or

breaks down,

switch it off,

disconnect the

plug from the

socket, turn off

the water

supply and do

not tamper

with the

appliance.

Consult GIAS

Service for

possible repair.

40002934Eng.qxd 24/04/2005 13:29 Page 4

Unpacking the product

Remove the machine from its packaging close to the final location of the machine.

1. Cut carefully around the base of the packaging.

2. Lay the machine on its back and remove the base and the two polystyrene spacers on each side of the machine. We recommend that a second person assist in the lifting and manoeuvring of the machine.

3. Return the machine to the upright position, remove the remainder of the packaging and the central screw in the transit bar.

4. Remove the four retaining screws in the transit bar and pull out the transit bracket.

Dispose of the packaging safely.

Make sure it is out of the reach

of children, it is a potential

source of danger.

40002934Eng.qxd 24/04/2005 13:29 Page 5

5. Take the base panel provided and fit the two self adhesive strips by removing the backing paper on one side and locating the strips on each side of the base panel.

6. Tilt the machine forward and locate the base panel under the front of the machine. Remove the remaining backing paper from the self-adhesive strips and offer up the base panel to the bottom of the cabinet.

7. Take the two plastic fixing clips and fix the base panel to the base of the machine. Bring the machine back to the upright position.

We recommend you keep the transit bracket and

screws to protect the machine for future transit.

The manufacturers will not be responsible for any

damage to the machine caused by not following the

instructions relating to releasing the transit protection.

The user is responsible for all installation costs.

40002934Eng.qxd 24/04/2005 13:29 Page 6

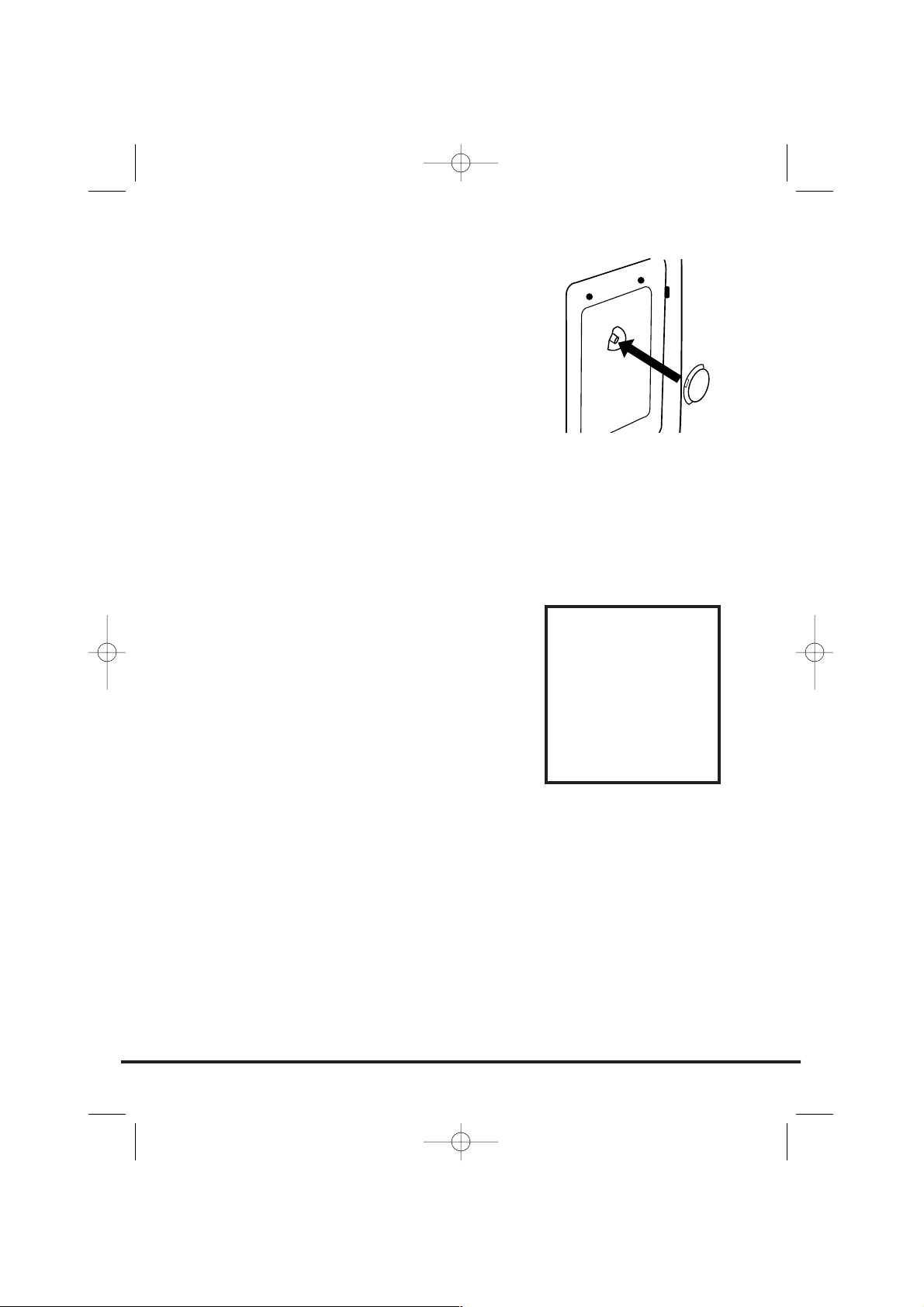

8. Cover the central hole in the rear of the machine with the cap enclosed in the instruction bag.

Choose a location

● After the machine has been installed, ensure that the mains plug and water supply valves are easily accessible.

● Make sure there is enough space for the machine. Select a space at least 600mm wide and 850mm high. Also leave enough space to open the door fully so you can load and unload it easily.

● Keep the area underneath and around the machine free of combustible materials such as lint, paper, rags, chemicals etc.

Installation

Do not plug the

machine in and

switch it on at the mains until the installation

is completed.

40002934Eng.qxd 24/04/2005 13:29 Page 7

Electricity supply

Washing machines are supplied to operate at a voltage of 230V, 50 Hz single phase. Check that the supply circuit is rated to at least 16A.

Electricity can be extremely dangerous. This washing machine must be earthed. The socket outlet and the plug on the appliance

must be of the same type. Do not use multiple adapters and/or extension

leads.

The wires in the mains lead are coloured in accordance with the following codes:

Blue NEUTRAL Brown LIVE Green and Yellow EARTH

CE Appliance complies with European Directive 89/336/EEC, 73/23/EEC and subsequent amendments.

Water supply

● The cold water pressure should be between

0.05-0.8 Mpa.

● Do not connect the machine to a single outlet instantaneous water heater.

● The water supply tap should be accessible when the machine is installed.

● Before connecting the fill hose, check that the water is running from the water supply tap to be used.

You may be

charged for a

service call if a

problem with

your machine is

caused by

incorrect

installation.

If the mains cord on this appliance is damaged, it

must be

replaced by a

special cord

which is ONLY

obtainable from

the GIAS spares

service. It must

be installed by

a competent

person.

40002934Eng.qxd 24/04/2005 13:29 Page 8

This machine has an inlet hose with a 19mm (3/4") threaded ferrule fitted to the end, to attach between the threaded connector on the appliance and the water supply.

Only use the new hose supplied to connect the machine and ensure that the sealing washers are in place inside the hose connectors.

Do not re-use old hoses which are attached to existing installations.

Do not over-tighten the connections. Hand tight is sufficient.

Do not trap or kink the hose.

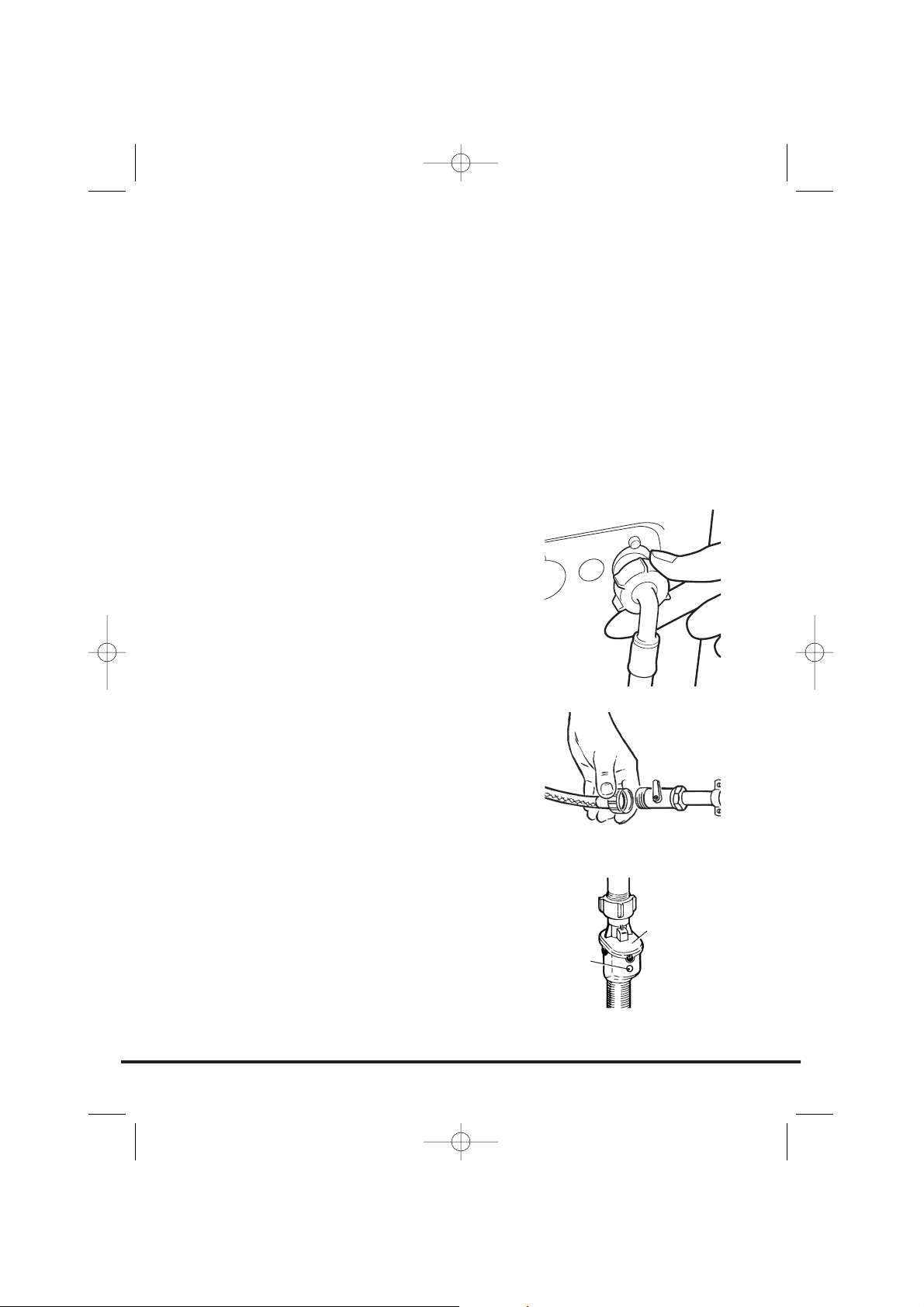

1. Connect the elbow end of the hose provided

to the threaded inlet on the back of the machine.

Grey pipe to the white threaded inlet on the machine.

2. Hand tighten the connector.

3. Connect the straight ends of the pipes to the water supply; ensure that there are no kinks.

4. Turn on the water supply and check for leaks. If there is a leak, turn off the water

supply, disconnect the hose and check the sealing washers are in place. Refit the hose and turn on the water supply.

Aqua-stop

Certain models will be supplied with special hose that has a double skin and incorporates a water valve (A). If the inner hose bursts the valve will automatically shut off the water supply to prevent flooding. The indicator turns red (B). Should this happen, turn off the water supply immediately and obtain a replacement hose from GIAS Service.

The installation is the same as a conventional hose with the valve end of the aqua-stop hose fitted to the water supply.

Connecting to the cold water supply

40002934Eng.qxd 24/04/2005 13:29 Page 9

Connection of the machine to the drain

This machine must be connected in accordance with the water supply regulations. Water byelaws prohibit connection to a surface water drain.

Decide which plumbing option suits you best then follow the instructions below.

Option 1 Waste pipe connection (waste trap)

Fit the hooked end support to the outlet pipe. Position at least 800mm off the floor.

After removing the blanking plug or cutting the membrane from the waste system securely fix the outlet pipe to the drainage system, using a hose clip.

Secure the hooked end support up to at least 800mm to avoid water being drawn back into the machine.

All machines are tested with water prior to leaving the

factory so a small amount of water may remain in the

drum and drain hose.

Flooding could occur if any part of the installation is

not completed correctly.

800 mm

hose clip

hooked end support

sink

flexible

discharge hose

trap with hose

adaptor

40002934Eng.qxd 24/04/2005 13:29 Page 10

Option 2 Into a standpipe

Ensure that the standpipe is not located near an electrical socket.

Fit the hooked end support to the outlet pipe. Install the hose into the standpipe ensuring that the pipe is at least 500mm from the floor.

Insert the outlet pipe approximately 100mm into the standpipe.

Moving the machine into position

Your machine is heavy so care must be taken when moving it. We recommend that two people move the machine to avoid strain and possible injury.

● Take care not to damage flooring when moving the machine.

● When moving the machine to its final position take care not to kink or damage the hose at the back of the machine.

Adjusting the feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level. If the machine is not level it may become noisy or move.

Adjust the feet on the front corners of the machine until the machine is firm and level.

When the machine is firm and level, tighten the locking nuts on the two feet.

Do not drag or

lift the machine

by its door.

100 mm

500 mm min

40002934Eng.qxd 24/04/2005 13:29 Page 11

Refer to the programme guide for details of how to select programmes.

1. Turn on the water supply and check for leaks from the fill hose.

2. Switch on the electricity supply.

3. Select the Essorage programme and then

press the Départ/Pause button to start the machine. Allow the programme to continue for one minute and then cancel the programme by returning the selector to the ARRÊT position. This will remove any water remaining in the machine from factory testing.

4. To check for cold water filling to the machine:

Select the Rinçage programme and press the Départ/Pause button to start the machine.

Allow the tumble action to continue until the water has pumped out. Check that the drain outlet is not leaking or overflowing.

5. Switch off the machine at the end of the cycle by turning the programme knob to the ARRÊT position.

6. Select the Essorage programme and press the Départ/Pause button to start the machine. If the machine takes longer than one minute to empty check the drain hose for kinks.

Installation testing is now complete.

Now you have successfully installed the machine we advise that you run the machine to ensure the drum is thoroughly clean after testing and storage. Select Coton 90 and run the machine for a complete cycle using only wash detergent and water.

Testing the installation

This

programme

will take

approximately

2 hours to

complete.

40002934Eng.qxd 24/04/2005 13:29 Page 12

The following tips are designed to assist in getting the best results from your machine whilst using it in the most environmentally-friendly and economical way. It is also important to understand the items to avoid in your laundry, to ensure the continued safe and reliable operation of your machine.

Loading your washing machine

To make further reductions of energy, water and detergent consumption, we recommend that you put a full load into your machine. Energy savings of up to 50% can be achieved by washing one full load compared to two half loads.

Do not overload the machine as this will reduce the quality of the wash and may cause damage to the machine and your laundry.

When is prewashing really needed?

Only with particularly dirty loads! Energy savings of 5 to 15% are made by not selecting the prewash option for less dirty laundry. Pre-treat awkward stains with a washable stain remover.

Which wash temperature should you choose?

Using stain removers before machine washing reduces the need to wash at temperatures over 60°C.

Using a 40°C wash temperature can make energy savings of up to 50%.

Heavily soiled laundry

To ensure the best performance when washing a particularly dirty load, we recommend that you reduce the amount of items to be put into the machine. Allowing more space in the drum the items can circulate more freely and will wash better.

Sorting the laundry

Items to avoid

We recommend that you do not wash underwired bras in the machine. Should the wires become detached they could cause damage to your clothes and the machine. If the washcare label states that the bra is machine washable then we advise placing it in a wash bag.

Washing and Drying advice

Do not use the machine to wash items that do not

have a wash label.

Do not wash items previously treated with solvents.

40002934Eng.qxd 24/04/2005 13:29 Page 13

Recommendations

Always follow the wash care labelling on the garments. Fasten zips, tie strings and close press studs to prevent tangling. Ensure that

pockets are emptied of loose change and other small items. Check that there are no metal objects in the laundry as these may damage the

laundry and the machine. Place small items in a wash bag.

Drying

In addition to the above advice the guidelines below must be followed when drying the clothes.

Sort the load for drying:

● By care symbols:

On the collar or inside seam: Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

DO NOT tumble dry.

● By amount and thickness:

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

● By type of fabric:

Cottons/linen: Towels, cotton jersey, bed and table linen. Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as

well as for cotton/synthetic mixes.

Things to avoid

● Do not tumble dry woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

● Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

● Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Foam plastic, foam rubber and rubber-like material are not suitable for tumble drying. Articles made from these materials MUST NOT be placed in the dryer.

● Do not try to dry items that are dripping wet, this may damage the appliance. Spin these items first.

40002934Eng.qxd 24/04/2005 13:29 Page 14

Detergent dosage

Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products, and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.

The amount of detergent to use depends on:

● Water hardness.

Depending on the hardness of the water and the type of detergent used, it is possible to reduce the amount of detergent.

The softer the water supply, the less detergent is required.

● The degree of soiling.

It is possible to reduce the amount of detergent used depending on the degree of soiling.

Use less detergent for less soiled items.

● Amount of laundry.

It is possible to reduce the amount of detergent when washing only a small amount of laundry.

For smaller loads use less detergent.

The dosages shown on the packaging of detergents for washing delicates often already refer to a reduced wash size. Always follow the dosage

instructions on the detergent packaging.

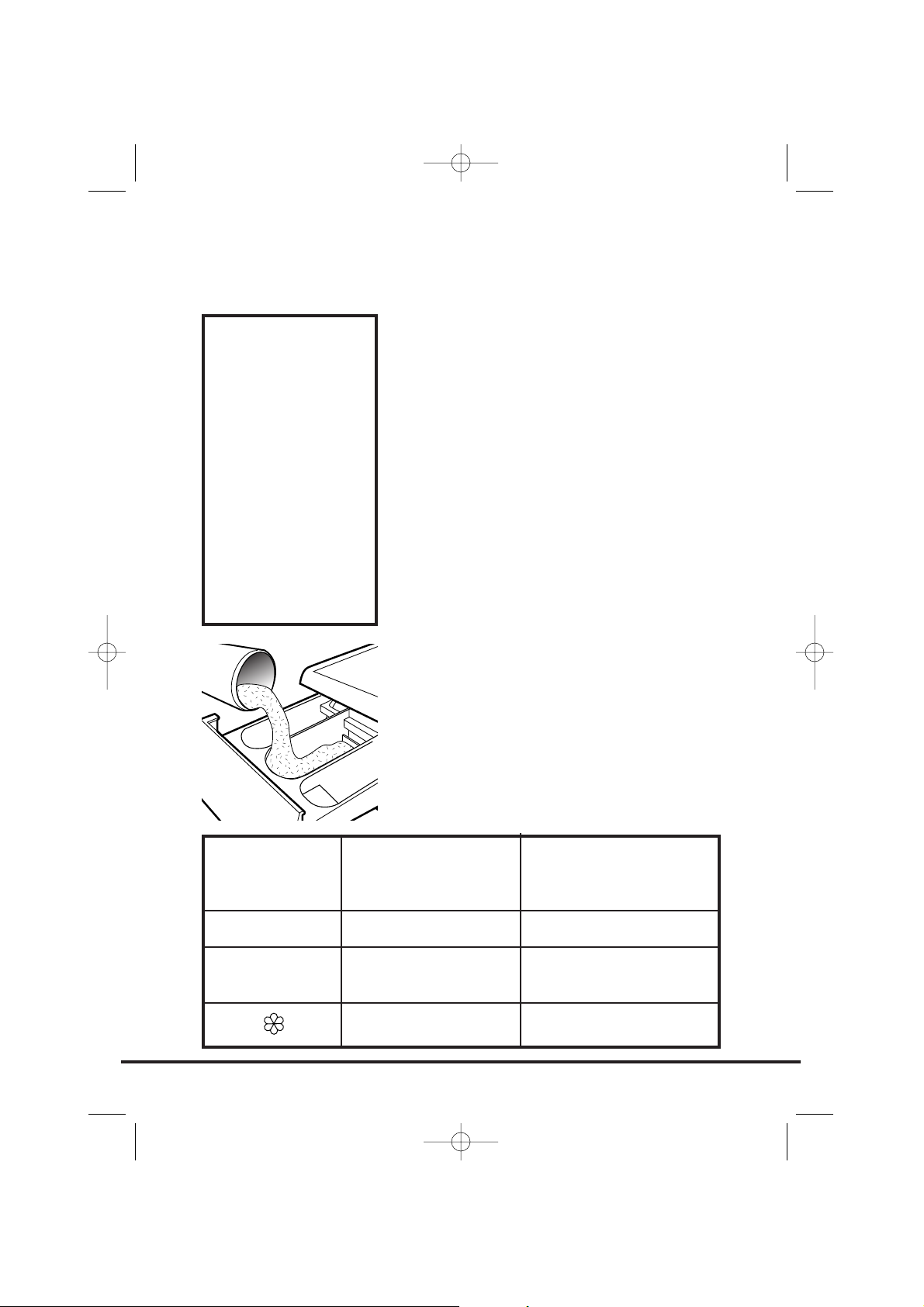

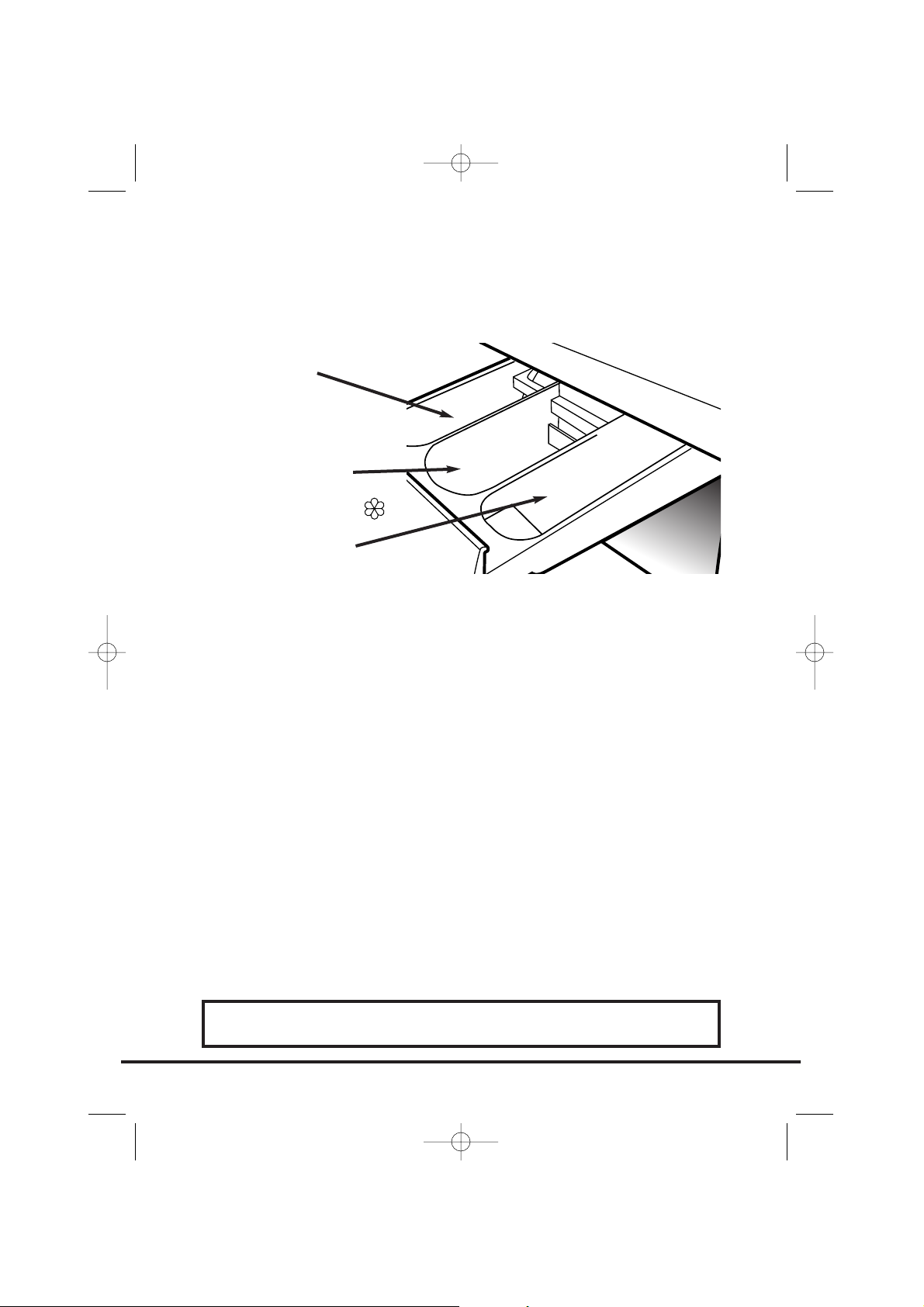

The Dispenser

DO NOT exceed the maximum detergent dosage

COMPARTMENT I

Prewash detergent

Maximum dosage 100ml of powder

COMPARTMENT II

Mainwash detergent

Maximum dosage 200ml of powder

COMPARTMENT

Fabric Conditioner

Maximum dosage 100ml

40002934Eng.qxd 24/04/2005 13:29 Page 15

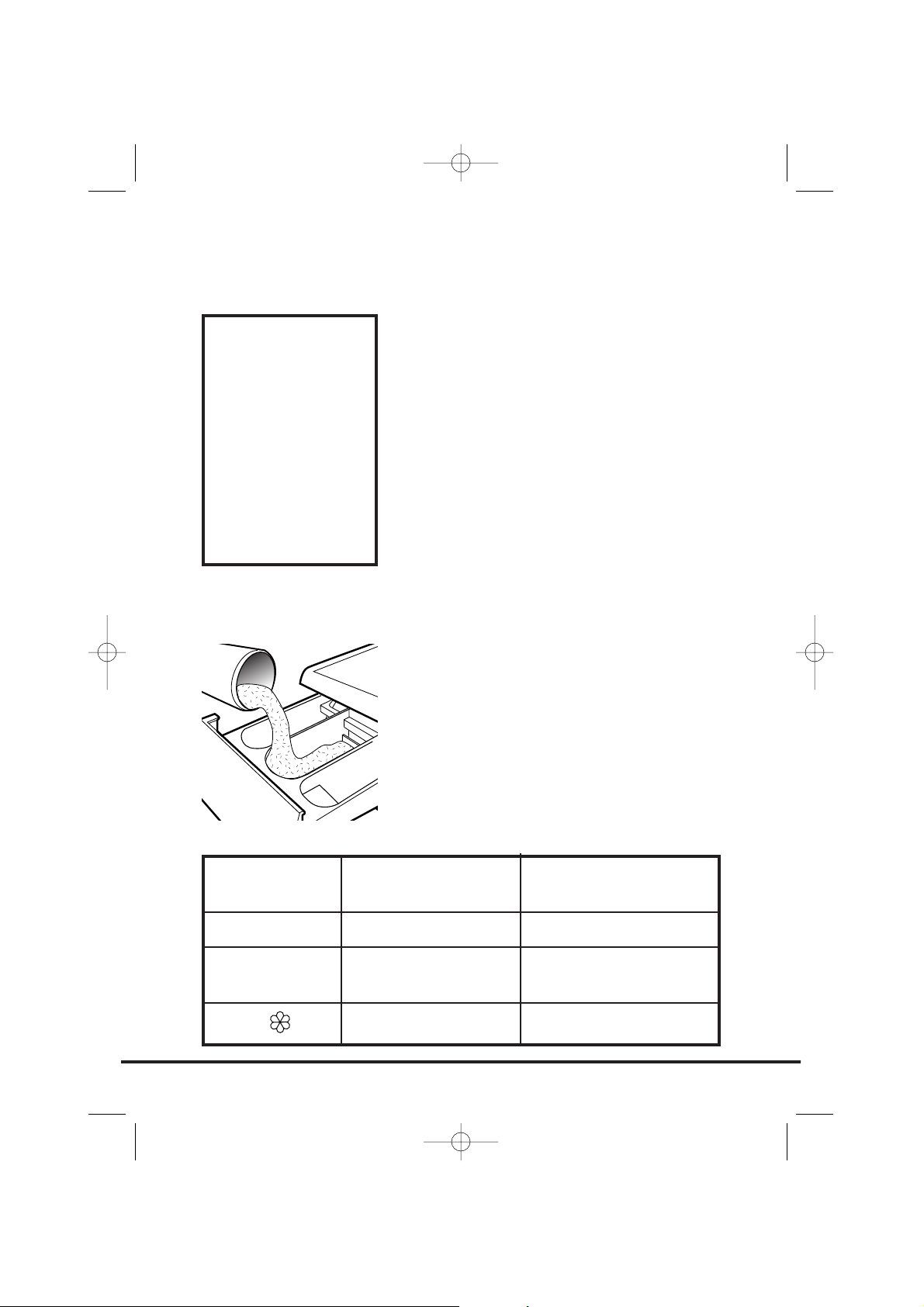

Dispensing instructions

The detergent drawer is split into 3 compartments:

● the first, labelled "I", is for detergent utilised during Prewash.

● the second, labelled "II", is for detergent utilised during the main wash.

● the third, labelled is for special additives such as fabric softeners, fragrances, starch, brighteners etc.

Dispensing in the drum

Liquid detergents and some tablets are dispensed via the machine drum using the recommended dispensing device which is placed upright on top of the washload towards the back of the drum. Some tablets are designed to be placed in the dispenser drawer, check the detergent pack for details.

Do not put any

items into the

drawer other

than detergents

that are

designed to be

dispensed from

the drawer as

they may cause

blockage or

damage.

40002934Eng.qxd 24/04/2005 13:29 Page 16

Turning the machine on

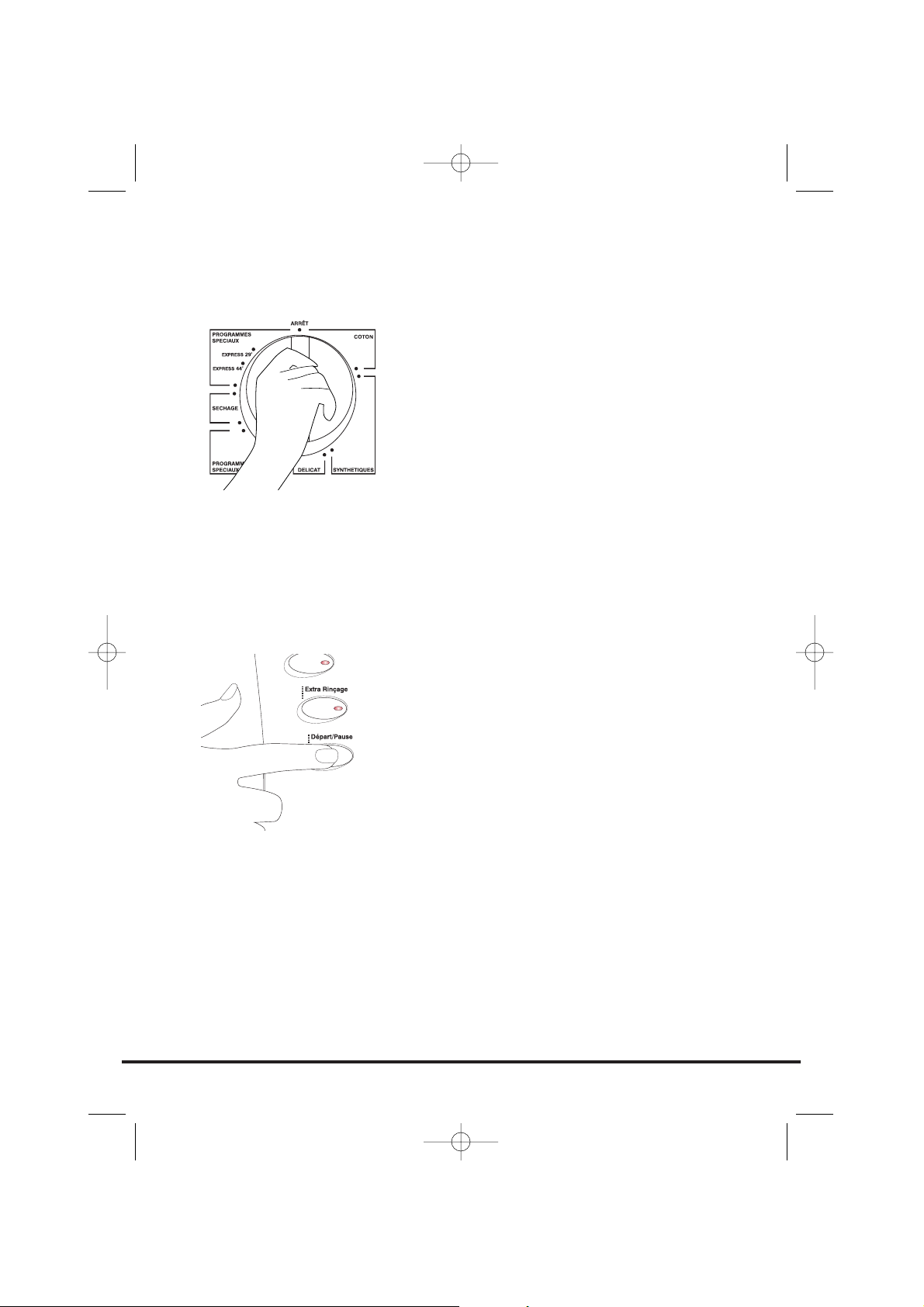

The machine is turned on by selecting a programme via the programme selector. This status will be indicated by the STOP indicator light flashing, this light will continue to flash until the machine has started or the machine is returned to the ARRÊT position.

Départ/Pause Départ

After selecting the programme and the required options press the Départ/Pause button once to start the machine. The STOP light will stop flashing and DEPART light will illuminate and there will be a short time delay to the start of the programme while the machine sets the wash parameters for the selected programme and options. If the duration of the programme you have selected is shorter than 60 minutes, then the time remaining indicator will illuminate accordingly. The Porte Sécurisée indicator light will also illuminate a few seconds after pressing the Départ/Pause button.

The Control Panel

The programme selector must be returned to the ARRÊT

position to reset the controls between each wash cycle.

TEMPS RESTANT

Display

Door Locked

Indicator

(Porte Sécurisée)

Start/Pause

(Départ/

Pause)

Start Delay

(Départ Différé)

Lavage à froid

(Cold Wash)

Open

Door

(Porte)

Extra Rinse

(Extra

Rinçage)

Fast Iron

(Repassage

Facile)

Drying Selector

(Choix de

Sechage)

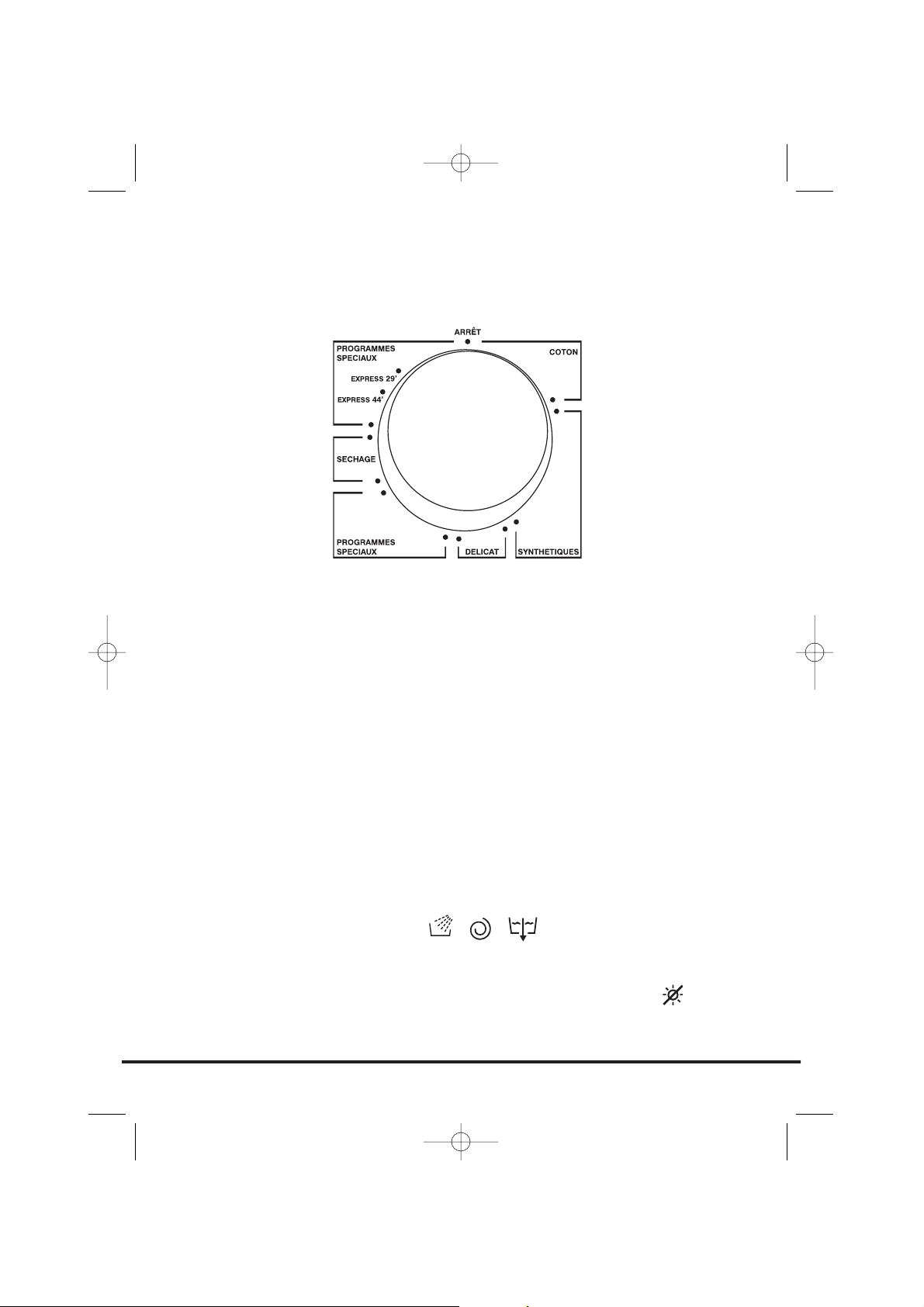

Programme

Selector

40002934Eng.qxd 24/04/2005 13:29 Page 17

Pause

The programme may be paused at any time during the wash cycle by holding down the Départ/Pause button for about two seconds. When the machine is in the paused mode, the time remaining for the programme in the TEMPS RESTANT indicator and option buttons will flash. The Porte Sécurisée indicator light will remain illuminated for approximately 2 minutes. The door can be opened when this indicator goes out. To restart the programme, press the Départ/Pause button once again.

If a drying time or sensor drying programme has been selected the TEMPS RESTANT display will show the time remaining on the washing programme when the washing is taking place and an indication of the time remaining in the drying phase when drying is taking place.

The indication in the drying phase is based on an average load and will therefore vary dependent on the load size, moisture content and temperature.

The times shown during the drying stage are approximate and should only be used as a guide.

Cancelling and changing the programme

To cancel the programme the Départ/Pause button must be pressed down for five seconds. To signify that the programme has been cancelled the STOP light in the TEMPS RESTANT indicator will light.

Door Locked indicator (Porte Sécurisée)

The Porte Sécurisée indicator light is illuminated when the door is fully closed and the machine is ON.

When Départ/Pause is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate. If the door is not closed the indicator will continue to flash.

A special safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the Porte Sécurisée light has gone out before opening the door. As a safety measure, check that there is no water evident in the drum. At the end of the cycle turn the programme selector to ARRÊT.

If the programme is paused, the Porte Sécurisée indicator will go out after 2 minutes and the door can be opened. Check there is no water evident in the drum before opening the door.

When starting a subsequent wash cycle the

programme selector must be returned to ARRÊT prior

to the next programme being selected and started.

40002934Eng.qxd 24/04/2005 13:29 Page 18

TEMPS RESTANT

In order to better manage your time, this washing machine features an indicator light system that keeps you constantly informed on the remaining cycle time and the status of the Départ Différé function.

When a drying time is selected the TEMPS RESTANT display will display the time remaining on the washing programme when the washing is taking place and the time remaining in the drying phase when drying is taking place.

DEPART

60'

30'

15'

STOP

Remaining time above 60 minutes

Remaining time less than 60 minutes

Remaining time less than 30 minutes

Remaining time less than 15 minutes

End of the programme

3 hours or less remaining before the programme commences

6 hours or less remaining before the programme commences

9 hours or less remaining before the programme commences

TEMPS RESTANT DISPLAY

WASH PROGRESS

START DELAY

40002934Eng.qxd 24/04/2005 13:29 Page 19

Start Delay (Départ Différé)

This option is available to delay the start of the wash cycle by up to 9 hours. The selection of the time is completed by pressing the Départ Différé button, the TEMPS RESTANT display will indicate the time selected. When the correct delay is selected press the Départ/Pause button to start the cycle.

Extra Rinse (Extra Rinçage)

This option is available on the cottons programmes. The option increases the number of rinses to five (including the final conditioned rinse). This can help prevent skin irritation from detergent residue for people with particularly sensitive skin. Selecting the Extra Rinçage button is also recommended when washing heavily soiled fabrics which need a lot of detergent, or when the wash load contains towelling fabrics that have a greater tendency to retain detergent.

Lavage à Froid (Cold Wash)

This option can be utilised on all programmes. By selecting the Lavage à Froid option the wash temperature is limited to the water inlet temperature thus reducing energy consumption.

Wash and Dry Options

The options

should be

selected

BEFORE

pressing the

Départ/Pause

button

40002934Eng.qxd 24/04/2005 13:29 Page 20

Fast Iron (Repassage Facile)

This option is only available on synthetics, acrylics, woolmark and silk programmes.

Programme

Synthetics (Synthetiques)

Delicates 40 (Delicat 40)

Woollens ( )

Handwash Lavage Main ( )

Fast Iron Function

Programme is completed by a short, very low spin speed.

The machine stops in the final rinse stage and the option indicators blink.The load is held in the water in the drum, thus reducing creasing and enabling easier ironing.

Action to complete the cycle

If a spin cycle is required please select the appropriate spin (see Programme Guide).

Press the Repassage Facile button to continue with the programme. The machine will then pump out the remaining water and the programme will conclude with a short spin. Finally, the programme carries out a brief tumbling action to loosen the items in the load.

Press the Repassage Facile button and the machine will pump out the water and complete the cycle with a short spin cycle.

Press the Repassage Facile button and the machine will pump out the water to complete the cycle. The clothes load will not be spun and will therefore be very wet.

40002934Eng.qxd 24/04/2005 13:29 Page 21

Drying Selector (Choix de Sechage)

The Hoover Sensor Washer Dryer gives many options for drying the laundry to suit all circumstances. The table below lists the programmes and the function of each programme.

For tumble drying select the appropriate drying programme via the Programme Selector. For drying cotton fabrics select the High Dry option and for synthetic fabrics select the Low Dry option. Turn the drying time selector until the indicator aligns with the drying programme or desired time. Do not mix cottons and synthetics to avoid damage to the laundry.

Note: If the drying time is selected before the wash cycle is completed the machine will automatically commence the drying programme. Refer to the Programme Guide to identify which drying programme will be automatically selected after the wash programme. To protect your laundry certain programmes (eg Silk) cannot be followed automatically by a drying programme.The drying time can be reduced at any time during the cycle but cannot be increased.

Sensor Drying Programmes

Timed Drying programmes

Programme

Extra Dry

Store Dry

Iron Dry

120'

60'

30'

Airing

Description

Select the degree of dryness that you require.

This ranges from Extra Dry for bath towels and bathrobes, through Cupboard Dry for items that will be put away without ironing, to Iron dry that leaves the laundry suitable for ironing.

120 minutes of drying

60 minutes of drying

30 minutes of drying

Tumbling of the laundry in cool air

No drying programme selected

Only a

maximum of

5kg of laundry

can be loaded

40002934Eng.qxd 24/04/2005 13:29 Page 22

Note: If you do not need to dry after the wash cycle ensure the drying selector is switched OFF ( )

Drying Time Guide

The times given below are indicative and will vary with the exact level of dryness required (eg for ironing or ready to hang) and the size and composition of the load.

Automatic Features

Automatic Variable Capacity (Half Load)

The washing machine is fitted with a self adjusting water level system. This system enables the machine to use the optimum amount of water needed to wash and rinse the laundry in relation to the particular load. This results in a reduction of the water and electricity used without in any way compromising the washing and rinsing performance. The amount of water and electricity used will always be appropriate for the clothes load.

The washing machine automatically ensures excellent washing results at minimum cost whilst respecting the environment.

Out of Balance protection

This model is fitted with an electronic sensor device that checks if the load is balanced correctly. If the load is slightly unbalanced the machine will rebalance it automatically to then carry out the normal spin.

If, after several attempts, balance is not restored a reduced spin speed will be used.

If loads are seriously unbalanced the spin stage will be cancelled. This helps limit vibration, reduce noise and improve the washing machine's reliability and life.

Type of fabric

Cottons, linen

Synthetics and mixed fabrics

Load Size

5kg

2kg

1kg

1200/1300 rpm

210 minutes

80 minutes

70 minutes

50 minutes

1500/1600 rpm

190 minutes

70 minutes

60 minutes

40 minutes

Spin Speed

40002934Eng.qxd 24/04/2005 13:29 Page 23

+ 51 hidden pages
