Hoover HSC818FXWDK User guide

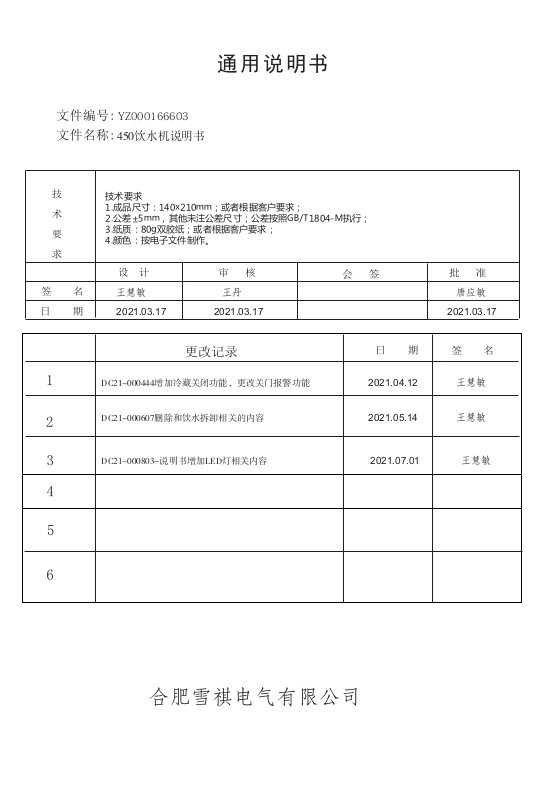

通用说明书

YZ000166603

450饮水机说明书

技术要求

1.成品尺寸：140x210mm；或者根据客户要求；

2.公差±5mm，其他未注公差尺寸；公差按照GB/T1804-M执行；

3.纸质：80g双胶纸；或者根据客户要求；

4.颜色：按电子文件制作。

王慧敏 王丹 唐应敏

2021.03.17 2021.03.17 2021.03.17

DC21-000444增加冷藏关闭功能，更改关门报警功能

DC21-000607删除和饮水拆卸相关的内容

DC21-000803-说明书增加LED灯相关内容

2021.04.12 王慧敏

2021.05.14

2021.07.01

王慧敏

王慧敏

Model:HSC818FXWDK

Scrapping old appliances
Conformity

Guarantee
Energy Saving

2
7
7

7
8

8
9
10

11
11
11

12
12
12
13
13
14
14
14
15
16
16
17
18

AVAILABILITY OF SPARE PARTS
TECHNICAL ASSISTANCE

1

19
19
19
20
21
21
21

• Do not attempt to sit or stand on the top of the
appliance. You could injure yourself or damage it. This
appliance is not designed for stacking with any other
ones.

• The product is designed and built for domestic
household use only.

• Only original parts supplied by the manufacturer may
be used. The manufacturer guarantees that only these
parts satisfy the safety requirements.

• Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.

-

Clean regularly surfaces that can come in contact with

food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h;
flush the water system connected to a water supply if
water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.

- Two-star frozen-food compartments(if they are
presented in the appliance) are suitable for storin

g
pre-frozen food, storing or making ice-cream and
making ice cubes.

- One-, two- and three -star compartments, if present in
the appliance, are not suitable for the freezing of fresh
food.

- If the appliance is left empty for long periods, switch
off, defrost, clean, dry and leave the door open to
prevent mould developing within the appliance.

• FOR Wine Coolers: this appliance is intended to be
used exclusively for the storage of wine

6

• FOR a free standing appliance: this refrigerating
appliance is not intended to be used as a built-in
appliance

• FOR appliances without a 4-star compartment: this
refrigerating appliance is not suitable for freezing
foodstuffs

• The appliance is operated by a 220-240 VAC/50 Hz
power supply. Abnormal voltage fluctuation may cause
the appliance to fail to start, or damage to the
temperature control or compressor, or there may be an
abnormal noise when operating. In such case, an
automatic regulator shall be mounted

•

Replaceable (LED only) light source by a professional.

•

This product contains a light source of energy efficiency
class F

Scrapping old appliances

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic
Equipment (WEEE).
WEEE contains both polluting sub
basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in
order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is
essential to follow so

- WEEE should not be treated as household waste;

- WEEE should be handed over to the relevant collection points managed by the municipality or by
registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect
it free of charge on a one-to-one basis,
functions as the supplied equipment.

Conformity

By placing the mark on this product, we are confirming compliance to all relevant European safety, health
and environmental requirements which are applicable in legislation for this product.

Guarantee

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK,
Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal
warranty required.

me basic rules:

stances (which can cause negative consequences for the env

as long as the equipme nt is of equivalent type and has the same

1 year for Russia, 3 years for

7

ironment) and

Energy Saving

For better energy saving we suggest :

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well
ventilated roo.

• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore
causing continuos functionaliting of the compressor.

• Do not excessively stuff foods so as to ensure proper air circulation.

• Defrost the appliance in case there is ice to facilitate the transfer of cold.

• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.

• Open or keep the doors of the appliance open as little as possible

• Avoid adjusting the setting to temperatures too cold.

• Remove dust present on the rear of the appliance

8

Product Introduction

Product components

All figures in this manual are schematic; some features and devices may not be
consistent fully with your refrigerator and the specific structure and configuration shall be
subject to the actual product.

The appearance and specifications of the actual product may differ depending on the model.

1

2

3

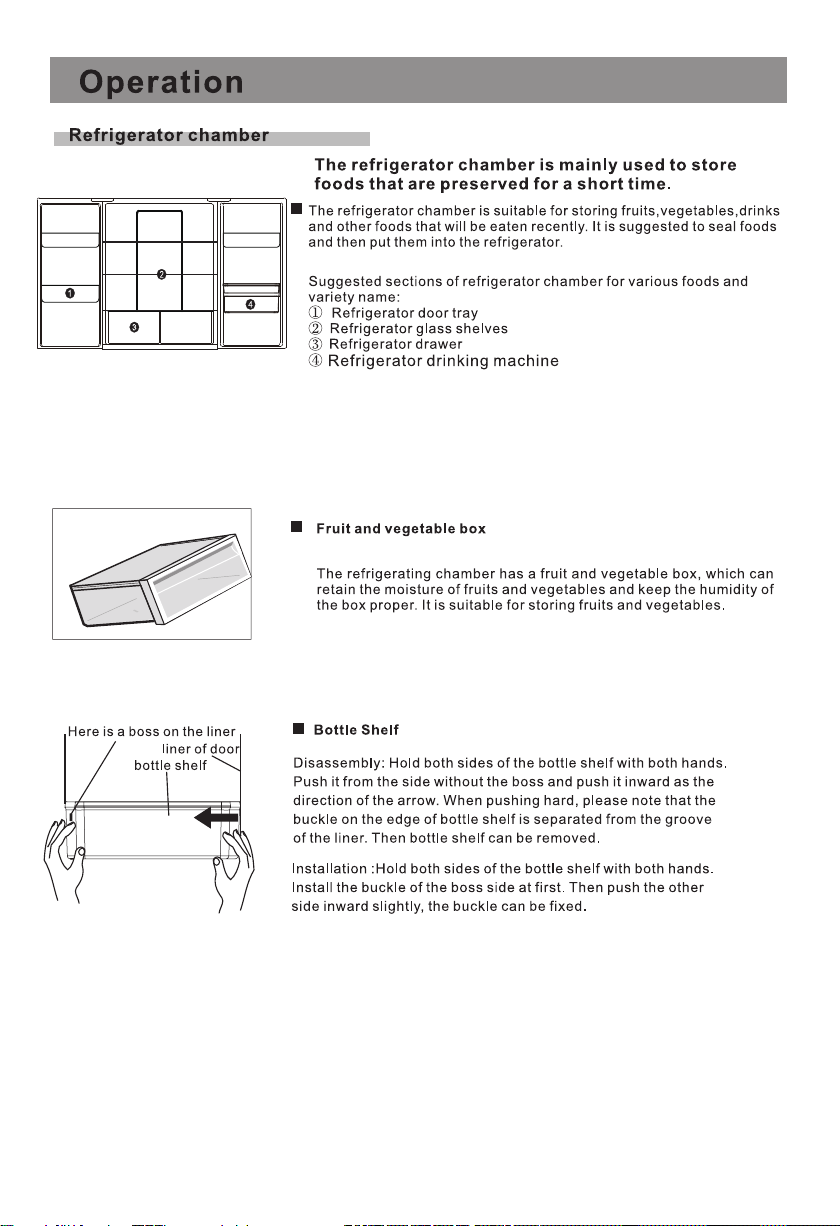

A Refrigerator compartment

1 Refrigerator door tray
2 Refrigerator glass shelves
3 Refrigerator drawer
4 Refrigerator drinking machine

6

5

B Freezer compartment

5 Freezer drawer
6 Freezer glass shelf

9

83 6

63 6

18 3 0

151 7

836

318 .5

101 4

18 3 0

362 .5

101112

Super freezer: Starting the super freezer mode, the temperature on the
display remains unchanged and the refrigerator operates according to
the quick freezing mode. When the temperature of the freezer sensor
reaches or is lower than - 28 °c or the compressor runs continuously for
24 hours, the freezer will automatically exit the super freezer mode, and
the icon of the super freezer mode will turn off. The freezer will then
continue to operate at the previous setting.

13

if the refrigerator door is opened for more than 1 minute, the display panel
buzzer will sound three times continuously, if the door will not be closed, it will
sound three times continuously every 30 seconds until all the doors are
closed.

Fridge compartment switch off/on

Long press "fridge" button for 5 seconds to set fridge compartment on/off,
when fridge compartment is switched off, the fridge digital display temperature
will go off; under the fridge compartment switched off state, long press "fridge"
button for 5 seconds to restart fridge function.

14

: dairy products, odorous foods, etc.;

: wheaten foods, milk, etc.;

: f:ruits, vegetables, etc.;

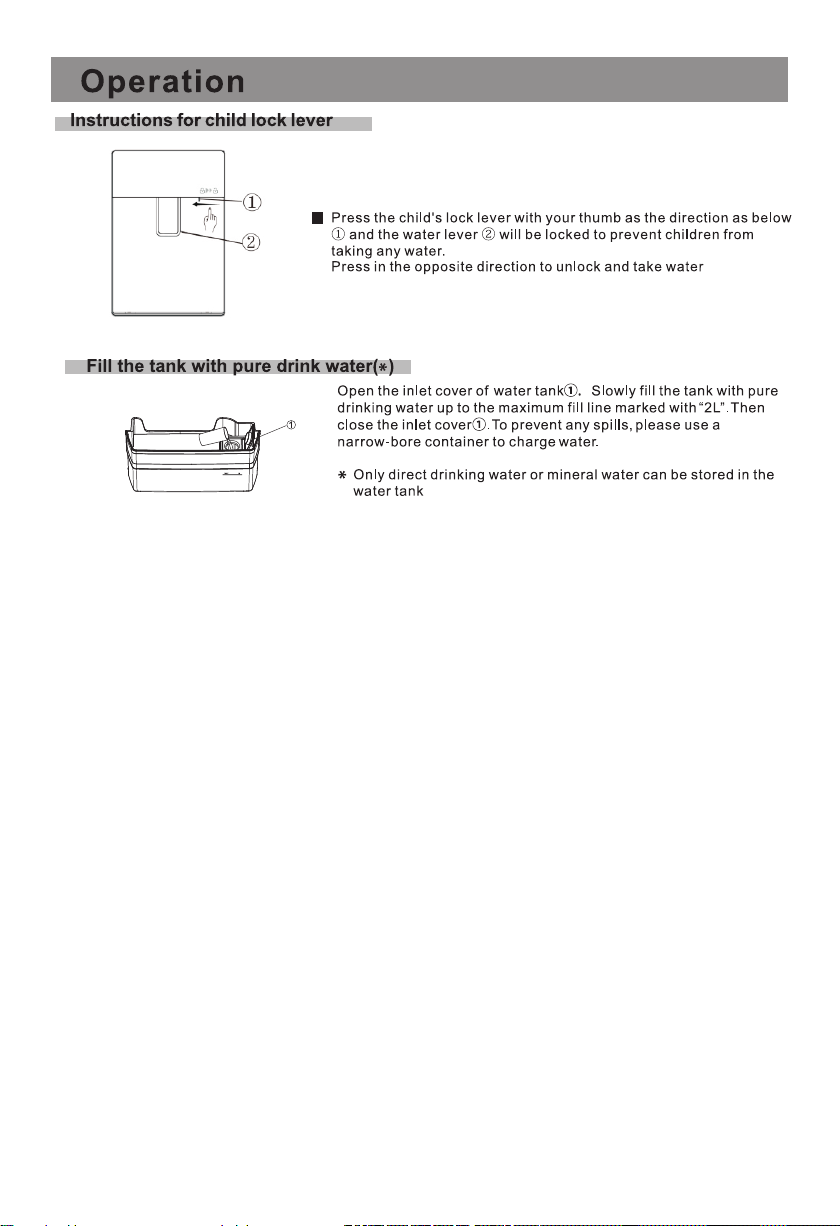

(Only direct drinking water or mineral water can be stored in the water tank).

can store water and drink directly

15

16

1

2

Glass shelve: frozen foods, such as fishs,maets and ice creams;

17

Position different food in different compartments according to be below

Refrigerator compartment

Door or balconies of fridge
compartment

Crisper drawers (salad
drawer)

Fridge shelf – middle

Fridge shelf – top

Freezer drawer(s)/tray

• It’s suggested to set the temperature at 4°C in the fridge compartment, and,
whether possible, at -18°C in the freezer compartment.

• For most food categories, the longest storage time in the f
compartment is achieved with colder temperatures. Since some pa rticular
products (as fresh fruits and vegetables) may be damaged with c older
temperatures, it is suggested to keep them in the crisper drawers, whenever
present. If not present, maintain an average setting of the thermostat.

• For frozen food, refer to the storage time written on the food packaging. This
storage time is achieved whenever the setting res
temperatures of the compartment (one-star -6°C, two stars -12°C , three stars

-18°C)

Type of food

• Foods with natural preservatives, such as
jams, juices, drinks, condiments.

• Do not store perishable foods

• Fruits, herbs and vegetables should be

placed separately in the crisper bin

• Do not store bananas, onions, potatoes,
garlic in the refrigerator

• Dairy products, eggs

• Foods that do no need coocking, s

ready-to-eat foods, deli meats, leftovers.

• Foods for long-term storage

• Bottom drawer for raw meet, poultry, fish

• Middle drawer for frozen vegetables, chips.

• Top tray for ice cream, frozen fruit, frozen

baked goods.

ridge

pects the reference

uch as

18

19

20

AVAILABILITY OF SPARE PARTS

“Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of
seven years after placing the last unit of the model on the market.
Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a
minimum period of 10 year, after placing the last unit of the model on the market”.

TECHNICAL ASSISTANCE

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/
Under the section “website”, choose the brand of your product and your country. You will be redirected to the specific
website where you can find the telephone number and form to contact the technical assistance.
For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy
label supplied with the appliance

21
