Hoover HDPH 2D1049B-80, HDPH 2D1049W-80 User guide

User Manual

Dishwasher

●

HDPH 2D1049W-80

●

HDPH 2D1049B-80

Thank you for purchasing a Hoover product

Please read t●hese instructions carefully before using this appliance. The
instructions contain important information which will help you get the best out of the
appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe
and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house,
make sure you● also pass on this manual so that the new owner can become
familiar with the appliance and safety warnings.

Content

Safety and warnings ●......................................................................................

Installation instructions ..................................................................................

Product description ................................. ......................................................

Overview of programmes...............................................................................

Water softening system.................................................................................

Using rinse aid...............................................................................................

Utensils...................................................●.......................................................

Loading utensils.........................................●....................................................

How to make savings.....................................................................................

Adding detergent............................................................................................

Before first use......................................... .....................................................

Daily use.................................................. ......................................................

Care and cleaning..........................................................................................

1

4

14

15

18

20

21

22

25

26

27

29

31

Troubleshooting.............................................................................................

Technical data........................................... ....................................................

34

38

Safety and warnings

Your dishwasher has been carefully designed to operate safely during normal
dishwashing procedures.● Please keep the following instructions in mind when you
are using your dishwasher.

WARNING

Before installing the dishwasher, remove the house fuse or open the circuit breaker.
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of electric shock by providing a path of least resistance
for electric current. This appliance is equipped with a cord having an equipment­earthing conductor and an earthing plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local codes
and ordinances.

WARNING - Improper connection of the equipment-earthing conductor can result in
a risk of electric shock. Check with a qualified electrician or service representative
if you are in doubt as to whether the appliance is properly earthed.
Do not modify the power supply plug provided with the appliance - if it will not fit
the outlet, have a proper outlet installed by a qualified electrician. Do not use an
extension cord, adapter plug or multiple outlet box.

Failure to follow this advice may result in electrical shock or death.

Electrical shock hazard

WARNING

Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.

Cut Hazard

When using your dishwasher, follow basic

WARNING

Read all instructions before using the dis●hwasher.

The information in this manual must be followed to minimise the risk of fire or

explosion or to prevent property damage,● personal injury or loss of life.

Use the dishwasher only for its intended function as described in this user guide.

This appliance is intended to be used in household and similar applications such
as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments.

precautions, including the following:

1

Safety and warnings

Use only detergents or rinse aid recommended for use in a domestic dishwasher
and keep them out of reach of children.

Check that the detergent dispenser is empty after the completion of each wash
program.

●

When loading items to be washed, locate sharp items so that they are not likely
to damage the dishwasher● and load sharp knives with the handle up to reduce the
risk of cut-type injuries.

Do not touch● the filter plate (the metal disc in the dishwasher base) during or
immediately after use, as it may be hot from the heater plate underneath.

Do not tamper with the controls.

Do not abuse, sit in, stand on the door or dish rack of the dishwasher.

Do not lean on the adjustable racks or use them to support your body weight.

To reduce the risk of injury, do not allow children to play in or on the dishwasher.

●

Under certain conditions, hydrogen gas may be produced in a hot water heater
system that has not been used for two weeks or more. Hydrogen gas is explosive.

If the hot water system has not been used for such a period, before using the
dishwasher, turn on all hot water taps and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.

Remove the door to the washing compartment when removing an old dishwasher
from service or discarding it.

Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open. Check that the detergent
receptacle is empty after completion of the wash cycle.

Cert ified resi denti al dish was he rs are no t int end ed for lice nsed fo od

establishments.

Maintenance safety instructions

Disconnect the appliance from the power supply before any cleaning or

●

maintenance.

When disconnecting the appliance, pull the plug rather than the power supply
cord or junction of cord to avoid damage.

Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in this user guide.

Keep the floor around your appliance clean and dry to reduce the possibility of
slipping.

2

Safety and warnings

Keep the area around/underneath your appliance free from the accumulation of
combustible materials, such as lint, paper, rags and chemicals.

Operational safety instructions

●

Open the door very carefully if the dishwasher is in operation. There is a risk of
being sprayed with● hot water. Do not open the door fully until the spray arms have
stopped rotating.

The door should● not be left in the open position as this could present a tripping
hazard.

The water inside the dishwasher is not suitable for drinking.

The dishwasher must be used with the filter plate, drain filter and spray arm(s) in
place. To identify what these parts are, see drawings in section “Care and Cleaning”
of this user guide.

●

Do not operate this dishwasher if it is damaged, malfunctioning, partially
disassembled or has missing or broken parts, including a damaged power supply
cord or plug.

Household appliances are not intended to be played with by children. Children of
less than 8 years old must be kept away from the appliance unless continuously
supervised. This appliance can be used by children aged from 8 years and
above, and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge, if they have been given supervision or instruction
concerning the use of the appliance in a safe way and they understand the hazards
involved.

Cleaning and user maintenance shall not be done by children without supervision.

Do not allow children to play inside, on or with this appliance or any discarded
appliance.

If a dishwasher cleaner is used, we would strongly recommend a wash program
with detergent should be run immediately ●afterward, to prevent any damage to the
dishwasher.

The dishwasher is designed for washing normal household utensils. Items that
are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline
chemicals are not to be washed in the dishwasher.

If the dishwasher is not being used for long periods of time, turn the electricity
and water supply to the dishwasher off.

3

Installation instructions

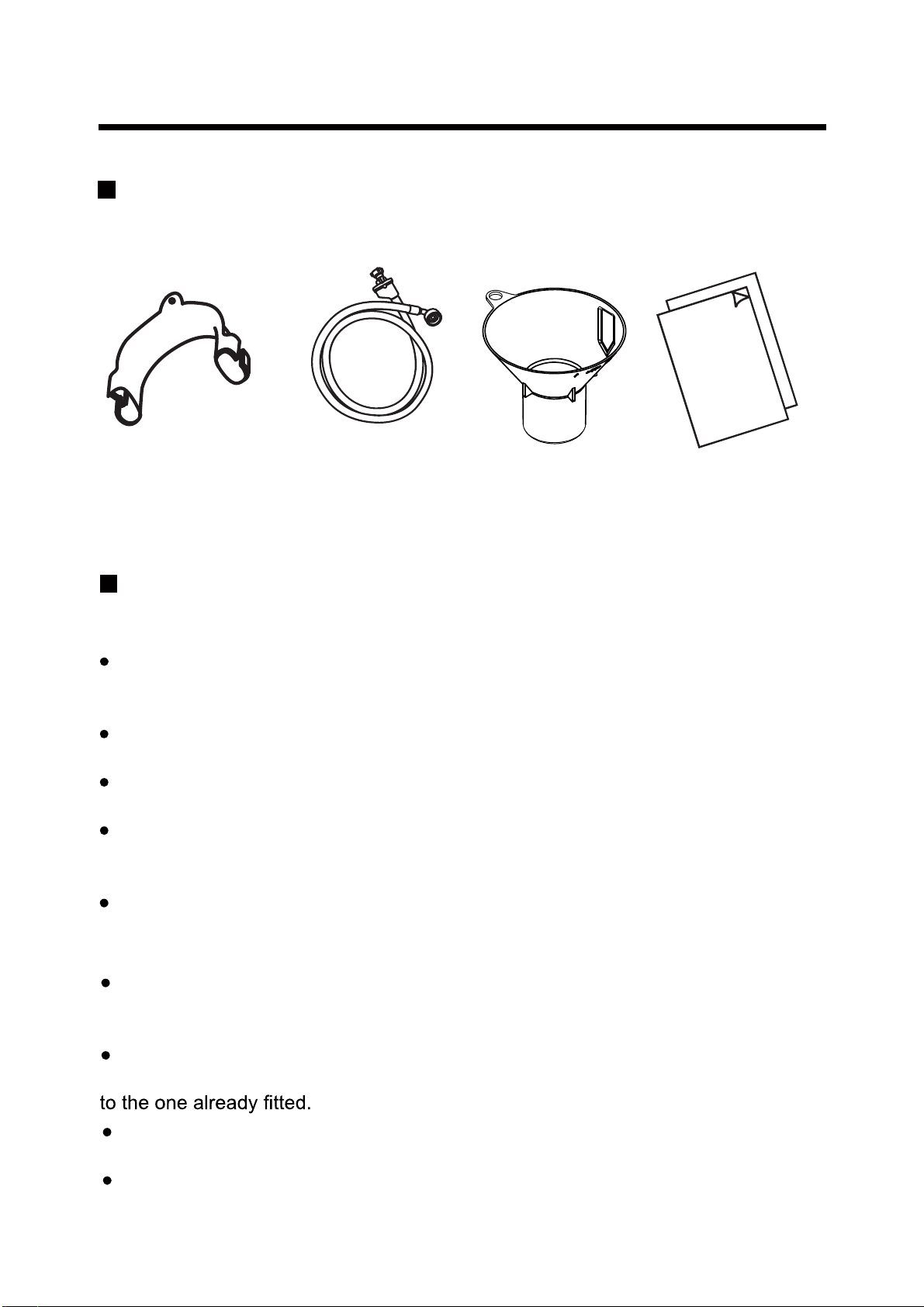

Parts supplied

Drain hose
support (1)

Inlet hose (1)

Salt funnel(1)

Installat ion and
Us er Instructions

Prior to installation

●

Unpacking and handling

Check packaging and dishwasher for signs of transport damage. If the
dishwasher is in any way damaged, do not install it. Contact the dealer the
dishwasher was purchased from.

Disposal of packaging: some of the packaging is recyclable. Check the symbols

and labels and recycle if possible.

Never lift the dishwasher from the door handle or the top panel. Doing so may

cause damage.

Always be careful with the hoses and power cord at the back of the dishwasher.
Careful handling will prevent damage and malfunction from squashing, kinking or
cuts.

While installing the dishwasher, check the drain hose is not restricted or kinked.

Connections and services

Check that the● power cord is long enough to reach the outlet. If it isn’t, it must be
replaced by a hai●er authorised technician. Extension cords or multi-outlet power
boards should not be used to connect the dishwasher to the power supply.

Check that the hoses are long enough to reach the services. If a hose needs
extending, ensure that the extension hose is new and of equal quality and diameter

The dishwasher should not be connected to a water system where the

temperature exceeds 60oC.

The dishwasher must not be connected to an undersink high-pressure “push-

through” type hot water system, as damage to the system will result.

4

●

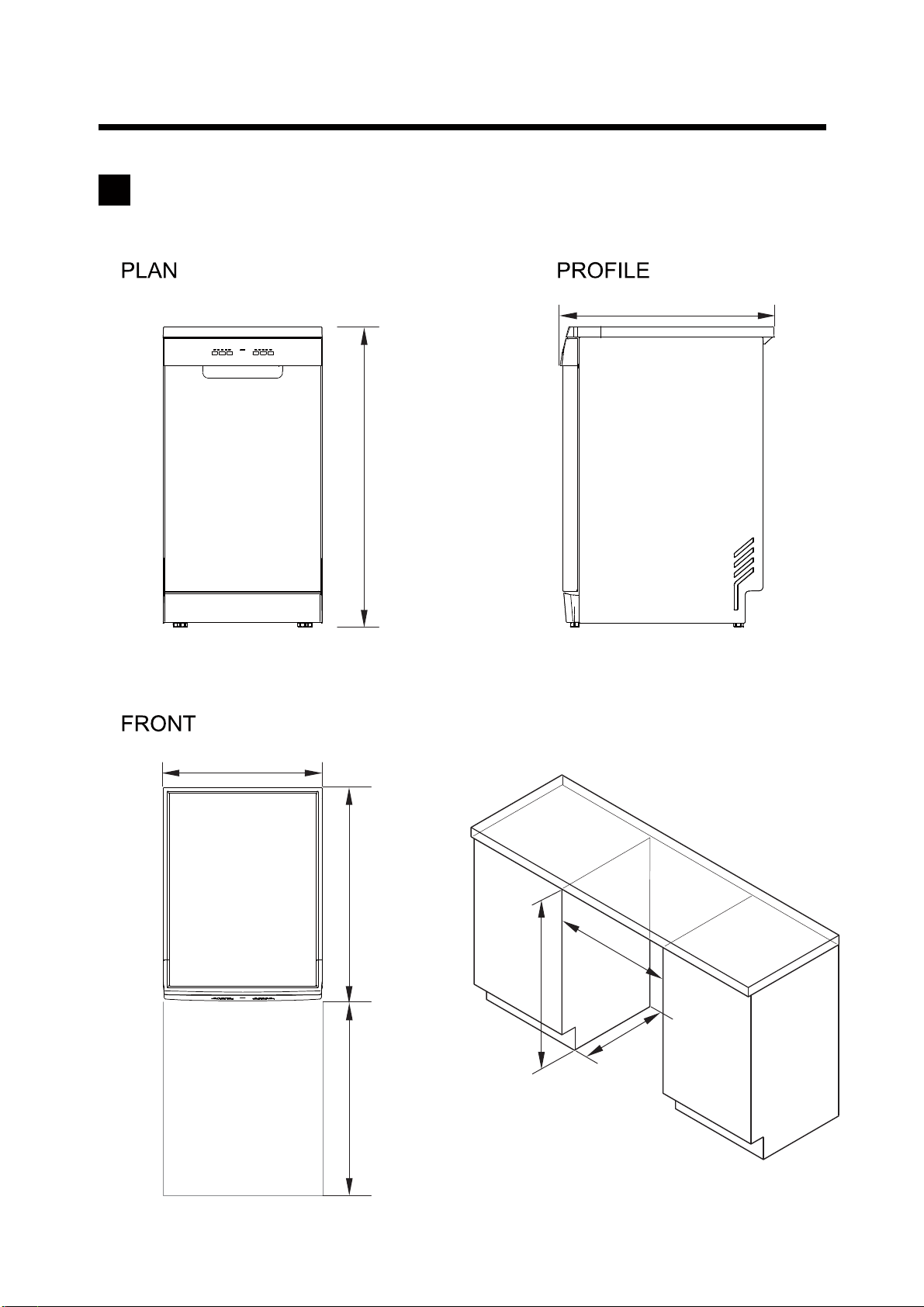

Product dimensions

1

Installation instructions

C

A

B

C

D

E

F

●

G

●

5

Installation instructions

Overall height of product

A

with top panel● in place
with top panel removed*

M●M SNOISNEMID TCUDORP

846 - 866**
816 - 836**

B

C

Depth of open door (measured from front of kickstrip) 595

D

Inside height of cavity

E

with top panel in place
with top panel removed*

850 - 870**
825 - 845**

F

G

* The top panel may be removed to suit und●erbench cavity height. See instructions opposite.

**Depending on feet height adjustment.

●

448tcudorp fo htdiw llarevO

605tcudorp fo htped llarevO

MMSNOISNEMID YRTENIBAC

054ytivac fo htdiw edisni muminiM

506ytivac fo htped edisni muminiM

6

Installation instructions

Cavity preparation

2

Preparing the product and cabinetry

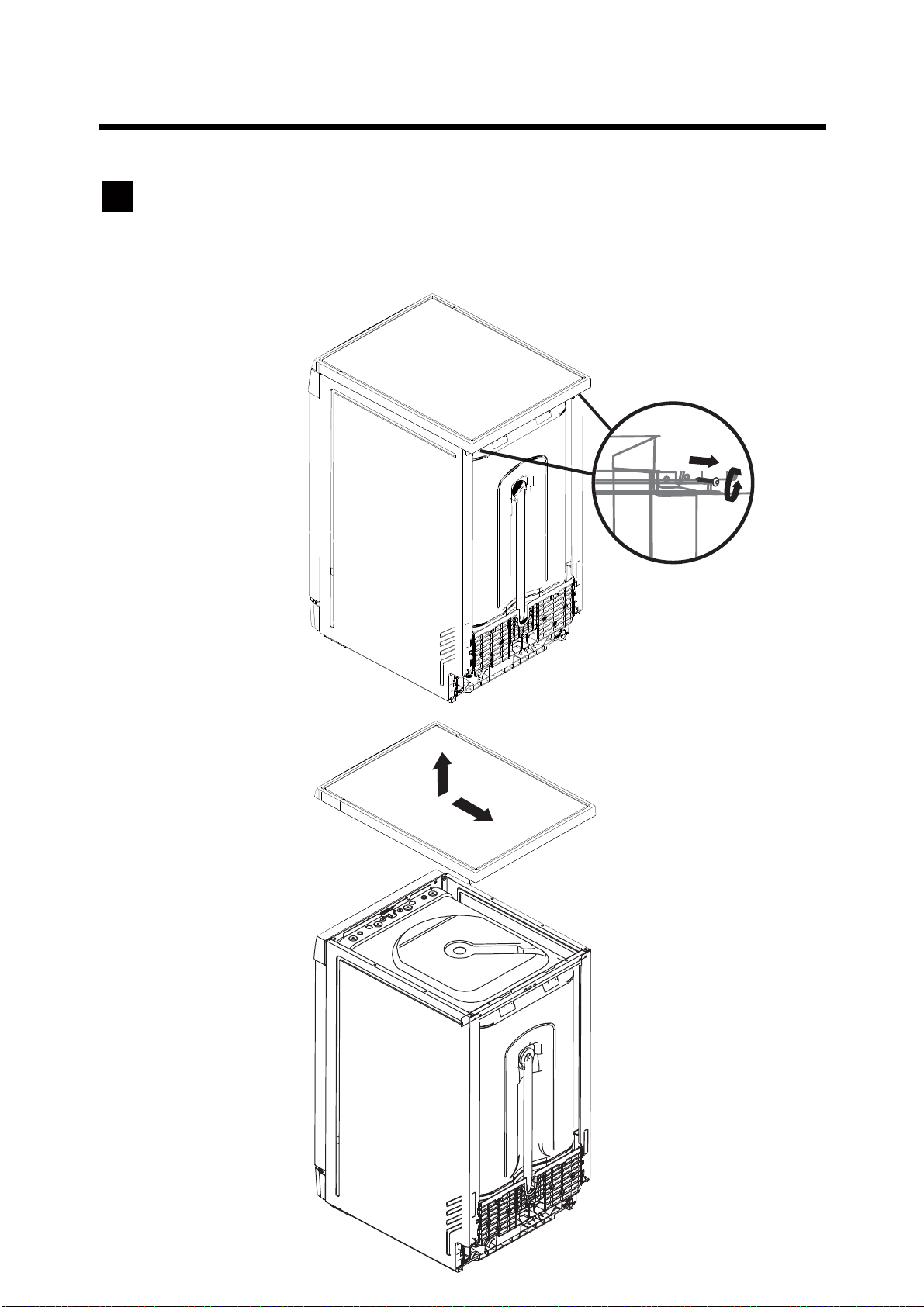

The top panel may be removed to suit underbench cavity height. See the illustrations
below.



Unscrew the top
panel at the rear
either side



S●lide backward (2)
20-30mm, then

lift off (3)

7

Installation instructions

IMPORTANT!

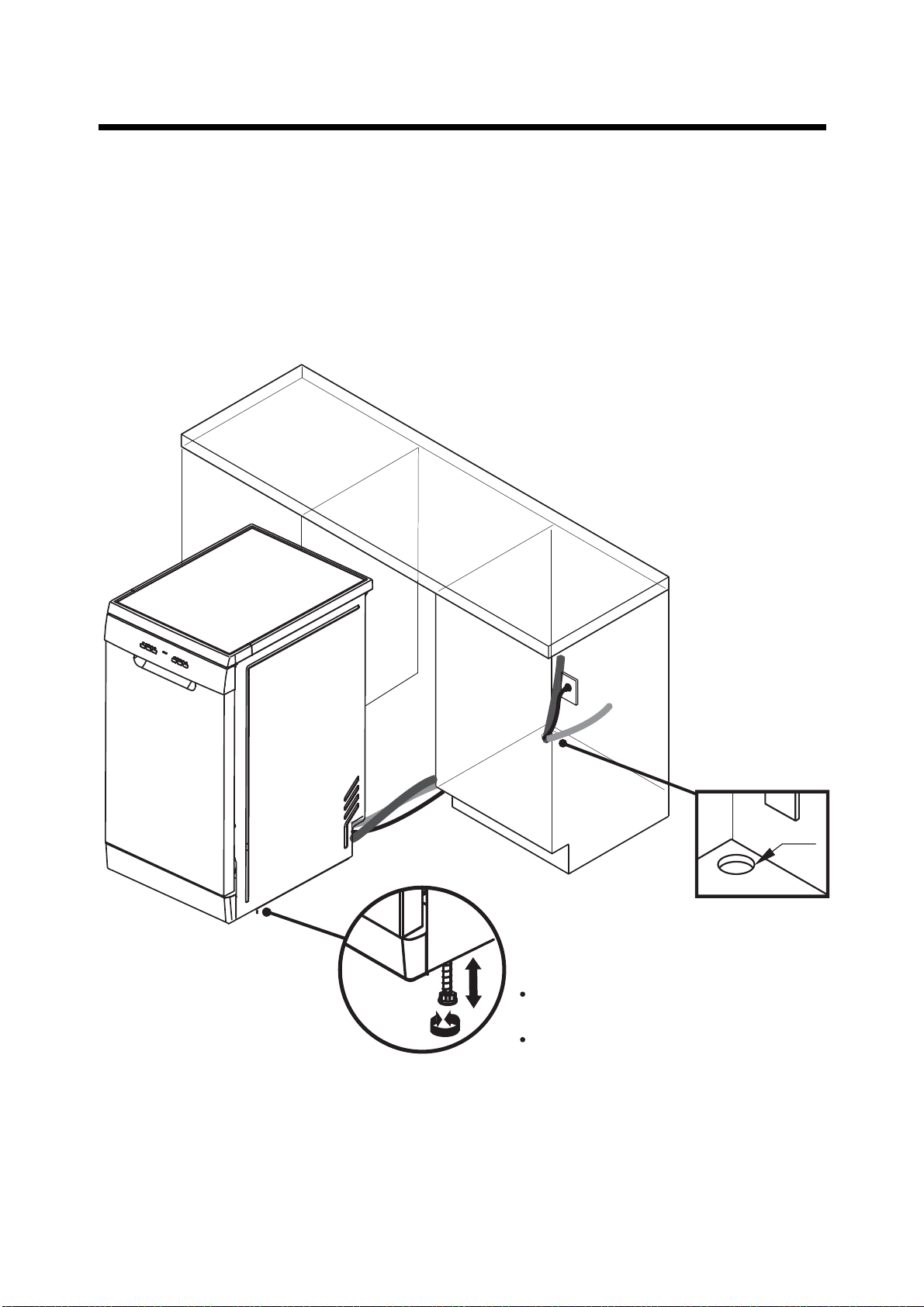

To prevent possible steam damage to the cabinetry, ensure that any bare wood
surrounding the dishwasher is sealed with an oil-based paint or moisture-proof
polyurethane.

I●MPORTANT!

The power outlet must be
located in a cabinet adjacent

to the dishwasher cavity.





Dia. 50mm

Services can be located either

●

side of the dishwasher.

E

nsure that any services hole

●

has a minimum diameter of 50mm.

8

Installation instructions

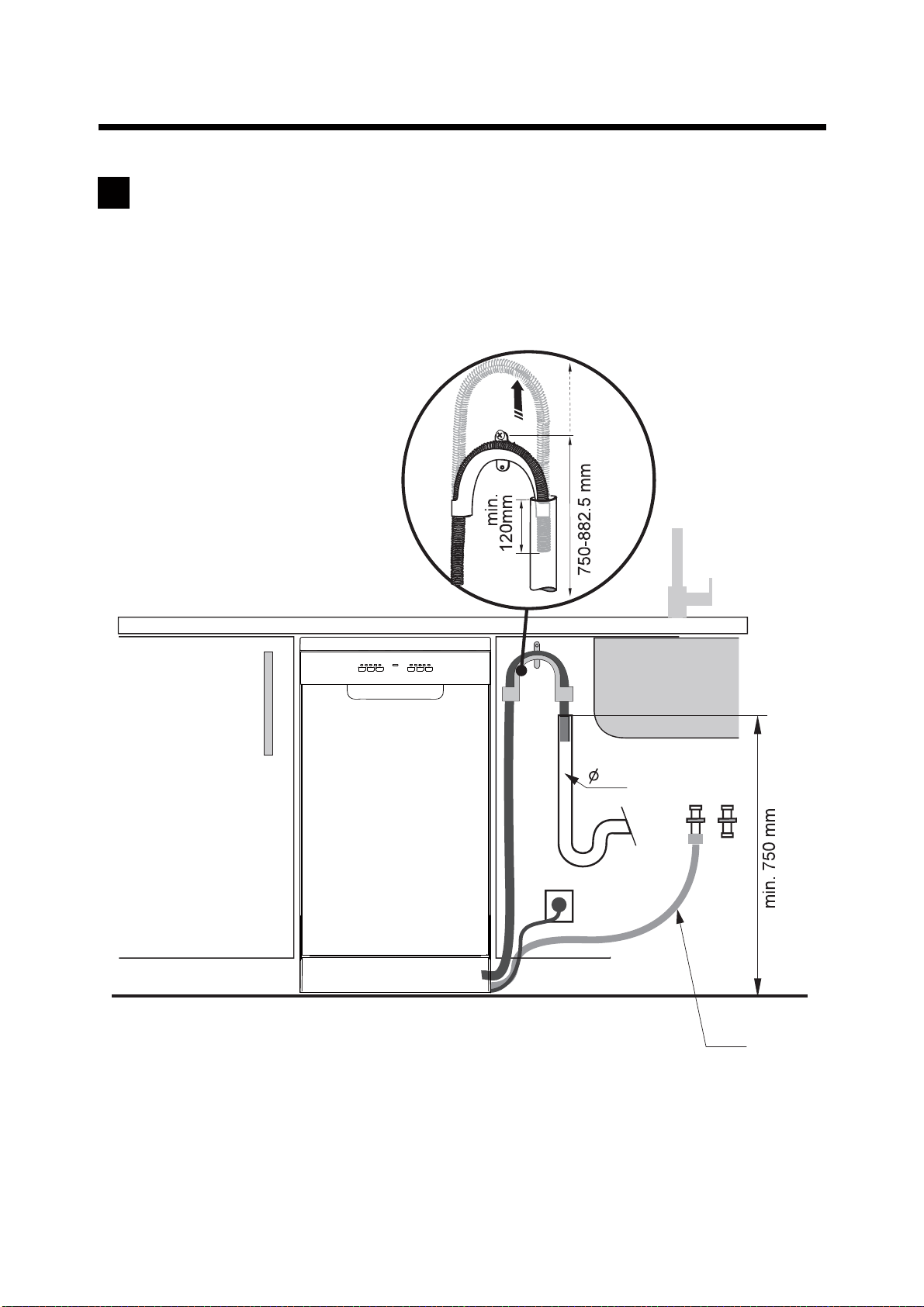

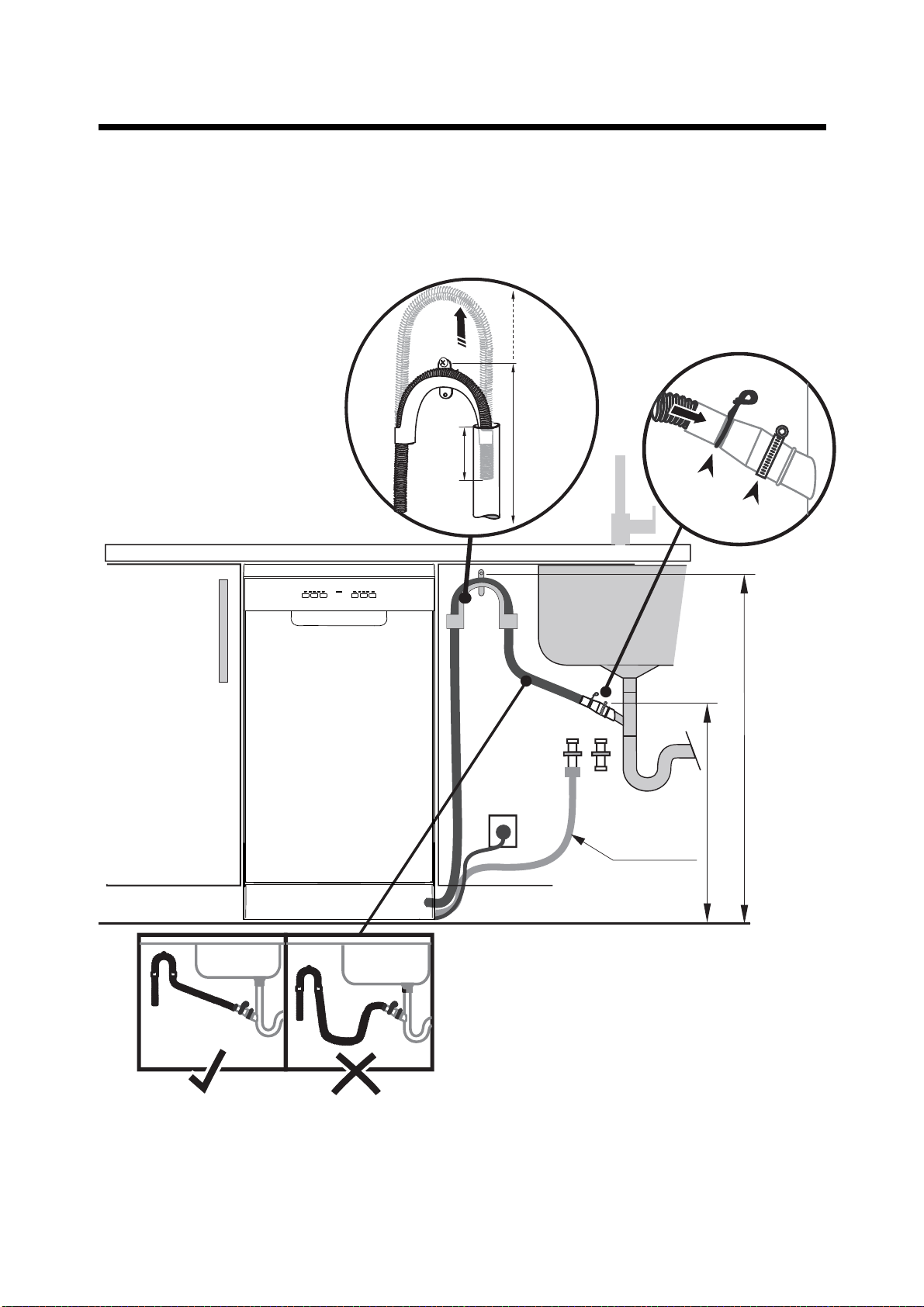

Plumbing and drainage options. Determine which is

3

more suitable

Dishwasher and Ø 38 mm Standpipe

If space is limited
for fixing, push hose

through drain hose

●

support to required
height

●

●





38mm

step 4

min. radius
200 mm

9

Installation instructions

Dishwasher using drain hose joiner
onto sink trap/waste tee

If space● is limited
for fixing, push hose

through drain hose

support to required

height



Installer to provide
drain hose joiner to suit
min. 15mm waste tee

750-882.5 mm





step 4

750 - 882.5 mm

min. radius
200 mm

min. 500 mm

●

Ensure drain● hose is routed
straight to joiner. Remove excess 
drain hose material if necessary.

Do not shorten the inlet hose.

10

IMPORTANT!

Do not connect the drain hoses
to a Waste Disposal Unit, as this
type of connection may lead to a
blockage in the drain hoses.

4

Connect inlet hose to cold water

Installation instructions

min.

10mm

“3/4” BSP connector

Ensure the supplied rubber
washer is fitted inside the
coupling.

●



180



Tighten coupling



●

with spanner.

No leaks!

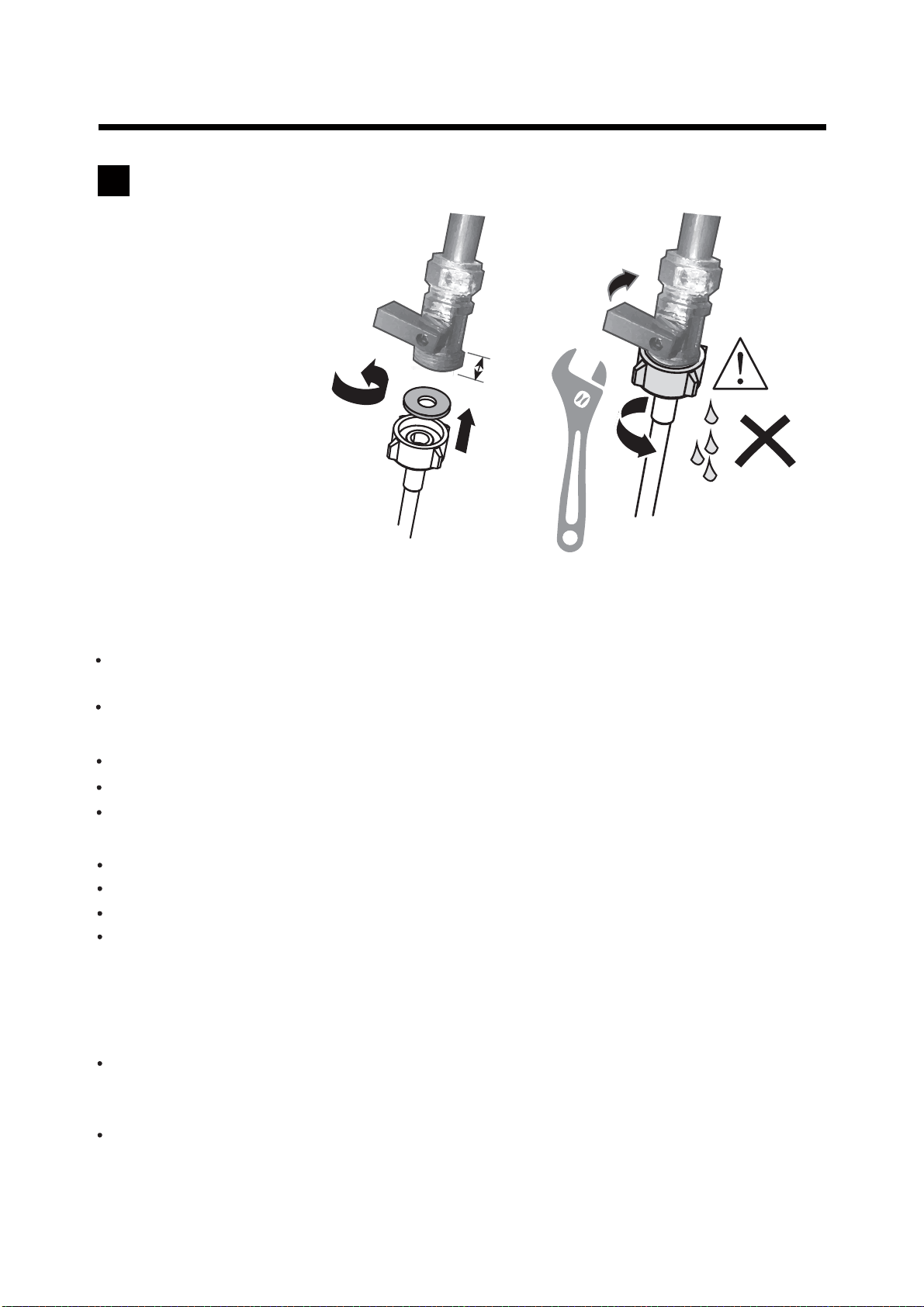

Plumbing -- Wa●ter inlet connection

IMPORTANT!

The appliance● should be connected to the water main using the new water
inlet hose supplied. Old hoses should not be used.
Do not shorten the inlet hose.

1.Take note of water connection requirements.
The dishwasher has a single valve water connection.
We recommend a cold water connection for best performance and energy efficiency.



The incoming water temperature should not exceed 60

2.Take note of the permitted water pressure extremes.
Lowest: 0.3 bar = 3 N/cm = 30kPa

2



Where pressure is below 1 bar, contact a qualified plumber.
Highest: 10 bar = 100 N/cm = 1MPa

2

Where pressure is above 10 bar, a pressure reduction valve must be installed.
Contact a qualified plumber.

3.Connect the water inlet hose to an accessible water tap with a “3/4” BSP connector.
Ensure that there is no kink in the inlet hose that could restrict the flow of water. A
90o bend requires a minimum height of 20●0mm for a kink-free curve.

Ensure incoming water is clear. If the water pipes have not been used for a long
period of time, let the water run to make sure it is clear with no impurities. Not
doing so may result in the water inlet hose getting blocked and damaging the appliance.
If required, use a filter insert to filter out deposits from the piping. The filter insert is
available from your Authorised Service Centre or Customer Care.

4.Tighten the hose coupling a further half turn after seal contact.

5.Check that the connection does not leak.

11



Installation instructions

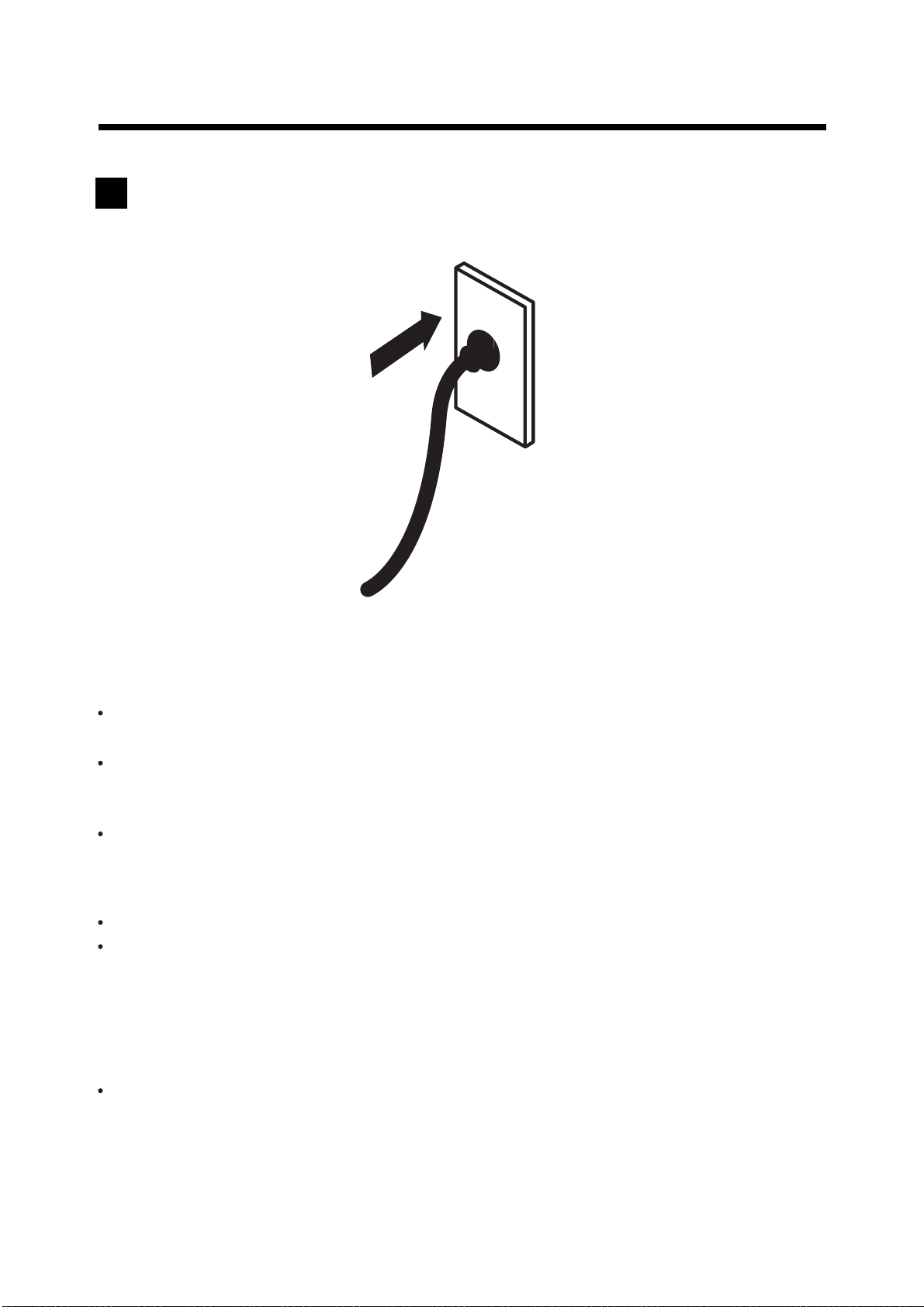

Plug product in

5

Electrical connection

●

The dishwasher must not be connected to the electrical supply while installation is
being carried out. Ensure all domestic wiring is properly earthed.

Check the rating label (located on the left-hand side of the dishwashers stainless
steel inner door) and ensure that the voltage and frequency values for the current
in the house correspond to those on the rating label.

●

Insert the plug into a properly earthed power outlet that has a disconnection switch.

●

IMPORTANT!

The earthing of the appliance is a safety requirement mandated by law.
If the power cord is not long enough to reach the outlet or the outlet to which the

●

appliance must be connected is not appropriate for the plug, the entire dishwasher
power cord must be replaced. This should only be done by a Haier authorised technician.
Do not modify or cut the plug. Do not use an adaptor, extension cord, or multi-outlet
power board to connect the dishwasher to the power supply, as these could cause
overheating and create a fire hazard.
The outlet into which the dishwasher is plugged must remain easily accessible(e.g.
in an adjacent cabinet) even when the appliance is installed. This is to ensure that the
dishwasher can be disconnected from the power supply for safe cleaning and

●

maintenance.

12

Installation instructions

Final checklist

To be completed by the installer

Check all parts are installed.
Ensure that all panels and parts thereof are secure and final electrical tests have
been conducted in accordance with local electrical regulations.

●

Check that the dishwasher is level. If necessary, adjust the levelling feet slightly.
To ensure optimum performance, the dishwasher should not be inclined more than
1o. Check with a spirit level.
Ensure inlet hose to water supply has supplied rubber washer fitted, and that it’s
tightened a further half turn after seal contact.
Ensure any knockouts or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keep
drain hose as f●ully extended as possible to prevent sagging. Any excess length of
drain hose should be kept on the dishwasher side of the highloop.
If connecting the drain hose to the sink trap, ensure the highloop is a minimum
150mm higher than the drain hose joiner.

●

●

Ensure any packaging or tape securing the racks is removed from the dishwasher.
Check that the door opens and closes freely without resistance to adjacent cabinetry.

●

Check that the electrical outlet is accessible and located in an adjacent cupboard.
Check the operation of the dishwasher:
If a fault code appears, see the ‘Fault codes’ section of the User guide for advice.

13

Product Description

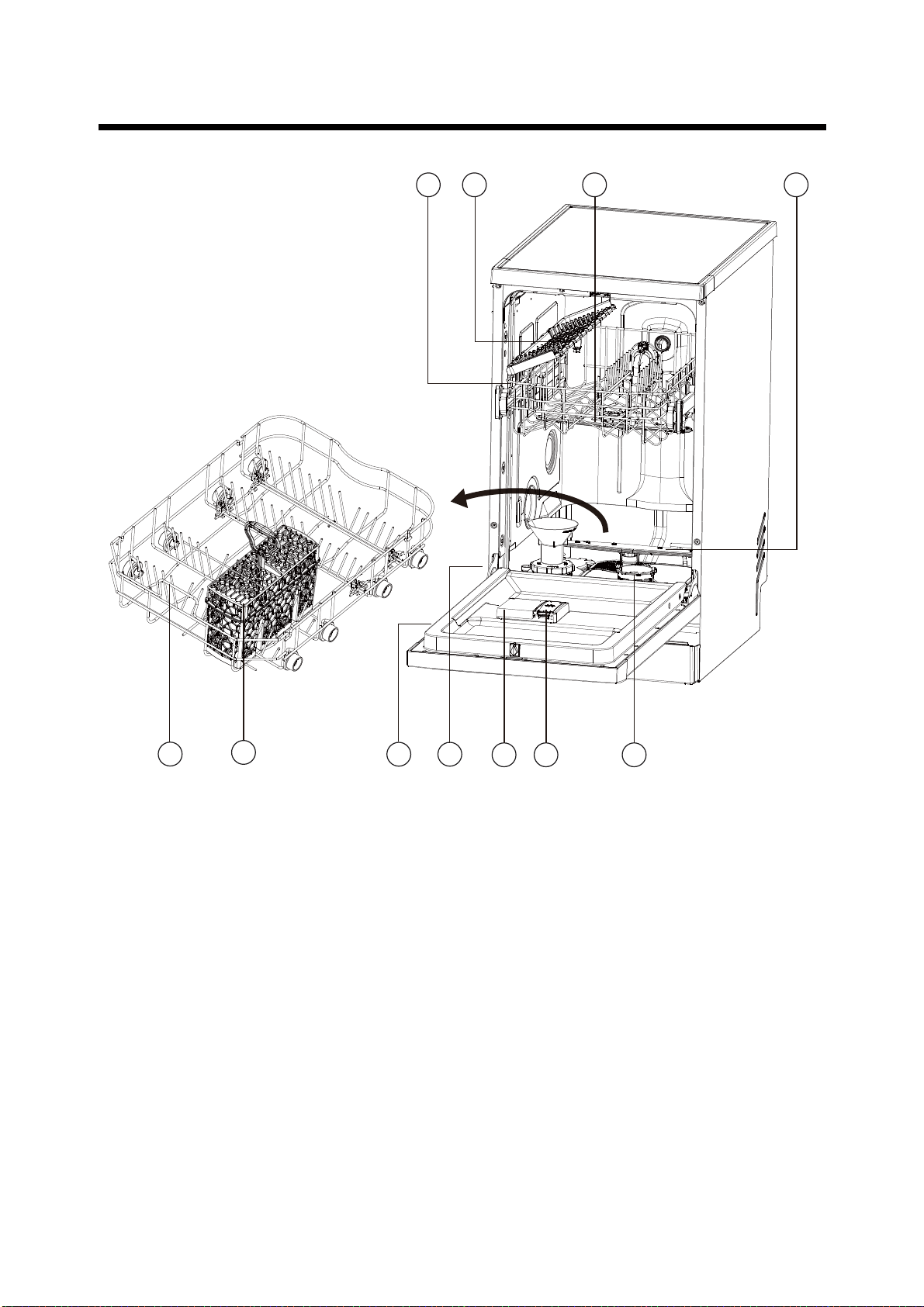

1 2

3 4

5

1.

2.

3.

4.

5.

6

Upper basket

Utensil tray

Upper spray arm

Lower spray arm

Lower basket

Cutlery basket*6.

10

7

8

9

7.

8.

●

9.

10.

11.

11

Rating label

Salt container

Detergent dispenser

●

Rinse aid dispenser

Filters

14

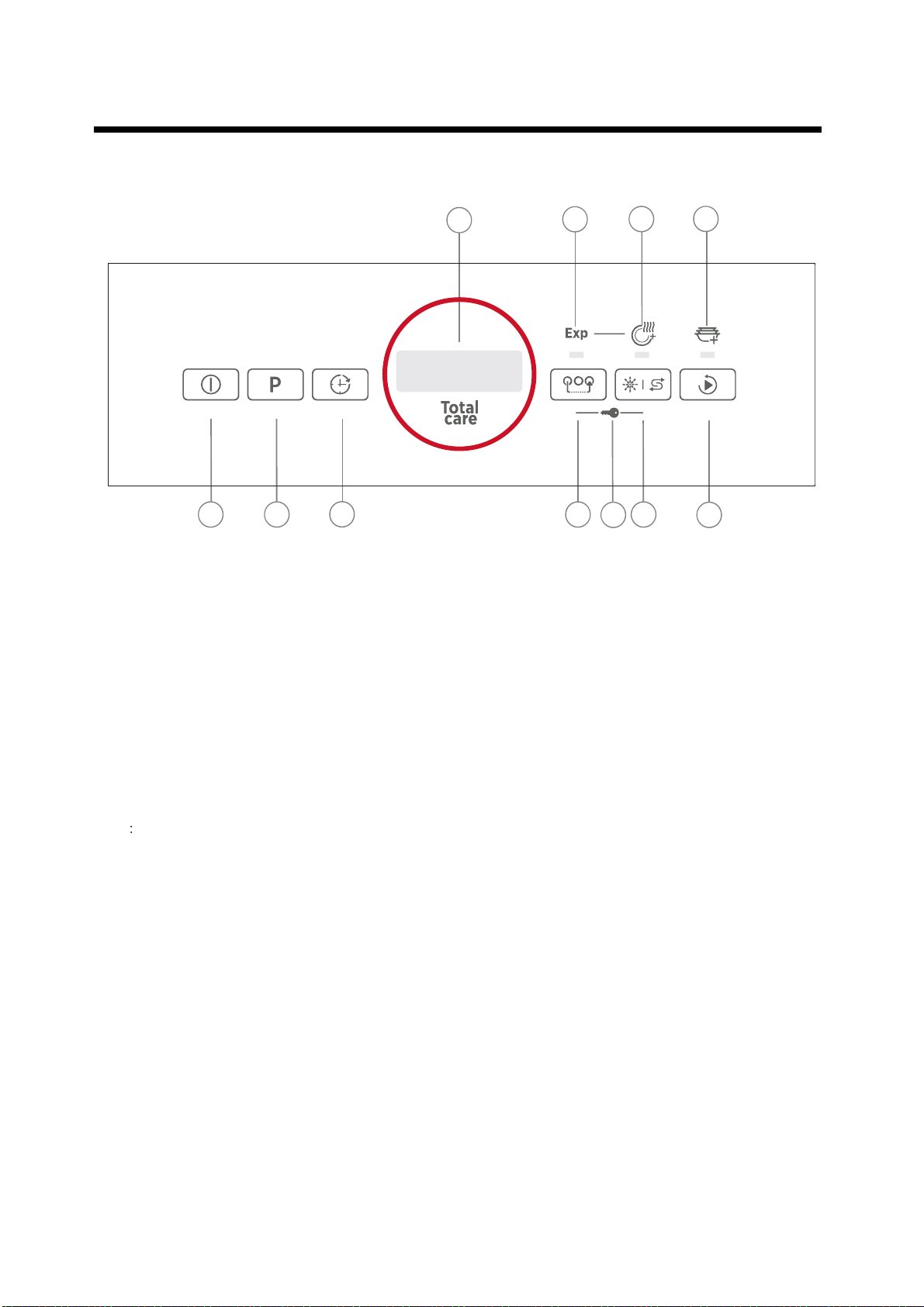

Overview of programmes

1

●

2

1. ON / OFF Button

Programme Select Button

2.
Start Delay Button

3.

7

3

8

4 5

9

10

611

7. Time & Info Display

Speed Up Function Indicator

8.
Dry Function Indicator

9.

Additional Function Button

4.
Lack Salt And Rinse Aid Reset Button

5.

Start / Reset Button

6.

Additional function button permit to activate Exp function or Multi-tab function. Pressing consecutively this button.

*

the correspondent functions are activated. Activation is confirmed by the correspondent indicator.
Exp Acceleration Additional function. It can only be used with P1(ECO), P2(Universal), P3(Intensive).
Child Lock: To activate or cancel Child lock, press but●ton 4 and button 5 for 5 seconds.
Activation and deactivation of Child Lock is confirmed by flashing for 3 seconds of indicators 8, 9 and 10.

*

Add Dish Indicator

10.
Child Lock

11.

*

15

Overview of programmes

T●ime & Info display

During any selection the display shows by flashing related information like :

Programme cycle time

Programme start delay time

Error codes and service information

After start of an operation it displays without flashing:

Remaining time in hours of a delayed programme starts, e.g.

Remaining programme cycle time in minutes, e.g.130

While running i●t may vary due to local conditions and daily working load.

16

Overview of programmes

Programmes

●

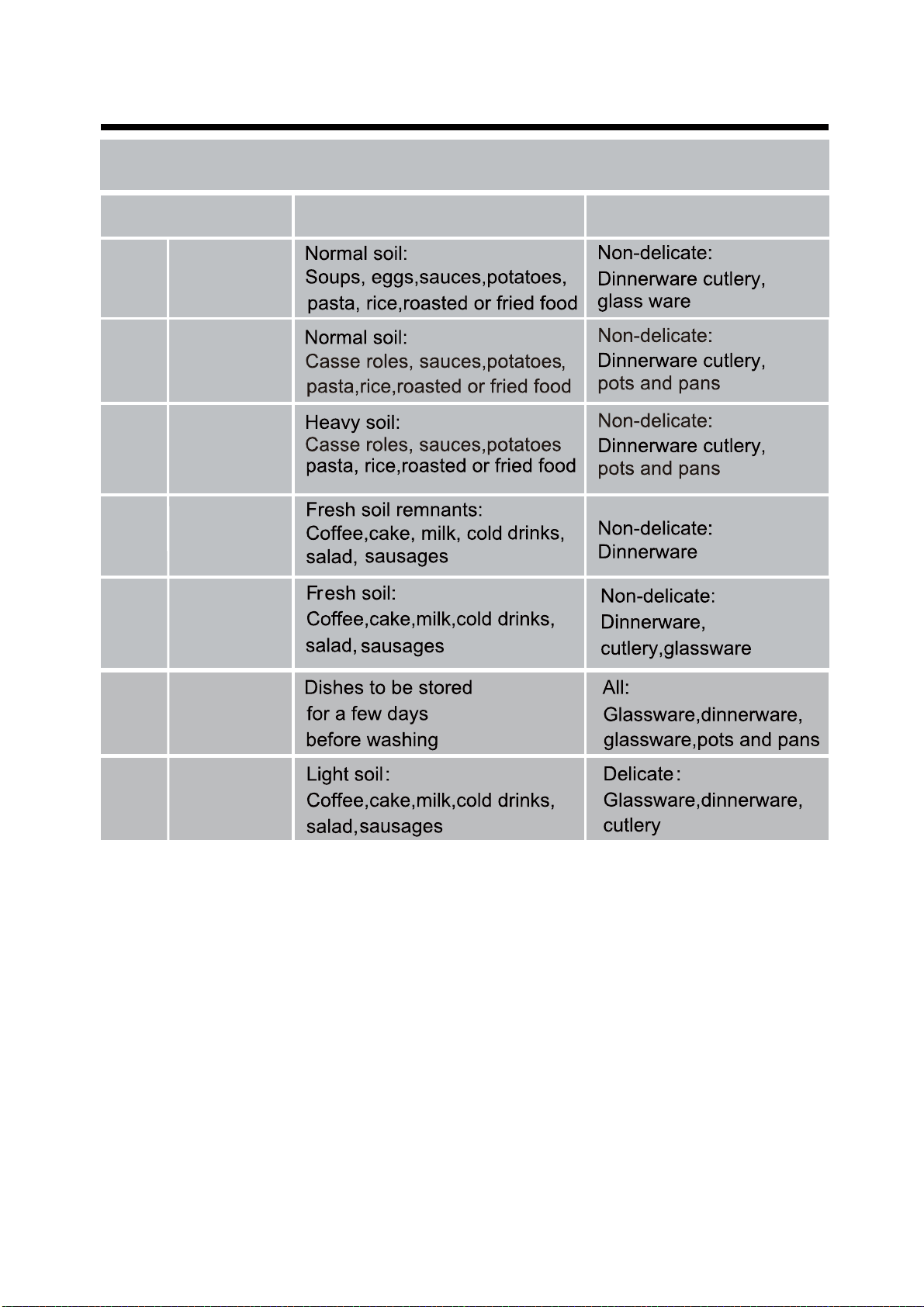

Programmes Type of food residue Type of load

P1

P2

P3

P4

P5

P6

ECO

50°C 298min

Universal

60°C 115min

Intensive

70°C 130min

Prewash

45°C 20min

Rapid

32min

Special

45°C 72min

1)

P7

Use this programme to quickly rinse the dishes. T

1)
to bond on the dishes and bad odours to come out from the appliance. Do not use

Total Care

45°C 98min

prevents the remaining food

his

●

detergent with this programme!

Programme for normally soiled tablewa●re (the most efficient in terms of its combined
energy and water consumption for that type of tableware).
Programme standardised to EN 50242.

●

The values given for programmes other than the eco programme are indicative only
For translations we shall refer to translation agency.

17

Water softening system

To ensure good● washing results, the dishwasher requires soft water.Hard water can
be detrimental to the performance of your dishwasher. Over time , glassware washed
in hard water will become opaque and dishes will become spotted or covered in a
white film. Using very hard water can cause dishwasher parts to fail over time. Salt
can improve the situation.

Adjusting the water softening system

The amount of salt dispensed can be set● in S1 and S6 stages, depending on the
hardness of your water.

1.Find out about the hardness value of yo●ur tap water. Your water utility company
will help you with this.

2.Setting can be found in the water hardness table.

Identify the local water hardness

Water softener

German

degrees(°dH)

31-50 55-89 5.5. -8.9 39-63 S6

17-30 30-54 3.0-5.4 21-38 S5

13-16 23-29 2.3-2.9 16-20 S4

9-12 16-22 1.6-2.2 11-15 S3

0-8 0-15 0-1.5 0-10 S2

- - - - S1

French

degrees(°fH)

Water hardness

* Remark

1) Factory default setting for powder de●tergent.

2) Recommended setting for combi detegent tablets.

3) Indicator for Salt is off.

Mmol/l Clarke

degrees

adjustment

electronic

1) *

2) *

3) *

18

Water softening system

Using special salt

As soon as the● low salt indicator is lit on the control panel ,salt should be topped
up. Always refill with special salt immediately before switching on the appliance.This
ensures that overrun special salt solution is immediately washed out and does not
corrode the rinsing tank.

Top up the salt as follows:

●

CAUTION

Only use dishwasher salt. Other product●s can cause damage to the appliance!
Any spilled salt causes corrosion. Run a programme after each refill.

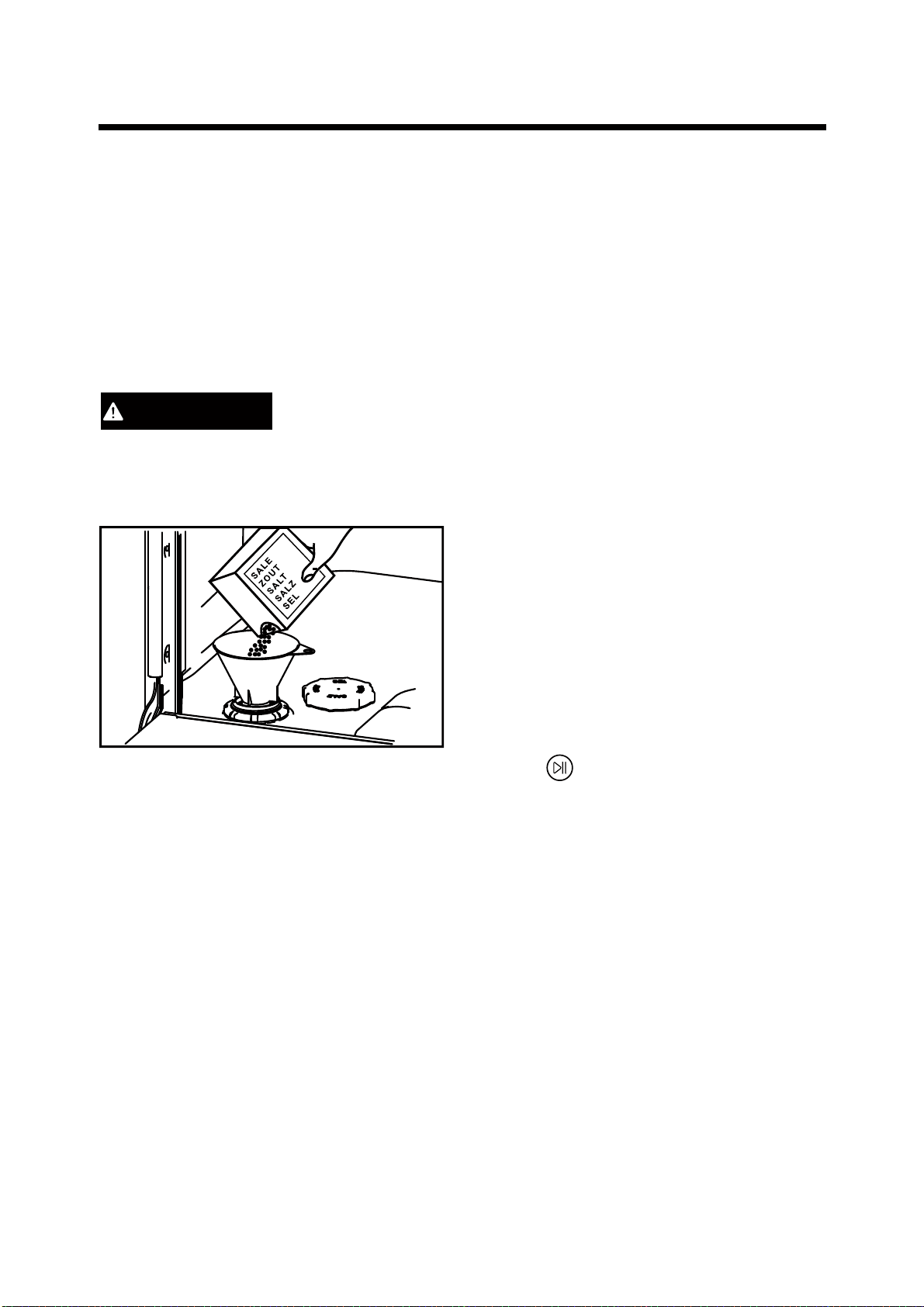

1.Turn the cap clockwise to open the salt
container.

2.Fill with1 litre of water into the salt container.

3.Fill the tank up with specific salt(water
overflows).

4.●Remove spilled salt from the opening area.

5.Turn the cap counter-clockwise to close
the salt container.

6.Press button for 3 sec after each

refill to reset salt aid indicator.

19

Using rinse aid

We highly recommend using liquid rinse aid regularly to get the best drying
results.Rinse aid gives a streak-free, sparkling clean look to glass and chinaware.
In addition, it prevents metal from tarnishing.

When to refill the rinse aid dispenser

When rinse aid level becomes low,

the digtial will
scrolling display ADD RINSE AID to remind you to
refill the dispenser.

Adjusting the rinse aid dosage

The normal, factory-set dosage level is 5, but you may need to adjust this to suit
your water conditions.

If there is excessive foaming at the end of the wash, reduce the dosage.
If you live in a hard water area or if dishes are wet or streaky after drying,
increase the dosage.
To adjust the rinse aid setting:

If you are using tablets with built-in rinse aid, we recommend setting the rinse
aid dosage level to off (rA-).

●

●

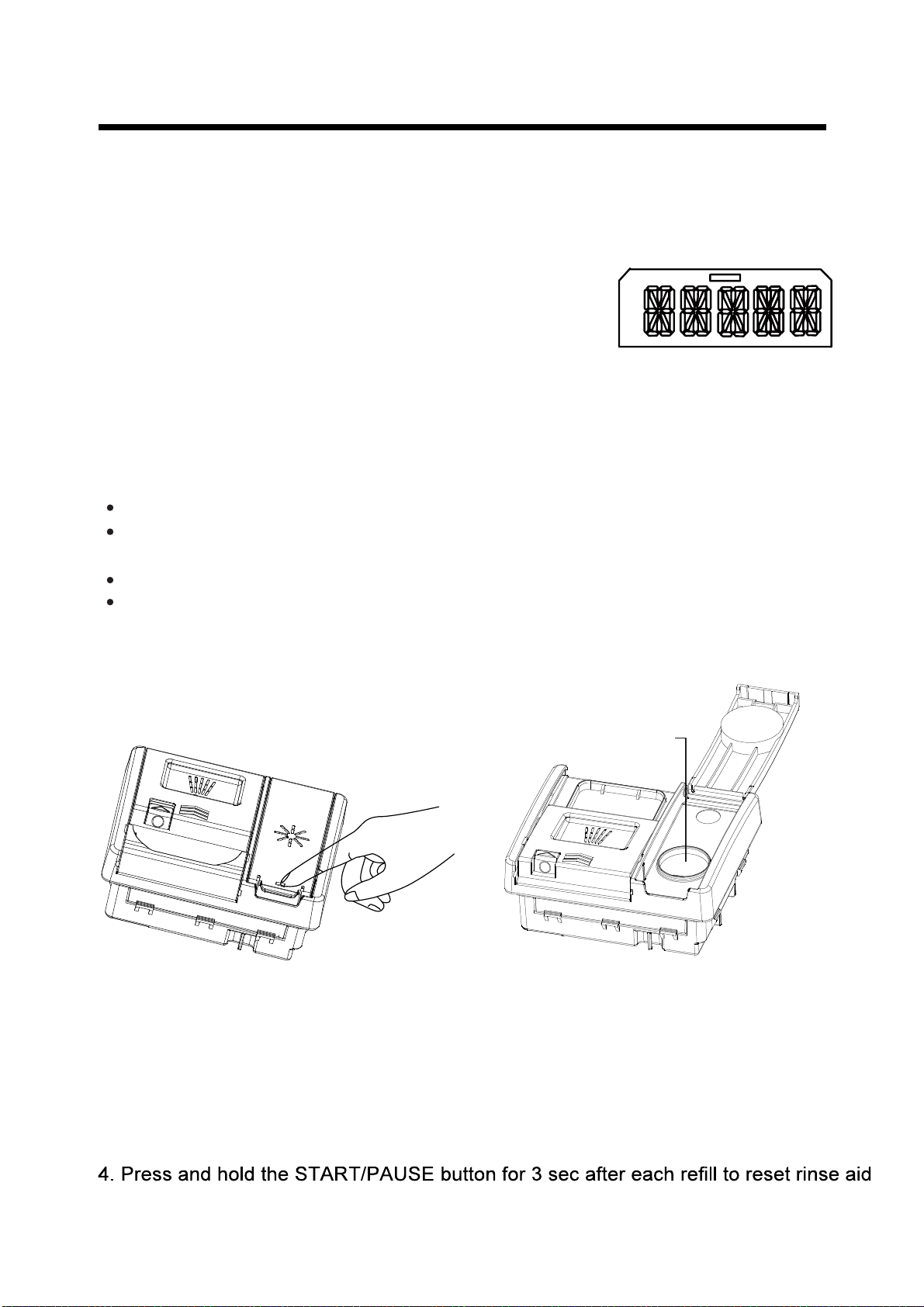

How to refill the rinse aid dis●penser

1.Touch the button to snap the dispenser cover open.

●

Dosage regulator

2.Pour rinse aid into the circular opening, making sure not to fill beyond the MAX
marking.

IMPORTANT!

Take care not to spill rinse aid into the● dishwasher. Any spills must be wiped up
to prevent excess foaming. Failure to do so may result in a service call, which
will not be covered by warranty.

3.Close the cover, making sure it clicks shut.

indicator.

20

Utensils

IMPORTANT!

Never put highly absorbent materials, such as sponges and towels in your
dishwasher. Do not put dishes or cutlery that have been soiled by tobacco
ash, wax, lubrica●ting grease or paint in your dishwasher.

Cutlery and silverware

All cutlery and silverware should be rinsed immediately after use to prevent tarnishing
caused by some foods. Silver items should not come into contact with stainless steel,
e.g. other cutlery.● Mixing these items can cause staining. Remove silver cutlery from
the dishwasher and hand dry immediately after the programme has finished.

Aluminium

Aluminium can be dulled by dishwasher detergent. The degree of change depends on
the quality of the item.

Other metals

Iron and cast iron objects can rust and stain other items. Copper, pewter and brass
tend to stain. Wash these items by hand.

●

Woodware

Wooden items are generally sensitive to heat and water. Regular use in the
dishwasher may cause deterioration over time. If in doubt, wash by hand.

Glassware

Most everyday glassware is dishwasher safe. Crystal, very fine and antique
glassware may etch that is, become opaque. You may prefer to wash these items by
hand.

Plastic

Some plastic may change shape or colour with hot water. Check the manufacturer’s
instructions about washing plastic items. Washable plastic items should be weighted
down so they do not flip over and fill with water or fall through the basket during the

●

wash.

Decorated items

Most modern china patterns are dishwasher safe. Antique items, those with a pattern
painted over the glaze, gold rims or hand-painted china may be more sensitive to
machine washing. If in doubt, wash by hand.

Glued items

Certain adhesives are softened or dissolved in machine washing. If in doubt, wash by
hand.

●

21

Loading utensils

If the tableware or cookware rack is burnt, scorched,sticky, and other food which
is very difficult to removed, it is advisable to soak it for a period of time before
washing it or pre-dispose it with a dish cloth or else it will be hard to clean. Remove
any large food particles before placing dishes in the dishwasher. It is not necessary
to prerinse utensils under running water.

Upper rack

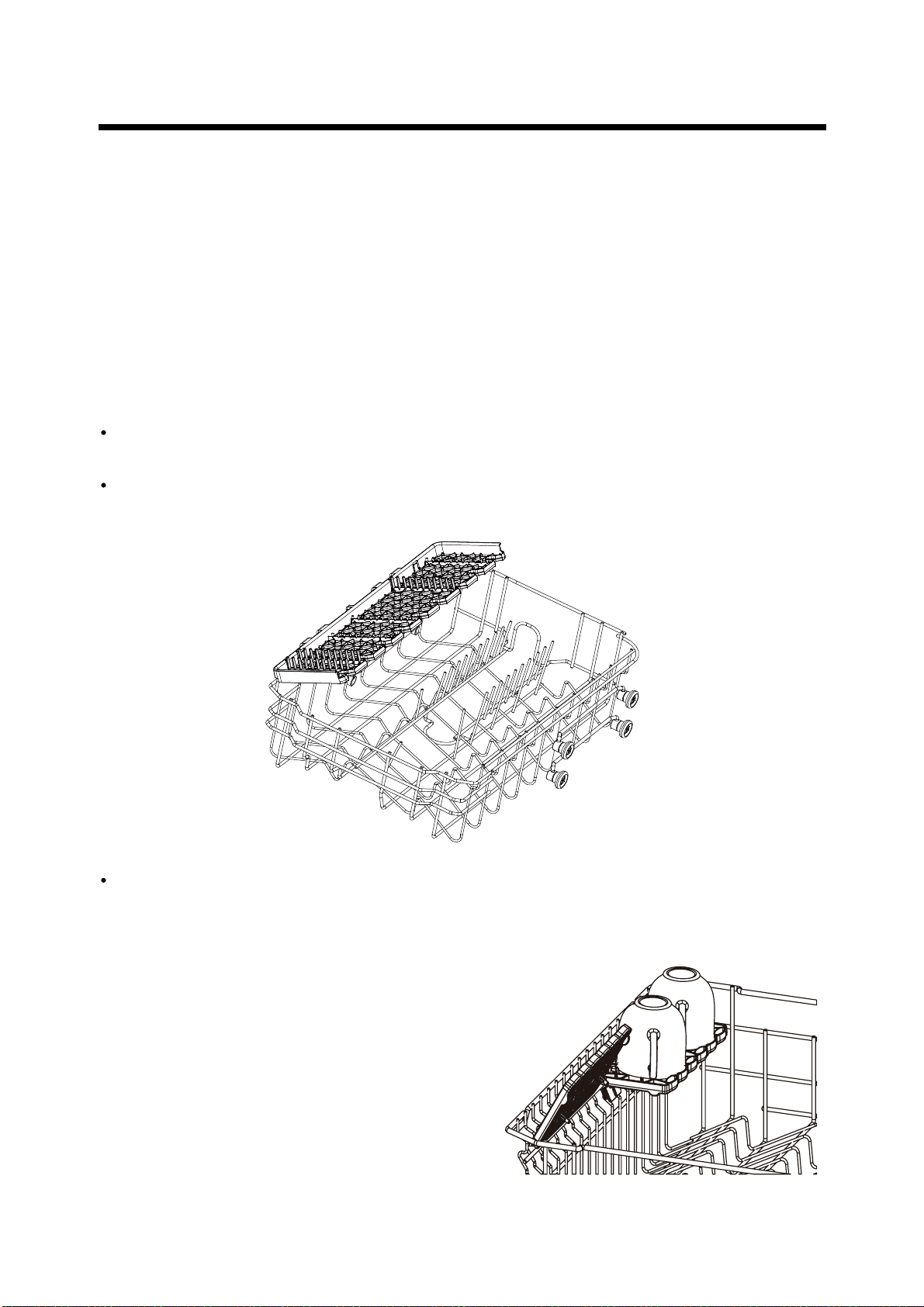

The upper rack is designed to hold items like glasses, cups, saucers, plates and

shallow pans.

The upper rack may be adjusted to accommodate larger items. You can adjust the

height of the upper basket to create more space for tall items in the lower basket.

The upper rack may be adjusted to accommodate larger items. Place small items

on the foldable cup holder.

IMPORTANT!

Place sharp and● pointed
items with the blade● pointing
downward into the knife
rack, to keep them out of
harms way.

22

To adjust the upper rack:

IMPORTANT!

Before you adjust its height, make sure the basket is empty.

Loading utensils

Remove:

End Cap

Rail

Rollers

Replace:

Rollers

Rail

End
Cap

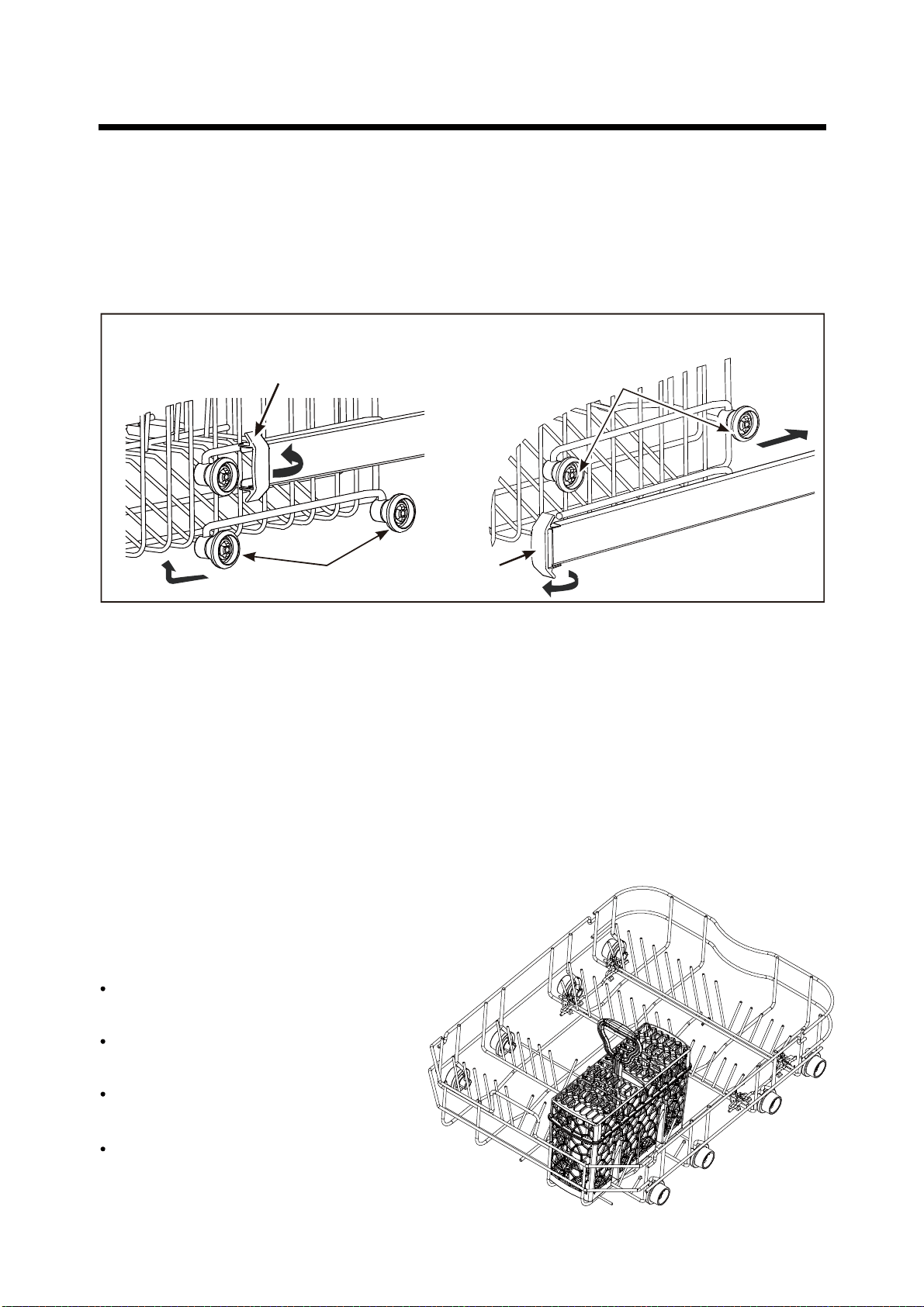

1.Fully extend the upper rack and rotate open the two plastic end caps on the front
of the rails.

2.Remove the upper rack.

3.Select the set of rollers on the side of the rack that provides the desired height, and
reinstall the upper rack by guiding the rack rails between the appropriate set of rollers.

4.With the rack reinstalled, rotate closed the two plastic end caps, ensuring the snap is

properly engaged. Failure to properly engage the end caps may result in the rack falling

from the dishwasher.

Lower rack

Place the largest items here: pots,

pan●s, lids, serving dishes and bowls.

Fold down the tines to place pots

and pans flat on the bottom.

Ensure dishware items do not block

the spray arm above from rotating.

If you need more height for tall items,
you can raise the upper basket. See
instructions on previous pages.

●

●

23

Loading utensils

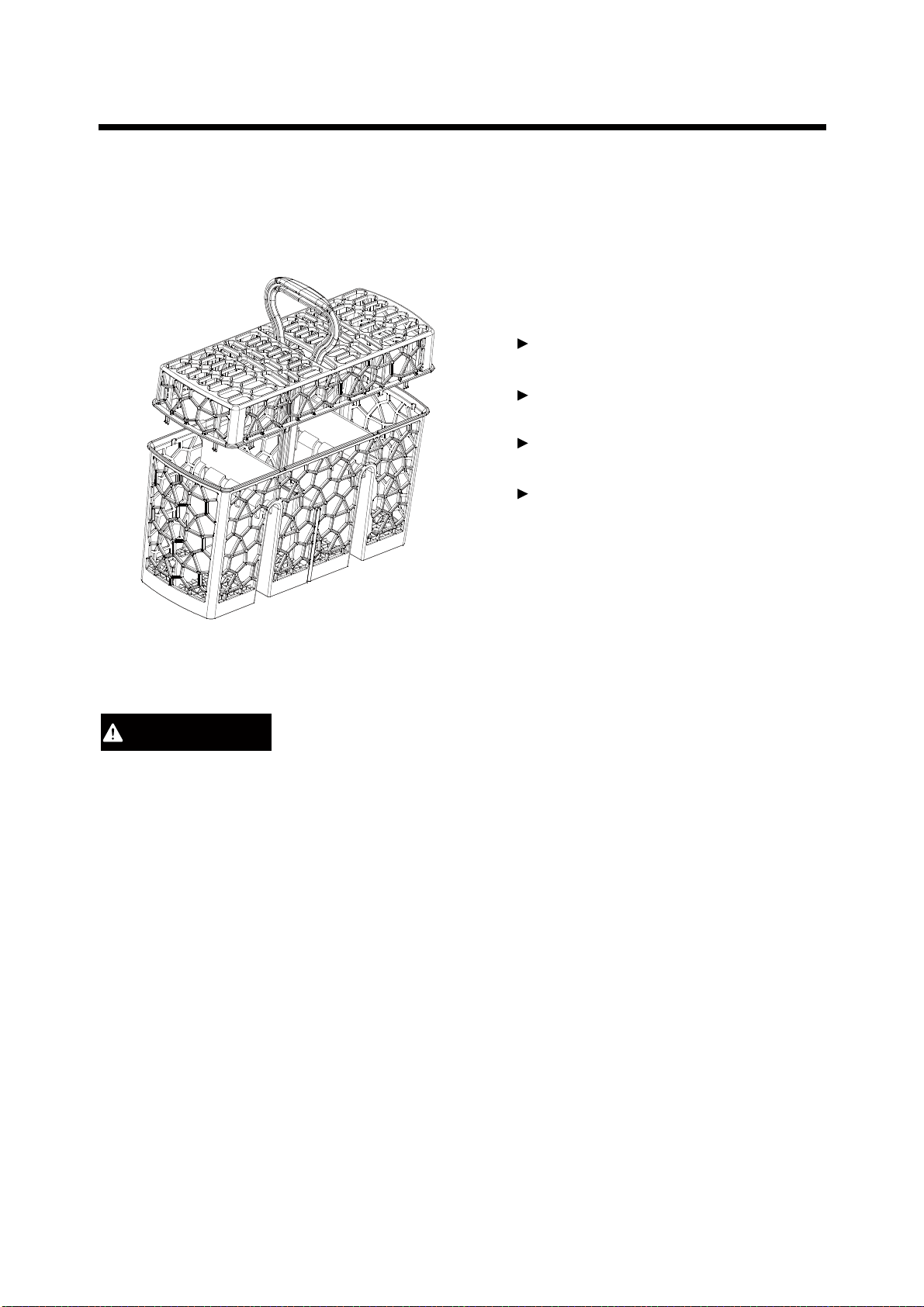

Cutlery basket

Mix spoons with other cutlery
to prevent them to bond together.

Use the grid element in order
to separate the cutlery.

Place Cutlery with the handles
down for better washing results.

If long items may block the spray
arms find a horizontal positioning
in the upper basket.

CAUTION

Put sharp and pointed items with the blad●e pointing downward to keep them out of
harms way.

24

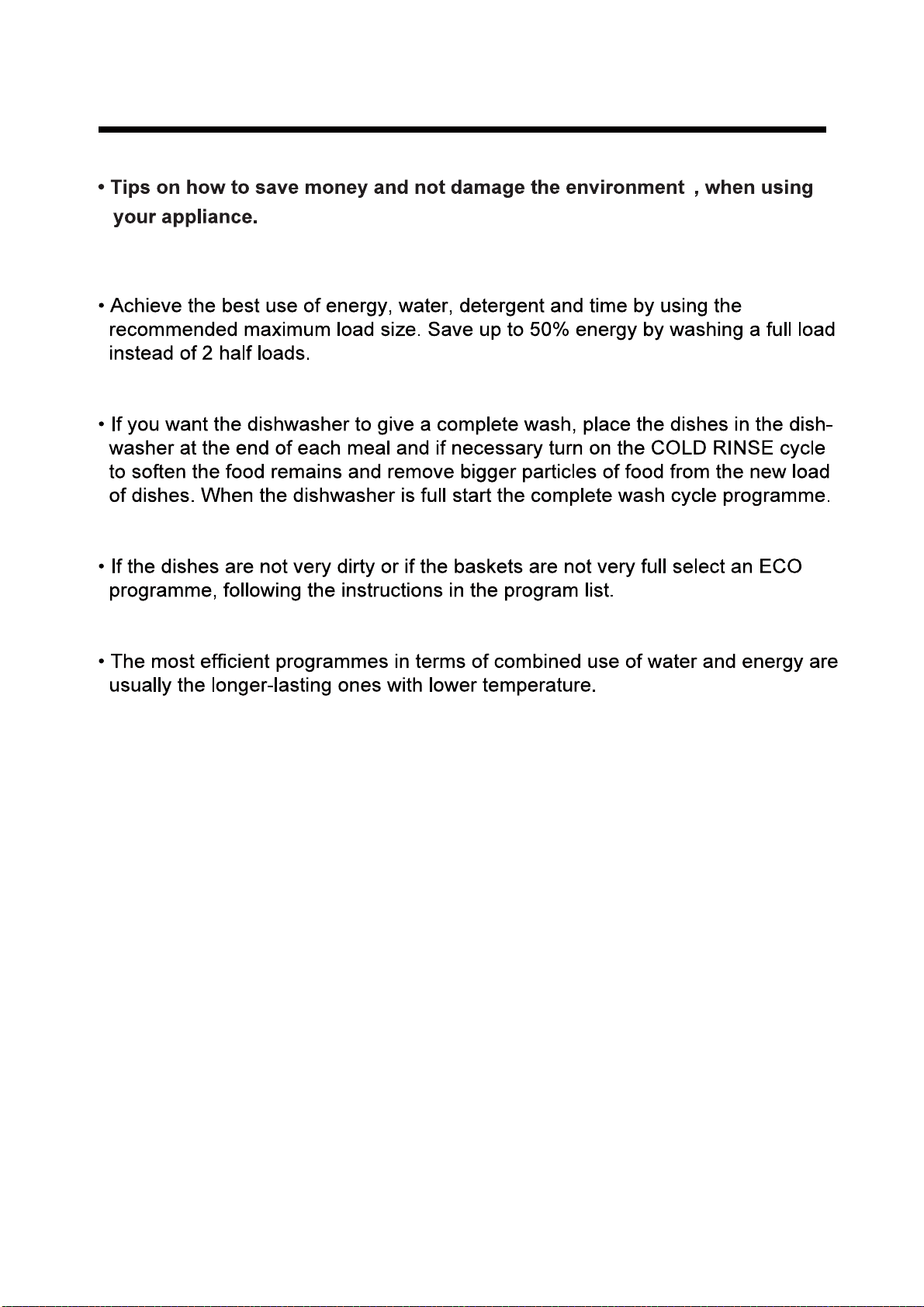

How to make savings

25

Adding detergent

IMPORTANT!

Only use detergents recommended for automatic dishwashers.
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if

swallowed. Avoid contact with the skin and eyes and keep children and infirm
persons away from the dishwasher when it is open. Check that the detergent
dispenser is empty after completion of each wash programme.

Never sprinkle or pour detergent directly onto any item in the dishwasher. Detergent
and dishwasher tablets should not be in direct contact with dishes or cutlery.
Do not use hand washing liquids, soap, laundry detergents or disinfectants, as
these will damage the dishwasher.

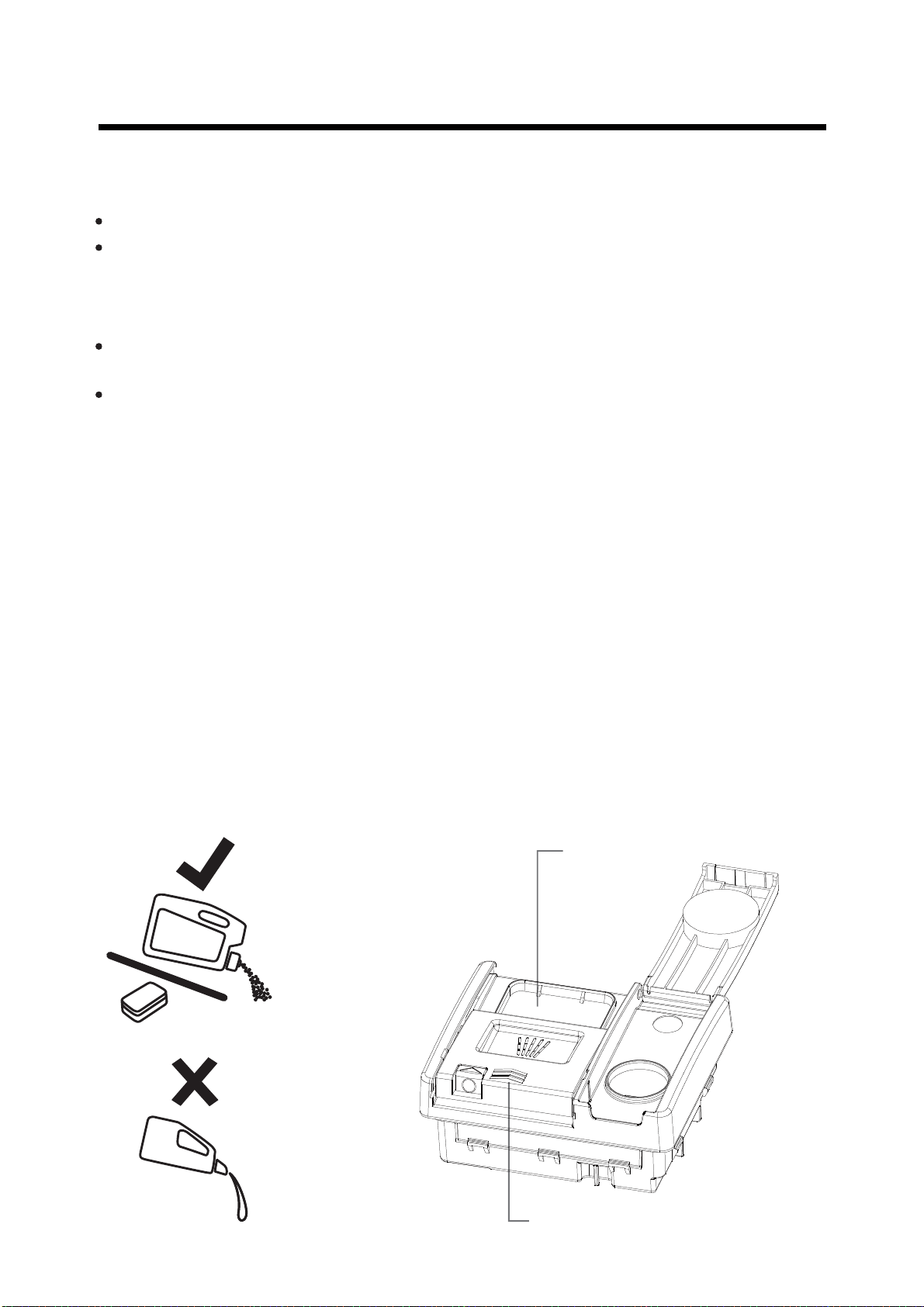

Filling the detergent dispenser

1.Press the button on the right of the dispenser.

IMPORTANT!

Approach the dispenser from the right-hand side to prevent the cover from snapping
open on your hand.

2.Add detergent into the appropriate compartment(s). The ‘20’ and ‘30’

markings in the

main wash compartment correspond to grams of powdered detergent.

IMPORTANT!

Tablets should only be placed in the main wash (larger) compartment.

3.Remove any excess detergent from the edges of the dispenser.

4.Close the cover and press down until it clicks shut. The detergent will automatically

●

●

be released into the dishwasher during the wash programme.

wash compartment

●

26

Open the
cover here

Before

first Use

How to Adjust User Preference Settings for LED Models

During the selection of programmes, press and hold for about 5 seconds
the user preference settings. User preference settings include Water Softener
setting, Buzzer setting, Rinse Aid setting and Memo Mode setting.

to enter

1.The appliance is switched on.

2. Press and hold the for 5s to enter t he user setting mode, and all LEDs will
flash for 1s and then turn off. If you want to adjust the water softener, press
to scroll the setting between S1 and S6 (the default is S4) as the table below:

P1 P2 P3 P4 Zoom

0 0 0 0 0

1 0 0 0 0

1 1 0 0 0

1 1 1 0 0

1 1 1 1 0

1 1 1 1 1

If you want to activate/de-activate the buzzer, Press to toggle Buzzer

Sx level

S1

S2

S3

S4 default

S5

S6

On (LED on) or Buzzer OFF (LED off).

If you want to change the Rinse AId setting, press to change the setting in
steps between R1 ( minimum dispense) and R4 ( maximum dispense).

●

The LED displays as follows:

3h

0 0 0

1 0 0

1 1 0

1 1 1

6h

9h

Rx level

R1 Empty

R2 3ml

R3 5ml default

R4 6ml

If you want to Turn On/Turn Off the Memo Mode, press as follows:

6h Status Indicators

0

1

Memo mode

OFF default

ON

3.Press and hold the for 3s to save th●e setting and exit the setting mode.

LED is OFF.

*0 -

LED is ON.

*1 -

27

Before

first Use

How to Adjust User Preference Settings for DIGIT Models

During the selection of programmes, press and hold the program selection key
for 5s to enter the user setting mode. User setting mode includes Language setting,
Water Softener setting, Buzzer setting,Rinse Aid setting and Memo Mode setting.

1.The appliance is switched on.

2. Press the program selection key to enter the Language setting menu, and the
display will show the current language. Press to move backward and
to move forward between the 25 languages.Press the program selection key
again to save the current selection language and enter the Water Softener setting
menu.Or press the power key for 3s to save the setting s and enter the programme
selection state.

3. The current water hardness level will be displayed after the display shows
SOFTENER 5s. The default level is S4. The level setting is from S1 to S6.Press the
additional function key to set the level backward: S3-S2-S1-S2-S3-S4-S5-S6.
Press the Salt / Rinse reset key to set the level forward S4-S5-S6-S1-S2-S3-S4.
Press the program selection key to save the current level and enter the Buzzer
setting.Or press and hold the power key for 3s to save the settings and enter the
programme selection state.

4.The display shows BUZZER, and displays NO after 5s. The default is NO.Press the
Salt / Rinse reset key to set to NO.Press the program selection key to save
the current level and enter the Rinse Aid setting.Or press and hold the power key
for 3s to save the settings and enter the programme selection status.

5.The display shows the current level of R●inse Aid after 5 seconds. The level setting
is from R1-R4, and the default is R3.Press the additional function key to set the
level backward:R3-R2-R1-R4-R3. Press the Salt / Rinse reset key to set the
level forward:R3-R4-R1-R2-R3 . Press the program selection key to save the
current level and enter the Memo setting.Or press and hold the power key for 3s
to save the settings and enter the programme selection state.

6.The digital tube will scroll to display the MEMO FUNCTION, and displays NO after
5s.Press the Salt / Rinse reset key to switch between YES and NO. Press the
program selection key to save the current level and enter the Language setting.
Press and hold the power key for 3s to save the settings and enter the programme
selection state.

28

Daily Use

Start a Programme

1. Open the door and Press the ON/OFF button to turn the dishwasher on.
*The display will show the wash programme time

2.Press to select the program you want on the dishwasher control panel.

3. Press to start the programme and close the door.

NOTICE

If the MEMO MODE YES The appliance remembers the last programme
you used. The next time the appliance will switch on, the appliance pre-selects
the programme last used.

Pause and restart a wash programme

1. Open the door carefaly to pause the programme.The time remaining will flash
and the pause beep will sound while the dishwasher is paused.

●

NOTICE

There is a risk of being sprayed with hot water,do not fully open the door until
the spray arms have stopped rotating.

2.Load,remove,or rearrange any dishes if needed.

3.Close the door to restart the programme.

Cancel or change a wash programme

Open the door carefully to pause the programme.Press and hold 3 sec.
Washing program reset.And then you can choice a new wash programme to start.

Start a Programme with Delay

Set a start time by the following procedure● in order to delay a programme start:

1.Set a programme.

2.Press and hold the reservation button until the display flashes the required
delay time (from 1 to 23 hours).

*The LED molds delay time is 3h,6h,9h.

3.Press the START/PAUSE button and close the door.
The display shows the countdown of the start delay. The countdown decreases

●

●

with steps of 1 hour.
When the countdown is completed, the programme starts.

29

Daily Use

Cancel a Delayed Start

When the current reservation time is disp●layed for 23h, or other time.
Press the reservation button again to cancel the reservation.

Cancel Start Delay / Programme

1. Press the or for about 3 second.
The start delay is cancelled.
The programme is aborted.
The appliance is switched off.

2. Start a new programme and a delayed start if desired.

CAUTION

I●f a programme will be aborted in the process of washing dishes, the residue of
detergent remains● on the dishes. These can cause damage to health! Make sure to
rinse off the detergent residues complet●ely before using these dishes again.

End of Programme

When the programme is completed, the display shows END OF CYCLE and an
accoustic signal is heard (if it is not switched off). The display switches off.

1.Press to switch off the appliance or the appliance switches into standby mode
automatically after 30s.

2. Open the door.

CAUTION

If the door will● be opened immediately after the end of programme, hot steam can
escape. Danger of scalding!Open the do or carefully!

3. Remove dishes:
Open the door slightly and leave it ajar (about 100 mm) to help the drying
process.
Let the dishes become cold before removing them from the appliance. Hot
dishes damage more easily.
First remove the items from the lower basket, then from the upper basket.

30

Care and cleaning

Over time, food residue or limescale deposits may accumulate inside your
dishwasher.These may reduce efficiency, and food residue may produce a bad
odour. Inspect and clean your dishwasher regularly.

IMPORTANT !

Before any cleaning or maintenance, always disconnect the dishwasher from the
power supply, turn off the water supply, and wait until all parts of the dishwasher
have cooled.

Do not use the following cleaning aids, as they may damage the surfaces:

-plastic or stainless steel scouring pads

-abrasive, solvent, household cleaners

-acid or alkaline cleaners

-laundry detergents or disinfectants

-stainless steel cleaners or polishes

-hand-washing liquids or soap

Where there is broken crockery or glass in the dishwasher, it must be carefully
removed to prevent personal injury or damage to the appliance.

After cleaning, always check that the spray arms and filters are all correctly in
place.

Cleaning the dishwasher exterior

T●o clean exterior surfaces of the dishwasher, wipe with a clean, soft damp cloth
and dry with a clean, lint-free cloth.

For non- flush s●urfaces wipe along or around the surface. For example, to wipe
down the exterior control buttons, use a circular wiping motion around the button.

Take care not to cause excessive wettin●g of the control panel area.
N●ote: before cleaning the control panel, it is useful to disable the buttons by
activating keylock.

Cleaning the door seal and dishwasher interior

Clean thoroughly with warm water on a soft, lint-free cloth. If the interior is heavily
soiled, use a di●shwasher cleaner/descaler following the manufacturer’s instructions.

The filters prevent larger food particles in the wash water from reaching the pump.
These particles may occasionally block the filters. We recommend cleaning the
filters whenever there is evidence of food particles.

31

Care and cleaning

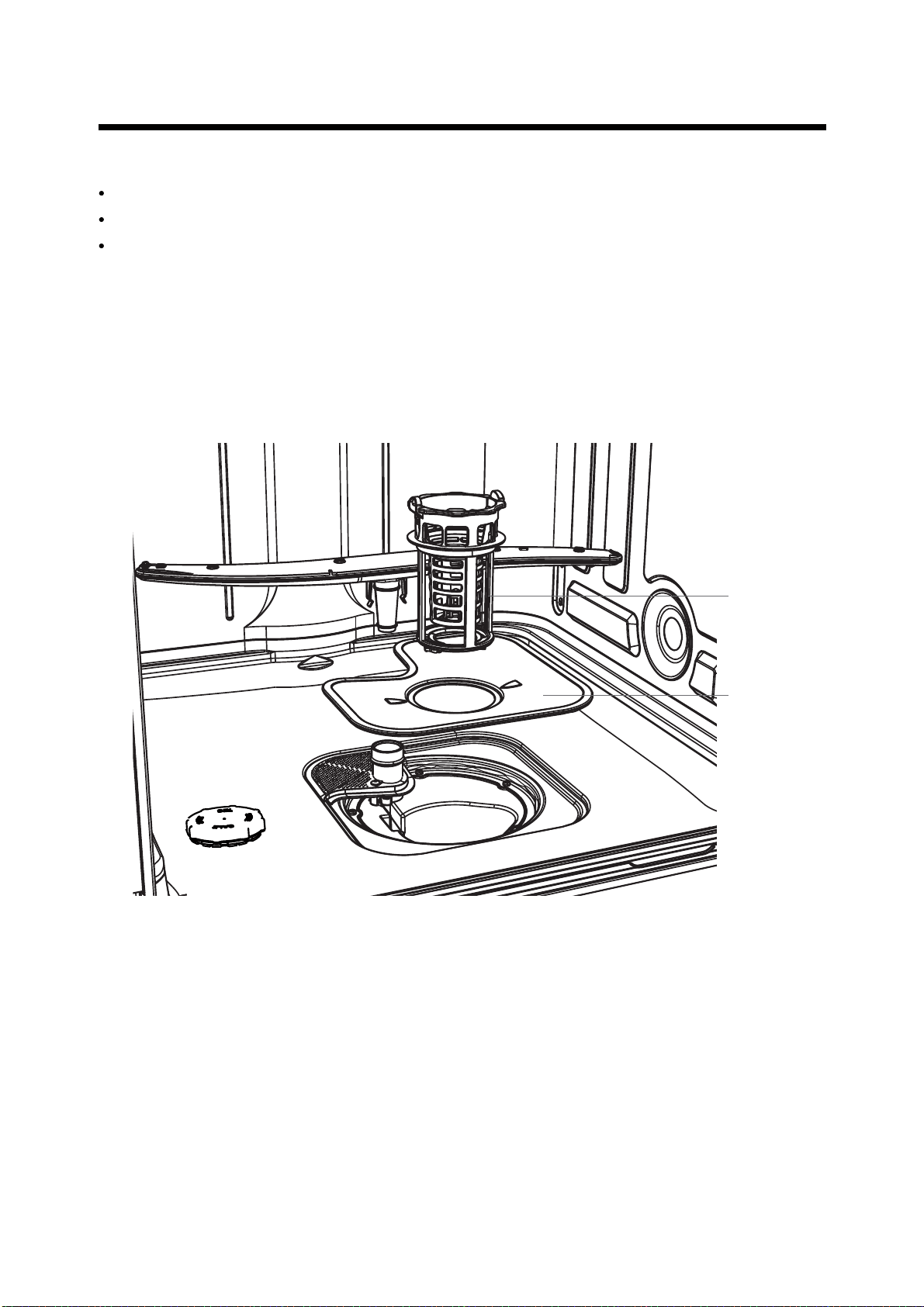

To remove the drain filter, turn the filter anti-clockwise to release, then lift out.

Once the drain filter has been removed you can lift the filter plate out.

Rinse them thoroughly under running water and then replace.
Replace the filters correctly after cleaning, making sure the filter plate is flush with

the dishwasher base.

IMPORTANT !

When cleaning the underside of the filter plate, take care handling its sharp outer
edge.

Drain filter

Filter plate

Cleaning the spray arms

●

Limescale and food particles in the wash water can block the holes in the spray
arms and the arm mountings. Clean these parts about once a month, or more often
should the need arise.

Cleaning the upper spray arm/head

●

Do not remove the upper spray arm for cle●aning. Clean with a small plastic-bristled
brush,● or if heavily soiled or blocked use a dishwasher cleaner/descaler following
the manufacturer’s instructions.

32

Cleaning the centre spray arm

Care and cleaning

To remove the centre spray arm, carefully unscrew its locking nut.
Rinse the spray arm thoroughly under running water, then refit.

●

IMPORTANT !

Make sure you● twist the locking nut on the centre spray arm firmly back on the
water supply tube.Check that the centre spray arm is firmly locked in place and
rotates freely.










Water supply tube

Locking nut

Centre spray arm

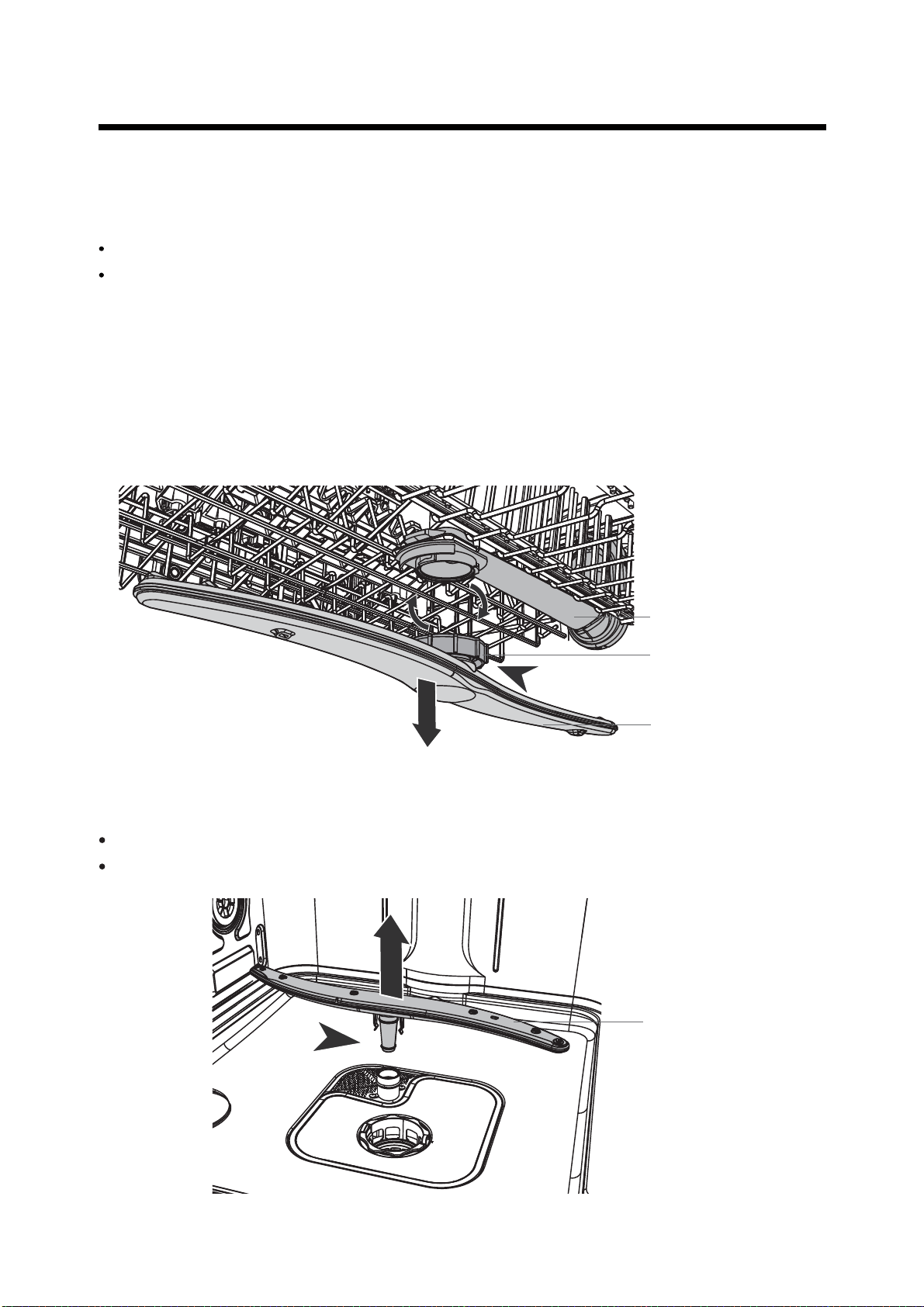

Cleaning the lower spray arm

To remove the lower spray arm, simply lift the spray arm off its mounting.
Rinse the spray arm thoroughly under running water, then refit it on its mounting.

●

Low●er spray arm

33

Troubleshooting

Many occuring problems could be solved by yourself without specific expertise. In
case of a problem please check all shown possibilities and follow below instructions
before you contact an after sales service.

CAUTION

Before maintenance, deactivate the appl●iance and disconnect the mains plug from

the mains socket.

Electrical equipment should be serviced only by qualified electrical experts,

because improper repairs can cause con●siderable consequential damages.

The appliance does not start, or it stops during operation or Indicator is lighted.

Problem Possible caus●e Possible solution

The programme
does not start.

Rinse Aid Indicator
is lighted.

●

Salt Aid Indicat●or

is lighted.

Appliance door is open. Close the appliance door.

Delay start is set. Refer to displayed time.

Mains plug is not connected
in the mains socket.

Fuse in the house circuit is
damaged.

Connect the mains plug.

Replace the fuse.

Rinse aid dispenser is empty. Refill Rinse aid until full.

Refill of rinse aid was not
confirmed.

Softener salt is empty.

Refill of salt was not
confirmed.

Press button for 3 sec
after each refill.

Fill the tank up with specific
salt until full.

Press button for 3 sec
after each refill.

34

Troubleshooting

Error codes on the display

Problem Possible cause Possible solution

Open the water tap.

Note: Whenever Error is

Water tap is closed.

solved switch off the
appliance and restart the
programm.

Acoustic alarm,
display shows
ALARMCODE

●

E10
The appliance does
not fill with water.

●

Acoustic alarm,
display shows
ALARMCODE

E30
Leak: The drain
pump
runs permanently!

Water inlet hose has a kink or
a bend.

Make sure that the position of
the hose is correct.

In case of aqua-stop system:
water protection is triggered;

The hose must be replaced.

the marker (C) is red.

Clean the filter at the inlet

Filter in the water inlet hose
is clogged.

hose connections at tap and
the rear of the appliance.

W●ater inlet is clogged. Check water flow from tap.

Water pressure is too low.

Anti- flood device is on:

There are water leakages in

the appliance.

The water inlet valve is

Contact your local water
authority.

1.Close the water tap.

2.Disconnect appliance from
power supply.

3.Contact Service.

open and blocked.

The drainage is blocked.

All other Alarmcodes:

1. Note Alarmcode

2. Contact Service ; refer to CUS●TOMER SERVICE

35

Troubleshooting

Washing Results are not satisfactory

Problem Possible cause Possible solution

Filters are clogged. Clean the filters.

The dishes are not
clean.

●

Filters are not correctly

assembled and installed.

Spray arms are clogged.

Programme was not
applicable for the type of load
and food remnants.

Incorrect position of the items
in the baskets. Water could
not wash all items.

●

Spray arms could not turn
freely.

Make sure that the fi lte rs
are correctly assembled and
installed.

R e m o v e re m a i ni n g fo o d
remnants with a thin pointed
object.

Make sure that the
programme is applicable for
the type of load and foo d

remnants.

Make sure that the position
of the items in the baskets is
correct and that the water can
easily wash all items.

Make sure that the position
of the items in the baskets is
correct and does not cause
the blockage of the spray
arms.

Whitish streaks,

stains or bluish layers
on glasses and

●

dishes.

N●o detergent or insufficient
quantity of detergent in the
detergent dispenser.

The wash cycle was
interrupted by a long● break.

Released quantity of rinse aid
is too much.

Quantity of detergent was too
much.

Multitab detergent tablet s
used with a short programme
might not fully dissolve.

Make sure that you add the
correct quantity detergent in
the dispenser before you start
a programme.

Do not open the door or cut
power supply during the wash
cycle.

Programme was not quantity

of rinse aid.

Make sure that you add the
correct quantity of detergent
in the dispenser before you
start a programme.

Select a longer programme
when using Multitab detergent
tablets.

36

Troubleshooting

Problem Possible caus●e Possible solution

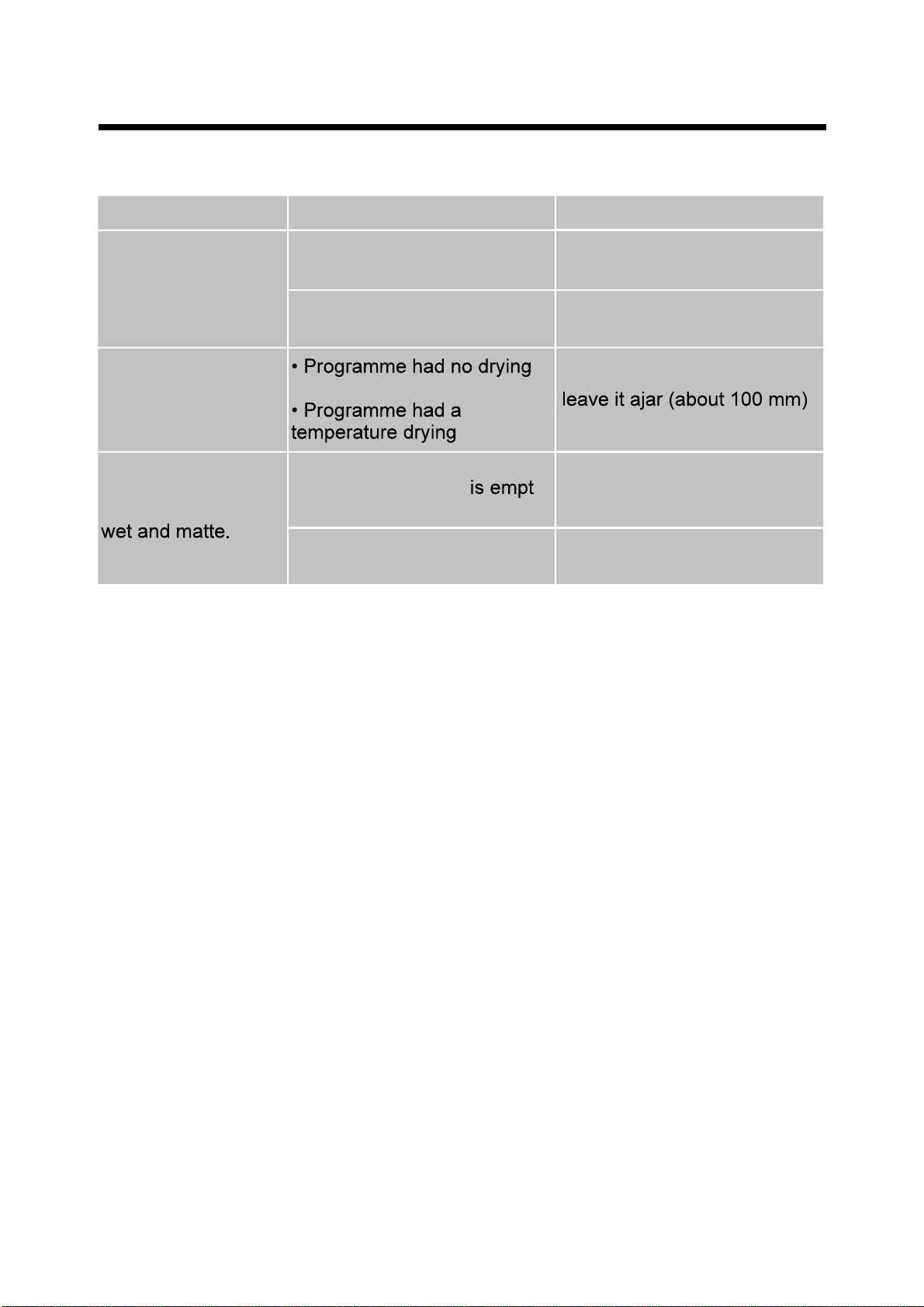

Dry water drop
stains on glasses
and dishes.

The dishes are wet.

The dishes are

●

Rinse aid dosage is too low.

Quality of rinse aid or
Multitab.stains on glasses

phase.

Rinse aid dispenser y.

Quality of rinse aid or Multitab.

low

phase.

Increase the released quantity
of rinse aid.

Cleaning product too old;
change the product.

Open the door slightly and

to help the drying process.

Refill rinse aid into
dispenser and reset the rinse
aid indicato●r.

Cleaning product too old;
change the product.

the

37

Technical Data

Product fiche (according EU 1059/2010)

Suppliers name or trade mark

Supplier´s model identifier

●

Rated capacity in standard

-place settings

Energy efficiency class 1)

Annual energy consumption
(AEc) in kW h/year 2)

Energy consumption (Et) of the
standard cleaning cycle in kW h

Power consumption (Po)
in off-mode in W

●

Power consumption (Pl)
in left-on mode in W

Annual water consumption
(AWc) in liter/year 3)

●

Drying efficiency class 4)

Standard programme
(standard cleaning cycle) 5)

Hoover

HDPH 2D1049W-80 HDPH 2D1049B-80

10

A++

10

A++

211

211

0.75

0.75

0.5

2.5

2520

A

ECO

0.5

2.5

2520

A

ECO

Programme time for the stan-

298

298

dard cleaning cycle in minutes

Duration of the left-on

1

1

mode (Tl) in minutes

Airborne acoustical noise
emissions in dB(A) re 1pW

Mounting / optional mounting

●

Mains water pressure

Power voltage

Maximum current intensity

Total absorbed power

Colour

49

Freestanding

0.04-1 MPa (= 0.4-1 0 bar)

220-240V/50Hz

13A

1720-2050W

White

49

13A

Black

1) A+++ (highest e●fficiency) to D (lowest efficiency).

2) Energy consumption is based on the standard cleaning cycle (280 per year) using
cold water fill and the consumption of the lower modes. Actual energy consumption
will depend on how the appliance is used.

3) Water consumption in litres per year, based on 280 standard cleaning cycles.
Actual water consumption will depend on how the appliance is used.

4) A (highest efficiency) to G (lowest efficiency).

5) This programme is suitable to clean normally dirtied tableware and it is the most
efficient programme in terms of its combined energy and water consumption for that
type of tableware.

38
