Thank you for choosing this product.
We are proud to offer the ideal product for
you and the best complete range of home
appliances for your daily routine.
Carefully read this manual for correct and
safe appliance use and for helpful tips on
efficient maintenance.
machine after
carefully reading these instructions. We
recommend you always keep this manual on
hand and in good condition for any future
owners.
Each product is identified by a unique 16character code, also called the “serial
number”, printed on the sticker. This can be
found inside the door opening. This code is
a unique code for your product that you will
need to register the product warranty, or if
you need to contact the Customer Service
Centre.
This appliance is marked according to
the European directive 2012/19/EU
on Waste Electrical and Electronic
Equipment (WEEE).
WEEE contains both polluting substances (which
can cause negative consequences for the
environment) and basic components (which can
be re-used). It is important to have WEEE
subjected to specific treatments, in order to
remove and dispose properly all pollutants, and
recover and recycle all materials. Individuals can
play an important role in ensuring that WEEE
does not become an environmental issue; it is
essential to follow some basic rules:
WEEE should not be treated as household
WEEE should be handed over to the relevant
collection points managed by the municipality or
by registered companies. In many countries, for
In many countries, when you buy a new
appliance, the old one may be returned to the
retailer who has to collect it free of charge on a
one
one basis, as long as the equipment is of
equivalent type and has the same functions as
the supplied equipment.
1.
2.
3.
4.
5.
6.
7.
8.
Contents
Environmental conditions
FOR U.K. ONLY
On receipt of your appliance please
check it carefully for damage. Any
damage found must be reported
delivery driver immediately.
damage found must be
reported to the retailer within 2 days of
receipt.
Only use the washing
to the
Alternatively
waste;
large WEEE, home collection could be present.
-to-
GENERAL SAFETY RULES
INSTALLATION
DETERGENT DRAWER
PRACTICAL HINTS
CLEANING AND MAINTENANCE
QUICK USER GUIDE
CONTROLS AND PROGRAMMES
TROUBLESHOOTING AND WARRANTY
Page 4
4
1. GENERAL SAFETY RULES
This appliance is intended to
be used in household and
similar applications such as:
- Staff kitchen areas in shops, offices
and other working environments;
- Farm houses;
- By clients in hotels, motels and
other residential type environments;
- Bed and breakfast type environments.
A different use of this appliance
from household environment
or from typical housekeeping
functions, as commercial use by
expert or trained users, is excluded
even in the above applications. If
the appliance is used in a manner
inconsistent with this it may reduce
the life of the appliance and may
void the manufacturer’s warranty.
Any damage to the appliance or
other damage or loss arising
through use that is not consistent
with domestic or household use
(even if located in a domestic or
household environment) shall not
be accepted by the manufacturer to
the fullest extent permitted by law.
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
Children should be supervised
to ensure that they do not play
with the appliance.
Children of less than 3 years
should be kept away unless
continuously supervised.
If the supply cord is damaged, it
must be replaced by a special
cord or assembly available from
the manufacturer or its service
agent.
Only use the hose-sets
supplied with the appliance for
the water supply connection
(do not reuse old hose-sets).
Water pressure must be between
0.05 MPa and 0.8 MPa.
Make sure carpets or rugs do
not obstruct the base or any of
the ventilation openings.
After installation, the appliance
must be positioned so that the
plug is accessible.
The maximum load capacity of
dry clothes depends on the
model used (see control panel).
To consult the product technical
specification please refer to the
manufacturer website.
Page 5
5
EN
water may reach very high
temperatures during the
wash cycle.
Electrical connections and
safety instructions
The technical details (supply
voltage and power input) are
indicated on the product rating
plate
Make sure that the electrical
system is earthed, complies
with all applicable law and that
the (electricity) socket is
compatible with the plug of the
appliance. Otherwise, seek
qualified professional assistance.
The use of converters, multiple
sockets or extension cords is
strongly advised against
Before cleaning or maintaining
the washing machine, unplug
the appliance and turn off the
water tap.
Do not pull on the power cord
or appliance to unplug the
machine.
Make sure there is no water in
the drum before opening the
door.
Do not expose the washing
machine to rain, direct sunlight
or other weather elements.
Protect from possible freezing.
When moving, do not lift the
washing machine by the knobs
or detergent drawer; during
transport, never rest the door on
the trolley. We recommend two
people lift the washing machine.
In the event of fault and/or
malfunction, turn off the
washing machine, close the
water tap and do not tamper
with the appliance.
Immediately contact the
Customer Service Centre and
only use original spare parts.
Failure to observe these
instruction may jeopardise
appliance safety.
WARNING:
Page 6
6

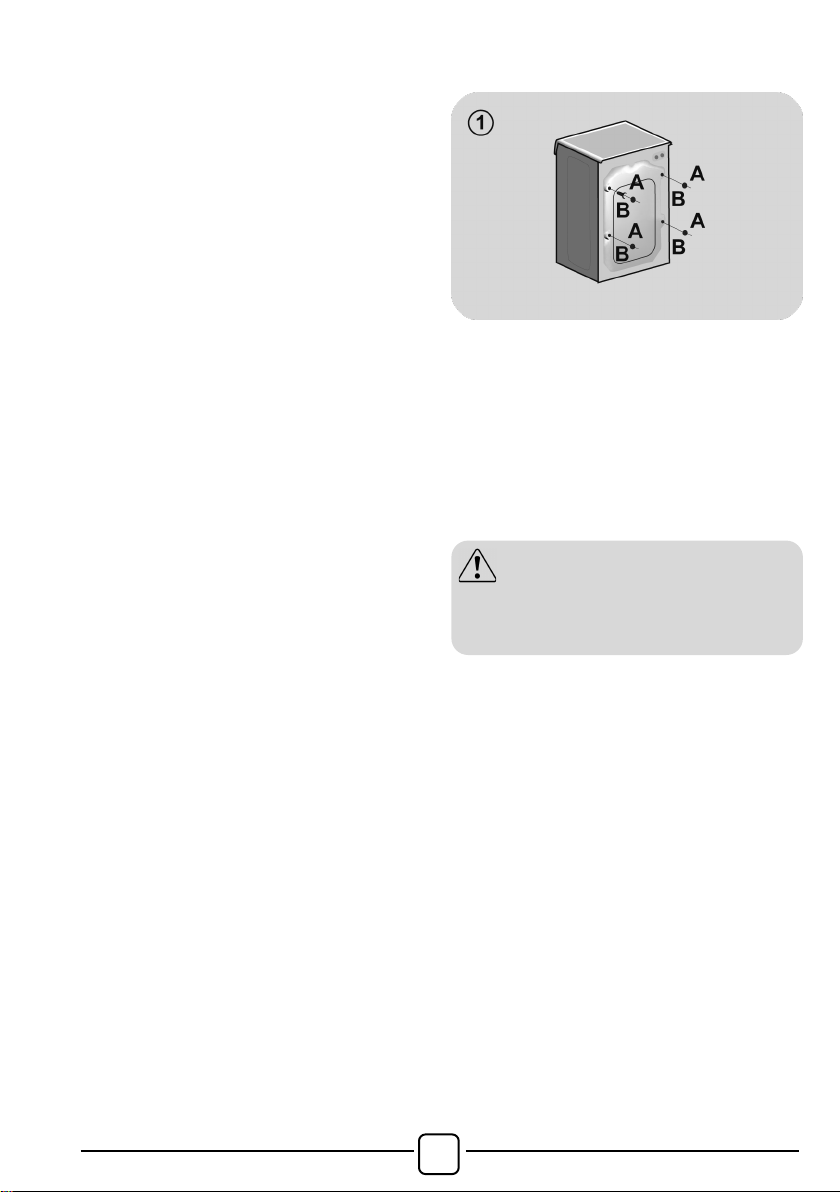

Remove the 2 or 4 transportation
on the back and
flat washers,
rubber bungs and plastic spacer
.
-
4
and
flat washers,
rubber bungs and plastic spacer
During the removal of the screws
occasionally spacer tubes fall
inside the product, these can be
remove by tilting the product forward
them from the floor
Cover the open transportation screw
plastic caps
keep packaging materials
away from children.
2. INSTALLATION
screws
(A)
remove the 2 or 4
tubes
(B)
as illustrated
If the washing machine is
in
, unscrew the 3 or
transportation screws
remove the 3 or 4
in figure 1
(A)
tubes
(B)
.
and recovering
or inside the base of the machine.
holes with the 2 or 4
included in the instruction bag.
built
WARNING:
Page 7
7
EN

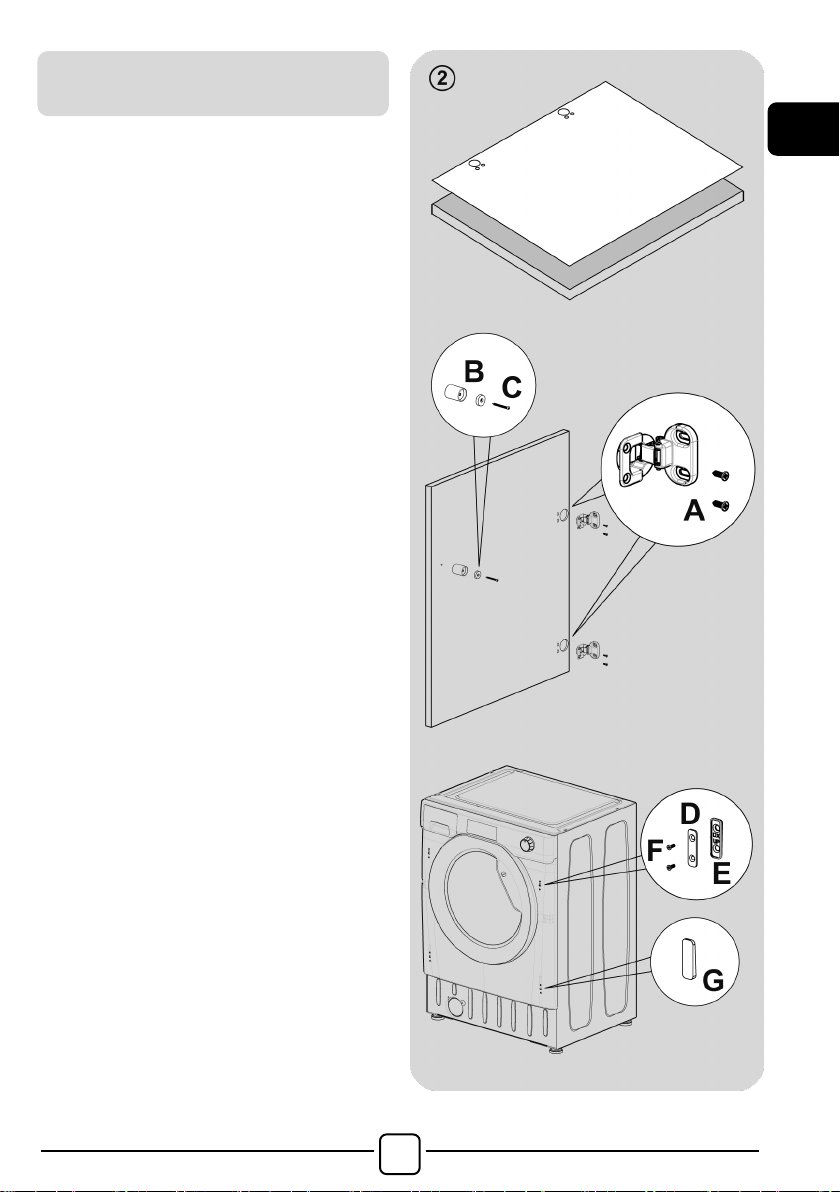

Position the template onto the
reverse of the furniture door. It
is possible to mount the hinges
and closure magnet on the right
hand side depending on
your requirements. Mark the
screw hole positions, then drill
hinges in place with the
in place
on the right
hand side, depending on
your installation requirements.
(E)
under the plate and fix it in
in the
Instructions for mounting the
furniture door
or left-
out these positions.
Fix the
4 screws provided (A).
Fix the magnet (B)
using screw (C).
Mount the plate (D)
or left-
Place the plastic support
position with screw (F).
Snap mount cap (G)
lower position.
Page 8
8

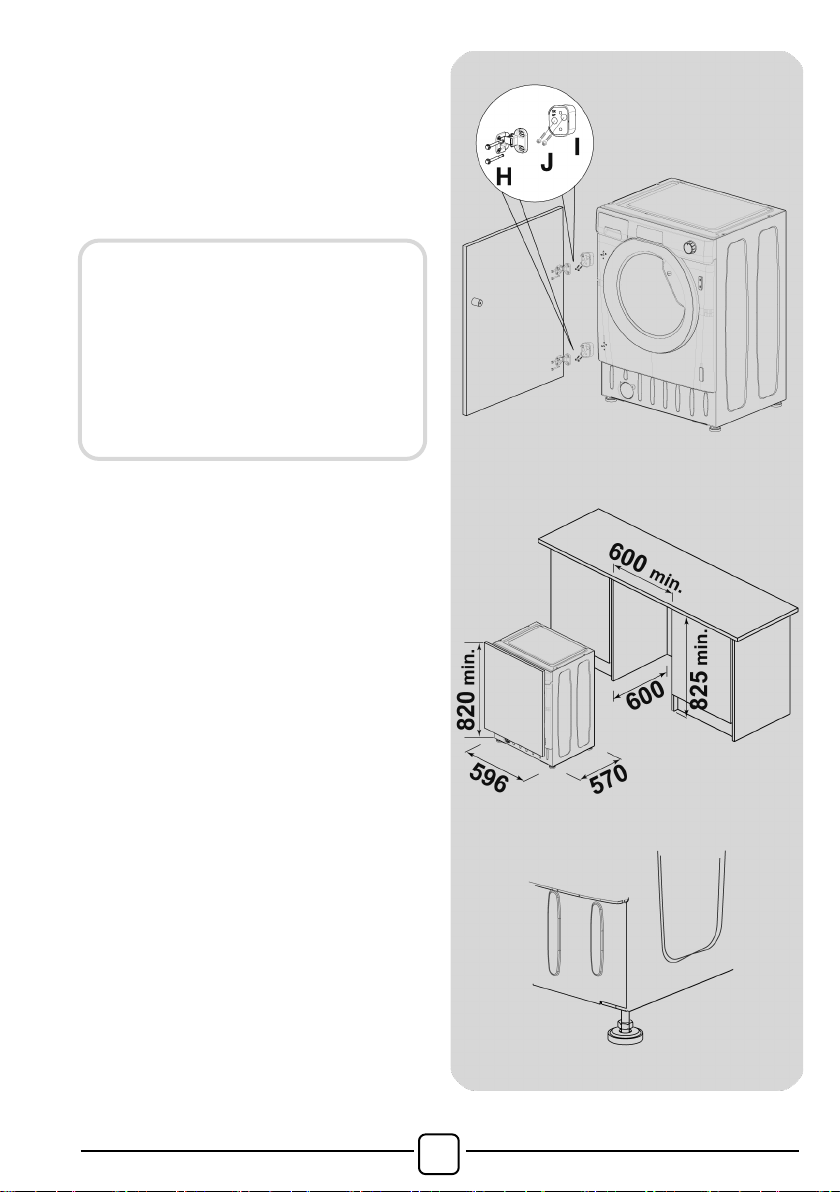

Mount the furniture door to the
front of the washer using the
in
and
then fix the hinges with 2 screw
lide the washer into an
opening of the size indicated in
the diagram opposite. A furniture
plinth may be run across the front
of the appliance, but its height will
be dictated by the height the
The 4 adjustable feet allow the
the washer to be
adjusted from 820 mm to a
maximum of 840 mm. To adjust
the height, you should remove
the nuts fitted to each foot and
replace these with the 5 mm
nuts supplied. Raise the feet to
your desired height and then
the
base of the washer.
We suggest mounting the
furniture door so that it opens
towards the left, which is the
same direction as the porthole
door. This will leave more
space when you are loading
washing into the appliance.
hinges. Fix the spacers (I)
place with the 2 screws (J)
(H).
S
washer is set at.
height of
fully tighten the lock nut to
Page 9
9
EN

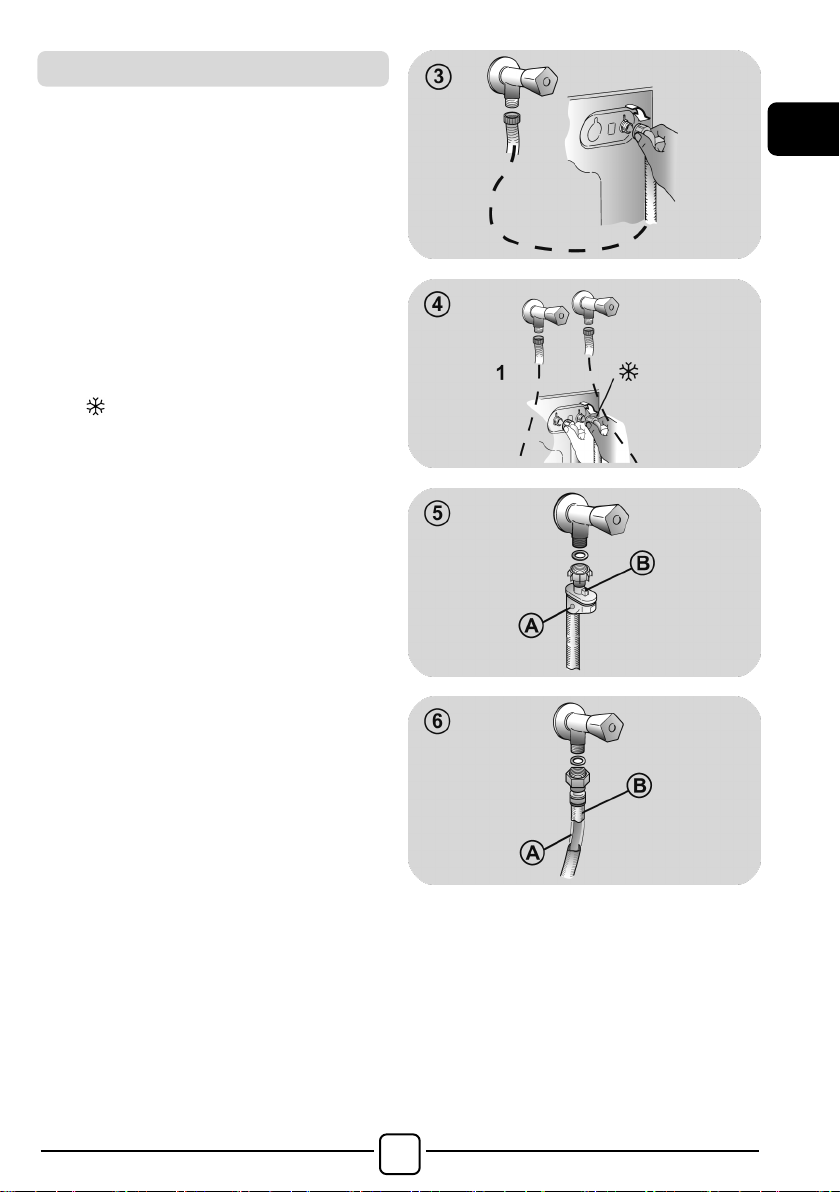

Connect the water hose to the water
only using the hose
supplied with the appliance (do not
may include one or
water mains connection settings with hot
Connect the grey tube to the cold water
and the red one to the hot water
n be connected to
the cold water tap only: in this case, some
a device located on the supply tube that
stops water flow if the tube deteriorates;
in this case, a red mark will appear in the
” and the tube must be
replaced. To unscrew the nut, press the
SUPPLY TUBE WITH
Should water leak from the primary
, the transparent
" will contain water
to permit the washing cycle to complete.
At the end of the cycle, contact the
Customer Service Centre to replace the
Hydraulic connections
supply tap (fig. 3)
reuse old hose-sets).
SOME MODELS
more of the following features:
HOT&COLD (fig. 4):
and cold water for higher energy savings.
tap
tap. The machine ca
programs may start a few minutes later.
AQUASTOP (fig. 5):
window “A
one-way lock device "B".
AQUAPROTECT –
GUARD (fig. 6):
internal tube "A"
containment sheath "B
supply tube.
Page 10
10

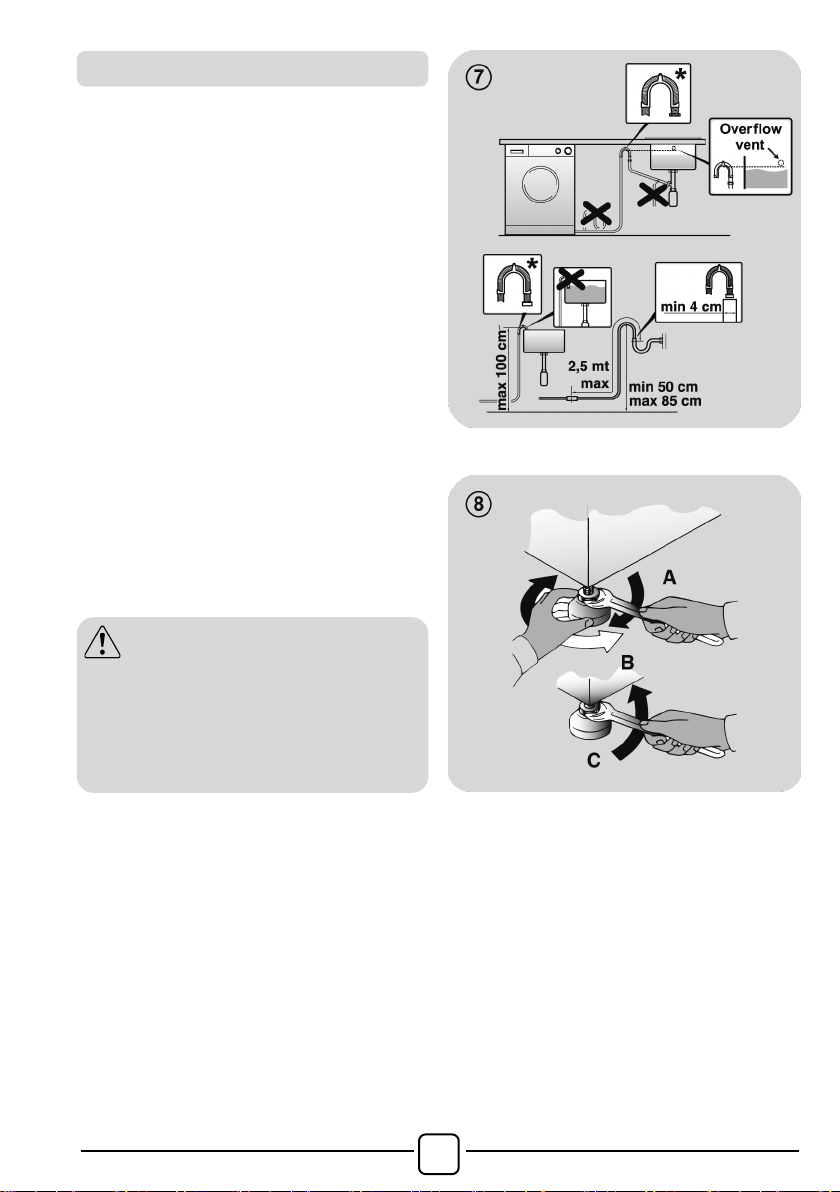

The washing machine should be installed in
its final position such that the water fill hose
is not kinked or trapped. The corrugated
drain hose should be inserted into suitable
drain pipe of between 50 cm and 85 cm
ht above the floor using the curved drain
hose support. If an under sink connection is
used the drain hose must be routed above
the sink overfill opening to prevent back
siphoning. Care must be taken to avoid
Level the appliance using the feet as
turn the nut clockwise to release the
rotate the foot to raise or lower it until it
lock the foot, screwing in the nut, until it
tightens against to the bottom of the
*
contact the Customer Service Centre
should the power cord need
by
the manufacturers warranty.
Setting
heig
kinking or trapping the drain hose
illustrated in figure 8:
a.
screw;
b.
touches to the floor;
c.
washing machine.
Plug in the appliance.
WARNING:
replacement.
Installation faults are not covered
(fig. 7)
.
ACCESSORY SOLD SEPARATELY
Page 11
11
EN
some detergents are not designed for
use in the dispenser drawer but are
supplied with their own dispenser that
is placed in the drum directly.
only use liquid products; the washing
machine is set to automatically dose
additives at each cycle during the last
rinse.

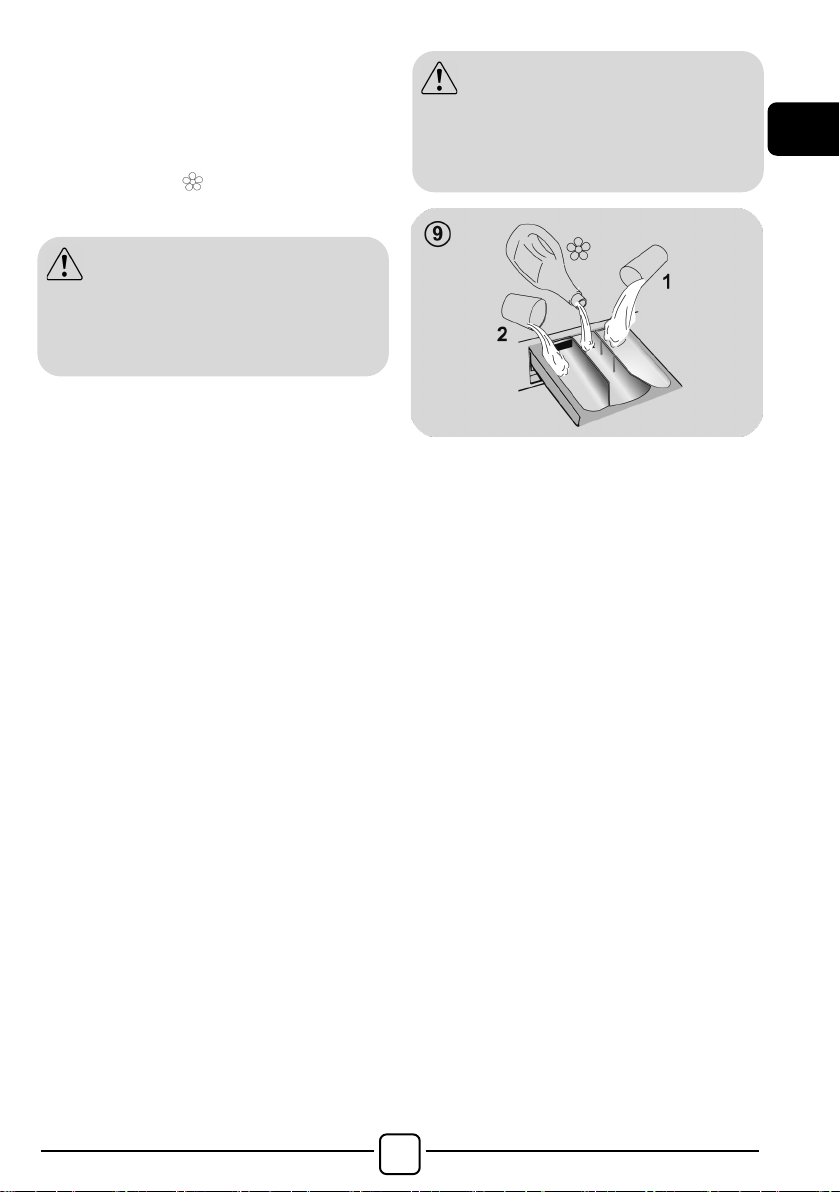

3. DETERGENT DRAWER
The detergent draw is split into 3
compartments as illustrated in figure 9:
compartment "1": for prewash detergent;
compartment “ ”: for special additives,
softeners, starch fragrances, etc.;
WARNING:
compartment "2": for washing
detergent.
WARNING:
Page 12
12
Dosing the detergent
Useful advice for saving
Load tips
4. PRACTICAL HINTS
When sorting laundry, make sure:
- have eliminated metallic objects such as
hair clips, pins, coins, from laundry;
- to have buttoned pillow cases, closed zips,
tied loose belts and long robe ribbons;
- to have removed rollers, hooks or clips
from curtains;
- to have carefully read clothing washing
labels;
- to have removed any persistent stains
using specific detergents.
When washing rugs, bedcovers or other
heavy clothing, we recommend you avoid
the spinning cycle.
To wash wool, make sure the item can be
machine washed. Check the fabric label.
Leave the appliance’s door slightly open
between washes, to prevent possible bad
smells developing inside the machine.
Tips on how to save money and not
damage the environment when using your
appliance.
Load the machine to the highest capacity
shown in the programme table for each
programme - this will allow you to SAVE
energy and water.
Noise and residual laundry moisture are
affected by spin speed: a faster spin is
associated with greater noise and lower
residual moisture in the laundry.
The most efficient programmes in terms
of combined use of water and energy are
usually the longer-lasting ones with lower
temperature.
Maximise the load size
Achieve the best use of energy, water,
detergent and time by using the
recommended maximum load size.
Save up to 50% energy by washing a full
load instead of 2 half loads.
Do you need to pre-wash?
For heavily soiled laundry only!
SAVE detergent, time, water and
between 5 to 15% energy consumption
by NOT selecting Prewash for slight to
normally soiled laundry.
Is a hot wash required?
Pretreat stains with stain remover or soak
dried in stains in water before washing to
reduce the necessity of a hot wash
programme. Save energy by using a low
temperature wash programme.
Before using a drying programme
(WASHER-DRYERS)
SAVE energy and time by selecting a
high spin speed to reduce the water
content in laundry before using a drying
programme.
Below is a short guide with tips and advice
on the use of detergent.
Only use detergents suitable for machine
washing.
Select your detergent according to the
type of fabric (cotton, delicates,
synthetics, wool, silk, etc.), the colour, the
type and level of soiling and the
programmed washing temperature.
To use the right amount of detergent,
softener or any other additives, carefully
follow the manufacturer’s instructions
every time: correctly using the
appliance with the right dose allows
you to avoid waste and to reduce the
environmental impact.
Page 13
13
EN
For washing wool or silk, only use
detergents specifically formulated for
For washing at temperatures below
d the use of liquid
detergents or detergents specifically
labeled as suitable for low temperature
washing.
For washes between 40°C and 60°C
the type of detergent used needs to be
appropriate for the type of fabric and
level of soiling. Normal powders are
with high soiling, while liquid detergents
or “colour protecting” powders are
suitable for coloured fabrics with light
levels of soiling.
When washing heavily soiled whites,
of
or above and a normal washing
powder (heavy duty) that contains
bleaching agents that at medium/high
temperatures provide excellent results.
we recommend using cotton programs
60°C
suitable for “white” or colour fast fabrics
40°C we recommen
these fabrics.
Too much detergent leads to excessive
foam, which prevents the cycle being
carried out correctly. It could also affect
the quality of the washing and rinsing.
The use of ecological detergents without
phosphates may cause the following
effects:
- cloudier rinse drain water: This effect is
tied to the suspended zeolites which do
not have negative effects on rinse
efficiency.
- white powder (zeolites) on laundry at
the end of the wash: this is normal, the
powder is not absorbed by fabric and does
not change its colour.
To remove the zeolites, select a rinse
programme. In the future consider using
slightly less detergent.
- foam in the water at last rinse: this does
not necessary indicate poor rinsing.
Consider using less detergent in future
washes.
- abundant foam: This is often due to the
anionic surfactants found in the detergents
which are hard to eliminate from laundry.
In this case, do not re-rinse to eliminate
these effects: it will not help at all.
We suggest conducting a maintenance
wash using a proprietary cleaner.
If the problem persists or if you suspect a
malfunction, immediately contact an
Authorised Customer Service Centre.
Page 14
14
Suggestions for moves or
prolonged disuse
Cleaning the pump filter
Drawer cleaning
Cleaning the appliance’s exterior
5. CLEANING AND MAINTENANCE
Looking after your appliance correctly can
extend its lifespan.
Disconnect the machine from the power
supply.
Clean the appliance’s external cabinet,
using a damp cloth and AVOIDING
ABRASIVES, ALCOHOL AND/OR
DILUENTS.
It is advisable to regularly clean the
detergent drawer to avoid the
accumulation of detergent and additive
residues.
Remove the drawer gently but firmly.
Clean the drawer under running water
and put it back into its compartment.
The appliance has a special filter that
traps larger residues that could block the
draining system, such as buttons or
coins.
We recommend checking and cleaning
the filter 5 or 6 times a year.
Disconnect the machine from the power
supply.
Ensure all the water has been emptied
from the drum.

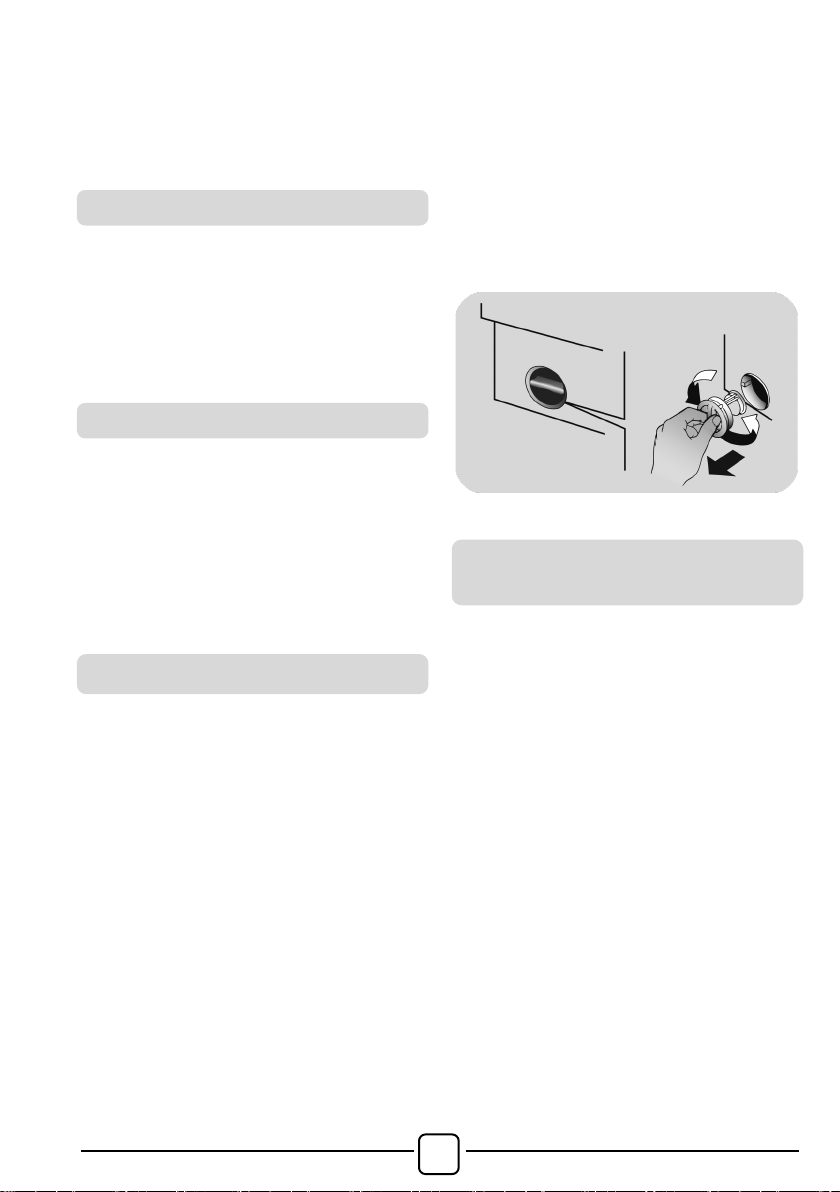

Before unscrewing the filter, we
recommend you place an absorbent towel
under it to keep the floor dry. A small
amount of water will come out of the filter
as you remove it - this is normal.
Turn the filter counter-clockwise to the
limit stop.
Remove and clean the filter; when
finished, replace it turning it clockwise.
The filter handle will be locked when it is
not possible to turn any further and the
handle is horizontal. Smearing a small
amount of liquid soap on the filter seal will
help refitting.
Repeat the previous steps in reverse
order to reassemble all parts.
If the appliance is kept in a non-heated
room for long periods of time, all water
residues must be completely removed
from the pipes.
Disconnect the machine from the power
supply socket.
Detach the tube from the drainage system
and clip on the rear of the machine and
lower it, fully draining water into a bowl.
Secure the drain tube with the drainage
system and clip on the rear of the
machine when finished.
Keep the door glass and gasket clean.
Page 15
15
EN

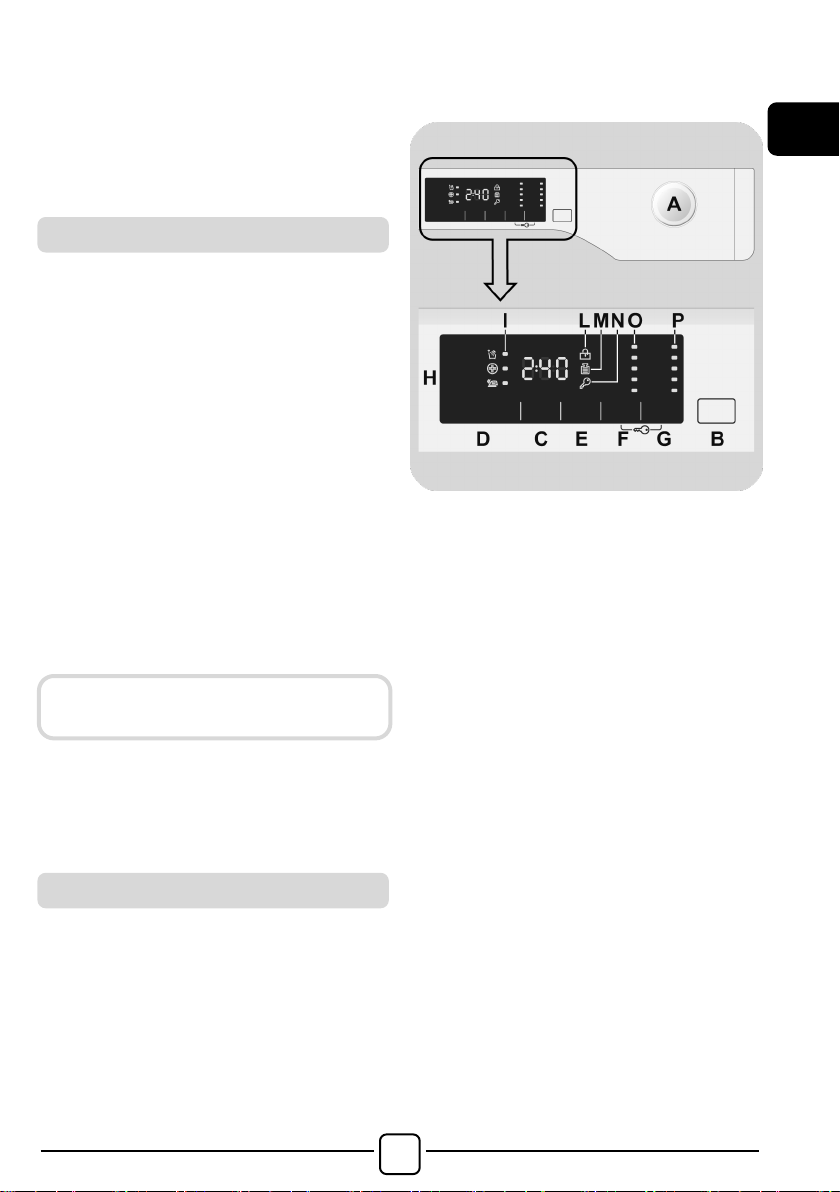

A
Programme selector with OFF
position
B
START/PAUSE button
C
DELAY START button
D
OPTIONS button
E
RAPID / STAIN LEVEL button
F
TEMPERATURE SELECTION
button
G
SPIN SPEED button
F+G
KEY LOCK
H
Digital display
I
OPTIONS indicator lights
L
DOOR LOCKED indicator light
M
KG MODE indicator light
N
KEY LOCK indicator light
O
TEMPERATURE SELECTION
indicator lights
P
SPIN SPEED indicator lights
Technical data
Wait until the DOOR LOCKED light has
gone out before opening the door.
Program selection
6. QUICK USER GUIDE
This washing machine automatically adjusts
the level of the water to the type and
quantity of washing. This system gives a
reduction in energy consumption and a
saving in washing times.
Turn on the washing machine and select
the required program.
Adjust the washing temperature if
necessary and press the required "option"
buttons.
Press the START/PAUSE button to start
washing.
If there is a break in the power supply
whilst the machine is operating, when
the power is restored, the machine will
restart from the beginning of the phase it
was in when the power was lost.
At the end of the programme, the
message "End" will appear on the display
or, on some models, all wash stage
indicator lights will turn on.
7. CONTROLS AND PROGRAMMES
Turn off the washing machine.
For any type of wash, see the program
table and follow the operating sequence
as indicated.
Water pressure:
min 0.05 Mpa / max 0.8 Mpa
(0.05 MPa dispenses approximately 1 litre
of water in 10 seconds)
Spin r.p.m.: See rating plate.
Power input / Power current fuse amp /
Supply voltage: See rating plate.
Page 16
16
DELAY START button
For safety reasons, in some wash
cycle phases, the door can be opened
only if the level of the water is below
rature
is less than 45°C. If these conditions
are met, wait for the DOOR LOCKED
light to switch off before opening the
door.
When the START/PAUSE button has
been pressed, the appliance can take
few seconds before it starts working.
Close the door BEFORE selecting the
button START/PAUSE.
START/PAUSE button
The programme selector must be
returned to the OFF position at the end
each cycle or when starting a
subsequent wash cycle prior to the next
When the programme selector is turned
the display lights up to show the settings
For energy saving, at the end of the
cycle or with an inactivity period, the
N.B.: To switch the machine off, turn
the programme selector to the OFF
position.
PROGRAMME selector with OFF
position
A special safety device prevents the
door from being opened immediately
Wait for 2 minutes after the wash
cycle has finished and the "Door
Security" light has gone out before
opening the door.
Opening the door
Press to start the selected cycle.
after the end of the cycle.
for the programme selected.
display level contrast will decrease.
Press the START/PAUSE button to start
the selected cycle.
Once a programme is selected the
programme selector remains stationary on
the selected programme till cycle ends.
Switch off the washing machine by
turning the selector to OFF.
of
programme being selected and started.
PAUSING THE MACHINE
Keep the START/PAUSE button pressed
for about 2 seconds (some light indicators
and the residual time display will flash,
showing that the machine is paused).
its lower edge and if the tempe
Press the START/PAUSE button again to
re-start the programme from the point it
had been paused at.
CANCELLING THE PROGRAMME
To cancel the programme, set the
selector to the OFF position.
This button allows you to pre-programme
the wash cycle to delay the start of the
cycle for up to 24 hours.
To delay the start use the following
procedure:
- Select the required programme.
- Press the delay start button once to
activate it (h00 appears on the display)
and then press it again to set a 1 hour
delay (h01 appears on the display). The
pre-set delay increases by 1 hour each
Page 17
17
EN
TEMPERATURE SELECTION
button
RAPID / STAIN LEVEL button
If an option is selected that is not
compatible with the selected
programme then the option indicator
OPTIONS button
The option buttons should be selected
before pressing the START/PAUSE
button.
time the button is pressed, until h24
appears on the display, at which point
pressing the button again will reset the
delay start to zero.
- Confirm by pressing the START/PAUSE
button. The delay countdown will begin
and when it has finished the programme
will start automatically.
It is possible to cancel the delay start by
turning the programme selector to OFF.
If there is a break in the power supply
whilst the machine is operating, when
the power is restored, the machine will
restart from the beginning of the phase it
was in when the power was lost.
This button allows you to choose between
three different options:
- EXTRA RINSE
This option allows you to add one rinse at
the end of the washing cycle and is useful
for people with delicate and sensitive
skin, for which a small amount of
detergent residue can cause irritations or
allergies.
It is advisable to also use this function for
the children clothes and for the washing
of heavily soiled items, which requires a
lot of detergent to be used, or for the
washing of toweling items whose fibres
mostly have the tendency to hold the
detergent.
- HYGIENE +
Activated when you set 60°C of
temperature. This option allows deep
cleaning of your clothes by maintaining the
same temperature for the whole wash.
- EASY IRON
This function allows you to minimizes
creases as much as possible, eliminating
the intermediate spins or reducing the
intensity of the last one.
light first flashes and then goes off.
This button allows you to choose between
two different options, depending on the
selected programme.
- RAPID
The button becomes active when
you select the RAPID CARE (14'/30'/44')
programme on the knob and allows you to
select one of three durations indicated.
- STAIN LEVEL button
Once the programme has been selected
the wash time set for that programme will
be automatically shown.
This option allows you to choose between
3 levels of wash intensity modifying the
length of the programme, depending on
how much the fabrics are soiled (can only
be used on some programmes as shown
in the table of programmes).
This button allows you to change the
temperature of the wash cycles.
It is not possible to raise the temperature
over the maximum allowed for the
programme, in order to protect the
fabrics.
If you want carry out a cold wash all the
indicators must be off.
Page 18
18
Close the door BEFORE selecting the
START/PAUSE button.
Digital Display
KEY LOCK
The machine is fitted with a special
electronic device, which prevents the
spin cycle should the load be
unbalanced. This reduces the noise
and vibration in the machine and so
prolongs the life of your machine.
An over dosing of detergent can
cause excessive foaming. If the
appliance detects the presence of
excessive foam, it may exclude the
r extend the duration
of the program and increase water
consumption.
To prevent damage to the fabrics, it is
not possible to increase the speed
over the maximum allowed for the
programme.
SPIN SPEED button
By pressing this button, it is possible to
reduce the maximum speed, and if you
wish, the spin cycle can be cancelled.
If the label does not indicate specific
information, it is possible to use the
maximum spin expected in the program.
The key lock can be simply cancelled by
pressing the two buttons simultaneously
again or turning off the appliance.

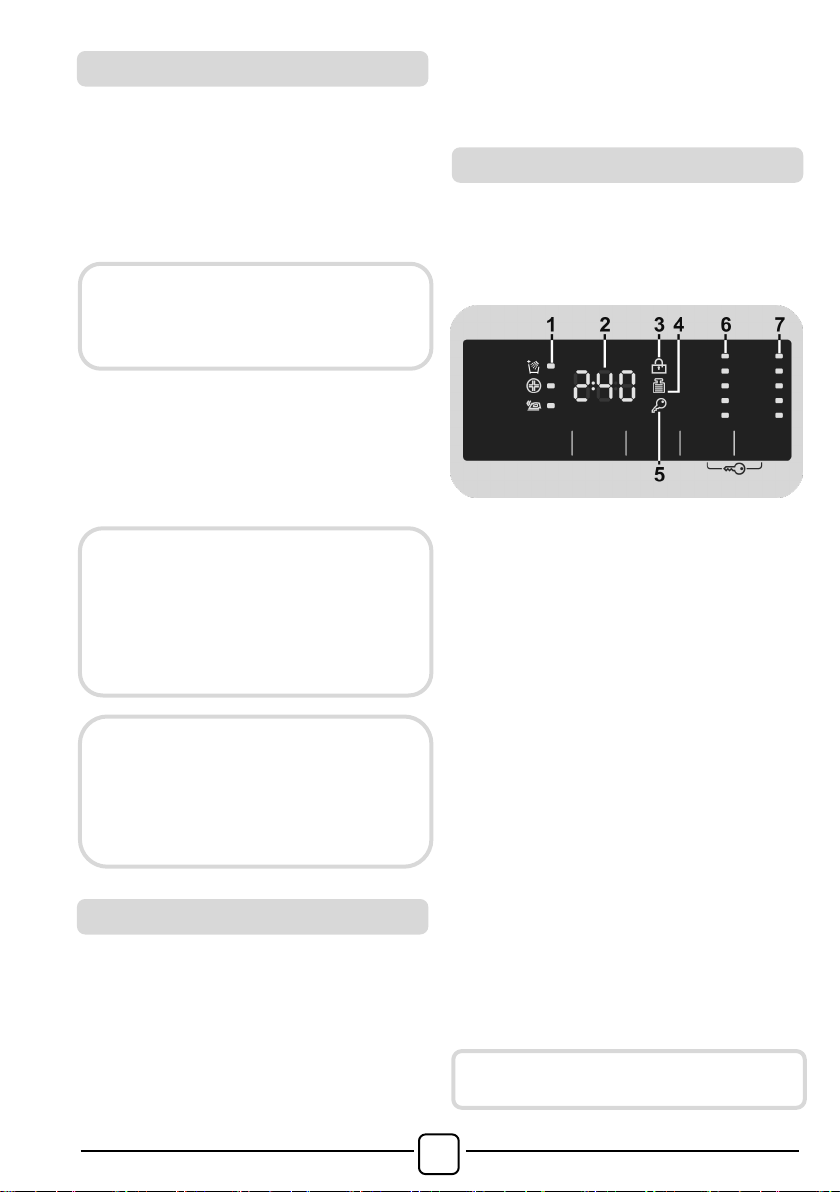

The display’s indicator system allows you to
be constantly informed about the status of
the machine.
To reactivate the spin cycle press the
button until you reach the spin speed you
would like to set.
It is possible to modify the spin speed
without pausing the machine.
spinning phase o
Pressing simultaneously the buttons
TEMPERATURE SELECTION and SPIN
SPEED for about 3 seconds, the
machine allows you to lock the keys. In
this way, you can avoid making
accidental or unwanted changes if a
button on the display is pressed
accidently during a cycle.
1) OPTIONS INDICATOR LIGHTS
The indicator lights show the options that
can be selected by the relevant button.
2) CYCLE DURATION
When a programme is selected the
display automatically shows the cycle
duration, which can vary, depending on
the options selected.
During the initial filling phase of the cycle
the machine calculates the actual cycle
time needed based on the load size,
content and options selected. The real
time of the wash will then be displayed.
This time can recaulculate during the
wash depending on detergent levels and
load balancing.
3) DOOR LOCKED INDICATOR LIGHT
The indicator light is illuminated when the
door is fully closed.
Page 19
19
EN
If the door is not properly closed,
for
, after which the
will be automatically
the
press
the START/PAUSE button.
When START/PAUSE is pressed on
the machine with the door closed, the
indicator will flash momentarily and then
illuminate.
the light will continue to flash
about 7 seconds
start command
cancelled. In this case, close
door in the proper way and
A special safety device prevents the door
from being opened immediately after the
end of the cycle. Wait for 2 minutes after
the wash cycle has finished and the
DOOR LOCKED light has gone out before
opening the door. At the end of the cycle
turn the programme selector to
OFF.
4) Kg Mode INDICATOR LIGHT (function
active only on Cotton and Synthetics
programmes)
During the first minutes of the cycle, the
"Kg Mode" indicator will remain on while
the intelligent sensor will weigh the
laundry and adjust the cycle time, water
and electricity consumption accordingly.
Through every wash phase
allows to monitor information on the wash
load in the drum and in the first minutes of
the wash it:
- adjusts the amount of water required;
- determines the length of the wash cycle;
- controls rinsing according to the type of
fabric selected to be washed it;
- adjusts the rhythm of drum rotation for
the type of fabric being washed;
- recognises the presence of too much
soap suds, and if necessary, adjust the
amount of rinse water.
"Kg Mode"
- adjusts the spin speed according to the
load, thus avoiding any imbalance.
5) KEY LOCK INDICATOR LIGHT
The indicator light show that the keys are
locked.
6) WASH TEMPERATURE INDICATOR
LIGHTS
This show the washing temperature of the
selected programme that can be changed
(where allowed) by the relevant button.
If you want carry out a cold wash all the
indicators must be off.
7) SPIN SPEED INDICATOR LIGHTS
This show the spin speed of the selected
programme, you can reduce or omit by the
relevant button.
Page 20
20
(MAX.)
1)
(MAX.)
2 1
2)
2)
2)
2)
2)
2)
2)

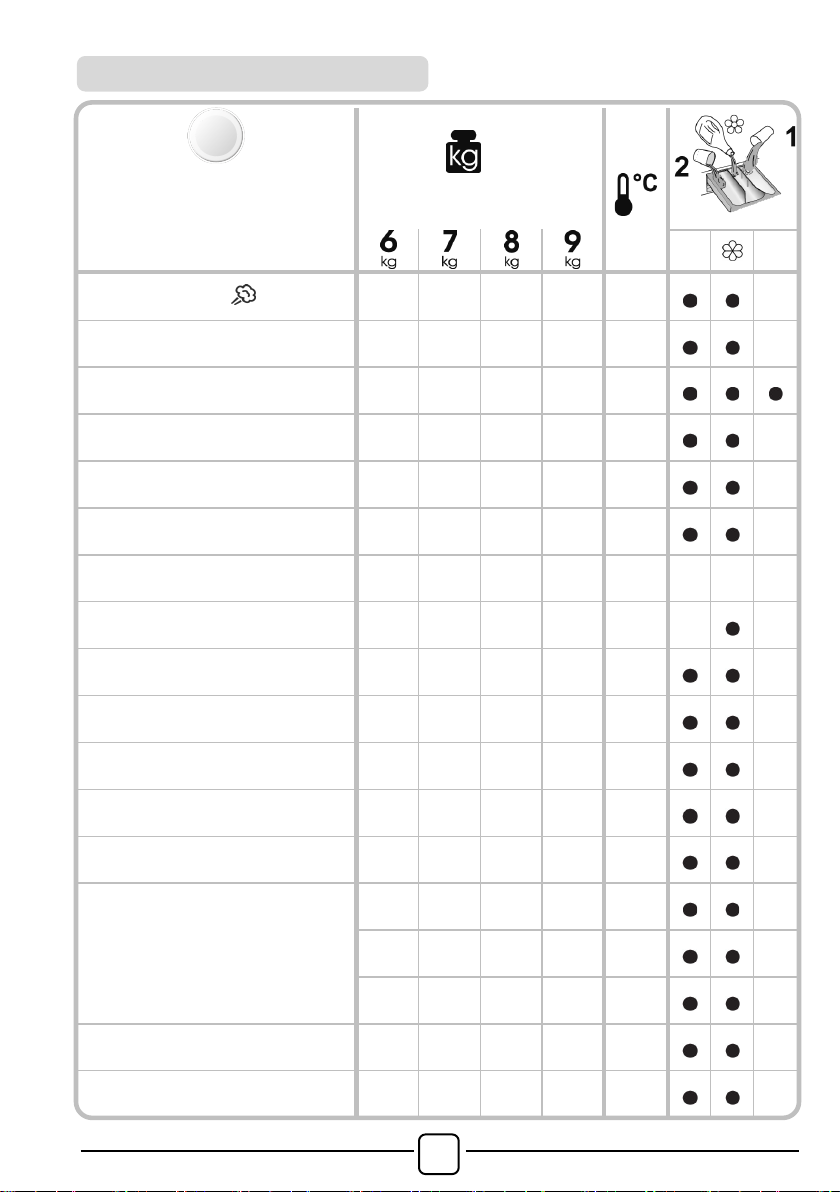

Table of programmes
PROGRAMME
Shirts
Cottons
Cottons + Prewash
ECO 40-60
20°C
Mixed
Drain & Spin
Rinse
Wool & Handwash
Delicates
*
(see control panel)
3 3,5 4 4,5
6 7 8 9
6 7 8 9
6 7 8 9
6 7 8 9
3 3,5 4 4,5
- - - -
- - - -
1 1 2 2
2 2,5 2,5 2,5
30°
90°
60°
60°
20°
60°
-
-
30°
40°
Sports
Dark Colours
Allergy Care 60°
14'
Rapid Care
44'
All In One 59'**
Cotton Care 59'**
2,5 3 3,5 4
3 3,5 4 4,5
2 2 2 2
1 1 1,5 1,5
3)
30'
2 2,5 2,5 2,5
3 3,5 3,5 3,5
6 7 8 9
3 3,5 4 4,5
30°
40°
60°
30°
30°
40°
40°
40°
Page 21
21
EN
Please read these notes:
*
Maximum load capacity of dry clothes,
according to the model used (see control
**
1)
When a programme is selected,
on the display is shown the
display shows the recommended
wash temperature that can be
reduced (where allowed) by the
relevant button.
2)
For the programmes shown you
can adjust the duration and
intensity of the wash using the
STAIN LEVEL button.
3)
Selecting the RAPID CARE
program on the knob, it will be
button, one of the three rapid
and 44’.
INFORMATION FOR THE TEST
SETTING THE TEMPERATURE TO
SETTING THE TEMPERATURE TO
panel).
Only available on certain models
possible to select with the RAPID
programs available among 14’, 30’
LABORATORIES
STANDARD PROGRAMMES
ACCORDING TO
(EU) No 1015/2010 e No 1061/2010
ECO 40-60 PROGRAMME
40°C
ECO 40-60 PROGRAMME
________________________________________
STANDARD PROGRAMME
60°C
ACCORDING TO
(EU) No 2019/2023
ECO 40-60 PROGRAMME
Page 22
22
To clean different types of fabrics and
various levels of dirt, the washing machine
has specific programs to meet every need
of washing (see table of programmes).
Shirts
This programme is optimized to reach the
best washing results of shirts. The steam
function following this programme helps
reducing creases making ironing easier.
Cottons
This programme is suitable for washing
coloured cotton garments at 40°C or for
ensuring the highest degree of cleanliness for
cotton resistant laundry washing at 60°C or
90°C. The final spin is at maximum speed that
ensures excellent water removal.
Cottons + Prewash
This programme has been designed to
remove the stronger stains from cotton
white clothes. The prewash guarantees the
tough dirt removal. Add into compartment
"1" a quantity of detergent equal to 20% of
that used for main wash.
ECO 40
The
programme is able to clean
normally soiled cotton laundry declared to
be washable at 40°C or 60°C, together in
the same cycle. This programme is used to
assess the compliance with the EU
Ecodesign legislation (environmentally
friendly products design).
20°C
This innovative programme, allows you to
wash different fabrics and colours together,
such as cottons, synthetics and mixed
fabrics at only 20°C and provides an
excellent cleaning performance.
Consumption on this program is about 40%
of a conventional 40°C cottons wash.
Mixed
This programme allows you to wash
different type’s fabrics and different colours
all together. The rotation movement of the
drum and the water levels are optimized,
both during the washing the rinsing phase.
The accurate spin action, ensures a
reduced formation of creas
Drain & Spin
The program completes the drain and a
maximum spin. It is possible to delete or
reduce the spin through the SPIN
SELECTION button.
Rinse
This program performs 3 rinses with an
intermediate spin (which can be reduced or
excluded by using the appropriate button). It
is used for rinsing any type of fabric, for
example after a wash carried out by hand.
Wool & Handwash
This programme performs a wash cycle
dedicated to the wool fabrics that can be
washed in a washing machine, the articles
to be washed by hand or laundry items
made from silk or specified as "Wash as
Silk" on the fabric label.
Delicates
This programme has reduced periods of
drum rotation during the cycle and is
particularly suitable or washing delicate
fabrics. The wash cycle and rinses are
carried out with a high level of water to
ensure the best performance.
IMPORTANT WASH PERFORMANCE
New, coloured garments should be
eparately for at least 5 or 6
Certain large dark items such as
jeans and towels should always be
Choose programme in accordance
on labels, especially the maximum
recommended temperature.
Description of programmes
with the laundry instructions appearing
WARNING:
ADVICE.
washed s
washes.
washed separately.
Never mix NON COLOURFAST fabrics.
-60
ECO 40-60
es in the fabrics.
Page 23
23
EN
Sports
This programme is specially designed to
wash mixed sportswear fabrics that cannot
be washed on hotter programmes and is
designed to remove the dirt and staining
created by participation in sports activities.
Dark Colours
Program designed to mix all dark garments
and to avoid the loss of colour and the
formation of creases. We recommend the
use of liquid detergent.
Allergy Care 60°
This programme offers thorough cleaning of
all cotton items, sanitising and eliminating
bacteria. It is an efficient high temperature
washing cycle. Recommended for small loads.
Rapid Care (14'/30'/44')
Saving without compromising! This new
programme may be used to obtain excellent
results while saving water, energy,
detergent and time. This option washes at
a medium
re suitable for any kind
of fabric. Recommended for small loads
and lightly soiled items.
All In One 59'
(only available on certain models)
This programme allows you to wash different
fabrics together such as cottons, synthetics and
mixed fabrics in only 59 minutes, using the
full load of the washing machine, at 40°C
(or less) temperature. This programme is
particularly suited to slightly dirty fabrics.
Cotton
(only available on certain models)
This programme guarantees excellent
results for cotton laundry.
This option was designed to cut washing
time at medium temperatures for mediumsoiled cotton laundry. Fill the machine only
halfway for best results.
temperatu
Care 59'
Page 24
24
E2 (with display)
The machine cannot load water.
Make sure the water supply tap is open.
Make sure the water supply hose isn’t bent, kinked or trapped.
Make sure the drain pipe is at the proper height (see installation section).
Close the water supply tap, unscrew the filler hose from the back of
and not blocked.
Check that the filter is not clogged or that there are no foreign bodies
water.
E3 (with display)
The washing machine does not drain water.
Check that the filter is not clogged or that there are no foreign bodies
water.
Make sure the drain hose isn’t bent, kinked or trapped.
Make sure the home drainage system is not blocked and is allowing
water to flow through without obstruction. Try to drain the water in the sink.
E4 (with display)
(without display)
There is too much foam and/or water.
Ensure the correct amount of detergent is being used and the
detergent is designed for use in a washing machine.
E7 (with display)
Door problem.
Make sure the door is correctly closed.
from closing fully.
If the door is locked, turn off and unplug the washing machine from
the electrical supply socket, wait 2-3 minutes and reopen the door.
Any other code
Turn off and unplug the washing machine, wait a minute. Turn on the
Authorised Customer Service Centre directly.
Models with a display: the error is shown by a number preceded by the letter “E”
8. TROUBLESHOOTING AND WARRANTY
If you believe the washing machine is not working correctly, consult the quick guide
provided below which includes some practical tips on how to fix the most common
problems.
ERROR CODE FORMAT
(example: E2 = Error 2).
Models without display: an error is shown by a sequence of flashes of every LED.
The error code is shown by the number of flashes followed by a pause of 5 seconds
(example: two flashes – pause 5 seconds – two flashes – repeating = Error 2).
Error shown Possible causes and practical solutions
2 flashes of the LEDs
(without display)
the washing machine and make sure the “anti-sand” filter is clean
inside the filter compartment that can obstruct the proper flow of
3 flashes of the LEDs
(without display)
inside the filter compartment that can obstruct the proper flow of
4 flashes of the LEDs
7 flashes of the LEDs
(without display)
Make sure the clothes inside the drum are not preventing the door
machine and restart a program. If the error occurs again contact an
Page 25
25
EN
The washing machine
Make sure the product is plugged into a working supply socket.
Make sure power is on.
Make sure the wall socket is working, testing it with another
appliance such as a lamp.
The door may not be correctly closed: open and close it again.
Check whether the required program was correctly selected and the
start button pressed.
Make sure the washing machine is not in pause or time delay mode.
Water leaked on the
This may be due to a leak from the seal between the tap, supply
connections correctly.
Make sure the front filter is correctly closed.
The washing machine
The machine is fitted with a detection system that protects the load
restart the spin program.
This could be due to the fact that water has not been completely
section.
Some models include a "no spin" function: make sure it is not
selected.
Check which options are selected and their effect on the spin cycle.
Excessive detergent can impede the spin cycle, ensure the correct
amount of detergent is being used.
Strong vibrations /
The washing machine may not be fully levelled: if necessary, adjust
the feet as indicated in the specific section.
Make sure transport screws, rubber bungs and spacer tubes were
removed.
Make sure there are no foreign objects inside the drum (coins,
hinges, buttons, etc…).
The standard manufacturer warranty covers faults caused by electrical or
ons on use not being followed, a charge may be
applied.
OTHER ANOMALIES
Problem Possible causes and practical solutions
does not work / start
floor near the
hose and fill valve; in this case, replace it and tighten the hose
washing machine
does not spin
and product from damage if the load is not balanced before spinning.
This may result in:-
• The machine attempts to balance the load, increasing the time of
spin.
• Reduction of the speed of spin to decrease vibrations and noise.
• The spin cycle aborting to protect the machine and load.
If this is experienced remove the load de-tangle it, reload it and
drained: wait a few minutes. If the problem persists, see Error 3
noises are heard
during the spin cycle
mechanical faults in the product due to an act or omission of the manufacturer. If
a fault is found to be caused by factors outside the product supplied, miss-use or
as a result of the instructi
Page 26
26
It is always recommended to use original
spare parts, that are available at our
Authorised Customer Service Centres.
By placing the
mark on this
product, we are confirming compliance
to all relevant European safety, health
and environmental requirements which
are applicable in legislation for this
product.
The manufacturer declines all
responsibility for any printing errors in
the booklet included with this product.
Moreover, it also reserves the right to
make any changes deemed useful to its
products without changing their
essential characteristics.
Warranty
The product is guaranteed under the
terms and conditions stated on the
certificate included with the product. The
has to be stored so as to be
shown to the Authorized Customer
Service Centre in case of need. You can
also check the warranty conditions on
our web site. To obtain assistance,
line or contact
us at the number indicated on the
support page of our web site.
certificate
please fill in the form on-
Page 27
hldsk
Page 28
- HBWS D E (21)_HBWS D A E (21) -
21.07 - 41054349 - IDM s.r.l.
Loading...
