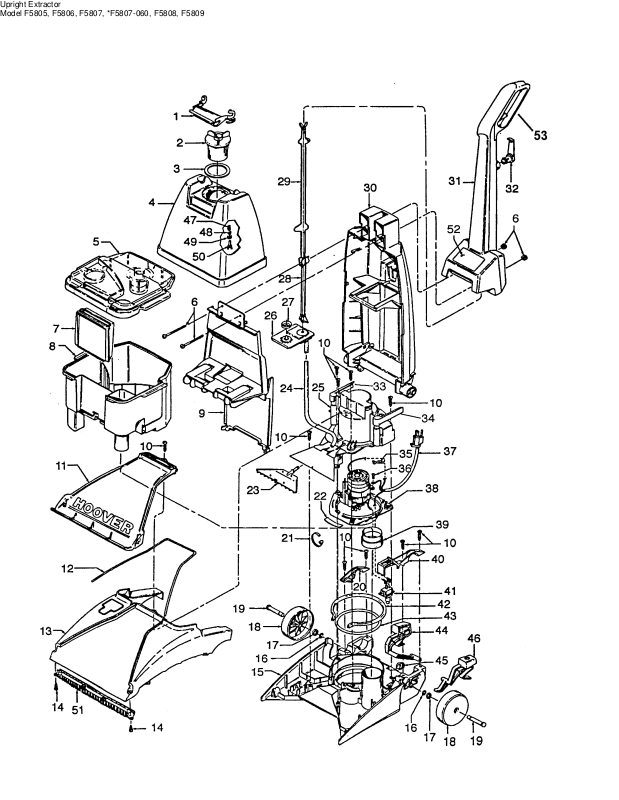

Hoover F5809 Owner's Manual

Upright Extractor
Model F5805, F5806, F5807, *F5807-060, F5808, F5809

Upright Extractor
Model F5805, F5806, F5807, *F5807-060, F5808, F5809

1 39457016 Solution Tank Handle
2 42272002 Solution Tank Cap Assem. (Inc. Item 3)
3 38784062 Gasket
4 42272134 Solution Tank Assem. Comp.
5 42272111 Recovery Tank Lid Assem.
6 40201145 Handle Hardware
7 38661003 Duct - AFG
8 38777081 Recovery Tank Assem. (Incl. Item 5 )
9 37276001 Handle Cover
10 21447020 * Screw Self Tapping - AY (10)
11 N/A Nozzle Front Plate
12 38781037 Seal
13 37271029 Hood - ABV - F5805, F5806 (Incl. It. 11,12,13,14,51)

37271122 Hood Assembly - AFU - F5808

14 21447228 * Screw Self Tapping (2)
15 37272082 + Main Body (Incl. Item 42) F5805 Early models - (See Note)

37272096 Main Body (Incl. Item 42) F5805 Late Models - (See Note), F5806,

16 160017-- * Lock Ring (2)
17 163110-- * Washer (2)
18 38522076 Rear Wheel (2)
19 32434007 Rear Axle (2)
20 36131085 Trunnion Cover - R.H.
21 27479307 * Cable Tie
22 34122021 Motor Housing Seal
23 43411006 Distributor Assem.
24 40309002 Service Tubing
25 40309005 Motor/Distributor Cover Assem. (Inc. Item 23)
26 43516007 Reservoir Assem.
27 38784060 Solution Tank Seal
28 38458033 Control Rod - Lower
29 38458031 Control Rod Upper
30 39466030 Lower Handle - F5805 Early Models - (See Note)

39466033 Lower Handle - F5805 Late Models (See Note), F5806, F5807, F5808,

31 48663170 Upper Handle Assem. Comp.
32 39442041 Cord Wrap
33 36151019 Tank Release Latch - R.H.
34 36151029 Tank Release Latch - L.H.
35 12227 Insulated Terminal
36 21447240 + Screw Self Tapping
37 46583012 Attachment Cord 33 Ft. F5805 (use with GS Motor)

46583044 Attachment Cord 33 Ft. F5805, F5806, F5807, F5808, F5809 (use with

38 40309009 Motor Kit - Includes Hoover Motor, Motor Cover, and lead wire. Used

43576203 Motor - Hoover Motor - F5805

39 38784063 Standpipe Seal
40 36131086 Trunnion Cover - L.H.
41 28218048 Switch
42 38781039 Motor Base Seal
43 38784064 Motor Intake Seal
44 38458040 Handle Release Lever - F5805 Early Models

38458042 Handle Release Lever - F5805 Late Models (See Note), F5806, F5807,

45 36172016 Cord Retainer
46 38434025 Switch Actuator Lever
47 38312014 Spring
48 21312518 +* Washer - Brass
49 38784061 Valve Seal
50 38717009 Valve Stem
51 48443005 Brush Back Assem. - F5805, F5806

52 52313013 + Nameplate
53 39458005 Handle Lever Guard
ITEMS NOT ILLUSTRATED - ACCESSORIES

57333016 Carpet Cleaning Solution - 16 oz.

37271089 Hood - ABY - F5807 (Incl. It. 11, 12, 13, 14, 51)
37271104 Hood - ADD - F5809 (Inc. items 11, 12, 13, 14, 51)

F5807,F5808, F580

F580

46583066 Attachment Cord - 33 Ft. F5806, F5807, F5808 (Use with Ametek Motor)

Hoover Motor

to replace GS Motor on F5805
43576203 Motor - Hoover - F5806, F5807, F5808, F5809
43576212 Motor - Ametek - F5806, F5807, F5808

F5808, F580

48447002 Brush Back Assembly - Dual - F5807, F5808

39514001 Nozzle Clean Out Tool - F5807, F5808, F5809
48417003 Bare Floor Cleaning Tool - F5809
