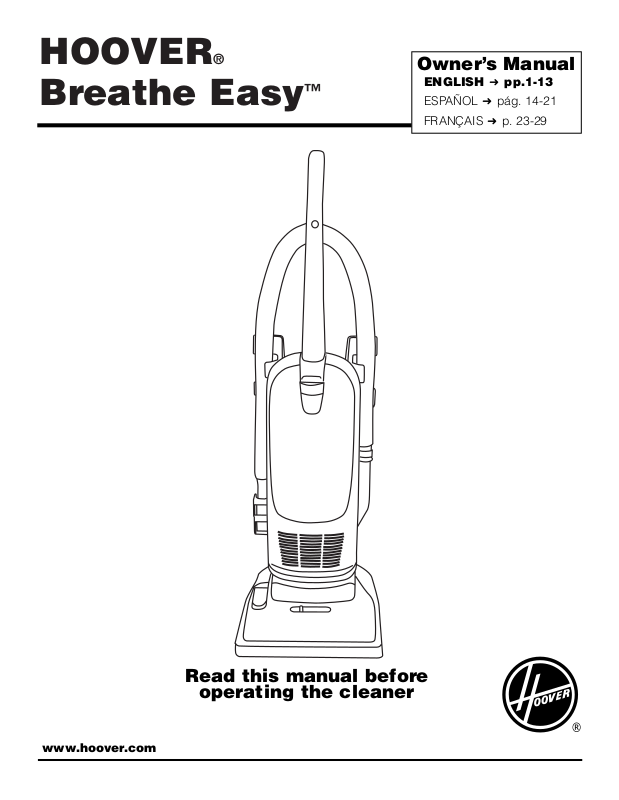

HOOVER®
Breathe Easy
™
®
Read this manual before
operating the cleaner
ENGLISH ➜ pp.1-13
ESPAÑOL ➜ pág. 14-21
FRANÇAIS ➜ p. 23-29
Owner’s Manual
www.hoover.com
2
Fill in and retain
The model and serial number are located on the bottom of the cleaner.
For your personal records, please enter the COMPLETE model and serial number
in the spaces provided and retain this information.
Your cleaner is model_________________________________________
and has serial number_________________________________________
It is suggested that you attach your sales receipt to this owner’s manual.
Verification of date of purchase may be required for warranty service of your
HOOVER product.
Save!
Index
Assembling Cleaner..........................3-6
How To Use
Cleaner Description ..........................6
Cleaning Tools ..................................8
Upright Cleaner..............................7-8
If You Have a Problem........................12
Clearing Blockages ........................13
Important Safeguards ..........................2
Maintenance
Authorized Service ..........................12
Lubrication ......................................11
Replacing Belt ............................10-11
Replacing Brush Roll......................11
Replacing Headlight ........................10
Replacing Filter Bag ........................9
Replacing Final Filter ..................9-10
Warranty ..............................................12
Important Safeguards
When using an electrical appliance, always follow
basic precautions, including the following:
READ
ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
Warning:To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Close supervision is necessary when any appliance is used by or near children.
Do not allow vacuum cleaner to be used as a toy or to run unattended at any time.
• Keep hair, loose clothing, fingers, feet and all parts of body away from openings,
rotating agitator and other moving parts. Do not operate cleaner in bare feet or
when wearing open toe shoes or sandals.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
• Do not use to pick up flammable or combustible materials such as gasoline or fine
wood sandings or use in areas where they may be present.
• Avoid picking up hard, sharp objects with the cleaner. They may damage the cleaner
and the bag.
• Always turn off this appliance before connecting or disconnecting hose.
• Do not use without dust bag or filters in place. Change bag frequently when picking
up very fine materials such as powder.
• Use extra care when cleaning on stairs.
• Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair, or anything that may reduce air flow.
• Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away
from heated surfaces.
• Always disconnect cord from electrical outlet before servicing the cleaner.
• Unplug cleaner when not in use. Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. Never
handle plug or appliance with wet hands.
• The use of an extension cord is not recommended.
• Do not use with damaged cord or plug. If appliance is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, take it to a Hoover
Factory Service Center or Authorized Hoover Warranty Service Dealer (Depot).
• Use vacuum cleaner only for its intended use as described in the instructions.
Use only attachments recommended by The Hoover Company; others may cause
hazards.
Save these instructions!
© 2003 The Hoover Company
www.hoover.com
3
1. Assembling cleaner
It is extremely important to
read and follow all the
instruction steps in order.
The assembled cleaner will look like this drawing.
If you need assistance with any step of the assembly or operation:
Visit us on-line at www.hoover.com to find the service
outlet nearest you (click on the “Service” button) OR call
1-800-944-9200 for an automated referral of authorized
service outlet locations (U.S. only) OR call
1-330-499-9499 to speak with a representative in our
Consumer Response Center.
Carton contents
Remove all parts from carton and
identify each item shown.
Note that some of the items are
shipped together in the sealed
bag with the owner’s manual.
A.Upper handle
B.Bag compartment assembly
C.Cord
D. Hose and tool holder
E. Cleaner base
1-1
A
B
C
D
E
F
G
H
I
F. Handle bolt and nut and hose
holder screw packet (One extra
nut included)
G. Upper handle screws (2)
H. Paper filter bag
I. Hose, cleaning tools, crevice
wand (stores inside extension
wand) and extension wand
C
4
UP
Step 1 Assemble handle
Removing bag door
Pull bag door latch forward and
remove bag door.
Set bag door aside.
With side marked “UP” visible, insert
end into pocket in the bottom of the
bag compartment assembly.
Slide cord protector toward top of
bag assembly and slide through
opening.
With bag compartment in the vertical position, rotate cord protector
(B) on cord so that the arrow is on
the side.
Press protector into the slot (C). Protector should be pointing downward
when assembly is in the verticle
position.
Pull cord tight.
Press cord into place at each of the
three slots indicated.
Do not plug cleaner in until
assembly is totally complete.
With opening of bag assembly
toward the front, place it down onto
the extension on cleaner base.
Rock handle side to side while
pushing down firmly. Extra pushing effort may be required. Make
sure handle is pushed down completely.
Push bolt into hole (D) on lower front
of assembly.
Place nut in recessed area at back
of assembly. Hold nut in place
while tightening bolt securely with a
screwdriver.
Only one nut is needed on this
model. The extra nut is not required
but has been provided for your convenience.
1-2
1-3
1-4
1-5
A
B
AA
Attaching bag compartment assembly
Remove cardboard protector from
bottom of bag compartment assembly.
1-6
Note: The green or white switch
lock (A) near the ON/OFF switch on
the back of the bag compartment
assembly, helps in assembling
your cleaner.
Assembly can be continued if the
switch lock is missing. However,
do not remove the switch lock
until assembly is completed.
Attaching cord
Slide cord protector (AA) away
from rectangular end of cord.
Insert large rectangular end of cord
through opening in back of bag
compartment.
1-9
1-10
1-8
UP
D
1-7
5
Attaching upper handle
Slide upper handle onto assembly,
as shown, until the handle snaps
into position.
Insert the two screws at the front of
the handle to secure it onto the
assembly.
Tighten the screws.
Attaching filter bag
Align opening in bag with dirt tube
(E) inside bag compartment.
E
F
G
A
1-12
1-11
1-15
Push bag firmly onto tube.
Tuck top and bottom of bag into bag
compartment.
To replace bag door, insert the 2
tabs (F) on bottom of door into the 2
slots on bag compartment.
Make sure all edges of bag are
completely inside the bag compartment.
Close door.
Continued
➜
1-13
1-14
1-16
1-17
Remove green or white switch lock
(A) in back of the cleaner.
Step 2 Attach tool
rack
Align screw holes (G) on the tool
holder and back of the cleaner.
Press holder into back of cleaner
until it snaps into position.
Insert the shorter screw from the
handle bolt and nut pack and tighten, using a Phillips screwdriver.
Step 3 Position hose
and tools
Place round end of hose over round
extension on bottom of holder.
1-19
1-18
Operate cleaner only at voltage specified on data plate on bottom of cleaner.
This cleaner is intended for household use.
6
2-1
Cleaner description
I
J
K
L
1
2
3
3
5
6
7
8
9
10
11
12
13
14
13
14
15
16
17
18
19
4
Position extension wand (I). Crevice
wand (J) stores inside extension
wand.
Position dusting brush (K) and furniture nozzle (L) as shown.
CAUTION: When cleaner is turned
on, the agitator will continue to
rotate when cleaner handle is in
upright position. Avoid tipping
cleaner or setting it on furniture,
fringed area rugs, or carpeted
stairs during tool use.
Your HOOVER cleaner is
now assembled and
ready to use!
Please fill out and return the product registration card included with
your cleaner.
2. How to use
The assembled cleaner will look like the
drawing.
1.Handle
2.ON/OFF switch
3.Cord hooks: starting at the bottom
hook, wrap cord around hooks for
storage. The top hook can be rotated right or left for easy cord
release.
4. Bag door latch
5. Bag door
6. Final filter
7.Stair cleaning handle
8.Hood
9.Carpet height control
10. Furniture guard: helps prevent
cleaner from marking furniture.
11. Headlight
12. Hose door
13. Hose and tool holder
14. Hose
15. Extension wand
16. Crevice wand: stores inside exten-
sion wand.
17. Dusting brush
18. Furniture nozzle
19. Handle release pedal
1-21
H
1-20
Insert hose connector (H), with latch
toward front of cleaner, into opposite
side of rack.
Press hose firmly into rack at upper
extensions.
7
ON-OFF switch
To turn cleaner ON, depress switch (A)
toward front. To turn cleaner OFF, depress
switch toward back.
Note: To reduce the risk of electric shock,
this appliance has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install the
proper outlet. Do not change the plug in
any way.
To insure that the filter bag is inflated, plug
cord into electrical outlet and turn cleaner
ON. With handle in upright position, pull
back on handle until front of cleaner (B) is
lifted off the carpet.
.
Handle positions
The handle of your cleaner has three
positions; upright for storage and when
using cleaning tools; operating for
general operation on carpet and floors;
low for reaching under low furniture. Step
on handle release pedal to lower handle.
Transporting cleaner
To move your cleaner from room to
room, put handle in upright position, tilt
cleaner back on rear wheels, and push
forward (A).
The cleaner can also be moved by
lifting it as shown in (B)
2-2
2-3
2-4
A
B
A
B
Carpet height adjustment
When it is necessary to raise and lower the
front of the cleaner (A) for various carpet
pile heights, slide the carpet height control
(B) to the correct setting.
On some models, carpet pile height settings are indicated as shown (C).
For ease in sliding the control, the
handle should be in the upright position
(D).
The front of the cleaner will not move
into the adjusted position until the
handle is lowered to the operating
position (E).
2-5
2-6
A
For maximum cleaning performance,
the following carpet height settings are
recommended.
• Low Setting 1: for bare floors
• Setting 2*: for low pile, level loop, kitchen
type, and other similar types
of carpet
• Setting 3*: for very deep pile carpet
*Note: If the cleaner is difficult to push,
slide the control to the next higher setting.
Edge cleaning
Edge cleaning is provided on both sides
of the front of the cleaner to help
remove dirt in carpet near baseboards
and furniture.
Guide either side of the cleaner parallel
to edge of carpet or furniture.
Cleaning lightweight
flexible rugs
Stand on one end of rug and move
cleaner toward other end or edge.
Before reaching edge, push down on
handle. This will lift up the nozzle (front
2-7
2-8
of cleaner) and will prevent rug from
clinging to cleaner.
Continue to lift front of cleaner so that
when you have reached the edge, it is
completely off the rug. Move cleaner
back to start again, lower front of
cleaner, and use only forward strokes.
B
C
D
E
8
Stair cleaning
A stair cleaning handle has been
designed for ease in using your cleaner
on stairs.
With handle in operating position, place
fingers under edge of stair cleaning
handle and guide cleaner with other
hand on upper handle.
As an alternative, you may use the hose
and furniture nozzle for stair cleaning.
When using cleaning tools, the
agitator will continue to rotate.
CAUTION: To avoid personal injury or
unnecessary wear to carpet, and to
prevent the cleaner from falling, use
extra care if cleaner is placed on
stairs.
Cleaning tools
Tools allow you to clean surfaces above
the floor and reach hard to clean areas.
If the tool caddy has been removed,
reposition it on the cleaner.
Use tools with the cleaner handle in
upright position.
CAUTION: Agitator continues to rotate
while cleaner handle is in upright
position. Avoid tipping cleaner or
setting it on furniture, fringed area
rugs, or carpeted stairs during tool use.
A. Plug-in hose
Turn cleaner OFF before plugging-in
or removing hose.
With cleaner handle in upright position,
open hose door and insert hose connector until it is locked in position. Suction
will automatically be diverted to the hose
when cleaner is turned ON.
To remove hose, press latch on hose
connector and pull up.
Note: Hose must be removed from
hose door when cleaning carpet and
rugs to insure proper cleaning performance.
2-9
2-11
2-12
2-10
A
B
C
D
B. Select proper cleaning
tool
A. Dusting brush can be used for
carved furniture, table tops, books,
lamps, lighting fixtures, venetian blinds,
baseboards, shutters, and registers.
B. Furniture nozzle can be used
for upholstered furniture, draperies,
tapestries, mattresses, clothing,
automobile interiors, and carpeted stairs.
C. Crevice wand can be used in tight
spaces, corners and along edges in such
places as dresser drawers, upholstered
furniture, stairs, and baseboards. It can
also be used for extra reach with the
dusting brush and/or extension wand.
D. Extension wand is used to give extra
length to your hose. Attach it to any of
the above tools.
C. Attach wand and
tools
The tools are attached to the hose or the
wand in the same manner.
Push tool firmly onto hose; twist tool
slightly to tighten or loosen connection.
The dusting brush (A) also can be
attached to the crevice wand.
How to clean tools
To clean the hose, wipe off dirt with a
cloth dampened in a liquid detergent.
Rinse with a damp cloth.
Cleaning tools may be washed in warm
water with a detergent. Rinse and air
dry before using.
A
9
Continued
➜
3. Maintenance
Familiarize yourself with these home
maintenance tasks as proper use and
care of your cleaner will ensure continued cleaning effectiveness.
Filter bag
When to replace
Check filter bag from time to time. It is
recommended that you change the filter
bag when dirt reaches the dotted line.
If more dirt than this accumulates, your
cleaner may not operate effectively.
NOTE: Check and change the filter bag
frequently when using cleaner on new
carpet due to rapid accumulation of
carpet fluff.
CAUTION: Very fine materials, such
as face powder, cornstarch, fireplace
ashes or fireplace soot, may seal the
paper bag and may cause it to burst
even though it is only partially full of
dirt. When cleaner is used to remove
material of this nature, change the
filter bag often.
Where to buy
Filter bags may be purchased from your
local Authorized Hoover Dealer (Depot),
Leading Retailers, from Hoover Factory
Service Centers, using the order form
packed with your cleaner, or through
The Hoover Company online at
www.hoover.com.
When ordering bags, be sure to give
the model number of your cleaner.
What to buy
If your cleaner was originally equipped
with a micro filtration bag, it is important
to use only Genuine HOOVER
®
Aller-
gen Filtration T
ype Z disposable bags
in order to maintain the original cleaning effectiveness of your cleaner.
Regular HOOVER
®
Type Z disposable
filter bags also fit your cleaner.
To assure that your cleaner operates at
peak performance, it is imperative that
you use only genuine HOOVER filter
bags distributed by The Hoover
Company. HOOVER bags can be
identified by these trademarks –
®
Changing filter bag
Disconnect cleaner from electrical outlet.
3-1
Removing bag door
Pull bag door latch (A) forward and
remove door from cleaner.
Grasp bag collar and pull collar from tube.
Note: Do not clean out old bag and
reuse. Discard used bag.
C
B
Removing and installing filter
bag
Align opening in new filter bag with dirt
tube (B) inside bag compartment. Push
bag collar (C) firmly onto tube.
Tuck top and bottom of bag into bag compartment.
3-3
Replacing bag door
To replace bag door, lift up lower edge of
filter bag. Insert the 2 tabs (D) on bottom
of bag door into the 2 slots on bag
compartment.
Make sure all edges of filter bag are
completely inside the bag compartment.
Close door.
D
A
E
3-4
Final filter
The final filter, located inside the bag
door, assists in the filtration process to
return clean air to the room. The filter
can be cleaned when it becomes dirty.
How to clean
Disconnect cleaner from electrical
outlet.
Removing filter retainer
Remove filter bag door (Fig. 3-1).
Open filter retainer at (E) and remove
retainer.
3-2
®
10
3-5
3-6
3-7
Removing filter
Lift out filter (F) and hand wash it in cold
water with mild detergent.
Let filter air dry and reposition it on
the front of the cleaner. Reposition retain-
er and filter bag door.
Should you want to replace this filter, ask
for HOOVER part No. 38765024.
Installing bulb and repositioning hood
Pull old bulb straight out of socket.
Push new bulb straight into socket until
locked in place.
Excessive force is not required.
Reposition hood and push firmly to snap
it into place on the sides and at the
front.
Note: It is not necessary to turn the
cleaner over and use a screwdriver to
remove the hood once you are familiar
with the 2 places on the hood (indicated
by arrows in Fig. 3-6) that unlatch it.
Simply pull the sides of the hood outward at those areas and lift off the hood.
Belt replacement
The belt on your HOOVER cleaner
causes the agitator to rotate and is
important for the effective operation of
the cleaner. The belt is located under
the bottom plate of the cleaner and
should be checked from time to time
to be sure it is in good condition.
When to replace
To check belt, remove bottom plate as
shown in “How to replace.” Replace
belt if it is stretched, cut or broken.
What to buy
To assure effective operation, use only
genuine HOOVER belts with your
cleaner. When purchasing a new belt,
ask for Hoover part No. 40201190.
Positioning belt over brush
roll
Insert brush roll through belt and place
belt in belt guide (I) on brush roll.
Installing brush roll
Grasp brush roll firmly and fit it into position by first sliding belt side into the rectangular slot (J) on side of cleaner.
Pull other side of brush roll (K) into place.
Turn brush roll making sure belt is not
pinched between brush roll and cleaner
base.
How to replace
Removing bottom plate
Disconnect cleaner from electrical
outlet.
Place handle in low position and turn
cleaner over.
Remove the 2 screws as shown with a
Phillips screw driver.
Lift bottom plate at (G) and rotate it off
the cleaner.
Removing used belt
Remove agitator brush roll and
used belt.
Discard used belt.
Positioning belt over pulley
With lettering on outside of belt, pinch
belt into a loop and twist slightly to
slide new belt over motor pulley (H).
F
Headlight
What to buy
This cleaner uses a 12 volt, wedge base
type 912 bulb, Hoover part No. 27313-
101.
How to replace
Disconnect cleaner from electrical
outlet.
Removing hood
Place handle in low position and turn
cleaner over.
Hood snaps off by inserting the end of
a flat screwdriver into one of the areas
(labeled with an arrow) on either side of
the cleaner as shown. Push screwdriver
outward to release hood. Repeat on the
other side and remove hood.
G
3-9
3-10
3-11
H
I
3-12
J
K
3-8
11
Replacing bottom plate
Line up bottom plate with front edge of
cleaner and rotate it into position.
Reposition the 2 Phillips head screws.
Tighten screws securely.
3-13
3-14
Agitator brush roll
replacement
When to replace
Disconnect cleaner from electrical
outlet
When brush roll brushes are worn, it
should be replaced.
To check condition of brushes, move
edge of a card across bottom plate
while turning brush roll. To maintain
cleaning effectiveness, replace brush
roll if brushes do not touch card.
What to buy
When purchasing a new brush roll, as
for Hoover part No. 48414-081.
How to replace
Disconnect cleaner from electrical
outlet.
1. Remove bottom plate, belt and brush
roll following directions for Fig. 3-8
and 3-9.
2. Discard old brush roll
3. Continue following the directions for
“Belt replacement” starting with
Fig. 3-11 to reposition belt, new
brush roll and bottom plate.
Lubrication
The motor is equipped with bearings
which contain sufficient lubrication for
the life of the motor. The addition of
lubricant could cause damage. Do not
add lubricant to motor bearings.
The agitator is equipped with two ball
bearings that should be lubricated
periodically by a Hoover Factory
Service Center or an Authorized Hoover
Warranty Service Dealer (Depot).
Service
To obtain approved HOOVER service
and genuine HOOVER parts, locate
the nearest Hoover Factory Service
Center or Authorized Hoover
Warranty Service Dealer (Depot) by:
• checking the Yellow Pages
under “Vacuum Cleaners Household” OR -
• checking the list of Factory
Service Centers provided
with this cleaner OR -
• checking the Service section of
The Hoover Company on-line at
www.hoover.com OR -
• calling 1-800-944-9200 for an
automated referral of authorized
service outlet locations
(U.S. only).
Do not send your cleaner to The Hoover
Company in North Canton for service,
this will only result in delay.
If further assistance is needed, contact
The Hoover Company Consumer
Response Center, North Canton,
Ohio 44720, Phone: 330-499-9499.
In Canada, contact Hoover Canada,
Burlington, Ontario L7R 4A8,
Phone: 1-800-263-6376.
Always identify your cleaner by the
complete model number when
requesting information or ordering parts.
(The model number appears on the
bottom of the cleaner.)
Hoover Cleaning Performance
This Hoover Cleaning Performance System is for comparing the relative progressive performance of Hoover
uprights only and not for comparison
with any other brands. The majority of
this rating is based upon the ASTM
International Carpet Cleaning Effectiveness Testing (ASTM Test F608). Other
performance factors include Hose
Power (ASTM Test F558), Surface Litter
Cleaning, Hard Floor Cleaning, Edge
Cleaning, Cleaning Width, and Air Filtration.
12
Clearing blockages
Remove large items from surfaces
before vacuuming to prevent blockages
and to maintain cleaning effectiveness
of your cleaner.
Refer to the following steps to check for
blockages continuing with each step
until the blockage is found.
A. If a blockage occurs during tool
use:
Turn cleaner OFF and disconnect it
from the electrical outlet.
1. Remove hose from hose door, look
into end of hose and remove any blockages.
2. Open hose door. Look inside and
toward back of opening. Remove any
blockages.
B. If a blockage occurs during floor
cleaning:
Turn cleaner OFF and disconnect it
from electrical outlet.
1. Turn cleaner to expose underside.
Remove bottom plate and brush roll as
shown for Figs. 3-9 and 3-10.
Full One Year
Warranty
(Domestic Use)
Your HOOVER®appliance is warranted
in normal household use, in accordance
with the Owner’s Manual against original
defects in material and workmanship for
a period of one full year from date of
purchase. This warranty provides, at no
cost to you, all labor and parts to place
this appliance in correct operating
condition during the warranted period.
This warranty applies when the
appliance is purchased in the United
States including its territories and
possessions, or in Canada or from a
U.S. Military Exchange. Appliances
purchased elsewhere are covered by a
limited one year warranty which covers
the cost of parts only. This warranty
does not apply if the appliance is used
in a commercial or rental application.
Warranty service can only be obtained
by presenting the appliance to one of
the following Authorized Warranty
Service outlets. Proof of purchase will
be required before service is rendered.
1. Hoover Factory Service Centers
2. Hoover Authorized Warranty
Service Dealers (Depots)
For an automated referral of
authorized service outlets in the
U.S.A., phone 1-800-944-9200 OR
visit The Hoover Company on-line at
www.hoover.com
This warranty does not cover pick up,
delivery, or house calls; however, if you
mail your appliance to a Hoover Factory
Service Center for warranty service,
transportation will be paid one way.
While this warranty gives you specific
legal rights, you may also have other
rights which vary from state to state
(or province).
If further assistance is needed, or if
there are questions concerning this
warranty or the availability of warranty
service outlets, write or phone the
Consumer Response Center, The
Hoover Company, 101 East Maple St.,
North Canton, Ohio 44720.
Phone 330-499-9499.
In Canada, contact Hoover Canada,
Burlington, Ontario, L7R 4A8.
Phone 1-800-263-6376.
4. If you have a
problem
If a minor problem occurs, it usually can
be solved quite easily when the cause is
found by using the check list below.
Problem: Cleaner won’t run
Possible cause
Possible solution
• Not firmly plugged in
•
Plug unit in firmly
• No voltage in wall plug
•
Check fuse or breaker
• Blown fuse/tripped breaker
•
Replace fuse/reset breaker
Problem: Cleaner won’t pick up
Possible cause
Possible solution
• Broken or worn belt
•
Replace belt
• Brush roll brushes worn
•
Replace brush roll
• Filter bag full
•
Change filter bag
• Hose still plugged into cleaner
•
Remove hose from hose door
• Incorrect carpet height setting
•
Move carpet height control to type of
carpet being cleaned
• Brush roll cavity clogged
•
Clear blockage (see “Clearing
blockages” section)
Problem: Cleaning tools won’t pick up
Possible cause
Possible solution
• Hose clogged
•
Clear blockage (see “Clearing
blockages” section)
• Hose connector inserted incorrectly
•
Insert hose connector properly (see
“Cleaning tools” section)
Problem: Cleaner hard to push
Possible cause
Possible solution
• Incorrect carpet height setting
•
Move carpet height control to a
higher setting
4-1
2. Carefully remove any blockage from
brush roll cavity. Reposition brush roll
and bottom plate as shown in Figs. 3-12
through 3-14.
If a blockage is not found and a
problem persists, contact your Hoover
Factory Service Center or Authorized
Warranty Service Dealer (Depot).
4-2
HOOVER et sont des marques déposées
®
HOOVER y son marcas registradas
HOOVER and are registered trademarks
4-03 U5104-900 Litho USA 56511-B77
®
®
Loading...
