Hootoo com TT CD05 User Manual

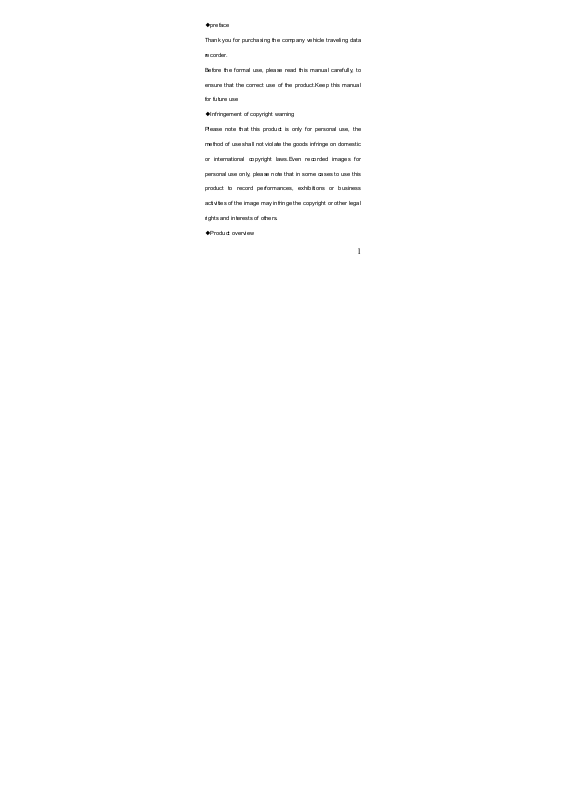

◆preface

Thank you for purchasing the company vehicle traveling data

recorder.

Before the formal use, please read this manual carefully, to

ensure that the correct use of the product.Keep this manual

for future use

◆Infringement of copyright warning

Please note that this product is only for personal use, the

method of use shall not violate the goods infringe on domestic

or international copyright laws.Even recorded images for

personal use only, please note that in some cases to use this

product to record performances, exhibitions or business

activities of the image may infringe the copyright or other legal

rights and interests of others.

◆Product overview

1

This product is a set of hd video, pictures, and built-out TF

card memory in one multi-functional new high-tech products,

high compression ratio and high performance is used for video

codec technology, has the HDMI high-definition multimedia

interface, high quality to transmit uncompressed

high-definition video and multi-channel audio data.Is mainly

used in automotive, improve the driving safety accident

forensics, apply to the daily life, traveling, outdoor activities,

bring you a colorful life

◆Matters needing attention

- please do not open or disassemble the product without

authorization, which may lead to electric shock, or equipment

damage.If necessary, please to the service center or

professional processing.

- the product can be used for other USES, such as

2

photography, take, etc.

- please do not pile up on the equipment items, otherwise may

lead to a broken screen.

- do not use sharp objects in contact with the screen in order

to avoid damage to the screen.

- do not let children play with the equipment.

The basic function in pieces recorder

- low illumination high-definition video in 1080 p @ 30 FPS

- built-in low illumination high pervious to light a 170 - degree

lens

- 2.7 inch LTPS highlight color

- Sensitivity adjustment

- collision automatic lock file

- motion detecting video

3

- drive synchronous start

- support cycle video

- the largest support 32 gb TF card

- support charging, while video

- image real-time monitor the output

- new WDR wide dynamic video

Stru cture

◆Front view

4

1.Camera 2. Screen 3. The power button 4. UP key 5. Menu

6.OK button 7. The mode key 8. Down key

◆side view

9.TF slot 10.HDMI

◆Vertica l vi e w

5

11.MIC 12.Speaker 13.Reset 14.GPS slot

15.AV-OUT 16.Stent hole 17.USB

◆Keys function introduction

Name function

6

Power According to the boot, long press to turn it off

Menu

Mode Short press to switch working mode

UP

DOWN

OK OK

Reset Reset the system

light ◆

name instruction

Red light Charge indicator, charging is complete, go out

Red light Work light, video, flashing blue light regularly

Short press enter the menu（ video mode,

One key to lock file）

UP（ZOOM）

DOWN，Video on standby mode, click open or

close the recording

7

Operation and use

◆Insert the memory card

1. According to the instructions carefully insert the card in the

card slot.Errors or rough insert memory card may make

damage of memory card or the card slot.

2. Insert the memory card will be saved as image recording.

3. If the device does not recognize the card, please take out

the insert to try again.If you still can't identify, which they may

be for the damaged card or device does not support this type

of memory card.Please try to replace another memory card.

4. Please pay attention to often change the memory card and

copy content to other storage medium.Don't burn on entities

video card program or run other executable file, it could erase

the above for information

◆The startup and shutdown of equipment
