Thank you for your purchase of a HooToo HT-TM05 TripMate. To get the

most from your TripMate, please be sure to read all instructions

thoroughly and keep them where they will be read by all who use the

product.

Symbols and Conventions

To make it easier to find the information you need, the following symbols

and conventions are used:

This icon marks notes; information that should be read before using

the TripMate.

This icon marks references to other pages in this manual.

Menu items, options, and messages displayed in the admin setup page

are shown in bold.

TripMate Settings

The explanations in this manual assume that default settings are used.

2

Package Contents

Confirm that the package contains the following items:

3

Contents

Package Contents .............................................................................. 3

Getting to Know the TripMate ........................................................ 7

Features .............................................................................................. 9

Wireless Sharing ............................................................................... 9

Travel Router .................................................................................. 10

External Battery Pack ..................................................................... 10

Configure the TripMate .................................................................. 11

Connection ..................................................................................... 11

More on TripMate ........................................................................... 31

Wireless Sharing ............................................................................ 31

Travel Router ................................................................................. 38

Access Point Mode ..................................................................... 38

Router Mode .............................................................................. 39

Bridge Mode ............................................................................... 50

System Tools .................................................................................... 61

Language......................................................................................... 61

Symbols .......................................................................................... 64

Main Page ....................................................................................... 65

4

Explorer .......................................................................................... 66

Information ..................................................................................... 73

User Settings ................................................................................... 78

Admin ......................................................................................... 79

Guest........................................................................................... 83

Network Settings ............................................................................ 86

Host Name .................................................................................. 87

SSID Settings ............................................................................... 88

Mac Address ............................................................................... 97

Region & Wi-Fi Channel .............................................................. 98

Hide SSID................................................................................... 100

DHCP Settings ........................................................................... 101

Service Settings............................................................................. 104

Samba Service ........................................................................... 105

DLNA Service............................................................................. 106

System Settings ............................................................................ 111

Time Settings ............................................................................ 112

Firmware Upgrade .................................................................... 116

Factory Default ......................................................................... 120

5

Wizard........................................................................................... 122

Battery Backup .............................................................................. 123

Charge TripMate ....................................................................... 123

Charge Devices ......................................................................... 124

Caring for the TripMate................................................................ 125

Storage ...................................................................................... 125

Cleaning .................................................................................... 125

Cautions .......................................................................................... 126

Caring for the Battery ............................................................... 126

Troubleshooting ............................................................................ 127

Error Messages .............................................................................. 128

Hardware Specifications .............................................................. 129

Software Specifications ................................................................ 132

Warranty and Support.................................................................. 136

Contact ............................................................................................ 137

6

Getting to Know the TripMate

Take a few moments to familiarize yourself with TripMate

Power Button:

Short Press (1 second): Activates battery LED indicators

Long Press (3 seconds): Activates Internet/LAN

Battery LED Indicators:

Indicate how much battery is left.

As below :

LED1: 0~25%

LED2:26~50%

LED3:51~75%

7

LED4:76~100%

If you long press the power button and all lights flash, which means

the battery remaining capacity is not enough to power on. Please

recharge your TripMate (

124)

Wi-Fi LED:

Flashing Blue: System loading

Solid Blue: System loaded

Flashing Green: Connecting to the Internet

Solid Green: Internet connected

RJ45 Ethernet Port:

Connect to your existing router/modem to set TripMate as

AP/Bridge/Router

USB Port (Output: 5V/2.1A MAX):

To connect to your USB storage and to charge your devices

Micro USB Port (Input: 5V/1.6A):

Charge your TripMate

Reset Button:

Press with a small pin for 10 seconds to reset your TripMate

8

Features

Wireless Sharing

Share Photos/Videos/Documents from your USB storage, smartphone or

tablet with friends and colleagues through TripMate wireless network

Fantastic Four

Not only can you add single USB storage to the TM05, you can add up to

4 USB storage devices by using a USB hub to connect them.

Chromecast Friendly

Unable to get onto a local network? Connect Google Chromecast to your

TM05 and play videos and music on your connected USB storage through

Chromecast to the big screen.

Control Via App

Available for FREE from App Store and Google Play. The brand new

HooToo TripMate Plus App can change network settings, browse content

from USB storage, and move files between devices. Better user-friendly

design means you can start using the TM05 straight away.

9

Travel Router

Take the TripMate HT-TM05 and you have a battery powered travel

router inside your pocket. Provide you with convenient router functions

while you are on the go. It offers 3 router modes to suit today’s popular

network demands:

AP Mode: Connect your smartphone to wired network, let you laptop

uses wired network without carrying a cable

Bridge Mode: Never pay for multiple network connections, use TM05 to

connect and share connections.

Router Mode: Connect your mobile devices directly to cable to DSL

modem

External Battery Pack

The core of TM05 is a 10400mAh external battery charger capable of

charge typical smartphone 3 – 5 times, extending the run time of your

phone or tablet whenever you need.

10

Configure the TripMate

Connection

The TripMate TM05 can create a limited local wireless network (no full

internet access), where the central functions are performed through the

local network. To connect the TripMate TM05 wirelessly, please follow

the steps below:

Example: Android

1. Press the power button for 3 seconds to power on the device. Wait

for the Wi-Fi indicator to be ready

11

2. Click Settings on the phone

12

3. Click WLAN

13

4. Open Wi-Fi, select TripMateSith-XXXX

14

15

5. Enter the default password: 11111111 (8 x 1’s), click Connect

16

The same process applies for iPhone and other Smartphones when

connecting the TripMate to local WiFi.

17

6. Open browser, enter 10.10.10.254 in the url box

18

19

7. Log in with default user name: admin, password: (leave it empty)

20

8. Then you will be prompted to the Setup Wizard

The wizard only helps you to connect your TripMate to Internet. To

get more usage, please step to 32 to get full guide.

21

9. Click Next and set up the Internet connection on this page. (Taking

wireless access as an example here, click

wired/wireless access)

38 to get all modes for

22

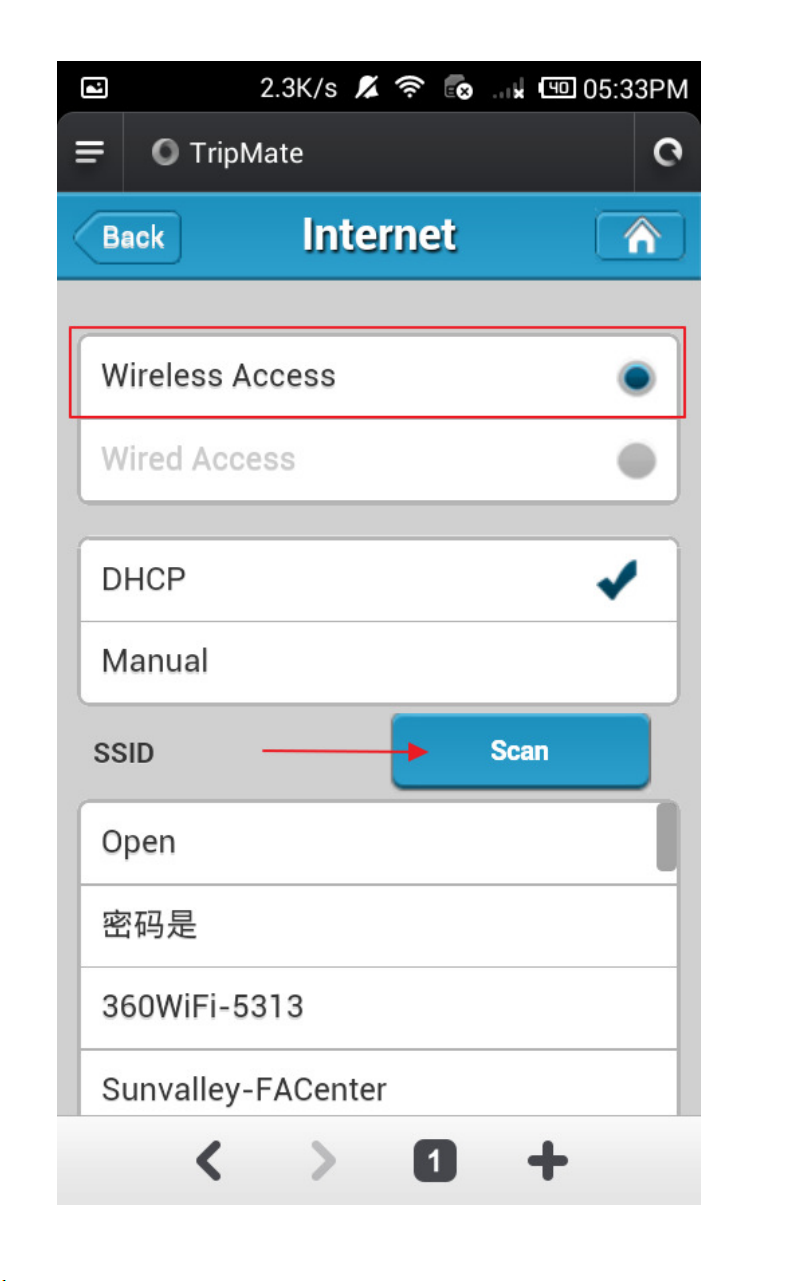

10. Click Scan to search available Wi-Fi. Select your Wi-Fi and enter the

password.

23

24

11. Click Next, then you can change the default TripMate Wi-Fi SSID and

password to what you want. (To get more information about the

Wi-Fi & LAN settings, please click 88)

25

26

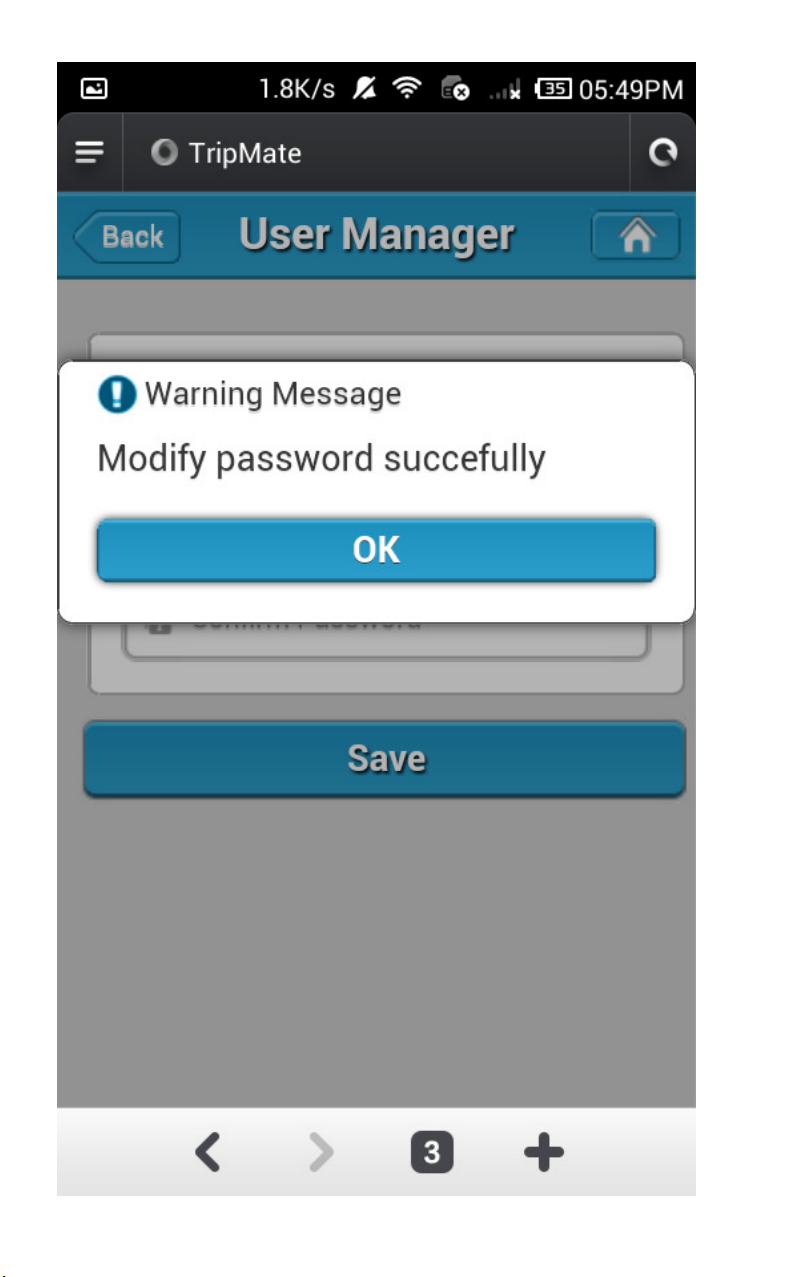

12. Click Next and then you can change the password of the admin

account.

27

13. Click Next then you will be prompted to wait 2 minutes while the

system reboots. After the system has successfully rebooted, please

reconnect to the TripMate wirelessly. Then your TripMate connects

to the Internet.

The Wi-Fi LED indicator will turn to green.

28

If you change the SSID and password of TripMate, you may need to

forget the password of TripMate on your phone first.

29

92

e.g. www.cnn.com

30

More on TripMate

Wireless Sharing

You can create your own wireless personal media sharing center.

Download the "HooToo TripMate Plus" app from App Store or Google

Play first. You may also download it from hootoo website:

www.hootoo.com

Example: Android

1. Insert a USB thumb drive, a card reader (up to 64GB), or a USB HHD

(supported format: NTFS/FAT16/FAT32, up to 4TB) into the USB port

of the TripMate, then power on the TripMate.

HT-TM05 supports a USB hub with up to 4 USB devices (2 hard disks

max)

2. Download the app HooToo TripMate Plus from Google Play to your

Android phone

3. Connect phone to the TripMate wirelessly

4. Run the TripMate app

31

Also you can access the USB storage via the admin web end

10.10.10.254 (

66). To get full use of wireless sharing, we

recommend the HooToo TripMate Plus.

32

5. Login with the default user name “admin” and leave the password

field empty. (The username and password are the same as the key

you use to login the admin configuration page 10.10.10.254)

33

6. Tap on File/Folder, and select TripMate. All of the contents can be

found under the main folder WiFiDisk1-Volume1

34

35

36

7. Tap on Local Device. All of the contents on the phone can be read.

If you need specific instructions for the HooToo TripMate Plus app,

please refer to the instructions listed on the HooToo website

www.hootoo.com

37

Travel Router

Similar settings can also be performed on any Mac computers, or

mobile devices such as phone, tablet, etc.

Access Point Mode

Example: Android

TripMate will automatically become an access point once:

1. Power on the TripMate;

2. Plug a network cable from a well-established router to TripMate,

wait for the blue Wi-Fi indicator light to stop flashing and remain

steady;

3. Connect phone to the TripMate wirelessly;

4. TripMate now connects to the Internet.

No need to change any parameters once it becomes an Access

Point.

38

Router Mode

TripMate connects to a DSL or cable modem and turns it into a regular

wireless router.

Example: Android

1. Power on TripMate

2. Plug an Ethernet cable from a well-established modem to TripMate

3. Connect phone to TripMate wirelessly

4. Login 10.10.10.254

5. Click Settings, then select Network Settings

39

40

6. Select Internet, choose Wired Access.

41

TripMate provides Dynamic IP, Static IP and PPPoE for router setup.

Please consult with the network administrator or refer to the wired

network user documentation for best selection.

If using a DSL Internet, please enter the PPPoE username and password.

Click Save

Example:

42

43

44

TripMate now connects to the internet (e.g. www.cnn.com)

45

If a static IP address is issued by the network provider (please request

network provider), the given static IP fields (including network mask and

gateway) must also be set to the router. Click Save

TripMate now connects to the internet.

46

Tips

When connecting devices with network cables, please make sure the

cable is connected securely. Loose cables are one of the most common

sources of network setup problems.

If a wired network type cannot be chosen, an alternative method is

available to set up the router mode

1. Connect the computer directly to the wired connection with an

Ethernet cable

2. Press win+R on the keyboard (the "win" key is located between the

Ctrl and Alt buttons)

3. Enter CMD, a black window pops up; enter ipconfig. Get the IP

address, subnet mask and default gateway assigned by the

router/modem.

47

48

4. Connect TripMate to the wired connection with an Ethernet cable

5. Login 10.10.10.254

6. Click Settings → Network Settings

7. Select Internet , then choose Wired Access and Static IP from the

drop-down list

8. Enter into the IP field the same IP information assigned by the wired

network. Click Save

TripMate now connects to the internet

49

Bridge Mode

Definition: The router borrows an existing wireless Internet and

broadcasts it using a different network name (SSID) and password. This

application can create two individual networks for two groups of users

sharing one Internet connection.

Application: Small restaurants, shops, bar, home, office or others where

Internet service needs to be provided for guests without revealing the

password of the existing network for hosts.

Configuration:

There are two configuration modes:

1. Wi-Fi is secured, which requires entering password,

2. Wi-Fi is open, but has an authorization page.

50

Configuration #1:

Example: Android

1. Power on TripMate

2. Connect your phone to TripMate wirelessly

3. Open browser and log in 10.10.10.254

4. Settings→ Network Settings → Internet, choose Wireless Access,

Click Scan to search available Wi-Fi

51

52

53 54

5. Select your wireless network. (e.g. OpenWifi), enter the

corresponding password. Click Save

TripMate now connects to the internet

55

TripMate can store the connected wifi.

56

TripMate can connect to a hidden SSID

1. Pull the SSID drop-down list to bottom. Click Other network…

57

2. Enter the SSID and password, click Save

58

Wait a few seconds. The TripMate will connect to the hidden SSID.

59

Configuration #2:

The setting applies to the wireless network that you have to enter the

username and password to connect or click through the Terms of

Service

1. Get the user name and password of the Wi-Fi (if necessary)

2. Connect phone to TripMate wirelessly

3. Open browser and log in 10.10.10.254

4. Settings→ Network Settings → Internet, choose Wireless Access,

click Scan to select the Wi-Fi, then leave the password empty, click

Save

5. Open another page of browser, the authorization page pops up, login

with the username & password

TripMate now connects to the internet

Please clear the browser cache if the connection failed the first time

and then try again.

60

System Tools

Language

At the login page, you may change the language

61

And select the account

To get more information about setting the admin& guest account,

please click

79

62

Guest can only visit the content of the folder “Share” which is created

automatically on your USB storage. You can put the files that you want

others to view into this folder. And guest can edit the password of guest

account.

63

Symbols

it marks how much battery left of your TripMate

it marks that your TripMate doesn’t connect to any

internet network

it refers that you TripMate is connected to internet

click it to redirect you to the main page

click it to go back to the last page

click it to log out the admin page

64

Main Page

Videos/Photos/Music/Documents show the contents of the DLNA

folder

106

65

Explorer

It shows the contents of the USB storage that attached to the TripMate

Example: Windows 7/Firefox

66

Here you may view the pictures:

67

Play songs:

68

Watch videos:

Videos will be downloaded to your computer then open in the player

you select. If you open videos on your phone or tablets, the supported

formats of your phones/tablets can be opened directly.

69

If your phone doesn’t support the formatted video, it will be downloaded

on your phone:

So we suggest you to use the application HooToo TripMate Plus to

perform the media sharing function, which is more user friendly.

70

Here are some basic functions to manage your USB storage:

To refresh the display

To create new folders on you USB External

storage devices

To copy files and paste them into another folder

To move files and paste them into another folder

To rename files or folders

71

To delete the files you do not need any more

Upload

To upload the files in your PC/Laptop to USB

External Storage

Select All

To select all the files below

Up one level

Stream this to your DLNA devices that connects

to your TripMate wirlessly

72

Information

The information of your TripMate and the USB storage device can be

checked here.

Login 10.10.10.254 →Settings→ Information

73

74

75

Click Device to view the TripMate information

Serial number: it refers to which batch your TripMate belongs to,

which is the same as that S/N labeled on the bottom of your TripMate.

When you have some problems with your TirpMate, providing the serial

number to our Tech Support will help to solve the issues.

76

Click Storage to view the information of the USB storage that you attach

to the TripMate

You may click Delete to eject your USB device

77

User Settings

Login 10.10.10.254, Settings →User Manager

78

Admin

Select Admin. Here you can change the password of admin account.

79

Enter your new password, click Save

Note: Please make sure you remember the password that you change

otherwise you have to reset the TripMate to factory settings to enter

10.10.10.254

80

81 82

Guest

Click guest

Click

to enable or disable the guest account

83

And you can set the password of guest account here.

84

85

Network Settings

Log in 10.10.10.254, Settings → Network Settings

86

Host Name

TripMate host name can be changed here:

Select Host Name, enter the new host name, click Save

Now the host name has changed.

87

SSID Settings

To change the SSID name and password of TripMate, please follow the

steps below:

1. Select Wi-Fi & LAN

88

2. Enter your new SSID name and password. Click Save

89

3. After changing the SSID and Password, your phone will lose the

connection to your TripMate. You have to reconnect your phone to

TripMate

90

91

If you only changed the password, the TripMate will lose the

connection to your phone as well. And you have to click the TripMate

SSID to Forget Network then reconnect to TripMate, because generally

your phone can store the connected WiFi.

Example:

I only change the password for 6D22, TripMate loses the connection to

my phone

92

Go back to the WiFi setting on the phone. The phone fails to connect to

the TripMate, because it remembers the last password. Click

(every phone has a different button) to Forget Network

93

94

Then reconnect it with new password

95

96

Mac Address

This is the Mac address of TripMate LAN itself. If your home router has a

mac filtering, please add the TripMate MAC address to the white list of

your router. Or your TripMate will reject to connect to your home router.

When TripMate connects to your router wirelessly, please add the

listed MAC address to the white list. E.g. 00:1C:C2:11:6D:22

When TripMate connects to the router by the line, please add “1” to the

end number, then add the changed MAC address to the white list. E.g.

00:1C:C2:11:6D:23

97

Region & Wi-Fi Channel

You may manually set the Region and Wi-Fi Channel

98

And change the Security type (default: Mixed WPA/WPA2-PSK):

99

Hide SSID

On this page you may hide/unhide the SSID. If you hide the SSID, others

cannot search your TripMate.

If you would like to hide your SSID, please make sure you have set

up the network setting (wired/wireless) previously, otherwise you will

lose the connection to TripMate, and will need to reset the TripMate to

restore the original settings.

100
