Hooker EC289 Assembly Instructions

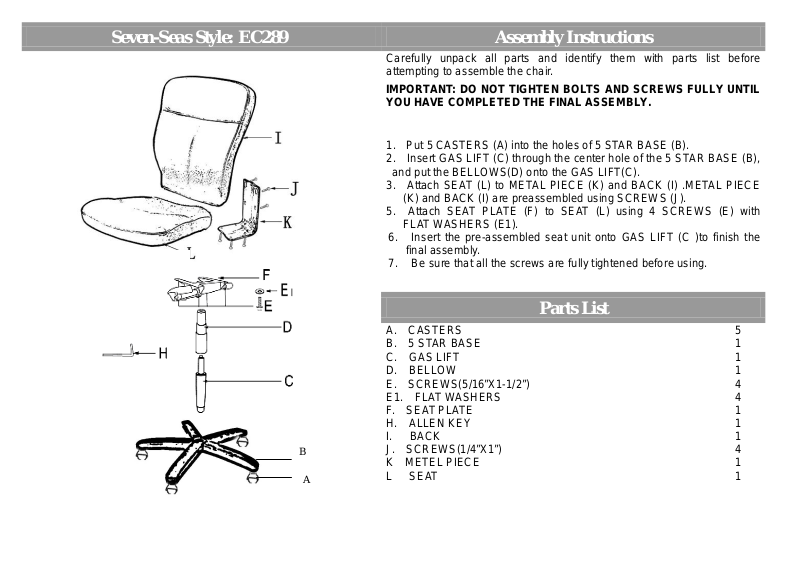

Seven-Seas Style: EC289 Assembly Instruct i o ns

Carefully unpack all parts and identify them with parts list before

METAL PIECE

with

A. CASTERS

5

B. 5 STAR BASE

1

C. GAS LIFT

1

D. BELLOW

1

E. SCREWS(5/16”X1-1/2”)
E1. FLAT WASHERS

4 4 F. SEAT PLATE
H. ALLEN KEY

1 1 I. BACK
J. SCREWS(1/4”X1”)

1
4

K METEL PIECE

1

L SEAT

1

B
A

attempting to assemble the chair.

IMPORTANT: DO NOT TIGHTEN BOLTS AND SCREWS FULLY UNTIL
YOU HAVE COMPLETED THE FINAL ASSEMBLY.

1. Put 5 CASTERS (A) into the holes of 5 STAR BASE (B).

2. Insert GAS LIFT (C) through the center hole of the 5 STAR BASE (B),
and put the BELLOWS(D) onto the GAS LIFT(C).

3. Attach SEAT (L) to METAL PIECE (K) and BACK (I) .

(K) and BACK (I) are preassembled using SCREWS (J).

5. Attach SEAT PLATE (F) to SEAT (L) using 4 SCREWS (E)

FLA T WA SHERS (E1).

6. Insert the pre-assembled seat unit onto GAS LIFT (C )to finish the
final assembly.

7. Be sure that all the screws are fully tightened before using.

Parts List
