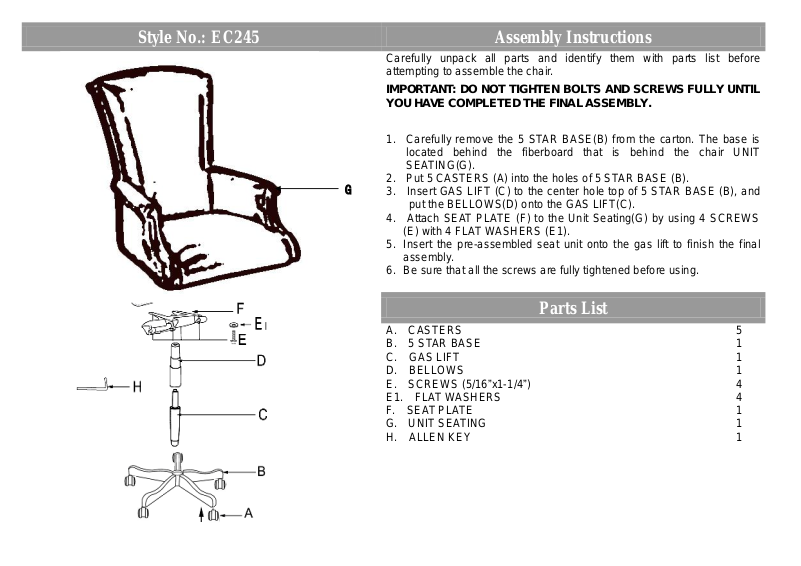

Hooker EC245 Assembly Instructions

Style No.: EC245

Assembly Instructions

Carefully unpack all parts and identify them with parts list before
attempting to assemble the chair.

IMPORTANT: DO NOT TIGHTEN BOLTS AND SCREWS FULLY UNTIL
YOU HAVE COMPLETED THE FINAL ASSEMBLY.

1. Carefully remove the 5 STAR BASE(B) from the carton. The base is
located behind the fiberboard that is behind the chair UNIT
SEATING(G).

2. Put 5 CASTERS (A) into the holes of 5 STAR BASE (B).

3. Insert GAS LIFT (C) to the center hole top of 5 STAR BASE (B), and

put the BELLOWS(D) onto the GAS LIFT(C).

4. Attach SEAT PLATE (F) to the Unit Seating(G) by using 4 SCREWS

(E) with 4 FLAT WASHERS (E1).

5. Insert the pre-assembled seat unit onto the gas lift to finish the final

assembly.

6. Be sure that all the screws are fully tightened before using.

Parts List

A. CASTERS

5 B. 5 STAR BASE

1

C. GAS LIFT

1

D. BELLOWS

1

E. SCREWS (5/16”x1-1/4”)
E1. FLAT WASHERS

4
4

F. SEAT PLATE

1

G. UNIT SEATING
H. ALLEN KEY

1
1

G

The instructions below are for the chair mechanism operating:

EC245 Operational Instruction

A:This handle is for the seater reclining locking,pull the handle
outwards,the mech is loose to recline; when you want to keep the
chair upright,push the handle inwards and it will lock at this
position.There is only one position you can lock at.

B:This handle is for gas lift locking/unlocking,turn this upwards,the
gas lift is active and you can adjust the seat height by your body
motion,release it when you get a desired seat height,then it will lock
the mechanism to keep this height for you.

C:This knob is for adjusting the tightness of the mechanism.Turn it
leftwards,the mechanism is easier to recline,turn it rightwards,the
mechanism gets firmer for reclining.

A

B

C
