ASSEMBLY INSTRUCTION

Item#: 638-50003 Bennett X-Base Writing Desk

** Please make sure you have all parts indicated below prior to assembly.

2

/2

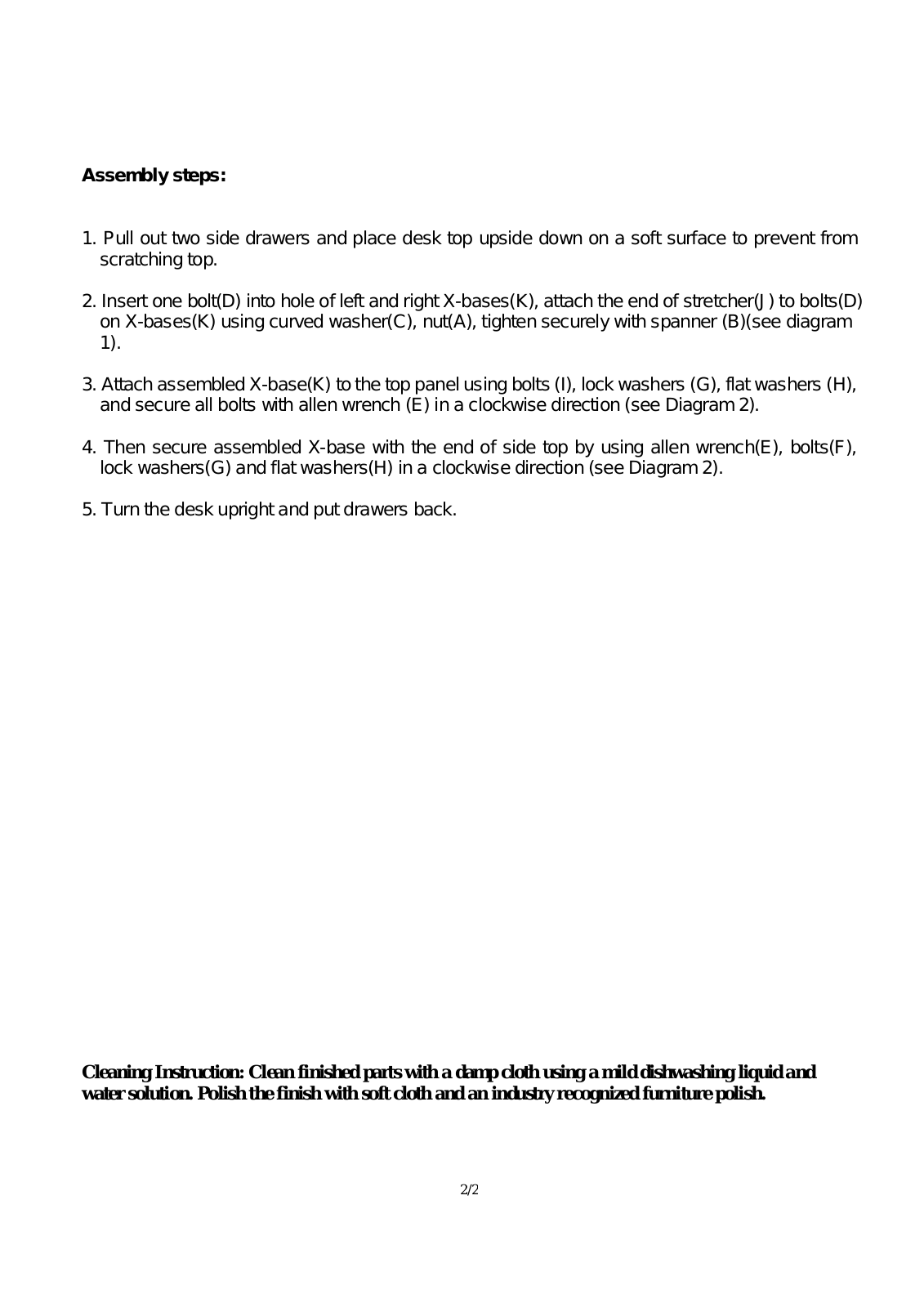

Assembly steps:

1. Pull out two side drawers and place desk top upside down on a soft surface to prevent from
scratching top.

2. Insert one bolt(D) into hole of left and right X-bases(K), attach the end of stretcher(J) to bolts(D)
on X-bases(K) using curved washer(C), nut(A), tighten securely with spanner (B)(see diagram

1).

3. Attach assembled X-base(K) to the top panel using bolts (I), lock washers (G), flat washers (H),
and secure all bolts with allen wrench (E) in a clockwise direction (see Diagram 2).

4. Then secure assembled X-base with the end of side top by using allen wrench(E), bolts(F),
lock washers(G) and flat washers(H) in a clockwise direction (see Diagram 2).

5. Turn the desk upright and put drawers back.

Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and
water solution. Polish the finish with soft cloth and an industry recognized furniture polish.
