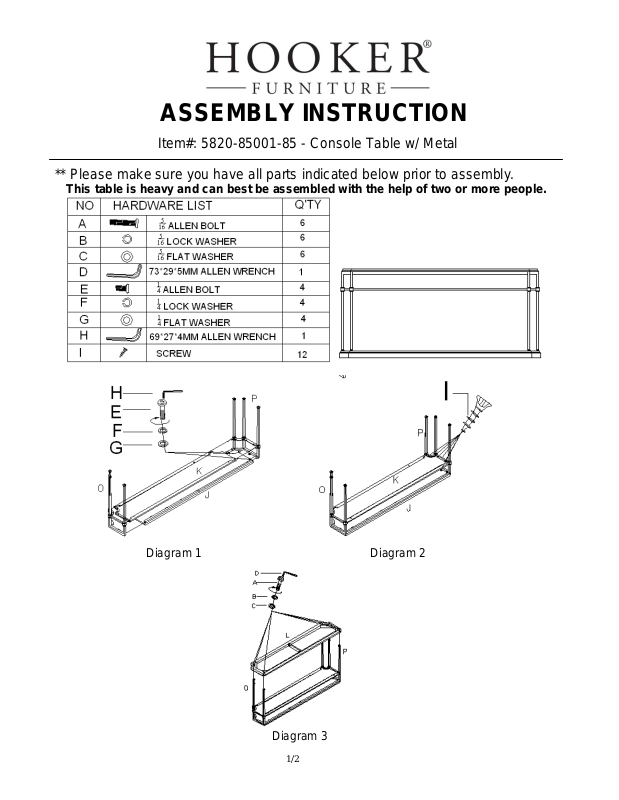

ASSEMBLY INSTRUCTION
Item#: 5820-85001-85 - Console Table w/ Metal
** Please make sure you have all parts indicated below prior to assembly.
This table is heavy and can best be assembled with the help of two or more people.
Diagram 3
1/2
Page 2
Assembly steps:
1. Place two metal leg frames (O&P) upside down on a soft surface to prevent it from being
scratched.
2. Attach metal leg frames (O&P) to the ends of top panel (J) and center shelf (K) to make sure
all pre-drilled holes are in alignment, first insert bolts (E), lock washers (F) and flat washers
(G), tighten bolts by turning with allen wrench (H) to assemble the top panel (J) (See Diagram
1).
3. Then insert bolts (E), lock washers (F) and flat washers (G), tighten bolts by turning with allen
wrench (H) to assemble the center shelf (K) (See Diagram 1).
4. Screw top panel (J) and center shelf (K) to metal leg frames (O&P) with screws ( I ) and
tighten them by using screw driver (Not provided) (See Diagram 2).
5. Place bottom frame (L) onto metal leg frames (O&P) to make sure all pre-drilled holes are in
alignment, well insert bolts (A), lock washers (B) and flat washers (C), tighten bolts by turning
with allen wrench (D) in clockwise direction (See Diagram 3).
6. Turn table upright..
Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and water solution.
Polish the finish with soft cloth and an industry recognized furniture polish.
