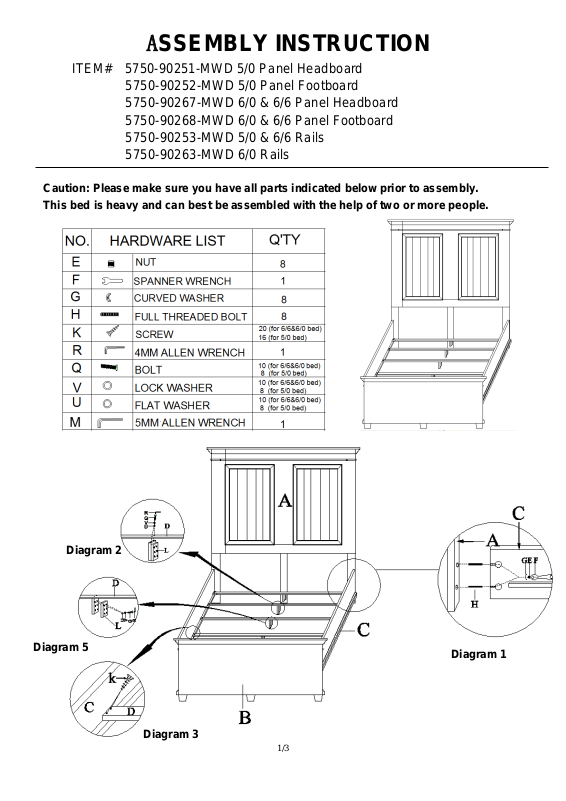

A

SSEMBLY INSTRUCTIO N

ITEM# 5750-90251-MWD 5/0 Panel Headboard

5750-90252-MWD 5/0 Panel Footboard
5750-90267-MWD 6/0 & 6/6 Panel Headboard
5750-90268-MWD 6/0 & 6/6 Panel Footboard
5750-90253-MWD 5/0 & 6/6 Rails
5750-90263-MWD 6/0 Rails

Caution: Please make sure you have all parts indicated below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more people.

Diagram 2

Diagram 5

Diagram 1

Diagram 3

2/3

Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails.

Assembly steps:

1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the
ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten
nuts (E) securely with spanner wrench (F). (See diagram 1)

Diagram 1

2. Take out center supports (L) from the rail box, attach center supports (L) to slats (D) by using 2
bolts (Q), 2 lock washers (V) and 2 flat washers (U). Secure bolts (Q) by using allen wrench (R).
(See diagram 2)

Diagram 2

3. Attach slats (D) to side rails (C), and tighten screws(K) on both ends of slats(D) to side rails(C).
(See diagram 3)

Diagram 3

3/3

Note: You can change the height of slats by adjusting the height of cleats on side rail as shown in

diagram 4. Remove bolts (I), lock washers (O) and flat washers ( J) from the cl eats by turning
the bolts (I) with allen wrench (M) in anti-clockwise direction. Adjust the cleats to a desired

position, and then secure lock washers, flat washer s, bolts in clockwise direction by turning

with allen wrench.

Diagram 4

You can adjust the height of center supports (L) as shown in diagram 5 to meet your need by the
following steps.

1. Unscrew bolts on center supports (L) with allen wrench (R).

2. Adjust the height of center sup ports, ali gn holes on 2pcs o f woods and ti ghten t hem toget her wi th
2 bolts (Q), 2 lock washers (V) and 2 flat washer (U) by turning with wrench (R) in clockwise
direction.

Diagram 5

Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp
cloth. Polish the finish with soft cloth and an industry recognized furniture polish.
