HON HAI PRECISION IND T60N871 Users Manual

Trade Name : T60N871

802.11b/g Wireless LAN MiniPCI module
User Manual

1

1. Wireless LAN Configuration Utility

Introduction

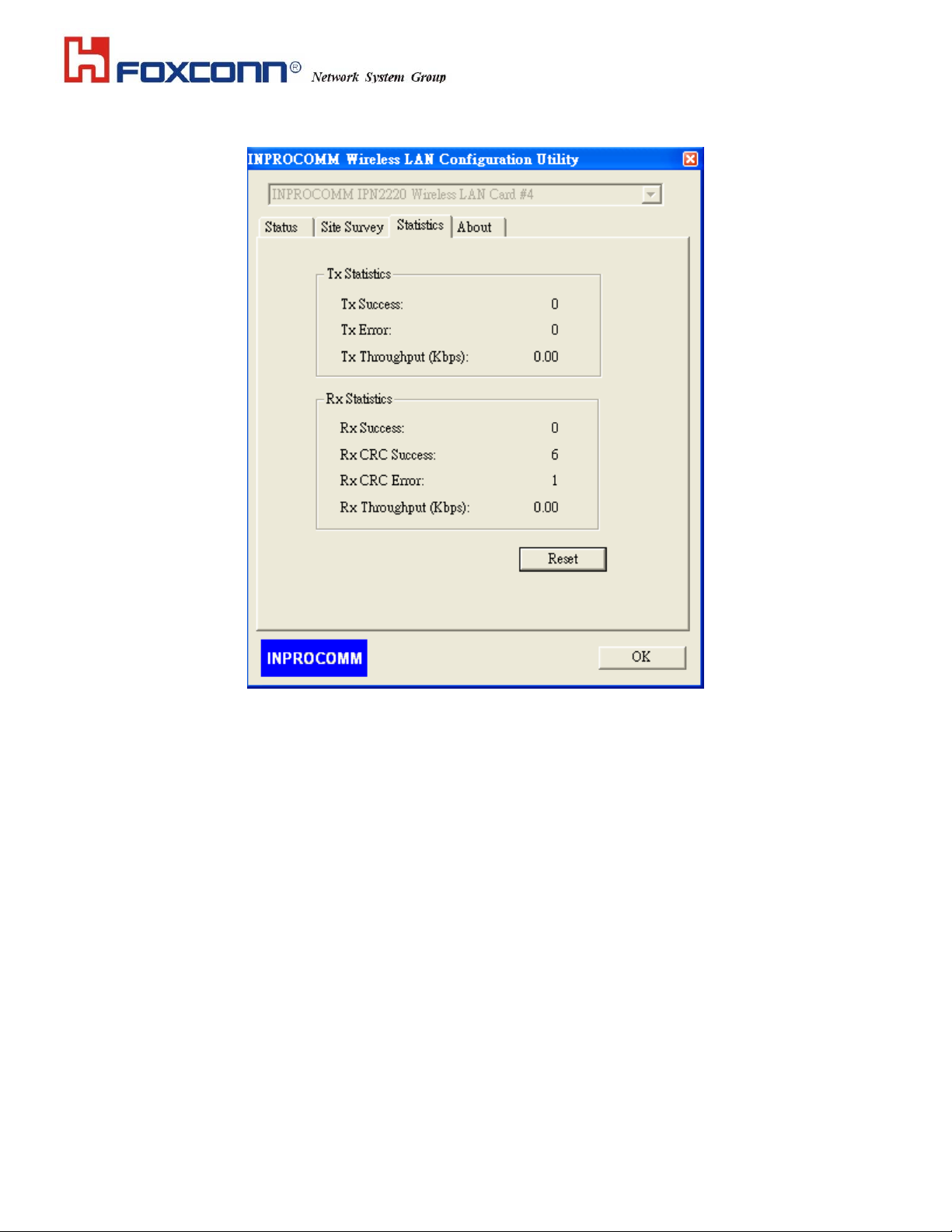

The Wireless LAN Configuration Utility is a powerful application that helps you to configure
FOXCONN WLAN card and monitor the statistics of the communication status. Unlike the standard
method of configuring the card via the operating system utilities, this application permits the dynamic
modification of the configuration parameters while the card is operating. It also offers more
configuration options.
FOXCONN offers the Wireless LAN Configuration Utility for Windows 95/98/Me/2000/XP.

2

1.1 How to install the driver and Wireless LAN Configuration Utility

Double click the “setup” located in “\WLAN_Utility\”

Fig 1-1

The program will automatically proceed with installing. Press “Next” to continue.

Fig 1-2

3

Press “I accept the terms in the license agreement” to continue the install shield. Or press “I do not accept the terms
in the license agreement” quit install process. Then, press “Next” to continue.

Press “Install” to continue installing

Fig 1-3

Fig 1-4

4

Install Shield is processing

Choose “Finish” to complete the installation

Fig 1-5

Fig 1-6
