MIC-B2 WIFI Module
User Manual
Rev. 0.01
Confidential
1
Reviewers
Review Dates
Department Name
Director of Engineering
Hardware Engineering
Plan Results
Confidential
2
Table of Contents
1. INTRODUCTION .................................................................................................................................................. 4
1.1 SCOPE .............................................................................................................................................................. 4
1.2 FUNCTION ........................................................................................................................................................ 4
2. PRODUCT SPECIFICATION ............................................................................................................................... 5
3. MECHANICAL DRAWING .................................................................................................................................. 6
4. REGULATORY INFORMATION ........................................................................................................................ 7
Confidential
3
1. Introduction
Project Name: 802.11n (5G) 2x2 MIMO WIFI module
This documentation describes the product specification of the WIFI 802.11n
module, it is a confidential document of FOXCONN.
1.1 Scope
The MIC-B2 802.11n module provides wireless modem functionality
utilizing OFDM technology. The objective of this use manual is to verify the
functionality of the MIC-B2 802.11n module RF/Digital electronic design
against the design specifications.
This device is operated in 5180~5240MHz (indoor only) and
5745~5825MHz.
1.2 Function
Support IEEE 802.11n 2x2 MIMO specified functions
SDIO V2.0 interface support
Confidential
4
2. Product Specification
Absolute Maximum Ratings
These specifications indicate levels where permanent damage to the
device can occur. Functional operation is not guaranteed under these
conditions. Operation at absolute maximum conditions for extended can
adversely affect long-term reliability of the device.
DC Specification
Confidential
5

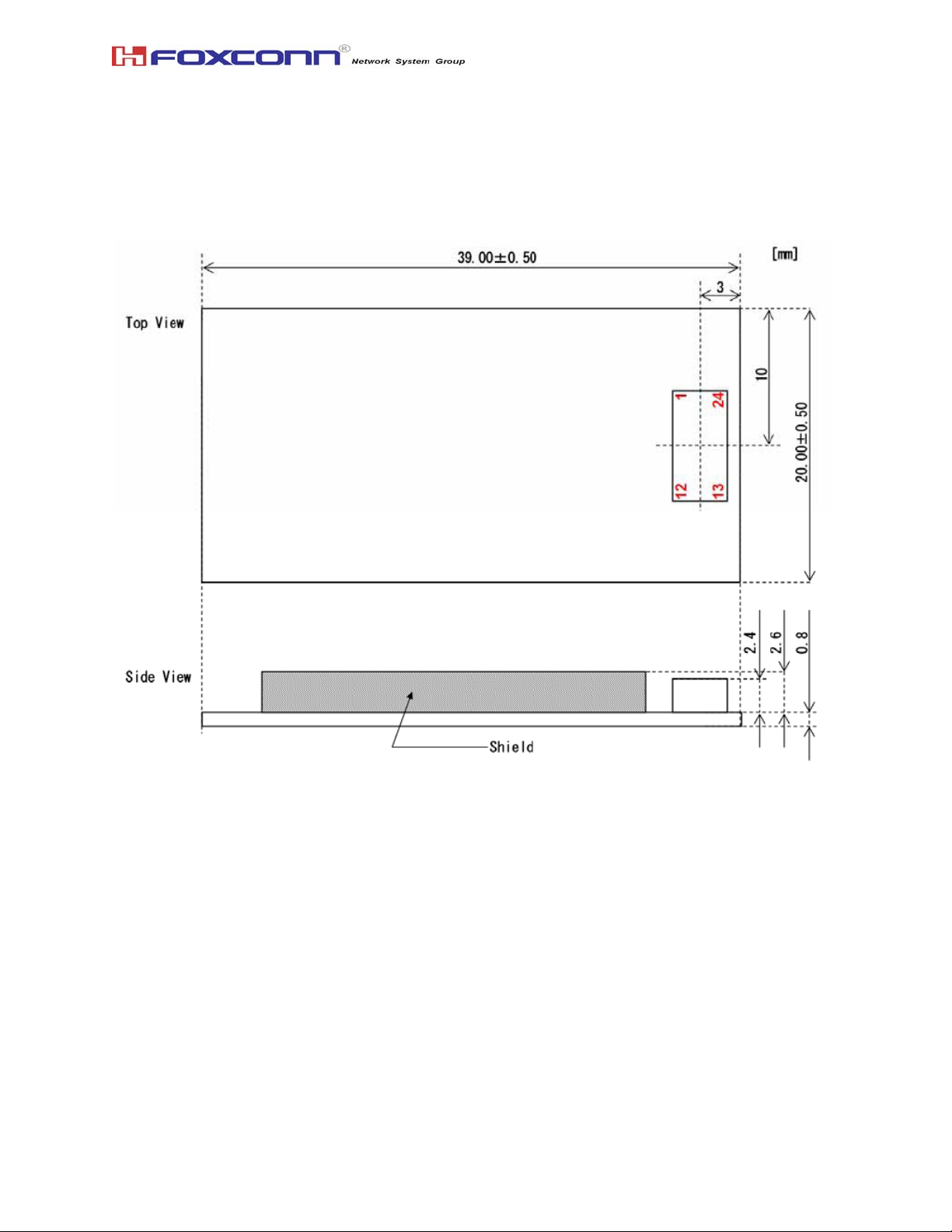

3. Mechanical Drawing
Confidential
6
4. Regulatory Information
USA-Federal Communications Commission (FCC)
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Caution
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Labeling
Hon Hai Precision 802.11n (5G) 2x2 MIMO WIFI module MIC-B2 labeled
as below.
FCC ID: MCLMICB2
The proposed with FCC ID label format is to be placed on the module. If
FCC ID is not visible when the module is installed into the system,
“Contains FCC ID: MCLMICB2” shall be placed on the outside of final host
system.
Caution: Exposure to Radio Frequency Radiation.
To comply with FCC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
Canada-Industry Canada (IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that
may cause undesired operation of this device.
Labeling
Hon Hai Precision 802.11n (5G) 2x2 MIMO WIFI module MIC-B2 labeled
Confidential
7
as below.
IC :2878D-MICB2
The proposed with IC No. label format is to be placed on the module. If IC
No. is not visible when the module is installed into the system, “Contains
IC :2878D-MICB2” shall be placed on the outside of final host system.
The term “IC” before the equipment certification number only signifies that
the Industry Canada technical specifications were met.
Caution: Exposure to Radio Frequency Radiation.
To comply with IC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device is only operated with the antenna with which it is approved by
FCC and Industry Canada.
