INSTALLATION MANUAL

J07M067

IBM Integrated Bluetooth IV with 56K Modem

Contents

SECTION ONE: INTRODUCTION............................................................................................1

1.1 FEATURES ..............................................................................................................................1

1.1.1 BLUETOOTH FUNCTION ...............................................................................................................1

1.1.2 MODEM FUNCTION......................................................................................................................1

1.2 HARDWARE REQUIREMENTS ..........................................................................................................2

SECTION TWO: BLUETOOTH INSTALLATION..........................................................................3

2.1 BLUETOOTH INSTALLATION ...................................................................................................3

SECTION THREE: MODEM INSTALLATION...............................................................................7

3.1 DRIVER INSTALLATION ..........................................................................................................7

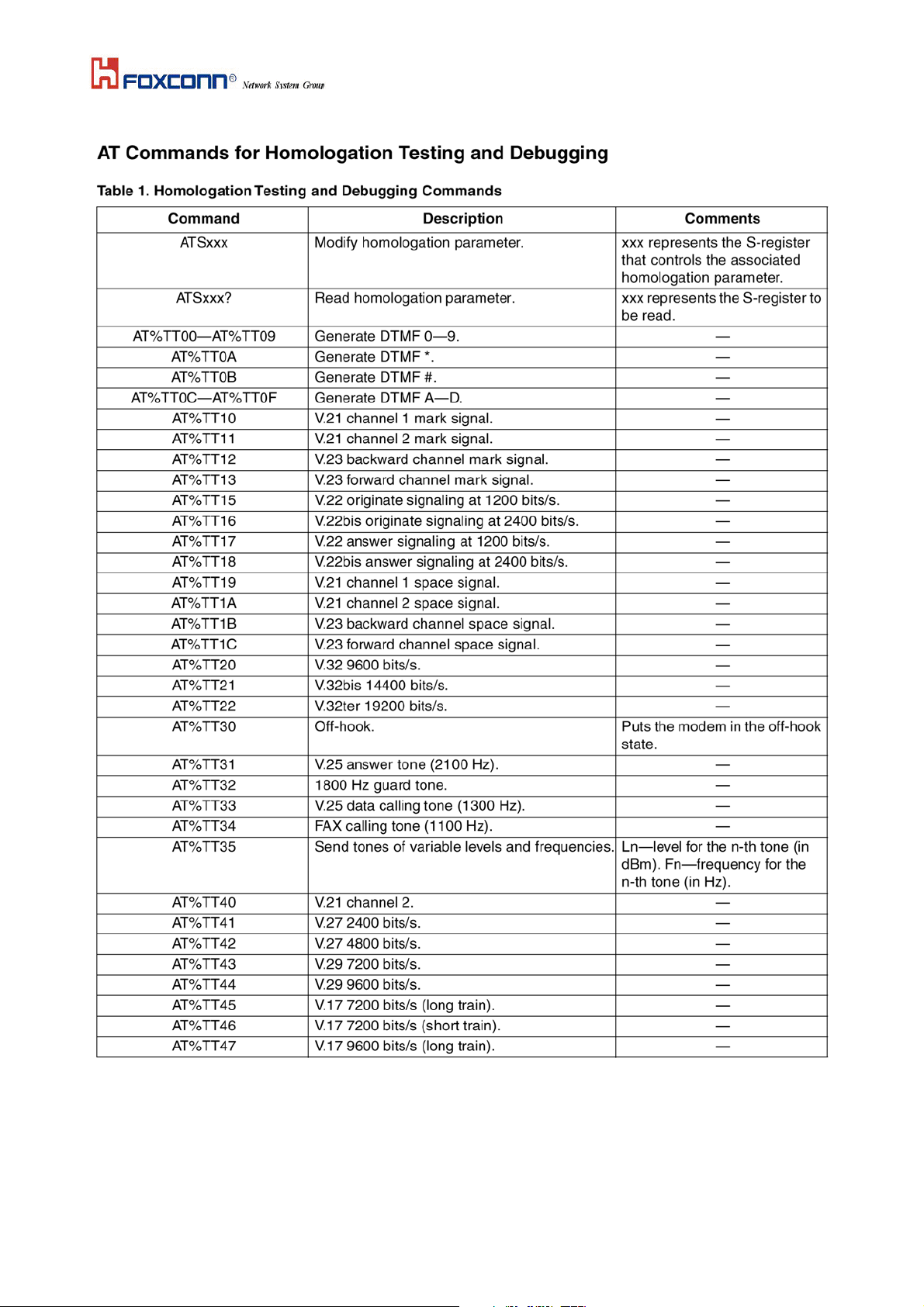

3.2 AT COMMANDS ...................................................................................................................10

SECTION FOUR: FCC NOTICE.................................................................................................15

4.1 FCC COMPLIANCE ...............................................................................................................15

4.2 FCC CLASS B STATEMENT ................................................................錯誤! 尚未定義書籤。

The information contained in this manual has been verified at the time of this manual printing. The
manufacturer reserves the right to make any changes and improvements in the product described in this
manual at any time and without notice.
All registered trademarks are the property of their respective owners.

Section One: Introduction

The Bluetooth Modem Combo Module is a cost-effective wireless access. The Bluetooth circuit of this
module is compliant to Bluetooth 1.2 standard. With V.92 technology, the modem part can achieve
internet connection rates up to 56 kbits/s with backward compatibility. The V.92 Feature include PCM
Upstream, Modem On Hold, Quick Connection and V.44 Data compression. The Audio CODEC will be

placed on the notebook and contact with Modem Codec by AC-Link Interface. The combo card complies with
MDC Domestic form factor.

1.1 Features

1.1.1 Bluetooth Function

o Bluetooth radio firmware is upgradeable for bug fixes, initial version compatible with Bluetooth

specification version 1.2.

o Fully compliant to Bluetooth SIG (BQB) compatibility testing.
o USB Pin assignment is to use MDC reserve pin to communicate with Host.interface
o Bluetooth Profile Support

- General Access Profile

- Service Discovery Application Profile

- Serial Port Profile

- Dial-up Networking Profile

- LAN Access Profile

- Generic Object Exchange Profile

- File Transfer Profile

- Object Push Profile

- Synchronization Profile

o Drivers support Windows 98, 98SE, ME, 2000, XP.
o Supports Power Management ACPI 1.94 (or later)

o Bluetooth performance must exceed 500 kbps, using OBEX.

1.1.2 Modem Function

o AC’97/MC’97 2.2 compliant
o Support Modem Digital Line Guard: The product shall incorporate circuitry to sense whenever the

current on the line exceeds approximately 130mA, and should immediately go back on hook.

o The call progress signal shall be scaled digitally according to the speaker level setting (ATL1, L2,

L3)

o ITU-T V.92 PCM Upstream and V.90 data rates with auto-fallback to V.34, V.32terbo, V.32bis and

fallbacks

o TIA/EIA 602 standard for AT Command set
o Supports V.42 error correction and V.44, V.42bis/MNP5 data compression
o FAX capabilities: ITU-T V.17, V.29, V.27ter, V.21 Ch2 and TIA/EIA 578 Class1 FAX

o Support Wake up on Ring and meet WHQL test requirement..

1.2 Hardware Requirements

Supply Voltage 3.3V & 1.8V
Frequency Range 2.400-2.4835 GHz
Antenna Load 50 Ohm
Receive Sensitivity –80 dBm@0.1% BER
Maximum Receiver Signal -20 dBm
TX Power 4 dBm maximum (class 2)
RF Power Control Step Size 2 dB
Range 10 meters at 0 dBm TX power (class 2)
Radio Compliant with Bluetooth standard version 1.1
Pico Net 1 master to 7 slaves
Operating Channels 79 channels of 1 MHz BW
Security Full support of Bluetooth security provisions including

hardware support for full length 128 bit encryption keys.

Host Interface (USB) USB specification 1.1 compliant and using MDC reserve pin to

communicate with Host

Software Requirements Windows 98SE, ME, 2000, XP.
Mechanical Requirements 28.5mm x 47mm x 4.6mm(1.3/0.8/2.5mm)

Section Two: Bluetooth Installation

The following steps provide instructions for installing Bluetooth.

1. Make sure your MDC BT/Modem Combo card already insert into your notebook.

2. Make sure your notebook operating system support Windows 98SE or ME or 2000 or XP.

2.1 Bluetooth Installation

Proceed to the following section.

1. Execute the program ‘Setup.exe’ in the CD. Windows displays the dialog as below. Click ‘Next’ to begin the
process.

2.The “License Agreement” windows will pop up, please read it carefully. If you agree it, and choose ‘I agree
the terms in the license agreement’ and click on ‘Next’.

3. “Destination Folder” appears, specify the location of the driver and software to be installed then press ‘Next’
bottom.

4. When all the above process are done, it will show ‘Ready to Install the Program” window. Make
sure the driver software is ready to be installed, click ‘Install’.

5.Choose ‘Install the software automatically [Recommened]’, then Click ‘Next’ to continue.

Broadcom USB Bluetooth Device

6. Congratulations! Bluetooth has been installed successfully.

Please click ‘Finish’ to confirm the completion of installation.
