Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this
document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been
made. The information in this publication does not represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages
resulting from the furnishing, performance, or use of this material. HII disclaims all responsibility for the selection and use of
software and/or hardware to achieve intended results.
This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document
may be photocopied, reproduced, or translated into another language without the prior written consent of HII.
Copyright 2016 Honeywell International Inc. All rights reserved.
Web Address:
Microsoft® Windows®, Windows NT®, Windows 2000, Windows ME, Windows XP, and the Windows logo are trademarks or
registered trademarks of Microsoft Corporation.
Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies
and are the property of their respective owners.
For patent information, refer to www.hsmpats.com.
www.honeywellaidc.com
Table of Contents
Customer Support
Technical Assistance ............................................................................................................ ix
Product Service and Repair .................................................................................................. ix
Limited Warranty ................................................................................................................... ix
Send Feedback ..................................................................................................................... ix
Chapter 1 - Getting Started
About This Manual ...............................................................................................................1-1
Unpacking Your Device .......................................................................................................1-1
Connecting the Device.........................................................................................................1-1
Connecting with USB .....................................................................................................1-1
Connecting with Keyboard Wedge.................................................................................1-1
Connecting with RS232 Serial Port................................................................................1-2
To search our knowledge base for a solution or to log in to the Technical Support portal and report a problem, go to
www.hsmcontactsupport.com.
For our latest contact information, see www.honeywellaidc.com/locations.
Product Service and Repair
Honeywell International Inc. provides service for all of its products through service centers throughout the world. To obtain
warranty or non-warranty service, please visit www.honeywellaidc.com and select Support > Contact Service and Repair
to see your region's instructions on how to obtain a Return Material Authorization number (RMA #). You should do this prior
to returning the product.
Limited Warranty
Refer to www.honeywellaidc.com/warranty_information for your product’s warranty information.
Send Feedback
Your feedback is crucial to the continual improvement of our documentation. To provide feedback about this manual, contact the Honeywell Technical Communications department at ACSHSMTechnicalCommunications@honeywell.com.
ix
x
1
Scanner USB
Connection:
Getting Started
About This Manual
This User’s Guide provides installation and programming instructions for the Vuquest™ 3320 area-imaging scanner. Product
specifications, dimensions, warranty, and customer support information are also included.
Honeywell bar code scanners are factory programmed for the most common terminal and communications settings. If you need
to change these settings, programming is accomplished by scanning the bar codes in this guide.
An asterisk (*) next to an option indicates the default setting.
Unpacking Your Device
After you open the shipping carton containing the product, take the following steps:
• Check for damage during shipment. Report damage immediately to the carrier who delivered the carton.
• Make sure the items in the carton match your order.
• Save the shipping container for later storage or shipping.
Connecting the Device
Connecting with USB
A scanner can be connected to the USB port of a computer.
1. Connect the appropriate interface cable to the device first, then to the computer.
2. The scanner beeps.
3. Verify the scanner operation by scanning a bar code from the Sample Symbols in the back of this manual.
The unit defaults to a USB PC Keyboard. Refer to page 2-2 for other USB terminal settings.
For additional USB programming and technical information, refer to “USB Application Note,” available at www.honey-
wellaidc.com.
Connecting with Keyboard Wedge
A scanner can be connected between the keyboard and PC as a “keyboard wedge,” where the scanner provides data output that is similar to keyboard entries. The following is an example of a keyboard wedge connection:
1. Turn off power and disconnect the keyboard cable from the back of the terminal/computer.
1 - 1
2. Connect the appropriate interface cable to the device and to the terminal/computer.
Scanner
Keyboard Wedge
Connection:
Scanner RS232
Serial Port
Connection:
3. Turn the terminal/computer power back on. The scanner beeps.
4. Verify the scanner operation by scanning a bar code from the Sample Symbols in the back of this manual. The scanner
beeps once.
The unit defaults to an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard. A carriage return (CR)
suffix is added to bar code data.
Connecting with RS232 Serial Port
1. Turn off power to the terminal/computer.
2. Connect the appropriate interface cable to the scanner.
Note: For the scanner to work properly, you must have the correct cable for your type of terminal/computer.
3. Plug the serial connector into the serial port on your computer. Tighten the two screws to secure the connector to the
port.
4. Once the scanner has been fully connected, power up the computer.
1 - 2
This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.
Linear bar code2D Matrix symbol
Note: Please note, the end of the cable with the ferrite plugs into the scanner. The end of the cable with the label “DO NOT
connect this end to the bar code scanner” plugs into the computer.

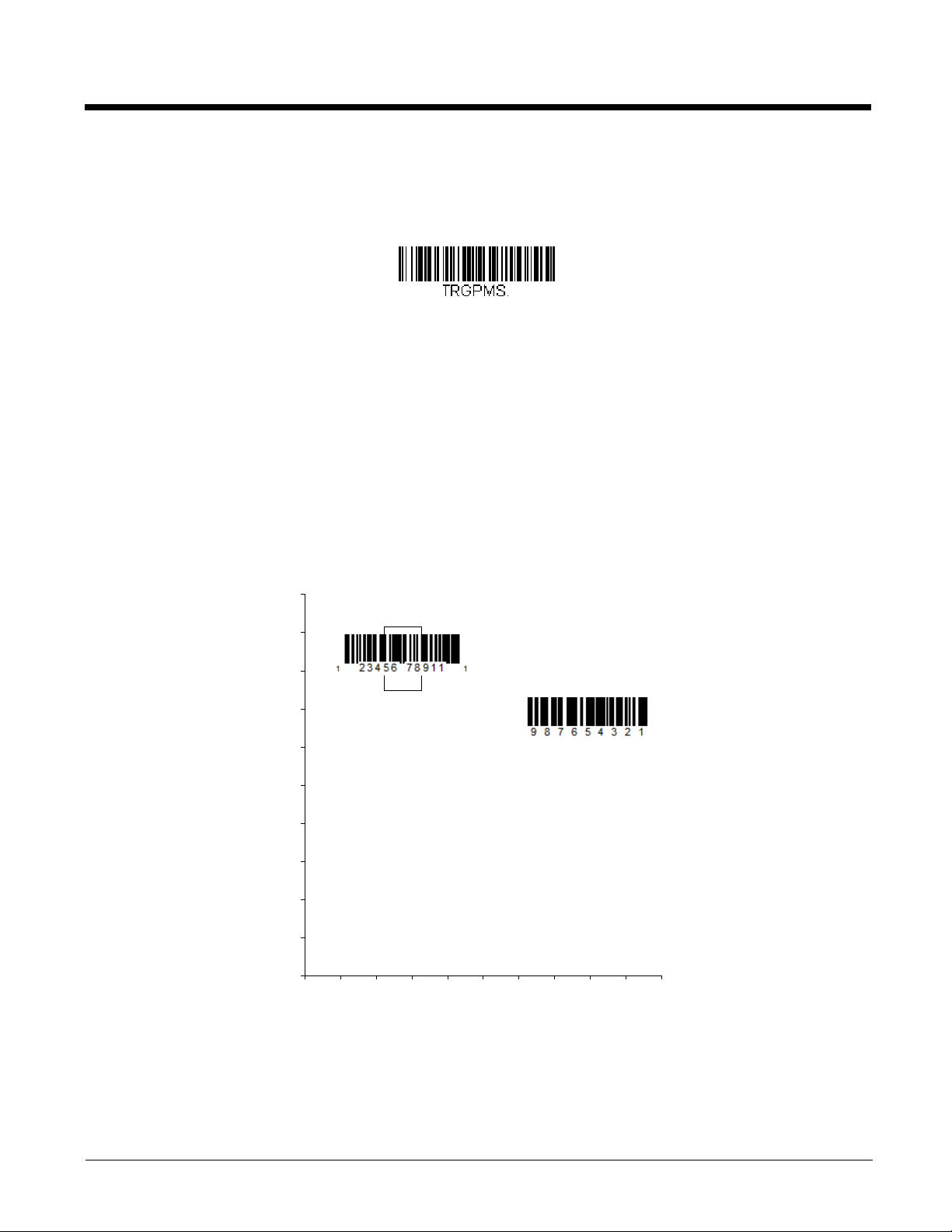

Reading Techniques
The scanner has a view finder that projects a bright green aiming beam that corresponds to the scanner’s horizontal field of
view. The aiming beam should be centered over the bar code, but it can be positioned in any direction for a good read.
The aiming beam is smaller when the scanner is closer to the code and larger when it is farther from the code. Symbologies
with smaller bars or elements (mil size) should be read closer to the unit. Symbologies with larger bars or elements (mil size)
should be read farther from the unit. To read single or multiple symbols (on a page or on an object), hold the scanner at an
appropriate distance from the target, push the button, and center the aiming beam on the symbol. If the code being scanned is
highly reflective (e.g., laminated), it may be necessary to tilt the code up 15° to 18° to prevent unwanted reflection.

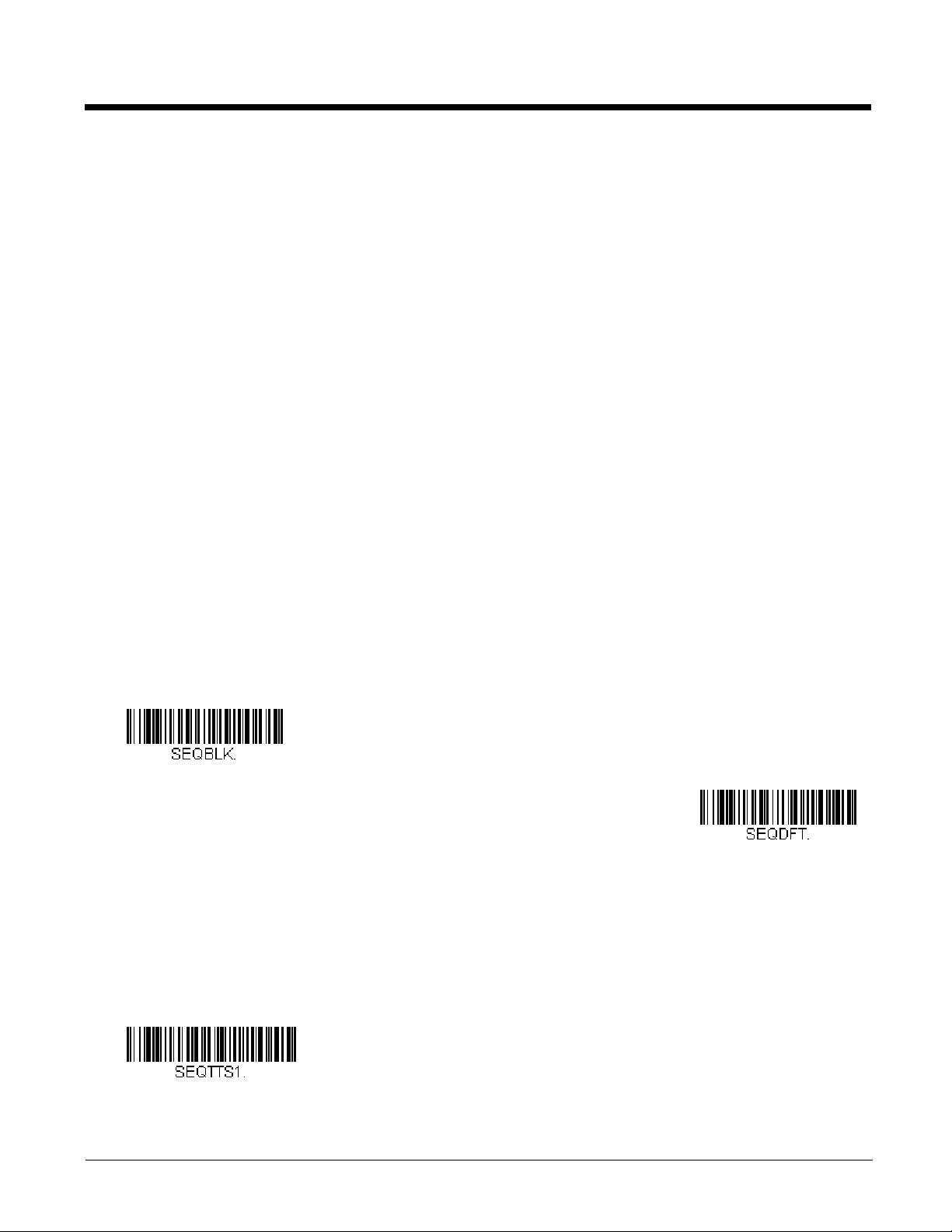

Menu Bar Code Security Settings
Honeywell scanners are programmed by scanning menu bar codes or by sending serial commands to the scanner. If you want
to restrict the ability to scan menu codes, you can use the Menu Bar Code Security settings. Please contact the nearest technical support office (see Technical Assistance on page -ix) for further information.
1 - 3
Setting Custom Defaults
Set Custom Defaults
Save Custom Defaults
Activate Custom Defaults
You have the ability to create a set of menu commands as your own, custom defaults. To do so, scan the Set Custom Defaults
bar code below before scanning the menu commands for your custom defaults. If a menu command requires scanning numeric
codes from the back cover, then a Save code, that entire sequence will be saved to your custom defaults. When you have
entered all the commands you want to save for your custom defaults, scan the Set Custom Defaults bar code.
You may have a series of custom settings and want to correct a single setting. To do so, just scan the new setting to overwrite
the old one. For example, if you had previously saved the setting for Beeper Volume at Low to your custom defaults, and decide
you want the beeper volume set to High, just scan the Set Custom Defaults bar code, then scan the Beeper Volume High
menu code, and then Save Custom Defaults. The rest of the custom defaults will remain, but the beeper volume setting will be
updated.
Resetting the Custom Defaults
If you want the custom default settings restored to your scanner, scan the Activate Custom Defaults bar code below. This is
the recommended default bar code for most users. It resets the scanner to the custom default settings. If there are no custom
defaults, it will reset the scanner to the factory default settings. Any settings that have not been specified through the custom
defaults will be defaulted to the factory default settings.
1 - 4
2
IBM PC AT and Compatibles with
CR suffix
Laptop Direct Connect
with CR suffix
RS232 Interface
Programming the Interface
Introduction
This chapter describes how to program your system for the desired interface.
Programming the Interface - Plug and Play
Plug and Play bar codes provide instant scanner set up for commonly used interfaces.
Note: After you scan one of the codes, power cycle the host terminal to have the interface in effect.
Keyboard Wedge
If you want your system programmed for an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard,
scan the bar code below. Keyboard wedge is the default interface.
Note: The following bar code also programs a carriage return (CR) suffix.

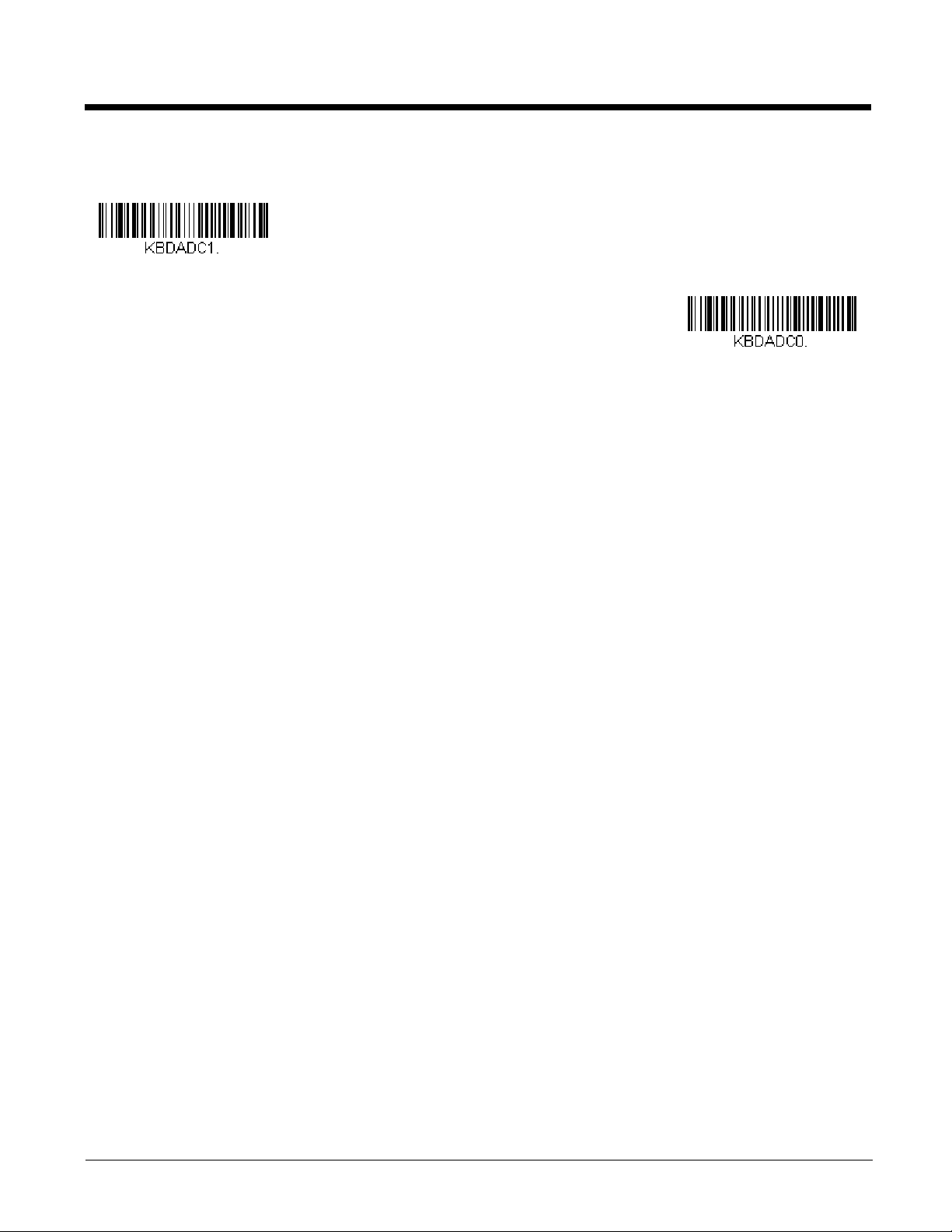

Laptop Direct Connect
For most laptops, scanning the Laptop Direct Connect bar code allows operation of the scanner in parallel with the integral keyboard. The following Laptop Direct Connect bar code also programs a carriage return (CR) suffix and turns on
Emulate External Keyboard (page 2-15).
RS232 Serial Port
The RS232 Interface bar code is used when connecting to the serial port of a PC or terminal. The following RS232 Interface bar code also programs a carriage return (CR) and a line feed (LF) suffix, baud rate, and data format as indicated
below. It also changes the trigger mode to manual.
OptionSetting
Baud Rate115,200 bps
Data Format8 data bits, no parity bit, 1 stop bit
2 - 1
USB IBM SurePos
USB IBM SurePos
(USB Handheld Scanner)
Interface
USB IBM SurePos
(USB Tabletop Scanner)
Interface
U
S
B
K
e
y
b
o
a
r
d
(
P
C
)
USB Keyboard (Mac)
USB Japanese Keyboard (PC)
USB HID Bar Code Scanner
Scan one of the following “Plug and Play” codes to program the scanner for an IBM SurePos (USB handheld scanner) or
IBM SurePos (USB tabletop scanner) interface.
Note: After scanning one of these codes, you must power cycle the cash register.
Each bar code above also programs the following suffixes for each symbology:
Scan one of the following codes to program the scanner for USB PC Keyboard or USB Macintosh Keyboard. Scanning
these codes also adds a CR and LF.
USB HID
Scan the following code to program the scanner for USB HID bar code scanners.
2 - 2
USB Serial
USB Serial
CTS/RTS Emulation On
* CTS/RTS Emulation Off

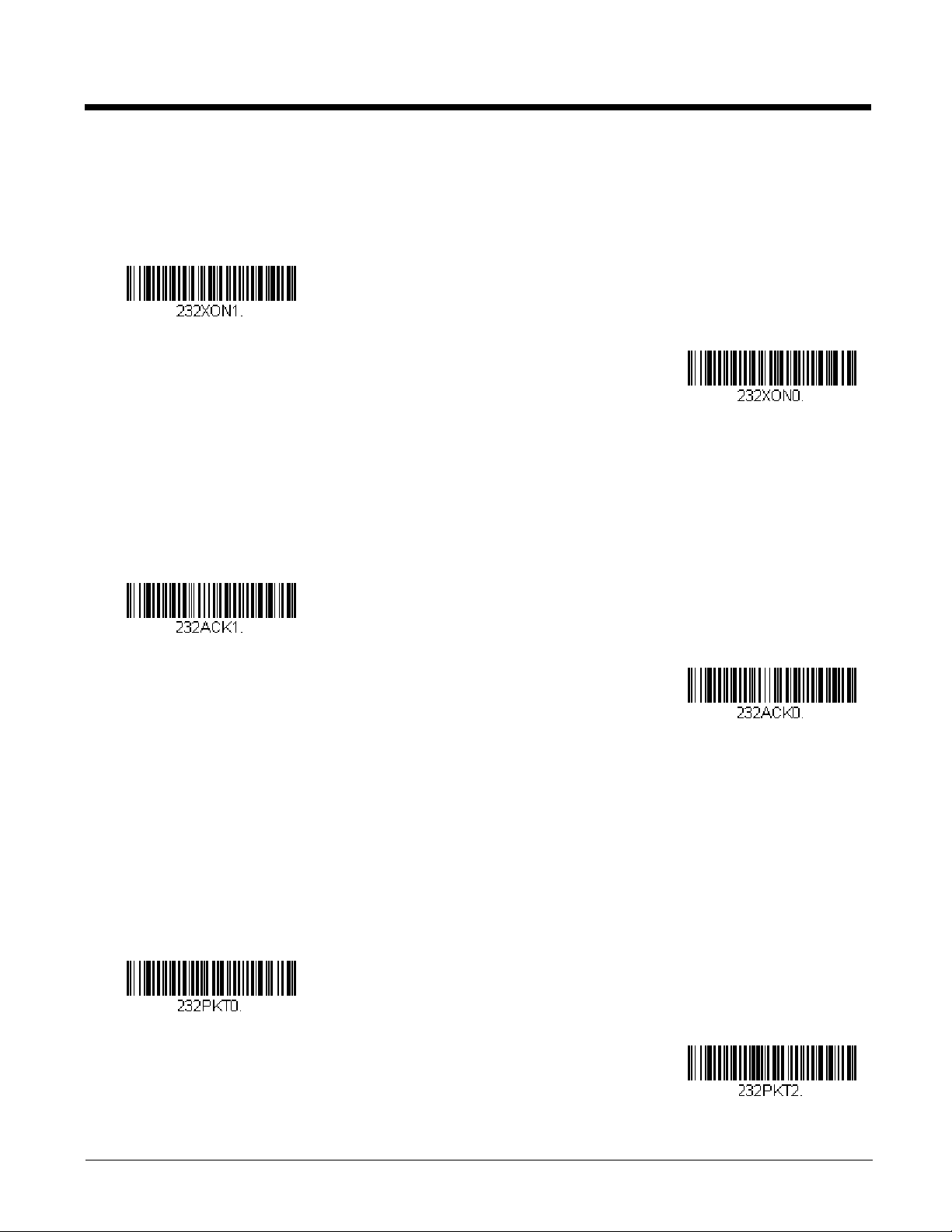

ACK/NAK Mode On
* ACK/NAK Mode Off
ReM Off
* ReM On
Scan the following code to program the scanner to emulate a regular RS232-based COM Port. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Honeywell website (www.honeywellaidc.com). The driver
will use the next available COM Port number. Apple® Macintosh computers recognize the scanner as a USB CDC class
device and automatically use a class driver.
Note: No extra configuration (e.g., baud rate) is necessary.
CTS/RTS Emulation
ACK/NAK Mode
Remote MasterMind™ for USB
When using a USB interface, you may wish to configure your scanner to communicate with Remote MasterMind Scanner
Management Software (ReM). Scan the ReM On bar code to communicate with ReM. To disable this capability, scan ReM
Off. Default = ReM On.
2 - 3
Verifone® Ruby Terminal Default Settings
Verifone Ruby Settings
Gilbarco Settings
Honeywell Bioptic Settings
Scan the following Plug and Play code to program the scanner for a Verifone Ruby terminal. This bar code sets the baud
rate to 1200 bps and the data format to 8 data bits, Mark parity bit, 1 stop bit. It also adds a line feed (LF) suffix an programs the following prefixes for each symbology:
SymbologyPrefix
UPC-AA
UPC-EA
EAN-8FF
EAN-13F
Note: If you are having unexpected results with this programming code, scan the Activate Defaults bar code on page 1-4
first, then scan the programming code above.
Gilbarco® Terminal Default Settings
Scan the following Plug and Play code to program the scanner for a Gilbarco terminal. This bar code sets the baud rate to
2400 bps and the data format to 7 data bits, even parity, 2 stop bits. It also adds a carriage return (CR) suffix and programs
the following prefixes for each symbology:
SymbologyPrefix
UPC-AA
UPC-EE0
EAN-8FF
EAN-13F
Note: If you are having unexpected results with this programming code, scan the Activate Defaults bar code on page 1-4
first, then scan the programming code above.
Honeywell Bioptic Aux Port Configuration
Scan the following Plug and Play code to program the scanner for a Honeywell bioptic scanner auxiliary port configuration.
This bar code sets the baud rate to 38400 bps and the data format to 8 data bits, no parity, 1 stop bit.
Note: If you are having unexpected results with this programming code, scan the Activate Defaults bar code on page 1-4
Scan the following Plug and Play code to program the scanner for a Datalogic Magellan auxiliary port configuration. This
bar code sets the baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.
Note: If you are having unexpected results with this programming code, scan the Activate Defaults bar code on page 1-4
first, then scan the programming code above.
NCR Bioptic Aux Port Configuration
Scan the following Plug and Play code to program the scanner for an NCR bioptic scanner auxiliary port configuration. The
communication should be set at 9600bps baud rate, 7 data bit data format, even parity and 1 stop bit. The following prefixes
are programmed for each symbology:
SymbologyPrefixSymbologyPrefix
UPC-AAInterleaved 2 of 5b
UPC-EE0Code 128f
GS1 DataBar
Omnidirectional
EAN-8FFGS1 DataBar
Expanded
EAN-13FCodabarN
Code 39aCode 32
Pharmaceutical
(PARAF)
r
r
a
Note: If you are having unexpected results with this programming code, scan the Activate Defaults bar code on page 1-4
first, then scan the programming code above.
Wincor Nixdorf Terminal Default Settings
Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf terminal. This bar code sets the baud
rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.
Note: If you are having unexpected results with this programming code, scan the Activate Defaults bar code on page 1-4
first, then scan the programming code above.
2 - 5
Wincor Nixdorf Beetle™ Terminal Default Settings
Wincor Nixdorf Beetle Settings
* United States
Albania
Azeri (Cyrillic)
Azeri (Latin)
Belarus
Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf Beetle terminal. The following prefixes
are programmed for each symbology:
SymbologyPrefixSymbologyPrefix
Aztec CodeVInterleaved 2 of 5I
CodabarNMaxiCodeT
Code 93LMicroPDF417S
Code 128KPDF417Q
Data MatrixRQR CodeU
EAN-8BStraight 2 of 5 IATAH
EAN-13AUPC-AA0
GS1 DataBarEUPC-EC
GS1-128PAll other bar codesM
Note: If you are having unexpected results with this programming code, scan the Activate Defaults bar code on page 1-4
first, then scan the programming code above.
Keyboard Country Layout
SIf your interface is USB Keyboard or Keyboard Wedge, your keyboard layout default is a US keyboard. To change this layout,
refer to the chart below for your keyboard country. Scan the appropriate bar code below to change the layout.
By default, national character replacements are used for the following characters: #$@[\]^‘{|}~ See ISO 2022/ISO 646
Character Replacements on page A-8 to view the character replacements for each country.
Keyboard Countries
2 - 6
Keyboard Countries (Continued)
Belgium
Bosnia
Brazil
Brazil (MS)
Bulgaria (Cyrillic)
Bulgaria (Latin)
Canada (French legacy)
Canada (French)
Canada (Multilingual)
Croatia
Czech
2 - 7
Keyboard Countries (Continued)
Czech (Programmers)
Czech (QWERTY)
Czech (QWERTZ)
Denmark
Dutch (Netherlands)
Estonia
Faroese
Finland
France
Gaelic
Germany
2 - 8
Keyboard Countries (Continued)
Greek
Greek (220 Latin)
Greek (220)
Greek (319 Latin)
Greek (319)
Greek (Latin)
Greek (MS)
Greek (Polytonic)
Hebrew
Hungarian (101 key)
Hungary
2 - 9
Keyboard Countries (Continued)
Iceland
Irish
Italian (142)
Italy
Japan ASCII
Kazakh
Kyrgyz (Cyrillic)
Latin America
Latvia
Latvia (QWERTY)
Lithuania
2 - 10
Keyboard Countries (Continued)
Lithuania (IBM)
Macedonia
Malta
Mongolian (Cyrillic)
Norway
Poland
Polish (214)
Polish (Programmers)
Portugal
Romania
Russia
2 - 11
Keyboard Countries (Continued)
Russian (MS)
Russian (Typewriter)
SCS
Serbia (Cyrillic)
Serbia (Latin)
Slovakia
Slovakia (QWERTY)
Slovakia (QWERTZ)
Slovenia
Spain
Spanish variation
2 - 12
Keyboard Countries (Continued)
Sweden
Switzerland (French)
Switzerland (German)
Tatar
Turkey F
Turkey Q
Ukrainian
United Kingdom
United States (Dvorak)
United States (Dvorak left)
United Stated (Dvorak right)
2 - 13
Keyboard Countries (Continued)
United States (International)
Uzbek (Cyrillic)
* Regular
Caps Lock
Shift Lock
Automatic Caps Lock
Autocaps via NumLock
Keyboard Style
This programs keyboard styles, such as Caps Lock and Shift Lock. If you have used Keyboard Conversion settings, they will
override any of the following Keyboard Style settings. Default = Regular.
Regular is used when you normally have the Caps Lock key off.
Caps Lock is used when you normally have the Caps Lock key on.
Shift Lock is used when you normally have the Shift Lock key on (not common to U.S. keyboards).
Automatic Caps Lock is used if you change the Caps Lock key on and off. The software tracks and reflects if you have Caps
Lock on or off . This selection can only be used with systems that have an LED that notes the Caps Lock status (AT keyboards).
Autocaps via NumLock bar code should be scanned in countries (e.g., Germany, France) where the Caps Lock key cannot be
used to toggle Caps Lock. The NumLock option works similarly to the regular Autocaps, but uses the NumLock key to retrieve
the current state of the Caps Lock.
2 - 14
Loading...
+ 172 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
