T6101, T6102 Underfloor Heating Controllers
CONTROL OF UNDERFLOOR HEATING LOOPS
PRODUCT DATA
Design |
The sets constist of:
•Underwall case with lid
•Protective render lid for use during building phase
•Thera-RTL or Thera-3 thermostat

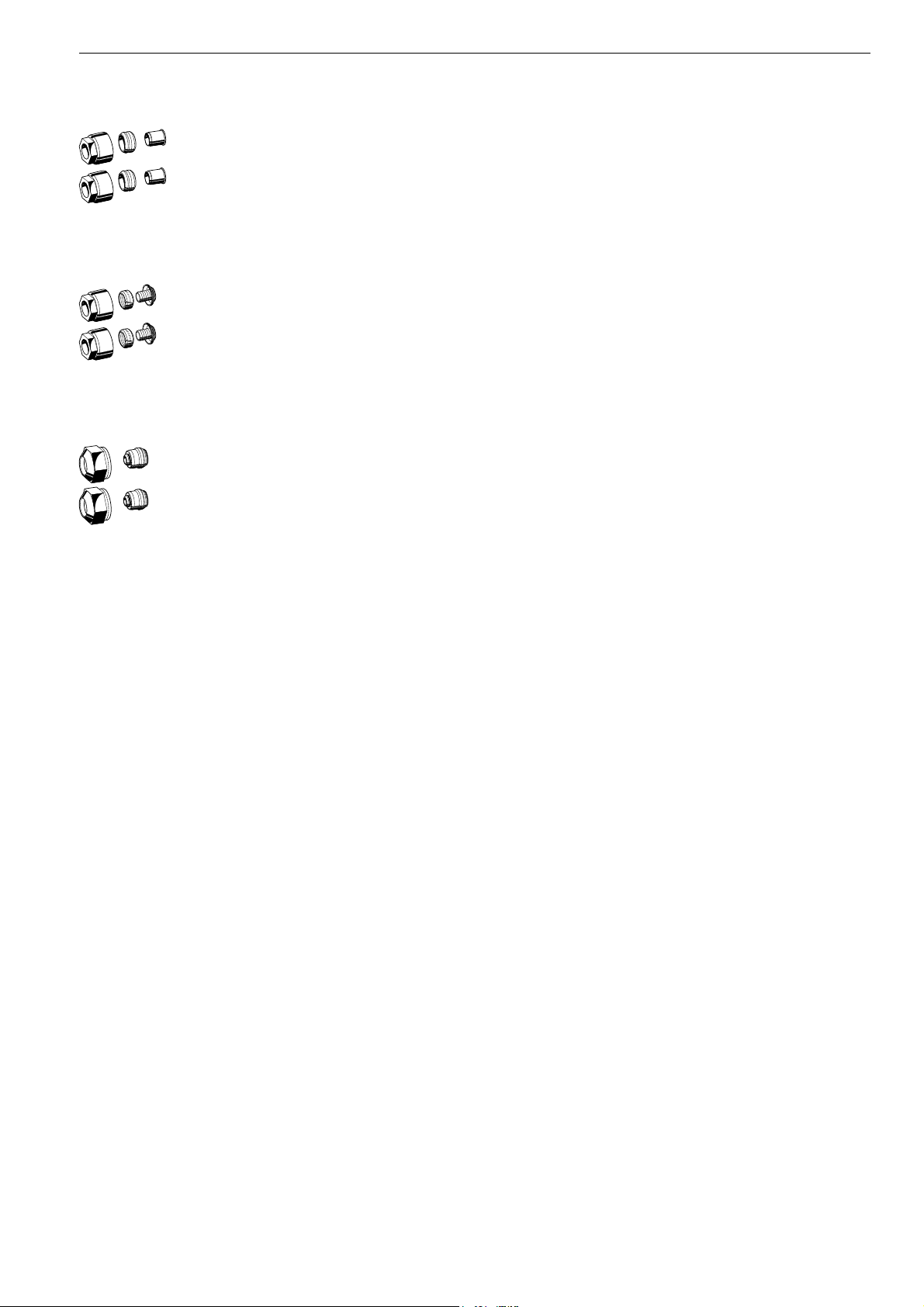

•Thermostatic valve PN10, DN15, double or horizontal angle body, with external threads to ISO 228 (Eurocone). Connections for copper, plastic or composite tube - see 'Accessories'
•Air vent
Materials
•Handwheel and socket made of plastic, white to RAL9016
•Lid made of sheet steel, white to RAL9016
•Underwall box and render lid made of dark grey plastic
Application
The underfloor heating sets are used to control underfloor heating loops with or without additional radiator.
The RTL-Set limits the return temperature of an underfloor heating loop in combined underfloor/radiator heating systems. The thermostat is set between 20 and 50°C (68 and 122°F) depending on the desired return temperature. It is available with visible or concealed thermostat. The RTL-Set with the concealed thermostat is set only once whereas the setting of the visible thermostat can easily be changed anytime.
The Room Control-Set controls the flow of the medium through the underfloor heating loop depending on the ambient room temperature.
As the return temperature is controlled, the system designer has to make sure that the supply temperature is suitable for the floor design of the underfloor heating system. A too high supply temperature may result in damage to the floor and to the floor construction.
Features
•Easy readability of set temperature from every angle
•Equipped with concealed limiting and blocking tabs
•Valve inserts follow AT-Concept
Specifications
Medium |
Heating water, quality to VDI 2035 |
ph-value |
8 - 9.5 |
Setting range |
RTL-Set approx. 20...50°C |
|
(68...122°F) |
|
Room Control-Set approx. 6...28°C |
|
(43...82°F) |
Operating pressure |
Max. 10 bar (145 psi) |
Differential pressure |
Max. 1 bar (14.5 psi) |
kvs-value |
RTL-Set |
|
with visible thermostat - 1.0 |
|
with concealed thermostat - 1.7 |
|
Room Control-Set - 1.0 |
•Thermostatic valve made of red bronze (horizontal angle body) or brass (double angle body)
•Valve insert made of brass with EPDM O-rings and seat sealing
•Air vent made of brass
Honeywell y Subject to change |
EN0H-2011GE25 R1206 |
T6101, T6102 - UNDERFLOOR HEATING CONTROLLERS
Function
Return temperature limiter are installed in the return of a radiator or underfloor heating loop. When the return flow temperature rises the valve closes and the flow through the heating loop is throttled. When the return flow temperature decreases the valve opens and the flow increases.
The function of the Room Control-Set is identical except for the control mode. The thermostat senses the ambient room temperature and controls the flow of the medium through the heating loop accordingly.
Please Note:
•To avoid stone deposit and corrosion the composition of the medium should conform with VDI-Guideline 2035
•Additives have to be suitable for EPDM sealings
•System has to be flushed thoroughly before initial operation with all valves fully open
•Any complaints or costs resulting from non-compliance with above rules will not be accepted by Honeywell
•Please contact us if you should have any special requirements or needs
Dimensions and Ordering Information
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fig. 1. RTL-Set with visible thermostat |
Fig. 2. RTL-Set with concealed |
||||
|
|
|
|
|
thermostat |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fig. 3. Room control-set
Table 1. Available versions and OS-Nos (OS=Ordering Specification)
Type |
kvs (cv)-value |
OS-No. |
RTL-Set with visible thermostat |
1.0 |
T6102RUB15 |
RTL-Set with concealed thermostat |
1.7 |
T6102AUB15 |
Room Control-Set |
1.0 |
T6101RUB15 |
Installation Examples
Supply |
|
|
|
Supply |
Supply |
|
|
|
TRV |
Return |
Return |
|
|
|
Verafix |
|
|
Return |
|
|
Fig. 4. RTL-Set |
Fig. 5. Room Control-Set (return) |
Fig. 6. Room Control-Set (supply) |
