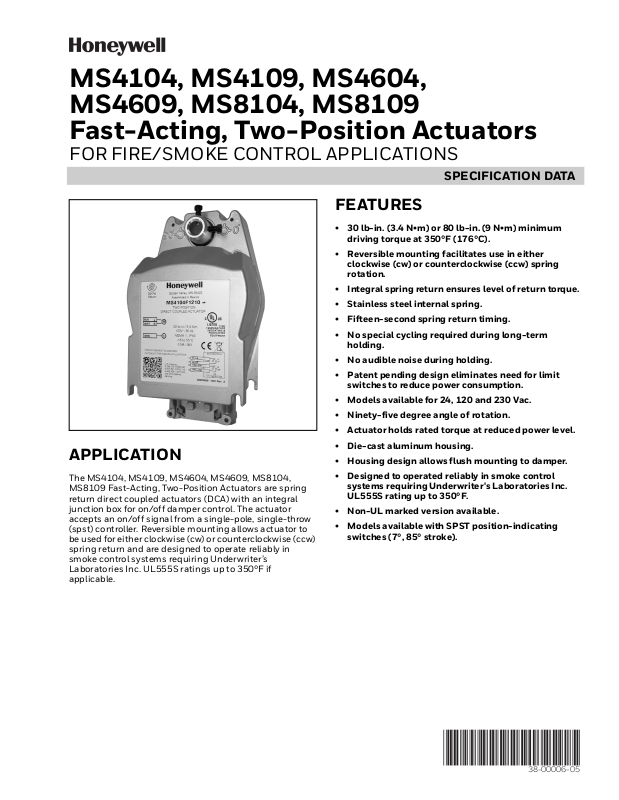

38-00006-05
MS4104, MS4109, MS4604,
MS4609, MS8104, MS8109
Fast-Acting, Two-Position Actuators
FOR FIRE/SMOKE CONTROL APPLICATIONS
SPECIFICATION DATA
FEATURES
• 30 lb-in. (3.4 N•m) or 80 lb-in. (9 N•m) minimum
driving torque at 350°F (176°C).
• Reversible mounting facilitates use in either
clockwise (cw) or counterclockwise (ccw) spring
rotation.
• Integral spring return ensures level of return torque.
• Stainless steel internal spring.
• Fifteen-second spring return timing.
• No special cycling required during long-term
holding.
• No audible noise during holding.
• Patent pending design eliminates need for limit
switches to reduce power consumption.
• Models available for 24, 120 and 230 Vac.
• Ninety-five degree angle of rotation.
• Actuator holds rated torque at reduced power level.
• Die-cast aluminum housing.
APPLICATION
The MS4104, MS4109, MS4604, MS4609, MS8104,
MS8109 Fast-Acting, Two-Position Actuators are spring
return direct coupled actuators (DCA) with an integral
junction box for on/off damper control. The actuator
accepts an on/off signal from a single-pole, single-throw
(spst) controller. Reversible mounting allows actuator to
be used for either clockwise (cw) or counterclockwise (ccw)
spring return and are designed to operate reliably in
smoke control systems requiring Underwriter’s
Laboratories Inc. UL555S ratings up to 350°F if
applicable.
• Housing design allows flush mounting to damper.
• Designed to operated reliably in smoke control
systems requiring Underwriter's Laboratories Inc.
UL555S rating up to 350°F.
• Non-UL marked version available.
• Models available with SPST position-indicating
switches (7°, 85° stroke).
Page 2
MS4104, MS4109, MS4604, MS4609, MS8104, MS8109 FAST-ACTING, TWO-POSITION ACTUATORS
SPECIFICATIONS
Models:
Internal
Model
Voltage
(Vac)
Auxiliary
Switches
MS4104F1010 120 None 30 (3.4)
MS4104F1210 120
2 SPST
a
MS4109F1010 120 None 80 (9)
MS4109F1210 120
2 SPST
a
MS4604F1010 230 None 30 (3.4)
MS4604F1210 230
2 SPST
a
MS4609F1010 230 None 80 (9)
MS4609F1210 230
2 SPST
a
MS8104F1010 24 None 30 (3.4)
MS8104F1210 24
2 SPST
a
MS8109F1010 24 None 80 (9)
MS8109F1210 24
a
Internal switches are designed to pass UL555S
2 SPST
a
requirements (at 350°F for 30 minutes) and are intended
for use as position indication if applicable.
Electrical Ratings:
Power Input:
MS4104F, MS4109F: 120 Vac ±10%, 60 Hz.
MS4604F, MS4609F: 230 Vac ±10%, 50/60 Hz.
MS8104F, MS8109F: 24 Vac +20%, -10%, 50/60 Hz.
Power Consumption:
MS4104F: Running: 0.18A, 18W. Holding: 0.11A, 9W
MS4109F: Running: 0.25A, 23W. Holding: 0.13A, 7W
MS4604F: Running: 0.13A, 18W. Holding: 0.10A, 11W
MS4609F: Running: 0.13A, 23W. Holding: 0.09A, 7W
MS8104F: Running: 16VA. Holding: 8 VA
MS8109F: Running: 23VA. Holding: 7 VA
Electrical Connections:
Power Lead Wires:
MS410xF and MS460xF: 32 inches (0.8m), 18 AWG
MS810xF: 39 inches (1m), 18 AWG
Switch Lead Wires: 18 inches, 18 AWG, 2 color coded
leads.
Controller Type:
MS4104, MS4109: Line voltage (120 Vac), two-position,
spst (Series 40).
MS4604, MS4609: Line voltage (230 Vac), two-position,
spst (Series 40).
MS8104, MS8109: Low voltage (24 Vac), two-position,
spst (Series 80).
Device Weight:
5 lb (2.3 kg).
Noise Rating (Maximum):
Driving Open: 75 dBA at 1m.
Holding: 20 dBA at 1m (no audible noise).
Tor que
in lb-in.
(N•m)
30 (3.4)
80 (9)
30 (3.4)
80 (9)
30 (3.4)
80 (9)
Temperature Ratings:
Ambient: 0°F to 130°F (-18°C to 55°C).
Shipping and Storage: -40°F to 140°F (-40°C to 60°C).
IMPORTANT
The actuator is designed to meet UL555S standards at 350°F (176°C) on applicable marked
models. The actuator must be tested with the
damper to achieve this rating.
Humidity Ratings:
5% to 95% RH noncondensing.
Stroke:
95° ± 3°, mechanically limited.
Torque Rating (at rated voltage):
Spring Return:
MS4104F, MS4604F, MS8104F: 30 lb-in. (3.4 N•m).
MS4109F, MS4609F, MS8109: 80 lb-in. (9 N•m).
Stall Maximum:
MS4104F, MS4604F, MS8104F: 150 lb-in. (17 N•m).
MS4109F, MS4609F, MS8109: 240 lb-in. (27 N•m).
350°F Driving:
MS4104F, MS4604F, MS8104F: 30 lb-in. (3.4 N•m).
MS4109F, MS4609F, MS8109: 80 lb-in. (9 N•m).
Timing (At Rated Torque and Voltage):
Drive Open: 15 seconds typical.
Spring Close: 15 seconds typical.
Auxiliary Switches:
Ratings (maximum load):
•MS4104F, MS4604F, MS4109F, MS4609F:
125 Vac/24 Vdc, 3A resistive
•MS8104F, MS8109F:
24 Vac/24 Vdc, 3A resistive
Settings (fixed): 7° nominal stroke, 85° nominal stroke
Design Life (at Rated Voltage):
30,000 full stroke cycles.
Cycling Requirements:
The actuator and the internal spring are designed to
require no special cycling during long-term holding.
Honeywell recommends following all local, state and
national codes for periodic testing of the entire smoke
control system. Refer to National Fire Protection Association (NFPA) National Fire Codes®: NFPA90A,
NFPA92A and NFPA92B for your application.
NFPA recommends periodic examination of each
fire/smoke damper (semi-annually or annually) to
ensure proper performance.
Minimum Damper Shaft Length:
2 in. (51 mm).
Mounting:
Round 1/2 inch shaft adapter with 1/4 inch set screws.
Threads: ¼-20 UNC-2A
Material: Alloy Steel hardened to HRC 45-53
Thread Lock: Nylon Patch
IMPORTANT
Honeywell does not recommend using linkages
with these actuators because side-loading of the
output hub reduces actuator life.
38-00006—05 2
Page 3
MS4104, MS4109, MS4604, MS4609, MS8104, MS8109 FAST-ACTING, TWO-POSITION ACTUATORS
M34624
24 VAC
BLACK
RED
L1
( )
L2
( )
YELLOW
YELLOW
BLUE
7° AUXILIARY
SWITCH
85° AUXILIARY
SWITCH
BLUE
WHITE
BLACK
GREEN
L1
( )
L2
( )
YELLOW
YELLOW
BLUE
BLUE
7° AUXILIARY
SWITCH
85° AUXILIARY
SWITCH
120 VAC
M34625
M34626
BLUE
BROWN
GREEN
230 VAC
L1
( )
L2
( )
YELLOW
YELLOW
BLUE
BLUE
7° AUXILIARY
SWITCH
85° AUXILIARY
SWITCH
M34622
2 (51)
1 (25)
90
°
0
°
11/16
(17)
6-3/8
(161)
8-15/16
(227)
4 (102)
2 (51)
1/16
(2)
3-1/4 (83)
5-1/8 (130)
9/16 (14)
Environmental Protection Ratings:
NEMA, IP40.
Accessories:
205649 Mounting Bracket (not supplied with actuator).
Approvals:
MS4104F,
MS4109F
MS4604F,
MS4609F
MS8104F,
MS8109F
UL/cUL (optional) XXX
UL60730 (optional) X X X
CE XXX
C-Tick XXX

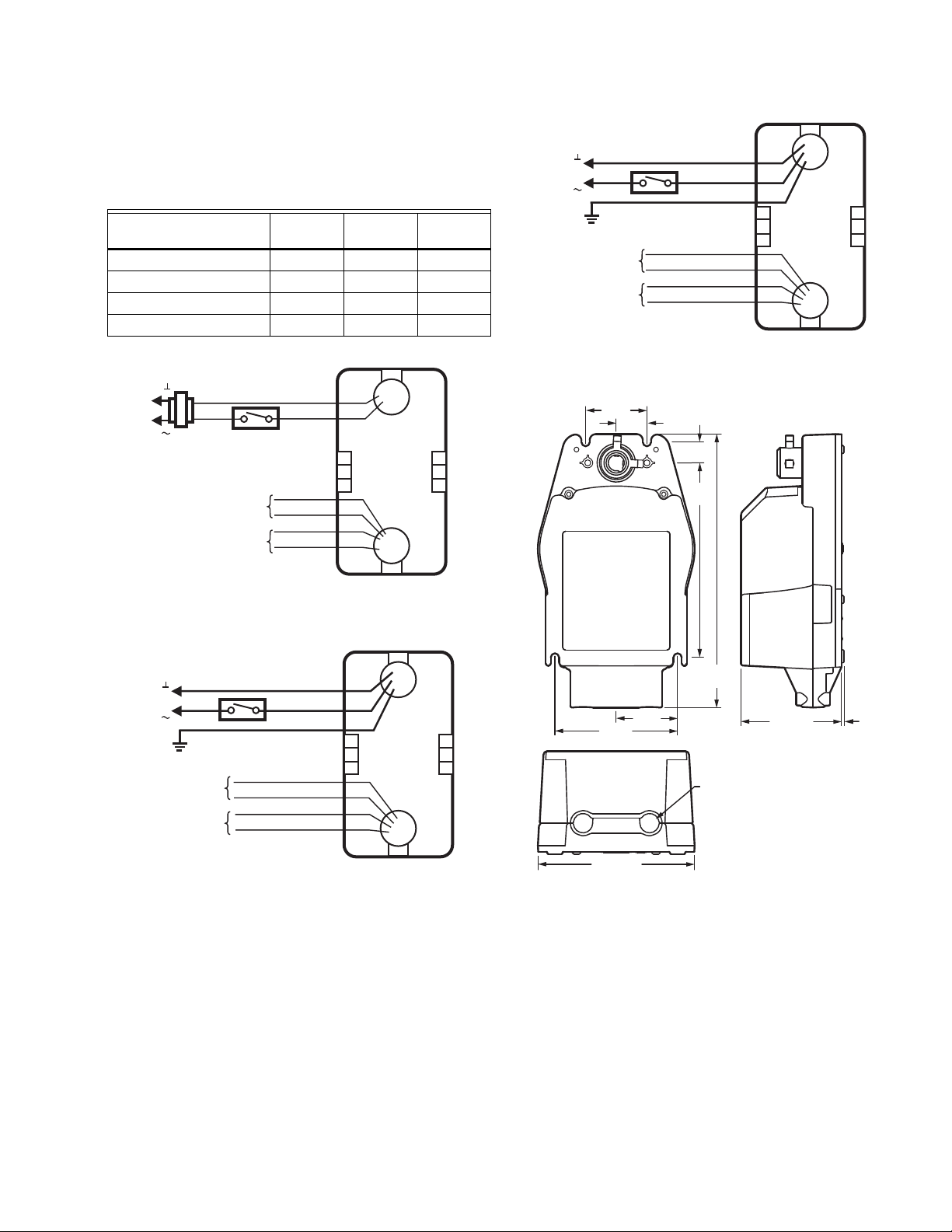

Wiring:
Fig. 3. Typical 230 Vac wiring.
Dimensions:
Fig. 1. Typical 24 Vac wiring.
Fig. 2. Typical 120 Vac wiring.
3 38-00006—05
