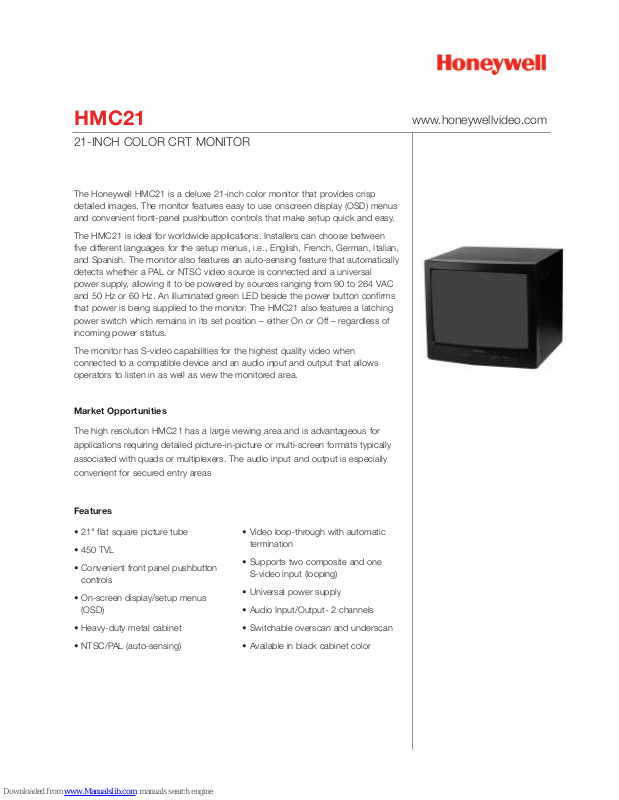

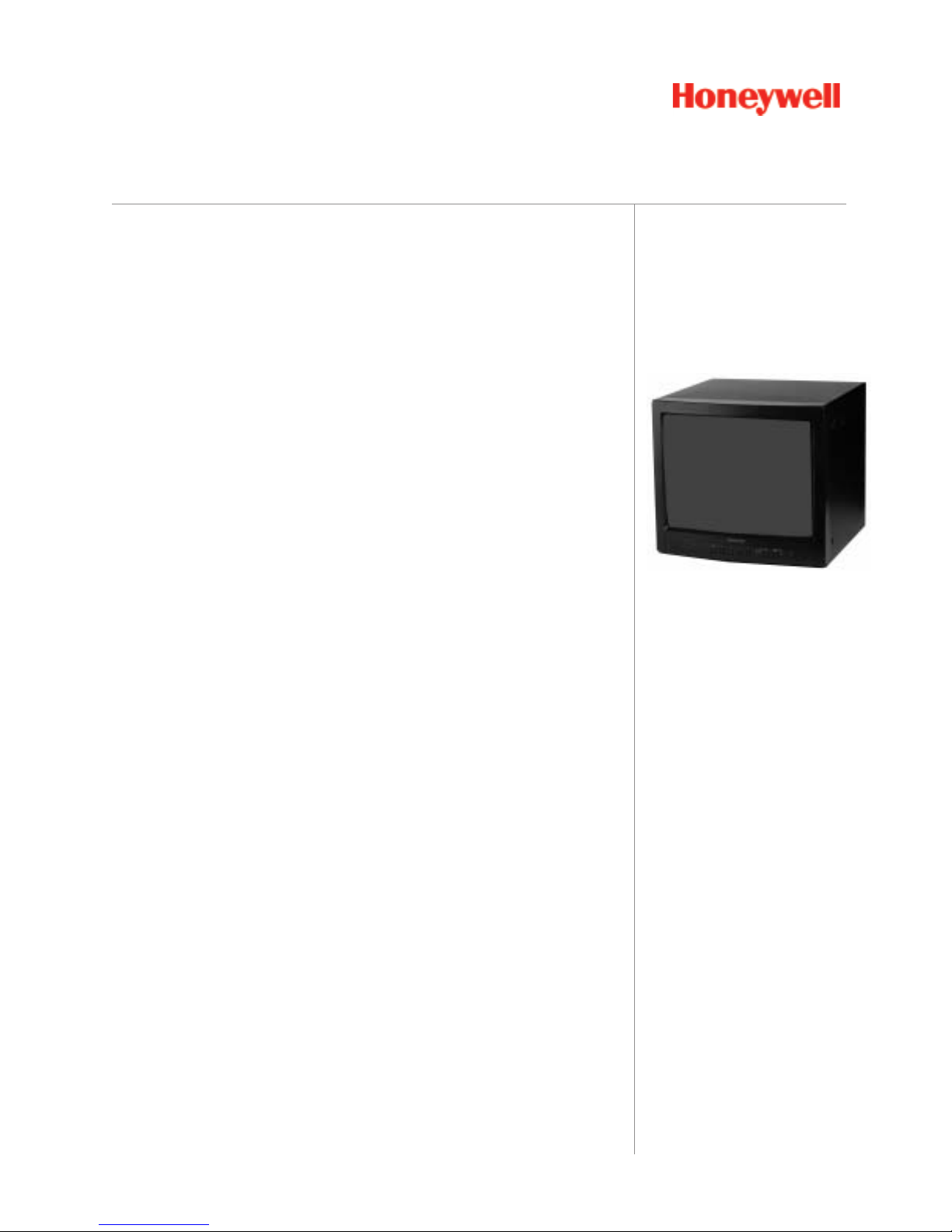

The Honeywell HMC21 is a deluxe 21-inch color monitor that provides crisp
detailed images. The monitor features easy to use onscreen display (OSD) menus
and convenient front-panel pushbutton controls that make setup quick and easy.
The HMC21 is ideal for worldwide applications. Installers can choose between
five different languages for the setup menus, i.e., English, French, German, Italian,
and Spanish. The monitor also features an auto-sensing feature that automatically
detects whether a PAL or NTSC video source is connected and a universal
power supply, allowing it to be powered by sources ranging from 90 to 264 VAC
and 50 Hz or 60 Hz. An illuminated green LED beside the power button confirms
that power is being supplied to the monitor. The HMC21 also features a latching
power switch which remains in its set position – either On or Off – regardless of
incoming power status.
The monitor has S-video capabilities for the highest quality video when
connected to a compatible device and an audio input and output that allows
operators to listen in as well as view the monitored area.
Market Opportunities
The high resolution HMC21 has a large viewing area and is advantageous for
applications requiring detailed picture-in-picture or multi-screen formats typically
associated with quads or multiplexers. The audio input and output is especially
convenient for secured entry areas
Features
www.honeywellvideo.com
HMC21
• 21" flat square picture tube
• 450 TVL
• Convenient front panel pushbutton
controls
• On-screen display/setup menus
(OSD)
• Heavy-duty metal cabinet
• NTSC/PAL (auto-sensing)
• Video loop-through with automatic
termination
• Supports two composite and one
S-video input (looping)
• Universal power supply
• Audio Input/Output- 2 channels
• Switchable overscan and underscan
• Available in black cabinet color
21-INCH COLOR CRT MONITOR
Page 2
NOTE: Honeywell reserves the right, without notification, to make changes in product design or specifications.
HMC21
L/HMC21D/D
July 2007
© 2007 Honeywell International Inc.
Honeywell Security
Honeywell Video Systems
2700 Blankenbaker Pkwy, Suite 150
Louisville, KY 40299
1.800.796.CCTV
www.honeywell.com
www.honeywellvideo.com
SPECIFICATIONS
Video
Input Signal Video
1.0 Vp-p @ 75 Ohms composite
S-Video (Y/C)
Y sig.= 0.7V p-p
C sig.= 0.3 Vp-p @ 75 Ohms
Deflection 90° angle
Bandwidth 6 MHz
Resolution 450 TV lines (at center)
Linearity
Horizontal: 10% maximum
Vertical: 10% maximum
Front Panel Controls
• Menu • Down •Up • Left •Right
• Over/Under Scan • Power • OSD Control
Back Panel Controls Y/C Impedance
Electrical
Operating Voltage 90 to 264 VAC, 60 Hz/50 Hz
Power Consumption 80 W (Maximum)
Power Cable NEMA 5-15P, UL
Environmental
Temperature
Operating: 32° F to 104° F
0° C to 40° C
Storage: 14° F to 122° F
-10° C to 50° C
Operating Humidity 10% to 90% (non-condensing)
Regulatory
Emissions
FCC: Part 15, Class B
Canada ICES-003
Immunity
UL: UL1950, cUL: CSA C22.2 No. 950
DHHS Rules 21
Safety CE: EN50130-4
Ordering
HMC21 21 inch Color Monitor (black cabinet)
Mechanical
Dimensions
(W x H x D)
19.29” x 17.72” x 18.82”
(490 mm x 450 mm x 478 mm)
Viewable Picture
Area
192.05 sq. in
1,239 sq. cm
Weight 60.63 lb (27.5 kg)
Construction
Housing: Steel
Finish: Black
Video Inputs
2 BNC Connectors (Auto-terminating)
1 x Y/C Mini DIN 4-Pin Connectors
Video Outputs
2 BNC Connectors (Auto-terminating)
1 x Y/C Mini DIN 4-Pin Connectors
Audio Input
2 x RCA connectors
300 mVrms
Audio Output
2 x RCA connectors
300 mVrms

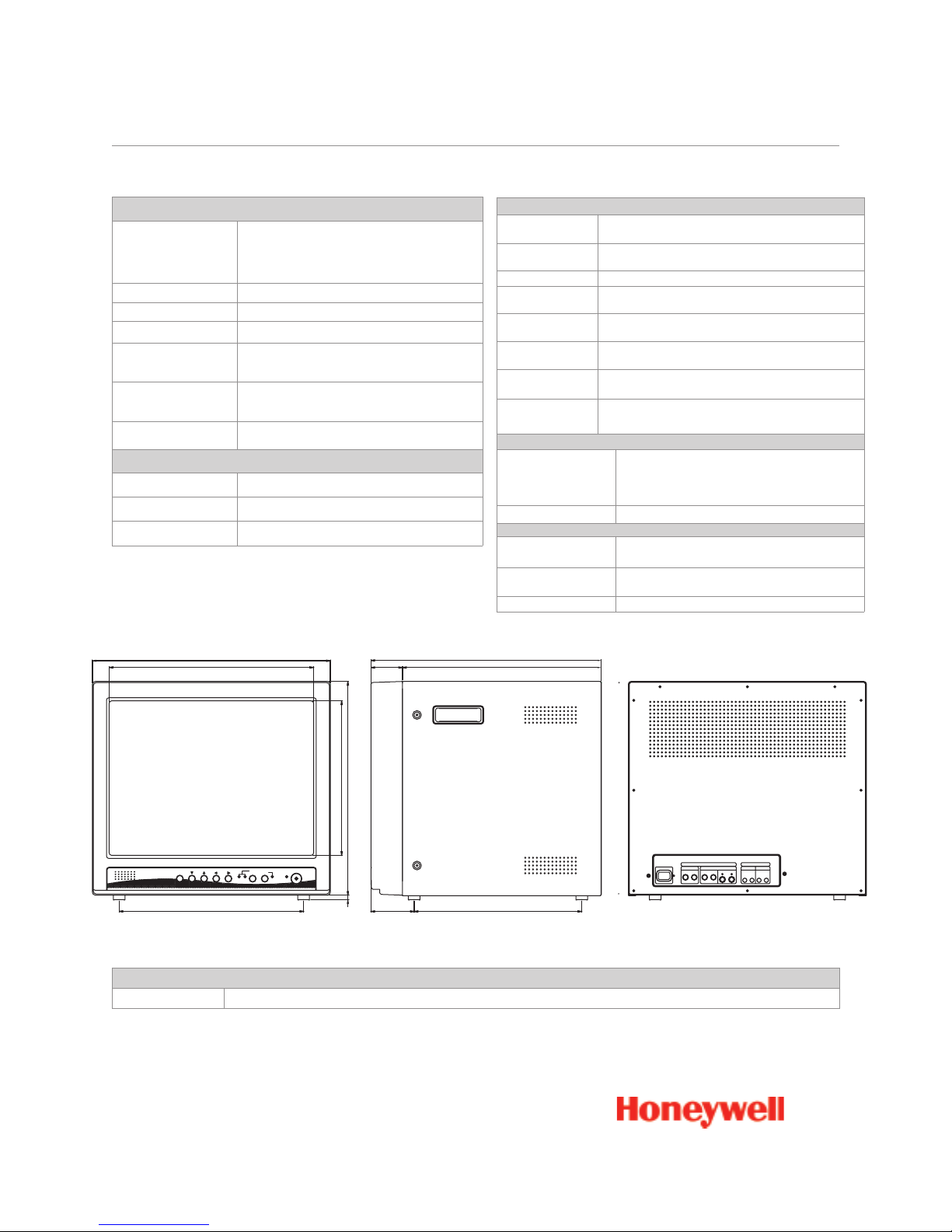

19.29’’ (490 mm)
16.57’’ (421 mm)
2.56’’ (65 mm)
18.69’’ (474.6 mm)
16.3’’ (409.6 mm)
12.52’’ (318 mm)
17.32’’ (440 mm)
MENU
14.96’’ (380 mm)
UNDER
VIDEO
A B
SCAN
(10 mm)
39’’
13.58’’ (345 mm) 3.50’’ (89 mm)
POWER
VIDEO LINE
VIDEO A
OUT
IN IN
VIDEO B
IN OUT OUT
Y/C VIDEO
AUDIO LINE
OUT
OUT A IN B IN
