HH490
Corded Area-Imaging Scanner
Quick Start Guide
HH490-EN-QS-01 Rev A
1/21
Agency Model: HH490
Note: Refer to your User Guide for information about cleaning your
device.
Getting Started
Turn off computer’s power before connecting the scanner, then power
up the computer once the scanner is fully connected.
Power Supply Assembly (if included)
Connecting the Scanner
USB
RS232 Serial Port:
USB Interface
USB Keyboard
USB HID
USB Serial
By scan config barcode below, you can change to different USB type
interface.
RS232 Interface
By scan config barcode below, you can change to RS232 interface.
RS232
Reading Techniques
The view finder projects an aiming dot that
should be centered over the bar code, but it
can be positioned in any direction for a good
read.
Hold the scanner over the bar code, press the
button, and center the aiming dot on the bar
code.
The aiming dot is smaller when the scanner is
closer to the code and larger when it is farther
from the code. Hold the scanner close to
smaller bar codes, and farther away from
large bar codes to get a proper read.
If the bar code is highly reflective (e.g., laminated), you may need to tilt
the scanner at an angle so the bar code can be scanned.
Standard Product Defaults
The following bar code resets all standard product default set- tings.
Standard Product

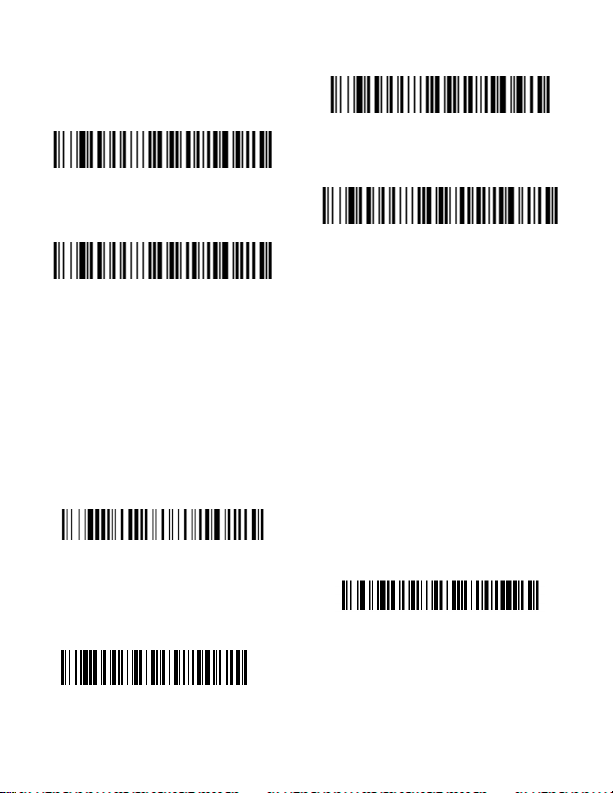

Keyboard Country
USA (Default)
Belgium
Denmark
Finland
France
Germany/Austria
Great Britain
Scan the appropriate country code that follows to program the keyboard
layout for your country or language. By default, national character
replacements are used for the following characters: # $ @ [ ] \ | ^ ‘ { } ~
Refer to the ISO 646 Character Replacements chart in your User
Guide to view the character replacements for each country.
Italy
Norway
Spain
Switzerland
(Default)
Note: For a complete list of country codes, see the User Guide for your
product.
Trigger
The following bar codes will allow you to use the scanner in Manual
Trigger - Normal Mode (need to press the button to read) or
Presentation mode (the scanner is activated when it “sees” a bar code).
Manual Trigger - Normal
Streaming Presentation Mode
Presentation Mode
Suffix
Add CR Suffix
Add Tab Suffix
Remove Suffix
If you want a carriage return after the bar code, scan the Add CR Suffix
bar code. To add a tab after the bar code, scan the Add Tab Suffix bar
code. Otherwise, scan the Remove Suffix bar code to remove the
suffixes.
Add Code ID Prefix to all Symbologies
Scan the following bar code if you wish to add a Code ID prefix to all
symbologies at once.
Add Code ID Prefix To All Symbologies
(Temporary)
Note: For a complete list of Code IDs, see the User Guide for your
product.
Function Code Transmit
(Default)
Disable
When this selection is enabled and function codes are contained within
the scanned data, the scanner transmits the function code to the
terminal. Charts of these function codes are provided in your User
Guide. When the scanner is in key- board wedge mode, the scan code is
converted to a key code before it is transmitted.
Enable
Data Format Editor Instructions
Enter Data Format
Clear All Data Formats
Save
The following are abbreviated instructions for entering a data format.
For complete instructions refer to your User Guide.
Step 1. Scan the Enter Data Format symbol.
Step 2. Primary/Alternate Format: scan 0 for Primary Format
Step 3. Terminal Type: scan 099 for any terminal type
Step 4. Code I.D.: scan 99 for any bar code type
Step 5. Length: scan 9999 for any length bar code.
Step 6. Editor commands: use the Programming Chart that follows.
Step 7. Scan Save to save your entries.
Programming Chart
0
1
2
3 4
5
6
7
8
9
A
B
C
D
E
F Save
Discard
Reset
EZConfig for Scanning
To access additional features for the scanner, use EZConfig for Scanning,
an online configuration software tool, available from our website.
