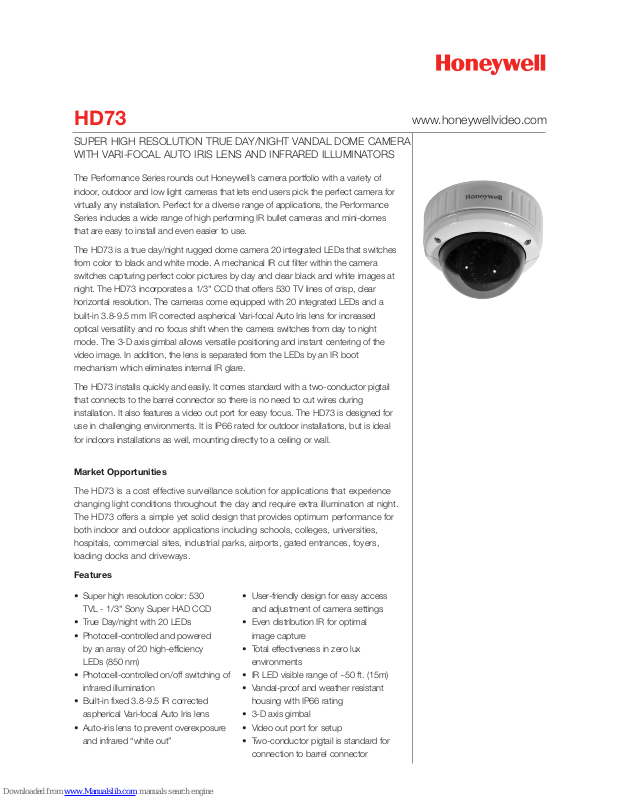

Page 1
The Performance Series rounds out Honeywell’s camera portfolio with a variety of
indoor, outdoor and low light cameras that lets end users pick the perfect camera for
virtually any installation. Perfect for a diverse range of applications, the Performance
Series includes a wide range of high performing IR bullet cameras and mini-domes
that are easy to install and even easier to use.

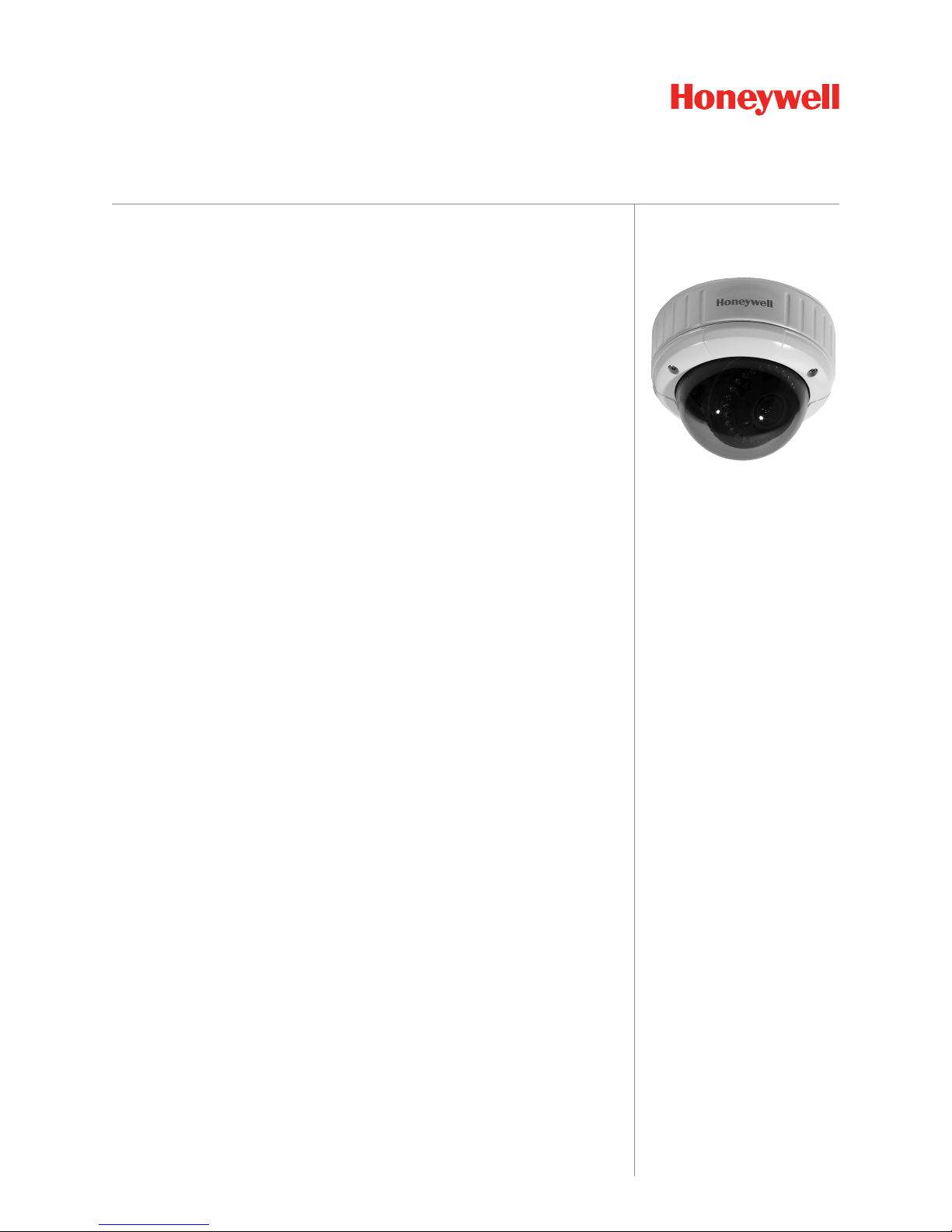

The HD73 is a true day/night rugged dome camera 20 integrated LEDs that switches
from color to black and white mode. A mechanical IR cut filter within the camera
switches capturing perfect color pictures by day and clear black and white images at
night. The HD73 incorporates a 1/3" CCD that offers 530 TV lines of crisp, clear
horizontal resolution. The cameras come equipped with 20 integrated LEDs and a
built-in 3.8-9.5 mm IR corrected aspherical Vari-focal Auto Iris lens for increased
optical versatility and no focus shift when the camera switches from day to night
mode. The 3-D axis gimbal allows versatile positioning and instant centering of the
video image. In addition, the lens is separated from the LEDs by an IR boot
mechanism which eliminates internal IR glare.
The HD73 installs quickly and easily. It comes standard with a two-conductor pigtail
that connects to the barrel connector so there is no need to cut wires during
installation. It also features a video out port for easy focus. The HD73 is designed for
use in challenging environments. It is IP66 rated for outdoor installations, but is ideal
for indoors installations as well, mounting directly to a ceiling or wall.
Market Opportunities
The HD73 is a cost effective surveillance solution for applications that experience
changing light conditions throughout the day and require extra illumination at night.
The HD73 offers a simple yet solid design that provides optimum performance for
both indoor and outdoor applications including schools, colleges, universities,
hospitals, commercial sites, industrial parks, airports, gated entrances, foyers,
loading docks and driveways.
Features
www.honeywellvideo.com
HD73
• Super high resolution color: 530
TVL - 1/3" Sony Super HAD CCD
• True Day/night with 20 LEDs
• Photocell-controlled and powered
by an array of 20 high-efficiency
LEDs (850 nm)
• Photocell-controlled on/off switching of
infrared illumination
• Built-in fixed 3.8-9.5 IR corrected
aspherical Vari-focal Auto Iris lens
• Auto-iris lens to prevent overexposure
and infrared “white out”
• User-friendly design for easy access
and adjustment of camera settings
• Even distribution IR for optimal
image capture
• Total effectiveness in zero lux
environments
• IR LED visible range of ~50 ft. (15m)
• Vandal-proof and weather resistant
housing with IP66 rating
• 3-D axis gimbal
• Video out port for setup
• Two-conductor pigtail is standard for
connection to barrel connector
SUPER HIGH RESOLUTION TRUE DAY/NIGHT VANDAL DOME CAMERA
WITH VARI-FOCAL AUTO IRIS LENS AND INFRARED ILLUMINATORS
Page 2
HD73
L/HD73D/D
July 2008
© 2008 Honeywell International Inc.
Honeywell Security
Honeywell Video Systems
2700 Blankenbaker Pkwy, Suite 150
Louisville, KY 40299
1.800.796.CCTV (2288)
www.honeywell.com
www.honeywellvideo.com

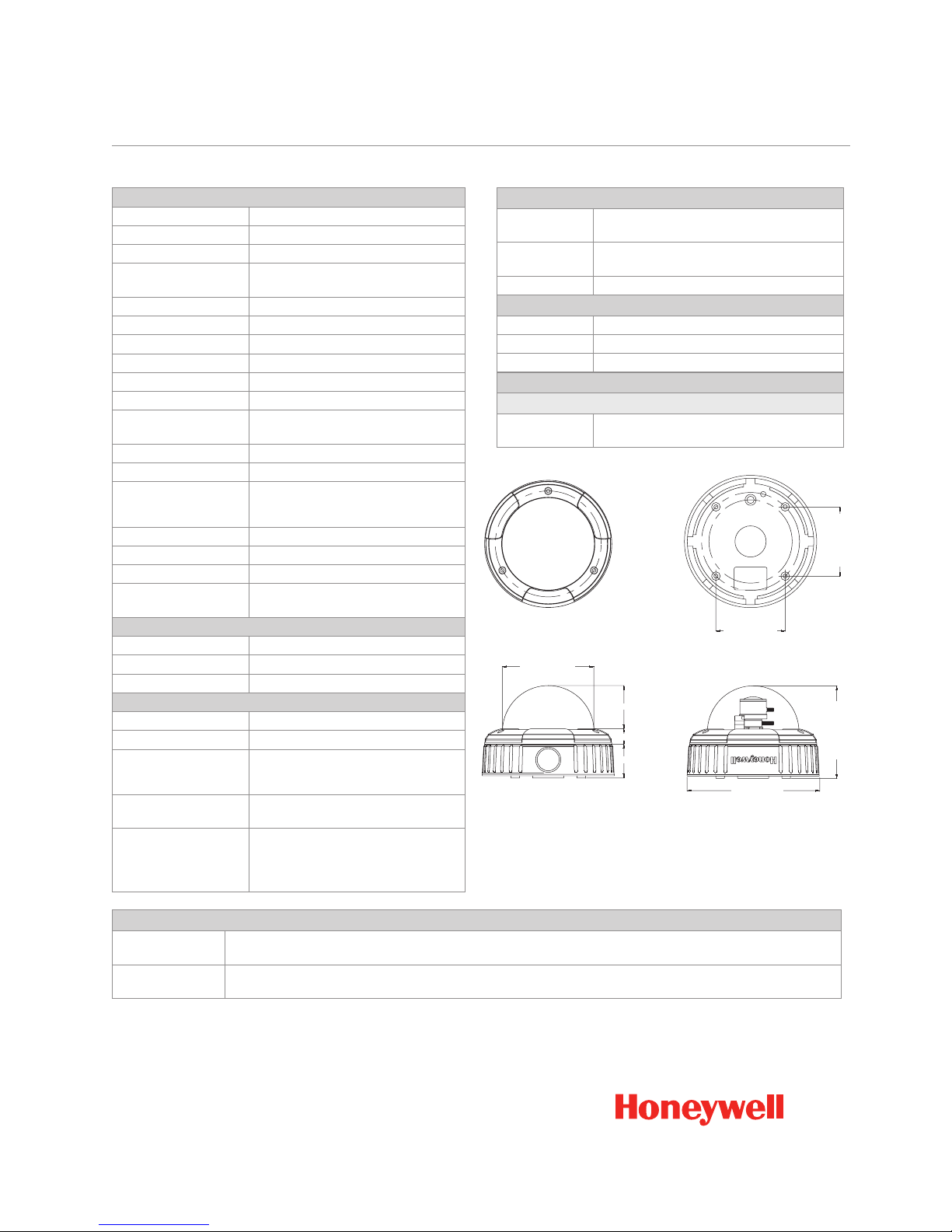

SPECIFICATIONS
Environmental
Temperature
Operating: -4°F to 122°F (-20°C to 50°C)
Storage: -49°F to 167°F (-45°C to 75°C)
Relative
Humidity
0% to 90% non-condensing
Rating IP66
Regulatory
Emissions FCC, CE: (EN55022) Class A
Immunity CE: EN 50130-4
Safety EU: EN 60065
Ordering
HD73
1/3" CCD Integrated True Day/Night Super High Resolution IR Vandal Resistant Dome Camera, 530 TVL, 20
LEDs, 3.8-9.5 mm VFAI Lens, 12 VDC NTSC
HD73X
1/3" CCD Integrated True Day/Night Super High Resolution IR Vandal Resistant Dome Camera, 530 TVL, 20
LEDs, 3.8-9.5 mm VFAI Lens, 12 VDC PAL
Accessories
Power Supplies
HPT12DC500
12 VAC/500 mA Plug-in Regulated 2.1 mm
Coaxial Plug UL Listed/CSA Certified
3.94" (100 mm)
1.86" (47.15 mm)
1.46" (37.0 mm)
0.66" (16.85 mm)
3.98
"
(101.0 mm)
2.98" (75.7 mm)
2.98
"
(75.7 mm)
5.71" (145 mm)
Operational
Video Standard NTSC, PAL
Scanning System 2:1 Interlace
Image Sensor 1/3" Sony HAD CCD sensor
Number of Pixels
(H x V)
811 x 508 (NTSC)
795 x 596 (PAL)
Minimum Illumination 0.0 lux, operates in complete darkness
Horizontal Resolution 530 TVL
Video Output 1.0 Vp-p, composite @ 75 Ohms
Sync System Internal
S/N Ratio 50 dB or more (AGC Off)
Auto Gain Control On/Off
Automatic Electronic
Shutter
1/60–1/100,000 second (NTSC)
1/50–1/100,000 second (PAL)
White Balance Auto
IR LEDs 850 nm, 20 LEDs
IR Illumination Distance
(dependent on scene
refectance)
~50 ft. (15m)
BLC On/Off
Gamma 0.45
Lens Type Built-in fixed (f=3.8-9.5 mm VFAI)
Angle of View
H: 62º - 28º
V: 48º - 22º
Electrical
Input Voltage 12 VDC
Input Range 10-14 VDC
Power Consumption 4.5 W (max) with IR LEDs on
Mechanical
Dimensions See Diagram
Weight 1.86 lb (0.84 kg)
Construction
Housing: Die Cast Aluminum
Dome: Polycarbonate
Finish: Light gray powder coating
Cable Entry
One 3/4" (19.1 mm) NPT threaded
opening on side
Connector
Main Video: BNC connector
Aux Video: 2-pin connector for video
test cable (supplied)
Power Input: 2.1 mm Plug
