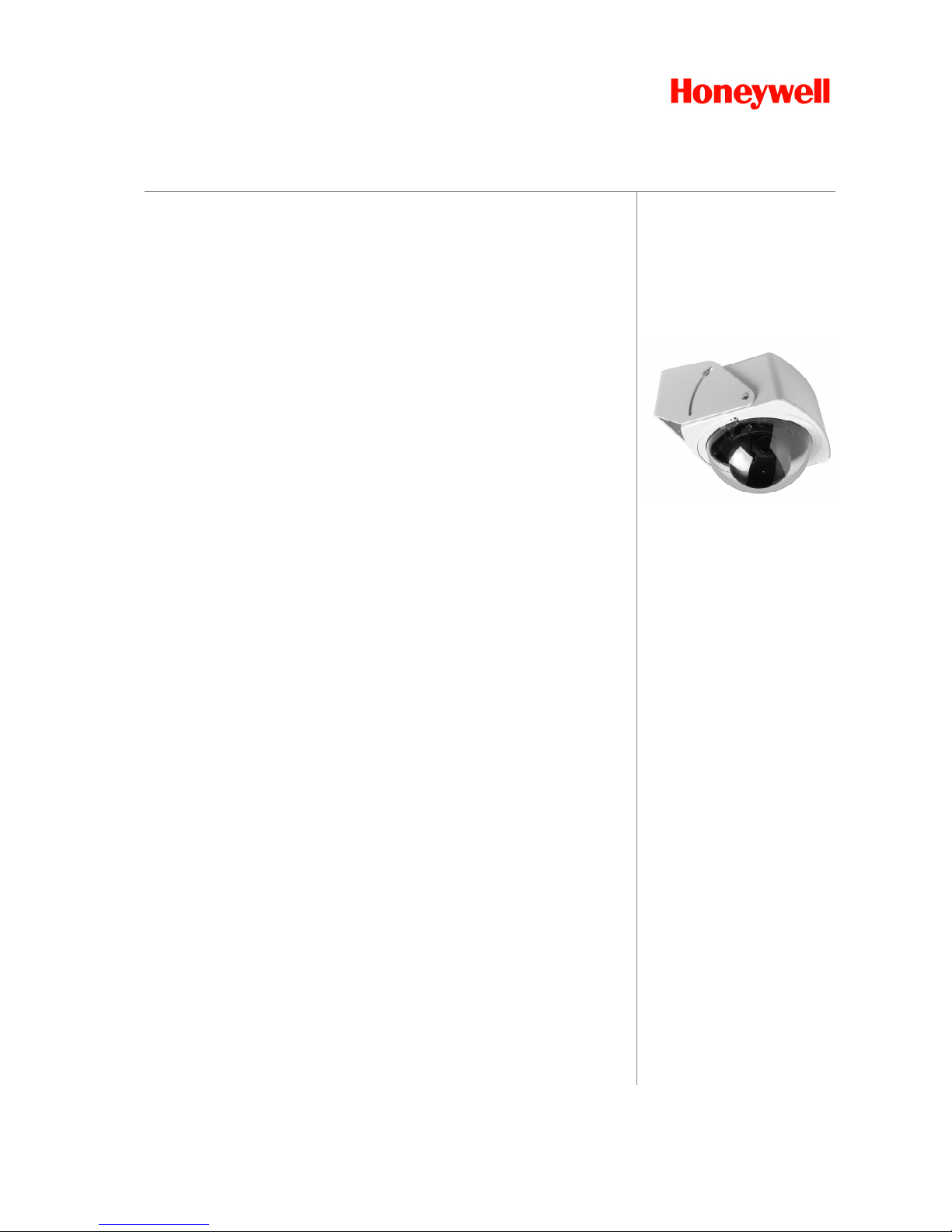

Honeywell HD6, HD6A, HD6B, HD6D, HD6E Specification

Page 1

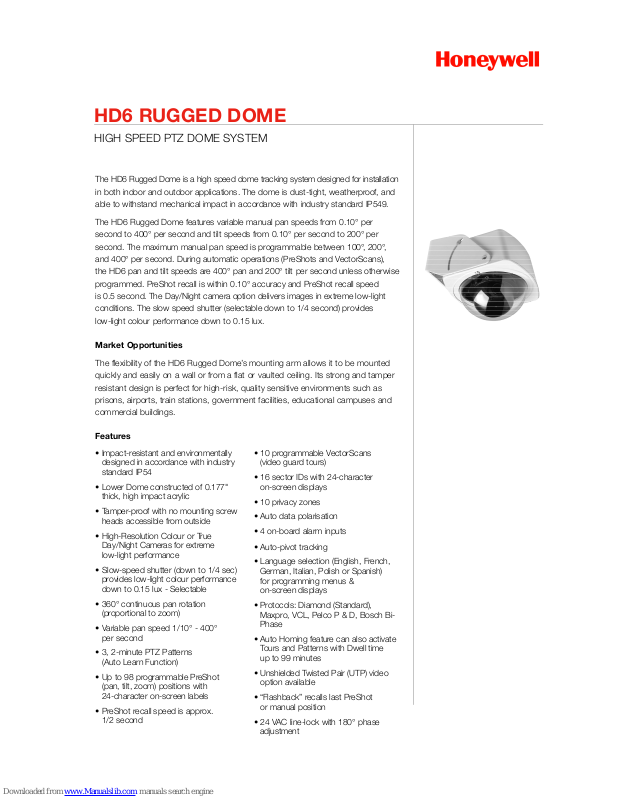

The HD6 Rugged Dome is a high speed dome tracking system designed for installation in both indoor and outdoor applications. The dome is dust-tight, weatherproof, and

able to withstand mechanical impact in accordance with industry standard IP549.

The HD6 Rugged Dome features variable manual pan speeds from 0.10° per second to 400° per second and tilt speeds from 0.10° per second to 200° per second. The maximum manual pan speed is programmable between 100°, 200°, and 400° per second. During automatic operations (PreShots and VectorScans), the HD6 pan and tilt speeds are 400° pan and 200° tilt per second unless otherwise

p r ogrammed. PreShot recall is within 0.10° accuracy and PreShot recall speed is 0.5 second. The Day/Night camera option delivers images in extreme low-light conditions. The slow speed shutter (selectable down to 1/4 second) provides low-light colour performance down to 0.15 lux.

Market Opportunities

The flexibility of the HD6 Rugged Dome’s mounting arm allows it to be mounted quickly and easily on a wall or from a flat or vaulted ceiling. Its strong and tamper resistant design is perfect for high-risk, quality sensitive environments such as prisons, airports, train stations, government facilities, educational campuses and commercial buildings.

HD6 RUGGED DOME

HIGH SPEED PTZ DOME SYSTEM

• I m p a c t - r esistant and enviro n m e n t a l l y designed in accordance with industry s t a n d a r d IP54

• Lower Dome constructed of 0.177" thick, high impact acrylic

• Ta m p e r - p r oof with no mounting scre w heads accessible from outside

• High-Resolution Colour or True Day/Night Cameras for extreme low-light performance

• Slow-speed shutter (down to 1/4 sec) p r ovides low-light colour performance down to 0.15 lux - Selectable

• 360° continuous pan ro t a t i o n ( p r oportional to zoom)

• Variable pan speed 1/10° - 400° per second

• 3, 2-minute PTZ Patterns (Auto Learn Function)

• Up to 98 programmable PreShot (pan, tilt, zoom) positions with 24-character on-screen labels

• P r eShot recall speed is approx. 1/2 second

• 10 programmable VectorScans (video guard tours)

• 16 sector IDs with 24-character o n - s c r een displays

• 10 privacy zones

• Auto data polarisation

• 4 on-board alarm inputs

• Auto-pivot tracking

• Language selection (English, Fre n c h ,

German, Italian, Polish or Spanish) for programming menus & o n - s c r een displays

• P r otocols: Diamond (Standard), M a x p r o, VCL, Pelco P & D, Bosch BiP h a s e

• Auto Homing feature can also activate Tours and Patterns with Dwell time up to 99 minutes

• Unshielded Twisted Pair (UTP) video option available

• “Flashback” recalls last PreShot or manual position

• 24 VAC line-lock with 180° phase a d j u s t m e n t

Features

Page 2

HD6 RUGGED DOME

SPECIFICATIONS

C A M E R A H D 6 A H D 6 B H D 6 D H D 6 E

Image S e n s o r

1/4" type EXview HAD CCD

1/4" EXview CCD 1/4" EXview CCD

Aspherical Lens

18X optical zoom, f=4.1 mm (wide) to 73.8 mm (tele), F1.4 to F3.0

23X optical zoom, f=3.8 (wide) to

87.4mm (tele), F1.6 to F3.8

25X optical zoom, f=3.8 (wide) to 95mm (tele), F1.6 to F3.7

H o r i z o n t a l R e s o l u t i o n

> 470 TVL (NTSC) > 460 TVL (PA L )

Digital Z o o m

12X (216X total zoom)

4X (92X total zoom)

4X (100x total zoom)

Angle of View (H)

48 degrees (wide end) to 2.8 d e g r ees (tele end)

56.2 degrees (wide end) to 2.4 d e g r ees (tele end)

56.2 degrees (wide end) to 2.2 d e g r ees (tele end)

Sync System

I n t e rn a l / E x t e rnal ( V - L o c k )

I n t e rn a l / E x t e rnal ( V- L o c k )

I n t e rnal/VD pulse lock (auto detect)

M i n i m u m I l l u m i n a t i o n

0.7 lux (typical) (50 IRE) 0.05 lux (slow shutter mode at 1 / 4 s )

0.7 lux (typical) (50 IRE) 0.05 lux (slow shutter mode at 1/4s) 0.01 lux (NightShot at 1/4s)

1.0 lux (30 IRE, AGC 34dB )

0.8 lux (30 IRE) 0.05 lux (IR filter OFF)0.008 lux (IR filter ON, 128 fields)

S/N Ratio

M o r e than 50dB M o r e than 50dB M o r e than 49dB > 50dB (AGC Off )

E l e c t r o n i c S h u t t e r

1/1 to 1/10,000 s 1/1 to 1/10,000 s

1/60 (50) to 1/10,000 sec (28 steps)

1/60 (50) to 1/10,000 sec

White B a l a n c e

Auto, AT W, Indoor, O u t d o o r, Manual

Auto, AT W , Indoor, O u t d o o r, Manual

Auto, Indoor, O u t d o o r, Manual

G a i n

Auto/Manual (-3 to 28 dB, 2 dB steps)

Auto/Manual (0 to 28 dB, 2 dB steps)

Auto/Manual (8dB to 38dB a d j u s t a b l e )

AE Contro l

Auto, Manual, E x p o s u re level, Backlight compensation

Auto, Manual, E x p o s u r e level, Backlight compensation

E x p o s u r e L e v e l

-10.5 to +10.5 dB (1.5dB steps)

Adjustable thro u g h 100 levels

B a c k - L i g h t C o m p e n s a t i o n

O n / O f f O n / O f f

O n / O f f / A u t o O n / O f f / A u t o

F o c u s i n g S y s t e m

A u t o / M a n u a l A u t o / M a n u a l A u t o / M a n u a l A u t o / M a n u a l

NOTE:

Honeywell reserves the right, without notification, to make changes in product design or specifications.

HD6A High resolution colour camera with an 18X optical zoom (48° wide angle and 2.8° telephoto).

The HD6A is compatible with the entire line of HD6 dome housings.

HD6B High resolution Day/Night camera with an 18X optical zoom (48° wide angle and 2.8° telephoto).

The HD6B is compatible with the entire line of HD6 dome housings.

HD6D High resolution colour camera with an 23X optical zoom (56.2° wide angle and 2.4° telephoto).

The HD6D is compatible with the entire line of HD6 dome housings.

HD6E High resolution Day/Night camera with an 25X optical zoom (56.2° wide angle and 2.2° telephoto).

The HD6E is compatible with the entire line of HD6 dome housings.

Page 3

HD6 RUGGED DOME

SPECIFICATIONS

Operational Cont.

P r otocol Tr a n s l a t i o n

Diamond, Maxpro, VCL and Pelco “P” & “D”, Bosch Bi-Phase.

A u t o - H o m i n g

Activates Vectorscan tours and “Auto L e a r n” patterns. Dwell time is p r ogrammable up to 99 minutes

F l a s h b a c k

Recalls the last PreShot position observed whether in manual, Vectorscan or Auto L e a r n (pattern) mode. PreShots can be toggled between last two

Digital Zoom label

P r ovides on-screen identification of digital zoom setting (ie 2x, 4x, 12x). User can select if On or Off .

24 VAC Line-Lock

Unit is 24 VAC line locked with 180° phase a d j u s t .

F r eeze Frame of Vi d e o

When activated, the unit freezes the v i d e o signal for assessment or re c o r d i n g

R e c e i v e r / D r i v e r

Digital – on board Communication: RS-485 Numeric rotary switch a d d r essability Battery-backed memory

O p e r a t i o n a l

Angular Travel

Horizontal: 360° continuous Tilt: 2° above horizontal to 90° down

Speed (Manual Mode)

Pan: variable from 0.10° to 400°/sec. Ti l t : variable from 0.10° to 200°/sec.

Speed to Preshot 400°/sec. (<0.5 sec.)

P r eShot Accuracy <0.10° accuracy

P r eShots Per Dome Pan/tilt/zoom = 98

Video To u r s ( V e c t o r S c a n s )

10 per dome

P r eShots Per To u r 6 4

Still Shot™F e a t u r e

P r eShot freeze-frame of video during tour

P a t t e rns ( L e a rn mode)

3, 2-minute programmable PTZ tours

Sector Identification 16 independent sectors (zones)

Privacy Zones

10 programmable zones that blank the video when entered for privacy i s s u e s

Installation in Dome

Simple electrical quick disconnect a n d mechanical slide mount

Alarm Processing

4 on-board alarm inputs for dry contacts

Mechanical

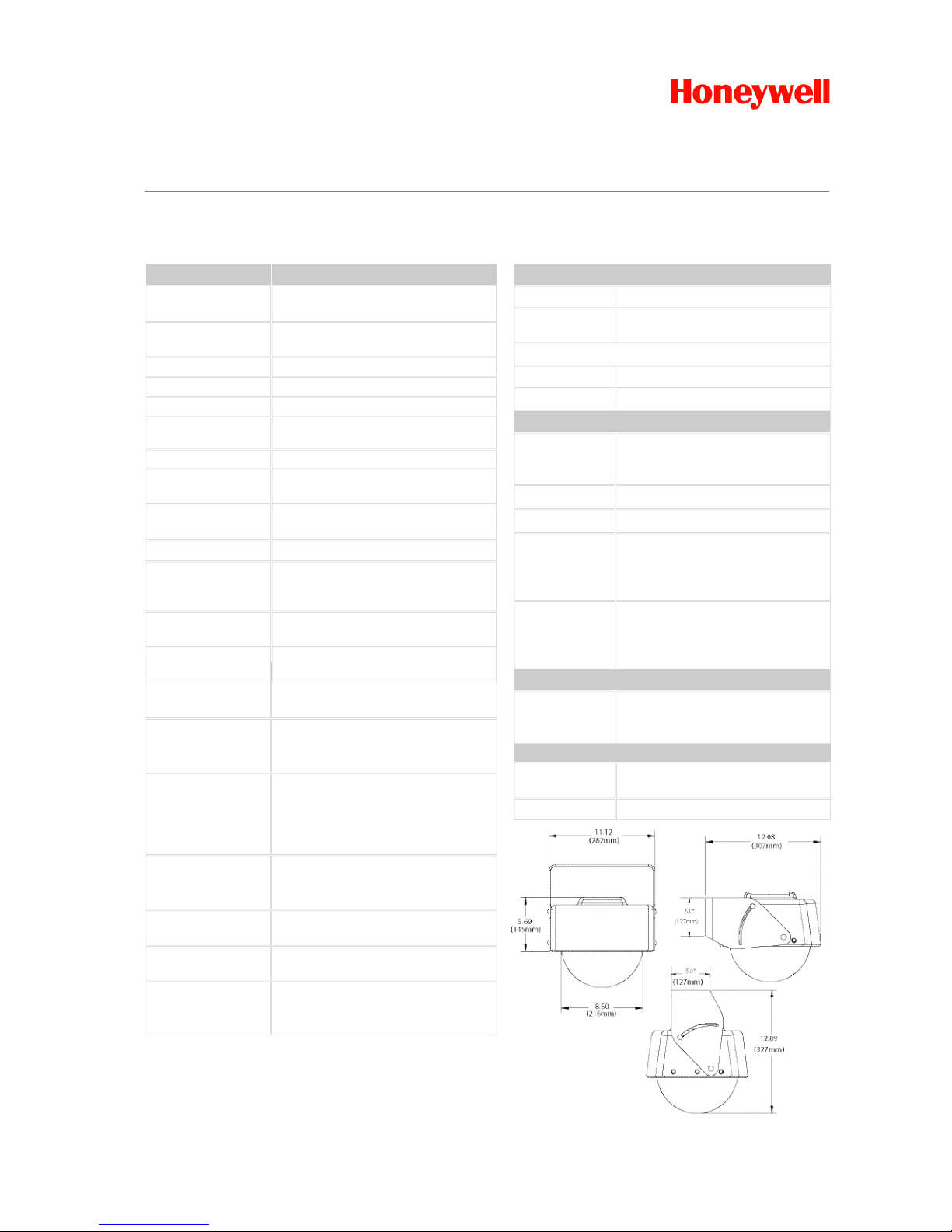

Dimensions

Housing: 12.89" H x 11.12" W x

11.12" D Lower Dome: 6.80" Dia

Dome Size 6.80" Dia

Weight 14.75 lbs. (6.69 kg)

Construction

Housing: 0.187" thick reinforced aluminium alloy casting Lower Dome: Vacuum formed, 0.160" thick optically-graded acrylic

Finish

Housing: Off white, polycarbonate Lower Dome: Clear or smoked, optically graded acrylic. Includes inner liner

Environmental

Operating Temperature

32°F to 104°F (0°C to 40°C)

-50°F to 122°F (-45°C to 50°C) (maintained by heater/blower)

Regulatory

Emissions

FCC: Part 15 Class A CE: EN50081-1

Immunity CE: EN50082-1

Electrical

Input Voltage 24 VAC ± 20%, 50/60Hz

Power Consumption

22 W @ 24 VAC

Heater/Blower (Optional):

Input Voltage 24 VAC ± 20%, 50/60Hz

Output 96 Watts

Page 4

Honeywell Security

Honeywell Video Systems Aston Fields Road Whitehouse Industrial Estate Runcorn Cheshire WA7 3DL Tel: 0844 800 0235 Fax: +44 (0) 1928 701063 www.honeywell.com/security/uk

HD6 RUGGED DOME

SPECIFICATIONS

HOW TO ORDER

Example:

HD6BR1P1

18XTDN/Clear/PAL/RS485

Series

Rugged Lower Dome

1 = Clear 4 = Smoked

Camera

A = 18X Colour B = 18X TDN D = 23X Colour E = 25X TDN

Format

N = NTSC P = PAL

Indoor

1 = RS485 4 = CAT5

Outdoor

F = RS485 w/Fan H = RS485 w/Heater/Blower J = CAT5 w/Heater/Blower

HD6 B R 1 P 1

Ordering

C o m p o n e n t s

Dome Scan

H D S A 0 0 P 1 Scan 18X PA L

H D S B 0 0 P 1 Scan 18X TDN PA L

H D S D 0 0 P 1 Scan 23X PA L

H D S E 0 0 P 1 Scan 25X TDN PA L

Dome Housing ( S t a n d a r d RS485 Interface Board * )

H D T 0 R 0 0 0 R u g g e d

*Change last digit to 3 for CAT5/UTC Interface

Lower Dome

H D B 0 R 2 0 0 S m o k e d

H D B 0 R 4 0 0 C l e a r

A c c e s s o r i e s

Compatible Devices

HJZTPX PTZ Dome, DVR and Mux Telemetry Controller

H E G S 5 B L X Standalone joystick and keyboard for HD6

H D C D 8 T P X Code distribution unit, RS232 to RS485 converter

Power Supplies

H P T V 2 4 0 1 D 2 4 0 V / 2 4 V AC 1A output, for internal use on HD6

H P T V 2 4 0 2 D W P

2 3 0 / 2 4 VAC 3A (75VA) total, 1x1A, 1x2A outputs for e x t e rnal HD6 and heater, mains indicator power o n / o f f, fuse block, data, BNC in/out, lightning p r otection, push outs, 20,25,32,40mm

H P T V 2 4 0 8 - 1 D

230V/24V AC 8 individually fused 1A outputs for i n t e r nal use on HD6
