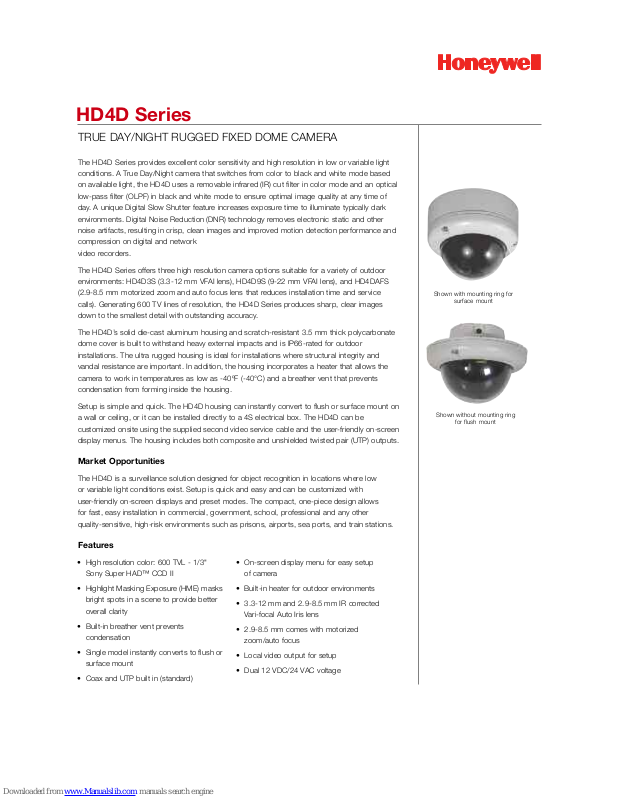

Page 1
The HD4D Series provides excellent color sensitivity and high resolution in low or variable light
conditions. A True Day/Night camera that switches from color to black and white mode based
on available light, the HD4D uses a removable infrared (IR) cut filter in color mode and an optical
low-pass filter (OLPF) in black and white mode to ensure optimal image quality at any time of
day. A unique Digital Slow Shutter feature increases exposure time to illuminate typically dark
environments. Digital Noise Reduction (DNR) technology removes electronic static and other
noise artifacts, resulting in crisp, clean images and improved motion detection performance and
compression on digital and network
video recorders.
The HD4D Series offers three high resolution camera options suitable for a variety of outdoor
environments: HD4D3S (3.3-12 mm VFAI lens), HD4D9S (9-22 mm VFAI lens), and HD4DAFS
(2.9-8.5 mm motorized zoom and auto focus lens that reduces installation time and service
calls). Generating 600 TV lines of resolution, the HD4D Series produces sharp, clear images
down to the smallest detail with outstanding accuracy.
The HD4D’s solid die-cast aluminum housing and scratch-resistant 3.5 mm thick polycarbonate
dome cover is built to withstand heavy external impacts and is IP66-rated for outdoor
installations. The ultra rugged housing is ideal for installations where structural integrity and
vandal resistance are important. In addition, the housing incorporates a heater that allows the
camera to work in temperatures as low as -40ºF (-40°C) and a breather vent that prevents
condensation from forming inside the housing.
Setup is simple and quick. The HD4D housing can instantly convert to flush or surface mount on
a wall or ceiling, or it can be installed directly to a 4S electrical box. The HD4D can be
customized onsite using the supplied second video service cable and the user-friendly on-screen
display menus. The housing includes both composite and unshielded twisted pair (UTP) outputs.
Market Opportunities
The HD4D is a surveillance solution designed for object recognition in locations where low
or variable light conditions exist. Setup is quick and easy and can be customized with
user-friendly on-screen displays and preset modes. The compact, one-piece design allows
for fast, easy installation in commercial, government, school, professional and any other
quality-sensitive, high-risk environments such as prisons, airports, sea ports, and train stations.
Features
HD4D Series
• High resolution color: 600 TVL - 1/3"
Sony Super HAD™ CCD II
• Highlight Masking Exposure (HME) masks
bright spots in a scene to provide better
overall clarity
• Built-in breather vent prevents
condensation
• Single model instantly converts to flush or
surface mount
• Coax and UTP built in (standard)
• On-screen display menu for easy setup
of camera
• Built-in heater for outdoor environments
• 3.3-12 mm and 2.9-8.5 mm IR corrected
Vari-focal Auto Iris lens
• 2.9-8.5 mm comes with motorized
zoom/auto focus
• Local video output for setup
• Dual 12 VDC/24 VAC voltage
TRUE DAY/NIGHT RUGGED FIXED DOME CAMERA

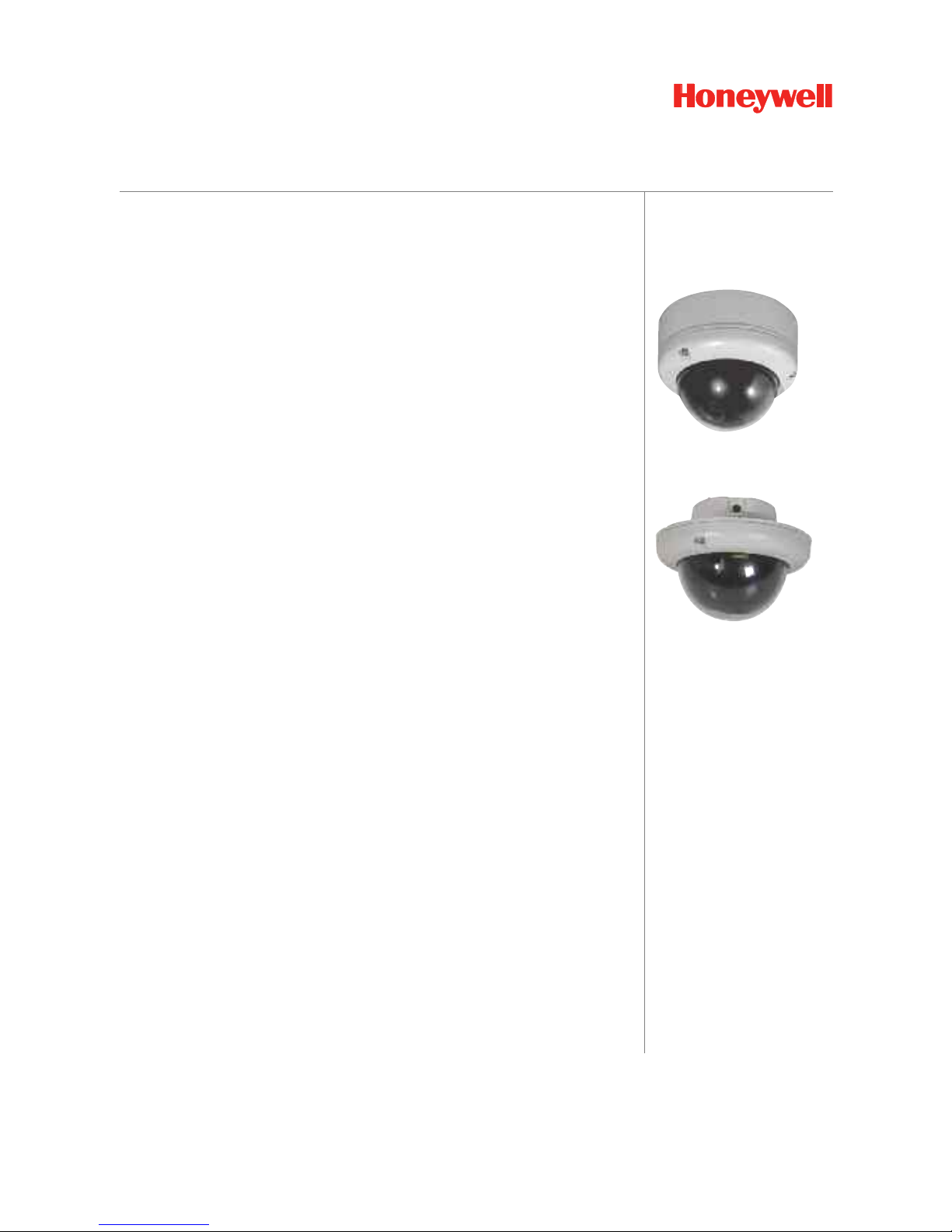

Shown with mounting ring for
s
urface mount
Shown without mounting ring
for flush mount
Page 2
HD4D Series
SPECIFICATIONS
Operational
V
ideo Standard
N
TSC
S
canning System
5
25/60 lines
Image Sensor 1/3" Sony Super HAD™ CCD II
Minimum Illumination @
50 IRE
H
D4D3S: 0.06 lux, BW, Sens up (auto)
0.45 lux, Color, Sens up off
HD4DAFS: 0.15 lux, BW, Sens up (auto)
0
.60 lux, Color Sens up off
Horizontal Resolution 600 TVL
V
ideo Output
Composite: 1.0 Vp-p, 75 ohms
UTP: 1.0 Vp-p, 100 ohms
Sync System
1
2 VDC: Internal
24 VAC: Internal or line lock
S/N Ratio 50 dB or more (AGC off)
A
uto Gain Control
O
n/Off, selectable
Automatic Electronic
Shutter
1
/60-1/120,000 s
White Balance ATW/AWC/Manual
L
ine Lock Phase
Adjustment
+/– 180º adjustable line lock vertical phase
Highlight Masking
E
xposure
On/Off (selectable limit 0-60)
Gamma 0.45
3D-DNR High/Medium/Low
Sense Up Off/Auto (selectable limit 2X to 256X)
Privacy Function On/Off (4 programmable zones)
L
ens Type
(IR Corrected)
H
D4D3S: 3.3-12 mm VFAI, F1.5, DC drive
HD4DAFS: 2.9-8.5 mm Auto Focus, F1.9, DC drive
Angle of View
HD4D3S: Tele: 29.8" (D), 24.0" (H), 18.0" (V)
Wide: 104.2˚ (D), 80.2˚ (H), 58.6˚ (V)
H
D4DAFS: 41.4" (D), 33.3" (H), 25.0" (V)
Wide: 119.1˚ (D), 94.7˚ (H), 70.3˚ (V)

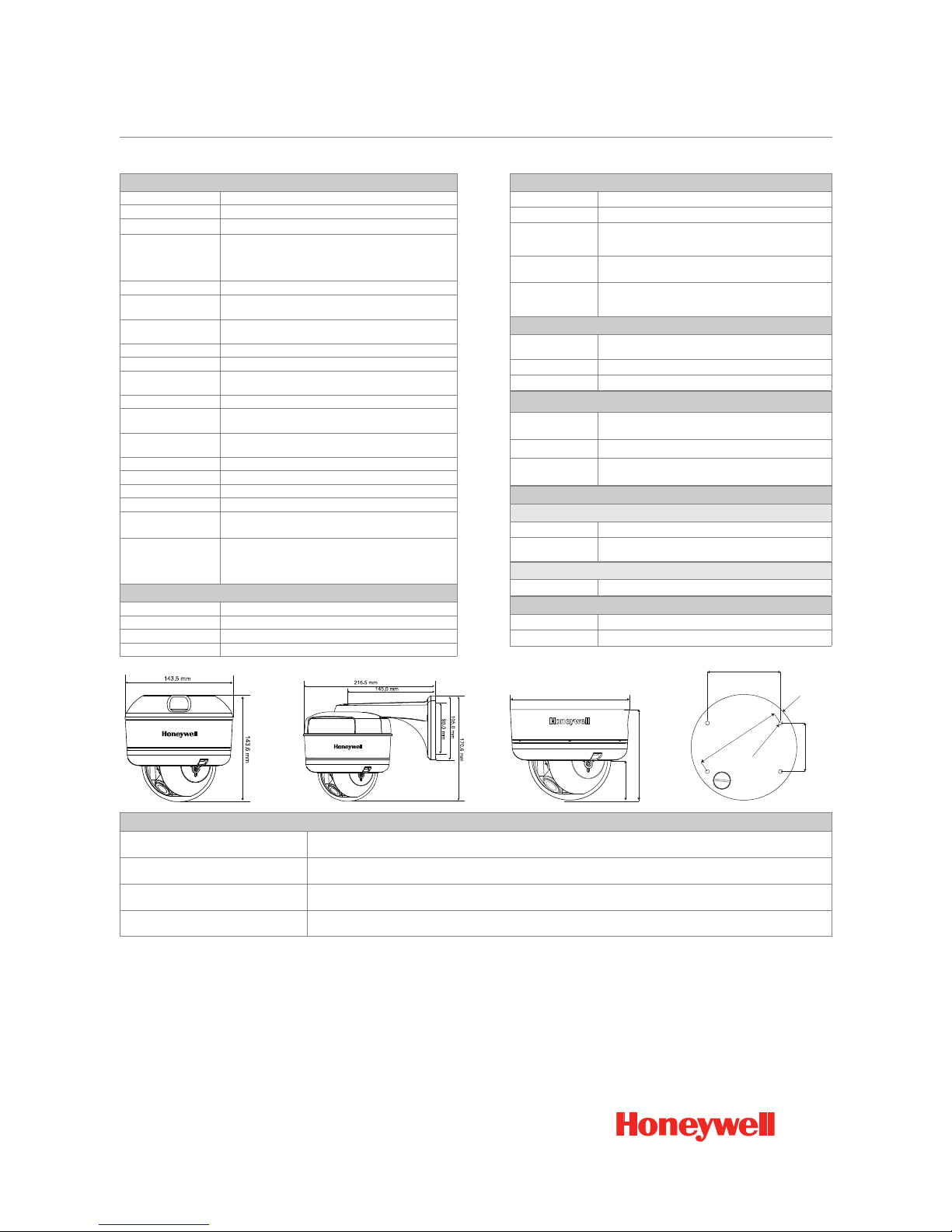

Mechanical
D
imensions
S
ee diagram
Weight 2.5 lb (1.1 kg)
Construction
Housing: Die-cast aluminium
Bubble: Polycarbonate
F
inish: Light grey powder coating
C
able Entry
Two ¾" (19.1 mm) NPT threaded openings: One on the
side and one on the back (mounting ring)
C
onnector
Main Video: BNC (coax), 2-pin Molex (UTP)
A
ux Video: 2-pin connector for video test cable
Power Input: 2.1 mm power plug
Electrical
I
nput Voltage
1
2 VDC/24 VAC
I
nput Range
1
1-16 VDC, 17-28 VAC
S
urge Suppression
1
.5 kW transient
P
ower ConsumptionMax. 3.5 W (heater off), 13 W (heater on)
Environmental
Temperature
Operating: -40°F to 131°F (-40°C to 55°C)
S
torage: -49°F to 167°F (-45°C to 75°C)
Relative Humidity 0% to 95%, non-condensing
R
ating
I
P66
Regulatory
Emissions
FCC Part 15, Class B
C
E: EN 55022
Immunity CE: EN 50130-4
Safety
E
U: 2001/95/EC GPSD
NA: UL/CSA 60065
Accessories
Transformers
HPT2440 24 VAC, 40 VA, Class 2 plug-in with thermal cut-out
HPT12DC1000
12 VDC, 1000 mA plug-in regulated 2.1 mm
c
oaxial plug UL Listed/CSA certified
Power Supply
H
PTV1202D
2
40V/12VDC AC 2A, for internal use
Housing Mounts
HD4CH-WK Wall mount kit
H
D4CH-PK
P
endant mount kit
1
45.88 mm
106.1 mm
51.75 mm
100.82 mm
1
4
5
.
8
8
m
m
12
1
.
0
0
m
m
5
.
5
0
m
m
66.91 mm
Ordering
HD4D3S
1/3"CCD Integrated True Day/Night Rugged Dome Camera with DNR, 600 TVL, 3.3-12 mm VFAI, Heater, Surface/Flush Housing,
12 VDC/24 VAC
HD4DAFS
1/3"CCD Integrated True Day/Night Rugged Dome Camera with DNR, 600 TVL, 2.9-8.5 mm Auto Focus Lens, Heater,
Surface/Flush Housing, 12 VDC/24 VAC,
HD4D3SX
1/3" CCD Integrated True Day/Night Rugged Dome Camera with DNR, 600 TVL, 3.3-12 mm VFAI, Heater, Surface/Flush Housing,
12 VDC/24 VAC, PAL
HD4DAFSX
1/3" CCD Integrated True Day/Night Rugged Dome Camera with DNR, 600 TVL, 2.9-8.5 mm Auto Focus Lens, Heater,
Surface/Flush Housing, 12 VDC/24 VAC, PAL
NOTE: Honeywell reserves the right, without notification, to make changes in product design or specifications.
HVS-HD4DS-ME-01(0811)DS-E
August 2011
© 2011 Honeywell International Inc.
