Honeywell GEC, GES, GEH User Manual

GENERAL

The Gentex Commander² GE Series features low-profile
strobes, horns or horn/strobe combinations that offer de­pendable audible and audible/visual alarms and the low­est current available.

Commander² GE Series horns allow selection of high or
low dBA, of synchronizable chime or whoop tones, as well
as selection of a 2400 Hz (remote signaling) or a low-fre­quency broadband 1500-3000 Hz mechanical sounding
(evacuation) tone where doors must be considered.

Commander² GE Series models are easily field-change­able from temporal 3 to continuous tone by simply remov­ing a jumper. GEC models are shipped from the factory on
the temporal lower-frequency mode and come standard with
a rugged cast-metal mounting plate.

The Commander² GE Series appliances have a minimal
operation current and a minimum flash rate of 1 Hz regard­less of input voltage. The Super Slide™ feature tests su­pervision. A locking mechanism is included, which secures
the product to the bracket without screws showing.

Commander² GE Series appliances are UL­Listed for use with fire protective systems
per UL 464, UL 1971, and UL 1638. The
appliances are warranted for three years
from the date of purchase.

December 19, 2002

DN-6872 • J-114B

Gentex Commander² GE Series

Low-Frequency Evacuation Signals

GEC, GEH, GES Models

Section: Audio/Visual Devices

California
State Fire
Marshal

7135-0569:122

(GEC, GEH models)

7125-0569:123

S3406

(GEC, GEH models)

S5405 (GES models)

City of

Chicago

MEA

285-91-E Vol. XV

ADA

(GES models)

Approved

FEATURES

• Installers can prewire the entire system,
then install the signaling devices.

• Super Slide™ feature for easier supervi­sion testing. When mounting Super
Slide™, die-cast metal mounting plate
mounts to single-gang boxes, double­gang boxes, 4" (101.6 mm) square boxes,
or Gentex GSB box.

• Lower installation and operating costs.

• Input terminals utilize 12 AWG (3.25 mm²) to 18 AWG
(0.75 mm²).

• True evacuation tone. Switch selection for:
– High or low dBA.

– High or low frequency (1500 to 3000 Hz).
– Temporal 3 signaling, chime or whoop tones.

• Tamperproof reentrant grille.

• Rugged die-cast metal mounting bracket. Surface-mount
with Gentex GSB box.

• Separate horn and strobe functions. Horn can be silenced
while strobes remain flashing.

Super Slide™ is a trademark of Gentex Corporation.

NOTIFIER® is a company.

This document is not intended to be used for installation purposes. We try to keep our
product information up-to-date and accurate. We cannot cover all specific applications or
anticipate all requirements. All specifications are subject to change without notice.
For more information, contact NOTIFIER. Phone: [phone] FAX: [phone]

12 Clintonville Road, Northford, Connecticut 06472

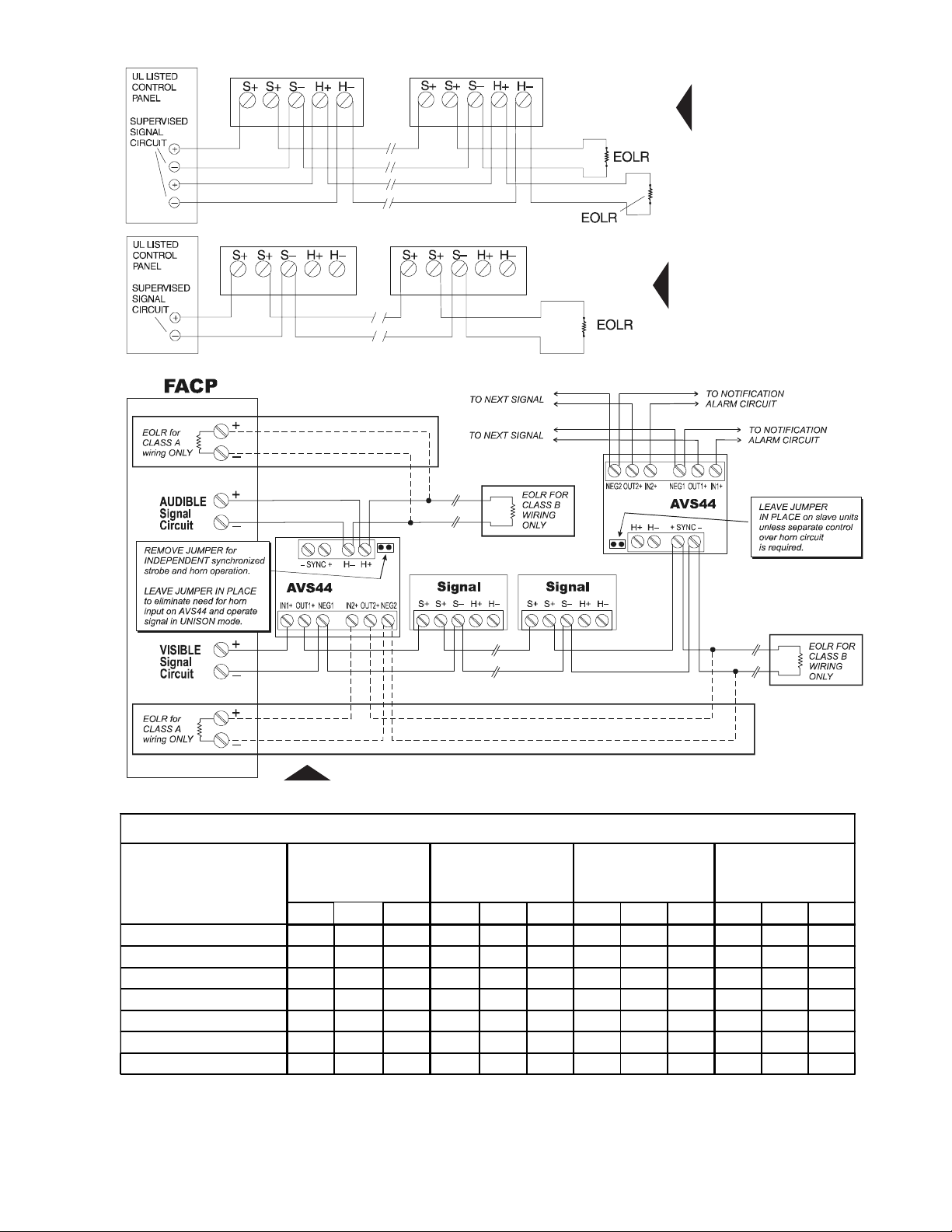

• Synchronize strobe and/or horn with Gentex AVS44 con-
trol module.

• Widest range of candela available. 15/75, 75 and 110
candela strobes meets or exceeds ADA 4.28.3 require­ments.

• Wide voltage range of 16 – 33 VDC or FWR.

• Dimensions: 5" (127 mm) high x 4.5" (114.3 mm) wide x

2.5" (63.5 mm) deep.

• Models available in red or off-white.


DN-6872 • 12/19/02 — Page 1 of 3

ORDERING INFORMATION

.

GEC 24 VDC Low-Profile Evacuation Hor n — Wall or Ceiling Mount

RED

Model Number

GEH24-R GEH24-W 12 – 34 mA 100 dBA

OFF-WHITE

Model Number

RMS

Horn Curr ent

Anechoic

Room @ 10 ft.

(3.0 48 m)

GES 24 VDC Low-Profile Evacuation Strobe — Wall Mount

RED

Model Number

GES24-15WR GES24-15WW 15 55 mA
GES24-15/75WR GES24-15/75WW
GES24-30WR GES24-30WW 30 63 mA

GES24-60WR GES24-60WW 60 88 mA
GES24-75WR GES24-75WW 75 112 mA
GES24-110WR GES24-110WW 110 136 mA

OFF-WHITE

Model Number

STROBE

Candela

15 (UL 1971)
75 (UL 1638)

RMS

Strobe Current

@ 24 V DC

63 mA

GEC 24 VDC Low-Profile Evacuation Horn/Strobe — Wall Mount

RED

Model Number

GEC24-15WR GEC 24-15WW 15 55 mA 21 mA 100 dBA
GEC24-15/75WR GEC24-15/75WW
GEC24-30WR GEC 24-30WW 30 63 mA 21 mA 100 dBA

GEC24-60WR GEC 24-60WW 60 88 mA 21 mA 100 dBA
GEC24-75WR GEC 24-75WW 75 112 mA 21 mA 100 dBA
GEC24-110WR GEC24-110WW 110 136 mA 21 mA 100 dBA

NOTES: INDOOR USE ONLY; the GE Series is not Listed for outdoor use. OPERATING TEMPERATURE: 32°F to 120°F (0°C
to 49°C). For NOMINAL AND PEAK CURRENT across UL regulated voltage range for filtered DC power and unfiltered full-wave
rectified (FWR) power, see installation instructions. WHEN PLACING AN ORDER: The following letters are used at the end of
the model number: “W” (WALL mount), and either “R” at end (RED faceplate), or “W” at end (OFF-WHITE faceplate). All units
are available in PLAIN (no lettering); when ordering, add a “P” at end of model number (these units are non-returnable). “AGENT”
bezel also available. STROBES ARE WALL-MOUNT ONLY.

OFF-WHITE

Model Number

STROBE

Candela

15 (UL 1971)
75 (UL 1638)

RMS

Strobe Current

Horn Current

@ 24 V DC

63 mA 21 mA 100 dBA

Anechoic

Room @ 10 ft

(3.048 m)

6872ordr.tbl

ARCHITECTURAL AND ENGINEERING SPECIFICATIONS

The audible and/or visible signal shall be Gentex GE Series or approved equal and shall be Listed by Underwriters
Laboratories, Inc. per UL 1971, UL 1638, and/or UL 464. The notification appliance shall also be listed with the California
State Fire Marshal (CSFM) and the Bureau of Standards and Appeals (NYC).

The notification appliance (combination audible/visible and audible units only) shall produce a peak sound output of 100
dBA or greater as measured in an anechoic chamber. The signaling appliance shall also have the capability to silence
the audible signal while leaving the visible signal energized with the use of a single pair of power wires. Additionally, the
user shall be able to select either continuous or temporal tone output with the temporal signal having the ability to be
synchronized.

The audible/visible and visible signaling appliance shall also maintain a minimum flash rate of 1 Hz or greater regardless
of power input voltage. The appliance shall also be capable of meeting the candela requirements of the ADA (75 can­dela) for the combination-Listed (UL 1971/UL 1638) models. The appliance shall have an operating current of 63 mA or
less at 24 VDC for the 15/75 candela strobe circuit.

The appliance shall be polarized to allow for electrical supervision of the system wiring. The appliance shall be capable
of test supervision without disconnecting wires. The unit shall have an input voltage range of 16 to 33 volts with either
direct current or full-wave-rectified power.

The unit shall be provided with a mounting bracket with terminals with barriers for input/output wiring and be able to
mount to a single-gang box, a double-gang box, or a double workbox without using an adapter plate. The appliance shall
also be capable of mounting to a surface backbox.

Page 2 of 3 — DN-6872 • 12/19/02
