Page 1
33-00165EFS-01
Electrode Steam Homeowner’s Manual
33-00165-01
HOMEOWNER’S OPERATING MANUAL
Page 2
Page 3
Electrode Steam
INTRODUCTION
Safety Denitions and Precautions .............. 2
Welcome .................................. 3
How is the Electrode Steam different from
other humidiers? ...................... 3
What safety features does the
Electrode Steam have? .................. 3
How should I get started? .................. 3
How does the Electrode Steam work? ........... 4
YOUR NEW Electrode Steam
Which Electrode Steam model do I have?. . . . . . . . . 5
Which humidity control do I have? ............... 6
How is my Electrode Steam installed? ........... 6
Remote mounting ......................... 6
What Electrode Steam parts do I need to know? ... 7
What should I expect from my Electrode Steam? ... 8
EVERYDAY OPERATION
How do I operate the Electrode Steam? .......... 9
How do I use the humidity control? ........... 9
What should my humidity setpoint be? ........ 10

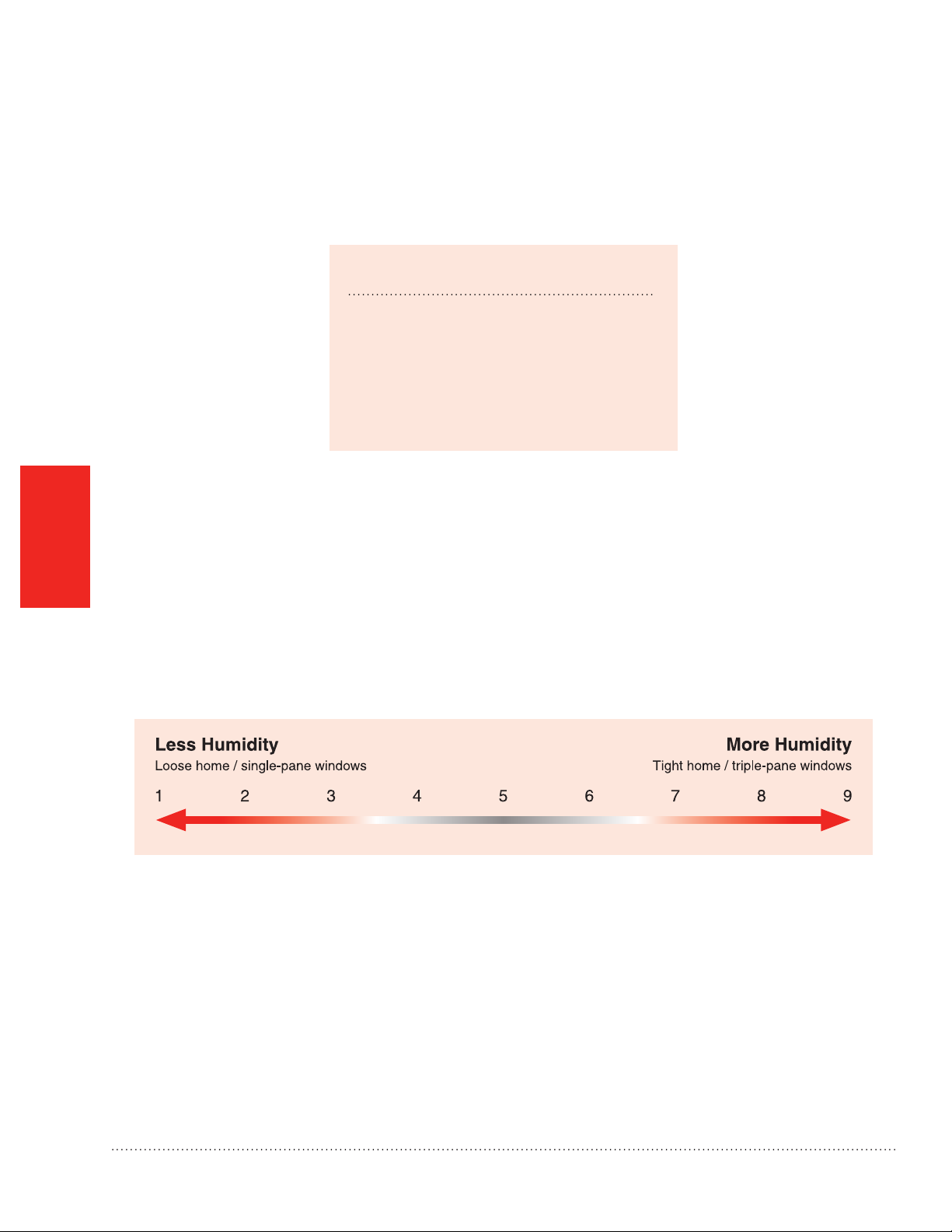

What is a frost setting? .................... 10

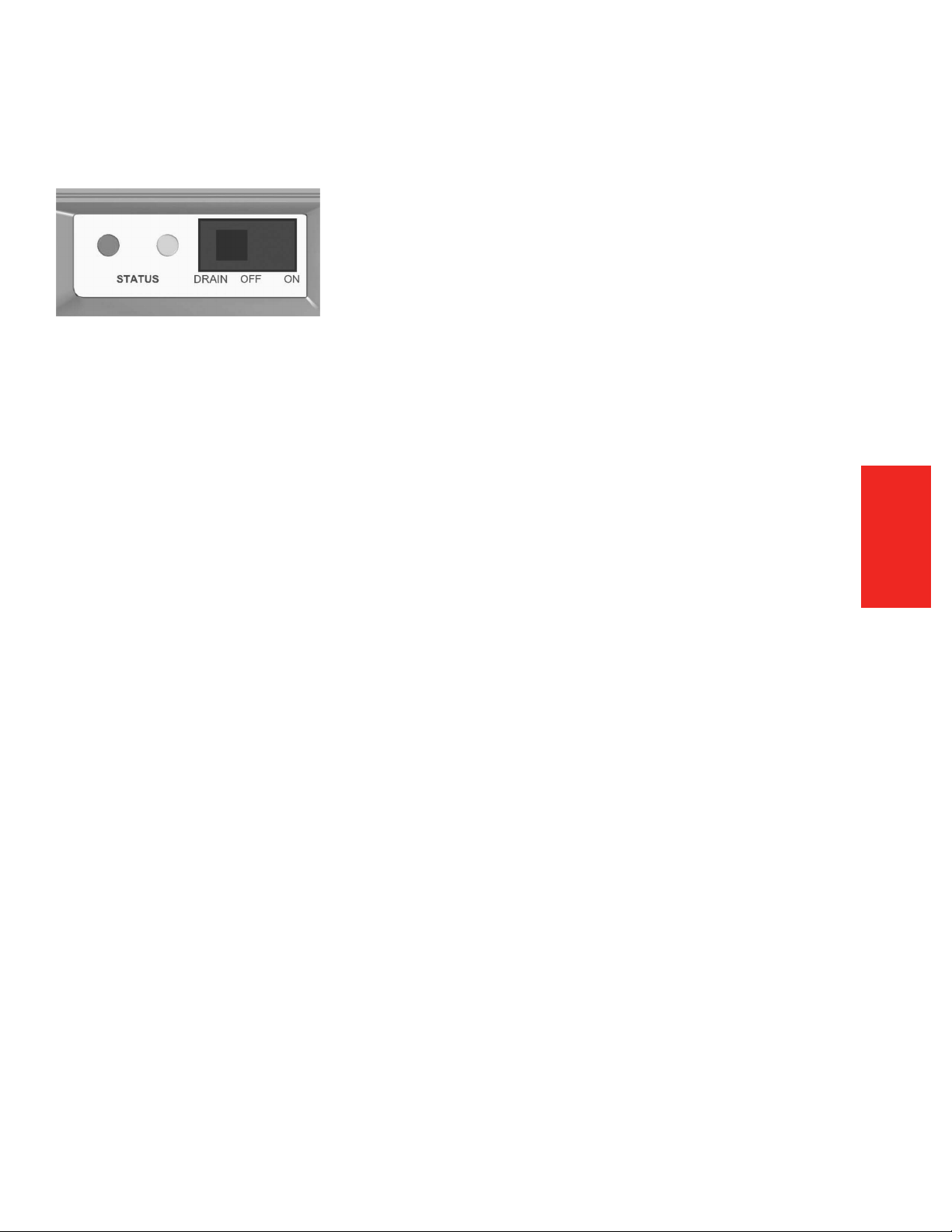

What do the lights tell me? ................... 11
CLEANING AND MAINTENANCE
What should I do at the end of the season? ...... 12
What if I go on vacation? .................. 12
What should I do if the LED light is
blinking, or if something is wrong? ........... 12
WARRANTY
5-Year Limited Warranty ..................... 13
INTRODUCTION WARRANTY
Electrode Steam
YOUR NEW
OPERATION
EVERYDAY
NEED HELP? For assistance with this product please visit http://yourhome.honeywell.com
?
or call Honeywell Customer Care toll-free at 1-800-468-1502.
CLEANING AND
MAINTENANCE
Read and save these instructions.
Steam Humidication System 33-00165—01
1
Page 4
Safety Denitions and Precautions
Must be installed by a trained, experienced technician.
Read these instructions carefully. Failure to follow these instructions can damage the product or cause a
hazardous condition.
Please read this manual completely. It is important that you understand how the Electrode Steam works, and how
INTRODUCTION
to safely perform the required maintenance procedures. Read and understand all safety-related labels found on
and posted near the Electrode Steam. These labels provide additional instructions and important
safety information.
Safety Denitions
These safety terms identify information you must read.
CAUTION: Indicates a hazardous situation which, if not avoided, could cause bodily injury or
property damage.
WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Safety Precautions
Make sure you read and understand the following safety hazards before installing, using, or working
with the Electrode Steam:
• Do not direct the steam nozzle at people.
• Water inside cylinder can be very hot. Read the warning label on the Electrode Steam and make sure
you understand the hazards of scalding hot water in the cylinder.
• Scalding danger from draining water. When the water tank empties, draining water can be hot enough
to cause injury. Make sure you know where the water exits the drain hose. Be certain hot water will not
pose a hazard to people or pets.
WARNING: Electrocution Hazard.
The Electrode Steam uses 120V or 240V, which can cause death or serious injury. Take precautions when
service is being preformed on the Electrode Steam or when removing the water tank or cover. If in doubt,
turn off the breaker which is operating the Electrode Steam and disconnect HVAC equipment power before
servicing.
CAUTION: Heavy Equipment and Water Hazard.
Improper installation or misuse can cause death, blindness, and water damage to home. Be sure you know
how to turn the Electrode Steam off, and how to drain the water tank safely.
CAUTION: Steam Condensation and Freezing Water Hazard.
Be sure the Electrode Steam Humidier is located in a conditioned space, as well as having proper
condensate and drain line locations. Improper installation can result in water damage to home.
2
Steam Humidication System 33-00165—01
Page 5
Welcome!
Congratulations on your new humidier.
The Honeywell Electrode Steam humidier provides the high performance and efciency of steam, with easier
maintenance than traditional humidiers.
We are sure the Electrode Steam will be a welcome addition to your home.
• How is the Electrode Steam different from other humidiers?
- The steam goes directly into your hot air supply duct, rather than evaporating from a wet pad, which requires
furnace temperature to produce humidity efciently.
- The Electrode Steam delivers humidity independent of your furnace. This allows you to achieve ideal humidity
levels in your home, year-round.
- The Electrode Steam wastes less water than ow-through humidiers.
- The Electrode Steam operates automatically, just like a thermostat, to keep your home’s humidity at the
desired level.
- The Electrode Steam is easy to maintain. Just have your HVAC professional change the steam cylinder when
the unit determines its life is about to expire.
• What safety features does the Electrode Steam have?
- Separate sensors and water monitoring (via the electrodes and software) monitor water within the tank. These
two important components prevent the tank from being over-lled, running dry, and optimize steam production
with various water qualities.
- The auto-adaptive feature monitors the Electrode Steam humidier’s water supply, current, and load. The unit
also self-tests on a regular basis, letting you know when the unit should be serviced.
INTRODUCTION
• How should I get started? Your Electrode Steam must be installed by an HVAC Professional Installer. If the
Electrode Steam has just been installed, it should either be running and humidifying your home, or waiting for a
humidity call from the humidity control provided.
Once the Electrode Steam is up and running, all you have to do is use the humidity control to change the
humidity to your desired comfort.
Please read this manual completely for tips on getting the most out of your Electrode Steam.
Read your humidity control manual and make sure you know how to operate your system.
If you have questions, now or later, please ask your Installer or call Honeywell Customer Care
at 1-800-468-1502.
Steam Humidication System 33-00165—01 3
Page 6
How does the Electrode Steam work?
Steam Generation
• Once the unit receives a demand signal and the safety loop between terminal 1 and 2 is closed, the humidier
• If the demand is lower than the actual output the inlet valve is kept closed and output is reduced by letting the
• If demand is higher than the actual output, after a brief delay the ll valve is activated and water ows into the
Note: The cylinder is gravity fed from the ll cup. If backpressure from the steam line is too high it will cause water
• As soon as the water in the cylinder comes in contact with the energized electrodes, current ows through
YOUR NEW
Electrode Steam
• The Electrode Steam repeats the ll and boil down cycle repeatedly to match output to demand.
• Over time minerals in the water will adhere to the cylinder electrodes. The humidier will automatically ll to a
Drains
• As steam is produced, minerals are left behind, increasing the conductivity of the water. The Electrode Steam
• The auto adaptive cycle ensures cylinder life is maximized. It does this by keeping the tightest control and most
Steam Distribution
Steam generated by the humidier may be introduced into the air in several different ways. The most common
method for adding the steam into the air is to mount a steam distributor tube in a supply air duct.
Steam Line
The steam line between the cylinder steam outlet and the distributor serves two purposes: it is used as a conduit
to transfer the atmospheric steam from the humidier to the distributor, as well as providing a means to remove
condensate.
Condensate Return
Whenever steam is distributed condensate is formed in the distribution system. Insulating steam lines is one
important way to reduce the amount of condensate formed. Steam lines are sloped so that condensate does not
collect in the lines and create a restriction to steam ow. The condensate must be collected and removed from the
system so that it does not build up and leak into the duct. Condensate can be returned to the Electrode Steam ll
cup to reduce water waste or can be fed to drain.
closes the contactor and measures the electrical current.
water level in the cylinder decrease by evaporation.
ll cup. Water from the ll cup ows into the bottom of the cylinder through a hose connected to the drain valve
housing.
to back up in the ll cup and ow down the overow line to the drain.
the water. The resistance of the water to the electrical charge generates heat and in turn steam. The electrical
current (and steam output) increases as the level of water increases, as more of the electrode becomes
submerged. The unit continues to ll until the current matches demand or the high water sensor detects a high
water level.
higher water level to maintain full capacity during the life of the cylinder. Eventually because of scale formation
it will no longer be possible for the humidier to reach its full capacity. The Electrode Steam software monitors
this condition and, when detected, will stop operating and ash the yellow LED in a repeating sequence of 4
ashes.
patented auto adaptive cycle will monitor the water conductivity and perform drains to maintain the water at
optimal conductivity for peak performance.
efcient use of water during the entire cylinder life.
4
Steam Humidication System 33-00165—01
Page 7

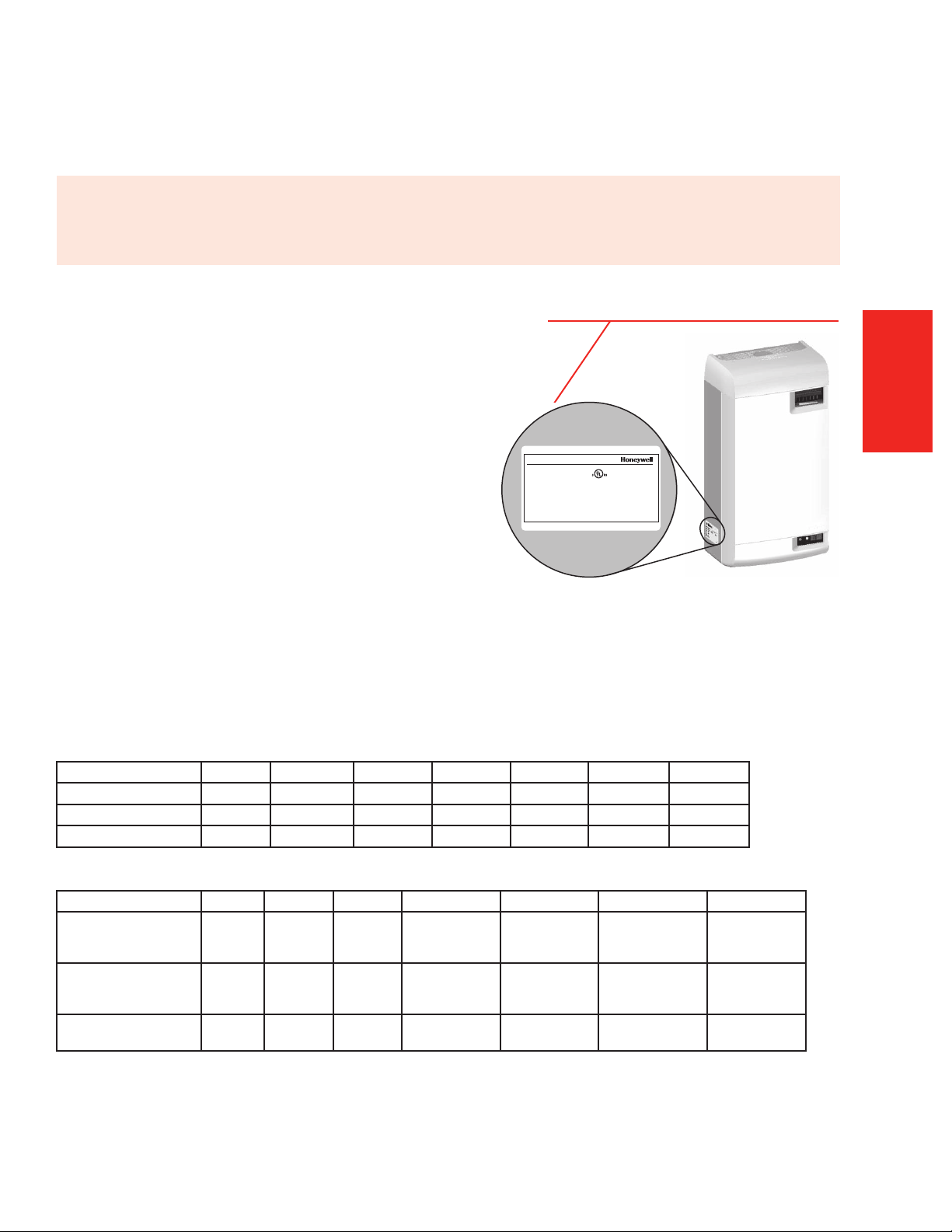

Which Electrode Steam model do I have?
The Electrode Steam is available in two sizes, each with a different humidifying capacity:
The Electrode Steam produces 11 gallons per day (GPD) when run on 120 V and 22 GPD when run on
240 V. It is generally suitable for homes 8,000 to 32,000 cubic feet in size.
The proper model for your home depends on many factors.
Size of the area to be humidied, ceiling height, window
This label displays the model number and
date code of your Electrode Steam.
and insulation type, as well as your geographic area, all
affect how much humidity your
home needs.
Some activities in your home may create heavier loads for
the Electrode Steam. Vented replaces, high exhaust from
fans, or driers can reduce humidity in your home and make
the Electrode Steam work harder.
MODEL:
PHASE:
VOLTS 1:
VOLTS 2:
DATE:
HM700A1000
1
110-120
220-240
XXXXXXXXX
1
60
HZ:
F.L.A: GPD:
F.L.A: GPD:
Auto-Adaptive
LISTED 205X
HUMIDIFIER
12.0
12.0
XXXXXXX
S/N:
11
1.4
KW:
KW:
2.9
22
Golden Valley Minnesota 55422
MADE IN CANADA
2583297A
Your Professional Installer or salesperson will have
considered these and other factors when choosing the best
M35758
Electrode Steam model for your unique situation.
Sizing
IMPORTANT: The Electrode Steam should only be installed if it has been sized properly. Do not use square feet
when sizing a humidier installation. Instead, cubic feet must be used, since the humidity is lling a volume of
space (width x length x height). Also, take into consideration the “tightness” of a home’s construction.
Electrode Steam
YOUR NEW
Table 1. AHRI Recommended Humidity (in gallons per day).
Construction Type 8,00 0 ft312,000 ft
3
16,000 ft320,000 ft324,000 ft328,000 ft332,000 ft
Tight 3.3 4.3 5.4 7.5 9.6 11.7 16
Average 7.6 9.6 11.8 16 20.3 24.4 33
Loose 11.7 14.9 18.1 24.5 30.8 37.1 50
Table 2. Steam humidier(s) necessary for application.
Construction Type 8,00 0 ft312,000 ft316,000 ft320,000 ft
a
3
24,000 ft
3
28,000 ft
3
Tight 11 GPD 11 GPD 11 GPD 11 GPD 11 GPD 11 GPD (x2)
or
22 GPD (x1)
Average 11 GPD 11 GPD 22 GPD 22 GPD 22 GPD 11 GPD (x3)
or
22 GPD (x2)
Loose 22 GPD 22 GPD 22 GPD 11 GPD (x3) or
22 GPD (x2)
a
In the table above, 11 GPD indicates a steam humidier congured to run on 120 V and 22 GPD indicates a steam humidier congured to
11 GPD (x3) or
22 GPD (x2)
11 GPD (x4) or
22 GPD (x2)
run on 240 V.
Steam Humidication System 33-00165—01 5
3
32,000 ft
3
11 GPD (x2) or
22 GPD (x1)
11 GPD (x3) or
22 GPD (x2)
11 GPD (x5) or
22 GPD (x3)
Page 8
M35763

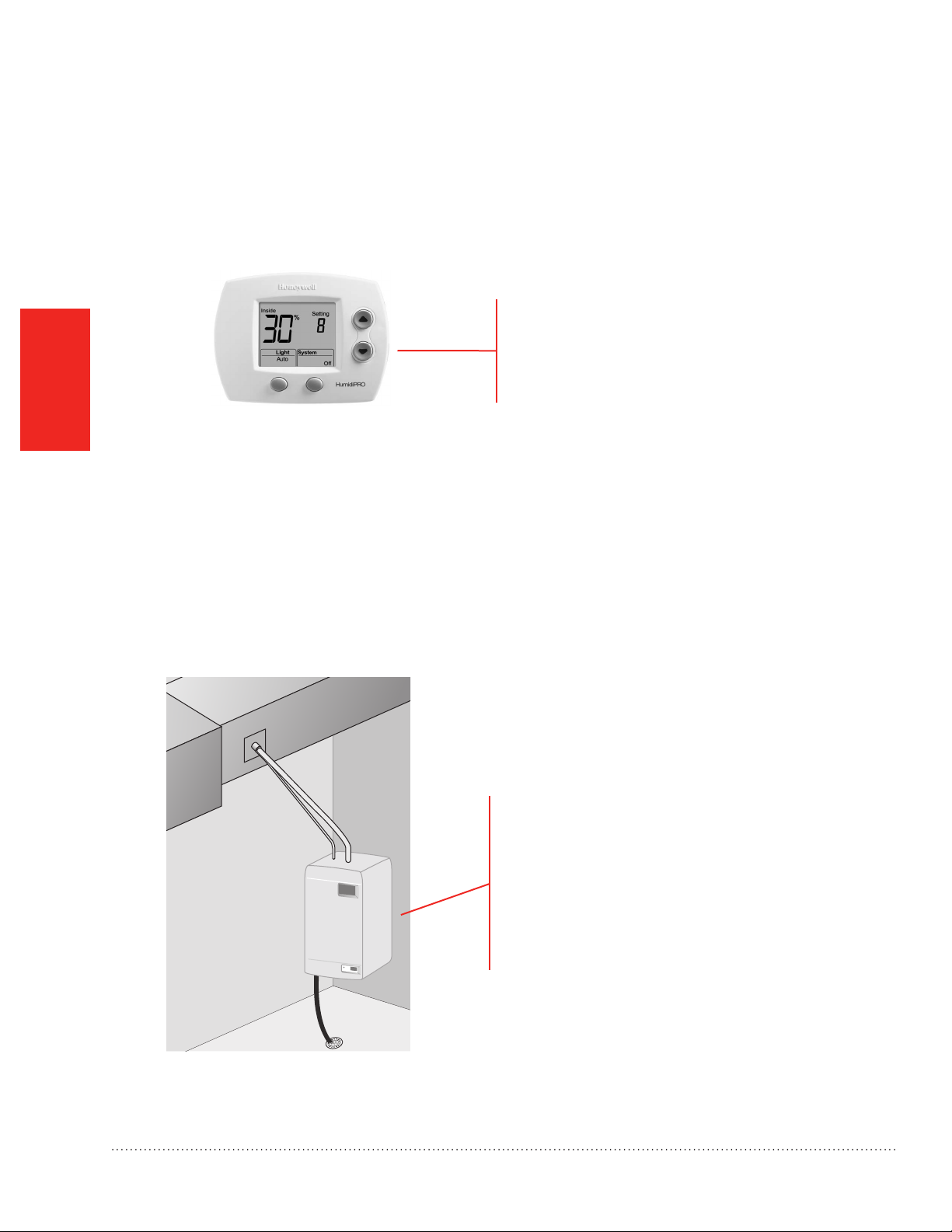

Which humidity control do I have?
The Electrode Steam comes supplied with a HumidiPRO Digital Control (see below), or you can use your home
thermostat (Prestige IAQ, VisionPro, or Lyric). You will use the humidity control to set the desired humidity level for
your home, and to turn the Electrode Steam on and off.
YOUR NEW
Electrode Steam
How is my Electrode Steam installed?
HumidiPRO Digital Control
• Automatic humidication control with advanced
window protection
• Optional manual humidication or dehumidication
control
Your HVAC Professional Installer will install the Electrode Steam in a proper location in your home. The best
location depends on your furnace type and conguration, and how your living space is arranged around the
furnace ducts. Your Electrode Steam will be remote mounted.
Remote mounting. The Electrode Steam is installed
some distance away from your furnace supply duct.
An insulated hose carries steam from the Electrode
Steam to a suitable location on the supply duct.
Remote mounting is required for the Electrode
Humidier.
6
Steam Humidication System 33-00165—01
Page 9

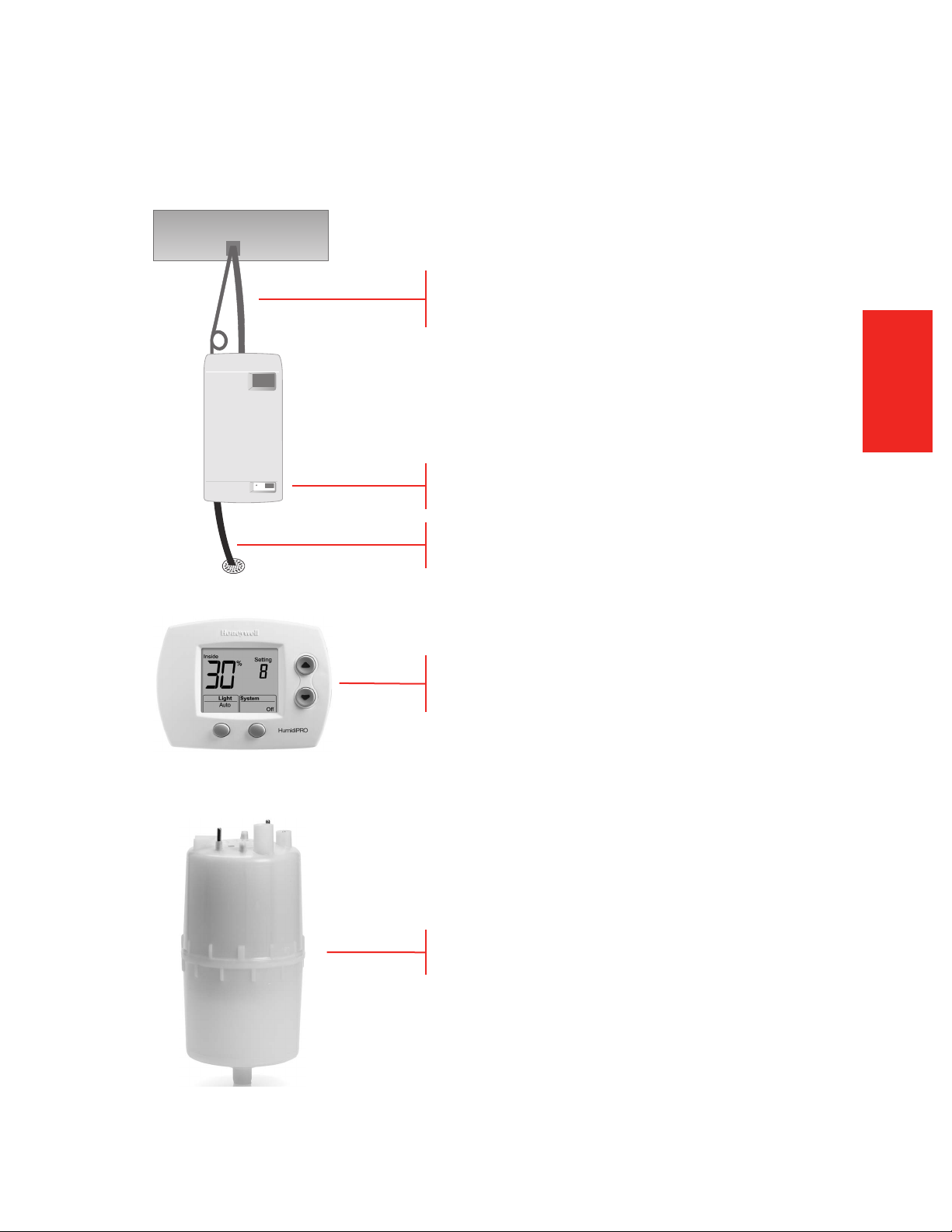

What Electrode Steam parts do I need to know?
M35762
You should be familiar with the following components:
Steam Hose: Conduit to transfer the steam
from the humidier to the distributor.
On/Off/Drain Switch: Turns power on/off to
humidier controller and drains the cylinder.
Electrode Steam
YOUR NEW
Water Drain Line: Drains water from humidier.
HumidiPRO Digital Control: Controls
humidity levels, and turns on/off the Electrode
Steam.
Cylinder: Current heats the water inside the
cylinder to make steam.
Steam Humidication System 33-00165—01 7
Page 10
What should I expect from my Electrode Steam?
Honeywell wants to make sure you know what to expect from your new Electrode Steam installation. Make sure
you discuss these items with your Professional Installer:
• Achieving Humidity Setpoint. It may take up to a week of continuous operation to initially achieve the
• On/Off Noise. When the humidier starts up after being off, the unit will run a self-test sequence and may a
• Ideal Humidity. 35% relative humidity in typical winter weather is considered ideal for indoor comfort by
YOUR NEW
Electrode Steam
• Unit Not Humidifying. If the Electrode Steam is not running but the humidity is below the desired setting, the
humidity setpoint. This depends on factors such as weather, size of home, furnishings in the home, and
insulation. Once this is achieved, the Electrode Steam should not have to run as much to maintain humidity.
“click” noise, engaging the ll & drain valves. This is normal .
industry experts. You can adjust to your own comfort or until there is condensation on the windows. Lower the
setpoint if condensation appears.
humidity control may have a frost protection setting. See “What is a frost setting?” on page 10. The Cylinder
may also be at the end of its life, in which case you will be notied by the LED sequence.
• Setpoint Not Reached. If humidity doesn’t reach the setpoint, the Electrode Steam may be under-sized for the
home. This can be due to insulation, windows, arid climate, and other environmental factors. Also, the outdoor
temperature may be too low to maintain the humidity level.
• Home Ventilation. Excessive ventilation exhausts humidied air and replaces it with dry air. This can make it
hard to maintain the humidity setpoint. If you are installing a ventilator, use a solution that retains moisture. An
Energy Recovery Ventilator (ERV) is recommended.
• LED Status Lights. The HM700 user interface includes 2 LEDs that provide information about the humidier
status. Please see “What do the lights tell me?” on page 11 for more information.
• Water Draining. It is normal for the Electrode Steam to periodically drain some water automatically. This is
due to the humidier maintaining the perfect level of water conductivity and steam output.
• Water Conductivity. Your home’s water conductivity determines how quickly the Electrode Steam will produce
steam and also how often the replacement steam cylinder needs to be replaced.
• Energy Consumption. You may notice a slight increase in overall energy consumption when operating
any humidier. However, the Electrode Steam will make the home feel warmer. This allows you to lower the
temperature setting on the thermostat. Every degree lower on the thermostat can save up to 3% on heating
costs.
8
Steam Humidication System 33-00165—01
Page 11
How do I operate the Electrode Steam?
Once the Electrode Steam is installed and running, operation is automatic. Use the humidity control provided to
make any changes to the setpoint, or to turn the Electrode Steam on or off.
Your Professional Installer congured the Electrode Steam so that it only creates steam when conditions in your
HVAC system are right. Steam can only be produced when your system fan is blowing air through the duct.
Ask your Professional Installer if you have questions about how to operate the Electrode Steam.
• How do I use the humidity control? Whenever humidity in the home is lower than the humidity control’s
setpoint, the control will call for humidity. Some controls will also monitor outdoor conditions to ensure indoor
humidity does not condense on windows and walls. Refer to the manual provided with your humidity control for
instructions on setting the control. There are two different types of humidity control:

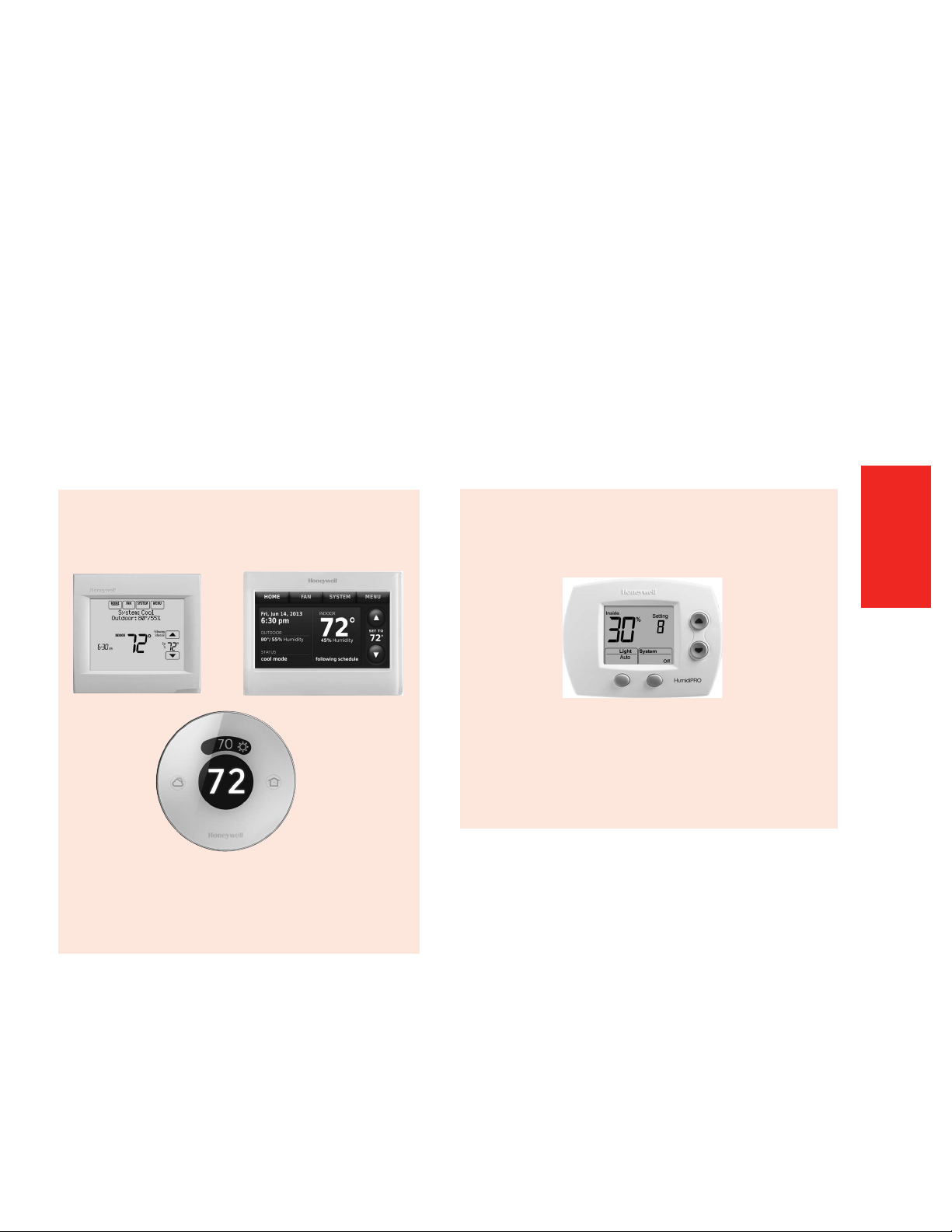

Thermostat with integrated humidity
control (such as Prestige IAQ, VisionPRO
8000, or Lyric).
Humidity control separate from the thermostat
(such as the HumidiPRO)
.
OPERATION
EVERYDAY
This arrangement allows you to control your
furnace, central air conditioning, and Electrode
Steam, all with one device.
With this arrangement, you will use your current
thermostat to control your furnace and central
air conditioning. Use the separate humidity
control to control your Electrode Steam.
Steam Humidication System 33-00165—01 9
Page 12
EVERYDAY
2
• What should my humidity setpoint be? The outdoor air temperature affects how much humidity can be
retained by the air in your home. Use this table as a starting point. Then adjust the humidity control to your own
comfort or until condensation appears on the windows.
Outdoor Recommended Relative
Temperature Humidity Setting
-20°F (-29°C) 15%
-10°F (-23°C) 20%
0°F (-18°C) 25%
10°F (-12°C) 30%
20°F (-7°C) 35%
>20°F (-1°C) 35%
• What is a frost setting? Some humidity controls (such as Prestige, VisionPRO 8000, and HumidiPRO)
contain a Window Frost Protection feature which limits humidity output based on outdoor conditions. For
example, on colder days, the air in your home can hold less humidity. The humidity control automatically lowers
the humidity setpoint accordingly, to prevent frost from appearing on the inside of your windows.
OPERATION
Lower the frost setting by one value each morning that you see frost or condensation on windows. Allow 24
hours for the new setting to take effect before re-adjusting. Once you have this set to a comfortable level
without condensation, you will not need to adjust further. You can adjust your humidity setpoint without
worrying about condensation.
MCR2798
Manual humidity controls do not have built-in frost settings. They require you to adjust the humidity setpoint
when the outdoor temperature changes. Use higher humidity setpoints when the temperature is warmer, and
lower setpoints when the temperature is cooler.
10
Steam Humidication System 33-00165—01
Page 13
What do the lights tell me?
The HM700 user interface includes 2 LEDs that provide information about the humidier status.
Yellow and Green LED Flashing.
Indicates there is no request for humidity.
Yellow LED Flashing.
Fault detected, humidier has stopped operating.
Green LED Flashing.
Indicates the humidier is powered, but the control
equipment (stat, air proving, fan, etc.) has interrupted
the call for humidity.
Yellow LED On.
Indicates that water level is high. When the yellow LED
is steady on (not ashing) it indicates that the high
water sensor has interrupted lling of the cylinder. The
LED is on for information only and unless it persists
for an extended period of time, it does not require any
action.
OPERATION
EVERYDAY
Green LED On.
Indicates steam is being produced.
Steam Humidication System 33-00165—01 11
Page 14
What should I do at the end of the season?
The Electrode Steam automatically shuts down when humidity is not needed for an extended period. After several
days of inactivity, the water tank will drain and remain empty until humidity is called again. This prevents water
from stagnating inside the tank. The Electrode Steam will rell the tank with water and reset itself when your
control calls for humidity again.
• What if I go on vacation? Even though the Electrode Steam’s water tank will drain automatically after several
days, Honeywell recommends shutting off the Electrode Steam water supply and turning off the humidity
control for extended leaves. Upon return, turn on the water supply and reset the control to the desired setpoint.
What should I do if the LED light is blinking, or if something is
wrong?
The lights will blink when the internal dignostics systems needs attention. See LED list on page 11.
• Call customer care or your HVAC professional for all service requirements
MAINTENANCE
CLEANING AND
12
Steam Humidication System 33-00165—01
Page 15
5-Year Limited Warranty
Honeywell warrants this product to be free from defects in the workmanship or materials, under normal use and service, for
a period of ve (5) years from the date of purchase by the consumer. If at any time during the warranty period the product is
determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should
be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN
55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the
defect or malfunction was caused by damage which occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL
NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED,
OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION
OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE FIVE-YEAR DURATION OF THIS WARRANTY. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specic legal rights, and you may have other rights which vary from state to state.
If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr. Golden
Valley, MN 55422 or call 1-800-468-1502.
WARRANTY
Steam Humidication System 33-00165—01 13
Page 16
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
http://yourhome.honeywell.com
® U.S. Registered Trademark.
© 2015 Honeywell International Inc.
33-00165 —01 M.S. 11-15
Printed in U.S.A.
Loading...
