Honda Wave 110i, Wave 110i (2011) User Manual

This manual should be considered a permanent part of the motorcycle
and should remain with the motorcycle when it is resold.

This publication includes the latest production information available
before printing. Honda Motor Co., Ltd. reserves the right to make
changes at any time without notice and without incurring any obligation.

No part of this publication may be reproduced without written
permission.

The vehicle pictured in this owner’s manual may not match your actual
vehicle.

© 2011 Honda Motor Co., Ltd.

12 AFS110-32KWWH00.book 1 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Welcome

Congratulations on your purchase of a new
Honda motorcycle. Your selection of a
Honda makes you part of a worldwide family
of satisfied customers who appreciate
Honda’s reputation for building quality into
every product.

To ensure your safety and riding pleasure:

● Read this owner’s manual carefully.

● Follow all recommendations and

procedures contained in this manual.

● Pay close attention to safety messages

contained in this manual and on the
motorcycle.

● The following codes in this manual indicate

each country.

● The illustrations here in are based on the

ED type.

Country Codes

*The specifications may vary with each locale.

Code Country

ED European direct sales
EUK
F France

12 AFS110-32KWWH00.book 2 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

A Few Words About Safety

Your safety, and the safety of others, is very
important. Operating this motorcycle safely is
an important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a motorcycle. You
must use your own good judgement.

You will find important safety information in
a variety of forms, including:

● Safety labels on the motorcycle

● Safety Messages preceded by a safety alert

symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:

3

DANGER

You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.

3

WARNING

You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.

3

CAUTION

You CAN be HURT if you don’t follow
instructions.

Other important information is
provided under the following titles:

NOTICE

Information to help you avoid
damage to your motorcycle, other
property, or the environment.

12 AFS110-32KWWH00.book 3 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Contents

Motorcycle Safety P. 2

Operation Guide P. 18

Maintenance P. 35

Troubleshooting P. 78

Information P. 92

Specifications P. 103

Index P. 106

12 AFS110-32KWWH00.book 4 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Motorcycle Safety

This section contains important information for safe riding of your motorcycle.
Please read this section carefully.

Safety Guidelines .........................................P. 3

Image Labels.................................................P. 6

Safety Precautions .....................................P. 11

Riding Precautions .....................................P. 12

Accessories & Modifications......................P. 15

Loading .......................................................P. 16

12 AFS110-32KWWH00.book 2 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Safety Guidelines

3

continued

Motorcycle Safety

Safety Guidelines

Follow these guidelines to enhance your safety:

● Perform all routine and regular inspections

specified in this manual.

● Stop the engine and keep sparks and flame

away before filling the fuel tank.

● Do not run the engine in enclosed or partly

enclosed areas. Carbon monoxide in exhaust
gases is toxic and can kill you.

It’s a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel.

2 P. 11

Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check

that you and your passenger are both wearing
an approved motorcycle helmet and protective
apparel. Instruct your passenger on holding
onto the grab rail or your waist, leaning with
you in turns, and keeping their feet on the
footpegs, even when the motorcycle is stopped.

Even if you have ridden other motorcycles,
practice riding in a safe area to become familiar
with how this motorcycle works and handles,
and to become accustomed to the motorcycle’s
size and weight.

Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.

Always Wear a Helmet

Before Riding

Take Time to Learn & Practice

Ride Defensively

12 AFS110-32KWWH00.book 3 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Safety Guidelines

4

Motorcycle Safety

Make yourself more visible, especially at night,
by wearing bright reflective clothing,
positioning yourself so other drivers can see
you, signaling before turning or changing lanes,
and using your horn when necessary.

Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgement and ride safely.

Alcohol and riding don’t mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. Don’t drink and ride, and don’t let your
friends drink and ride either.

It’s important to keep your motorcycle properly
maintained and in safe riding condition.
Inspect your motorcycle before every ride and
perform all recommended maintenance. Never
exceed load limits (

2 P. 16), and do not modify

your motorcycle or install accessories that
would make your motorcycle unsafe (

2 P. 15).

Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.

If you decide to continue riding, first evaluate
the condition of your motorcycle. If the engine
is still running, turn it off. Inspect for fluid leaks,

Make Yourself Easy to See

Ride within Your Limits

Don’t Drink and Ride

Keep Your Honda in Safe Condition

If You are Involved in a Crash

12 AFS110-32KWWH00.book 4 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Safety Guidelines

5

Motorcycle Safety

check the tightness of critical nuts and bolts,
and check the handlebar, control levers, brakes,
and wheels. Ride slowly and cautiously.
Your motorcycle may have suffered damage
that is not immediately apparent. Have your
motorcycle thoroughly checked at a qualified
service facility as soon as possible.

Exhaust contains poisonous carbon monoxide,
a colourless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.

If you run the engine in confined or even partly
enclosed area, the air you breathe could contain
a dangerous amount of carbon monoxide.
Never run your motorcycle inside a garage or
other enclosure.

Carbon Monoxide Hazard

3

WARNING

Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill you.

Avoid any areas or activities that
expose you to carbon monoxide.

12 AFS110-32KWWH00.book 5 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Image Labels

6

Motorcycle Safety

Image Labels

The following pages describe the label
meanings. Some labels warn you of
potential hazards that could cause serious
injury. Others provide important safety
information. Read this information carefully
and don’t remove the labels.

If a label comes off or becomes hard to read,
contact your dealer for a replacement.

There is a specific symbol on each label.
The meanings of each symbol and label are
as follows.

Read instructions contained in Owner’s
Manual carefully.

Read instructions contained in Shop Manual
carefully. In the interest of safety, take the
motorcycle to be serviced only by your dealer.

DANGER (with RED background)

You WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.

WARNING (with ORANGE background)

You CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.

CAUTION (with YELLOW background)

You CAN be HURT if you don’t follow
instructions.

12 AFS110-32KWWH00.book 6 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Image Labels

7

continued

Motorcycle Safety

BATTERY LABEL
DANGER

• Keep flame and spark away from the battery.
Battery produce explosive gas that can cause
explosion.

• Wear the eye protection and rubber gloves when
handling the battery, or you can get burned or
lose your eyesight by the battery electrolyte.

• Do not allow children and other people to touch
a battery unless they understand proper
handling and hazards of the battery very well.

• Handle the battery electrolyte with extreme care
as it contains dilute sulfuric acid. Contact with
your skin or eyes can burn you or cause loss of
your eyesight.

• Read this manual carefully and understand it
before handling the battery. Neglect of the
instructions can cause personal injury and
damage to the motorcycle.

• Do not use a battery with the electrolyte at or
below the lower level mark. It can explode
causing serious injury.

12 AFS110-32KWWH00.book 7 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Image Labels

8

Motorcycle Safety

ACCESSORIES AND LOADING WARNING LABEL
WARNING

ACCESSORIES AND LOADING

• The safety stability and handling of this motorcycle may be
affected by the addition of accessories and luggage.

• Read carefully the instructions contained in user’s manual and
installation guide before installing any accessory.

• The total weight of accessories and luggage added to rider’s and
passenger’s weight should not exceed 170 kg (375 lb), which is
the maximum weight capacity.

• The luggage weight must not exceed 9 kg (20 lb) under any
circumstances.

• The fitting of large fork-mounted or large handlebar mounted
fairing is not recommended.

12 AFS110-32KWWH00.book 8 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Image Labels

9

continued

Motorcycle Safety

TYRE INFORMATION & DRIVE CHAIN LABEL

Cold tyre pressure:
[Driver only]

Front 200 kPa (2.00 kgf/cm2, 29 psi)
Rear 225 kPa (2.25 kgf/cm2, 33 psi)

[Driver and passenger]

Front 200 kPa (2.00 kgf/cm2, 29 psi)
Rear 280 kPa (2.80 kgf/cm2, 41 psi)

Tyre size:

Front 70/90-17M/C 38P
Rear 80/90-17M/C 50P

Tyre brand: CHENG SHIN

Front C-6016
Rear C-6016R

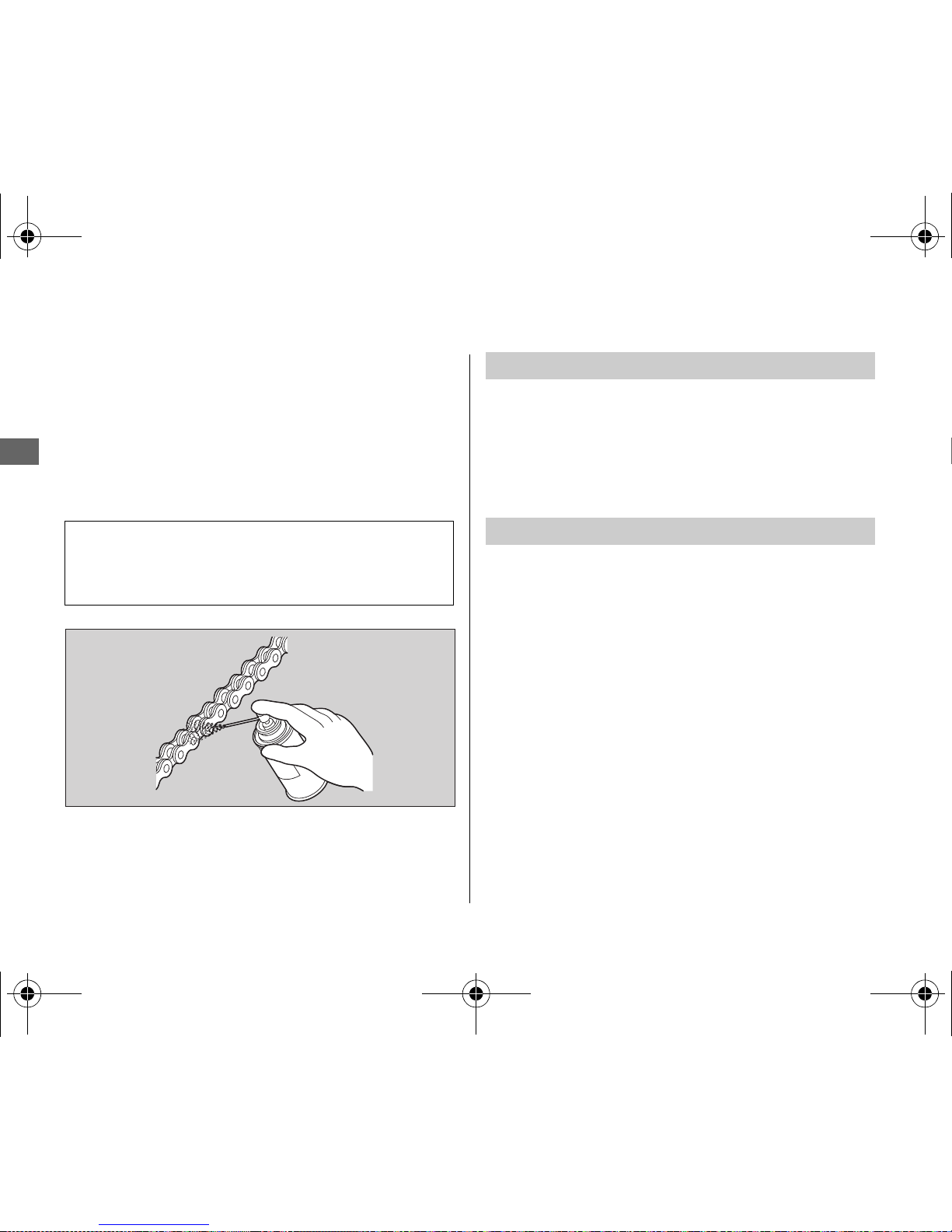

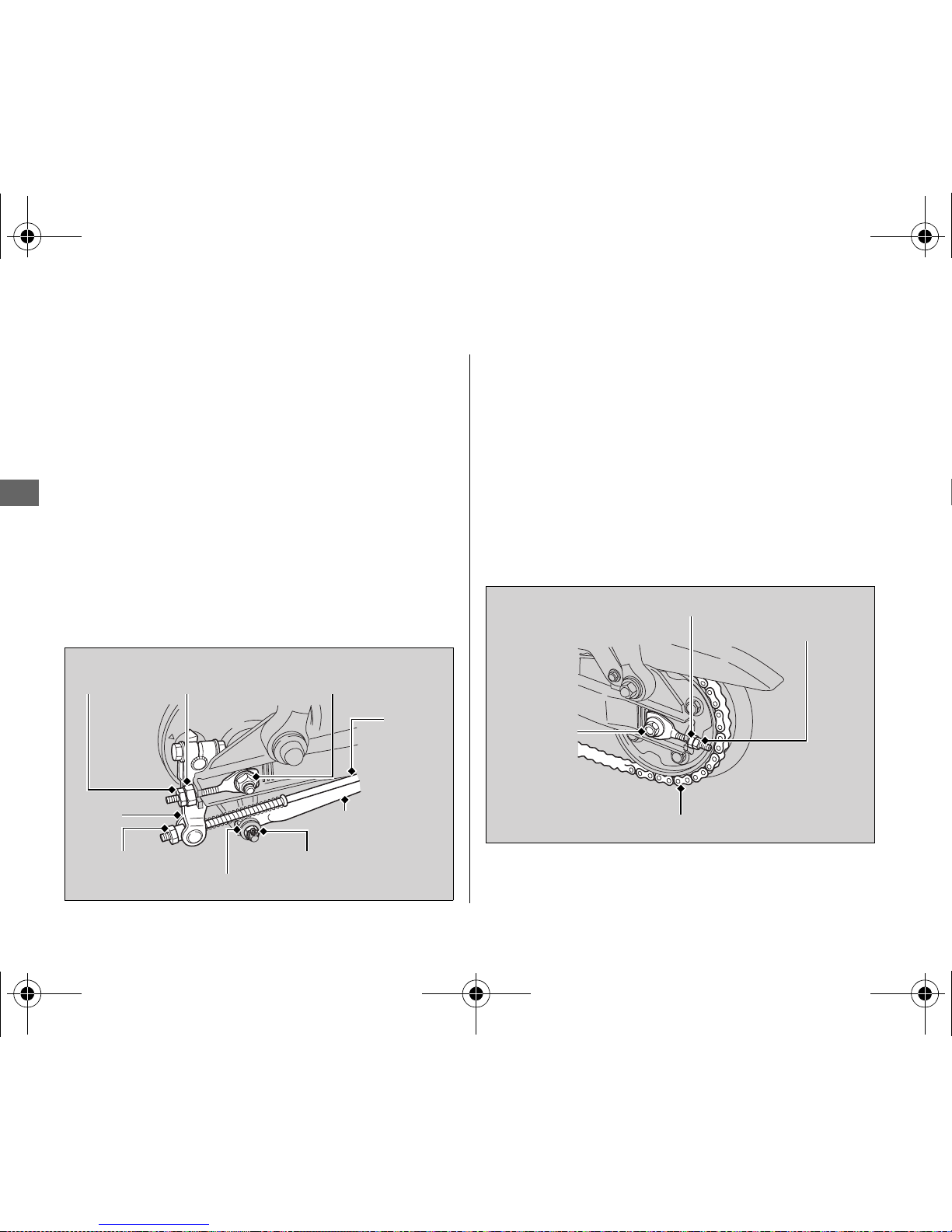

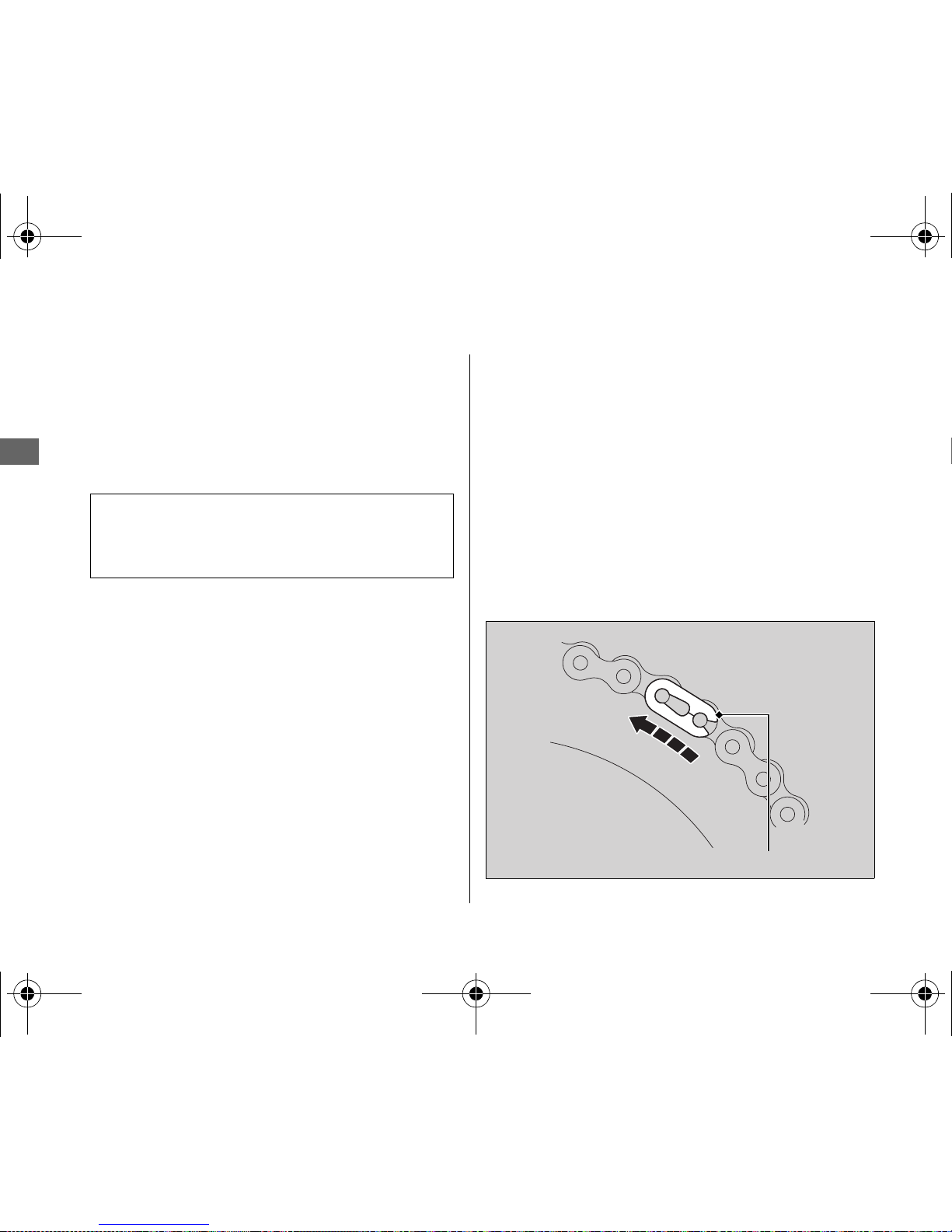

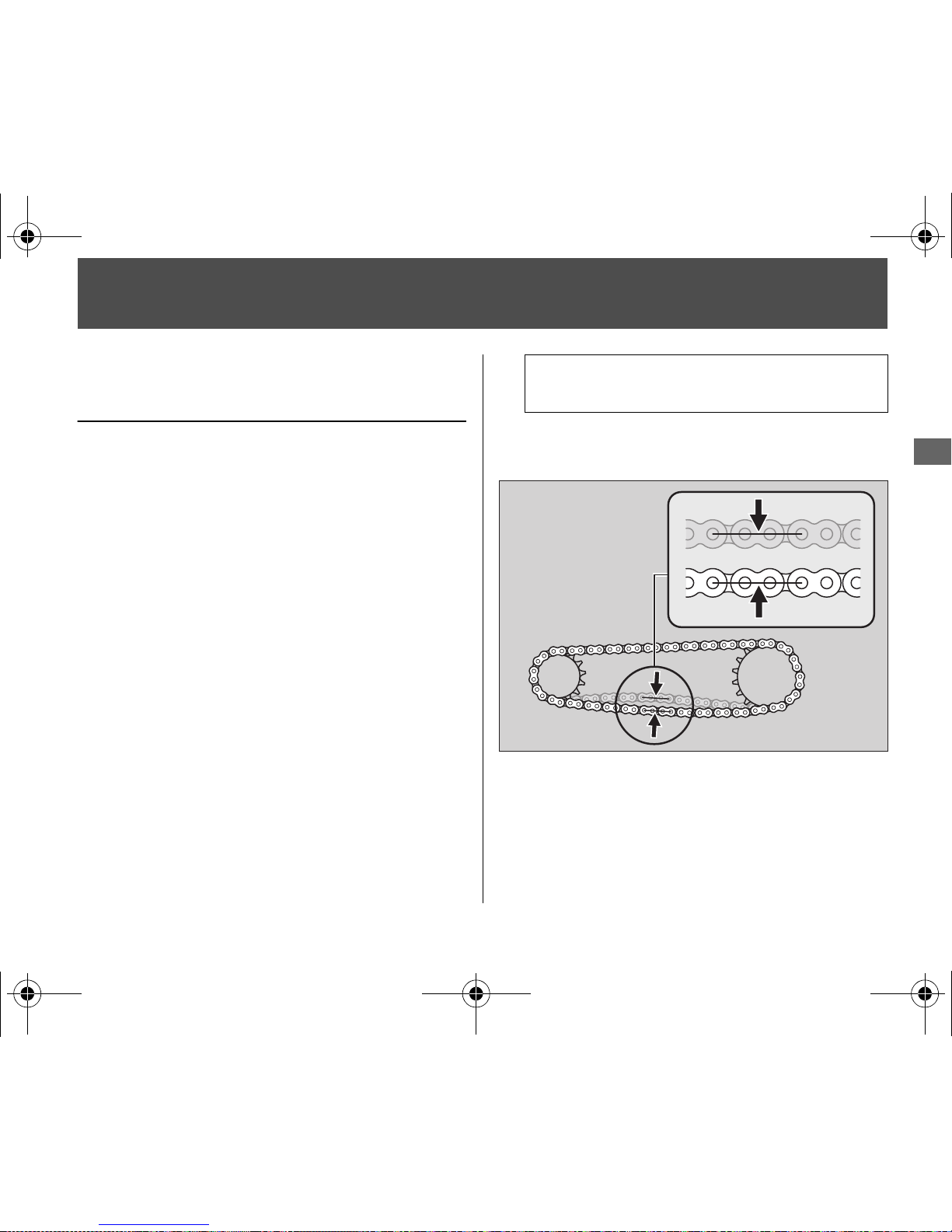

Keep chain adjusted and lubricated.
20 to 30 mm (1.0 to 1.2 in) Freeplay

12 AFS110-32KWWH00.book 9 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Image Labels

10

Motorcycle Safety

SAFETY REMINDER LABEL

For your protection, always wear helmet, protective apparel.

FUEL LABEL

Unleaded petrol only

CARGO LIMIT LABEL

Do not exceed 5.0 kg (11.0 lb).

5.0kg

(11.0lb)

12 AFS110-32KWWH00.book 10 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Safety Precautions

11

Motorcycle Safety

Safety Precautions

● Ride cautiously and keep your hands on the

handlebars and feet on the footpegs.

● Keep passenger’s hands onto the grab rail or

your waist, passenger’s feet on the footpegs
while riding.

● Always consider the safety of your passenger,

as well as other drivers and riders.

Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective
clothing. Ride defensively in response to
weather and road conditions.

❙

Helmet

Safety-standard certified, high-visibility, correct
size for your head

● Must fit comfortably but securely, with the

chin strap fastened

● Face shield with unobstructed field of vision

or other approved eye protection

❙

Gloves

Full-finger leather gloves with high abrasion
resistance

❙

Boots or Riding Shoes

Sturdy boots with non-slip soles and ankle
protection

❙

Jacket and Trousers

Protective, highly visible, long-sleeved jacket and
durable trousers for riding (or a protective suit).

Protective Apparel

3

WARNING

Not wearing a helmet increases the
chance of serious injury or death in a
crash.

Make sure that you and any passenger
always wear an approved helmet and
protective apparel.

12 AFS110-32KWWH00.book 11 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Riding Precautions

12

Motorcycle Safety

Riding Precautions

During the first 500 km (300 miles) of running,
follow these guidelines to ensure your
motorcycle’s future reliability and performance.

● Avoid full-throttle starts and rapid

acceleration.

● Avoid hard braking and rapid down-shifts.

● Ride conservatively.

Observe the following guidelines:

● Avoid excessively hard braking and down-

shifts.

u Sudden braking can reduce the

motorcycle’s stability.

u Where possible, reduce speed before

turning; otherwise you risk sliding out.

● Exercise caution on low traction surfaces.

u The tyres slip more easily on such surfaces

and braking distances are longer.

● Avoid continuous braking.

u Repeated braking, such as when

descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.

● For full braking effectiveness, operate both

the front and rear brakes together.

Running-in Period

Brakes

12 AFS110-32KWWH00.book 12 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Riding Precautions

13

continued

Motorcycle Safety

❙

Engine Braking

Engine braking helps slow your motorcycle
down when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.

❙

Wet or Rainy Conditions

Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.

● Park on a firm, level surface.

● If you must park on an incline or loose

surface, park so that the motorcycle cannot
move or fall over.

● Make sure that high-temperature parts

cannot come into contact with flammable
materials.

● Do not touch the engine, muffler, brakes and

other high-temperature parts until they cool
down.

● To reduce the likelihood of theft, always lock

the handlebars and remove the key when
leaving the motorcycle unattended.
Use of an anti-theft device is also
recommended.

❙

Parking with the Side Stand or Centre Stand

1.

Stop the engine.

2.

Use the side stand

Push the side stand down.
Slowly lean the motorcycle to the left until its
weight rests on the side stand.

Parking

12 AFS110-32KWWH00.book 13 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Riding Precautions

14

Motorcycle Safety

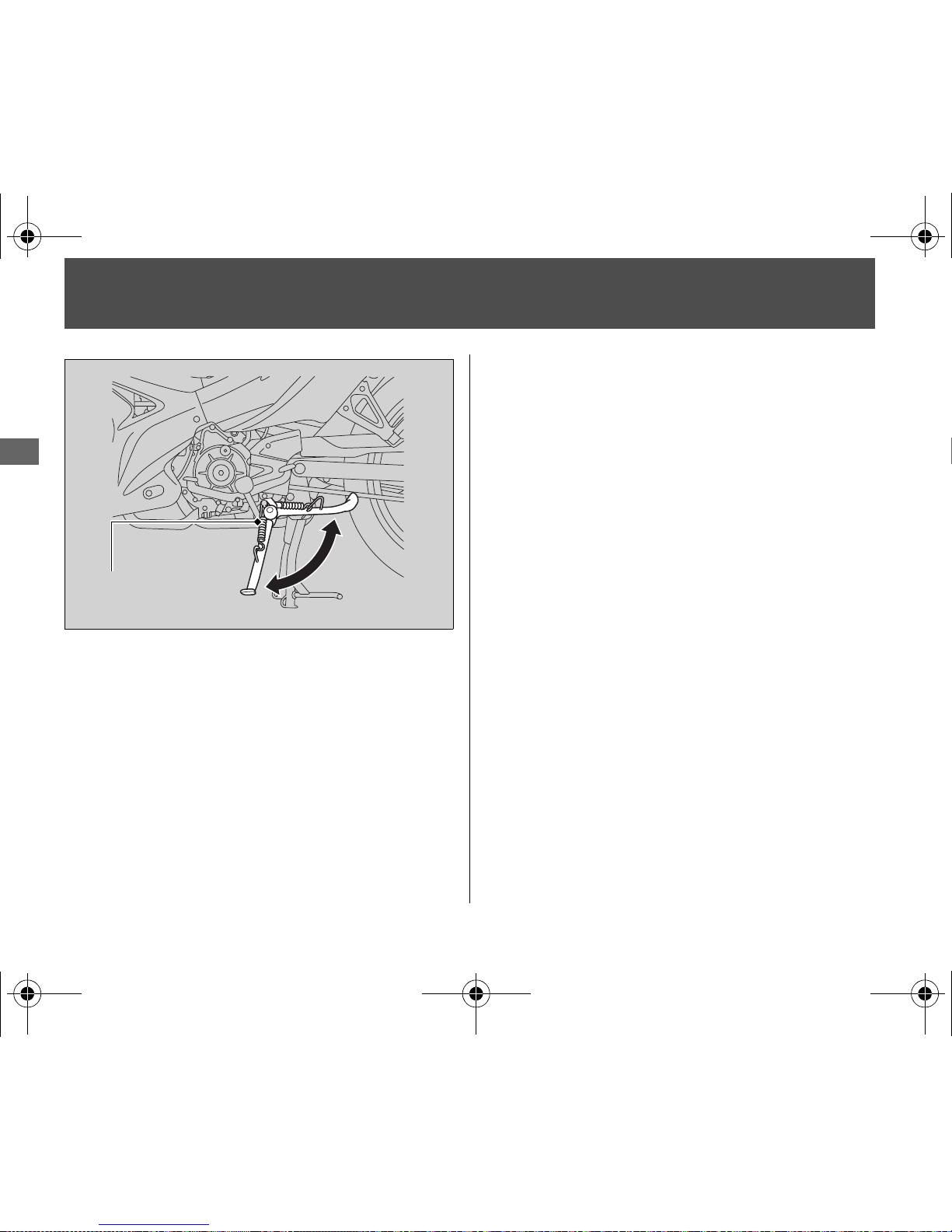

Use the centre stand

Let down the centre stand, stand on the left
side of the motorcycle. Hold the left handle
grip and the left grab rail. Press down on the
tip of the stand with your right foot and,
simultaneously, pull up and back.

3.

Turn the handlebars fully to the left.

u Turning the handlebars to the right

reduces stability and may cause the
motorcycle to fall.

4.

Turn the ignition switch to the LOCK position
and remove the key.

2 P. 25

Follow these guidelines to protect the engine
and catalytic converter:

● Use only unleaded petrol.

● Use recommended octane number. Using

lower octane petrol will result in decreased
engine performance.

● Do not use fuels containing a high

concentration of alcohol.

2 P. 95

● Do not use stale or contaminated petrol or an

oil/petrol mixture.

● Avoid getting dirt or water in the fuel tank.

Left handle grip Grab rail

Centre stand

Refuelling and Fuel Guidelines

12 AFS110-32KWWH00.book 14 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Accessories & Modifications

15

Motorcycle Safety

Accessories &
Modifications

We strongly advise that you do not add any
accessories that were not specifically designed
for your motorcycle by Honda or make
modifications to your motorcycle from its
original design. Doing so can make it unsafe.
Modifying your motorcycle may also void your
warranty and make your motorcycle illegal to
operate on public roads and highways. Before
deciding to install accessories on your
motorcycle be certain the modification is safe
and legal.

Do not pull a trailer with, or attach a sidecar to,
your motorcycle. Your motorcycle was not
designed for these attachments, and their use
can seriously impair your motorcycle’s handling.

3

WARNING

Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding accessories and
modifications.

12 AFS110-32KWWH00.book 15 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Loading

16

Motorcycle Safety

Loading

● Carrying extra weight affects your

motorcycle’s handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.

● Avoid carrying an excessive load and keep

within specified load limits.

2 Maximum weight capacity / Maximum

luggage weight

P. 103

● Tie all luggage securely, evenly balanced and

close to the centre of the motorcycle.

● Do not objects near the lights or the muffler.

3

WARNING

Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.

Follow all load limits and other
loading guidelines in this manual.

12 AFS110-32KWWH00.book 16 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Motorcycle Safety

17

12 AFS110-32KWWH00.book 17 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

18

Operation Guide

Basic Operation Flow

Carefully inspect your motorcycle to

make sure that it is safe to ride.

How to use basic features.

• Instruments (P22)

• Switches (P24)

• Steering Lock (P25)

Apply throttle gradually.

Obey the speed limit.

Start and warm the engine.

Avoid revving the engine.

Before pulling away, indicate

your direction with the turn

signal switch, and check for

oncoming traffic.

❙

Pre-ride Inspection (P40)

❙

Acceleration

❙

Starting the
Motorcycle

❙

Starting the Engine (P26)

12 AFS110-32KWWH00.book 18 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

19

Operation Guide

Park on a firm level surface.

Use the stand, and lock the

steering.

If pulling of the road, signal early

enough to show traffic that you are

pulling over, and pull over smoothly.

Close the throttle and apply the

front and rear brake together.

u The brake lights will indicate that

you have applied the brakes.

Do your braking

before entering

corners.

Gradually reapply throttle

when exiting turn.

❙

Braking

❙

Parking (P13)

❙

Stopping

❙

Turning Corners

❙

Refuelling (P31)

12 AFS110-32KWWH00.book 19 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

20

Operation Guide

Parts Location

Engine oil drain bolt (P63)

Battery (P57)
Fuse box (P91)

Helmet holder (P33)

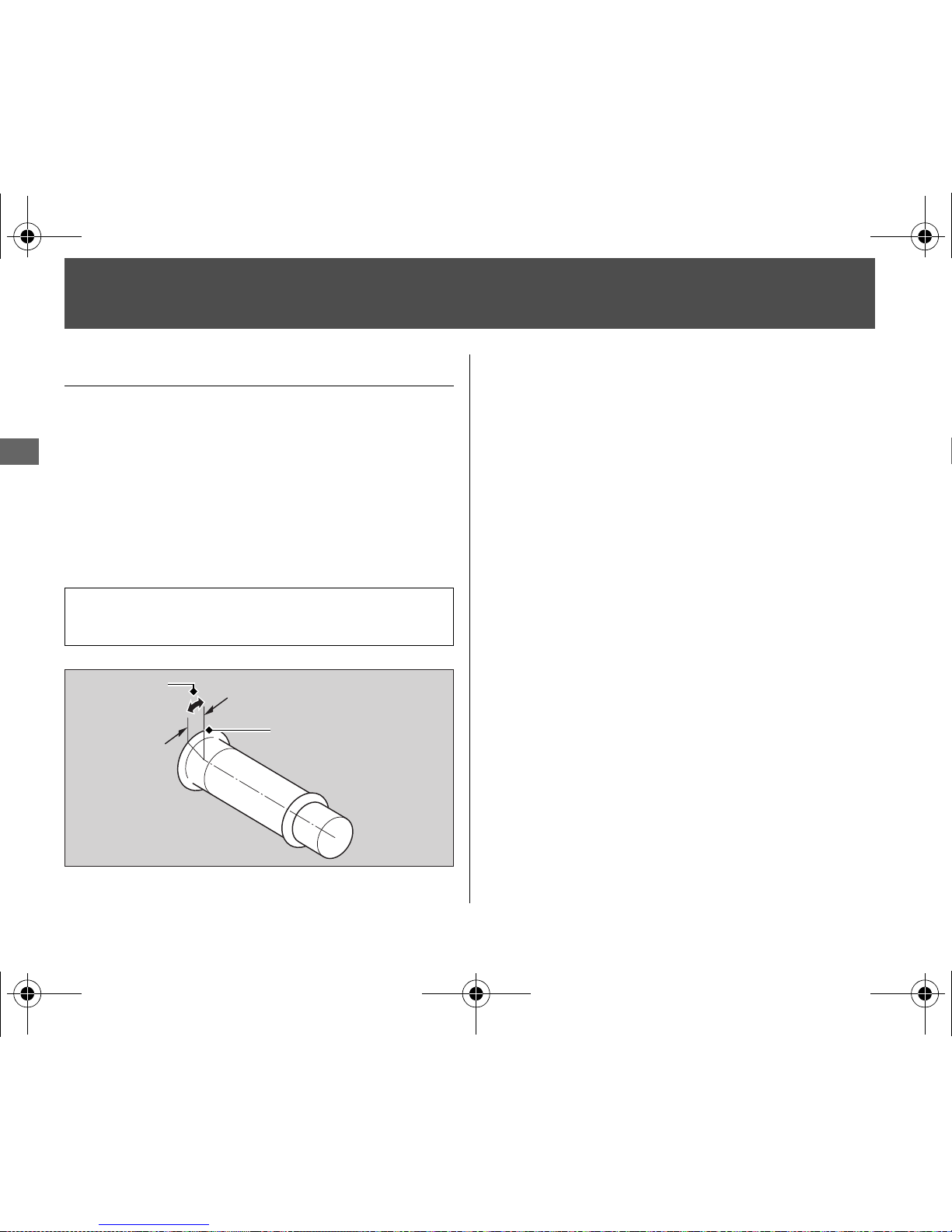

Throttle grip (P58)

Engine oil fill cap/dipstick (P62)

Spark plug (P60)

Front brake fluid reservoir (P70)

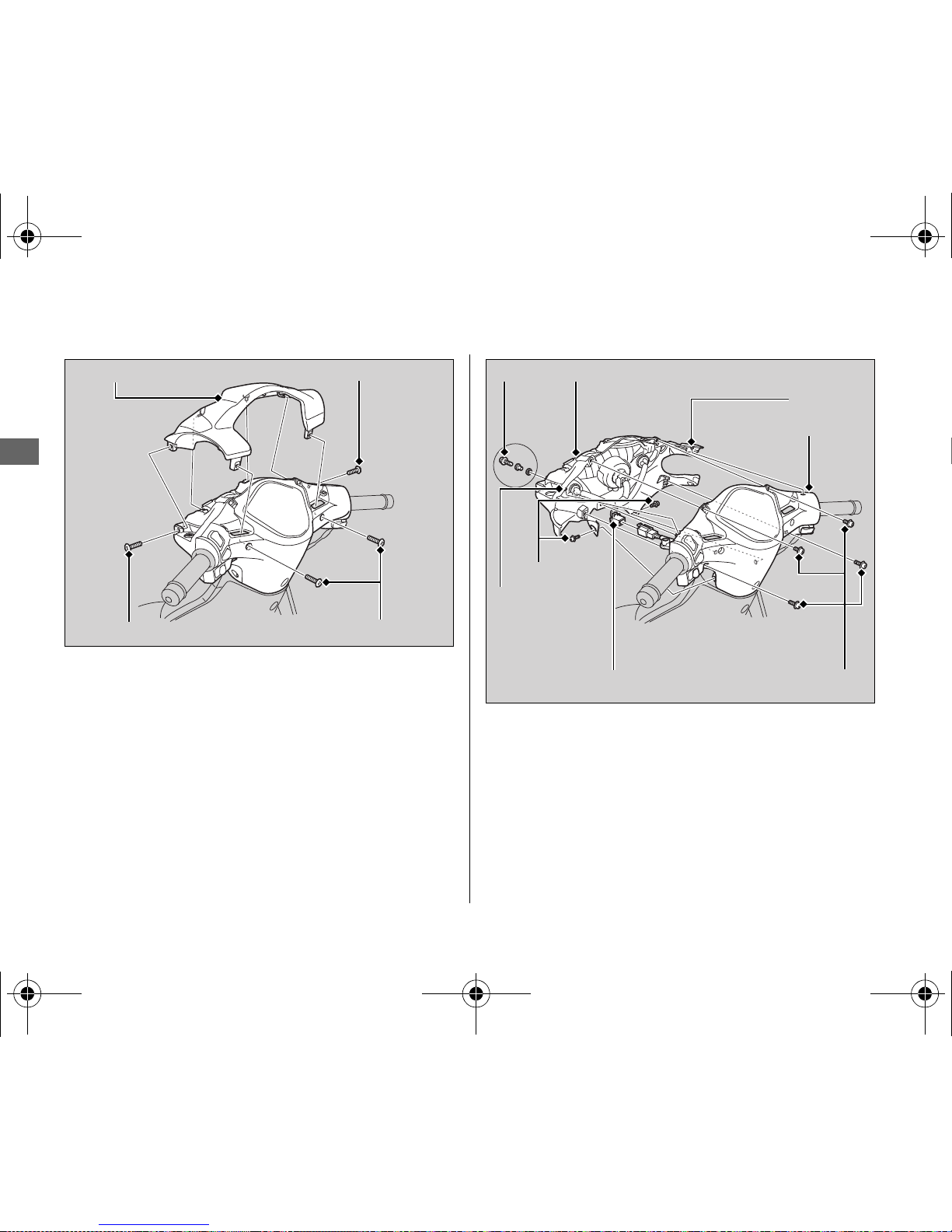

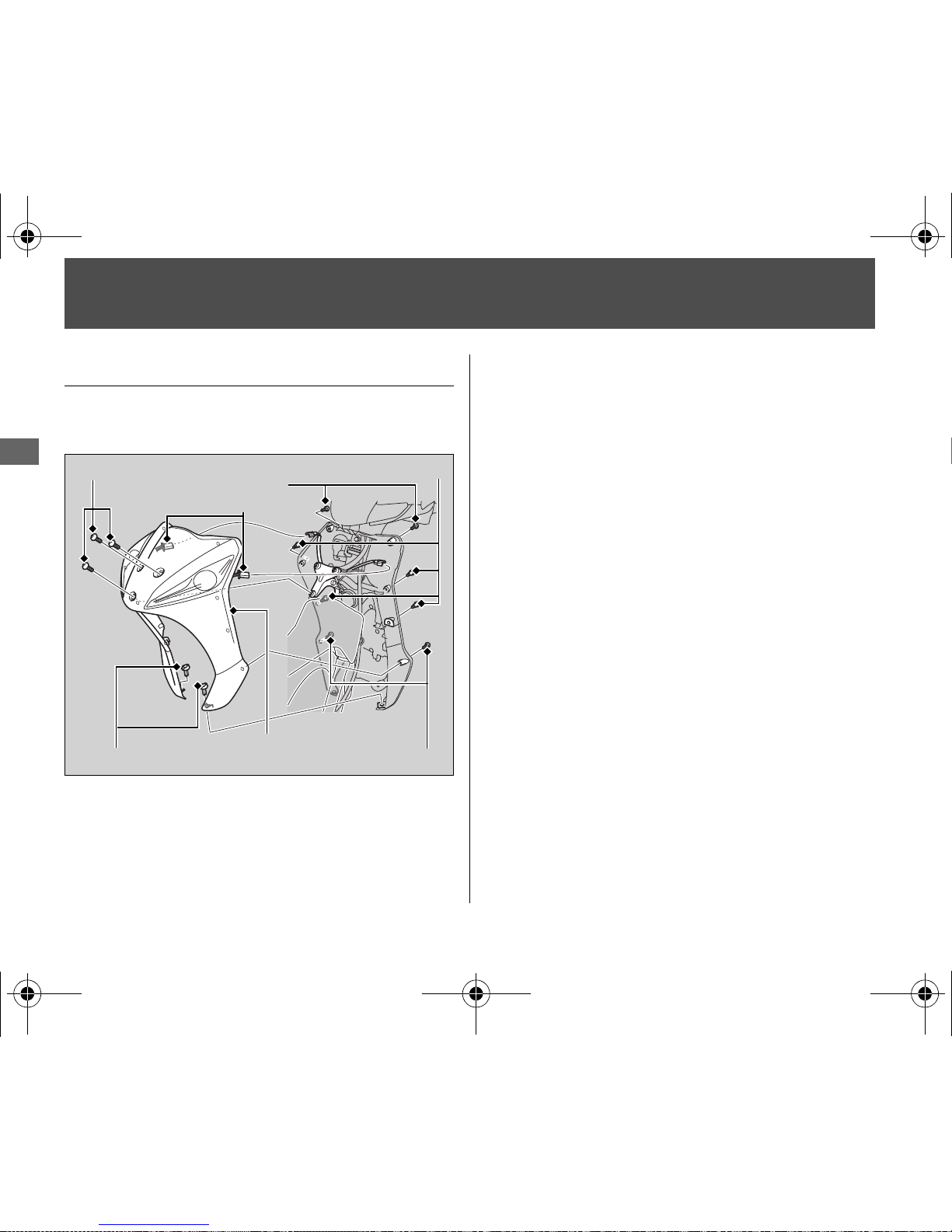

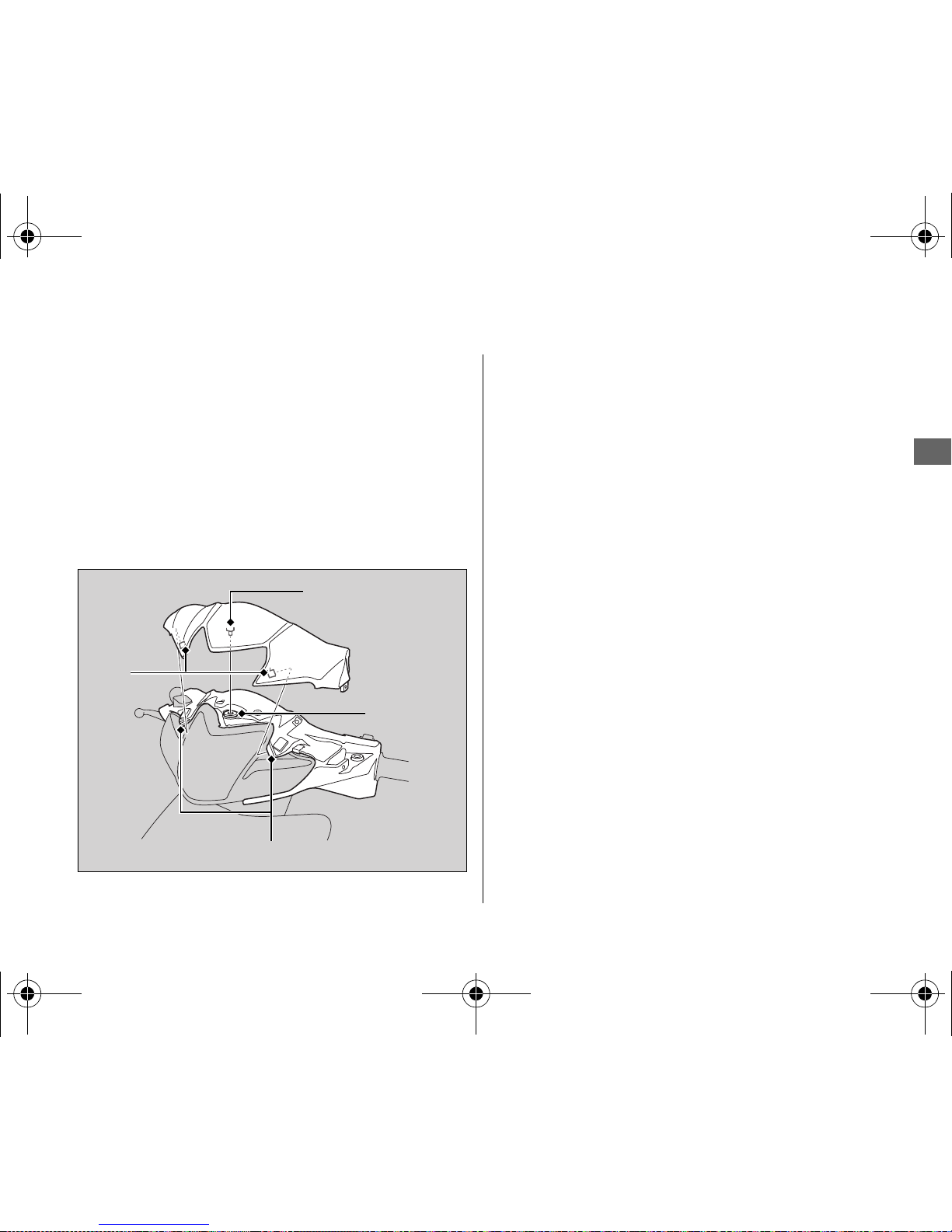

Front top cover (P52)

Kickstarter (P27)

12 AFS110-32KWWH00.book 20 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

21

Operation Guide

Headlight case (P53 )

Seat (P33)

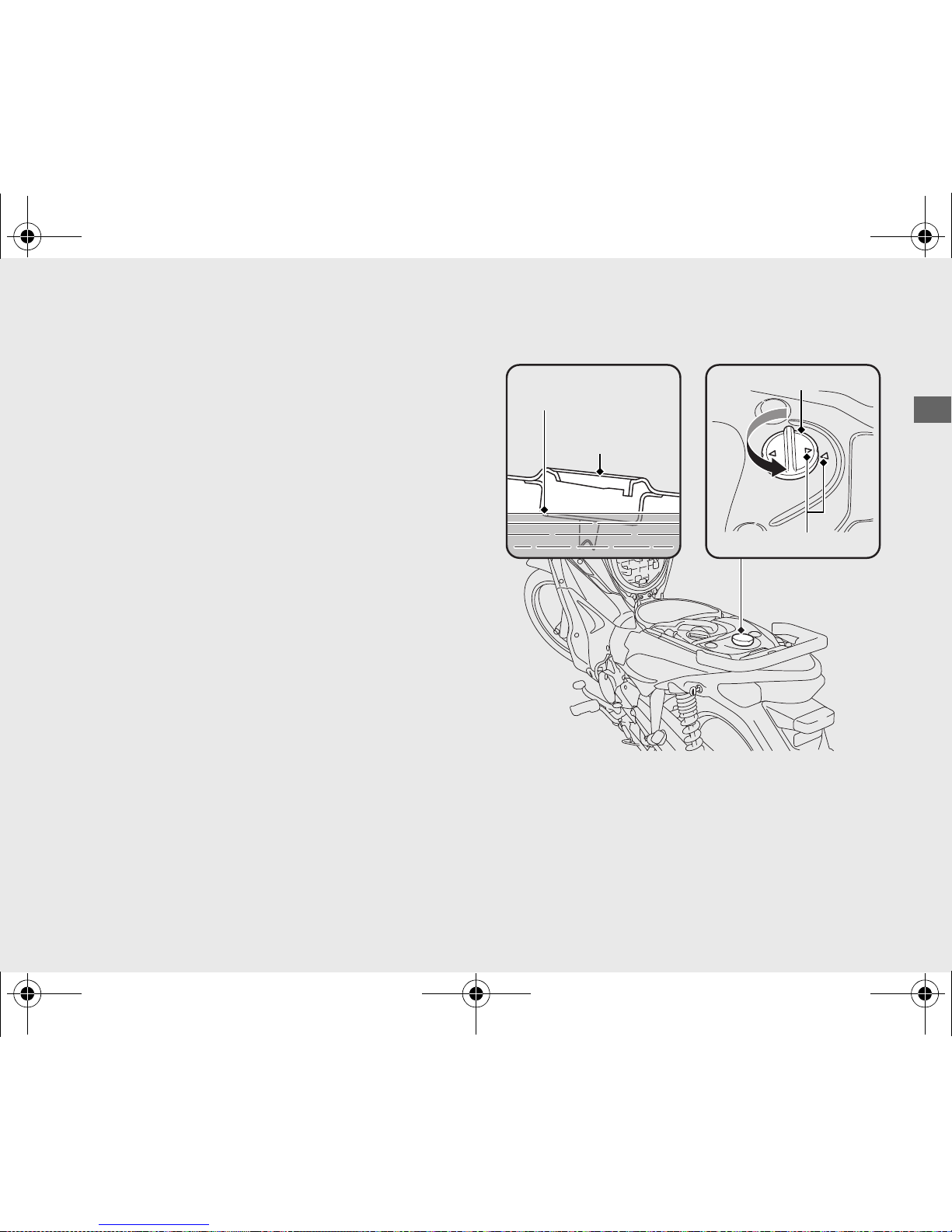

Fuel fill cap (P31)

Helmet holder (P33)

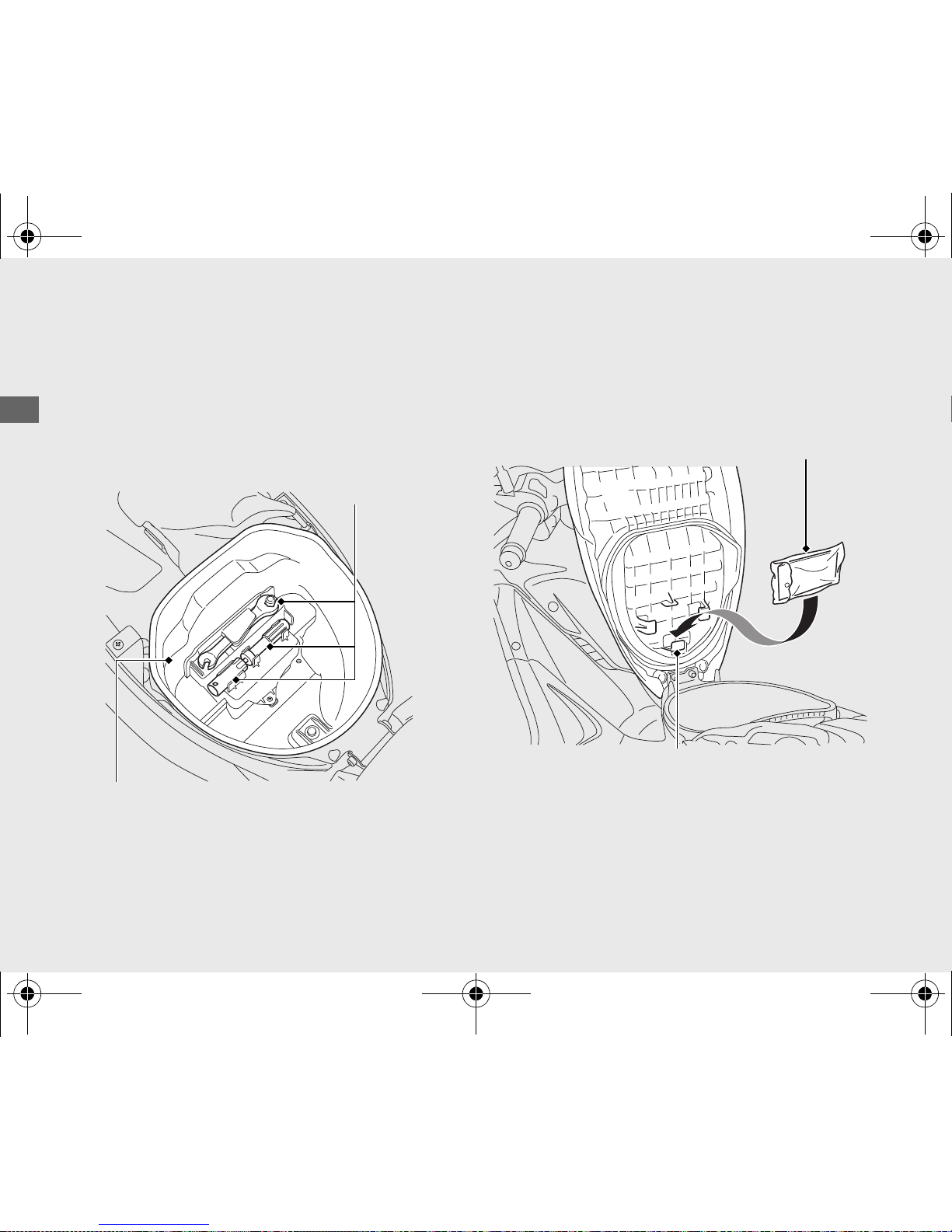

Document bag (P34)

Tool kit (P34)

Side stand (P76)

Centre compartment (P34)

Drive chain (P65)

Crankcase breather

(P59)

Seat lock (P33)

Centre stand (P13)

Shift lever (P29)

12 AFS110-32KWWH00.book 21 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

22

Operation Guide

Instruments

Speedometer

• This is shows your speed in kilometer
per hour (km/h) and/or miles per hour
(mph) depend on type.

Gear range

Shows proper speed range for each
gear.

Odometer

• Total distance ridden.

Fuel gauge

Needle in the red mark, remaining
fuel approximately 0.98 litres
(0.259 US gal, 0.216 Imp gal)

12 AFS110-32KWWH00.book 22 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

23

Operation Guide

Indicators

PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)

Comes on briefly when the ignition switch is
turned on.
If it comes on while engine is running:

(P80)

Gear position indicators

Indicate 1st to 4th gear position.

Right turn signal
indicator

High beam indicator

Left turn signal
indicator

Neutral indicator

Comes on when the transmission is in
Neutral.

12 AFS110-32KWWH00.book 23 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

24

Operation Guide

Switches

Start button

Headlight turns off when
operating the starter motor.

Horn button

Headlight dimmer switch

• : High beam

• : Low beam

Turn signal switch

u Pressing the switch turns

the turn signal off.

12 AFS110-32KWWH00.book 24 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

25

Operation Guide

Steering Lock

Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.

❙

Locking

!a Turn the handlebars all the way to the left or

right.

!b Push the key down, and turn the ignition

switch to the LOCK position.

u Jiggle the handlebars if the lock is difficult

to engage.

!c Remove the key.

❙

Unlocking

Insert the key and turn the ignition switch to
the OFF position.

Ignition Switch

Switches the electrical system on/off, locks the
steering.

u Key can be removed when in the OFF or LOCK

position.

ON

Turns electrical system on for starting/riding.

OFF

Turns engine off.

LOCK

Locks steering.

Push

Ignition key

!a

!b

Turn

12 AFS110-32KWWH00.book 25 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

26

Operation Guide

Starting the Engine

Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.

This motorcycle is equipped with a side stand
ignition cut-off system.

u If the side stand is down, the engine cannot

be started.

u If you lower the side stand with the engine

running, it will automatically shut off unless
the transmission is in neutral.

Do not operate the kickstarter while the
engine is running as engine damage could
result. Do not apply excessive force on the
kickstarter.
Fold up the kickstarter after the kickstarter is
returned to the pedal stop.

Consult your dealer for advice if you plan to
ride your motorcycle at an altitude above
2,500 m (8,000 feet).

NOTICE

• If the motorcycle is transported to a place 2,000 m
(6,500 feet) higher or lower than the start point, you
may not be able to achieve sufficient engine
performance at the new altitude. Consult your dealer
before transporting your motorcycle.

12 AFS110-32KWWH00.book 26 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

27

Operation Guide

continued

NOTICE

• If the engine does not start within 5 seconds, turn the
ignition OFF and wait 10 seconds before trying to start
the engine again for recovery of battery voltage.

• Extended fast idling and revving the engine can
damage the engine, and the exhaust system.

!b

!a

!c

!a Turn the ignition switch to the ON position.
!b Make sure the transmission to Neutral (

indicator comes on).

!c (Using the start button)

Press the start button with the throttle
completely closed. Release the start button
as soon as the engine starts.

(Using the Kickstarter)

Lightly depress the kickstarter until
resistance is felt.
Then let the kickstarter return to the top of
its stroke.
With the throttle closed, operate the
kickstarter. Kick from the top of the stroke
through to the bottom with a rapid,
continuous motion.

N

12 AFS110-32KWWH00.book 27 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

28

Starting the Engine (Continued)

Operation Guide

If you cannot start the engine:

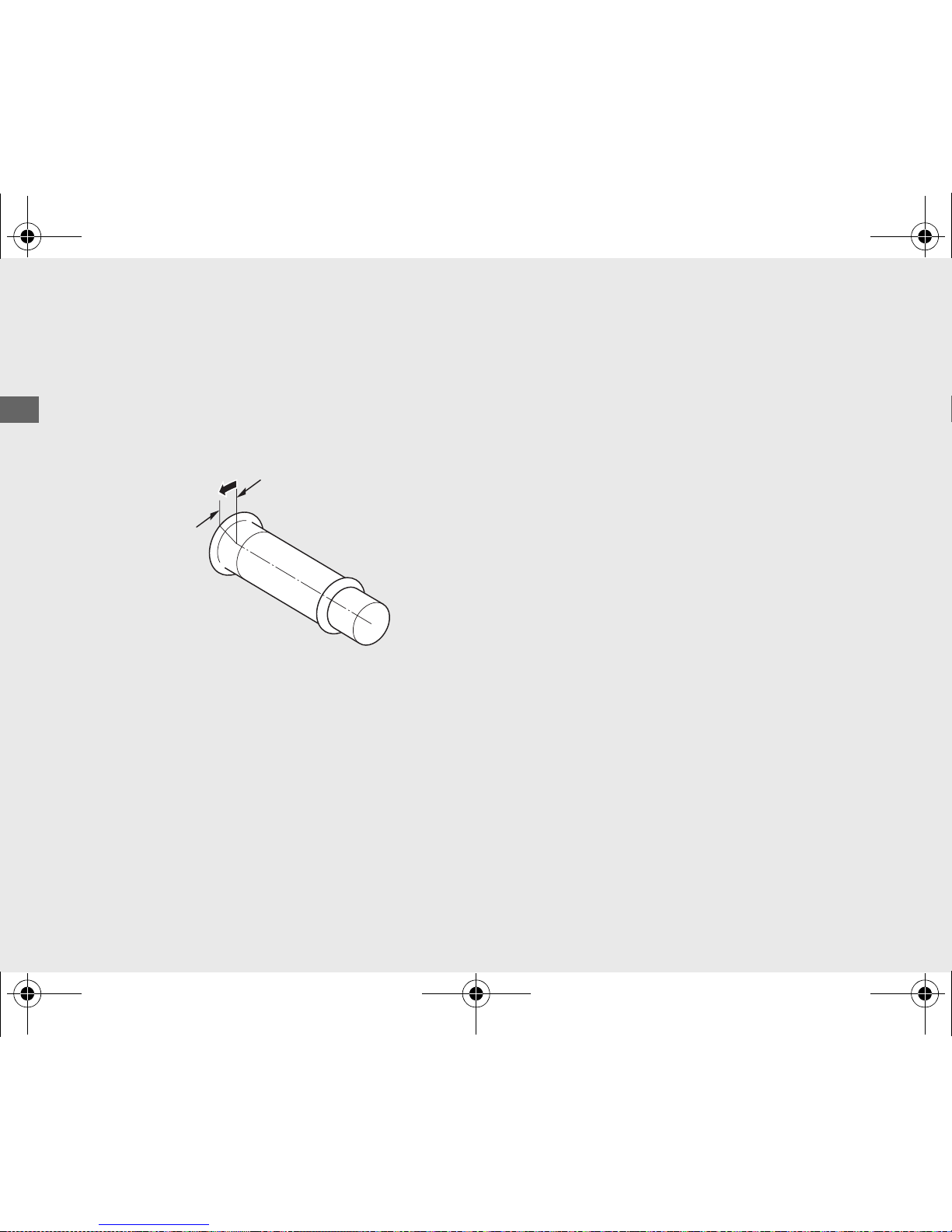

!a With the throttle slightly open (about 3

mm), press the start button or operate the
kickstarter.

If the engine does not start:

(Using the start button)

!a Open the throttle fully and press the start

button for 5 seconds.

!b Repeat the normal starting procedure.
!c If the engine starts, open the throttle slightly

if idling is unstable.

!d If the engine does not start, wait 10 seconds

before trying steps !a & !b again.

(Using the kickstater)

!a Turn the ignition switch to OFF position.
!b Open the throttle fully and crank the engine

several times with the kickstarter.

!c Turn the ignition switch to ON position.
!d Follow the normal starting procedure. If the

engine starts with unstable idle, open the
throttle slightly.
If the engine does not start, wait for 10
seconds, then follow steps !a-!d again

❙

If Engine Will Not Start (P79)

About 3 mm

12 AFS110-32KWWH00.book 28 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

29

Operation Guide

continued

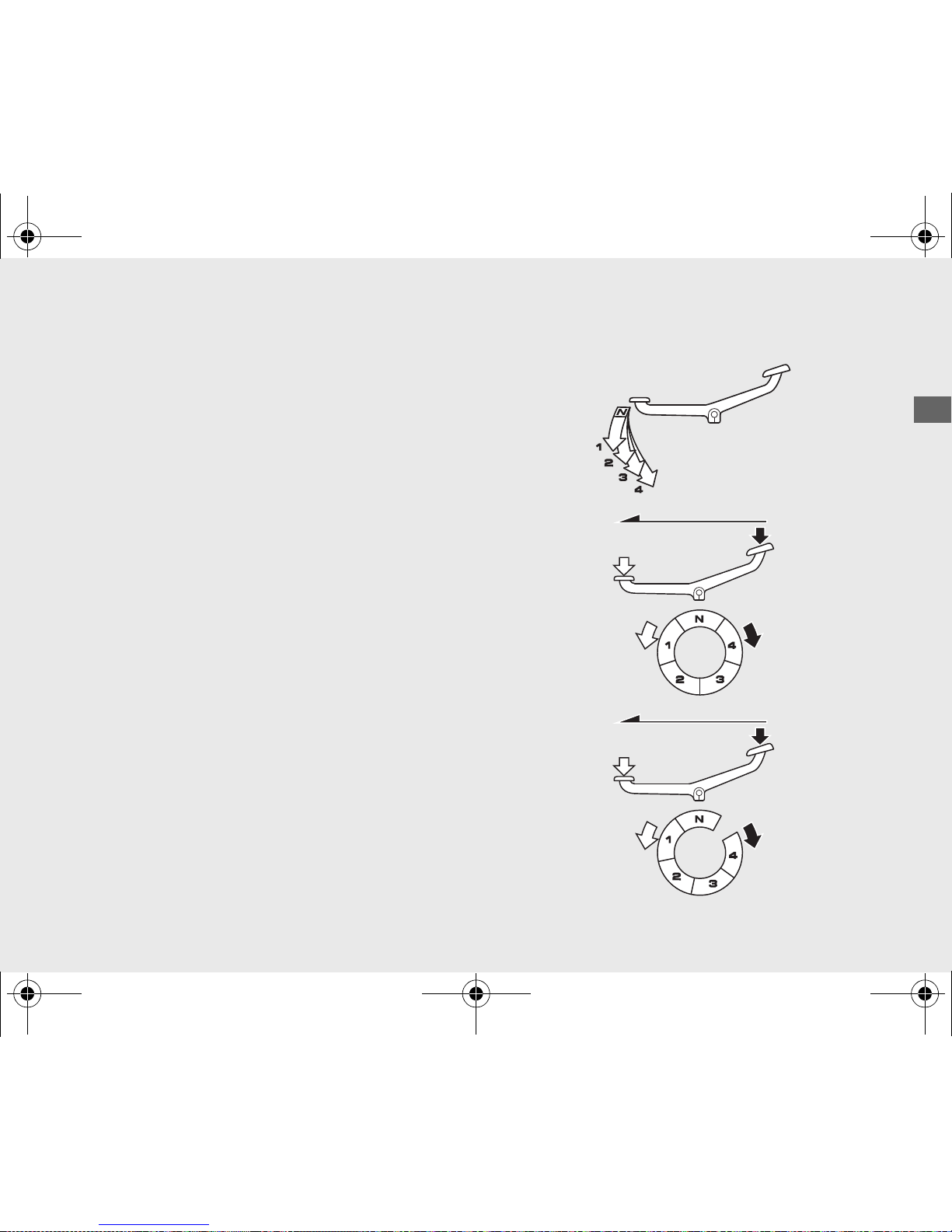

Shifting Gears

Your motorcycle transmission has four
forward gears.
The gearshift operation differs when
stopping and when moving.
When stopping, change can be made from
4th to neutral directly with the 4-step rotary
system.
When moving, the forward 4-step return
system is used.
Change cannot be made from 4th to neutral
directly.

u Always return the throttle grip first before

changing gear.

u Operate lightly with the tips of your toes until

the shift lever is pushed down.

u Avoid changing gear needlessly and riding

with your foot on the shift lever since this
may damage the gear change mechanism
and clutch mechanism.

Stopping

Moving

12 AFS110-32KWWH00.book 29 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

30

Shifting Gears (Continued)

Operation Guide

If you put the motorcycle in gear with the
side stand down, the engine will shut off.

Proper shifting can prevent damaging the
engine and transmission.

Upshifting

The upper limit speed of each gear is shown
in gear range. (P22)

Upshift to a higher gear before exceeding the
Upper limit speed.
Upshifting at speeds higher than the upper
limit speed can cause damage to the engine.

Downshifting

Downshifting at speeds higher than those in
the table below may over rev the engine and
can cause damage to the engine and
transmission.
Follow the table below when downshifting
the gears.

Downshifting Acceptable Speed

From 4th to 3rd 75 km/h or less
From 3rd to 2nd 50 km/h or less
From 2nd to 1st 30 km/h or less

12 AFS110-32KWWH00.book 30 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

31

continued

Operation Guide

Refuelling

Fuel type: Unleaded petrol only
Fuel octane number: Your motorcycle is

designed to use Research Octane Number
(RON) 90 or higher.
Tank capacity: 3.7 litres (0.98 US gal,

0.81 lmp gal)

❙

Refuelling and Fuel Guidelines (P14)

Opening the Fuel Fill Cap

!a Open the seat. 2 P. 33
!b Turn the fuel fill cap counterclockwise until

it stops and remove the cap.

Do not fill with fuel above the filler neck.

Fuel fill cap

Arrow marks

Filler neck

Fuel level (max)

Fuel filler
opening

12 AFS110-32KWWH00.book 31 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

32

Refuelling (Continued)

Operation Guide

Closing the Fuel Fill Cap

!a Install and tighten the fuel fill cap firmly by

turning it clockwise.

u Make sure that the arrow marks on the

cap and fuel tank is aligned.

!b Close the seat.

3

WARNING

Petrol is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.

• Stop the engine, and keep heat,
sparks, and flame away.

• Handle fuel only outdoors.

• Wipe up spills immediately.

12 AFS110-32KWWH00.book 32 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

33

continued

Operation Guide

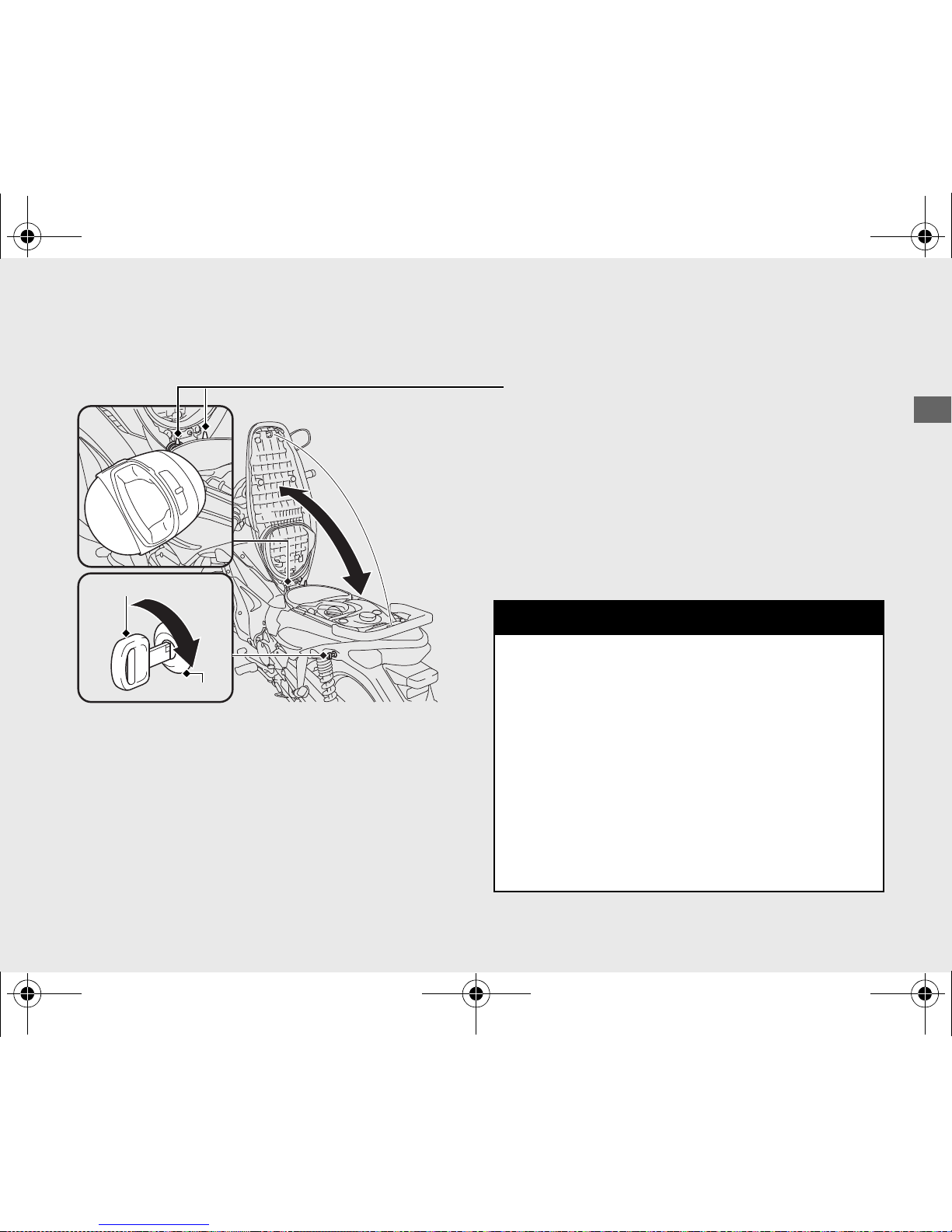

Storage Equipment

Seat Open

Insert the ignition key into the seat lock and
turn it clockwise to unlock.

Seat Close

Close and push down on the rear of the
seat until it locks. Make sure that the seat is
locked securely to pull it up lightly.

Helmet holders

The helmet holders are located under the
seat.

u Use the helmet holders only when parked.

3

WARNING

Riding with a helmet attached to the
holder can interfere with the rear
wheel or suspension and could cause a
crash in which you can be seriously
hurt or killed.

Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.

Ignition key

Seat lock

12 AFS110-32KWWH00.book 33 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

34

Storage Equipment (Continued)

Operation Guide

Centre compartment

Never exceed the maximum weight limit.

Maximum Weight: 5.0 kg (11.0 lb)

u Do not store any items that are flammable or

susceptible to heat damage.

Tool kit

The tool kit is in the centre compartment.

Document bag

The document bag is in the document
compartment in the reverse side of the seat.

Tool kit

Centre compartment

Document bag

Document compartment

12 AFS110-32KWWH00.book 34 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance

Please read “Importance of Maintenance” and “Maintenance Fundamentals”

carefully before attempting any maintenance. Refer to “Specifications” for service

data.

Importance of Maintenance ..................... P. 36

Maintenance Schedule .............................. P. 37

Maintenance Fundamentals ..................... P. 40

Tool kit ....................................................... P. 51

Removing & Installing Body Components ...

P. 52

Front Top Cover........................................ P. 52

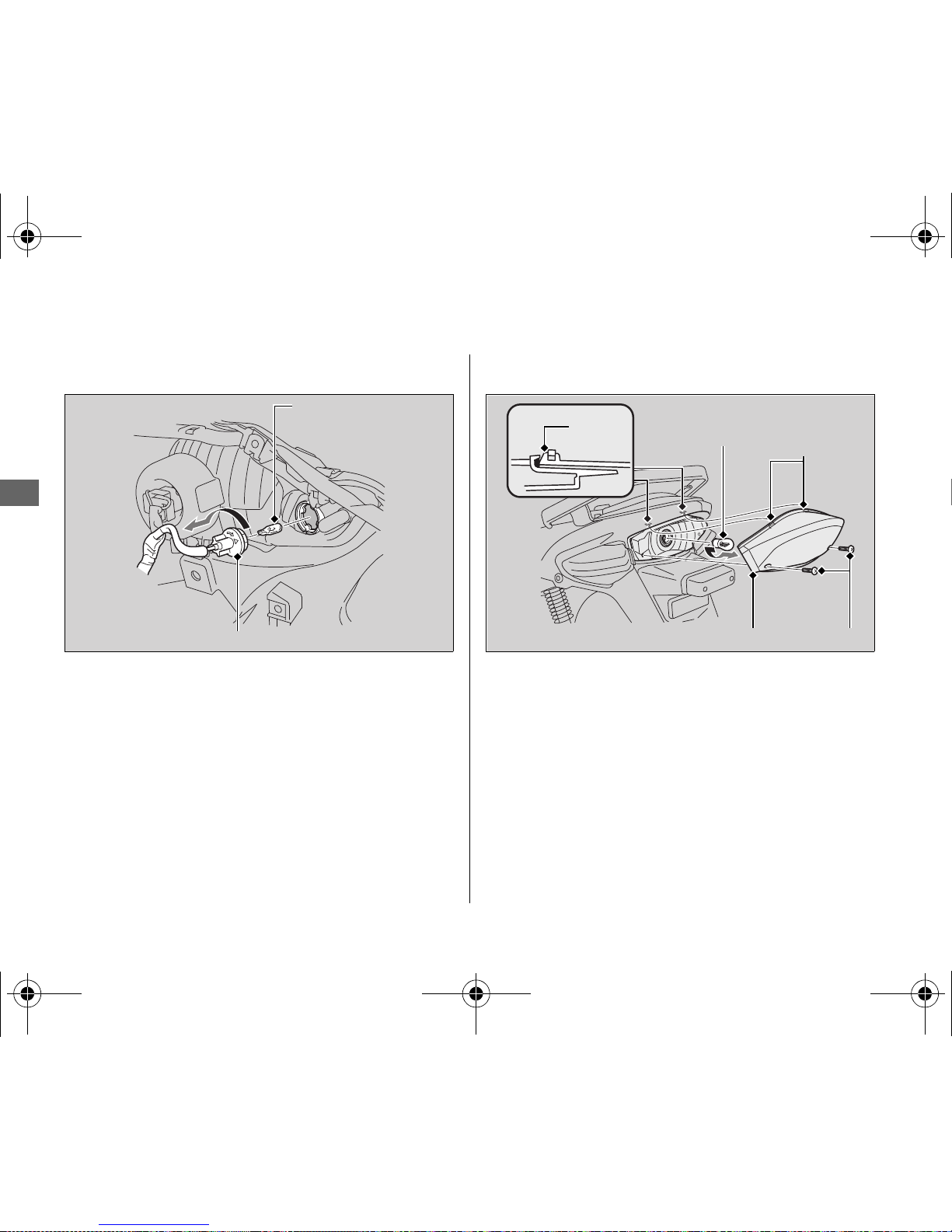

Headlight Case ......................................... P. 53

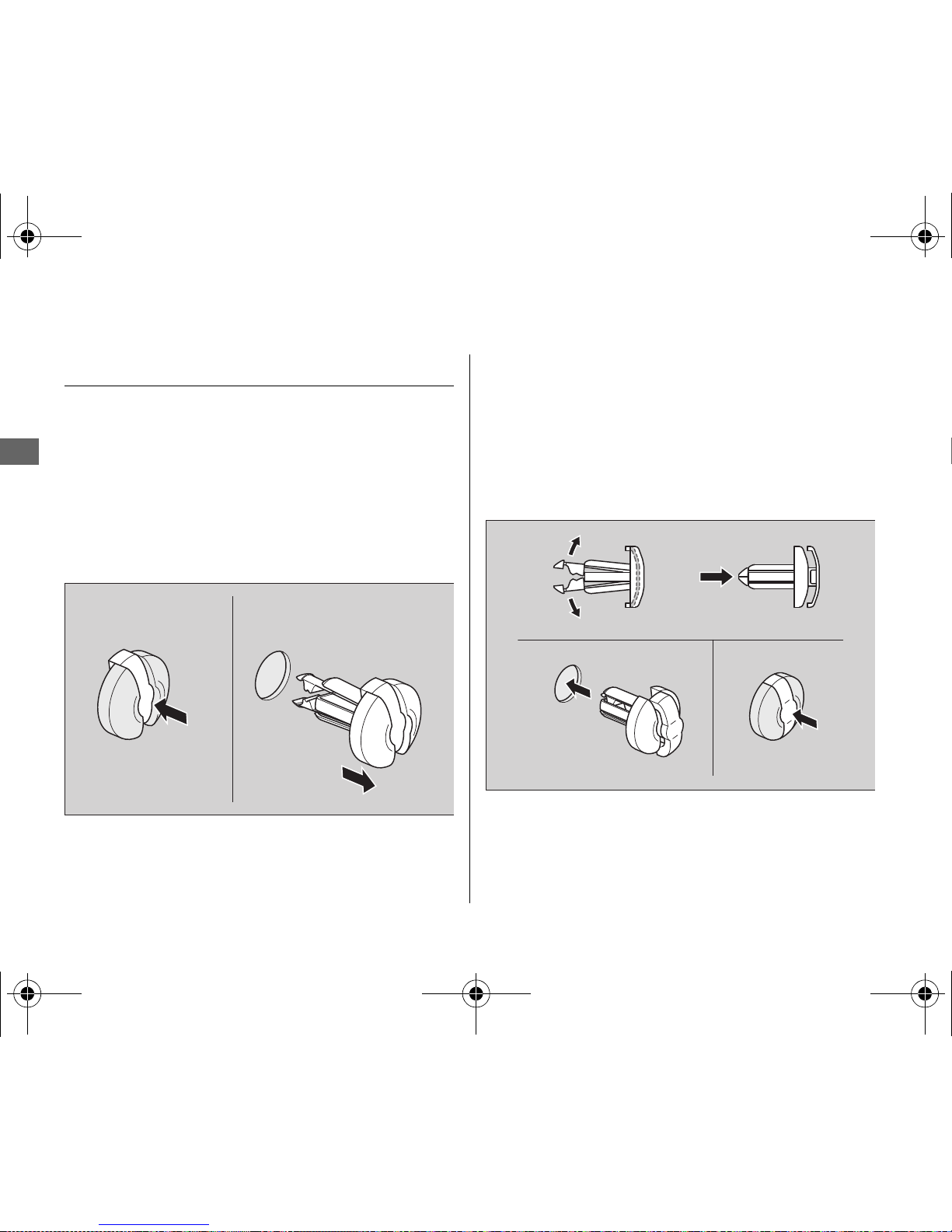

Clip........................................................... P. 56

Battery...................................................... P. 57

Throttle....................................................... P. 58

Crankcase Breather.................................... P. 59

Spark Plug .................................................. P. 60

Engine Oil ...................................................P. 62

Drive Chain .................................................P. 65

Brakes .........................................................P. 70

Clutch ..........................................................P. 75

Side Stand...................................................P. 76

Other Adjustments ....................................P. 77

Headlight Aim ...........................................P. 77

Brakelight Switch ......................................P. 77

12 AFS110-32KWWH00.book 35 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

36

Maintenance

Importance of Maintenance

Keeping your motorcycle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner’s
responsibility. Be sure to inspect your
motorcycle before each ride, perform the
periodic checks specified in the Maintenance
Schedule.

2 P. 37

Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.

Follow these guidelines when performing
maintenance.

● Stop the engine and remove the key.

● Park your motorcycle on a firm, level surface

using the centre stand or a maintenance
stand to provide support.

● Allow the engine, muffler, brakes, and other

high-temperature parts to cool before
servicing as you can get burned.

● Run the engine only when instructed, and do

so in a well-ventilated area.

Importance of Maintenance

3

WARNING

Improperly maintaining your
motorcycle or failing to correct a
problem before you ride can cause a
crash in which you can be seriously
hurt or killed.

Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.

Maintenance Safety

12 AFS110-32KWWH00.book 36 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

37

continued

Maintenance

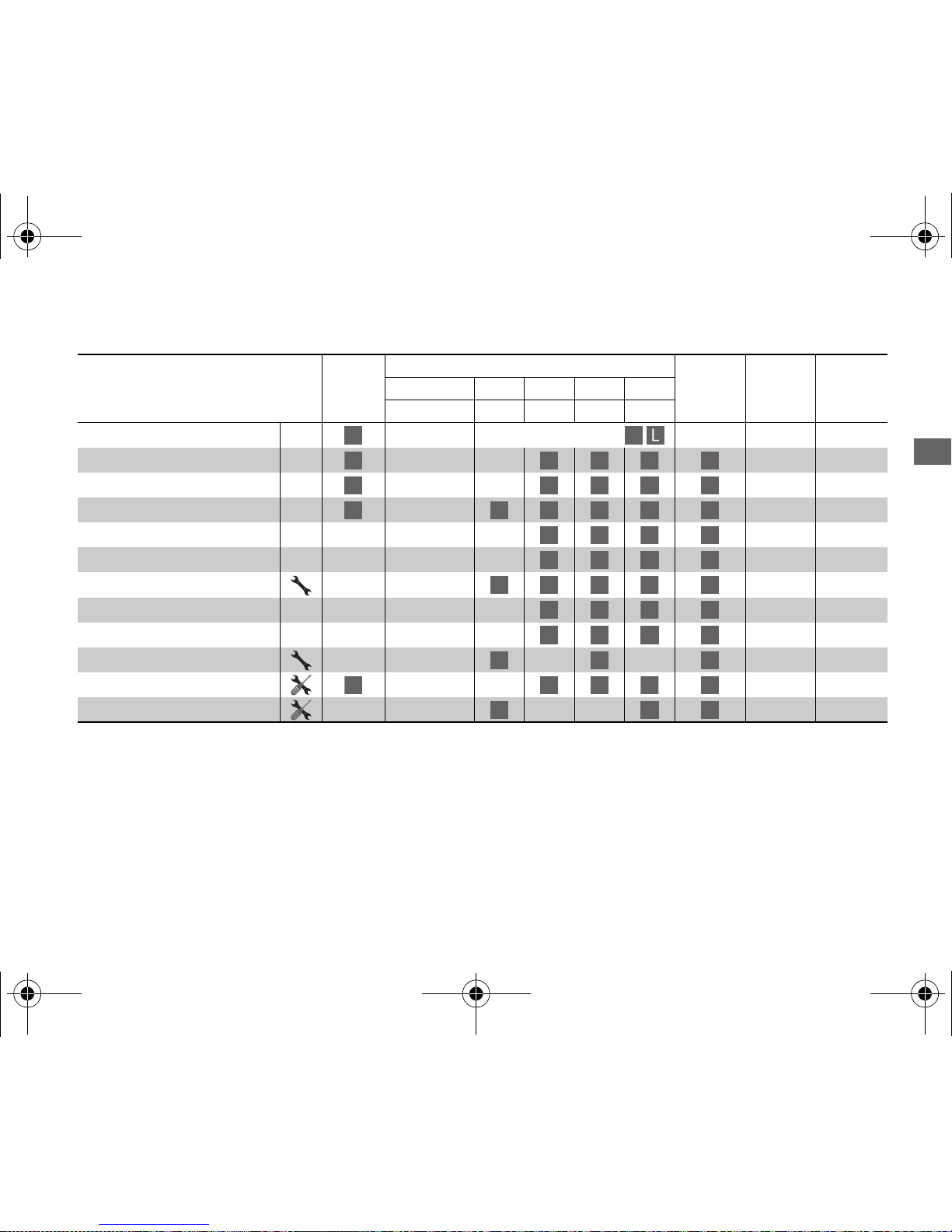

Maintenance Schedule

The maintenance schedule specifies the
maintenance requirements necessary to
ensure safe, dependable performance, and
proper emission control.

Maintenance work should be performed in
accordance with Honda’s standards and
specifications by properly trained and
equipped technicians. Your dealer meets all
of these requirements. Keep an accurate
record of maintenance to help ensure that
your motorcycle is properly maintained.
Make sure that whomever performs the
maintenance completes this record.

All scheduled maintenance is considered a
normal owner operating cost and will be
charged for by your dealer. Retain all
receipts. If you sell the motorcycle, these
receipts should be transferred with the
motorcycle to the new owner.

Honda recommends that your dealer should
road test your motorcycle after each periodic
maintenance is carried out.

12 AFS110-32KWWH00.book 37 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Schedule

38

Maintenance

Maintenance Level

: Intermediate. We recommend service by your dealer, unless you have the necessary tools and are mechanically skilled. Procedures are

provided in an official Honda Shop Manual.

: Technical. In the interest of safety, have your motorcycle serviced by your dealer.

Maintenance Legend

: Inspect (clean, adjust, lubricate, or replace, if necessary)
: Clean
: Replace
: Lubricate

Items

Pre-ride

Check

2 P. 40

Odometer reading

*1

Annual

Check

Regular
Replace

Refer to

page

× 1,000 km 1 4 8 12

× 1,000 mi 0.6 2.5 5 7.5
Fuel Line –

Throttle Operation 58

Air Cleaner

*2

Every 16,000 km (10,000 mi) –

Crankcase Breather

*3

59

Spark Plug 60

Valve Clearance –

Engine Oil 62

Engine Oil Strainer Screen –

Engine Oil Centrifugal Filter –

Engine Idle Speed –

I I I I

I I I I I

R

I

R

I

I I I I

I

R R R R R

I I I I I

I

R

12 AFS110-32KWWH00.book 38 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Schedule

39

Maintenance

Notes:

*1 : At higher odometer readings, repeat at the frequency interval established here.
*2 : Service more frequently when riding in unusually wet or dusty areas.
*3 : Service more frequently when riding in rain or at full throttle.
*4 : Replacement requires mechanical skill.

Items

Pre-ride

Check

2 P. 40

Odometer reading

*1

Annual

Check

Regular
Replace

Refer to

page

× 1,000 km 1 4 8 12

× 1,000 mi 0.6 2.5 5 7.5
Drive Chain Every 500 km (300 mi): 65

Brake Fluid

*4

2 Years 70

Brake Shoes/Pads Wear 71, 74

Brake System 40

Brake Light Switch 77

Headlight Aim 77

Clutch System 75

Side Stand 76

Suspension –

Nuts, Bolts, Fasteners –

Wheels/Tyres 47

Steering Head Bearings –

I I

IIIII

I I I I I

I I I I I I

III

I

I I I I

IIIII

III

I

I I I I

III

IIIII

I I I

12 AFS110-32KWWH00.book 39 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

40

Maintenance

Maintenance Fundamentals

To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre­ride inspection is a must, not only for safety,
but because having a breakdown, or even a
flat tyre, can be a major inconvenience.

Check the following items before you get on
your motorcycle:

● Throttle - Check for smooth opening and

full closing in all steering positions. 2 P. 58

● Engine oil level - Add engine oil if

necessary. Check for leaks.

2 P. 62

● Drive chain - Check condition and slack,

adjust and lubricate if necessary. 2 P. 65

● Brakes - Check operation;

Front: check brake fluid level

2 P. 70 and

pads wear. 2 P. 71
Rear: check shoes wear 2 P. 74 and
freeplay, adjust if necessary.

2 P. 72

● Wheels and tyres - Check condition, air

pressure and adjust if necessary. 2 P. 47

Pre-ride Inspection

12 AFS110-32KWWH00.book 40 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

41

Maintenance

Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.

When ordering coloured components, specify
the model name, colour, and code mentioned
on the colour label. The colour label is attached
to the centre compartment.

2 P. 33

Replacing Parts

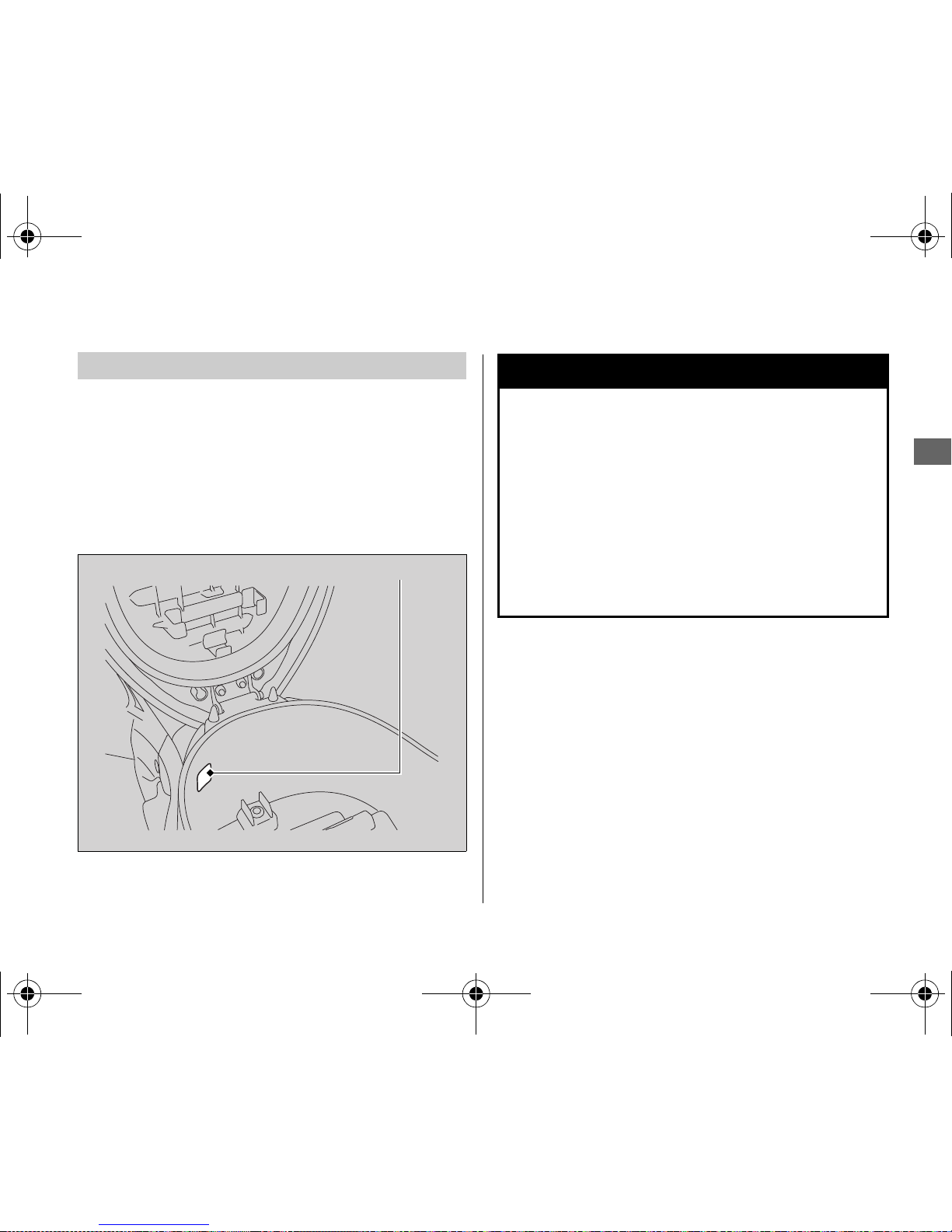

Colour label

3

WARNING

Installing non-Honda parts may make
your motorcycle unsafe and cause a
crash in which you can be seriously
hurt or killed.

Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your motorcycle.

12 AFS110-32KWWH00.book 41 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

42

Maintenance

Your motorcycle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.

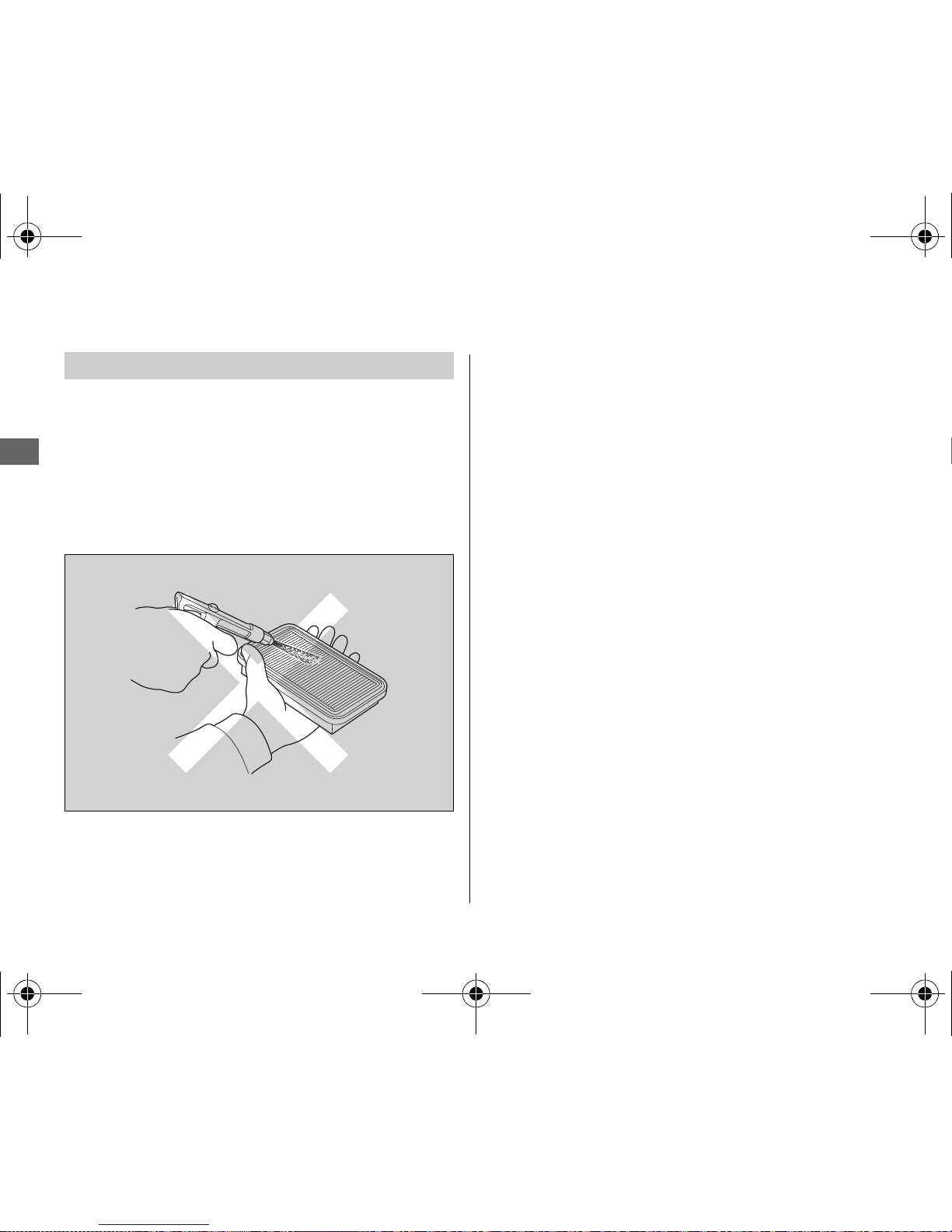

Do not remove the battery cap seals. There is no
need to remove the cap when charging.

This symbol on the battery means that
this product must not be treated as
household waste.

❙

Cleaning the Battery Terminals

1.

Remove the battery. 2 P. 57

2.

If the terminals are starting to corrode and
are coated with a white substance, wash with
warm water and wipe clean.

Battery

NOTICE

Your battery is a maintenance-free type and can be
permanently damaged if the cap strip is removed.

NOTICE

An improperly disposed of battery can be harmful to the
environment and human health.
Always confirm local regulations for battery disposal.

3

WARNING

The battery gives off explosive
hydrogen gas during normal
operation.

A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.

Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.

12 AFS110-32KWWH00.book 42 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

43

continued

Maintenance

3.

If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.

4.

After cleaning, reinstall the battery.

The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with
another maintenance-free battery of the same
type.

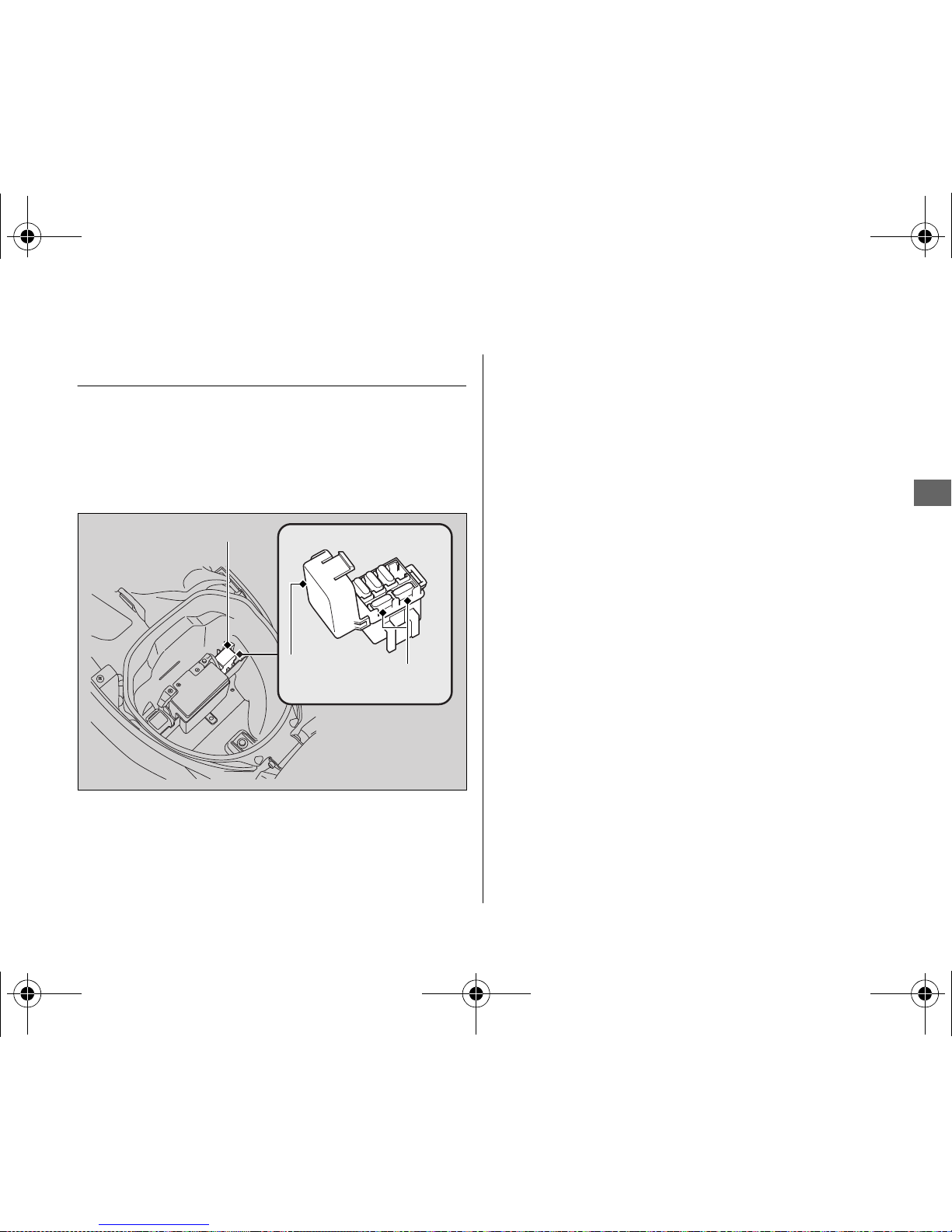

Fuses protect the electrical circuits on your
motorcycle. If something electrical on your
motorcycle stops working, check for and
replace any blown fuses.

2 P. 91

❙

Inspecting and Replacing Fuses

Turn off the ignition switch to remove and
inspect fuses. If a fuse is blown, replace with a
fuse of the same rating. For fuse ratings, see
“Specifications.”

2 P. 105

NOTICE

Installing non-Honda electrical accessories can overload
the electrical system, discharging the battery and possibly
damaging the system.

Fuses

NOTICE

Replacing a fuse with one that has a higher rating greatly
increases the chance of damage to the electrical system.

Blown fuse

12 AFS110-32KWWH00.book 43 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

44

Maintenance

If a fuse fails repeatedly, you likely have an
electrical fault. Have your motorcycle inspected
by your dealer.

Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and top off
if necessary. Dirty oil or old oil should be
changed as soon as possible.

❙

Selecting the Engine Oil

For recommended engine oil, see
“Specifications.”

2 P. 104

If you use non-Honda engine oil, check the label
to make sure that the oil satisfies all of the
following standards:

● JASO T 903 standard

*1

: MA

● SAE standard

*2

: 10W-30

● API classification

*3

: SG or higher

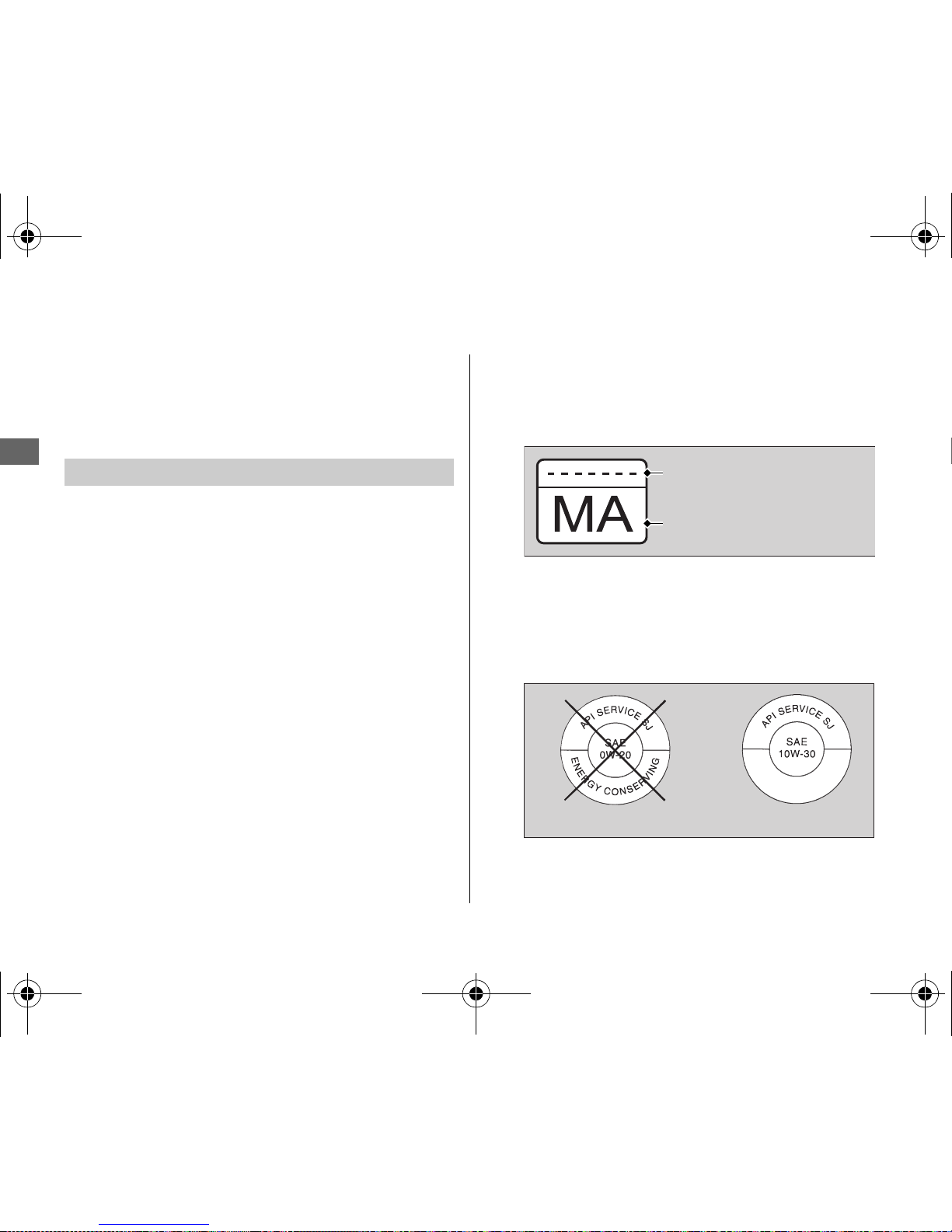

*1.

The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.

*2.

The SAE standard grades oils by their viscosity.

*3.

The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” on the circular API service symbol.

Engine Oil

Oil code

Oil classification

Not recommended Recommended

12 AFS110-32KWWH00.book 44 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

45

continued

Maintenance

Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.

The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
high speed, or ride with repeated fast
acceleration.

If the chain does not move smoothly, makes
strange noises, has damaged rollers or loose
pins or kinks, have the chain inspected by your
dealer.

Also inspect the front sprocket and rear wheel
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.

Brake Fluid

NOTICE

Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.

Recommended brake fluid:

Honda DOT 3 or DOT 4 Brake Fluid or
equivalent

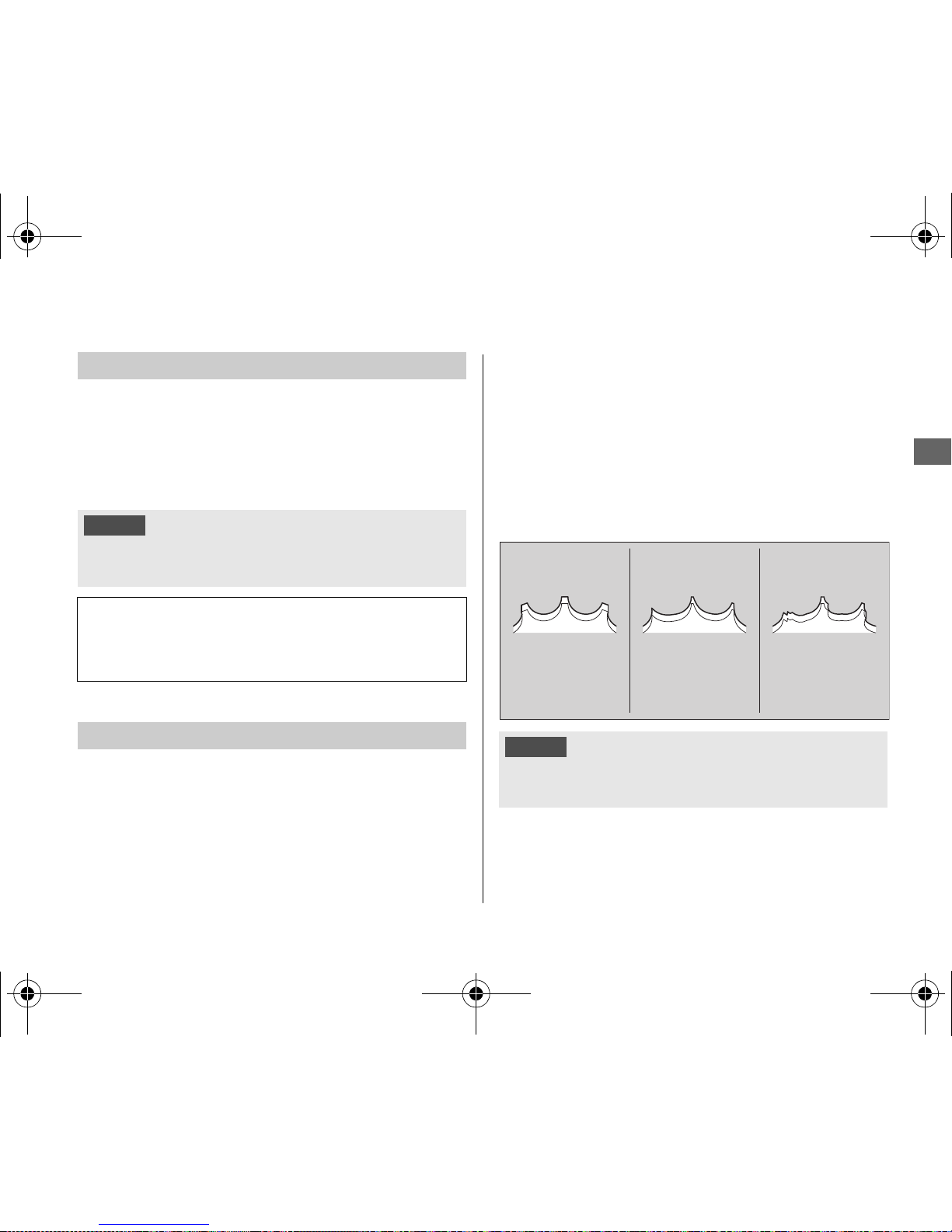

Drive Chain

NOTICE

User of a new chain with worn sprockets will cause rapid
chain wear.

Worn

(REPLACE)

Damaged

(REPLACE)

Normal

(GOOD)

12 AFS110-32KWWH00.book 45 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

46

Maintenance

❙

Cleaning and Lubricating

After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel using a
dry cloth or a light brush.
Saturate each chain link joint so that the
lubricant penetrates between the link plates,
pins, bushings, and rollers.

Avoid getting lubricant on the brakes or tyres.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the motorcycle.

This motorcycle is equipped with a viscous type
air cleaner element.
Air blow cleaning or any other cleaning can
degrade the viscous element performance and
cause the intake of dust.

Service more frequently when riding in rain,
at full throttle, or after the motorcycle is
washed or overturned. Service if the deposit
level can be seen in the transparent section
of the drain tube.

Recommended lubricant:

Pro Honda HP Chain Lube or
SAE 80/90 gear oil

Air Cleaner

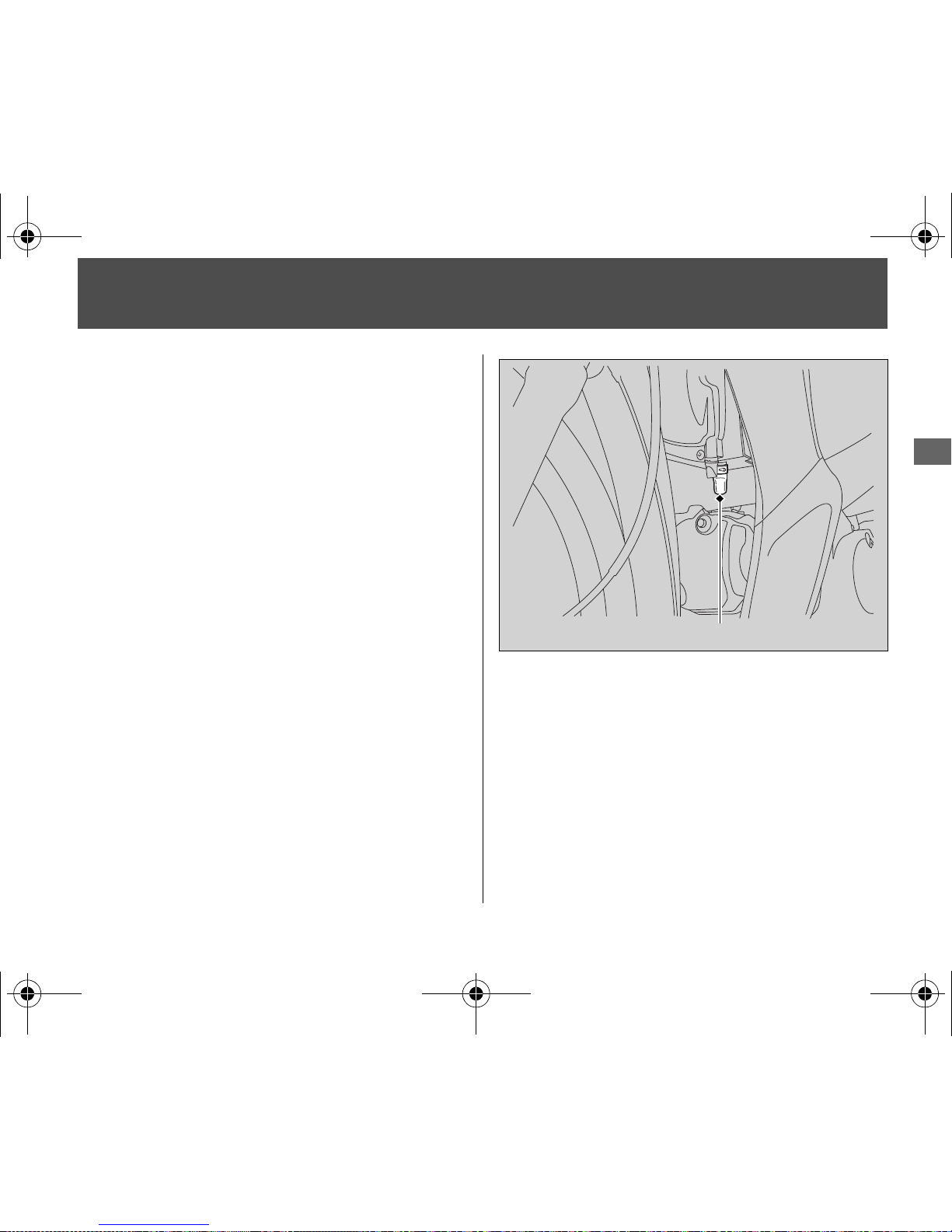

Crankcase Breather

12 AFS110-32KWWH00.book 46 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

47

continued

Maintenance

❙

Checking the Air Pressure

Visually inspect your tyres and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tyres look low. Always check air pressure when
your tyres are cold.

❙

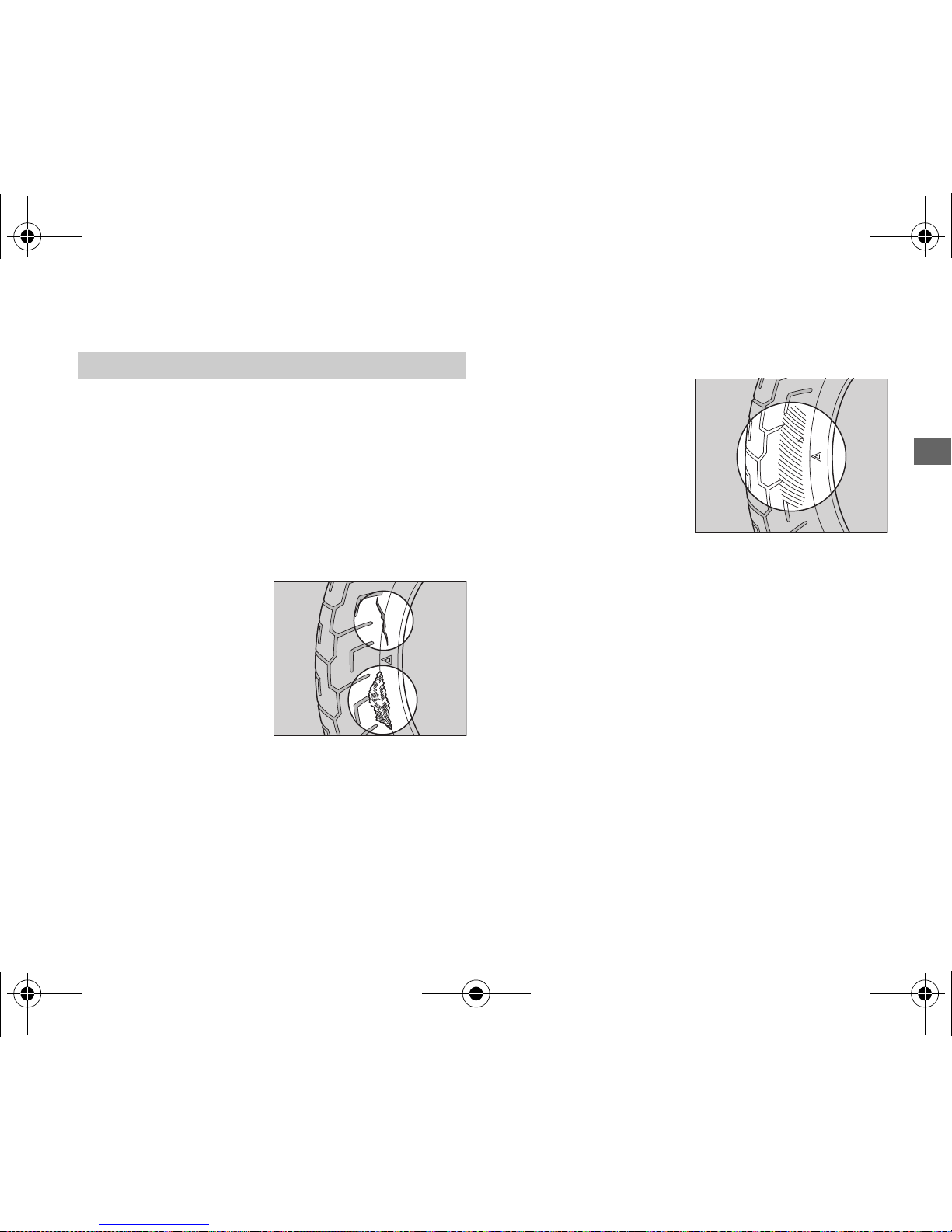

Inspecting for Damage

Inspect the tyres for
cuts, slits, or cracks
that exposes fabric or
cords, or nails or
other foreign objects
embedded in the side
of the tyre or the
tread. Also inspect for
the bumps or bulges in the side walls of the
tyres.

❙

Inspecting for Abnormal Wear

Inspect the tyres for
signs of abnormal
wear on the contact
surface.

Tyres (Inspecting/Replacing)

12 AFS110-32KWWH00.book 47 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

48

Maintenance

❙

Inspecting Tread Depth

Inspect the tread wear indicators. If they
become visible, replace the tyres immediately.
For safe riding, you should replace the tyres
when the minimum tread depth is reached.

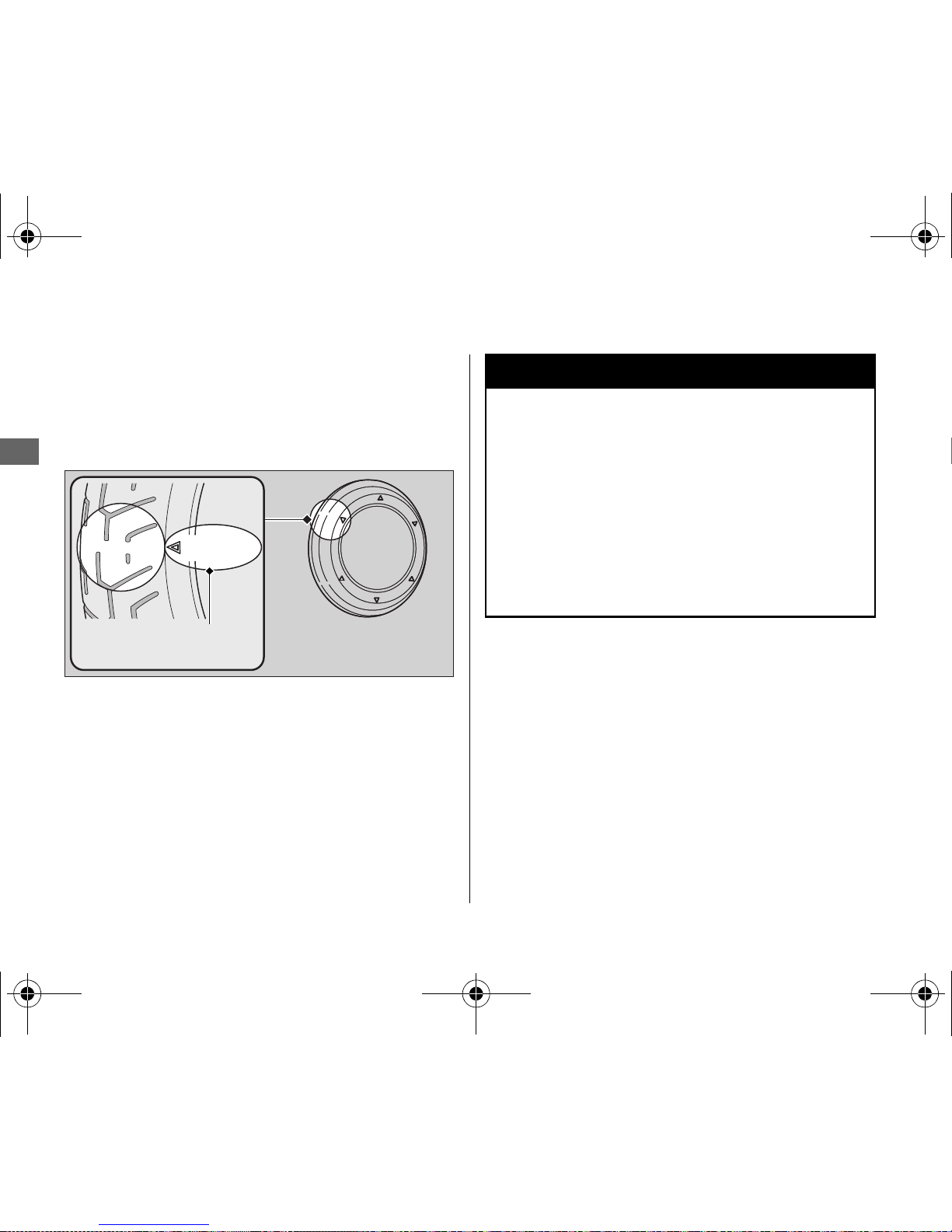

Wear indicator
location mark

or TWI

3

WARNING

Riding on tyres that are excessively
worn or improperly inflated can cause
a crash in which you can be seriously
hurt or killed.

Follow all instructions in this owner’s
manual regarding tyre inflation and
maintenance.

12 AFS110-32KWWH00.book 48 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

49

Maintenance

Have your tyres replaced by your dealer.
For recommended tyres and air pressure, see
“Specifications.”

2 P. 104

Follow these guidelines whenever you replace
tyres.

● Use the recommended tyres or equivalents of

the same size, construction, speed rating,
and load range.

● Remember to replace the inner tube

whenever you replace a tyre. The old tube
will probably be stretched, and it could fail if
installed in a new tyre.

● Have the wheel balanced with Honda

Genuine balance weights or equivalent after
the tyre is installed.

3

WARNING

Installing improper tyres on your
motorcycle can adversely affect
handling and stability, and can cause a
crash in which you can be seriously
hurt or killed.

Always use the size and type of tyres
recommended in this owner’s manual.

12 AFS110-32KWWH00.book 49 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Maintenance Fundamentals

50

Maintenance

This motorcycle is equipped with a viscous type
air cleaner element.
Air blow cleaning or any other cleaning can
degrade the viscous element performance and
cause the intake of dust.
Do not perform the maintenance.
Should be serviced by your dealer.

Air Cleaner

12 AFS110-32KWWH00.book 50 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

51

Maintenance

Tool kit

The tool kit is stored in the centre
compartment.

2 P. 34

You can perform some roadside repairs,
minor adjustments and parts replacement
with the tools contained in the kit.

● 10 × 14 mm Open end wrench

● Spark plug wrench

● Standard/Phillips screwdriver

● Screwdriver grip

12 AFS110-32KWWH00.book 51 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

52

Maintenance

Removing & Installing Body Components

Front Top Cover

The front top cover must be removed for
front turn signal bulbs replacement.

❙

Removal

1.

Remove the clips. 2 P. 56

2.

Remove the screws A, screws B and
screws C.

3.

Remove the front top cover, then
disconnect the connectors.

❙

Installation

Install the parts in the reverse order of
removal.

Screws A

Clips

Front top cover

Screws B

Screws C

Connectors

Screws C

12 AFS110-32KWWH00.book 52 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Removing & Installing Body Components u Headlight Case

53

continued

Maintenance

Headlight Case

The headlight case must be removed for
headlight bulb and position light bulbs
replacement.

❙

Removal

1.

Pull up the rubber dust covers.

2.

Loosen the lock nuts by turning clockwise.

3.

Loosen the rearview mirrors and remove
them by turning them clockwise until they
will no longer turn.

4.

Loosen the mirror adapters and remove
them.

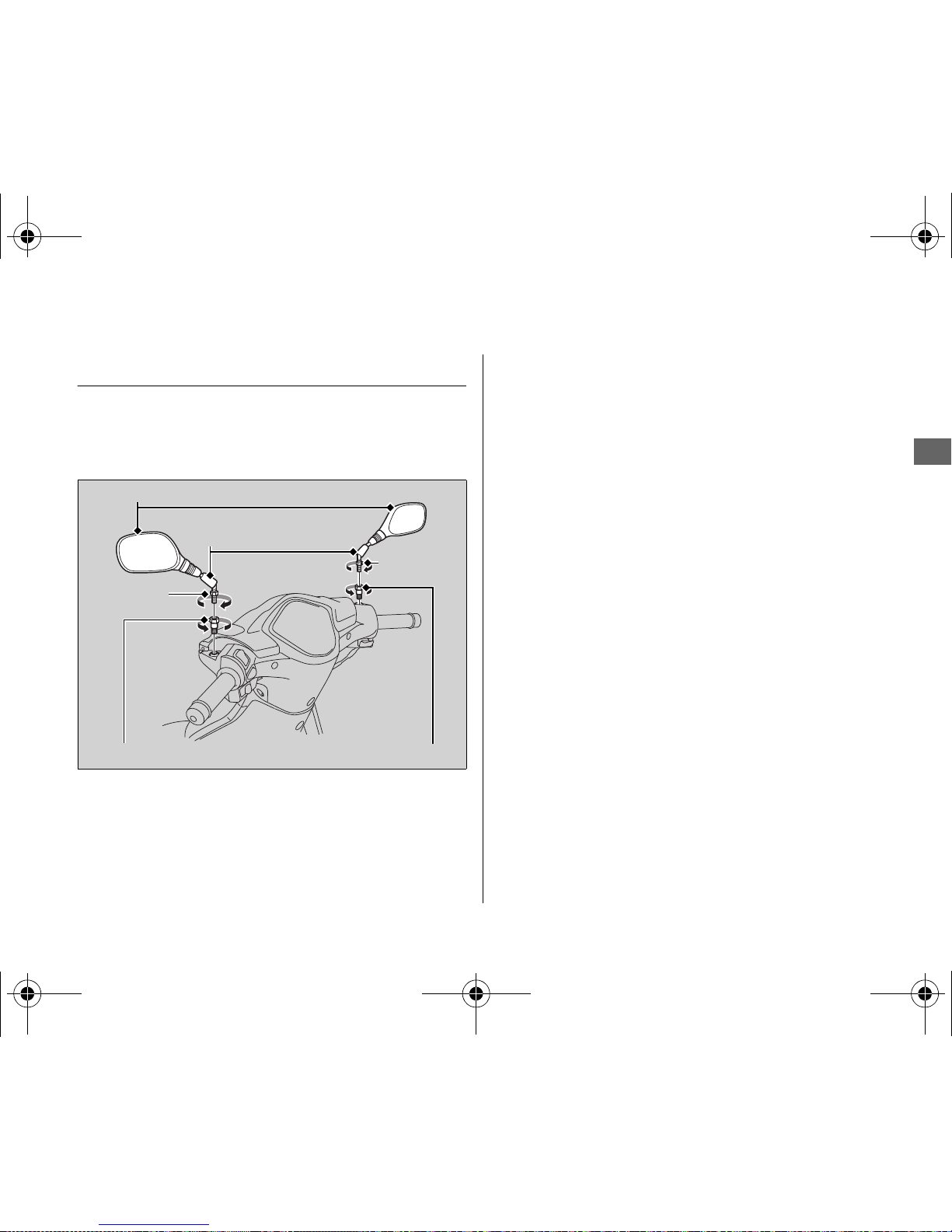

Rubber dust
covers

Lock nut

Lock nut

Rearview mirrors

Mirror adapter Mirror adapter

12 AFS110-32KWWH00.book 53 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Removing & Installing Body Components u Headlight Case

54

Maintenance

5.

Remove the screws A.

6.

Remove the handle top cover.

7.

Remove the screws B, screws C and bolt.

8.

Release the bosses A by pressing the rear
handle cover.

9.

Remove the headlight case, then
disconnect the connector.

Handle top cover

Screw A Screws A

Screw A

Boss A

Boss A

Screws B

Screws CConnector

Bolt Headlight case

Rear handle cover

12 AFS110-32KWWH00.book 54 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Removing & Installing Body Components u Headlight Case

55

Maintenance

❙

Installation

Install the parts in the reverse order of
removal.

u Make sure the tabs and boss B on the

headlight case are settled proper position
of the slots and grommet on the headlight
case.

u To install the rearview mirrors.

1.

Install the mirror adapters.

2.

Install the rearview mirrors by turning
counterclockwise until they will no longer
turn.

3.

Loosen the rearview mirrors
approximately 2 turns.

4.

Adjust the rearview mirrors.

5.

Tighten the lock nuts and install the
rubber dust covers.

Boss B

Tabs

Grommet

Slots

12 AFS110-32KWWH00.book 55 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Removing & Installing Body Components u Clip

56

Maintenance

Clip

The clip must be removed to remove the font
top cover.

❙

Removal

1.

Press down on the centre pin to release
the lock.

2.

Pull the clip out of the hole.

❙

Installation

1.

Slightly open the retaining pawls and then
push them out.

2.

Insert the clip into the hole.

3.

Lightly press down on the centre pin to
lock the clip.

!b!a

!a

!b !c

12 AFS110-32KWWH00.book 56 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Removing & Installing Body Components u Battery

57

Maintenance

Battery

❙

Removal

Make sure the ignition switch is off.

1.

Open the seat. 2 P. 33

2.

Remove the battery cover by removing the
screw.

3.

Disconnect the negative - terminal from
the battery.

4.

Disconnect the positive + terminal from
the battery.

5.

Remove the battery taking care not to
drop the terminal nuts.

❙

Installation

Install the parts in the reverse order of
removal. Always connect the positive

+

terminal first. Make sure that bolts and nuts
are tight.
For proper handling of the battery, see
“Maintenance Fundamentals.”

2 P. 42

Battery Goes Dead 2 P. 86

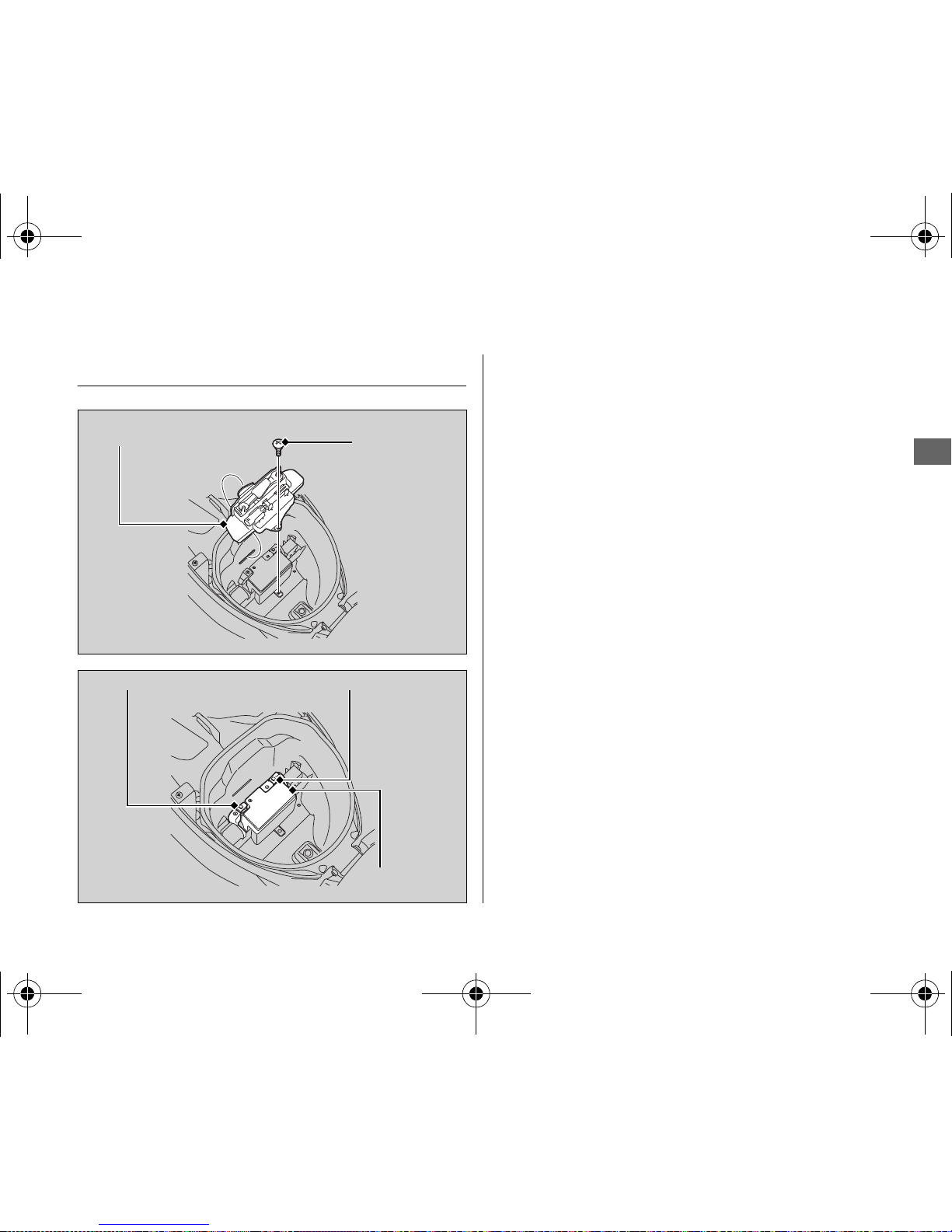

Battery cover

Screw

Negative terminalPositive terminal

Battery

12 AFS110-32KWWH00.book 57 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

58

Maintenance

Throttle

Checking the Throttle

With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the cable inspected
by your dealer.

Freeplay at the throttle grip flange:

2 to 6 mm (0.1 to 0.2 in).

Freeplay

Flange

12 AFS110-32KWWH00.book 58 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

59

Maintenance

Crankcase Breather

1.

Place a drain pan under the crankcase
breather tube.

2.

Remove the crankcase breather tube and
drain deposits.

3.

Reinstall the crankcase breather tube.

Crankcase breather

12 AFS110-32KWWH00.book 59 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

60

Maintenance

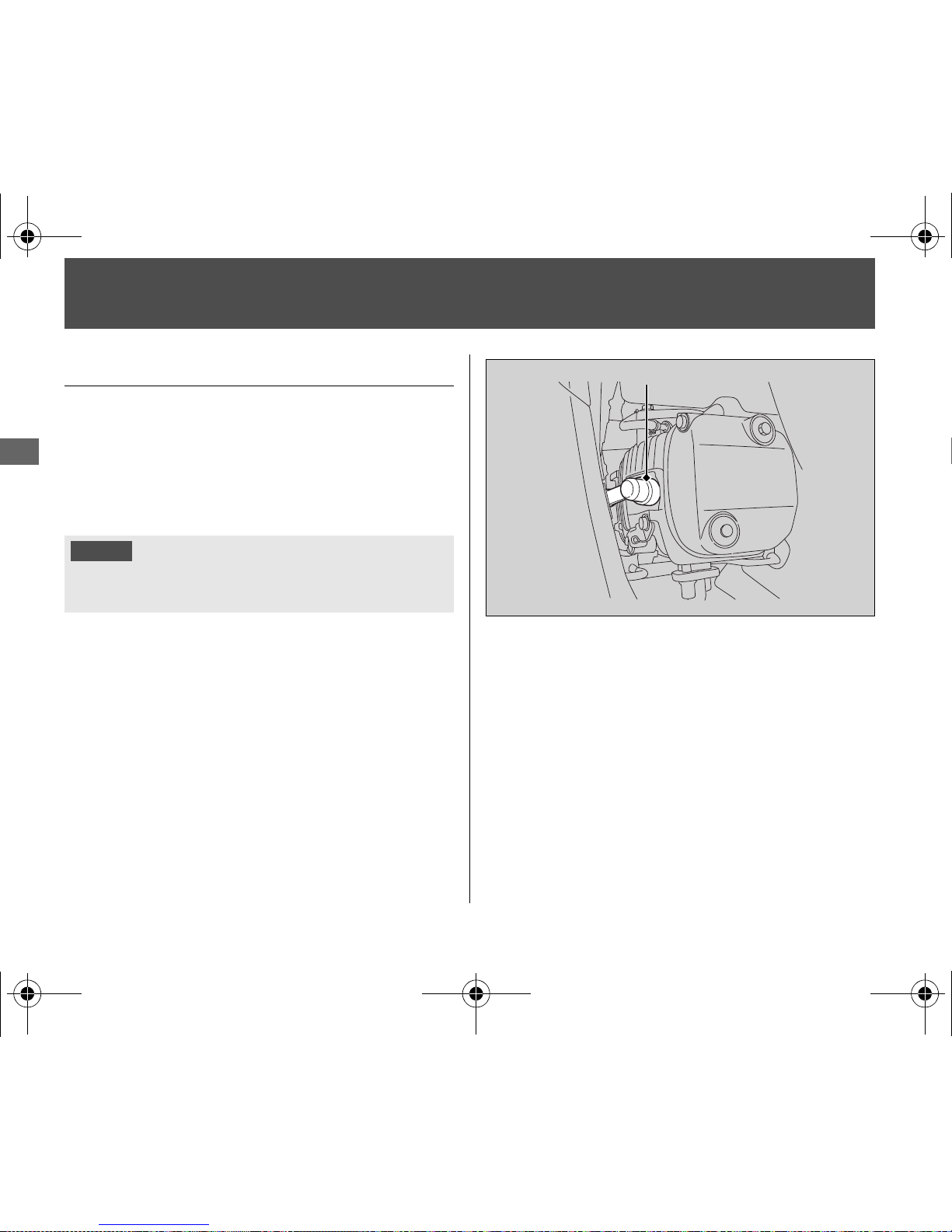

Spark Plug

Checking Spark Plug

For the recommended spark plug, see
“Specifications.” 2 P. 104

Use only the recommended type of spark
plug in the recommended heat range.

1.

Disconnect the spark plug cap.

2.

Clean any dirt from around the spark plug
base.

3.

Remove the spark plug using the spark
plug wrench provided in the tool kit.

4.

Inspect the electrodes and centre
porcelain for deposits, erosion or carbon
fouling.

u If the erosion or deposit is heavy,

replace the plug.

u Clean a carbon or wet-fouled plug with

a plug cleaner, otherwise use a wire
brush.

NOTICE

Using spark plugs with an improper heat range can cause
engine damage.

Spark plug cap

12 AFS110-32KWWH00.book 60 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Spark Plug u Checking Spark Plug

61

Maintenance

5.

Check the spark plug gap using a wire­type feeler gauge.

u If adjustment is necessary, bend the

side electrode carefully.

6.

Make sure the plug washer is in good
condition.

7.

With the plug washer attached, thread
the spark plug in by hand to prevent
cross-threading.

8.

Tighten the spark plug:

● If the old plug is good:

1/6 turn after it seats

● If installing a new plug, tighten it twice

to prevent loosening:
a) First, tighten the plug:
1/4 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:
1/6 turn after it seats

9.

Reinstall the spark plug cap. Take care
avoid pinching any cables or wires.

The gap should be:

0.80 to 0.90 mm (0.031 to 0.035 in)

Spark plug gap

Side electrode

NOTICE

Improperly tightened spark plugs can damage the engine.
If a plug is too lose, a piston may be damaged. If a plug is
too tight, the threads may be damaged.

12 AFS110-32KWWH00.book 61 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

62

Maintenance

Engine Oil

Checking the Engine Oil

1.

Park your motorcycle on its centre stand
on a firm, level surface.

2.

If the engine is cold, idle the engine for 3
to 5 minutes.

3.

Turn the ignition switch off, stop the
engine and wait 2 to 3 minutes.

4.

Remove the oil fill cap/dipstick, wipe it
clean.

5.

Insert the oil fill cap/dipstick until it seats,
but don’t screw it in. Check that the oil
level is between the upper and lower level
marks in the oil fill cap/dipstick.

6.

Securely install the oil fill cap/dipstick.

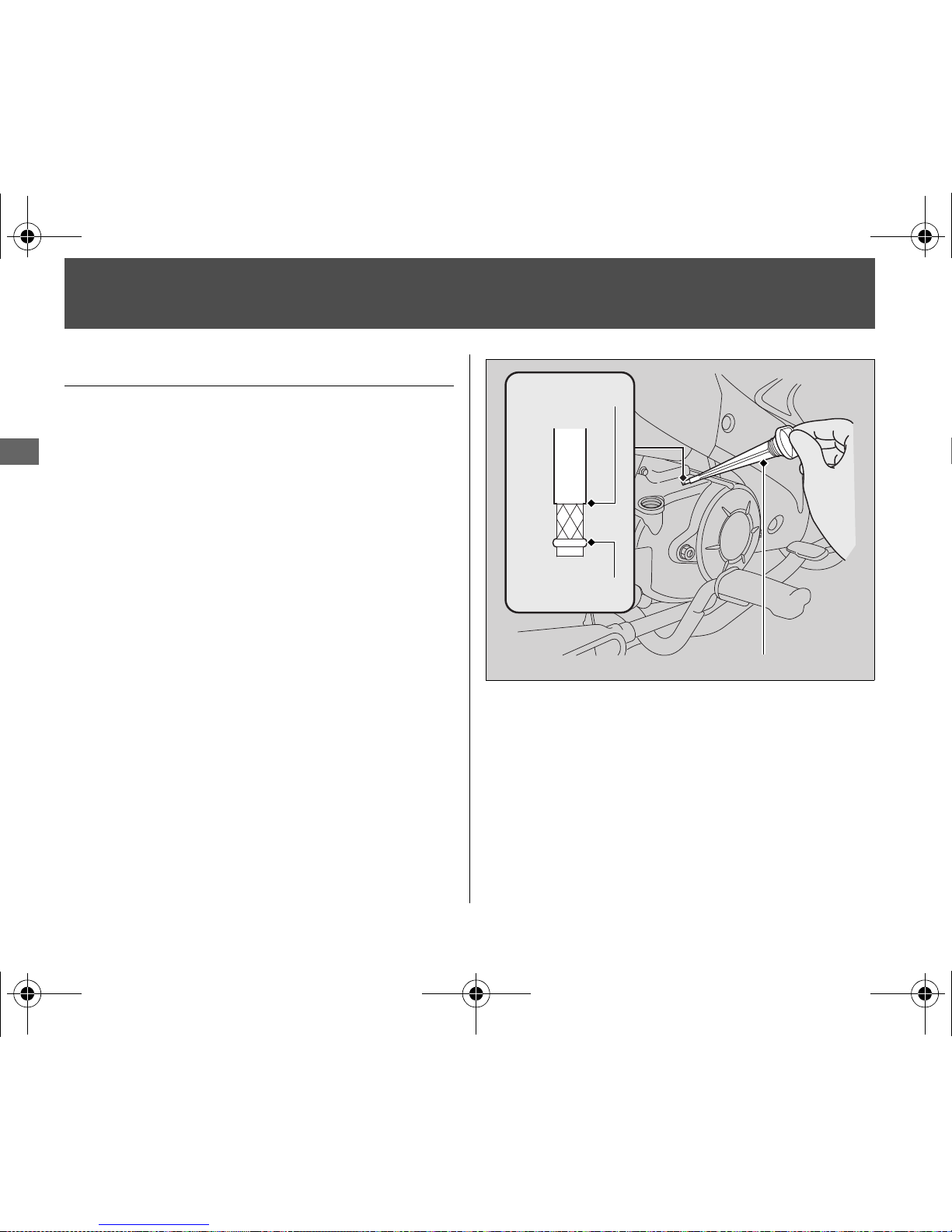

Oil fill cap/dipstick

Upper level

Lower level

12 AFS110-32KWWH00.book 62 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Engine Oil u Adding Engine Oil

63

continued

Maintenance

Adding Engine Oil

If the engine oil is below or near the lower
level mark, add the recommended engine oil.

2 P. 44

1.

Add the recommended oil until it reaches
the upper level mark.

u Place your motorcycle on its centre

stand on a firm, level surface when
check the oil level.

u Do not overfill above the upper level

mark.

u Make sure no foreign objects enter the

oil filler opening.

u Wipe up any spills immediately.

2.

Securely reinstall the oil fill cap/dipstick.

For the recommended oil and oil selection
guidelines, see “Maintenance
Fundamentals.”

2 P. 44

Changing Engine Oil

Changing the oil requires special tools. We
recommend that you have your motorcycle
serviced by your dealer.

1.

Park your motorcycle on its centre stand
on a firm, level surface.

2.

If the engine is cold, idle the engine for 3
to 5 minutes.

NOTICE

Overfilling with oil or operating with insufficient oil can
cause damage to your engine. Do not mix different brands
and grades of oil. They may affect lubrication and clutch
operation.

12 AFS110-32KWWH00.book 63 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Engine Oil u Changing Engine Oil

64

Maintenance

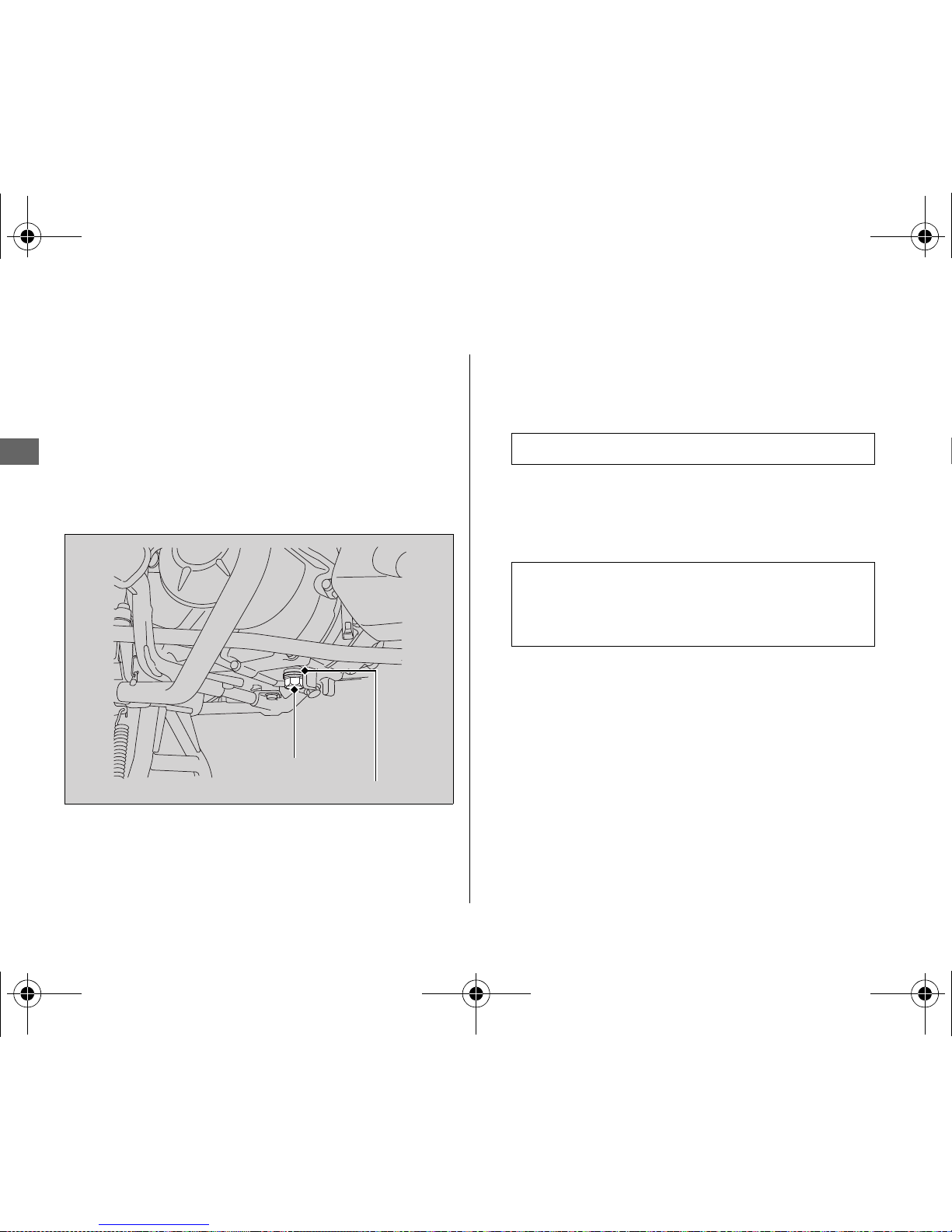

3.

Turn the ignition switch off, stop the
engine and wait for 2 to 3 minutes.

4.

Place a drain pan under the drain bolt.

5.

Remove the oil fill cap/dipstick, drain
bolt, and sealing washer to drain the oil.

u Discard the oil at an approved

recycling centre.

6.

Install a new sealing washer onto the
drain bolt.

7.

Install the drain bolt and tighten.

8.

Fill the crankcase with the recommended
oil (

2 P. 44) and install the oil fill cap/

dipstick.

9.

Check the oil level. 2 P. 62

10.

Check that there are no oil leaks.

Drain bolt

Sealing washer

Torque: 24 N·m (2.4 kgf·m, 18 lbf·ft)

Required oil

When changing oil:

0.8 litres (0.8 US qt, 0.7 Imp qt)

12 AFS110-32KWWH00.book 64 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

65

Maintenance

Drive Chain

Inspecting the Drive Chain
Slack

Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.

1.

Place your motorcycle on the centre
stand on a level surface.

2.

Stop the engine place the gear in
Neutral.

3.

Check the slack in the lower half of the
drive chain midway between the
sprockets. Move the drive chain up and
down with your finger.

u Do not ride your motorcycle if the

slack exceeds 50 mm (2.0 in).

4.

Rotate the rear wheel and check that the
chain moves smoothly.

5.

Inspect the sprockets. 2 P. 45

6.

Clean and lubricate the drive chain.

2 P. 46

Drive chain slack:

20 to 30 mm (0.8 to 1.2 in)

12 AFS110-32KWWH00.book 65 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Drive Chain u Adjusting the Drive Chain Slack

66

Maintenance

Adjusting the Drive Chain Slack

Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.

1.

Place your motorcycle on the centre
stand on a level surface.

2.

Stop the engine place the gear in
Neutral.

3.

Loosen the rear axle nut.

4.

Loosen the lock nuts on both sides of the
drive chain adjusters.

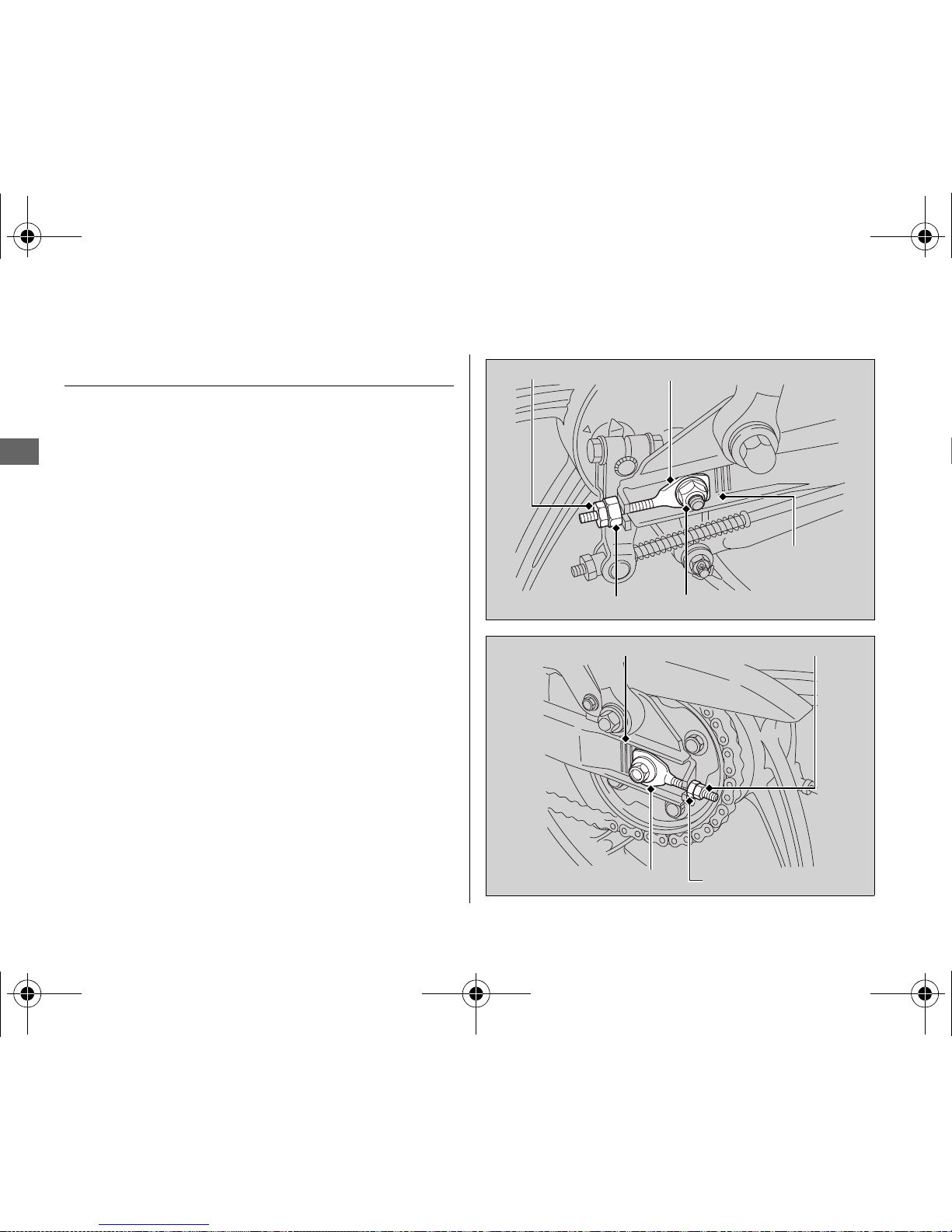

Lock nut

Adjusting nut

Drive chain adjuster

Rear axle nut

Scale
graduations

Scale graduations

Adjusting nut

Lock nut

Drive chain adjuster

12 AFS110-32KWWH00.book 66 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Drive Chain u Adjusting the Drive Chain Slack

67

continued

Maintenance

5.

Turn both adjusting nuts an equal
number of turns until the correct drive
chain slack is obtained. Turn the
adjusting nuts clockwise to tighten the
chain. Turn the adjusting nuts
counterclockwise and push the rear
wheel toward the front to provide more
slack.
Adjust the slack at a point midway
between the front sprocket and the rear
wheel sprocket.
Check the drive chain slack.

2 P. 65

6.

Check rear axle alignment by making
sure the end of the drive chain adjuster
aligns with the scale graduations on both
sides of the swingarm.
Both marks should correspond. If the
axle is misaligned, turn the right or left
adjusting bolt until the marks are aligned
and recheck chain slack.

7.

Tighten the rear axle nut.

8.

Hold the adjusting nuts and tighten the
lock nuts.

9.

Recheck drive chain slack.

10.

Rear brake pedal freeplay is affected
when repositioning the rear wheel to
adjust drive chain slack. Check rear brake
pedal freeplay and adjust as necessary.

2 P. 72

If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.

Torque: 59 N·m (6.0 kgf·m, 44 lbf·ft)

12 AFS110-32KWWH00.book 67 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Drive Chain u Adjusting the Drive Chain Slack

68

Maintenance

❙

Checking the Drive Chain Wear

If the drive chain slack is excessive when the
rear axle is moved to the furthest limit of
adjustment, the drive chain is worn and must
be replaced.

If necessary have the drive chain replaced by
your dealer.

❙

Removal and Cleaning the Drive
Chain

When the drive chain becomes dirty, it
should be removed and cleaned prior to
lubrication.

1.

With the engine off, carefully remove the
master link retaining clip with a pair of
pliers. Do not bend or twist the clip.
Remove the master link. Remove the drive
chain from the motorcycle.

Replacement drive chain:

DID420AD-104RB
KMC420JB-104

Master link retaining clip

12 AFS110-32KWWH00.book 68 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Drive Chain u Adjusting the Drive Chain Slack

69

Maintenance

2.

Clean the drive chain in high flash-point
solvent and allow it to dry. Inspect the
drive chain for possible wear or damage.
Replace any chain that has damaged
rollers, loose fitting links, or otherwise
appears unserviceable.

3.

Lubricate the drive chain. 2 P. 46

4.

Install the drive chain. Pass the chain over
the sprockets and join the ends of the
chain with the master link.
The master link is the most critical part
affecting the security of the drive chain.
Master links are reusable, if they remain in
excellent condition, but it is
recommended that a new master link
retaining clip be installed whenever the
drive chain is reassembled.
Install the master link retaining clip so that
the closed end of the clip will face the
direction of forward wheel rotation.

5.

Adjust the drive chain slack. 2 P. 66

12 AFS110-32KWWH00.book 69 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

70

Maintenance

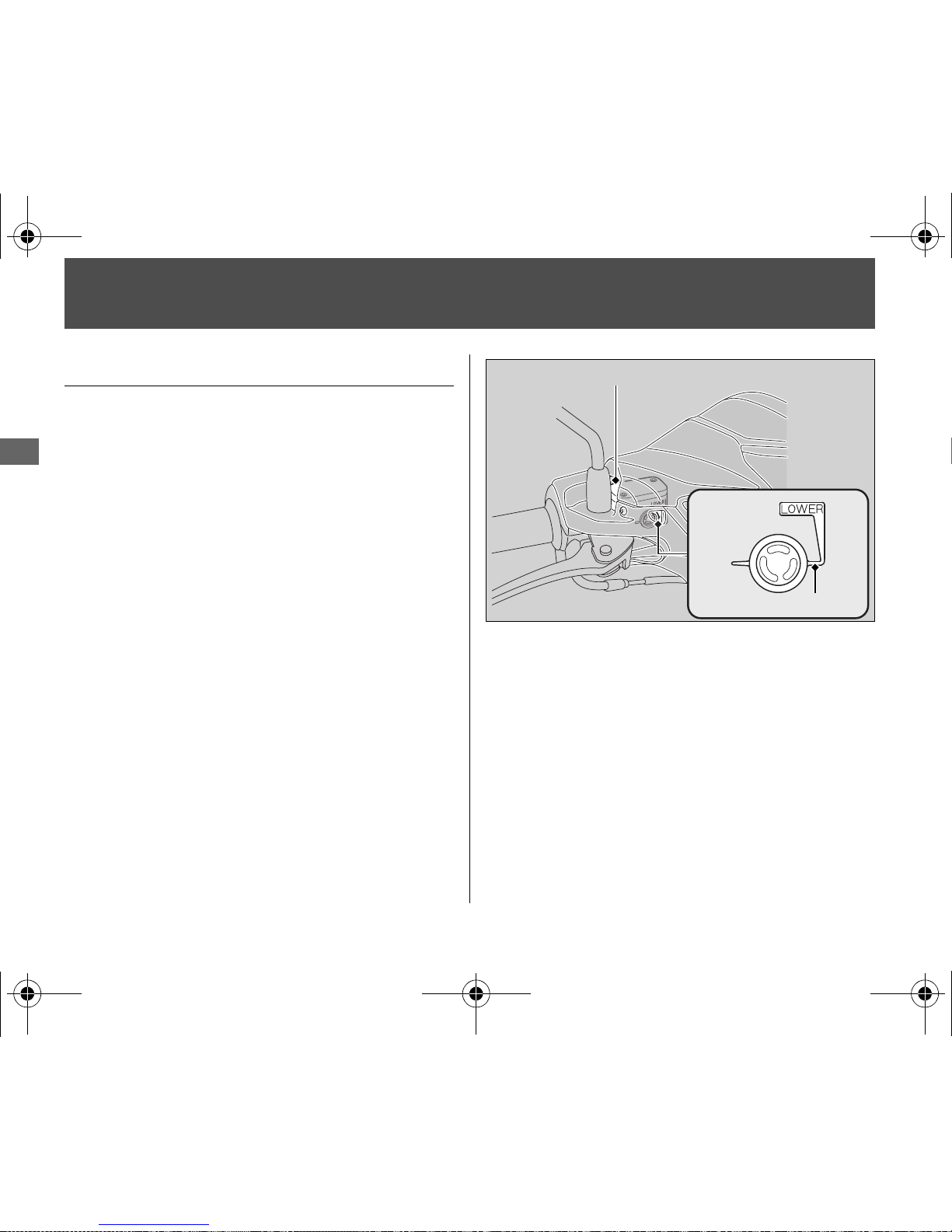

Brakes

Checking Brake Fluid

This motorcycle has a hydraulic front disc
brake. As the brake pads wear, brake fluid
level drops.

1.

Place your motorcycle in an upright
position on a firm, level surface.

2.

Check that the brake fluid reservoir is
horizontal and that the fluid level is above
the LOWER level mark.

If the brake fluid level in reservoir is below
the lower level mark or the brake lever
freeplay becomes excessive, inspect the
brake pads for wear. If the brake pads are
not worn, you most likely have a leak. Have
your motorcycle inspected by your dealer.

Front brake fluid reservoir

LOWER level mark

12 AFS110-32KWWH00.book 70 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Brakes u Inspecting the Brake Pads

71

Maintenance

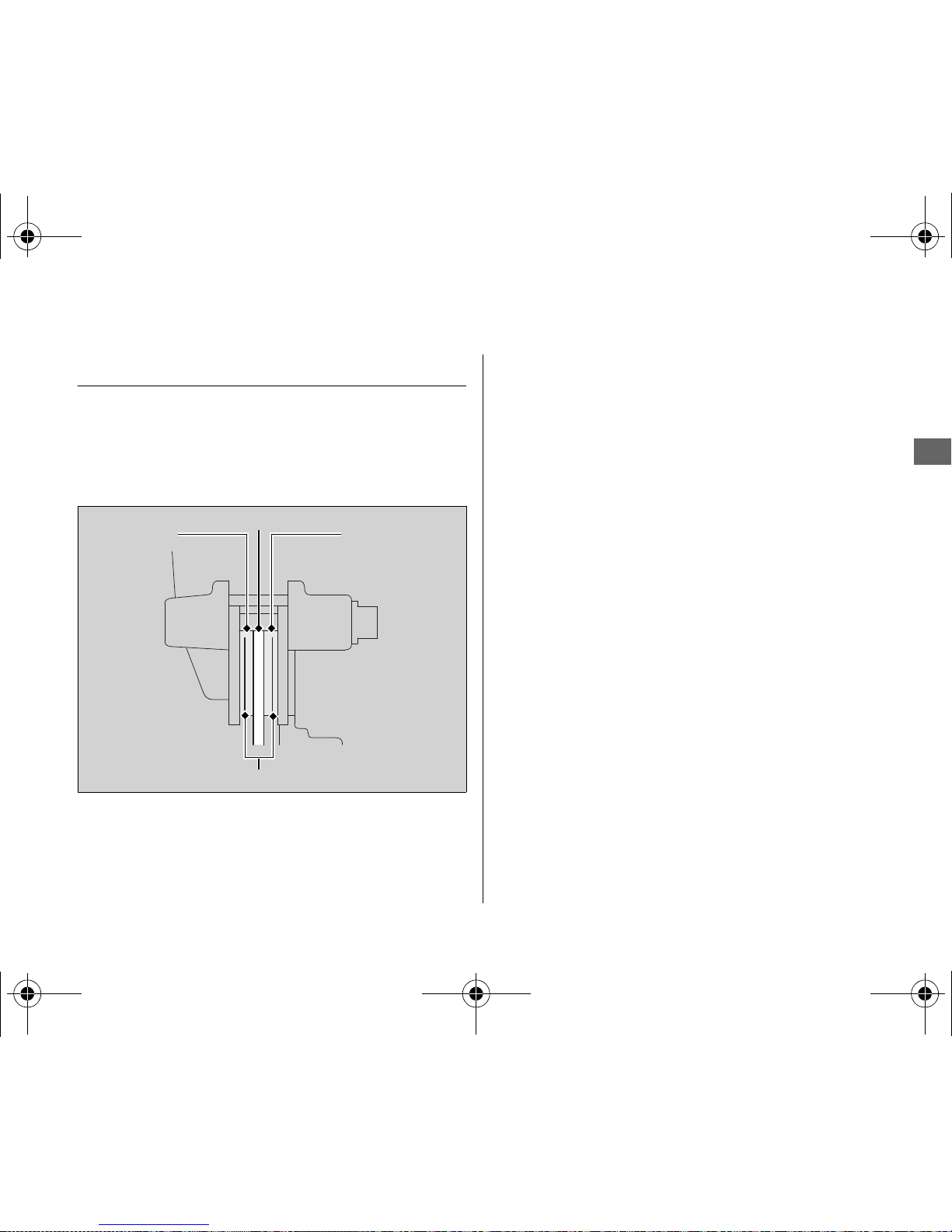

Inspecting the Brake Pads

Check the condition of the brake pad groove
wear indicators.
The pads need to be replaced if a brake pad
is worn to the wear indicator.

Inspect the brake pads from below the brake
caliper.

If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.

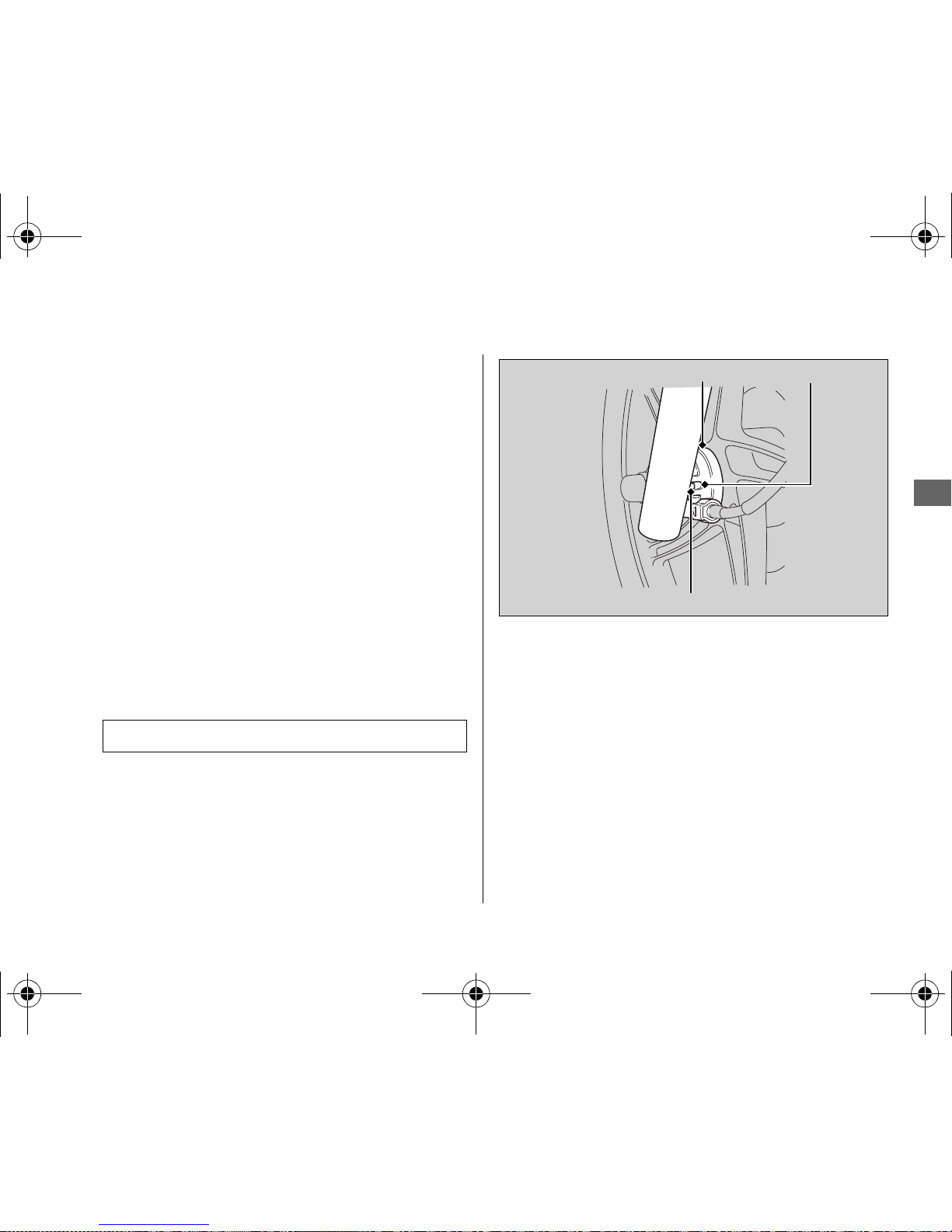

Brake pad

Wear indicator

Disc

Brake pad

12 AFS110-32KWWH00.book 71 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Brakes u Inspecting the Rear Brake Pedal Freeplay

72

Maintenance

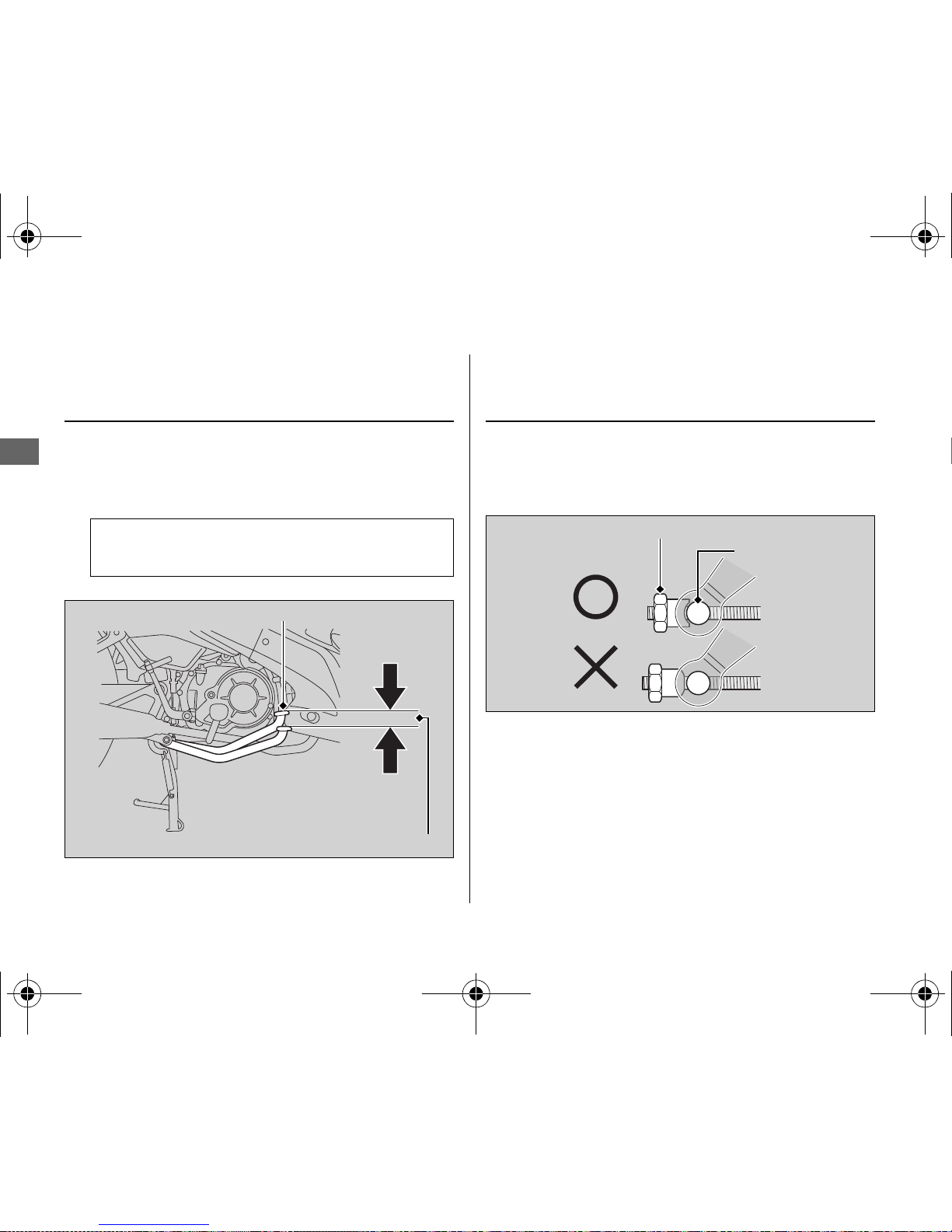

Inspecting the Rear Brake Pedal
Freeplay

1.

Place the motorcycle on its centre stand.

2.

Measure the distance of the rear brake
pedal before the starts to take hold.

Adjusting the Rear Brake Pedal
Freeplay

Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.

If proper adjustment cannot be obtained by
this method, see your dealer.

Freeplay at the tip of the brake
pedal: 20 to 30 mm (0.8 to 1.2 in)

Freeplay

Rear brake pedal

Brake arm pin

Adjusting nut

12 AFS110-32KWWH00.book 72 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Brakes u Adjusting the Rear Brake Pedal Freeplay

73

Maintenance

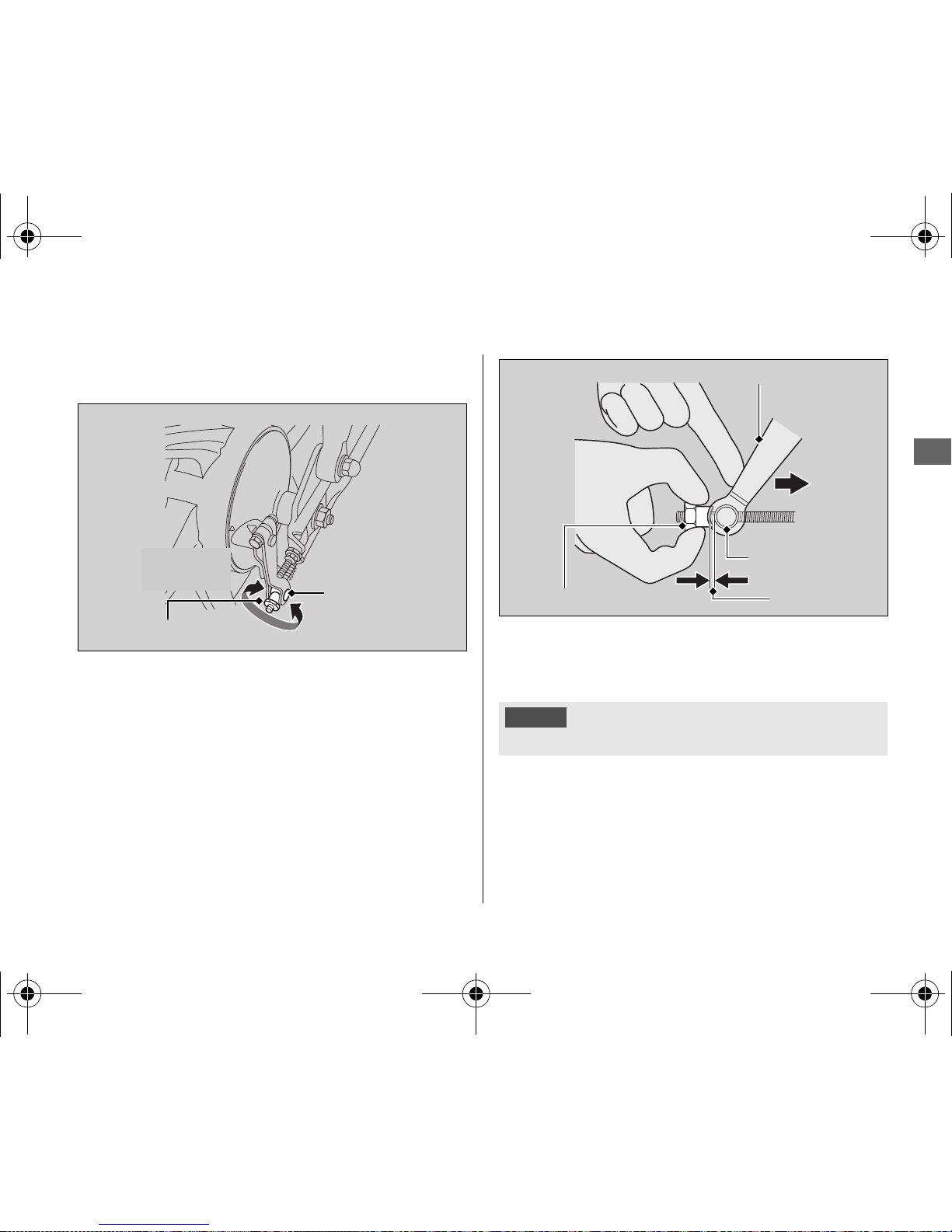

1.

Adjust by turning the rear brake adjusting
nut a half-turn at a time.

2.

Apply the brake several times and check
for free wheel rotation after the brake
pedal is released.

3.

Push the brake arm to confirm that there
is a gap between the rear brake adjusting
nut and brake arm pin.

After adjustment, confirm the freeplay of the
brake pedal.

Make sure the brakerod, brake arm spring
and fastener are in good condition.

Adjusting nut

Brake arm pin

Increase
freeplay

Decrease
freeplay

NOTICE

Do not turn the adjuster beyond its natural limits.

Brake arm

Adjusting nut

Push

Brake arm pin

Gap

12 AFS110-32KWWH00.book 73 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Brakes u Inspecting the Brake Shoe Wear

74

Maintenance

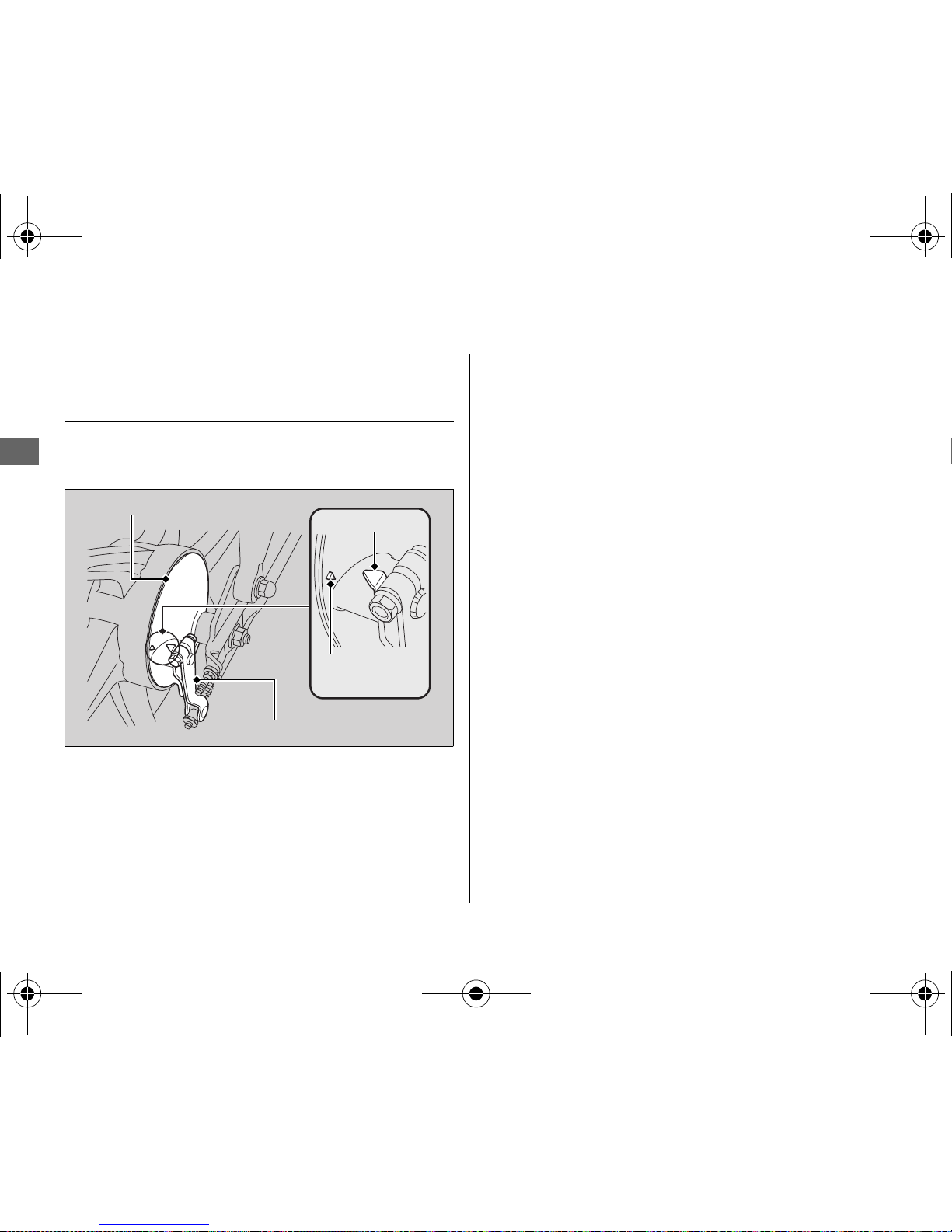

Inspecting the Brake Shoe
Wear

The rear brake are equipped with a brake
wear indicator.

When the brake is applied, an arrow
attached to the brake arm moves toward a
reference mark on the brake panel. If the
arrow aligns with the reference mark on full
application of the brake, the brake shoes
must be replaced.
See your dealer for this service.

When the brake service is necessary, see your
dealer. Use only Honda Genuine Parts or its
equivalent.

Brake panel

Brake arm

Reference
mark

Arrow

12 AFS110-32KWWH00.book 74 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

75

Maintenance

Clutch

Checking the Clutch System

1.

Loosen the lock nut.

2.

Turn the clutch adjuster clockwise one
turn; do not turn excessively.

3.

Slowly turn the adjuster counterclockwise
until a slight resistance is felt.
From this position, turn the adjuster
clockwise 1/8 turn, and tighten the lock
nut.

4.

After adjustment, test ride the motorcycle
to be certain the clutch operates properly.

The engine should start easily with the
kicickstarter without the clutch slipping.
When shifting gears, the clutch operation
should be smooth and light, especially when
shifting into neutral.

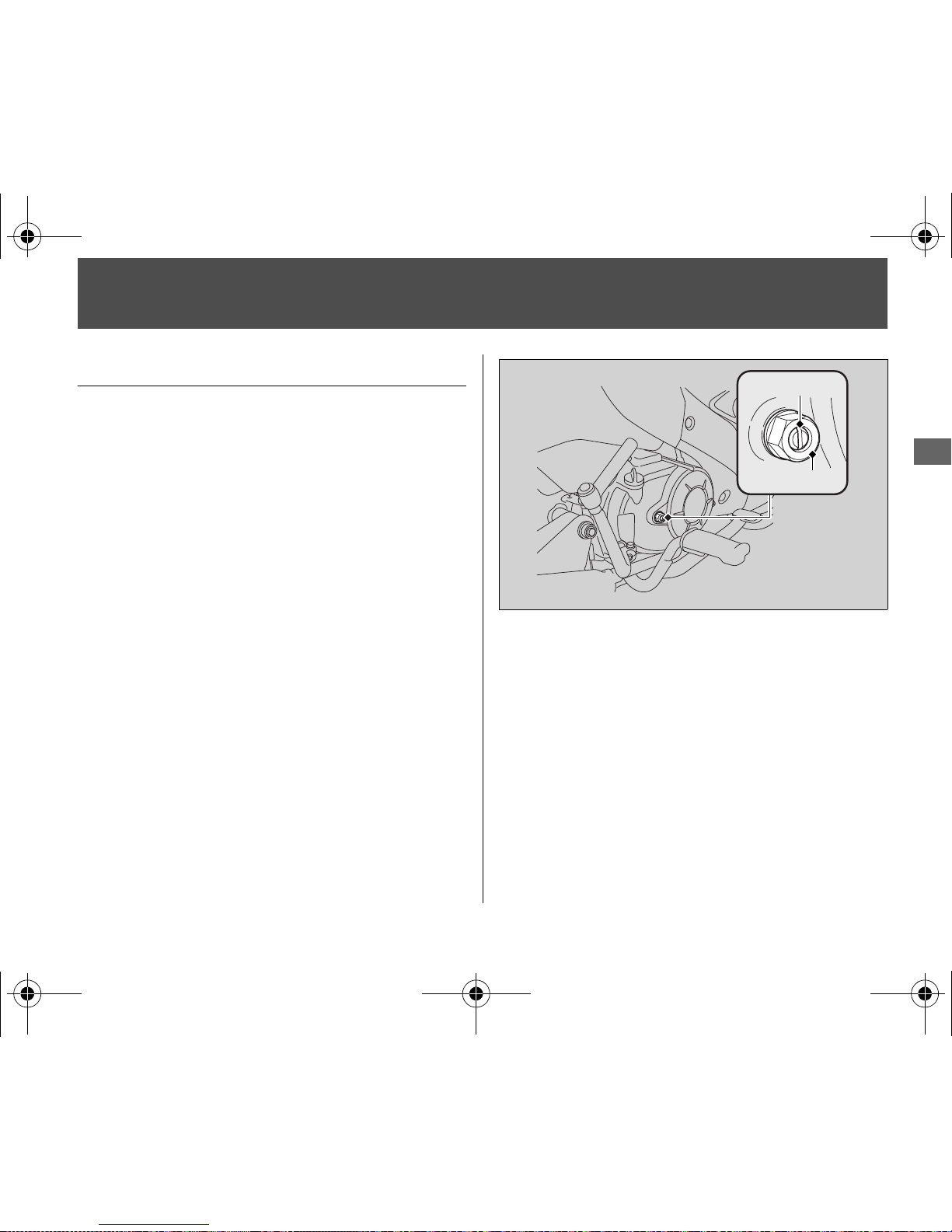

Adjuster

Lock nut

12 AFS110-32KWWH00.book 75 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

76

Maintenance

Side Stand

1.

Park your motorcycle on its centre stand
on a firm, level surface.

2.

Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.

3.

Check the spring for damage or loss of
tension.

4.

Sit on the motorcycle, shift the
transmission in Neutral, and raise the side
stand.

5.

Start the engine, and shift the
transmission into gear.

6.

Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn’t stop, have
your motorcycle inspected by your dealer.

Side stand
spring

12 AFS110-32KWWH00.book 76 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

77

Maintenance

Other Adjustments

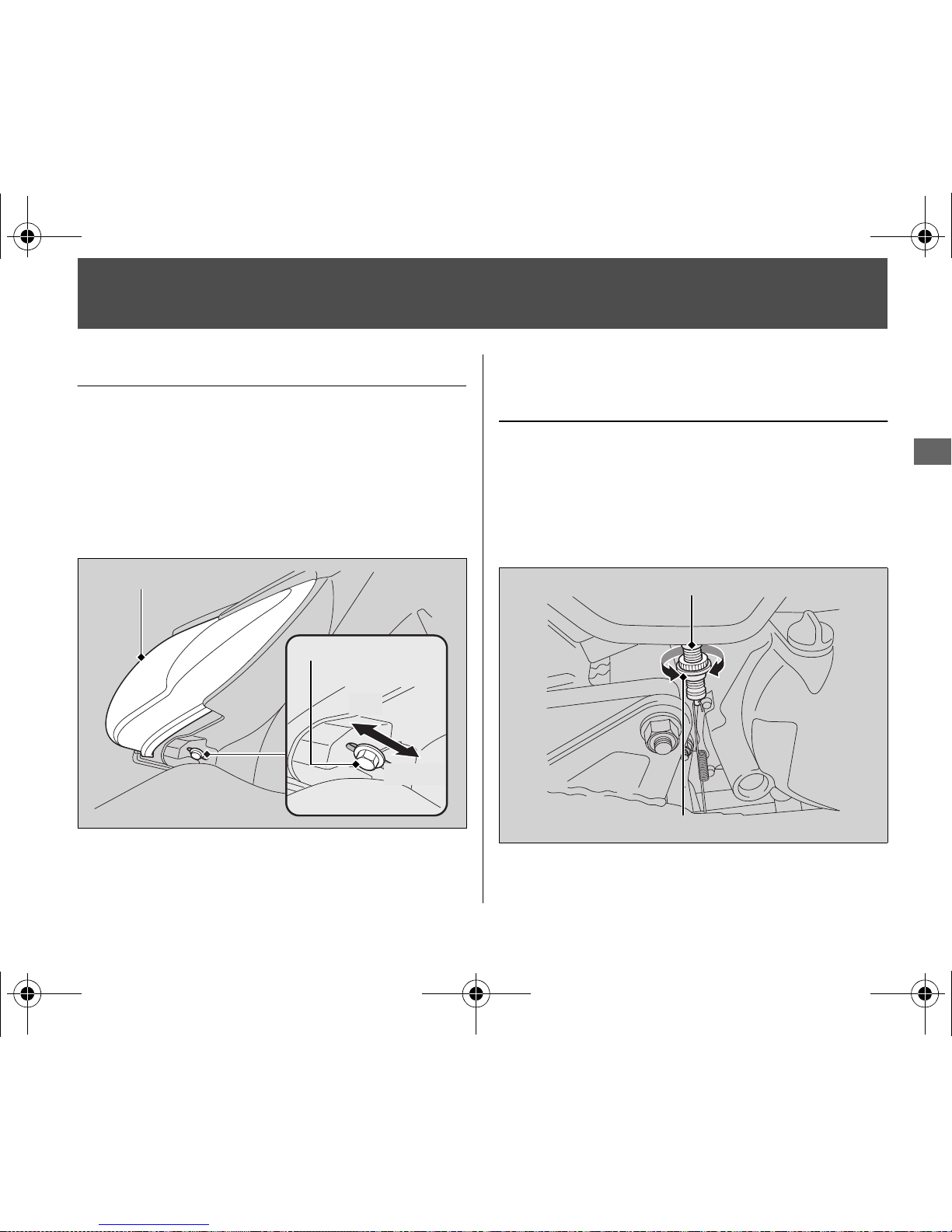

Adjusting the Headlight Aim

You can adjust vertical aim of the headlight
for proper alignment. Loosen the adjusting
bolt and move the headlight up or down as
necessary.
Tighten the adjusting bolt after adjustment.
Obey local laws and regulations.

Adjusting the Brakelight
Switch

Check the operation of the brakelight switch.
Turn the adjusting nut in the direction A if
the switch operates too late, or turn the nut
in the direction B if the switch operates too
soon.

Headlight

Adjusting bolt

Up

Down

Brakelight switch

Adjusting nut

12 AFS110-32KWWH00.book 77 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Troubleshooting

Engine Will Not Start .................................P. 79

Warning Indicator On or Flashing.............P. 80

PGM-FI (Programmed Fuel Injection)

Malfunction Indicator Lamp (MIL) ............P. 80

Tyre Puncture .............................................P. 81

Tube Repair and Replacement ...................P. 81

Electrical Trouble........................................P. 86

Battery Goes Dead.....................................P. 86

Burned-out Light Bulb ...............................P. 86

Blown Fuse................................................P. 91

12 AFS110-32KWWH00.book 78 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

79

Troubleshooting

Engine Will Not Start

❙

Starter Motor Operates But Engine
Does Not Start

Check the following items:

● Check the correct engine starting

sequence 2 P. 26

● Check that there is petrol in the fuel tank

● Check if the PGM-FI malfunction indicator

lamp (MIL) is ON

u If the indicator light is ON, contact your

dealer as soon as possible.

❙

Starter Motor Does Not Operate

Check the following items:

● Check for a blown fuse 2 P. 91

● Check for a loose battery connection or

battery terminal corrosion 2 P. 42

● Check the condition of the battery 2 P. 86

If the problem continues, have your
motorcycle inspected by your dealer.

12 AFS110-32KWWH00.book 79 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

80

Troubleshooting

Warning Indicator On or Flashing

PGM-FI (Programmed Fuel
Injection) Malfunction Indicator
Lamp (MIL)

If the indicator comes ON while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your
motorcycle inspected by your dealer as soon
as possible.

12 AFS110-32KWWH00.book 80 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

81

continued

Troubleshooting

Tyre Puncture

Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tyre inspected/replaced by your dealer.

Tube Repair and Replacement

If a tube is punctured or damaged, you
should replace it as soon as possible. A tube
that is repaired may not have the same
reliability as a new one, and it may fail while
you are riding.
If you need to make a temporary repair by
patching a tube or using an aerosol sealant,
ride cautiously at reduced speed and have
the tube replaced before you ride again.
Anytime a tube is replaced, the tyre should
be carefully inspected as described.

Removing Wheels

Follow these procedures if you need to
remove a wheel in order to repair a puncture.

3

WARNING

Riding your motorcycle with a
temporary tyre or tube repair can be
risky. If the temporary repair fails, you
can crash and be seriously injured or
killed.

If you must ride with a temporary tyre
or tube repair, ride slowly and
carefully and do not exceed 50 km/h
(30 mph) until the tyre and tube is
replaced.

12 AFS110-32KWWH00.book 81 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Tyre Puncture u Removing Wheels

82

Troubleshooting

❙

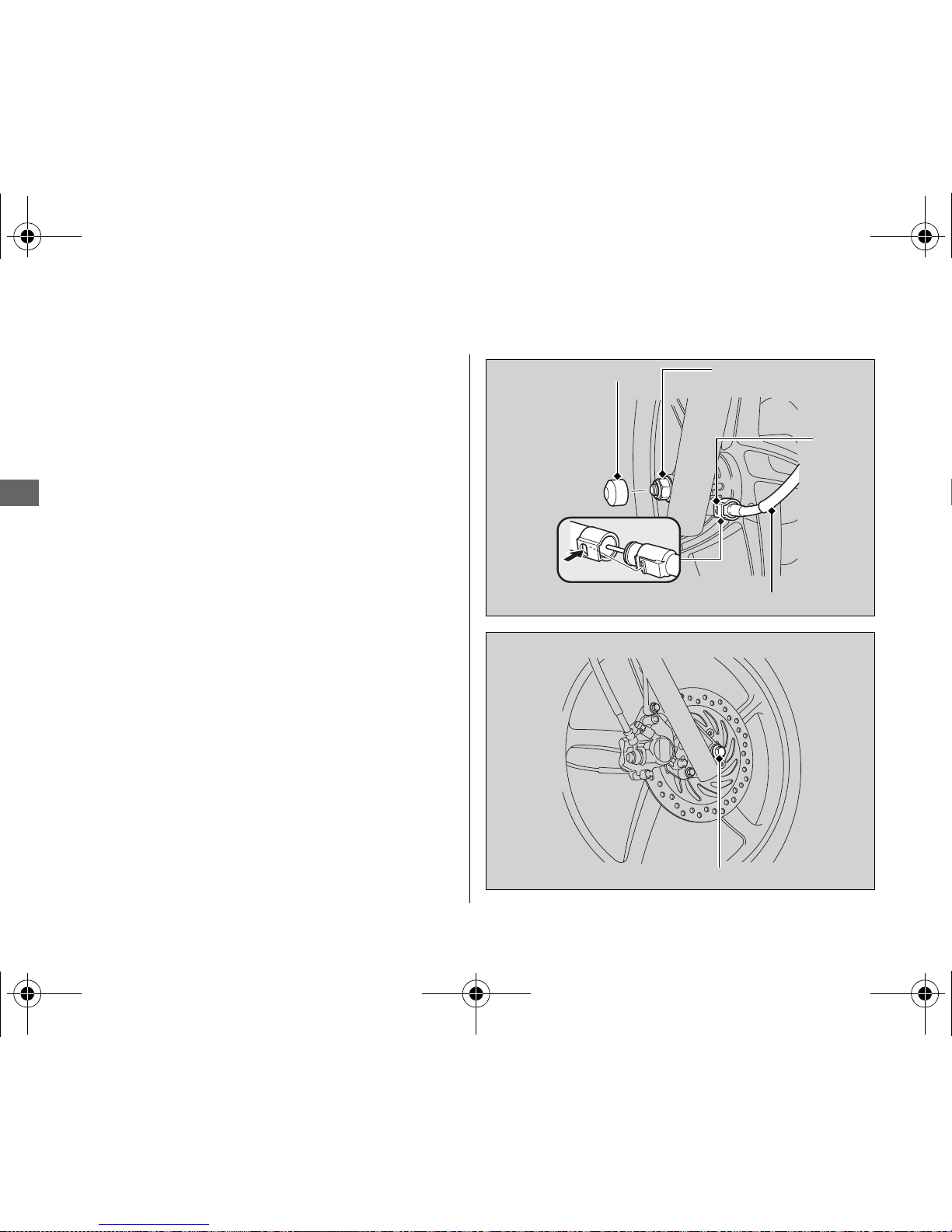

Front Wheel

Removal

1.

Park your motorcycle on its centre stand
on a firm, level surface.

2.

Raise the front wheel off the ground by
placing a support block under the engine.

3.

Remove the speedometer cable by
pushing the tab.

4.

Remove the front axle nut cap.

5.

Remove the front axle nut.

6.

Remove the front axle shaft, front wheel
and side collar.

u Do not pull the brake lever while the

wheel is removed.

u Take care to prevent the brake caliper

from scratching the wheel during
removal.

u Avoid getting grease, oil, or dirt on the

disc or pad surface.

Front axle nut cap

Speedometer cable

Front axle nut

Tab

Front axle shaft

12 AFS110-32KWWH00.book 82 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Tyre Puncture u Removing Wheels

83

continued

Troubleshooting

Installation

1.

Install the side collar into the right side
wheel hub.

2.

Position the wheel between the fork legs
and insert the front axle shaft from the
right side, through the right fork leg and
wheel hub.

3.

Make sure that the lug on the left fork
leg is located in the slot of the
speedometer gearbox. When installing
the wheel, carefully fit the brake disc
between the brake pads to avoid
damaging the pads.

4.

Tighten the axle nut.

5.

Install the speedometer cable securely.

6.

Install the front axle nut cap.

After installing the wheel, apply the brake
several times and then check if the wheel
rotates freely. Recheck the wheel if the brake
drags or if the wheel does not rotate freely.

If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly. Improper
assembly may lead to loss of braking capacity.

Torque: 59 N·m (6.0 kgf·m, 44 lbf·ft)

Lug

Speedometer gear box Slot

12 AFS110-32KWWH00.book 83 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Tyre Puncture u Removing Wheels

84

Troubleshooting

❙

Rear Wheel

Removal

1.

Park your motorcycle on its centre stand
on a firm, level surface.

2.

Remove the rear brake adjusting nut.

3.

Disconnect the brake rod from the brake
arm.

4.

Disconnect the brake stopper arm from
the brake panel by removing the cotter
pin, stopper arm nut, washer and rubber
grommet.

5.

Loosen the drive chain lock nuts and drive
chain adjusting nuts.

6.

Remove the rear axle nut.

7.

Remove the drive chain from the driven
sprocket by pushing the rear wheel
forward.

8.

Remove the rear axle shaft, drive chain
adjusters, rear axle washer, side collars
and rear wheel from the swingarm.

Drive chain
lock nut

Drive chain
adjusting nut

Cotter pin

Rear brake
adjusting nut

Rear axle
nut

Brake
arm

Brake stopper arm nut

Brake
stopper arm

Brake
rod

Drive chain lock nut

Rear axle
shaft

Drive chain

Drive chain
adjusting nut

12 AFS110-32KWWH00.book 84 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Tyre Puncture u Removing Wheels

85

Troubleshooting

Installation

1.

To install the rear wheel, reverse the
removal procedure.

2.

Tighten the rear axle nut.

3.

Tighten the stopper arm nut.

4.

Adjust the rear brake pedal freeplay.

2 P. 72

5.

Adjust the drive chain slack. 2 P. 66

6.

After installing the wheel, apply the brake
several times and then check if the wheel
rotates freely. Recheck the wheel if the
brake drags or if the wheel does not
rotate freely.

If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.

Improper assembly may lead to loss of
braking capacity.

A used cotter pin may not effectively secure a
fastener. Always replace a used cotter pin
with a new one.

Torque: 59 N·m (6.0 kgf·m, 44 lbf·ft)

Torque: 22 N·m (2.2 kgf·m, 16 lbf·ft)

12 AFS110-32KWWH00.book 85 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

86

Troubleshooting

Electrical Trouble

Battery Goes Dead

Charge the battery using a motorcycle
battery charger.
Remove the battery from the motorcycle
while charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage.
If the battery does not recover after
recharging, contact your dealer.

Burned-out Light Bulb

Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF or LOCK
position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.

For the light bulb wattage, see
“Specifications.”

2 P. 105

NOTICE

Jump starting using an automobile battery is not
recommended, as this can damage your motorcycle’s
electrical system.

12 AFS110-32KWWH00.book 86 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Electrical Trouble u Burned-out Light Bulb

87

continued

Troubleshooting

❙

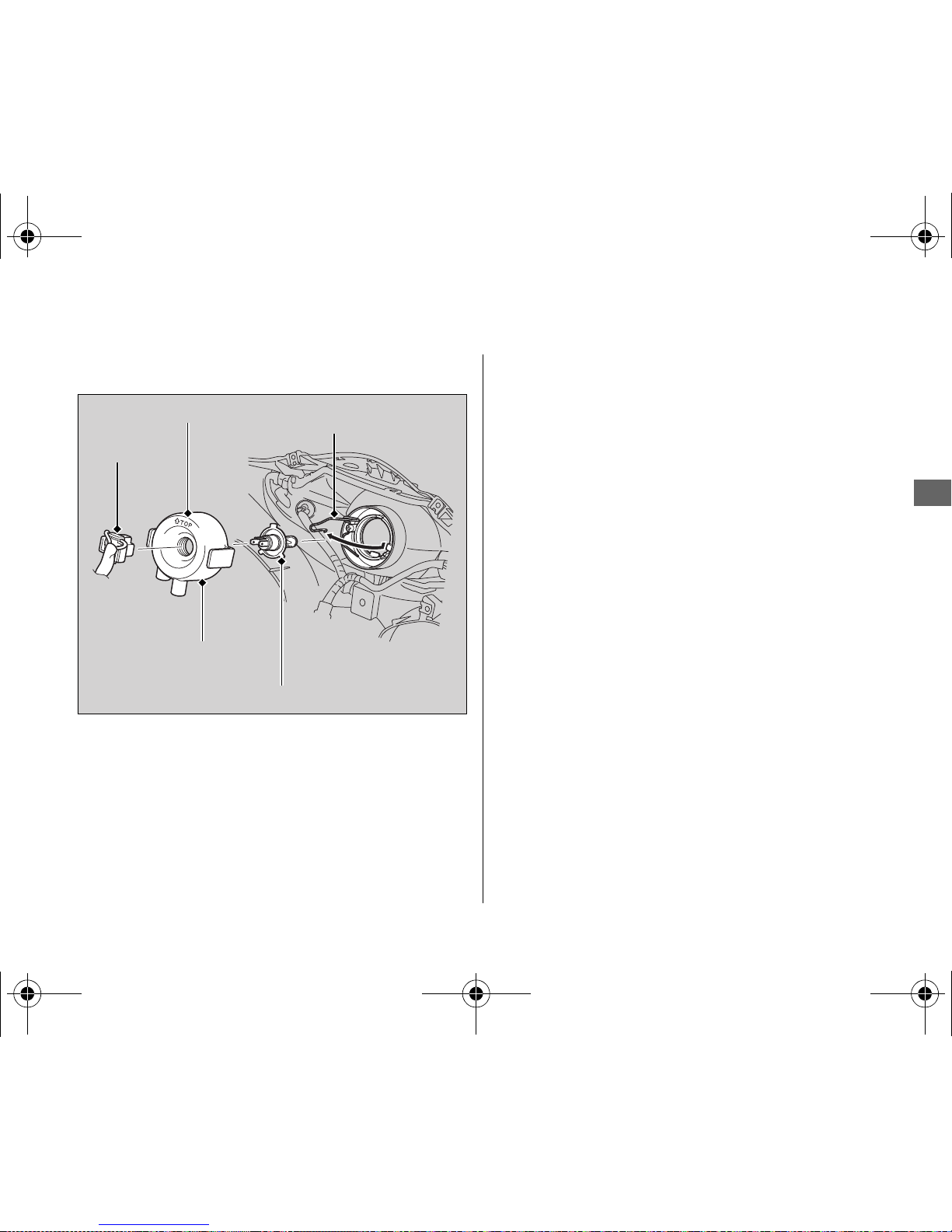

Headlight Bulb

1.

Remove the headlight case. 2 P. 53

2.

Pull the socket off the bulb without
turning it.

3.

Remove the dust cover.

4.

Press the pin down and pull out the bulb
without turning it.

5.

Install a new bulb and parts in the reverse
order of removal.

u Install the dust cover with its ‘‘TOP’’

mark facing up.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
alcohol.

Pin

Bulb

Socket

Dust cover

TOP mark

12 AFS110-32KWWH00.book 87 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Electrical Trouble u Burned-out Light Bulb

88

Troubleshooting

❙

Position Light Bulb

1.

Remove the headlight case. 2 P. 53

2.

Turn the socket counterclockwise and pull
it out.

3.

Pull out the bulb without turning.

4.

Install a new bulb and parts in the reverse
order of removal.

❙

Brake/Tail Light Bulb

1.

Remove the brake/tail light lens by
removing the screws and releasing the
tabs.

2.

Slightly press the bulb in and turn it
counterclockwise.

3.

Install a new bulb and parts in the reverse
order of removal.

u After putting back the lens packing in

place, install the brake/tail light lens.

Bulb

Socket

Tabs

Brake/tail light lens Screws

Bulb

Tab

12 AFS110-32KWWH00.book 88 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Electrical Trouble u Burned-out Light Bulb

89

continued

Troubleshooting

❙

Front Turn Signal Bulb

1.

Remove the front top cover. 2 P. 53

2.

Turn the socket counterclockwise and pull
it out.

3.

Slightly press the bulb and turn it
counterclockwise.

4.

Install a new bulb in the reverse order of
removal.

u Use only the amber bulb.

❙

Rear Turn Signal Bulb

1.

Remove the brake/tail light lens. 2 P. 88

2.

Remove the rear turn signal lens by
releasing the tabs.

3.

Slightly press the bulb in and turn it
counterclockwise.

4.

Install a new bulb and parts in the reverse
order of removal.

u Use only the amber bulb.
u After putting back the lens packing in

place, install the rear turn signal lens.

Socket

Bulb

Rear turn signal lens

Bulb Tabs

12 AFS110-32KWWH00.book 89 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Electrical Trouble u Burned-out Light Bulb

90

Troubleshooting

❙

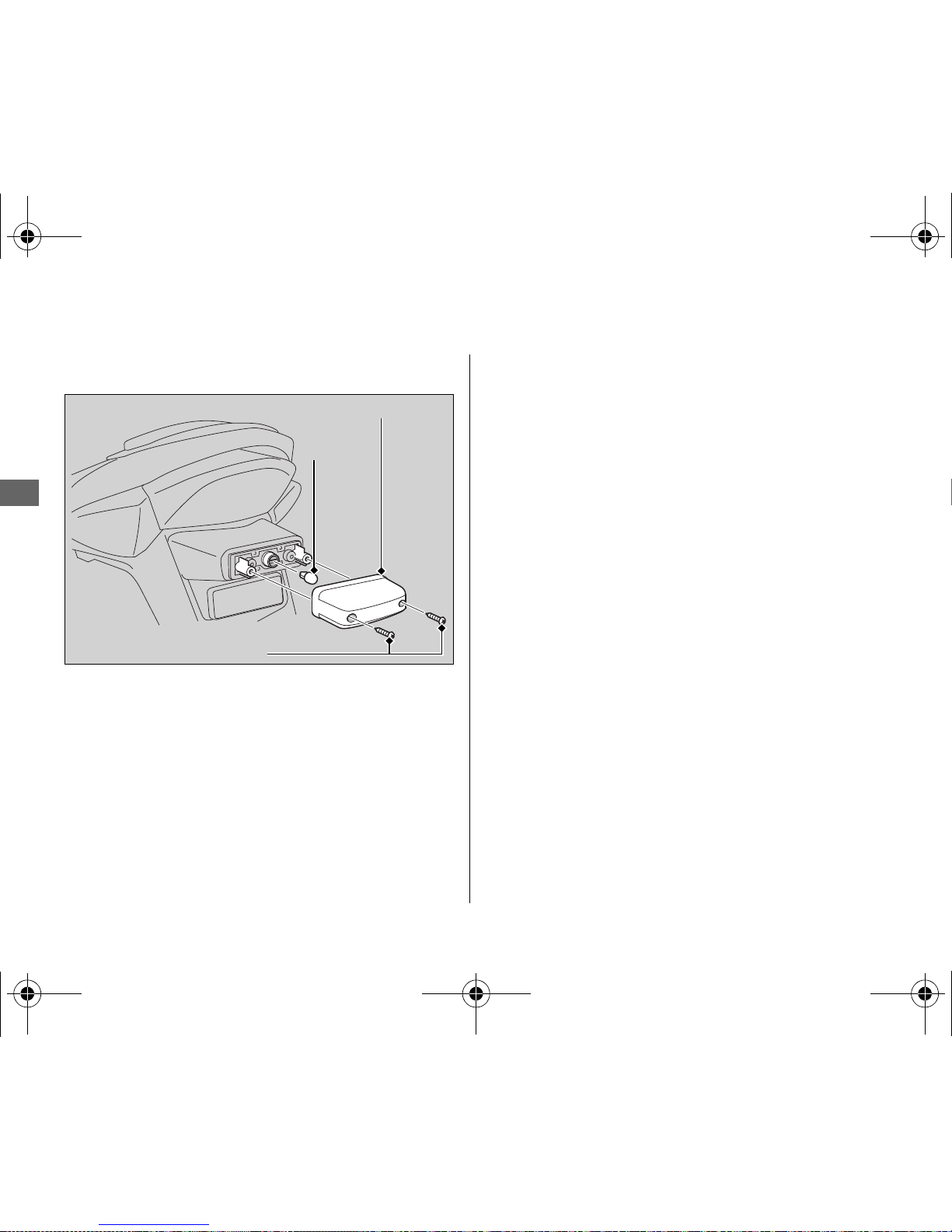

License Plate Light Bulb

1.

Remove the screws and license light
cover.

2.

Pull out the bulb without turning it.

3.

Install a new bulb and parts in the reverse
order of removal.

License light cover

Bulb

Screws

12 AFS110-32KWWH00.book 90 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Electrical Trouble u Blown Fuse

91

Troubleshooting

Blown Fuse

Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 43

❙

Fuse Box Fuses

1.

Open the seat. 2 P. 33

2.

Remove the battery cover. 2 P. 57

3.

Open the fuse box cover.

4.

Pull the main fuse and other fuses out
one by one and check for a blown fuse.
Always replace a blown fuse with a spare
of the same rating.

5.

Close the fuse box cover.

6.

Install the battery cover.

7.

Close the seat.

Fuse box
cover

Spare
fuses

Fuse box

12 AFS110-32KWWH00.book 91 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Information

Keys.............................................................P. 93

Instruments, Controls, & Other Features..P. 94

Fuels Containing Alcohol...........................P. 95

Catalytic Converter ....................................P. 96

Caring for Your Motorcycle.......................P. 97

Storing Your Motorcycle ...........................P. 99

Transporting Your Motorcycle ................P. 100

You & the Environment ...........................P. 101

Serial Numbers .........................................P. 102

12 AFS110-32KWWH00.book 92 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Keys

93

Information

Keys

Be sure to record the key number provided with
the original keys and record it in this manual.
Store the spare key in a safe location.
To make a duplicate, take the spare key or the
key number to your dealer.
If you lose all keys and the key number, the
ignition switch assembly will probably have to
be removed by your dealer to determine the key
number.

A metal key holder may cause damage to the
area surrounding the ignition switch.

Ignition key

12 AFS110-32KWWH00.book 93 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Instruments, Controls, & Other Features

94

Information

Instruments, Controls, &
Other Features

Leaving the ignition switch ON with the engine
stopped will drain the battery.

Do not turn the key while riding.

The owner’s manual, registration, and
insurance information can be stored in the
plastic document bag located reverse side of
the seat.

Ignition Switch

Document Bag

12 AFS110-32KWWH00.book 94 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Fuels Containing Alcohol

95

Information

Fuels Containing Alcohol

Some conventional fuels blended with alcohol
are available in some locales to help reduce
emissions to meet clean air standards. If you
plan to use blended fuel, check that it is
unleaded and meets the minimum octane
rating requirement.

The following fuel blends can be used in your
motorcycle:

● Ethanol (ethyl alcohol) 10% by volume (max).

● Petrol containing ethanol may be marketed

under the name Gasohol.

● Methanol (methyl alcohol) 5% by volume

(max) that contain cosolvents and corrosion
inhibitors to protect the fuel system. Never
use a blend containing more than 5%.

The use of petrol containing more than 10%
ethanol (or more than 5% methanol) may:

● Damage the painting of the fuel tank.

● Damage the rubber tubes of the fuel line.

● Cause corrosion of the fuel tank.

● Cause poor drivability.

If you notice any undesirable operating
symptoms or performance problems, try a
different brand of petrol.

NOTICE

Use of blended fuels containing higher than approved
percentages can damage metal, rubber, plastic parts of
your fuel system.

12 AFS110-32KWWH00.book 95 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Catalytic Converter

96

Information

Catalytic Converter

This motorcycle is equipped with a three-way
catalytic converter. The catalytic converter
contain precious metals that serve as catalysts in
high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gasses into safe compounds.

A defective catalytic converter contributes to air
pollution and can impair your engine’s
performance. A replacement unit must be an
original Honda part or equivalent.

Follow these guidelines to protect your
motorcycle’s catalytic converter.

● Always use unleaded petrol. Leaded petrol

will damage the catalytic converter.

● Keep the engine in good running condition.

● Have your motorcycle serviced if your engine

is misfiring, backfiring, stalling, or otherwise
not running properly, stop riding and turn off
the engine.

12 AFS110-32KWWH00.book 96 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th

Caring for Your Motorcycle

97

continued

Information

Caring for Your Motorcycle

Frequent cleaning and polishing is important to
ensure the long life of your Honda. A clean
motorcycle makes it easier to spot potential
problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your motorcycle
thoroughly after riding on coastal or treated
roads.

Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.

1.

Rinse your motorcycle thoroughly using a
garden hose to remove loose dirt.

2.

If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.

u Clean the headlight lens, panels, and other

plastic components with extra care to
avoid scratching them. Avoid directing

water into the air cleaner, muffler, and
electrical parts.

3.

Thoroughly rinse your motorcycle with plenty
of clean water and dry with a soft, clean
cloth.

4.

After the motorcycle dries, lubricate any
moving parts.

u Make sure that no lubricant spills onto the

brakes or tyres. Brake discs or pads
contaminated with oil suffer greatly
reduced braking effectiveness and can
cause a crash.

5.

Lubricate the drive chain immediately after
washing and drying the motorcycle.

6.

Apply a coat of wax to prevent corrosion.

u Avoid products that contain harsh

detergents or chemical solvents. These can
damage the metal, paint, and plastic on
your motorcycle.
Keep the wax clear of the tyres and brakes.

u If your motorcycle has any matte painted

parts, do not apply a coat of wax to the
matte painted surface.

Washing

12 AFS110-32KWWH00.book 97 ページ ２０１１年１０月２６日　水曜日　午後５時２２分

http://www.motorcycle.in.th
