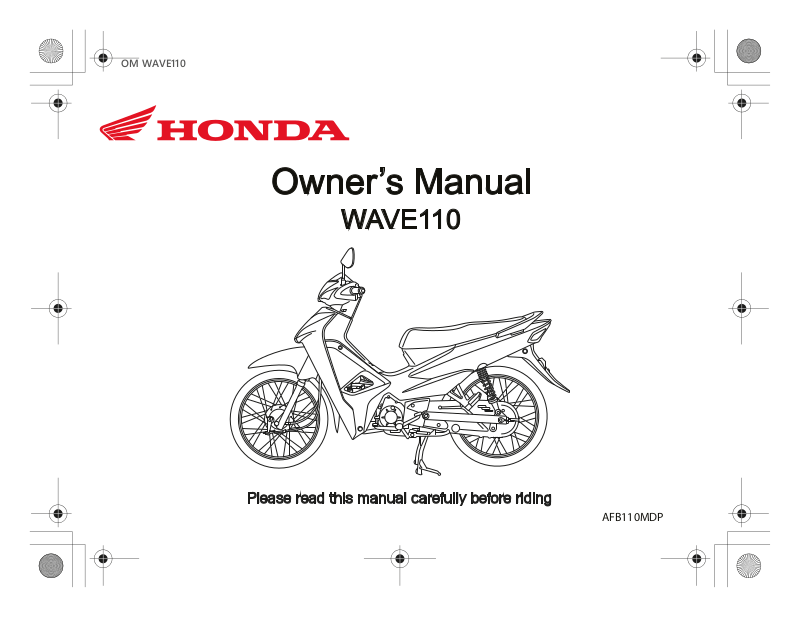

Owner’s Manual
WAVE110
Please read this manual carefully before riding
AFB110MDP
Customer Relation Section’s Information
N.C.X Company Co., Ltd pleased to inform that Our company has created Customer
Relation Section in order to help customer easier to contact to our company in case that
they have any inquiries or questions related with company such as Product, Services, or
another information.
CR Section will kindly provide the discussion, answering to all kind of inquiries, and all
customer doubts with our experienced and professional staffs.
How can you contact to CR Section?
Customer can contact to CR by the following:
Tel
E-mail
Working Hours
Working Days
: 010 922 922
: cr@ncxhonda.com.kh
: 08:00AM-05:00PM
: Every Monday to Saturday
(except National Holidays and
Company Holiday)
cr@ncxhonda.com
Honda Cambodia – NCX
f
www.ncxhonda.com
This manual should be considered a permanent part of the vehicle
and should remain with the vehicle when it is resold.
This publication includes the latest production information available
before printing. Honda Motor Co., Ltd. reserves the right to make
changes at any time without notice and without incurring any
obligation.
No part of this publication may be reproduced without written
permission.
The vehicle pictured in this owner’s manual may not match your
actual vehicle.
© 2022 Honda Motor Co., Ltd.
Welcome
Congratulations on your purchase of a new
Honda vehicle. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda's
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
vehicle.
● The following code in this manual
indicates the country.
Country Code
Code Country
AFB110MD
CA Cambodia
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this vehicle safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a vehicle. You must
use your own good judgement.
You will find important safety information in a
variety of forms, including:
● Safety labels on the vehicle
● Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your vehicle, other
property, or the environment.
Contents
Vehicle Safety P. 2
Operation Guide P. 16
Maintenance P. 36
Troubleshooting P. 69
Information P. 78
Specifications P. 90
Vehicle Safety
This section contains important information for safe riding of your vehicle.
Please read this section carefully.
Safety Guidelines................................................. P. 3
Image Labels......................................................... P. 6
Safety Precautions............................................... P. 9
Riding Precautions ............................................ P. 10
Accessories & Modifications........................... P. 13
Loading ................................................................ P. 14
Safety Guidelines
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flames
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved helmet and protective
apparel. 2 P. 9
Before Riding
Make sure that you are physically fit, mentally
focused, and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved helmet and protective apparel.
Instruct your passenger on holding onto the
grab rail or your waist, leaning with you in turns,
and keeping their feet on the footpegs, even
when the vehicle is stopped.
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice
riding in a safe area to become familiar with
how this vehicle works and handles, and to
become accustomed to the vehicle's size and
weight.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Continued
Vehicle Safety
3
Safety Guidelines
Make Yourself Easy to See
Vehicle Safety
Make yourself more visible, especially at night, by
wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using your
horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or faster
than conditions warrant. Fatigue and inattention
can impair your ability to use good judgement and
ride safely.
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one
alcoholic drink can reduce your ability to respond to
changing conditions, and your reaction time gets
worse with every additional drink. The same is true
for drug use. Don't drink or use and ride, and don't
let your friends do it either.
4
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly
maintained and in safe riding condition.
Inspect your vehicle before every ride and perform
all recommended maintenance. Never exceed load
limits (2 P. 14), and do not modify your vehicle or
install accessories that would make your vehicle
unsafe (2 P. 13).
If You are Involved in a Crash
Personal safety is your first priority. If you or anyone
else has been injured, take time to assess the severity
of the injuries and whether it is safe to continue
riding. Call for emergency assistance if needed. Also
follow applicable laws and regulations if another
person or vehicle is involved in the crash.
Safety Guidelines

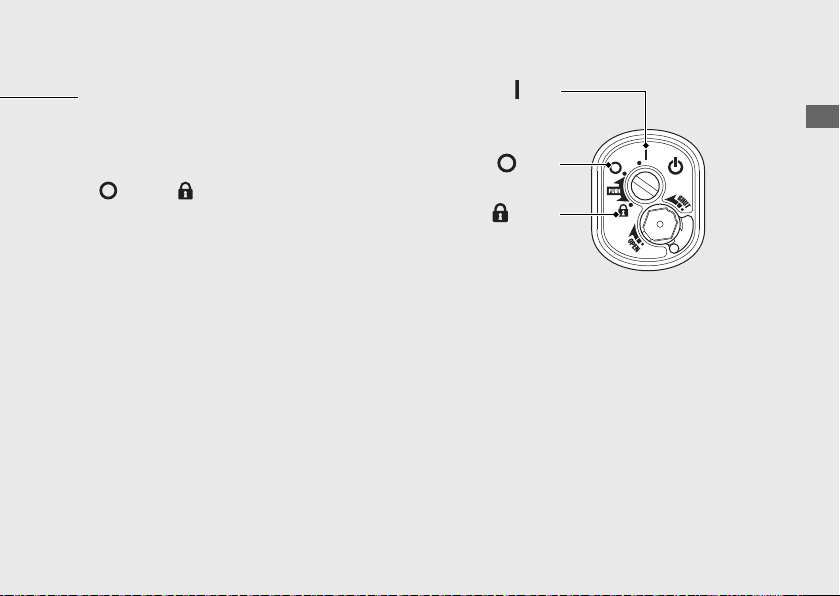

If you decide to continue riding, first turn the ignition
switch to the (Off) position, and evaluate the
condition of your vehicle. Inspect for fluid leaks,
check the tightness of critical nuts and bolts, and
check the handlebar, control levers, brakes, and
wheels. Ride slowly and cautiously.
Your vehicle may have suffered damage that is not
immediately apparent. Have your vehicle thoroughly
checked at a qualified service facility as soon as
possible.
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colourless, odorless gas. Breathing carbon monoxide
can cause loss of consciousness and may lead to
death.
If you run the engine in a confined or even partly
enclosed area, the air you breathe could contain a
dangerous amount of carbon monoxide.
Never run your vehicle inside a garage or other
enclosure.
3WARNING
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid buildup of toxic carbon monoxide gas.
Breathing this colourless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
Vehicle Safety
5
Image Labels
Image Labels
Vehicle Safety
The following pages describe the label
meanings. Some labels warn you of
potential hazards that could cause serious
injury. Others provide important safety
information. Read this information carefully
and don't remove the labels.
If a label comes off or becomes hard to
read, contact your dealer for a replacement.
There is a specific symbol on each label.
The meanings of each symbol and label are
as follows.
6
Read instructions contained in Shop Manual
carefully. In the interest of safety, take the
vehicle to be serviced only by your dealer.
Read instructions contained in Owner's
Manual carefully.
DANGER (with RED background)
You WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
WARNING (with ORANGE background)
You CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
CAUTION (with YELLOW background)
You CAN be HURT if you don't follow
instructions.
Image Labels
BATTERY LABEL
DANGER
• Keep flame and spark away from the battery. Battery
produce explosive gas that can cause explosion.
•
Wear the eye protection and rubber gloves when
handling the battery, or you can get burned or lose
your eyesight by the battery electrolyte.
• Do not allow children and other people to touch a
battery unless they understand proper handling and
hazards of the battery very well.
• Handle the battery electrolyte with extreme care as it
contains dilute sulfuric acid. Contact with your skin or
eyes can burn you or cause loss of your eyesight.
•
Read this manual carefully and understand it before
handling the battery. Neglect of the instructions can
cause personal injury and damage to the vehicle.
•
Do not use a battery with the electrolyte at or below the
lower level mark. It can explode causing serious injury.
Continued
Vehicle Safety
7
Image Labels
Vehicle Safety
8

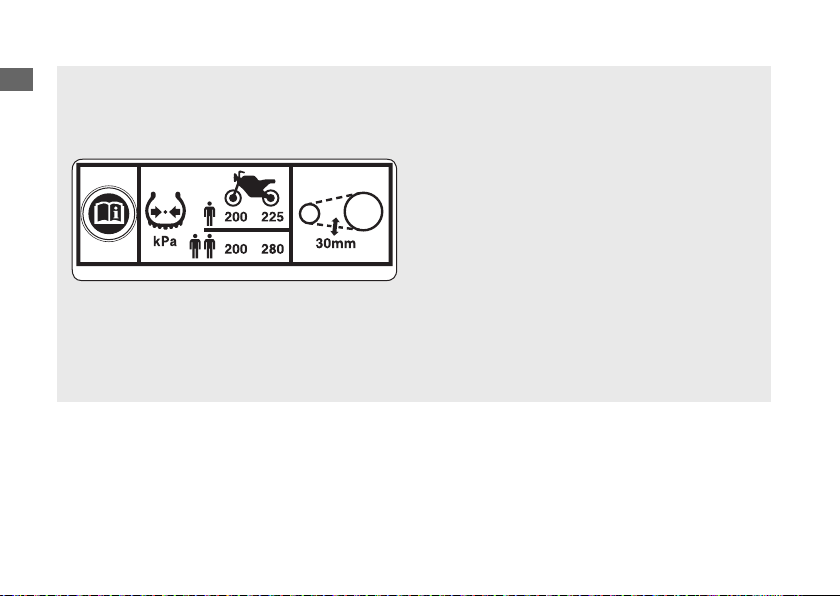

TYRE INFORMATION & DRIVE CHAIN LABEL
Cold tyre pressure:
[Driver only]
Front
200 kPa (2.00 kgf/cm2, 29 psi)
Rear
225 kPa (2.25 kgf/cm2, 33 psi)
[Driver and passenger]
Front
200 kPa (2.00 kgf/cm2, 29 psi)
Rear
280 kPa (2.80 kgf/cm2, 41 psi)
Keep chain adjusted and lubricated.
Freeplay 25 - 35 mm (1.0 - 1.4 in)
Safety Precautions
Safety Precautions
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
● Instruct your passenger to keep their hands
on the grab rail or your waist and their feet
on the footpegs while riding.
Always consider the safety of your passenger, as
●
well as other drivers and riders.
Protective Apparel
Make sure that you and any passenger are
wearing an approved helmet, eye protection, and
high-visibility protective clothing. Avoid wearing
loose clothes that could get caught on any part of
the vehicle. Ride defensively in response to
weather and road conditions.
Helmet
#
Safety-standard certified, high-visibility, correct size
for your head
●
Must fit comfortably but securely, with the
chin strap fastened
● Face shield with unobstructed field of vision or
other approved eye protection
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
Gloves
#
Full-finger leather gloves with high abrasion
resistance
Boots or Riding Shoes
#
Sturdy boots with non-slip soles and ankle
protection
Jacket and Trousers
#
Protective, highly visible, long-sleeved jacket and durable
trousers for riding (or a protective suit)
Vehicle Safety
9
Riding Precautions
Riding Precautions
Vehicle Safety
Running-in Period
During the first 500 km (300 miles) of running,
follow these guidelines to ensure your vehicle's
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking and
downshifting.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
10
● Exercise caution on low traction surfaces.
u The tyres slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
Riding Precautions
Engine Braking
#
Engine braking helps slow your vehicle down
when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
Wet or Rainy Conditions
#
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot move or
fall over.
● Make sure that high-temperature parts cannot
come into contact with flammable materials.
● Do not touch the engine, muffler, brakes and
other high-temperature parts until they cool
down.
● To reduce the likelihood of theft, always lock the
handlebar and remove the key and close the
shutter when leaving the vehicle unattended.
Use of an anti-theft device is also
recommended.
Parking with the Side Stand or Centre Stand
#
1.
Stop the engine.
2.
Using the side stand
Push the side stand down.
Slowly lean the vehicle to the left until its weight
rests on the side stand.
Continued
Vehicle Safety
11
Riding Precautions
Vehicle Safety

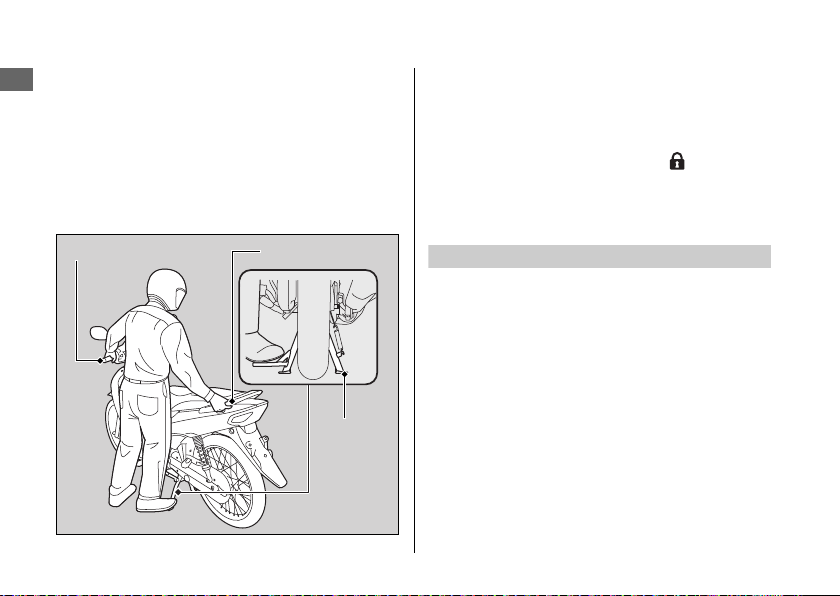

Using the centre stand
To lower the centre stand, stand on the left side
of the vehicle.
Hold the left handle grip and the grab rail.
Press down on the tip of the centre stand with
your right foot and, simultaneously, pull up and
back.
Left handle grip Grab rail
12
Centre
stand
3.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
vehicle to fall.
4.
Turn the ignition switch to the (Lock)
position (2 P. 24), remove the key and close
the shutter (2 P. 25).
5.
Turn the fuel valve to the OFF position.
Refuelling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded petrol.
● Use the recommended octane number.
Using lower octane petrol will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 88
● Do not use stale or contaminated petrol or
an oil/petrol mixture.
● Avoid getting dirt or water in the fuel tank.
Accessories & Modifications
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
for your vehicle by Honda or make
modifications to your vehicle from its original
design. Doing so can make it unsafe.
Modifying your vehicle may also void your
warranty and make your vehicle illegal to
operate on public roads. Before deciding to
install accessories on your vehicle, be certain
the modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your vehicle. Your vehicle was not designed for
these attachments, and their use can seriously
impair your vehicle's handling.
Vehicle Safety
13
Loading
Loading
Vehicle Safety
● Carrying extra weight affects your vehicle's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity / Maximum
luggage weight (P.90)
● Tie all luggage securely, evenly balanced,
and close to the centre of the vehicle.
● Do not place objects near the lights or the
muffler.
14
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Vehicle Safety
15
Basic Operation Flow
Pre-ride Inspection (P.41)
#
Operation Guide
16
Carefully inspect your vehicle to
make sure that it is safe to ride.
How to use basic features.
• Instruments (P.20)
• Indicators (P.21)
• Switches (P.22)
• Steering Lock (P.24)
• Shutter (P.25)
Starting the Engine (P.27)
#
Start and warm the engine.
Avoid revving the engine.
Acceleration
#
Apply throttle gradually.
Obey the speed limit.
Shift Change (P.30)
#
Before pulling away, indicate
your direction with the turn
signal switch, and check for
oncoming traffic.
Starting the
#
Vehicle
Braking
#
Stopping
#
If pulling off the road, signal early
enough to show traffic that you are
pulling over, and pull over smoothly.
Close the throttle and apply the
front and rear brakes together.
u The brakelight will indicate that
you have applied the brakes.
Turning Corners
#
Do your braking
before entering
corners.
Gradually reapply throttle
when exiting turn.
Parking (P.11)
#
Park on a firm level surface.
Use the stand, lock the
steering and close the shutter.
Refuelling (P.32)
#
Operation Guide
17

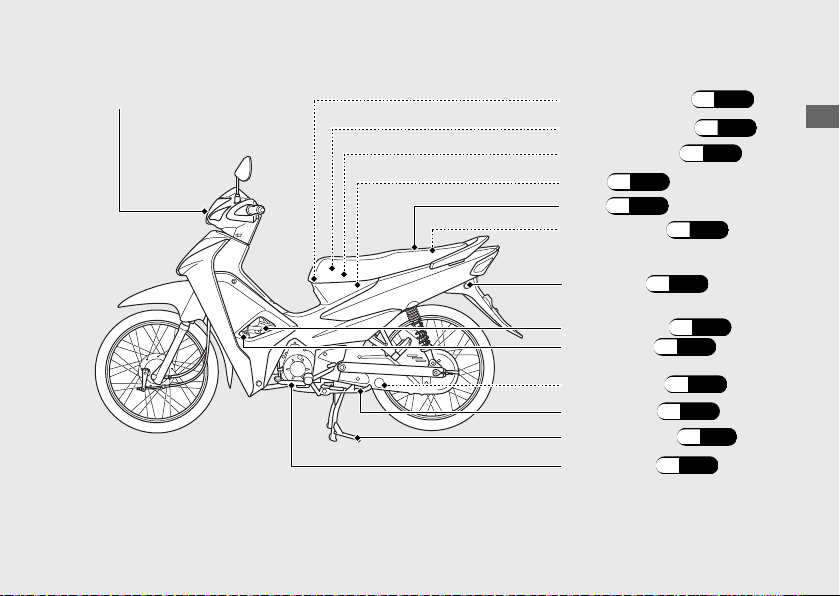

Parts Location
Operation Guide
18
Battery (P.52)
Fuse box (P.77)
Throttle grip (P.68)
Front brake lever (P.62)
Brakelight switch (P.64)
Engine oil fill cap/dipstick (P.56)
Kickstarter (P.28)
Headlight Helmet holder (P.34)
Document bag (P.35)
Luggage box (P.35)
Tool (P.35)
Seat (P.34)
Fuel fill cap (P.32)
Seat lock (P.34)
Choke lever (P.28)
Fuel valve (P.26)
Drive chain (P.66)
Side stand (P.65)
Centre stand (P.12)
Shift lever (P.30)
Operation Guide
19

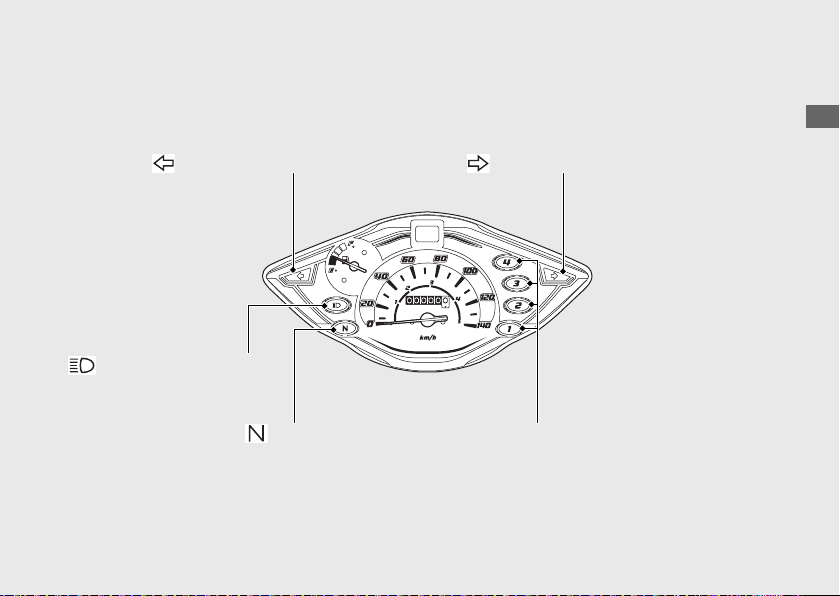

Instruments
Operation Guide
Speedometer
Gear range
Shows proper speed
range for each gear.
20
Fuel gauge
Needle in the red mark, remaining
fuel approximately 1.02 L (0.269 US
gal, 0.224 Imp gal).
Odometer
Total distance ridden.
Indicators
If one of these indicators does not come on when it should, have your dealer check for
problems.
Operation Guide
Left turn signal indicator
High beam indicator
Neutral indicator
Comes on when the
transmission is in Neutral.
Right turn signal indicator
Gear position indicators
Indicates 1st to 4th gear
position.
21
Switches
Operation Guide
u Pressing the switch turns the turn signal off.
Headlight dimmer switch
• : High beam
• : Low beam
22
Headlight switch
• : Headlight, taillight and
meter lights on.
• : Taillight and meter
lights on.
• : Headlight, taillight and
meter lights off.
Start button
Horn button
Turn signal switch
Ignition switch
Switches the electrical system on/off,
locks the steering.
u Key can be removed when in the
(Off) or (Lock) position.
(On)
Turns electrical system
on for starting/riding.
(Off)
Turns engine off.
(Lock)
Locks steering.
Operation Guide
Continued
23
Switches (Continued)
Steering Lock
Lock the steering when parking to help
Operation Guide
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
a
24
b
Push
Turn
Ignition key
Locking
#
a
Turn the handlebar all the way to the left or
right.
b
Push the key down, and turn the ignition
switch to the (Lock) position.
u Jiggle the handlebar if the lock is difficult
to engage.
c
Remove the key.
Unlocking
#
Insert the key, push it in, and turn the ignition
switch to the (Off) position.
Shutter
The ignition switch for this vehicle is
equipped with a shutter. After parking the
vehicle, close the shutter for theft prevention.
Knob
Close
Open
Close
Shutter key
Ignition key
Close
#
a
Remove the ignition key from the ignition
switch.
b
Align the projection of the shutter key with
the slot of the shutter, and turn the shutter
key counterclockwise.
u You can also close the shutter by moving
the knob upward without the shutter key.
c
Remove the key.
Open
#
Align the projection of the shutter key with
the slot of the shutter, and turn the shutter
key clockwise.
Operation Guide
Slot
Projection
25
Fuel Valve
The two-way fuel valve is used to control the
flow of fuel from the fuel tank to the
carburetor.
Operation Guide
ON OFF
ON: normal position for riding.
OFF: for parking, storing, or transportation.
26
Starting the Engine
Start your engine using the following
procedure.
c
e gbi
a
d
f
h
Operation Guide
e
To restart a warm engine, follow the
procedure for "High Air Temperature."
Continued
27
Starting the Engine (Continued)
NOTICE
• Extended fast idling and revving the engine
Operation Guide
28
can damage the engine and the exhaust
system.
• If the engine does not start within 5 seconds,
turn the ignition switch to the (Off)
position and wait 10 seconds before trying to
start the engine again to recover battery
voltage.
• Do not operate the kickstarter while the engine
is running as engine damage could result. Do
not apply excessive force on the kickstarter.
Fold up the kickstarter after the kickstarter is
•
returned to the pedal stop.
Normal Air Temperature 10 - 35ºC
(50 - 95ºF):
a
Make sure the fuel valve is in the ON position.
b
Turn the ignition switch to the (On) position.
c
Shift the transmission to Neutral (N indicator to
comes on).
d
Pull the choke lever up all the way to fully ON.
e
Using the start button
With the throttle slightly open, press the
start button.
Using the kickstarter
Lightly depress the kickstarter until
resistance is felt.
Then let the kickstarter return to the top
of its stroke.
With the throttle slightly open, operate
the kickstarter.
Kick from the top of the stroke through to
the bottom with a rapid,continuous
motion.
f
Immediately after the engine starts, push the
choke lever down to the halfway position.
g
Warm up the engine by opening and
closing the throttle slightly.
h
About a quarter minute after the engine
starts, push the choke lever down all the way
to fully OFF.
i
If idling is unstable, open the throttle slightly.
High Air Temperature 35°C (95°F) or
above:
a
Do not use the choke.
b
Using the start button
With the throttle slightly open, press the
start button.
Using the kickstarter
Lightly depress the kickstarter until
resistance is felt.
Then let the kickstarter return to the top of
its stroke.
With the throttle slightly open, operate the
kickstarter.
Kick from the top of the stroke through to
the bottom with a rapid, continuous
motion.
b
Warm up the engine by opening and closing
the throttle slightly.
c
Continue warming up the engine until it runs
smoothly and responds to the throttle when
the choke lever is at fully OFF.
If the engine does not start:
a
Turn the ignition switch to the (Off)
position.
b
Open the throttle fully.
c
Crank the engine several times with the
kickstarter.
d
Repeat the starting procedure.
e
If the engine starts, open the throttle slightly if
idling is unstable.
f
If the engine does not start, wait 10 seconds
before trying steps a-d again.
Operation Guide
Low Air Temperature 10°C (50°F) or
below:
a
Follow steps 1- 6 under “Normal Air
Temperature.”
If Engine Will Not Start (P.70
#
)
29
Shifting Gears
Your vehicle transmission has four forward
gears.
The gearshift operation differs when stopping
Operation Guide
and when moving.
When stopping, change can be made from
4th to neutral directly with the 4-step rotary
system.
When moving, the forward 4-step return
system is used.
Change cannot be made from 4th to neutral
directly.
u Always return the throttle grip first before
changing gear.
Operate lightly with the tips of your toes
u
until the shift lever is pushed down.
Avoid changing gear needlessly and riding
u
with your foot on the shift lever since this
may damage the gear change mechanism
and clutch mechanism.
30
Stopping
Moving
Proper shifting can prevent damaging the
engine and transmission.
Upshifting
The upper limit speed of each gear is shown
in gear range.
(P.20)
Upshift to a higher gear before exceeding
the upper limit speed.
Upshifting at speeds higher than the upper
limit speed can cause damage to the engine.
Downshifting
Downshifting at speeds higher than those in
the table below may overrev the engine and
can cause damage to the engine and
transmission.
Follow the table below when downshifting
the gears.
Downshifting Acceptable Speed
From 4th to 3rd 80 km/h (50 mph) or less
From 3rd to 2nd 55 km/h (34 mph) or less
From 2nd to 1st 30 km/h (19 mph) or less
Operation Guide
31
Refuelling
Fuel type: Unleaded petrol only
Fuel octane number: Your vehicle is
designed to use Research Octane Number
Operation Guide
(RON) 91 or higher.
Tank capacity: 3.7 L (0.98 US gal, 0.81 Imp gal)
Lower edge of
filler neck
Fuel fill cap
Refuelling and Fuel Guidelines (P.12
#
Opening the Fuel Fill Cap
a
Open the seat. (P.34)
b
Turn the fuel fill cap counterclockwise until it
stops and remove the fuel fill cap.
32
)
Do not fill with fuel above the lower edge of
the filler neck.
Arrow marks
Closing the Fuel Fill Cap
a
Install and tighten the fuel fill cap firmly by
turning it clockwise.
u Make sure that the arrow marks on the
fuel fill cap and fuel tank is aligned.
b
Close the seat.
3WARNING
Petrol is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flames away.
• Only handle fuel outdoors.
•
Wipe up spills immediately.
Operation Guide
33
Storage Equipment
Helmet holders
Operation Guide
Seat lock
Ignition key

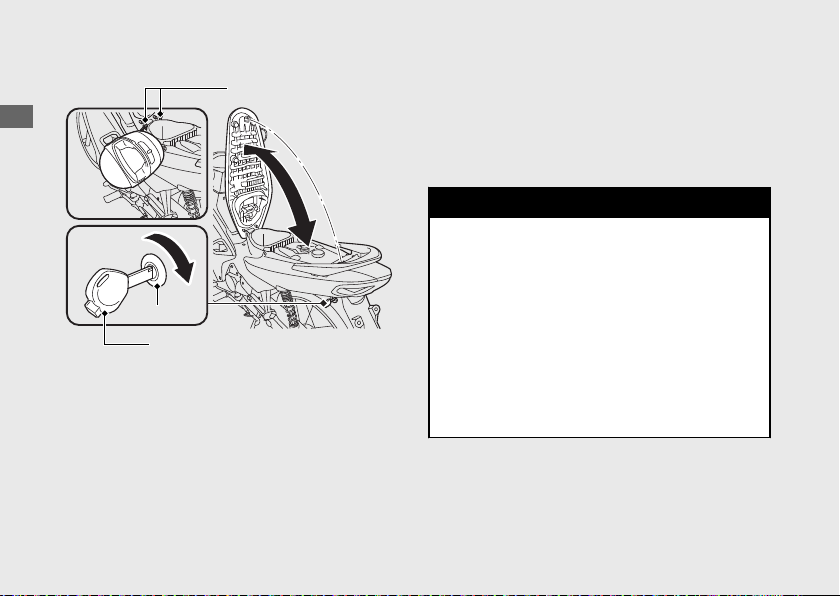

To open the seat
Insert the ignition key into the seat lock and
turn it clockwise to unlock.
To close the seat
Close and push down on the rear of the seat
until it locks. Make sure that the seat is locked
securely to pull it up lightly.
34
Helmet Holder
The helmet holders are located under the
seat.
u Use the helmet holders only when parked.
3WARNING
Riding with a helmet attached to the
holder can interfere with your ability to
safely operate the vehicle and could
lead to a crash in which you can be
seriously hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Luggage Box
Never exceed the maximum weight limit.
Maximum Weight: 5 kg (11 lb)
u Do not store any items that are flammable
or susceptible to heat damage.
u Do not store valuables or fragile articles.
Document Bag
The document bag is in the document
compartment in the reverse side of the seat.
Document compartment
Document
bag
Luggage box
Tool
The tools are in the luggage box.
Tools
Operation Guide
35
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
Importance of Maintenance ........................... P. 37
Maintenance Schedule..................................... P. 38
Maintenance Fundamentals ...........................P. 41
Tools ..................................................................... P. 51
Removing & Installing Body Components..P. 52
Battery.................................................................... P. 52
Headlight Case..................................................... P. 54
Engine Oil ............................................................ P. 56
Brakes................................................................... P. 58
Side Stand ........................................................... P. 65
Drive Chain.......................................................... P. 66
Throttle ................................................................P. 68
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your vehicle
before each ride and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 38
3WARNING
Improperly maintaining your vehicle or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
Maintenance Safety
Always read the maintenance instructions
before you begin each task and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
●
Stop the engine and remove the key.
●
Place your vehicle on a firm, level surface
using the side stand, centre stand or a
maintenance stand to provide support.
●
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
●
Run the engine only when instructed, and
do so in a well-ventilated area.
Maintenance
37
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to ensure
safe, dependable performance, and proper
emission control.
Maintenance
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. Keep an accurate record of
maintenance to help ensure that your vehicle is
properly maintained.
Make sure that whomever performs the
maintenance completes this record.
38
All scheduled maintenance is considered a
normal owner operating cost and will be
charged to you by your dealer. Retain all
receipts. If you sell the vehicle, these receipts
should be transferred with the vehicle to the
new owner.
Honda recommends that your dealer should
road test your vehicle after each periodic
maintenance is carried out.

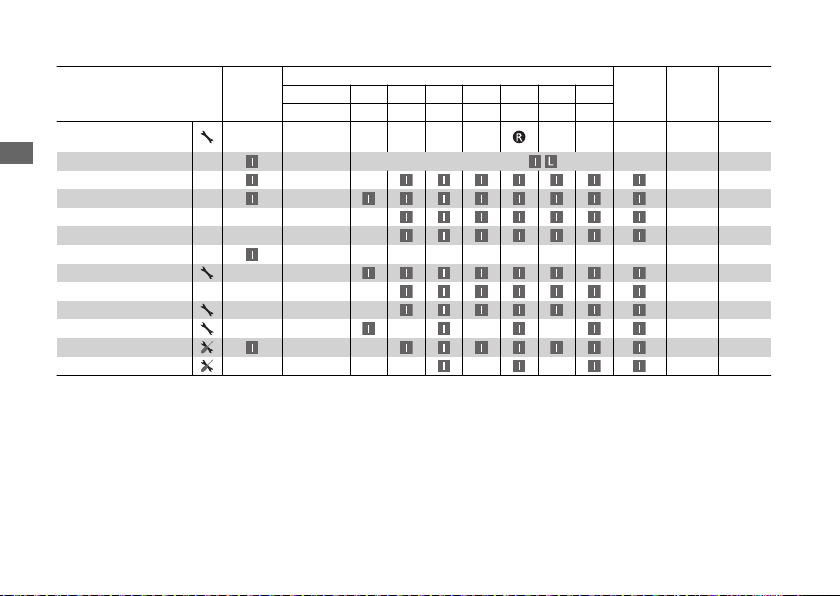

Maintenance Schedule
*1
Items
Fuel Line –
Fuel Level –
Fuel Strainer Screen –
Throttle Operation 68
Air Cleaner
Crankcase Breather
Spark Plug –
Valve Clearance –
Engine Oil 56
Engine Oil Strainer
Screen
Engine Oil Centrifugal
Filter
Engine Idle Speed –
Secondary Air Supply
System
*2
*3
Pre-ride
Check
× 1,000 km 1 6 12 18 24 30 36
2 P. 41
× 1,000 mi 0.6 4 8 12 16 20 24
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are
mechanically skilled.
Procedures are provided in an official Honda Shop Manual.
: Technical. In the interest of safety, have your vehicle
serviced by your dealer.
Frequency
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
:
Clean
:
Lubricate
:
Replace
Annual
Check
Regular
Replace
Refer to
page
Maintenance
–
–
–
–
–
Continued
39
Maintenance Schedule
*1
Items
Secondary Air Supply
*4
Pair Filter
Drive Chain
Maintenance
Brake Shoes Wear 63
Brake System 58
Brakelight Switch 64
Headlight Aim –
Lights/Horn –
Clutch System –
Side Stand 65
Suspension –
Nuts, Bolts, Fasteners –
Wheels/Tyres 48
Steering Head Bearings –
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : Replacement requires mechanical skill.
Pre-ride
Check
× 1,000 km 1 6 12 18 24 30 36
2 P. 41
× 1,000 mi 0.6 4 8 12 16 20 24
Frequency
Every 500 km (300 mi):
Annual
Check
40
Regular
Refer to
Replace
3 years –
page
66
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A preride inspection is a must, not only for safety, but
because having a breakdown, or even a flat
tyre, can be a major inconvenience.
Check the following items before you get on
your vehicle:
● Fuel level - Fill fuel tank when necessary
2 P. 32
●
Throttle - Check for smooth opening and
full closing in all steering positions 2 P. 68
●
Engine oil level - Add engine oil if necessary.
Check for leaks 2 P. 56
●

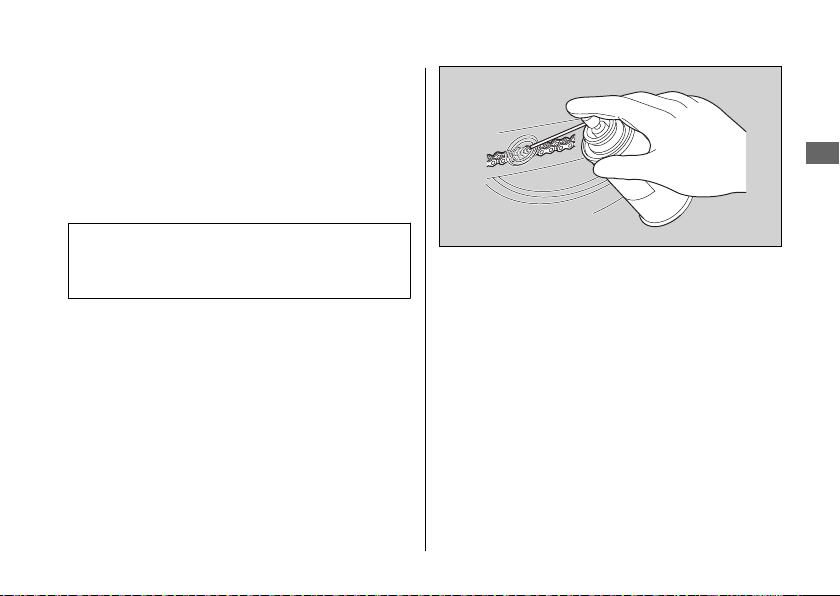

Drive chain - Check condition and slack,
adjust and lubricate if necessary 2 P. 66
● Brakes - Check operation;
Front and Rear: check shoes wear and
freeplay, adjust if necessary 2 P. 63, 2 P. 59,
2 P. 58
● Lights and horn - Check that lights,
indicators and horn function properly
● Wheels and tyres - Check condition, air
pressure and adjust if necessary 2 P. 48
Maintenance
41
Maintenance Fundamentals
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
Maintenance
3WARNING
Installing non-Honda parts may make
your vehicle unsafe and cause a crash in
which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your vehicle.
42
Battery
Your vehicle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
Your battery is a maintenance-free type and can
be permanently damaged if the cap strip is
removed.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
What to do in an emergency
#
If any of the following occur, immediately see
your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
Electrolyte splashes onto your skin:
●
u Remove affected clothing and wash your
skin thoroughly using water.
Electrolyte splashes into your mouth:
●
u Rinse mouth thoroughly with water, and
do not swallow.
Maintenance Fundamentals
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
Cleaning the Battery Terminals
#
1.
Remove the battery. 2 P. 52
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
Maintenance
Continued
43
Maintenance Fundamentals
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
Maintenance
4.
After cleaning, reinstall the battery.
Fuses
Fuses protect the electrical circuits on your
vehicle. If something electrical on your vehicle
stops working, check for and replace any blown
fuses. 2 P. 77
Inspecting and Replacing Fuses
#
Turn the ignition switch to the (Off) position
to remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 92
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
44
Blown fuse
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your vehicle inspected by
your dealer.
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil or
old oil should be changed as soon as possible.
Selecting the Engine Oil
#
For recommended engine oil, see
“Specifications.” 2 P. 91
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
●
JASO T 903 standard*1: MA
● SAE standard
● API classification
*2
: 10W-30
*3
: SJ or higher
Maintenance Fundamentals
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
Oil code
Oil classification
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SJ or higher
oils, excluding oils marked as “Energy Conserving”
or “Resource Conserving” on the circular API
service symbol.
Not recommended Recommended
Maintenance
45
Maintenance Fundamentals
Drive Chain
The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
Maintenance
high speed, or ride with repeated fast
acceleration. 2 P. 66
If the chain does not move smoothly, makes
strange noises, has damaged rollers, has loose
pins, or has kinks, have the chain inspected by
your dealer.
Also inspect the drive sprocket and driven
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
46
Normal
(GOOD)
NOTICE
Use of a new chain with worn sprockets will cause
rapid chain wear.
Worn
(REPLACE)
Damaged
(REPLACE)
Cleaning and Lubricating
#
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use a
dry cloth with high flash-point solvent. Use a
soft brush if the chain is dirty.
After cleaning, wipe dry and lubricate with the
recommended lubricant.
Recommended lubricant:
Drive chain lubricant
If not available, use SAE 80 or 90 gear oil.
Maintenance Fundamentals
Maintenance
Never use petrol or low flash point solvents for
cleaning the drive chain.
A fire or explosion could result.
Avoid getting lubricant on the brakes or tyres.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the vehicle.
47
Maintenance Fundamentals

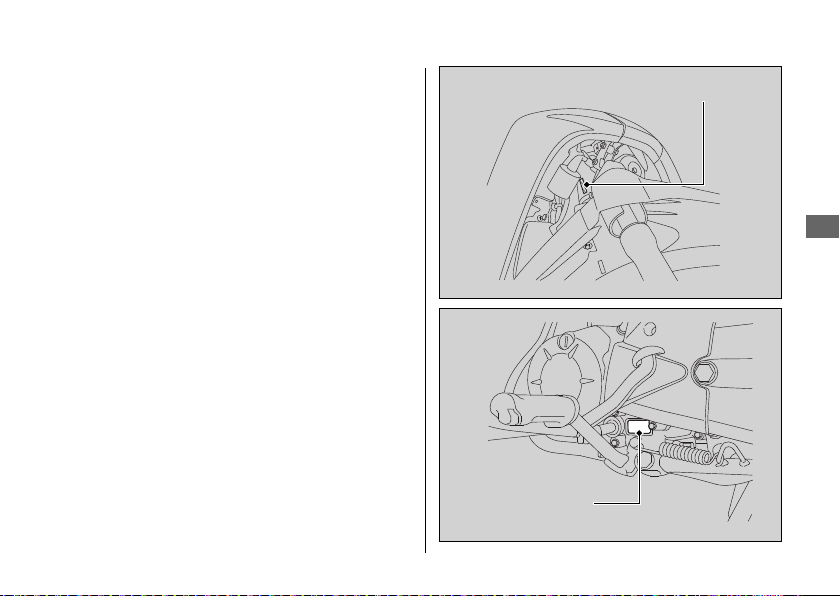

Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the vehicle is washed or
overturned. Service if the deposit level can be
Maintenance
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil, causing
poor engine performance.
Tyres (Inspecting/Replacing)
Checking the Air Pressure
#
Visually inspect your tyres and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tyres look low. Always check air pressure when
your tyres are cold.
48
Inspecting for Damage
#
Inspect the tyres for
cuts, slits, or cracks that
expose fabric or cords,
or nails or other
foreign objects
embedded in the side
of the tyre or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tyres.
Inspecting for Abnormal Wear
#
Inspect the tyres for
signs of abnormal wear
on the contact surface.
Inspecting Tread Depth
#
Inspect the tread wear indicators. If they
become visible, replace the tyres immediately.
or TWI
Wear indicator
location mark
Maintenance Fundamentals
3WARNING
Riding on tyres that are excessively
worn or improperly inflated can cause a
crash in which you can be seriously hurt
or killed.
Follow all instructions in this owner's
manual regarding tyre inflation and
maintenance.
Maintenance
Continued
49
Maintenance Fundamentals
Have your tyres replaced by your dealer.
For recommended tyres and air pressure, see
“Specifications.” 2 P. 91
Follow these guidelines whenever you replace
tyres:
Maintenance
● Use the recommended tyres or their
equivalents of the same size, construction,
speed rating, and load range.
● Remember to replace the inner tube
whenever you replace a tyre. The old tube
will probably be stretched, and it could fail if
installed in a new tyre.
50
3WARNING
Installing improper tyres on your
vehicle can adversely affect handling
and stability, and can cause a crash in
which you can be seriously hurt or
killed.
Always use the size and type of tyres
recommended in this owner's manual.
Tools
The tools are stored in the luggage box. 2 P. 35
You can perform some roadside repairs, minor
adjustments and parts replacement with the
provided tools.
● Spark plug wrench
● 10 x 14 mm Open end wrench
● Standard/Phillips screwdriver
● Screwdriver handle
Maintenance
51
Removing & Installing Body Components
Battery
Screws
Battery cover
Maintenance
52
Negative terminal
Positive terminal
Battery
Removing & Installing Body Components u Battery
Removal
#
Make sure the ignition switch is in the
(Off) position.
1.
Open the seat. 2 P. 34
Remove the battery cover by removing
2.
the screws.
3.
Disconnect the negative - terminal from
the battery.
4.
Disconnect the positive + terminal from
the battery.
Remove the battery, taking care not to
5.
drop the terminal nuts.
Installation
#
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure bolts and nuts are
tight.
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 42
“Battery Goes Dead.” 2 P. 72
Maintenance
53
Removing & Installing Body Components u Headlight Case

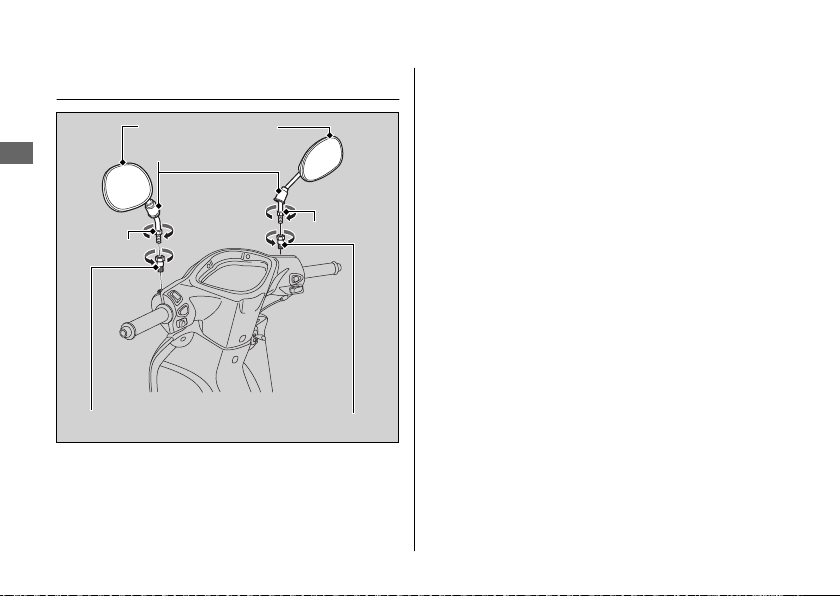

Headlight Case
Rearview mirrors
Maintenance
Lock nut
Mirror adapter Mirror adapter
54
Rubber dust covers
Lock nut
Removal
#
1.
Pull up the rubber dust covers.
2.
Loosen the lock nuts by turning clockwise.
Loosen the rearview mirrors and remove
3.
them by turning them clockwise until they
will no longer turn.
4.
Loosen the mirror adapters by turning
counterclockwise and remove them.
Headlight case
Boss
Boss Screws A
Rear handle cover
Screw B
Connector
Screws A
5.
Remove the screws A and screw B.
6.
Release the bosses by pressing the rear
handle cover.
7.
Remove the headlight case and
disconnect the connector.
Removing & Installing Body Components u Headlight Case
Installation
#
Install the parts in the reverse order of
removal.
u To install the rearview mirrors.
1.
Install the mirror adapters.
2.
Install the rearview mirrors by turning
counterclockwise until they will no longer
turn.
3.
Loosen the rearview mirrors
approximately 2 turns.
4.
Adjust the rearview mirrors.
5.
Tighten the lock nuts and install the
rubber dust covers.
Maintenance
55
Engine Oil

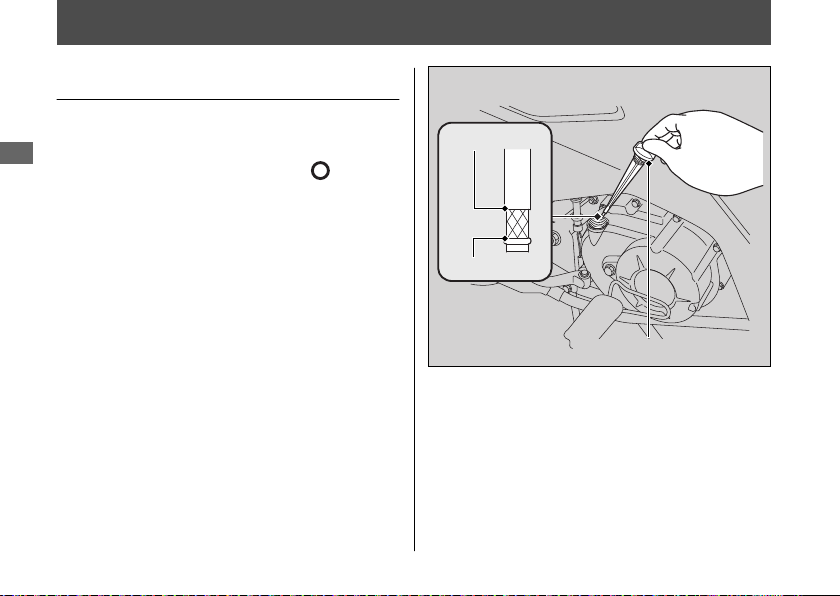

Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
Maintenance
to 5 minutes.
2.
Turn the ignition switch to the (Off)
position and wait for 2 to 3 minutes.
3.
Place your vehicle on its centre stand on a
firm, level surface.
Remove the oil fill cap/dipstick and wipe it
4.
clean.
5.
Insert the oil fill cap/dipstick until it seats,
but don't screw it in.
Check that the oil level is between the
6.
upper level and lower level marks on the
oil fill cap/dipstick.
7.
Securely install the oil fill cap/dipstick.
56
Upper level
Lower level
Oil fill cap/dipstick
Engine Oil u Adding Engine Oil
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 45, 2 P. 91
1.
Remove the oil fill cap/dipstick. Add the
recommended oil until it reaches the
upper level mark.
u Place your vehicle on its centre stand
on a firm, level surface when checking
the oil level.
Do not overfill above the upper level
u
mark.
u
Make sure no foreign objects enter the
oil filler opening.
Wipe up any spills immediately.
u
2.
Securely reinstall the oil fill cap/dipstick.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil. They may
affect lubrication and clutch operation.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 45
Maintenance
57
Brakes
Inspecting the Rear Brake
Pedal Freeplay
1.
Maintenance
Place your vehicle on its centre stand on a
firm, level surface.
Measure the distance the rear brake
2.
pedal moves before the brake takes hold.
Freeplay at the tip of the brake pedal:
20 - 30 mm (0.8 - 1.2 in)
58
Rear brake pedal
Freeplay
Make sure the brake rod, brake arm, spring
and fastener are in good condition.
Inspecting the Front Brake
Lever Freeplay
1.
Place your vehicle on its centre stand on a
firm, level surface.
Measure the distance the front brake
2.
lever moves before the brake takes hold.
Freeplay at the tip of the brake lever:
10 - 20 mm (0.4 - 0.8 in)
Brakes u Inspecting the Front Brake Lever Freeplay
Freeplay
Maintenance
Check the brake cable for kinks or signs of
wear. If necessary, have it replaced by your
dealer.
Lubricate the brake cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
Make sure the brake arm, spring and fastener
are in good condition.
59
Brakes u Adjusting the Rear Brake Pedal Freeplay
Adjusting the Rear Brake Pedal
Freeplay
Make sure the cut-out on the adjusting nut is
Maintenance
seated on the brake arm pin when adjusting
the freeplay.
Adjusting nut
Brake arm pin
If proper adjustment cannot be obtained by
this method, see your dealer.
60
Decrease
Freeplay
Adjusting nut
1.
Adjust by turning the rear brake adjusting
nut a half-turn at a time.
2.
Apply the brake several times and check
for free wheel rotation after the brake
pedal is released.
Brake arm pin
Increase
Freeplay
3.
Push the brake arm to confirm that there
is a gap between the rear brake adjusting
nut and brake arm pin.
Brake arm
Brake arm pin
GapAdjusting nut
Brakes u Adjusting the Rear Brake Pedal Freeplay
After adjustment, confirm the freeplay of the
brake pedal.
Make sure the brake rod, brake arm, spring
and fastener are in good condition.
Maintenance
NOTICE
Do not turn the adjuster beyond its natural limits.
Push
61
Brakes u Adjusting the Front Brake Lever Freeplay
Adjusting the Front Brake Lever
Freeplay
Adjust the freeplay of the brake lever with the
Maintenance
front wheel pointed straight ahead.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting the
freeplay.
Adjusting
nut
Decrease
Freeplay
Adjusting nut
If proper adjustment cannot be obtained by this
method, see your dealer.
62
Brake arm pin
Brake arm pin
Increase
Freeplay
Adjust by turning the front brake adjusting
1.
nut a half-turn at a time.
Apply the brake several times and check for
2.
free wheel rotation after the brake lever is
released.
Push the brake arm to confirm that there is a
3.
gap between the front brake adjusting nut
and brake arm pin.
Brakes u Inspecting the Brake Shoe Wear
Brake arm
Push
Brake arm
pin
GapAdjusting nut
After adjustment, confirm the freeplay of the
brake lever.
Make sure the brake arm, spring and fastener
are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
Inspecting the Brake Shoe
Wear
The front and rear brake are equipped with a
brake wear indicator.
Front
Arrow
Reference
mark
Brake panel
Brake arm
Continued
Maintenance
63
Brakes u Adjusting the Brakelight Switch
Rear
Brake panel
Arrow
Maintenance
Reference
mark
Brake arm
When the brake is applied, an arrow attached to
the brake arm moves toward a reference mark
on the brake panel. If the arrow aligns with the
reference mark on full application of the brake,
the brake shoes must be replaced.
See your dealer for this service.
When brake service is necessary, see your
dealer. Use only Honda Genuine Parts or
their equivalent.
64
Adjusting the Brakelight Switch
Check the operation of the brakelight switch.
Hold the brakelight switch and turn the
adjusting nut in the direction A if the switch
operates too late, or turn the nut in the
direction B if the switch operates too soon.
Brakelight switch
B A
Adjusting nut
Side Stand
Checking the Side Stand
Side stand spring
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
Maintenance
65
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
Maintenance
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
Shift the transmission to Neutral. Stop the
1.
engine.
2.
Place your vehicle on its centre stand on a
firm, level surface.
66
Inspection hole cap
3.
Remove the inspection hole cap.
4.
Move the drive chain up and down with
your finger.
Drive chain slack:
25 - 35 mm (1.0 - 1.4 in)
u Do not ride your vehicle if the slack
exceeds 50 mm (2.0 in).
Drive Chain u Inspecting the Drive Chain Slack
6.
Remove the chain covers by removing the
bolts.
Maintenance
Rotate the rear wheel and check that the
5.
chain moves smoothly.
Bolts
7.
Inspect the sprockets. 2 P. 46
8.
Clean and lubricate the drive chain. 2 P. 47
9.
Install the parts in the reverse order of
Chain covers
removal.
10.
Install the chain covers and tighten the
bolts.
Torque: 7 N·m (0.7 kgf·m, 5.2 lbf·ft)
67
Throttle

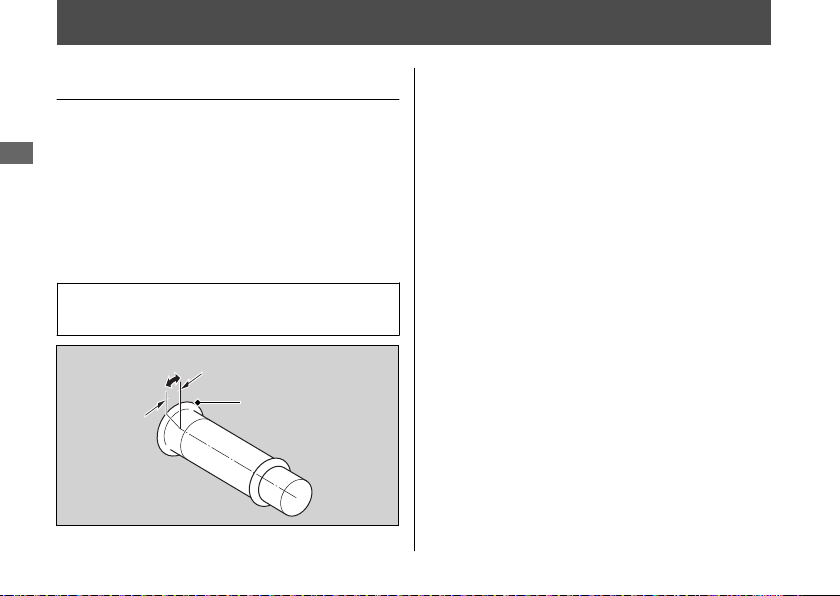

Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
Maintenance
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly or close automatically, or if
the cable is damaged, have the vehicle
inspected by your dealer.
Freeplay at the throttle grip flange:
2 - 6 mm (0.1 - 0.2 in)
Freeplay
Flange
68
Troubleshooting
Engine Will Not Start........................................ P. 70
Tyre Puncture ..................................................... P. 71
Electrical Trouble............................................... P. 72
Battery Goes Dead .............................................. P. 72
Burned-out Light Bulb........................................ P. 72
Blown Fuse ............................................................ P. 77
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
Troubleshooting
sequence. 2 P. 27
Check that there is petrol in the fuel tank.
●
70
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 27
Check for a blown fuse. 2 P. 77
●
● Check for a loose battery connection
(2 P. 52) or battery terminal corrosion
(2 P. 42).
● Check the condition of the battery.
2 P. 72
If the problem continues, have your vehicle
inspected by your dealer.
Tyre Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tyre inspected/replaced by your dealer.
Tube Repair and Replacement
If a tube is punctured or damaged, you
should replace it as soon as possible. A tube
that is repaired may not have the same
reliability as a new one, and it may fail while
you are riding.
If you need to make a temporary repair by
patching a tube or using an aerosol sealant,
ride cautiously at reduced speed and have
the tube replaced before you ride again.
Anytime a tube is replaced, the tyre should
be carefully inspected as described.
3WARNING
Riding your vehicle with a temporary
tyre or tube repair can be risky. If the
temporary repair fails, you can crash
and be seriously injured or killed.
Troubleshooting
If you must ride with a temporary tyre
or tube repair, ride slowly and carefully
and do not exceed 50 km/h (30 mph)
until the tyre or tube is replaced.
71
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the vehicle before
charging.
Troubleshooting
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your vehicle's electrical system and is
not recommended.
72
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the (Off) or
(Lock) position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.” 2 P. 92
Headlight Bulb
#
TOP mark
Connector
Pin
Bulb
Rubber dust cover
Electrical Trouble u Burned-out Light Bulb
1.
Remove the headlight case. 2 P. 54
2.
Disconnect the connector.
Remove the rubber dust cover.
3.
Slightly press down on the pin and turn it
4.
clockwise until it releases from the
headlight bulb housing.
5.
Remove the bulb.
6.
Install a new bulb in the reverse order of
removal.
u
Install the rubber dust cover with its
TOP mark facing up.
7.
Install the remaining parts in the reverse
order of removal.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
alcohol.
Troubleshooting
Continued
73
Electrical Trouble u Burned-out Light Bulb
Brakelight/Taillight Bulb
#
Tabs
Troubleshooting
Bulb
Screws
Brakelight/taillight lens
1.
Remove the brakelight/taillight lens by
removing the screws and releasing the
tabs.
74
2.
Slightly press the bulb in and turn it
counterclockwise.
3.
Install a new bulb in the reverse order of
removal.
4.
Install the remaining parts in the reverse
order of removal.
Front Turn Signal Bulb
#
Bulb
Socket
" "marks
Electrical Trouble u Burned-out Light Bulb
1.
Remove the headlight case. 2 P. 54
2.
Turn the socket counterclockwise and pull
it out.
Pull out the bulb without turning it.
3.
4.
Install a new bulb in the reverse order of
removal.
u Install the socket by turning it
clockwise. Make sure that the “ ”
marks on the socket and front turn
signal housing are aligned
u
Use only the amber bulb.
5.
Install the remaining parts in the reverse
order of removal.
Troubleshooting
Continued
75
Electrical Trouble u Burned-out Light Bulb
Rear Turn Signal Bulb
#
Troubleshooting
76
Bulb
1.
Remove the brakelight/taillight lens.
2 P. 74
Remove the rear turn signal lens by
2.
releasing the tab.
3.
Pull out the bulb without turning it.
4.
Install a new bulb and parts in the reverse
order of removal.
Electrical Trouble u Blown Fuse
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 44
Fuse Box Fuses
#
Open the seat. 2 P. 34
1.
Remove the battery cover 2 P. 52
2.
3.
Open the fuse box covers.
4.
Pull out the fuses one by one to check for
a blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
Spare fuses are provided on back side
u
of the battery cover.
Close the fuse box covers.
5.
Install the battery cover.
6.
Close the seat.
7.
Battery cover
Spare fuses
Fuse box covers
Sub fuse
Main
fuse
Fuse boxes
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your vehicle inspected
by your dealer.
Troubleshooting
77
Information
Keys....................................................................... P. 79
Instruments, Controls, & Other Features..... P. 80
Caring for Your Vehicle.................................... P. 81
Storing Your Vehicle.........................................P. 84
Transporting Your Vehicle ..............................P. 85
You & the Environment.................................... P. 86
Serial Numbers................................................... P. 87
Fuels Containing Alcohol................................. P. 88
Catalytic Converter ...........................................P. 89
Keys
Ignition Key
Be sure to record the key number provided with
the original keys. Store the spare key and key
number in a safe location.
To make a duplicate, take the spare key or the
key number to your dealer.
If you lose all ignition keys and the key number,
the ignition switch assembly will probably have
to be removed by your dealer to determine the
key number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
Keys
Information
79
Instruments, Controls, & Other Features
Instruments, Controls, &
Other Features
Ignition Switch
Leaving the ignition switch in the (On) position
with the engine stopped will drain the battery.
Information
Do not turn the key while riding.
Odometer
The odometer resets to 0 when the odometer
mileage exceeds 99,999.9.
80
Document Bag
The owner's manual, registration, and insurance
information can be stored in the plastic
document bag located reverse side of the seat.
Caring for Your Vehicle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean vehicle
makes it easier to spot potential problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your vehicle thoroughly
after riding on coastal or treated roads.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your vehicle thoroughly using a low
pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the headlight lens, panels, and
other plastic components with extra care
to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
Caring for Your Vehicle
3.
Thoroughly rinse your vehicle with plenty of
clean water and dry with a soft, clean cloth.
4.
After the vehicle dries, lubricate any moving
parts.
u Make sure that no lubricant spills onto
the brakes or tyres. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the vehicle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These
can damage the metal, paint, and plastic
on your vehicle.
Keep the wax clear of the tyres and
brakes.
u If your vehicle has any mat painted parts,
do not apply a coat of wax to the mat
painted surface.
Information
Continued
81
Caring for Your Vehicle
Washing Precautions
#
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u Water in the air intake can be drawn into
Information
the carburetor and/or enter the air
cleaner.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
● Do not direct water under the seat:
u Water in the under seat compartment
can damage your documents and other
belongings.
82
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
u
Any condensation inside the headlight
should dissipate after a few minutes of
running the engine with the headlight(s)
on.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
●
Do not use wax or polishing compounds on
mat painted surfaces:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean mat
painted surfaces. Dry with a soft clean
cloth.
Caring for Your Vehicle
Aluminium Components
Aluminium will corrode from contact with dirt,
mud, or road salt. Clean aluminium parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty
of water.
● Avoid getting petrol or detergents on the
instruments, panels, or headlight.
Exhaust Pipe and Muffler
If the exhaust pipe and muffler are painted, do
not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
Information
83
Storing Your Vehicle
Storing Your Vehicle
If you store your vehicle outdoors, you should
consider using a full-body cover.
If you won't be riding for an extended period,
follow these guidelines:
● Wash your vehicle and wax all painted
Information
surfaces (except mat painted surfaces). Coat
chrome pieces with rust-inhibiting oil.
● Lubricate the drive chain. 2 P. 46
● Place your vehicle on its centre stand and
position a block so that both tyres are off
the ground.
●
After rain, remove the body cover and allow
the vehicle to dry.
●
Remove the battery (2 P. 52) to prevent
discharge. Fully charge the battery and then
place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
84
After removing your vehicle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
Transporting Your Vehicle
If your vehicle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform and motorcycle tie-down
straps. Never try to tow your vehicle with a
wheel or wheels on the ground.
NOTICE
Towing your vehicle with a wheel or wheels on
the ground can cause serious damage to the
transmission.
Transporting Your Vehicle
Information
85
You & the Environment
You & the Environment
Owning and riding a vehicle can be enjoyable,
but you must do your part to protect the
environment.
Choose Sensible Cleaners
Information
Use a biodegradable detergent when you wash
your vehicle. Avoid aerosol spray cleaners that
contain chlorofluorocarbons (CFCs) which
damage the atmosphere's protective ozone
layer.
86
Recycle Wastes
Put oil and other toxic wastes in approved
containers and take them to a recycling centre.
Call your local or state office of public works or
environmental services to find a recycling centre
in your area and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash or pour it down a
drain or on the ground. Used oil, petrol, and
cleaning solvents contain poisons that can hurt
refuse workers and contaminate drinking water,
lakes, rivers, and oceans.
Serial Numbers
Serial Numbers
The frame and engine serial numbers uniquely
identify your vehicle and are required in order
to register your vehicle. They may also be
required when ordering replacement parts.
You should record these numbers and keep
them in a safe place.
Frame number
Information
Engine number
87
Fuels Containing Alcohol
Fuels Containing Alcohol
Some conventional fuels blended with alcohol
are available in some locales to help reduce
emissions to meet clean air standards. If you
plan to use blended fuel, check that it is
unleaded and meets the minimum octane
rating requirement.
Information
The following fuel blends can be used in your
vehicle:
● Ethanol (ethyl alcohol) up to 10% by volume.
u Petrol containing ethanol may be
marketed under the name Gasohol.
88
The use of petrol containing more than 10%
ethanol may:
● Damage the painting of the fuel tank.
● Damage the rubber tubes of the fuel line.
● Cause corrosion of the fuel tank.
● Cause poor drivability.
NOTICE
Use of blended fuels containing higher than
approved percentages can damage metal,
rubber, plastic parts of your fuel system.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of petrol.
Catalytic Converter
Catalytic Converter
This vehicle is equipped with a three-way
catalytic converter. The catalytic converter
contains precious metals that serve as catalysts
in high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gases into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine's
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your vehicle's
catalytic converter:
● Always use unleaded petrol. Leaded petrol
will damage the catalytic converter.
● Keep the engine in good running condition.
● Have your vehicle serviced if your engine is
misfiring, backfiring, stalling, or otherwise
not running properly, stop riding and turn
off the engine.
Information
89
Specifications
■ Main Components
Overall length 1,914 mm (75.4 in)
Overall width 688 mm (27.1 in)
Overall height 1,075 mm (42.3 in)
Wheelbase 1,224 mm (48.2 in)
Minimum ground clearance 142 mm (5.6 in)
Caster angle 26° 30’
Trail 68 mm (2.7 in)
Curb weight 97 kg (214 lb)
Maximum weight capacity *1115 kg (254 lb)
Maximum luggage weight *25 kg (11 lb)
Specifications
Passenger capacity Rider and 1 passenger
Minimum turning radius 1.90 m (6.2 ft)
*1 : Including rider, passenger, all luggage, and accessories
*2 : Includes the weight of the luggage and added accessories.
90
Displacement 109.17 cm3 (6.659 cu-in)
Bore x stroke 50.000 x 55.597 mm (1.9685 x 2.1889 in)
Compression ratio 9.0 : 1
Fuel
Fuel containing
alcohol
Tank capacity 3.7 L (0.98 US gal, 0.81 Imp gal)
Battery
Gear ratio
Reduction ratio
(primary / final)
Unleaded petrol
Recommended: 91 RON or higher
ETHANOL up to 10% by volume
WTZ4V or PTZ4V or
GTZ4V or YTZ4V
12 V-3 Ah (10 HR)
1st 2.615
2nd 1.555
3rd 1.136
4th 0.916
4.059 / 2.500
Specifications
■ Service Data
Tyre size
Tyre type Bias-ply, tube
Recommended
Tyre
Tyre air pressure
Spark plug (standard)
Spark plug gap 0.8 - 0.9 mm (0.03 - 0.04 in)
Idle speed 1,400 ± 100 rpm
Recommended
engine oil
Front 70/90-17M/C 38P
Rear 80/90-17M/C 50P
Front CHENG SHIN C-6016
Rear CHENG SHIN C-6016R
Front
Rear
Honda 4-stroke motorcycle oil API Service
Classification SJ or higher, excluding oils
marked as “Energy Conserving” or “Resource
Conserving,” SAE 10W-30, JASO T 903
standard MA
[Driver only]
200 kPa (2.00 kgf/cm2, 29 psi)
[Driver and passenger]
200 kPa (2.00 kgf/cm2, 29 psi)
[Driver only]
225 kPa (2.25 kgf/cm2, 33 psi)
[Driver and passenger]
280 kPa (2.80 kgf/cm2, 41 psi)
CPR6EA-9S (NGK) or
U20EPR9S (DENSO)
After
Engine oil capacity
Recommended
drive chain
lubricant
Drive chain slack 25 - 35 mm (1.0 - 1.4 in)
Standard drive
chain
Standard sprocket
size
draining
After
disassembly
Drive chain lubricant
If not available, use SAE 80 or 90 gear oil.
DID420NSD
KMC420JB
RK420EL1
No. of links 102
Drive sprocket 14T
Driven sprocket 35T
0.8 L (0.8 US qt, 0.7 Imp qt)
1.0 L (1.1 US qt, 0.9 Imp qt)
Specifications
91
Specifications
■ Bulbs
Headlight 12 V-35/35 W
Brakelight/Taillight 12 V-18/5 W
Front turn signal 12 V-10 W × 2
Rear turn signal 12 V-10 W × 2
■ Fuses
Main fuse 10 A
Other fuse 7.5 A
Specifications
92
■ Torque Specifications
Chain cover bolt 7 N·m (0.7 kgf·m, 5.2 lbf·ft)
4PK89D10
00X4P-K89-D100
cr@ncxhonda.com
Honda Cambodia – NCX
f
www.ncxhonda.com
Loading...
