Honda VTR1000F 98-03 Service Manual

Specifications and Main Features

  • Ratio Decompression: 9.4:1

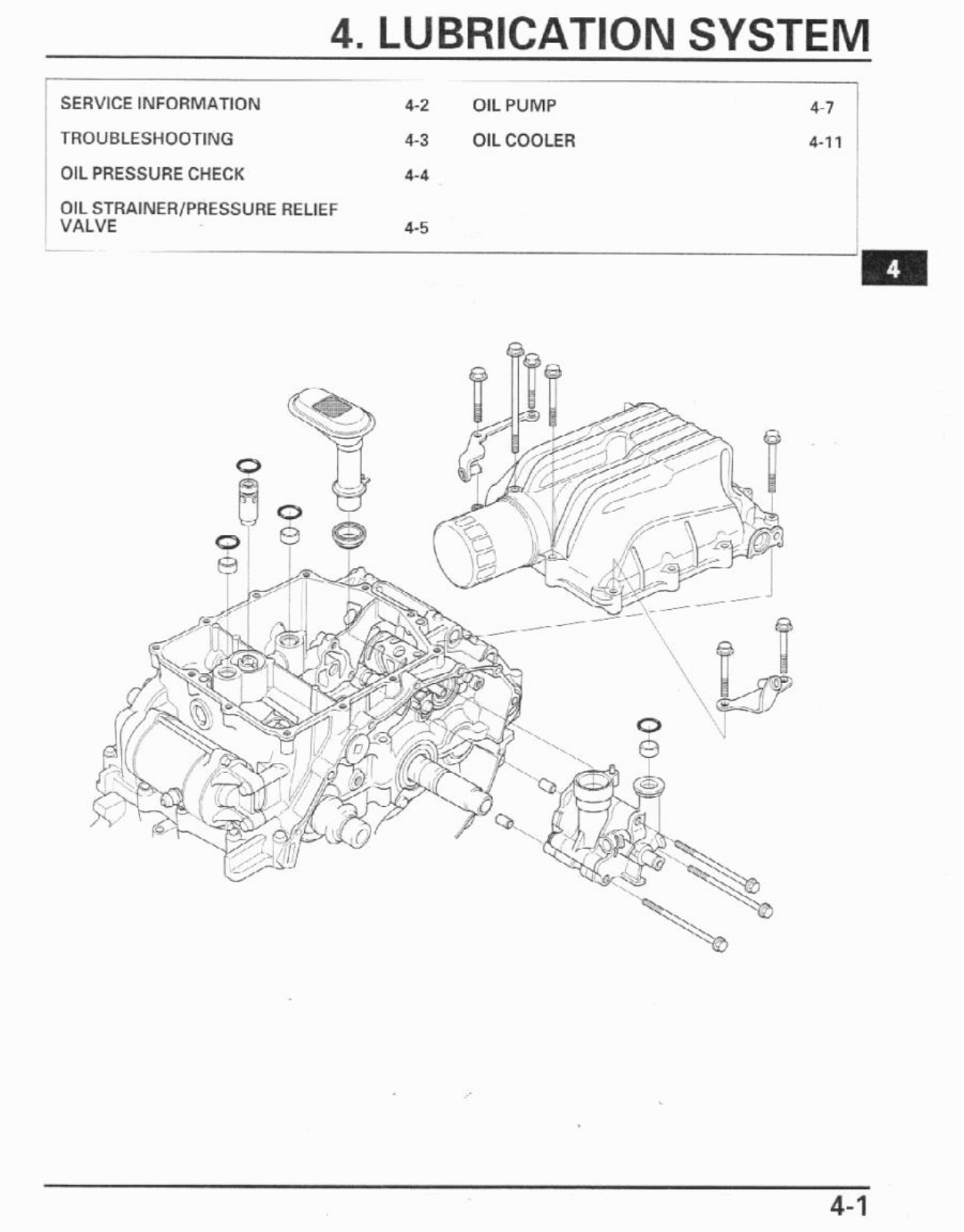

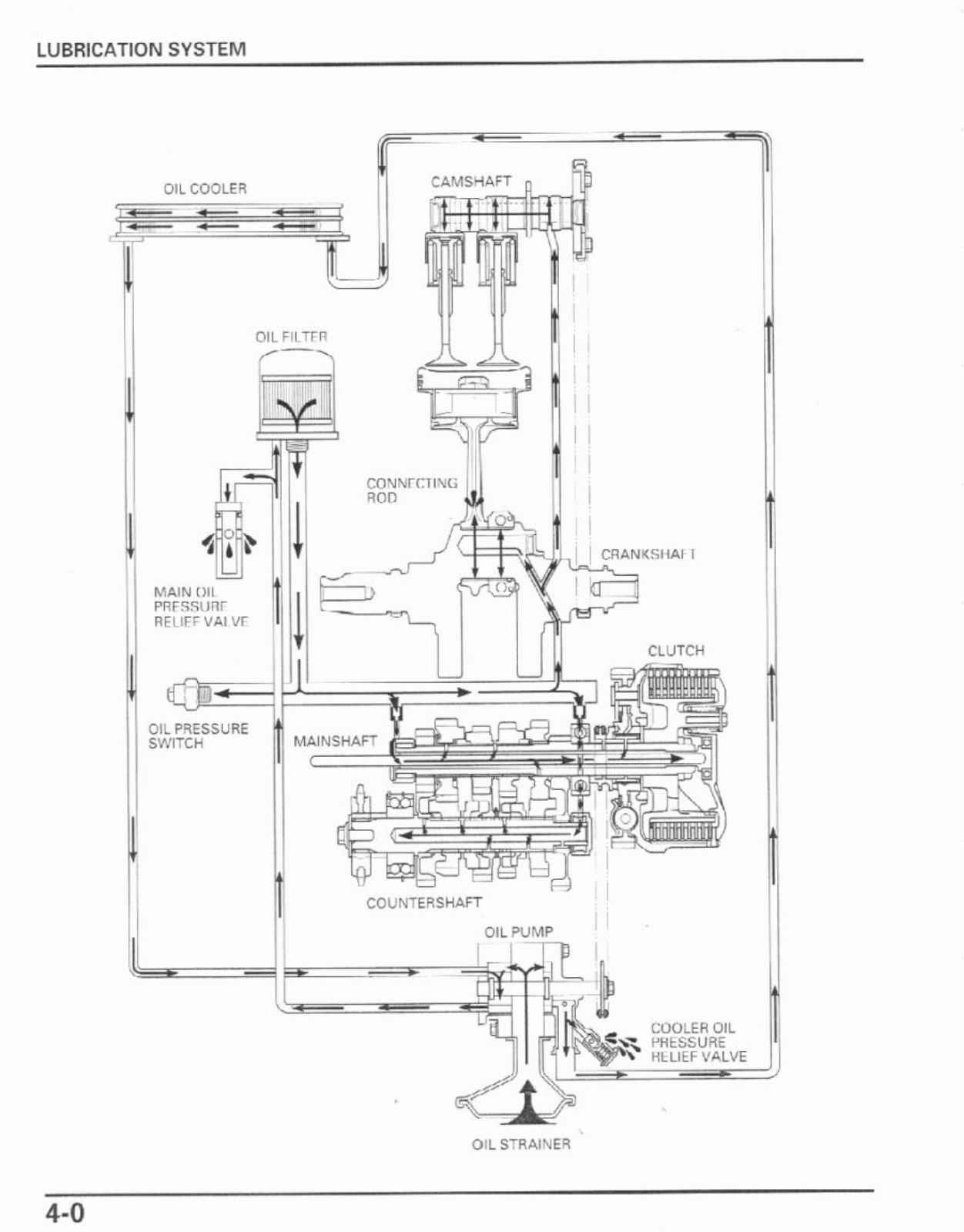

  • System of Lubrication: Forced action pressure and wet sump

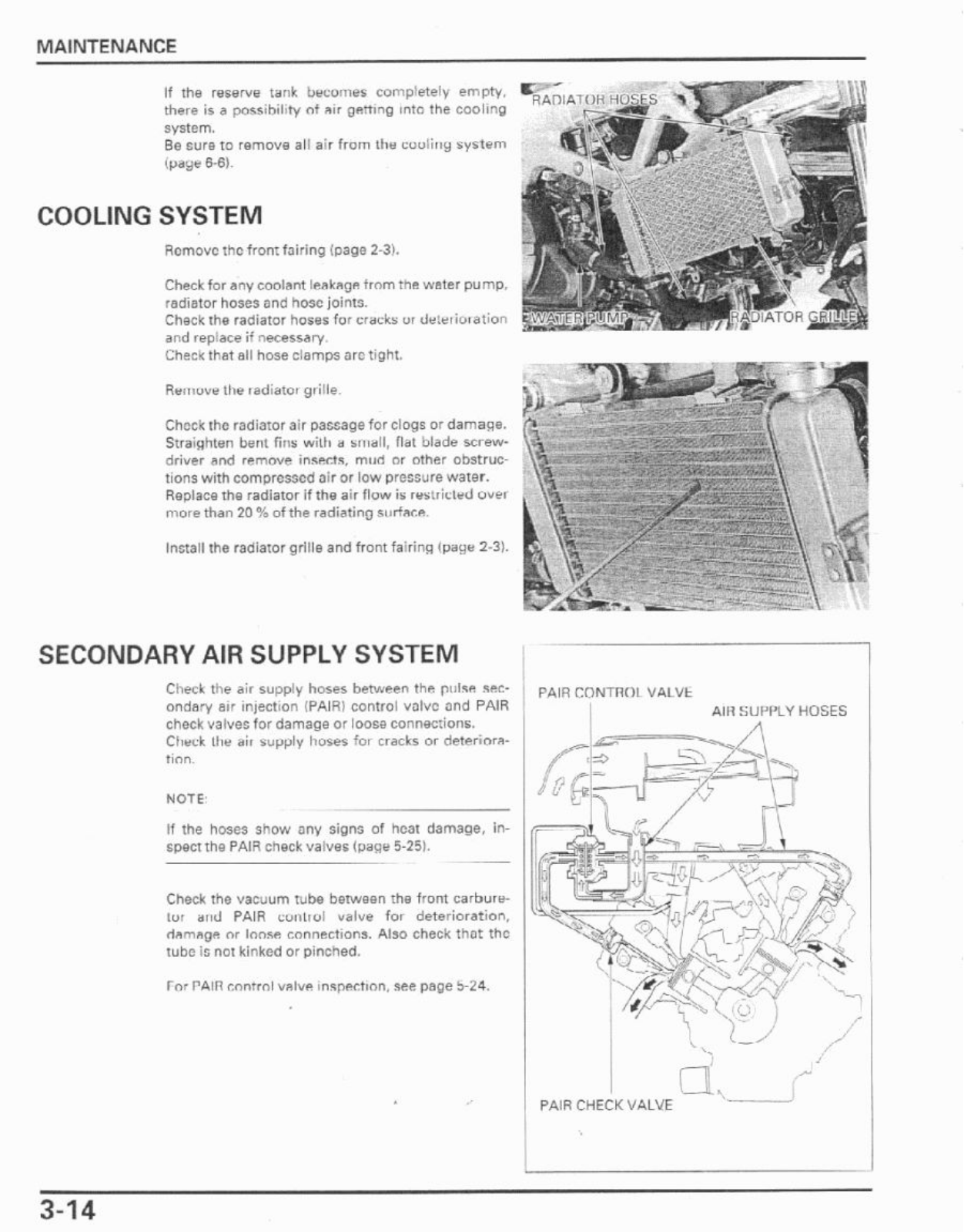

  • System of Cooling: Cooled Liquid

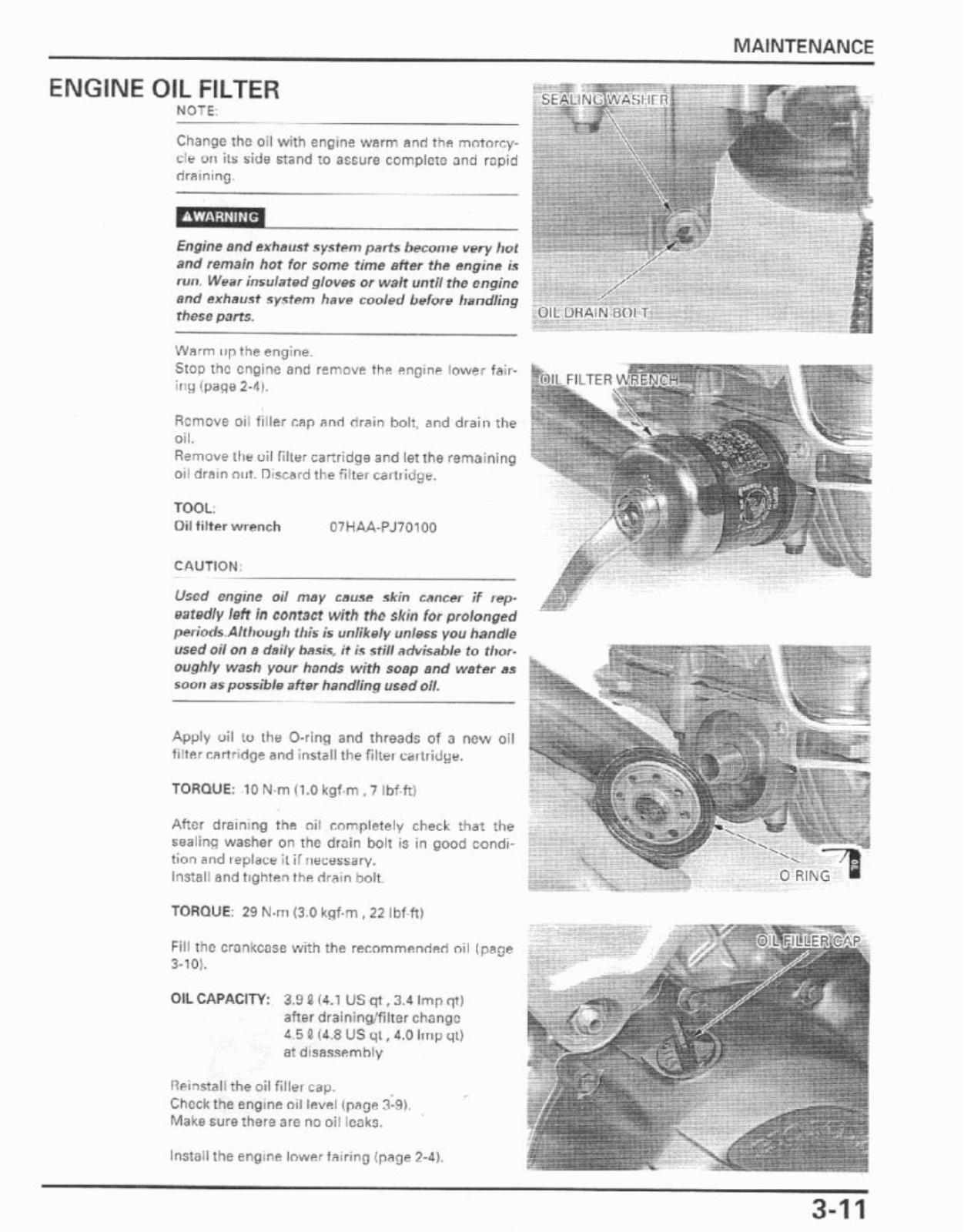

  • Engine Oil Recommended: Note: Honda GN4 oil for 4 stroke engines or similar
  • Oil Capacity (after draining): 3.7-3.9 qt(US)3.3 qt(imp)

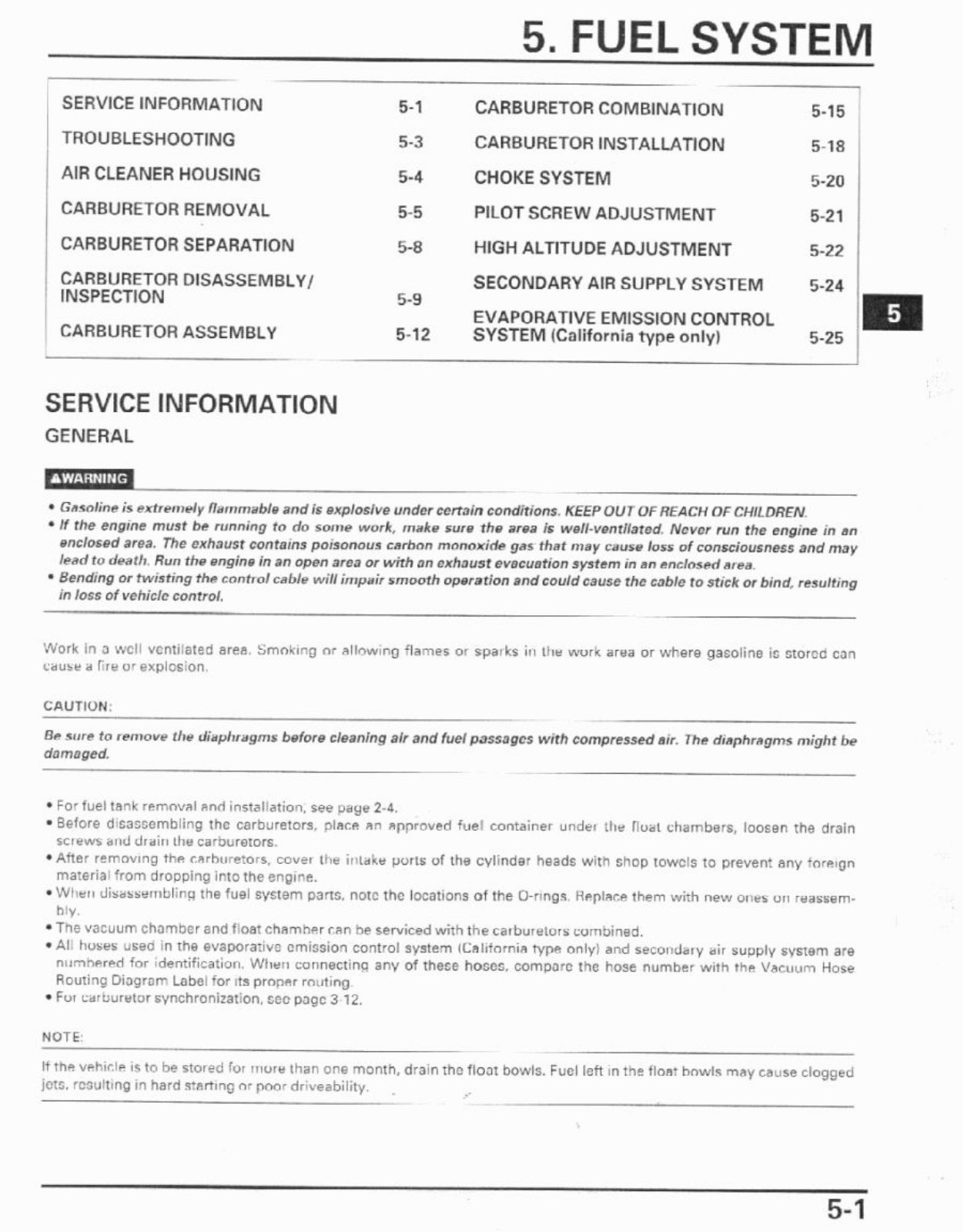

  • Type Of Fuel Recommended: Gasoline lead free

Electrical System:

  • System of Ignition: DC-CDI
  • System of Starting: Starter electric motor
  • Battery sizes: 12 V-10 Ah

---

Frequently Asked Questions

Q: Which kind of fuel should I have for the automobile?

A: Unleaded petrol.

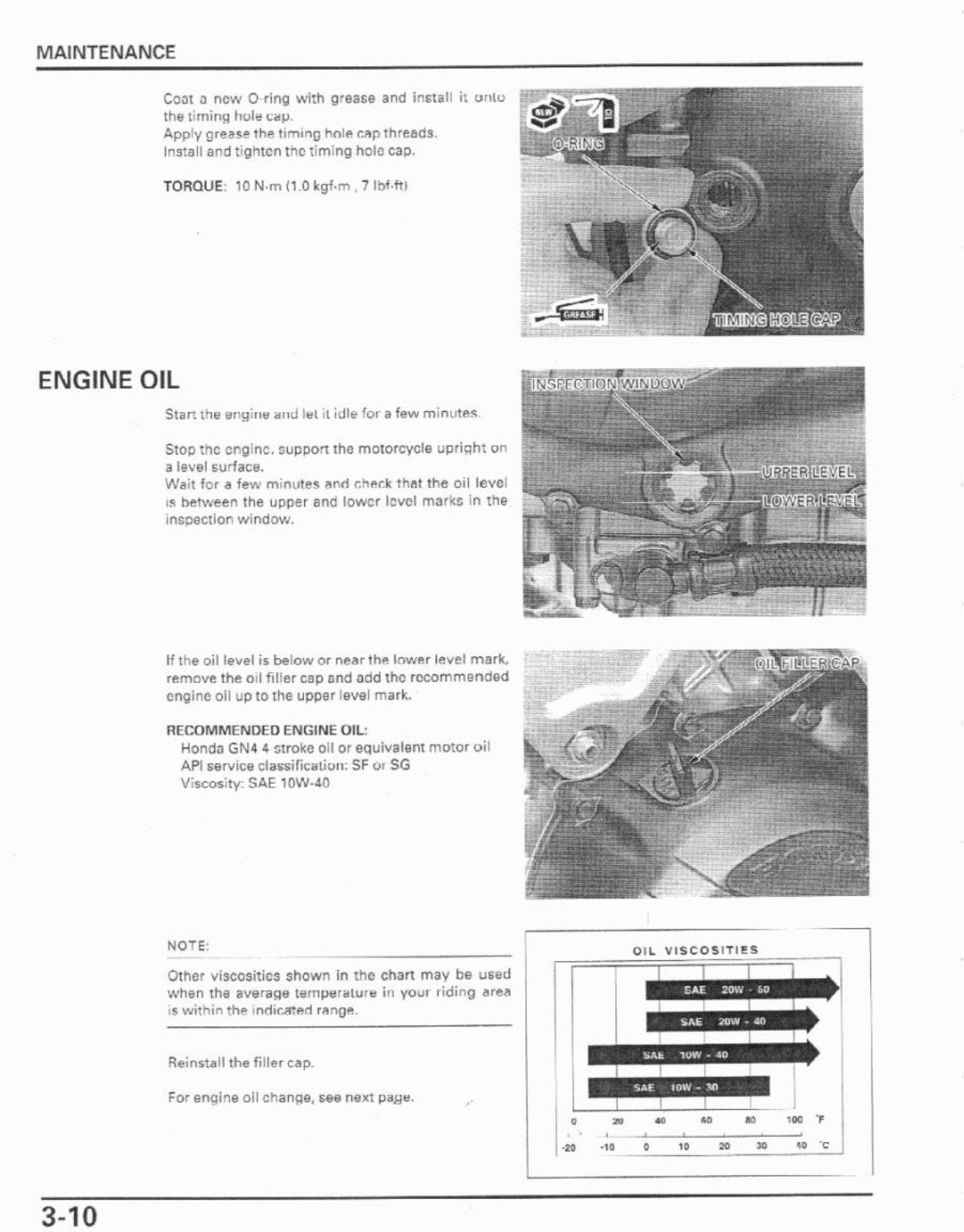

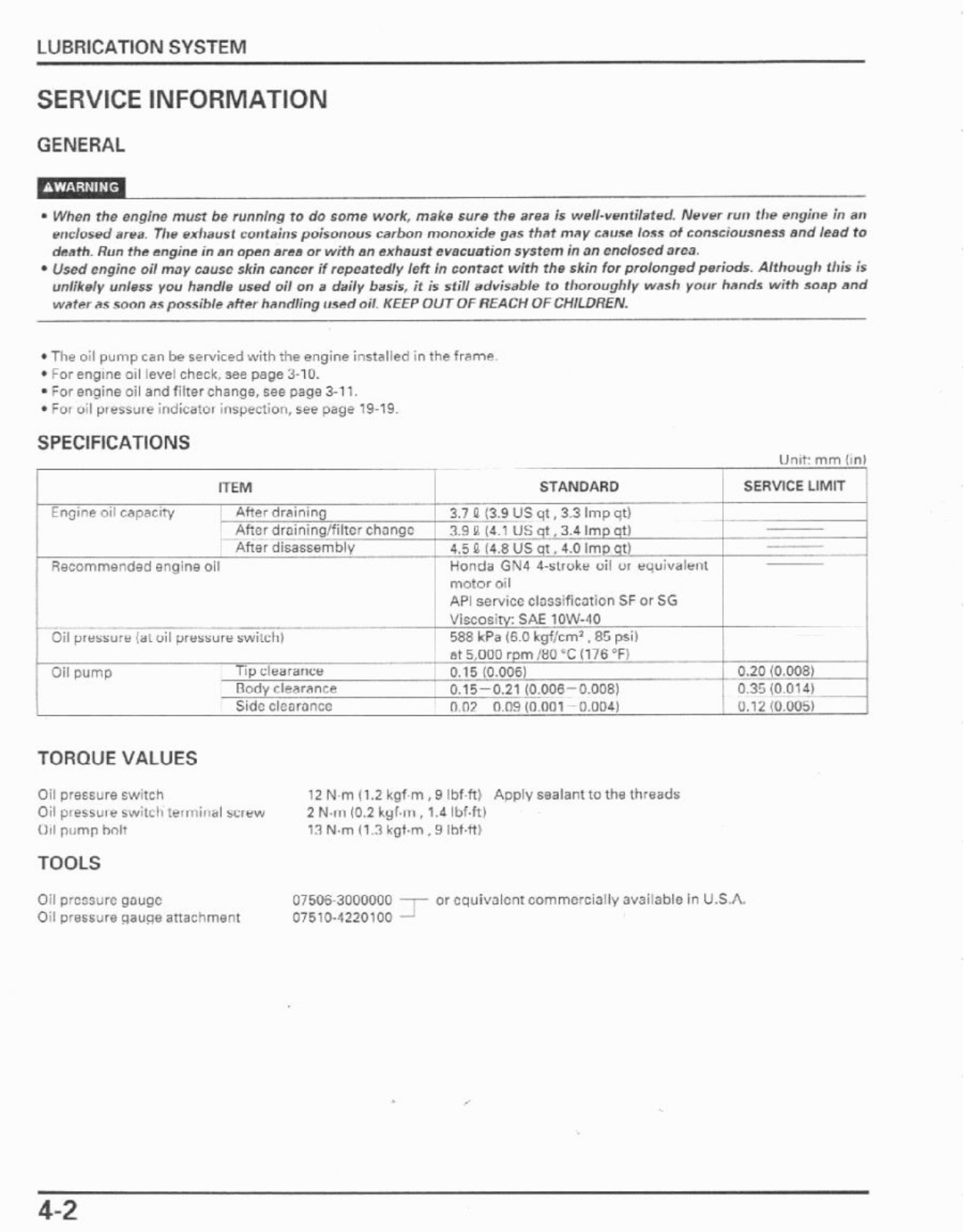

Q: For this device which engine oil would it be best to use?

A: Honda GN4 4 stroke oil or any equivalent service motor oil with API classification of SF or SG and has a viscosity of SAE 10W40 are good engine oil.

Q: What is the weight of the curb of the motorcycle?

A: For the 49 States/Canada type, the weight of the curb is 215 kg (474 lbs) for California type, it is 216 kg (476 lbs).

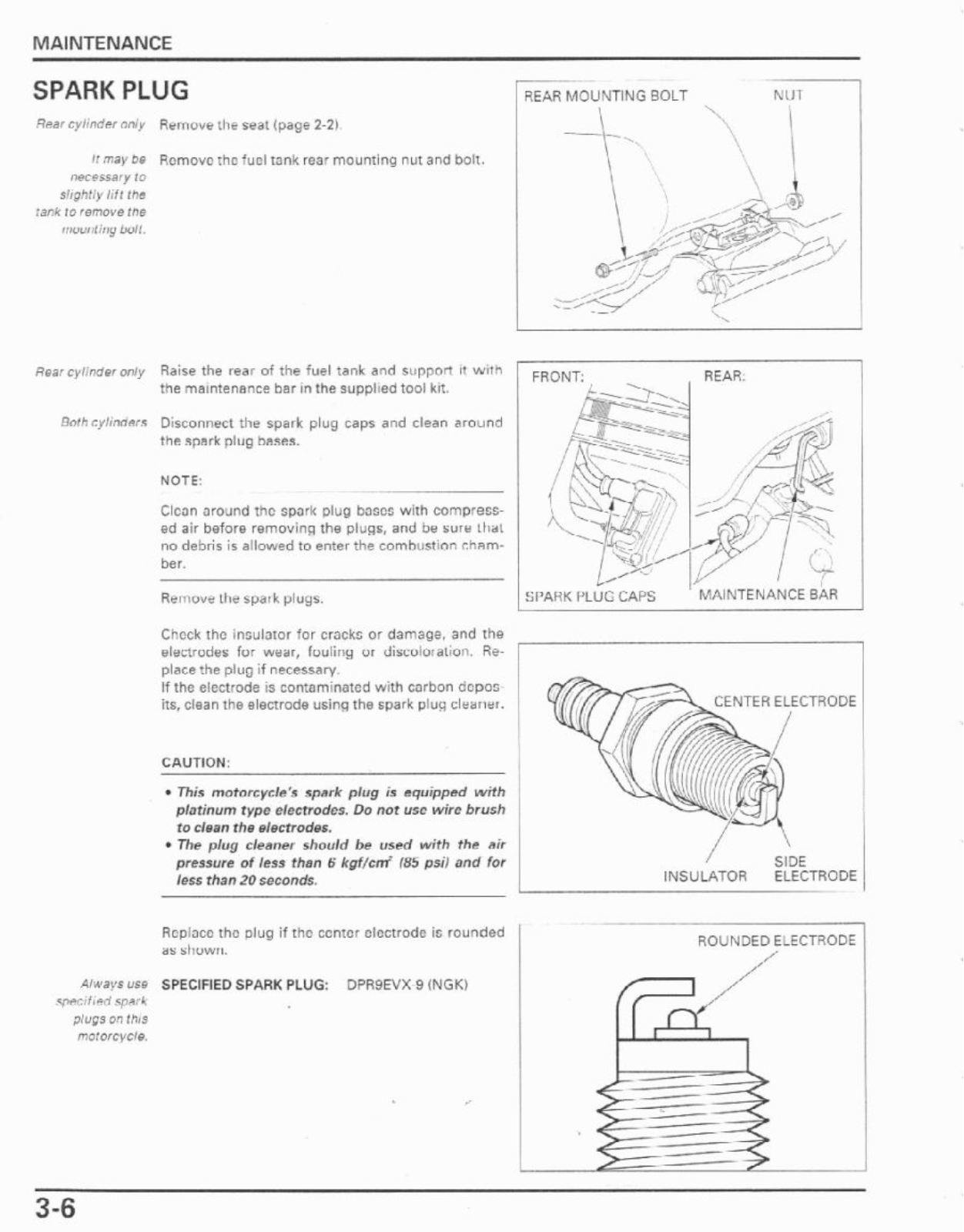

Q: Every after how long should I change the spark plugs?

A: Spark plugs should be cleaned on a regular basis as one of your maintenance tasks.

Q: Fuel tank capacity of this vehicle is?

A: Fuel tank holds 16.0 liters (4.23 gallons US, 3.52 gallons Imp).

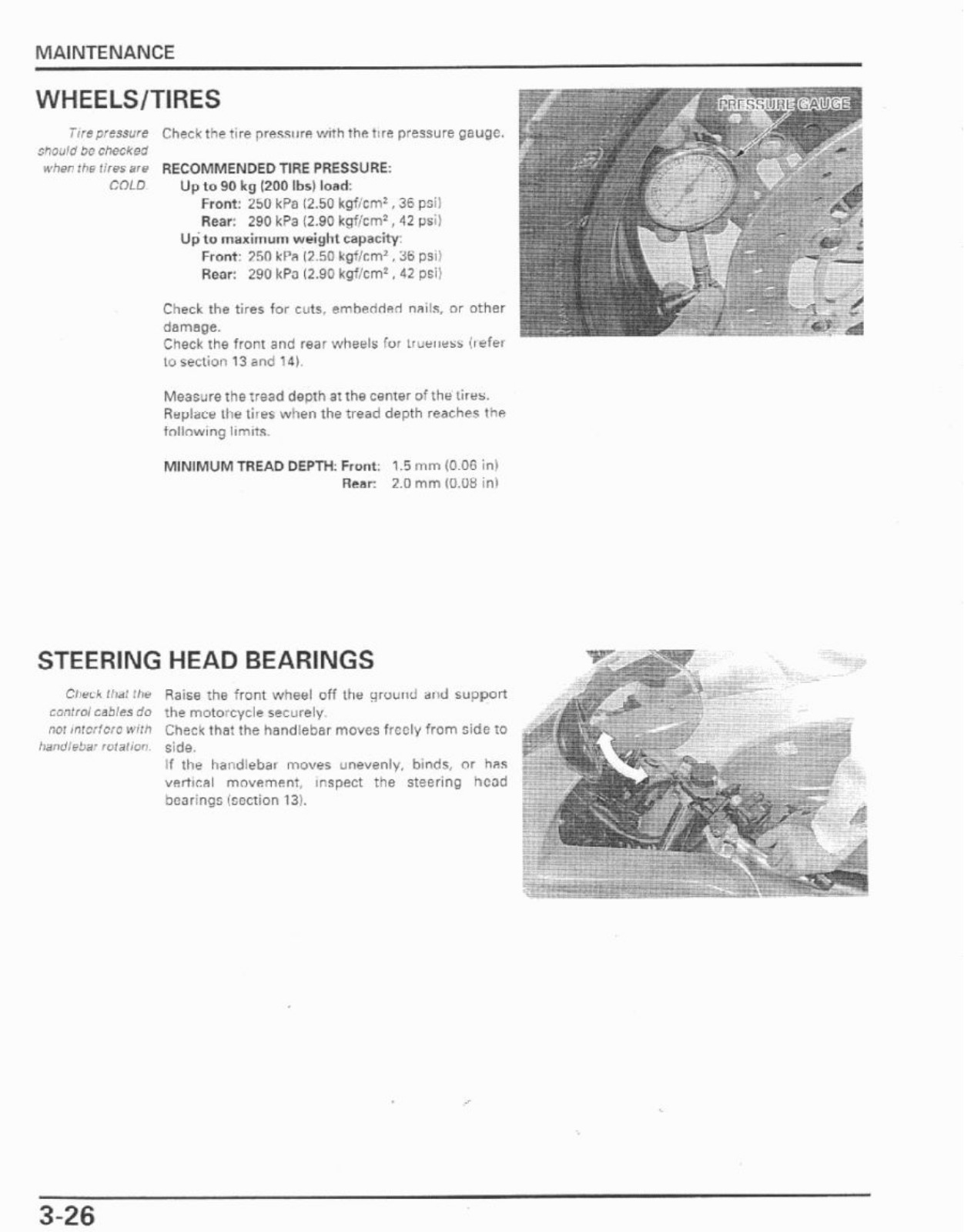

Q: What are the front and rear tire sizes?

A: The size of the front tire is 120/70ZR17 (58W) and that of the rear tire is 180/55ZR17 (73W).

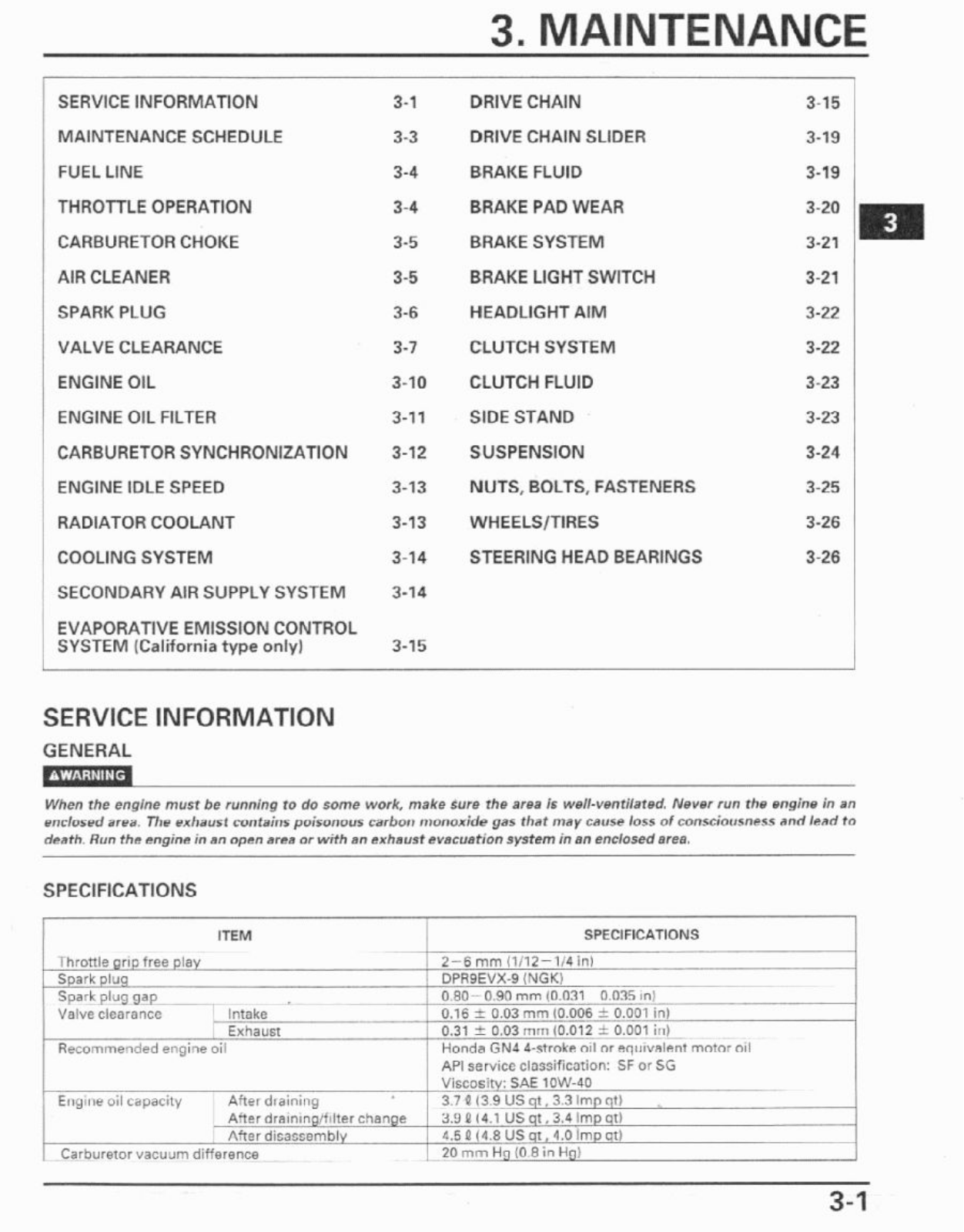

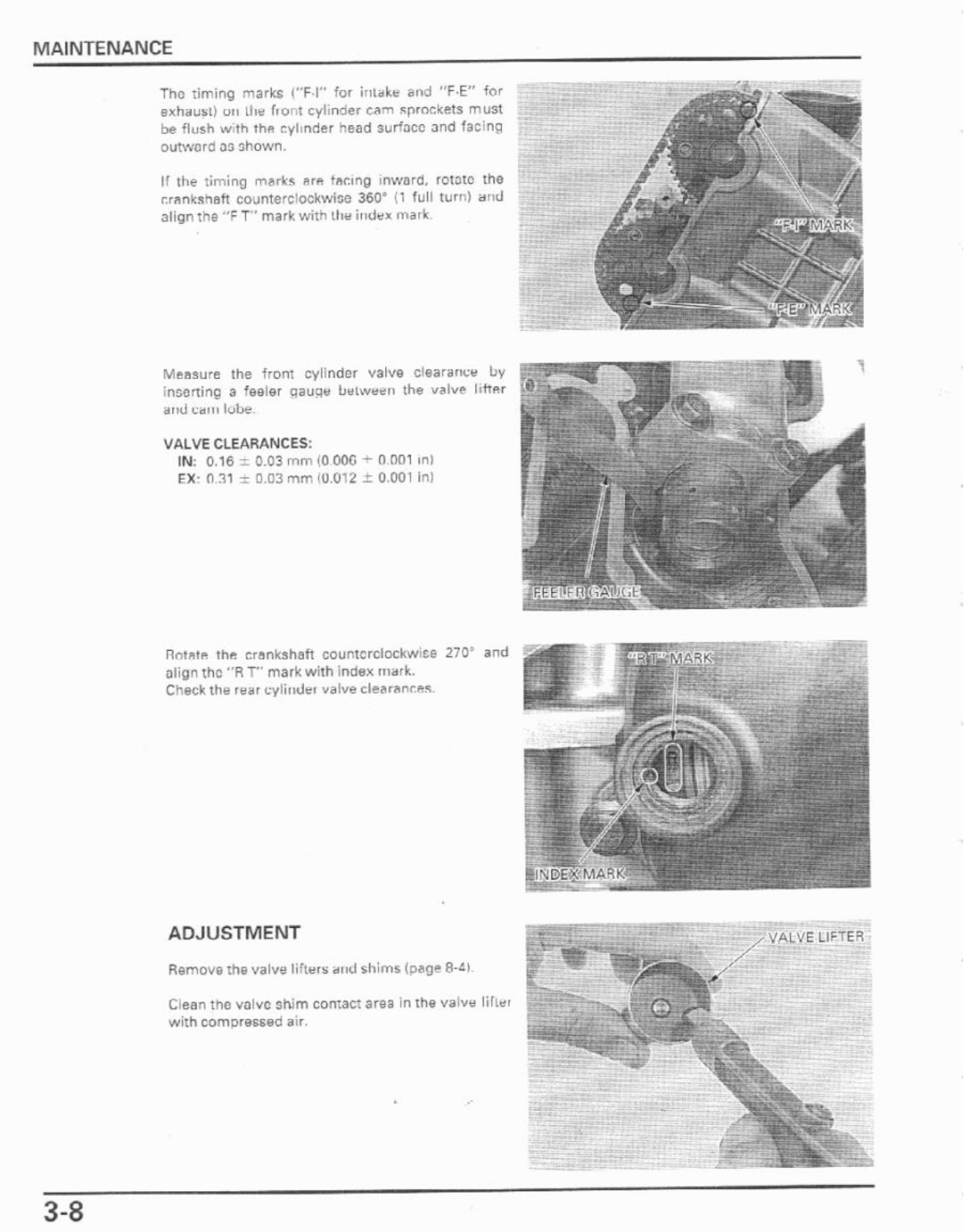

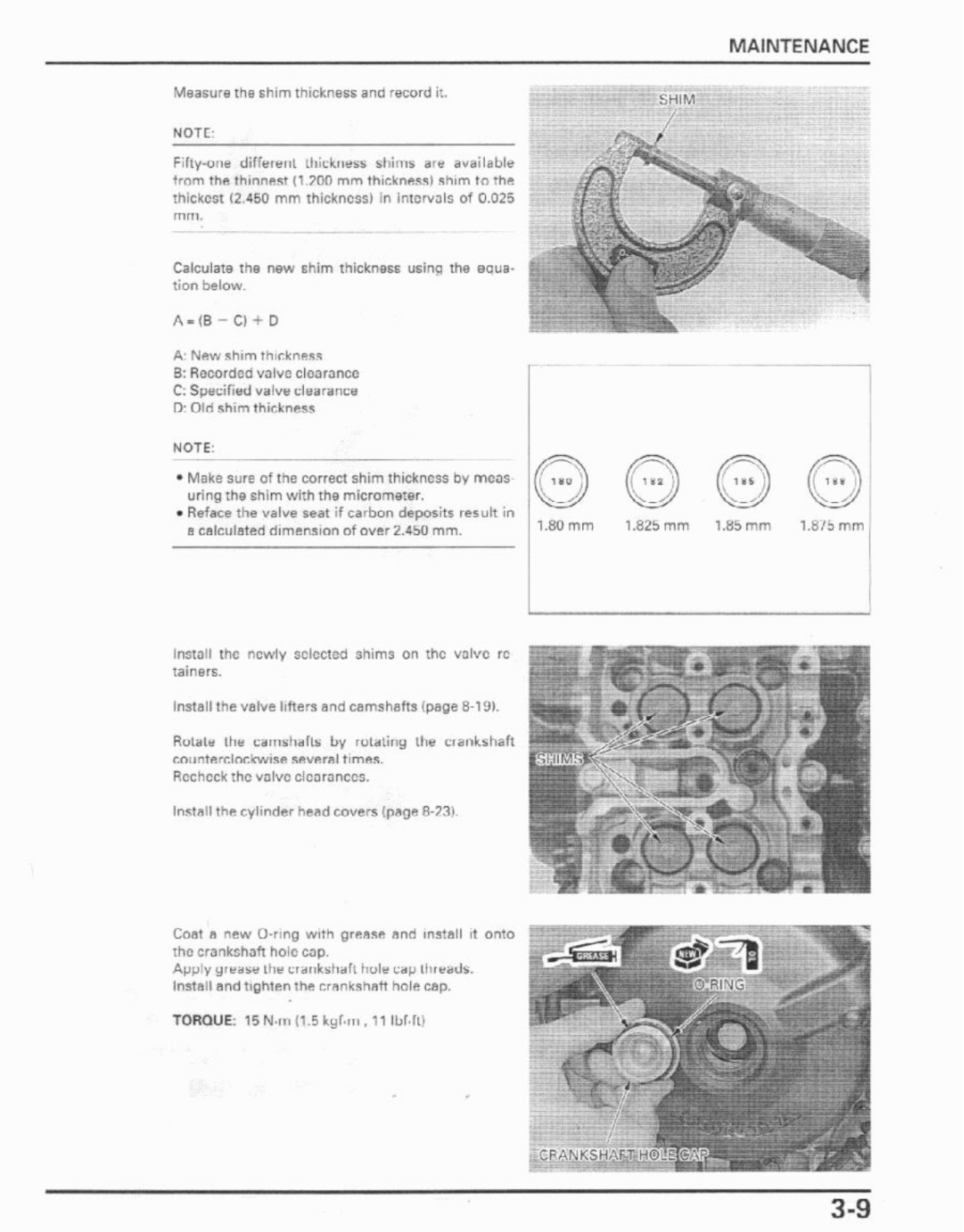

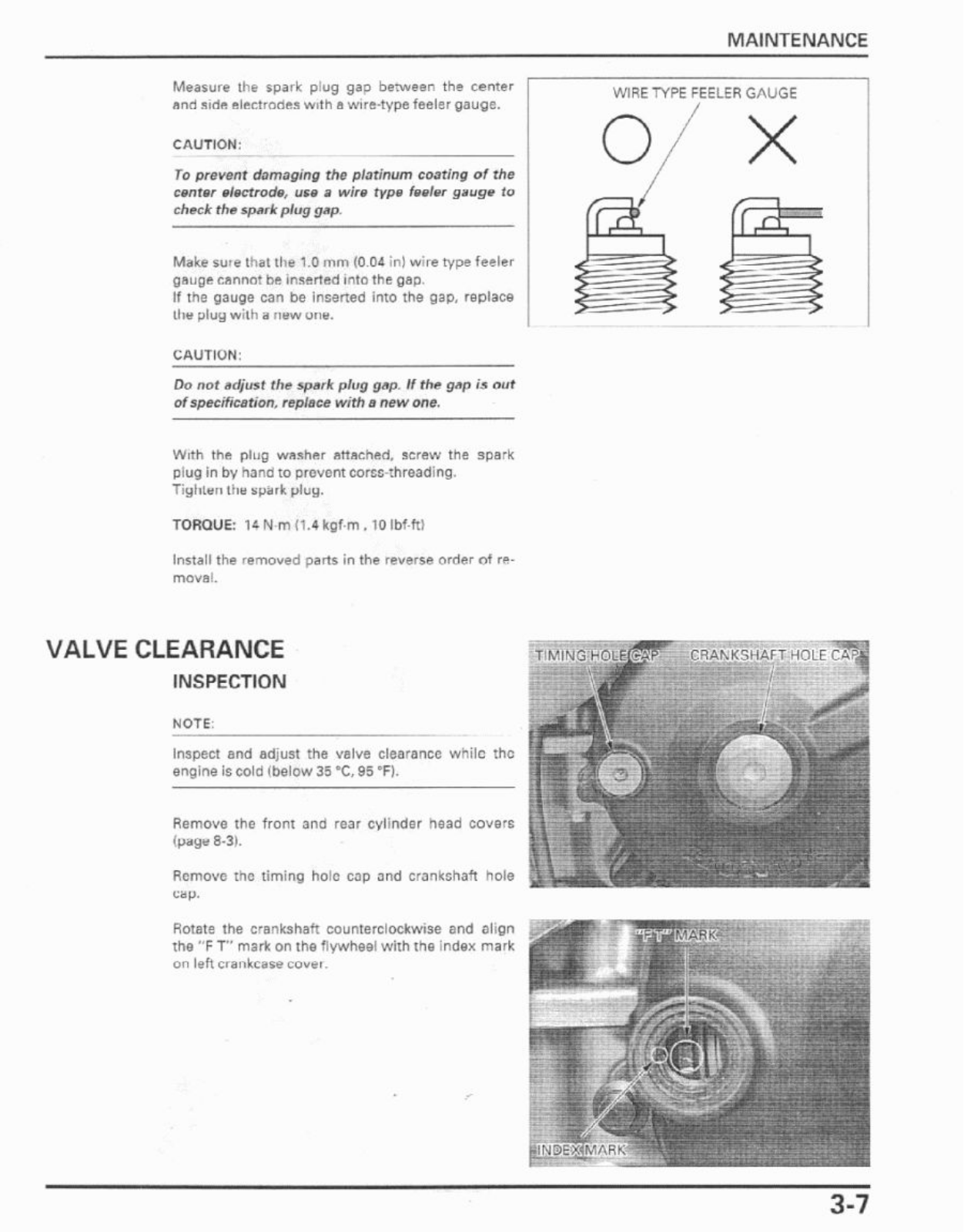

Q: What is the valve Clearance specification of the intake and exhaust?

A: The valve clearance for the intake is 0.16 mm ± 0.03 mm while that of the exhaust is 0.31 mm ± 0.03 mm.

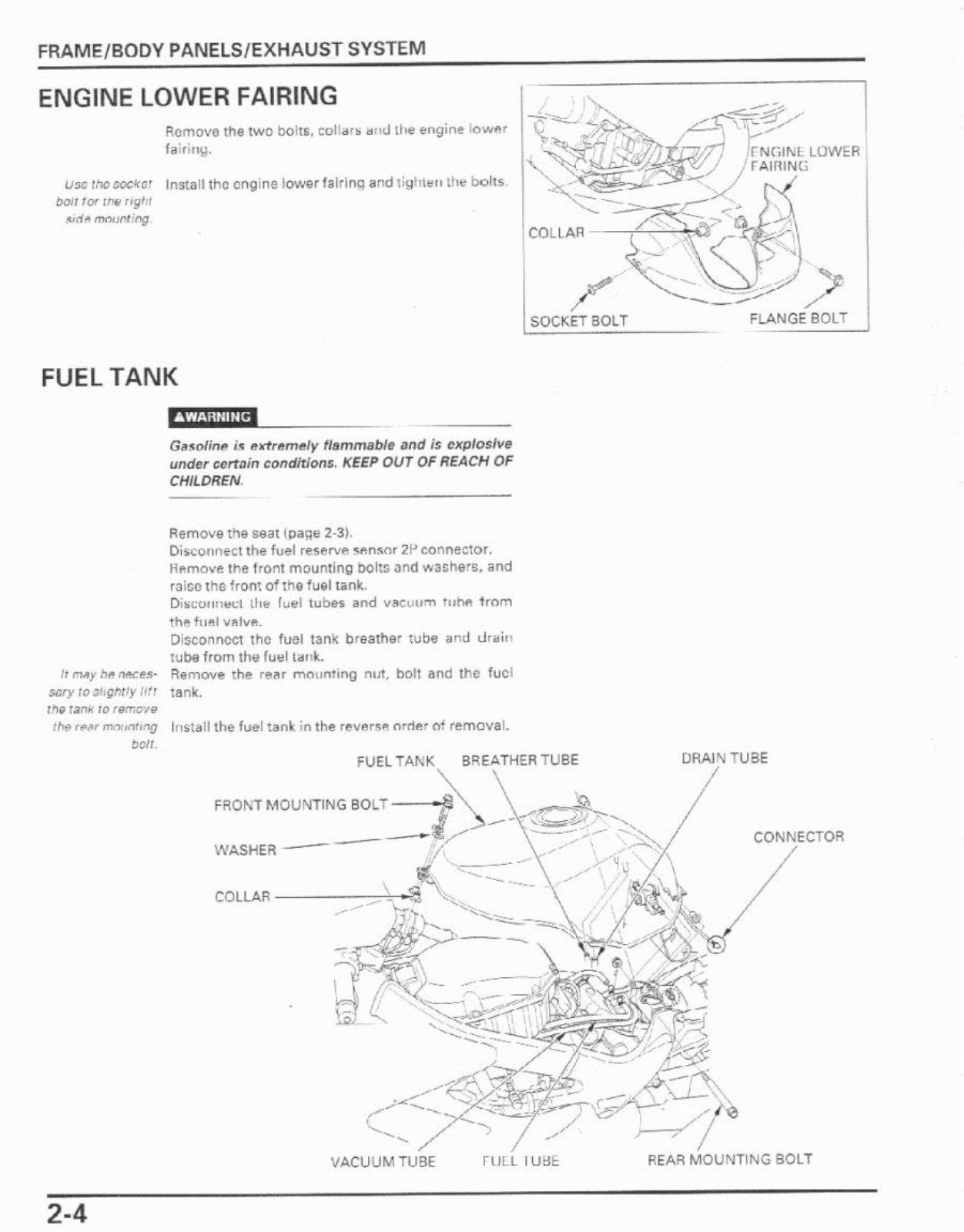

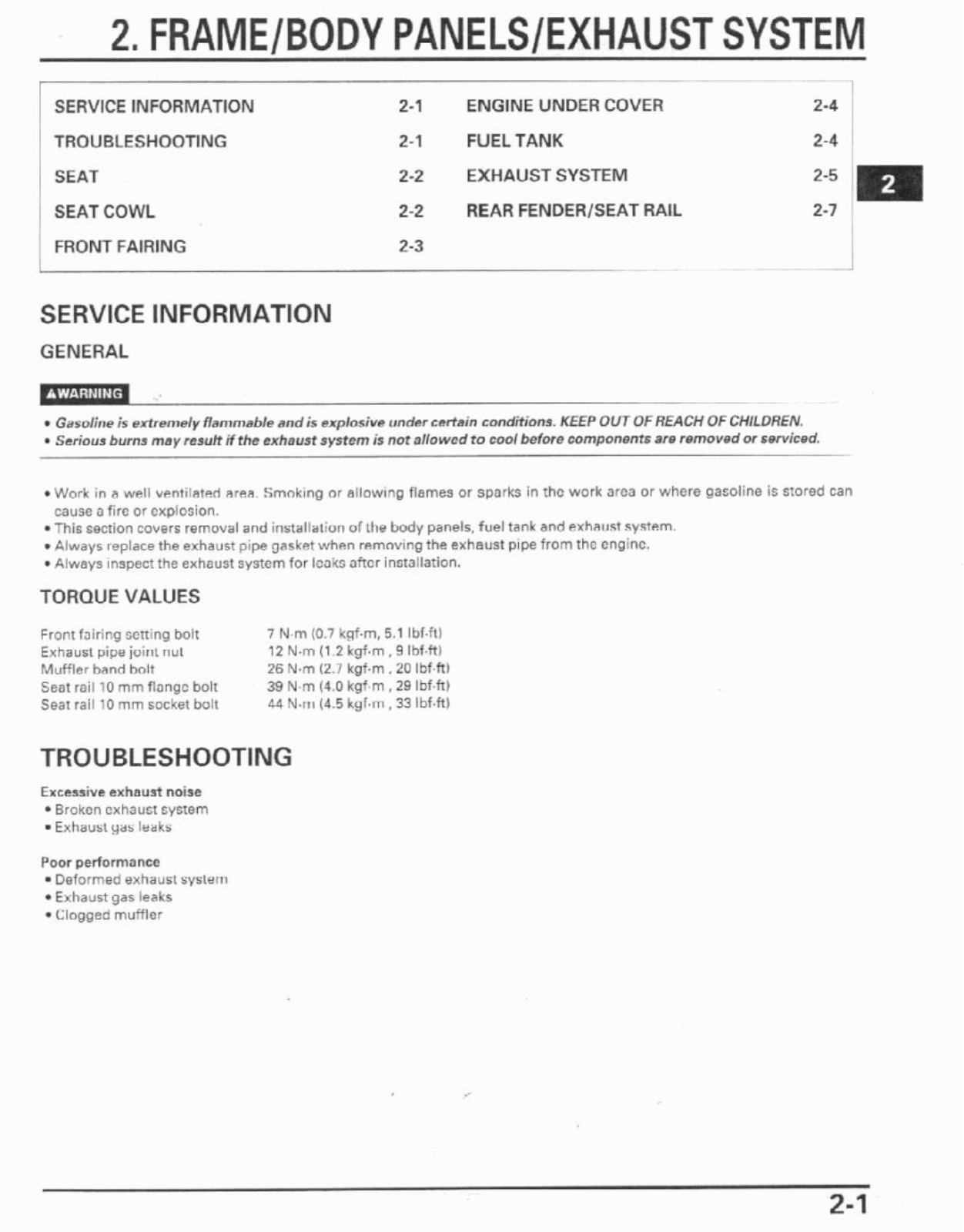

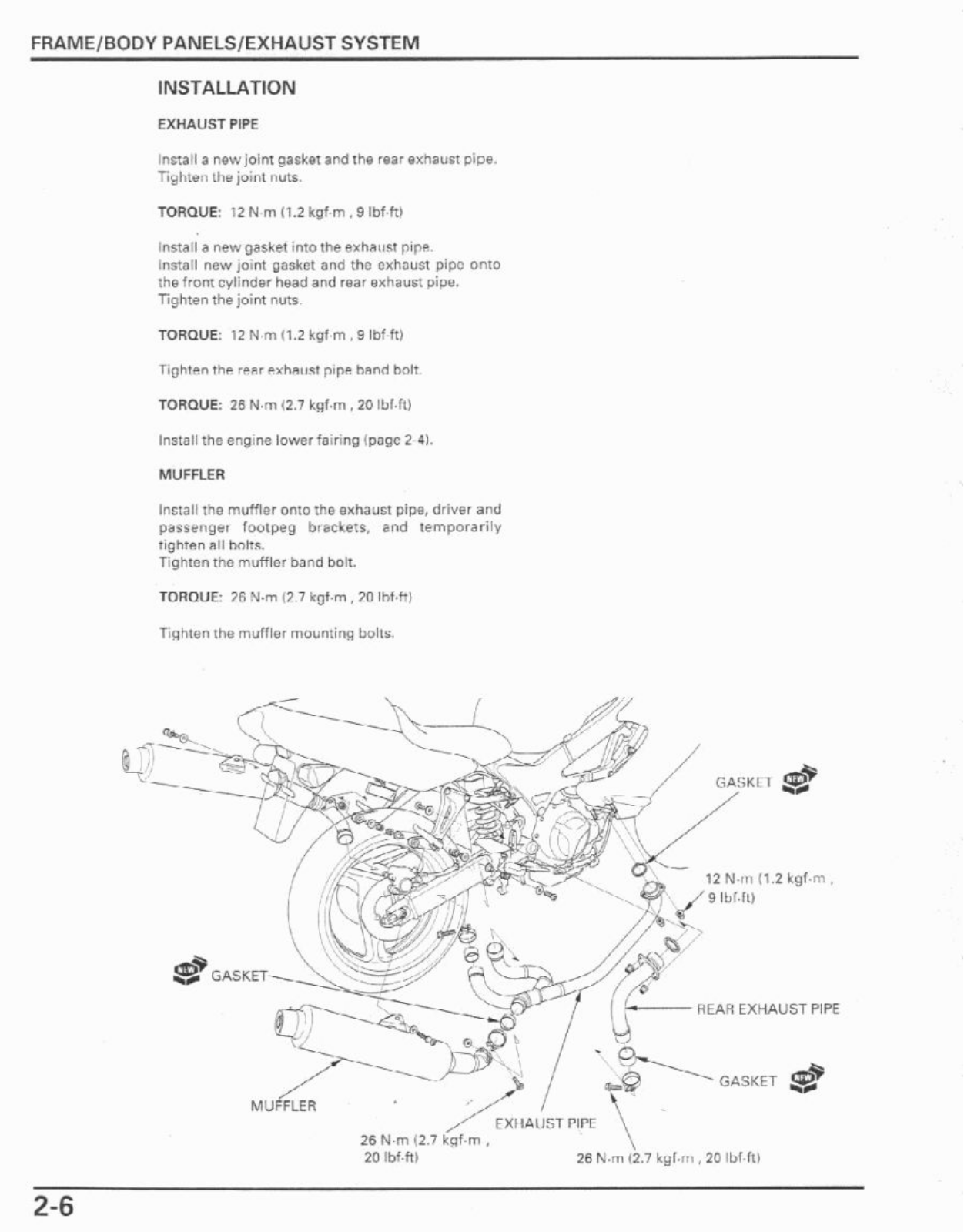

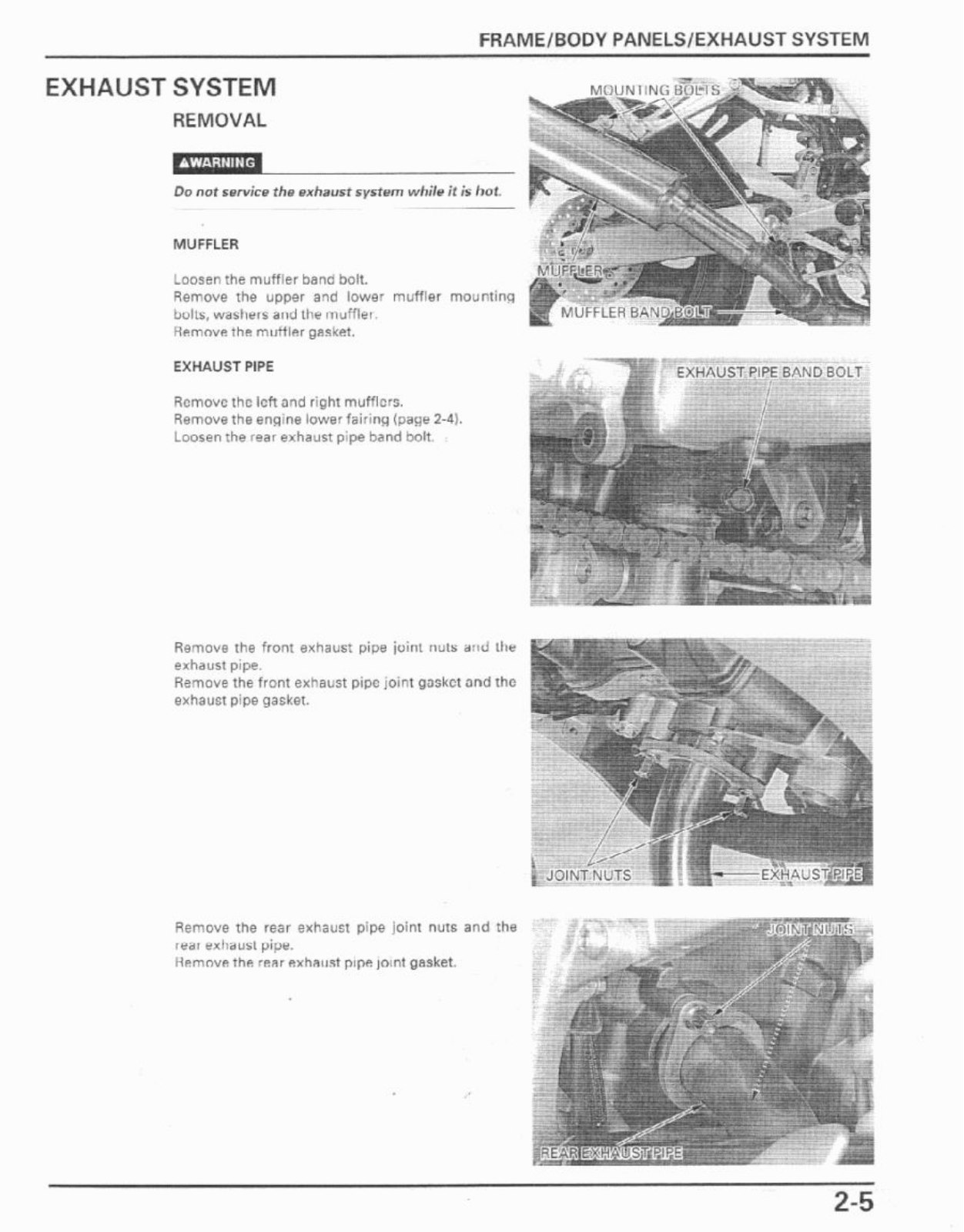

Q: Is it necessary to use a new exhaust pipe gasket every time the exhaust system is worked on?

A: The answer is yes in any case when the engine exhaust pipe is dismounted it is compulsory to change the gasket for the exhaust pipe.
