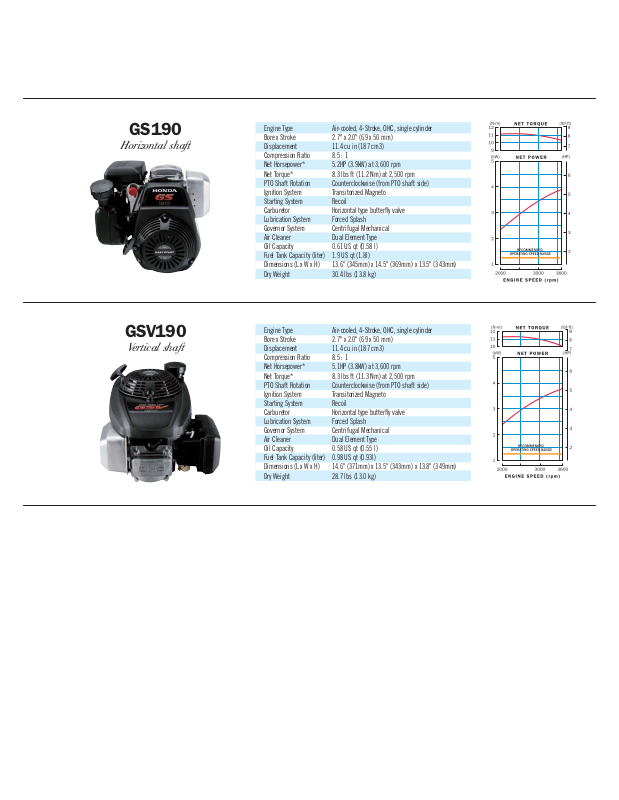

GS190
Horizontal shaft
Engine Type Air-cooled, 4-Stroke, OHC, single cylinder
Bore x Stroke 2.7" x 2.0" (69 x 50 mm)
Displacement 11.4 cu in (187 cm3)
Compression Ratio 8.5 : 1
Net Horsepower* 5.2HP (3.9kW) at 3,600 rpm
Net Torque* 8.3 lbs ft (11.2 Nm) at 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Ignition System Transitorized Magneto
Starting System Recoil
Carburetor Horizontal type butterfly valve
Lubrication System Forced Splash
Governor System Centrifugal Mechanical
Air Cleaner Dual Element Type
Oil Capacity 0.61 US qt (0.58 l)
Fuel Tank Capacity (liter) 1.9 US qt (1.8l)
Dimensions (L x W x H) 13.6" (345mm) x 14.5" (369mm) x 13.5" (343mm)
Dry Weight 30.4 lbs (13.8 kg)
GSV190
Vertical shaft
Engine Type Air-cooled, 4-Stroke, OHC, single cylinder
Bore x Stroke 2.7" x 2.0" (69 x 50 mm)
Displacement 11.4 cu in (187 cm3)
Compression Ratio 8.5 : 1
Net Horsepower* 5.1HP (3.8kW) at 3,600 rpm
Net Torque* 8.3 lbs ft (11.3 Nm) at 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Ignition System Transitorized Magneto
Starting System Recoil
Carburetor Horizontal type butterfly valve
Lubrication System Forced Splash
Governor System Centrifugal Mechanical
Air Cleaner Dual Element Type
Oil Capacity 0.58 US qt (0.55 l)
Fuel Tank Capacity (liter) 0.98 US qt (0.93l)
Dimensions (L x W x H) 14.6" (371mm) x 13.5" (343mm) x 13.8" (349mm)
Dry Weight 28.7 lbs (13.0 kg)
