Welcome
Congratulations on your purchase of a new
Honda vehicle. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda's
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
vehicle.
● The following code in this manual
indicates the country.
Country Code
Code Country
ACB160CBT
PH Philippines
Page 4
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this vehicle safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a vehicle. You must
use your own good judgement.
You will find important safety information in a
variety of forms, including:
● Safety labels on the vehicle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your vehicle, other
property, or the environment.
Page 5
Contents
Vehicle Safety P. 2
Operation Guide P. 18
Maintenance P. 75
Troubleshooting P. 108
Information P. 128
Specifications P. 141
Page 6
Vehicle Safety
This section contains important information for safe riding of your vehicle.
Please read this section carefully.
Safety Guidelines................................................. P. 3
Image Labels......................................................... P. 6
Safety Precautions............................................. P. 10
Riding Precautions ............................................ P. 11
Accessories & Modifications........................... P. 15
Loading ................................................................ P. 16
Page 7
Safety Guidelines
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flames
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved helmet and protective
apparel. 2 P. 10
Before Riding
Make sure that you are physically fit, mentally
focused, and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved helmet and protective apparel.
Instruct your passenger on holding onto the
grab rail or your waist, leaning with you in turns,
and keeping their feet on the footpegs, even
when the vehicle is stopped.
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice
riding in a safe area to become familiar with
how this vehicle works and handles, and to
become accustomed to the vehicle's size and
weight.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Continued
Vehicle Safety
3
Page 8
Safety Guidelines
Make Yourself Easy to See
Vehicle Safety
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgement and ride safely.
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. The same is true for drug use. Don't drink
4
or use and ride, and don't let your friends do it
either.
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly
maintained and in safe riding condition.
Inspect your vehicle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 16), and do not modify
your vehicle or install accessories that would
make your vehicle unsafe (2 P. 15).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
Page 9
Safety Guidelines
If you decide to continue riding, first turn the
ignition switch to the (Off) position, and
evaluate the condition of your vehicle. Inspect
for fluid leaks, check the tightness of critical nuts
and bolts, and check the handlebar, control
levers, brakes, and wheels. Ride slowly and
cautiously.
Your vehicle may have suffered damage that is
not immediately apparent. Have your vehicle
thoroughly checked at a qualified service facility
as soon as possible.
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colourless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in a confined or even
partly enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your vehicle inside a garage or other
enclosure.
3WARNING
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid buildup of toxic carbon monoxide gas.
Breathing this colourless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
Vehicle Safety
5
Page 10
Image Labels
Image Labels
Vehicle Safety
The following pages describe the label
meanings. Some labels warn you of
potential hazards that could cause serious
injury. Others provide important safety
information. Read this information carefully
and don't remove the labels.
If a label comes off or becomes hard to
read, contact your dealer for a replacement.
There is a specific symbol on each label.
The meanings of each symbol and label are
as follows.
6
Read instructions contained in Owner's
Manual carefully.
Read instructions contained in Shop Manual
carefully. In the interest of safety, take the
vehicle to be serviced only by your dealer.
DANGER (with RED background)
You WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
WARNING (with ORANGE background)
You CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
CAUTION (with YELLOW background)
You CAN be HURT if you don't follow
instructions.
Page 11
Image Labels

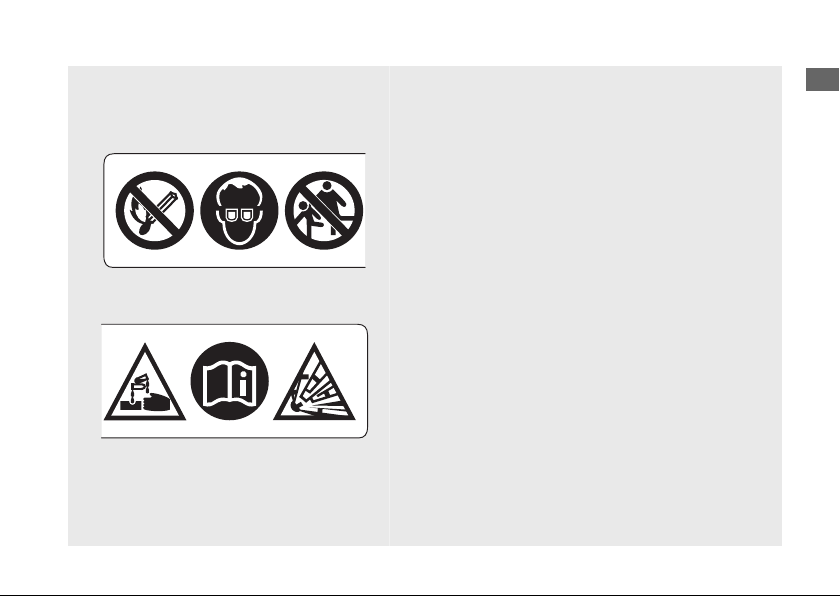

BATTERY LABEL
DANGER
• Keep flame and spark away from the battery.
Battery produce explosive gas that can cause
explosion.
• Wear the eye protection and rubber gloves when
handling the battery, or you can get burned or
lose your eyesight by the battery electrolyte.
• Do not allow children and other people to touch a
battery unless they understand proper handling
and hazards of the battery very well.
• Handle the battery electrolyte with extreme care as
it contains dilute sulfuric acid. Contact with your
skin or eyes can burn you or cause loss of your
eyesight.
• Read this manual carefully and understand it
before handling the battery. Neglect of the
instructions can cause personal injury and damage
to the vehicle.
• Do not use a battery with the electrolyte at or
below the lower level mark. It can explode causing
serious injury.
Continued
Vehicle Safety
7
Page 12
Image Labels
Vehicle Safety
8

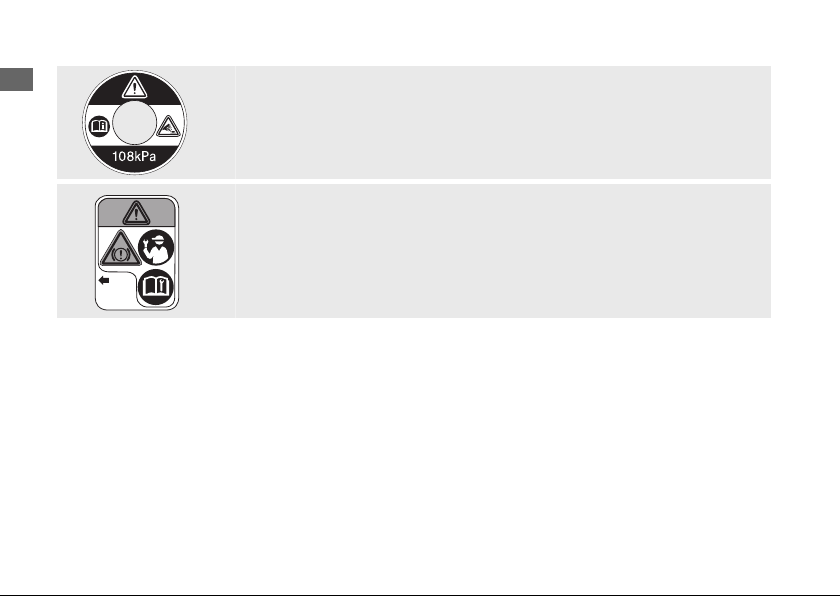

RADIATOR CAP LABEL
DANGER
NEVER OPEN WHEN HOT.
Hot coolant will scald you.
Relief pressure valve begins to open at 108 kPa.
CBS CAUTION LABEL
Cable adjustment must be done by Honda dealer.
Page 13
Image Labels

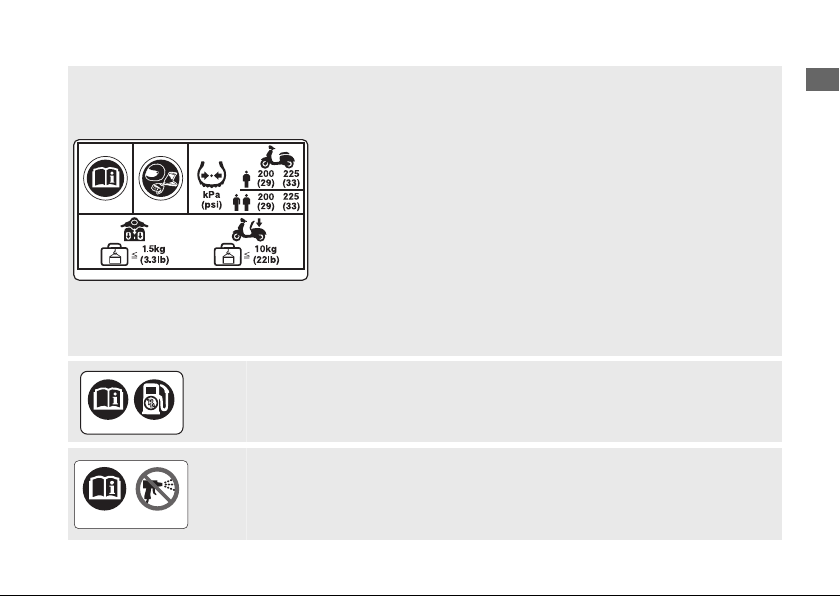

TYRE INFORMATION & CARGO LIMIT LABEL
For your protection, always wear helmet, protective apparel.
Cold tyre pressure:
[Driver only]
Front
Rear
200 kPa (2.00 kgf/cm2, 29 psi)
225 kPa (2.25 kgf/cm2, 33 psi)
[Driver and passenger]
Front
Rear
200 kPa (2.00 kgf/cm2, 29 psi)
225 kPa (2.25 kgf/cm2, 33 psi)
Cargo limit:
Front box/Hook/Inner rack
Centre compartment
1.5 kg (3.3 lb)
10 kg (22 lb)
FUEL LABEL
Unleaded petrol only
ETHANOL up to 10 % by volume
AIR CLEANER ELEMENT NOTICE LABEL
Air blow cleaning or any other cleaning can degrade the viscous element
performance and cause the intake of dust. Do not perform the
maintenance. Should be serviced by your dealer.
Vehicle Safety
9
Page 14
Safety Precautions
Safety Precautions
Vehicle Safety
● Ride cautiously and keep your hands on the
handlebar and feet on the floor.
● Instruct your passenger to keep their hands
on the grab rail or your waist and their feet
on the footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Make sure that you and any passenger are
wearing an approved helmet, eye protection,
and high-visibility protective clothing. Avoid
wearing loose clothes that could get caught on
any part of the vehicle. Ride defensively in
response to weather and road conditions.
Helmet
#
Safety-standard certified, high-visibility, correct
size for your head
●
Must fit comfortably but securely, with the
chin strap fastened
10
●
Face shield with unobstructed field of vision
or other approved eye protection
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
Gloves
#
Full-finger leather gloves with high abrasion
resistance
Boots or Riding Shoes
#
Sturdy boots with non-slip soles and ankle
protection
Jacket and Trousers
#
Protective, highly visible, long-sleeved jacket
and durable trousers for riding (or a protective
suit)
Page 15
Riding Precautions
Riding Precautions
Running-in Period
During the first 500 km (300 miles) of running,
follow these guidelines to ensure your vehicle's
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking.
● Ride conservatively.
Brakes
Observe the following guidelines:
● Avoid excessively hard braking.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
● Exercise caution on low traction surfaces.
u The tyres slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness.
● For full braking effectiveness, operate both
the front and rear brakes together.
Continued
Vehicle Safety
11
Page 16
Riding Precautions
Combi Brake
#
Vehicle Safety
Your vehicle is equipped with a brake system
that distributes the braking force between the
front and rear brakes.
The distribution of the braking force applied to
the front and rear brakes when operating the
front brake lever only and when operating the
rear brake lever only is different.
For full braking effectiveness, operate both the
front and rear brakes together.
Wet or Rainy Conditions
#
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
12
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebar, lock the ignition switch
(2 P. 41) and leave your vehicle while taking
the Honda SMART Key with you. Deactivate
the Honda SMART Key system if necessary.
2 P. 36
Use of an anti-theft device is also
recommended.
Also set the anti-theft alarm system.
Page 17

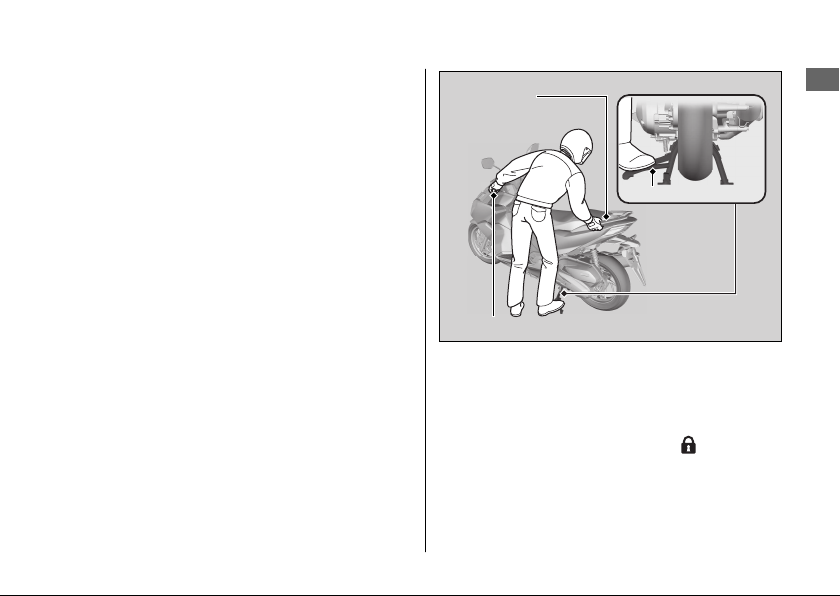

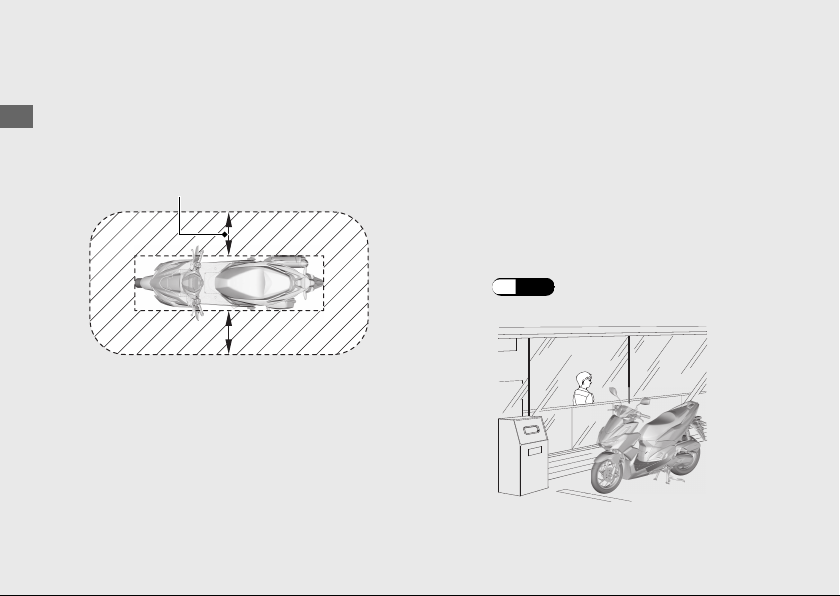

Parking with the Side Stand or Centre
#
Stand
1.
Stop the engine.
2.
Using the side stand
Push the side stand down.
Slowly lean the vehicle to the left until its
weight rests on the side stand.
Using the centre stand
To lower the centre stand, stand on the left
side of the vehicle.
Hold the left handle grip and the grab rail.
Press down on the tip of the centre stand with
your right foot and, simultaneously, pull up and
back.
Riding Precautions
Grab rail
Centre stand
Left handle grip
3.

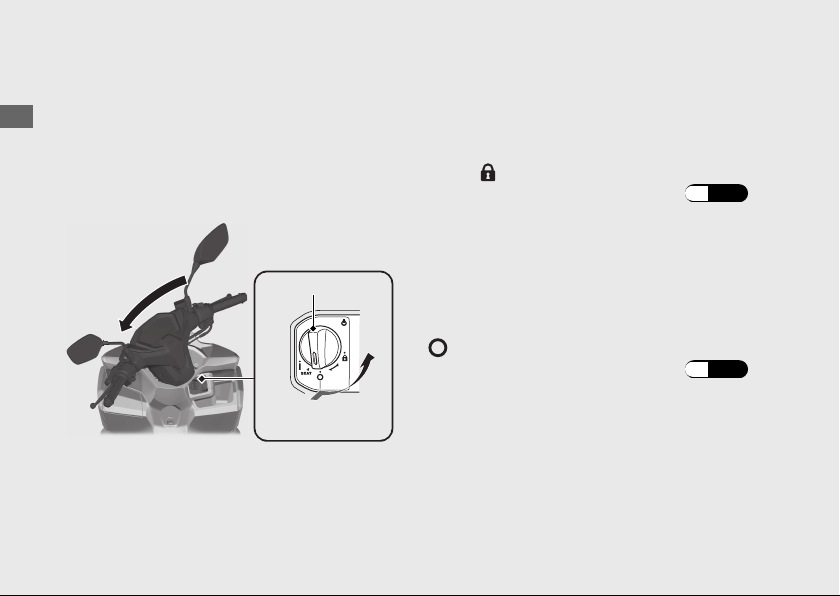

Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
vehicle to fall.
4.

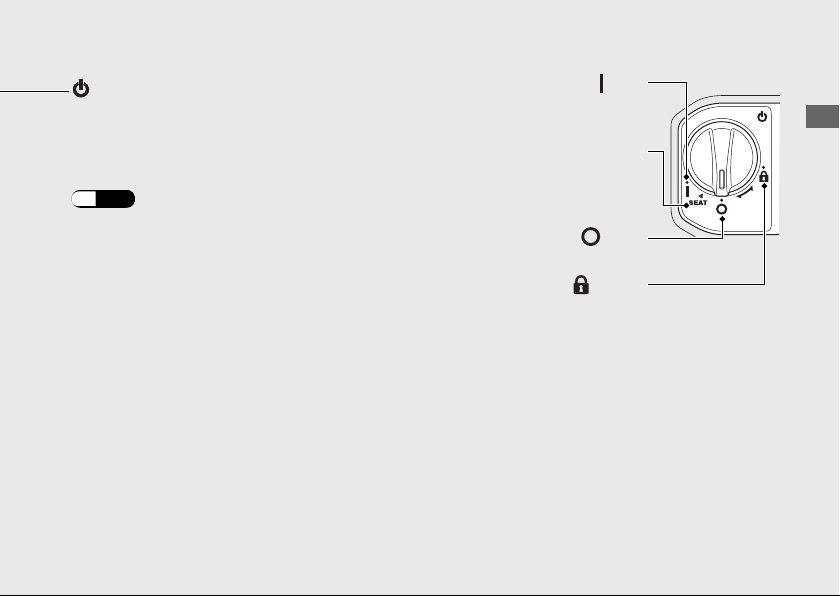

Turn the ignition switch to the (Lock)
position (2 P. 34) and lock the ignition
switch (2 P. 41).
5.
Set the anti-theft alarm system. 2 P. 45
Vehicle Safety
Continued
13
Page 18
Riding Precautions
Refuelling and Fuel Guidelines
Vehicle Safety
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded petrol.
● Use the recommended octane number.
Using lower octane petrol will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 139
● Do not use stale or contaminated petrol or
an oil/petrol mixture.
● Avoid getting dirt or water in the fuel tank.
14
Page 19
Accessories & Modifications
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
for your vehicle by Honda or make
modifications to your vehicle from its original
design. Doing so can make it unsafe.
Modifying your vehicle may also void your
warranty and make your vehicle illegal to
operate on public roads. Before deciding to
install accessories on your vehicle, be certain
the modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your vehicle. Your vehicle was not designed for
these attachments, and their use can seriously
impair your vehicle's handling.
Vehicle Safety
15
Page 20
Loading
Loading
Vehicle Safety
● Carrying extra weight affects your vehicle's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity / Maximum
luggage weight 2 P. 141
● Tie all luggage securely, evenly balanced,
and close to the centre of the vehicle.
● Do not place objects near the lights or the
muffler.
16
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Page 21
Vehicle Safety
17
Page 22
Parts Location

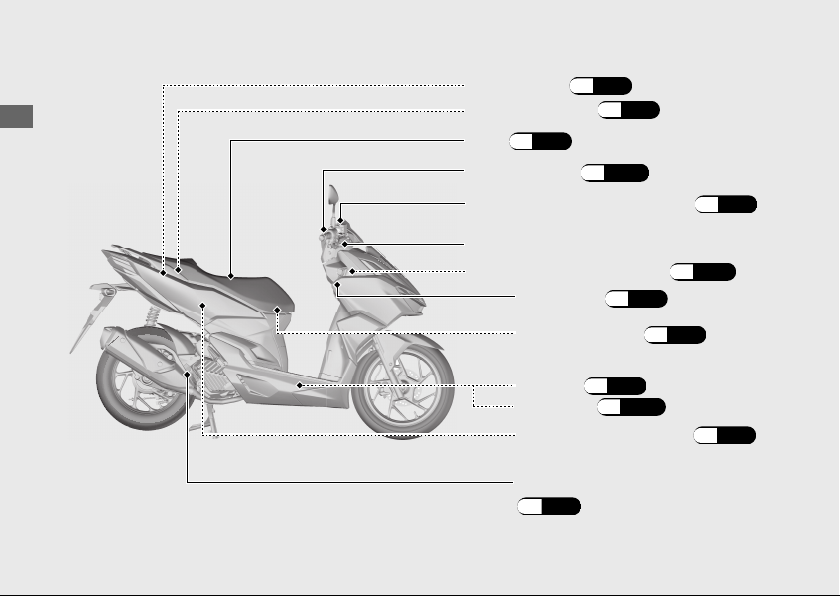

Operation Guide
18
Fuel fill cap (P.65)
Document bag (P.72)
Seat (P.69)
Throttle grip (P.105)
Front brake fluid reservoir (P.98)
Front brake lever

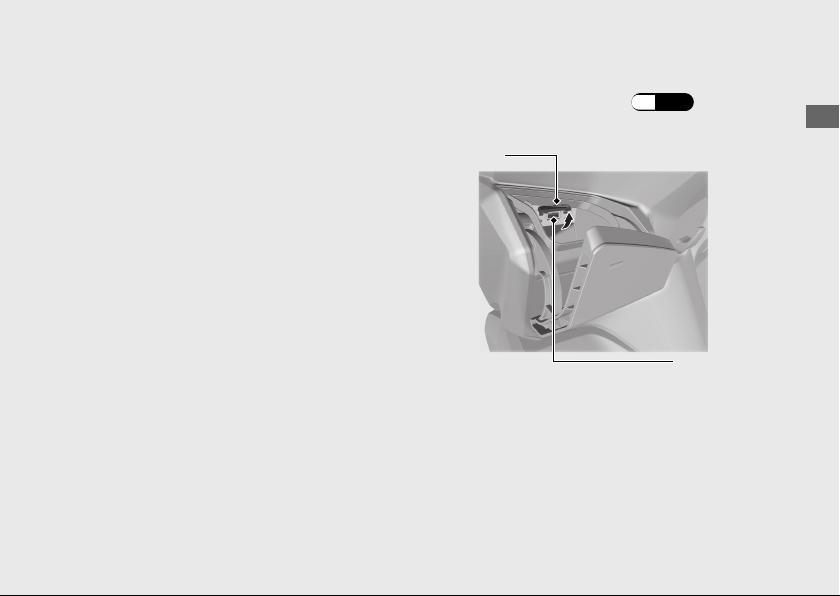

Emergency seat opener (P.119)
Inner lack (P.74)

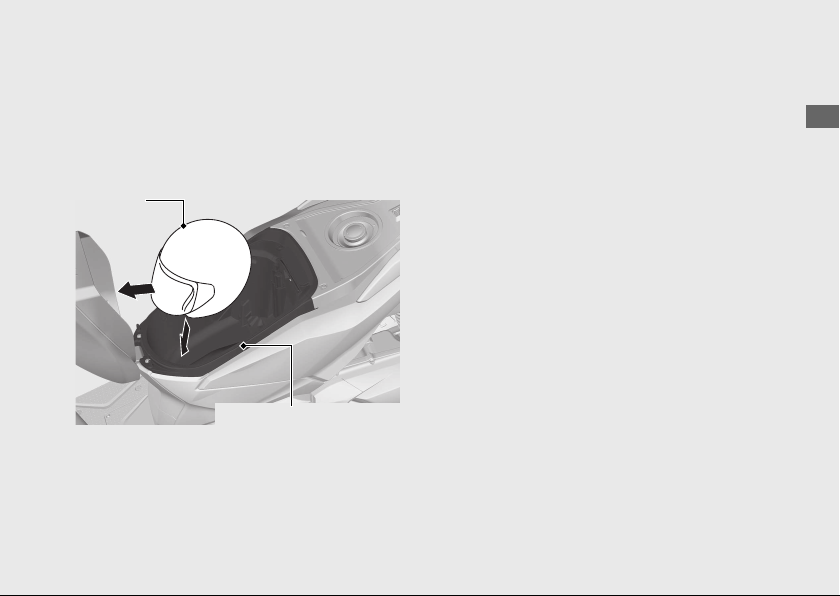

Helmet holder (P.70)
Battery (P.90)
Fuse box (P.126)
Coolant reserve tank
Engine oil fill cap/dipstick
)
(P.94
(P.96)
Page 23
USB socket (P.67)
Front box (P.73)
Rear brake lock lever
)
(P.55
Rear brake lever (P.100)
Tools (P.72)
Centre compartment (P.71)
Helmet holder (P.70)
Hook (P.74)
Operation Guide
Side stand (P.104)
Centre stand (P.13)
19
Page 24

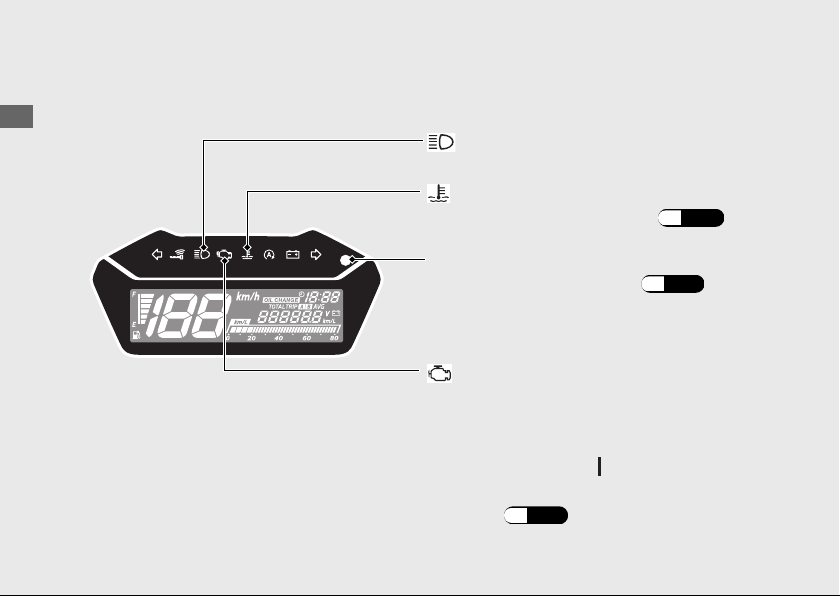

Instruments
Operation Guide
SELECT
button
Display Check
When the ignition switch is turned to the (On) position, the display will temporarily show all the modes
and digital segments so you can make sure the liquid crystal display is functioning properly.
If any part of these displays does not come on when it should, have your dealer check for
problems.
20
SET
Speedometer
This shows your speed in
kilometer per hour (km/h).
button
Page 25

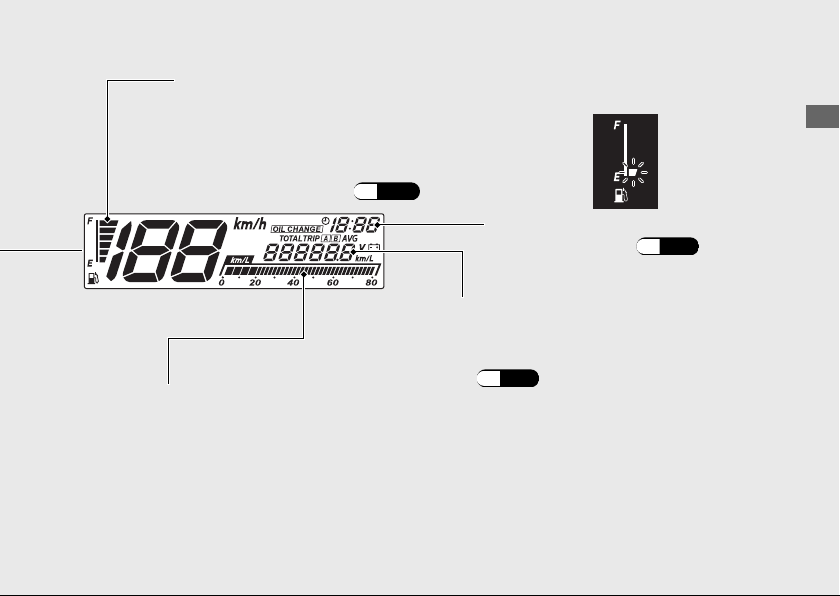

Fuel gauge
Remaining fuel when only 1st (E) segment left: approximately
1.7 L (0.45 US gal, 0.37 Imp gal).
This segment flashes when the fuel decreases further.
If the fuel gauge indicator flashes in a repeat
pattern or turns off:
(P.113
)
Clock (12-hour display)
To set the clock: (P.26)
Odometer [TOTAL]/Tripmeter
[TRIP A/B]/Average fuel mileage
meter [AVG]/Battery voltage meter
[V]
(P.22)
Current fuel mileage meter
Current instant fuel mileage.
Display range: 0 to 80 km/L.
● If the calculated value is 80 km/L or more: “80 km/L” is displayed.
● When your speed is less than about 3 km/h : “0” is displayed.
When “0” is displayed at speeds above 3 km/h, go to your dealer for service.
Operation Guide
Continued
21
Page 26
Instruments (Continued)
Odometer [TOTAL]/Tripmeter [TRIP A/B]/Average fuel mileage meter [AVG]/
Battery voltage meter [V]
SELECT
Operation Guide
22

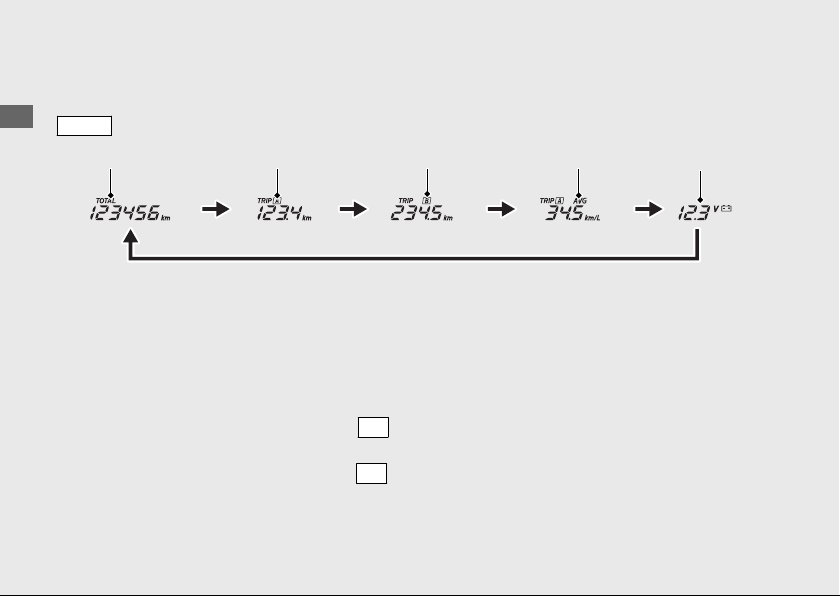

button selects the odometer, tripmeter A, tripmeter B, average fuel mileage, and battery voltage.
Odometer Tripmeter A Tripmeter B
Average fuel
mileage
Odometer
Total distance ridden.
When “------” is displayed, go to your dealer for service.
Tripmeter
Distance ridden since tripmeter A or tripmeter B respectively were reset.
●
To reset tripmeter A, press and hold
SET
button while tripmeter A is displayed. When to
reset tripmeter A, the average fuel mileage is also reset.
●
To reset tripmeter B, press and hold
SET
button while tripmeter B is displayed.
When “---.-” is displayed, go to your dealer for service.
Battery voltage
Page 27
Average fuel mileage meter
The average fuel mileage will be based on tripmeter A.
Average fuel mileage since tripmeter A was reset.
Display range: 0.0 to 99.9 km/L.
● If the calculated value is 99.9 km/L or more: “99.9 km/L” is displayed.
● When the tripmeter A is reset: “--.-” is displayed.
When “--.-” is displayed except after the average fuel mileage has been reset, go to your
dealer for service.
Battery voltage meter
Displays the current voltage.
Operation Guide
Continued
23
Page 28
Instruments (Continued)

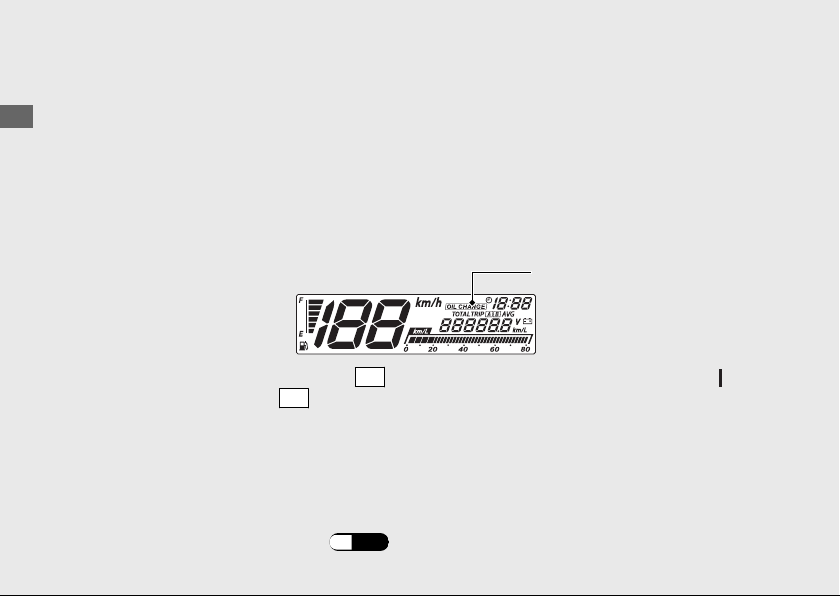

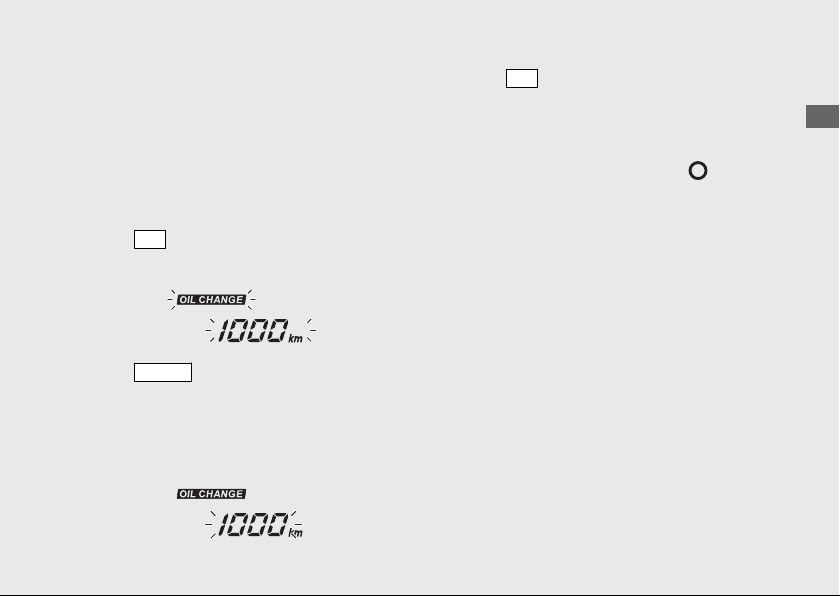

OIL CHANGE indicator
The indicator is turned on whenever the running distance reaches the programed oil change
interval.
Operation Guide
u
When the running distance reaches about 1,000 km:
Reset the indicator after changing the engine oil for the 1st time.
u
When the running distance reaches about every 6,000 km after the 1st time resetting:
Reset the indicator after changing the engine oil.
After changing the engine oil, be sure to reset the indicator.
OIL CHANGE indicator
To reset the indicator, press and hold the
position, and keep holding the
u
The indicator does not go off until it is reset.
If the oil is changed before the OIL CHANGE indicator comes on, be sure to reset the OIL CHANGE
u
indicator after changing the oil. When resetting the indicator during no indication, the indicator will
appear for 2 seconds, then disappear.
SET
SET
button while turning the ignition switch to the (On)
button for more than 3 seconds.
You can change the setting of the distance until the OIL CHANGE indicator lights again.
To set the OIL CHANGE indicator: (P.25)
24
Page 29

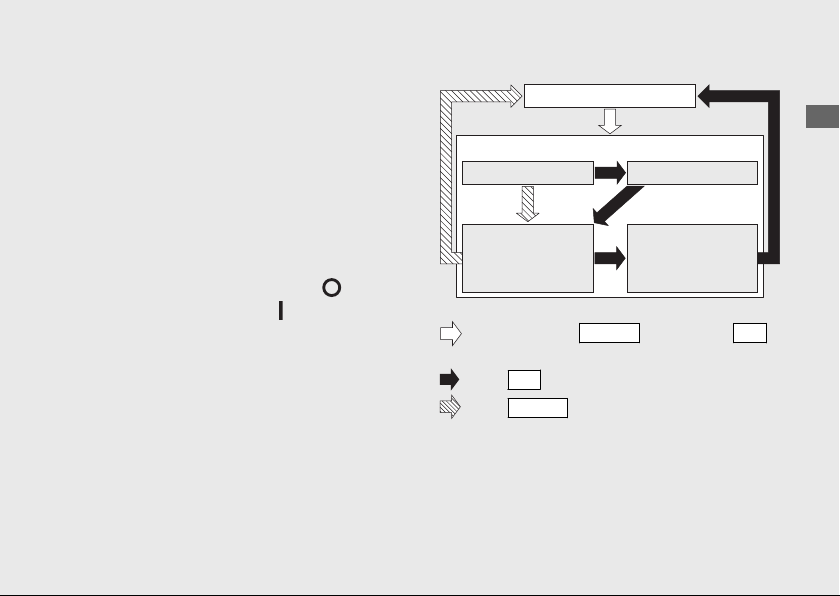

Ordinary display
Setting Mode
Clock setting mode Clock setting
OIL CHANGE
indicator setting
mode
OIL CHANGE
indicator setting
Display Setting
Following items can be changed sequentially.
● Clock setting
● OIL CHANGE indicator setting
The following moves the ordinary display at
display setting.
● The button is not pressed for about 30
seconds
● Turn the ignition switch to the (Off)
position and then to the (On) position
Press and hold
button
SET
Press
Press
button
SELECT
SELECT
button
button and
Operation Guide
SET
Continued
25
Page 30
Instruments (Continued)

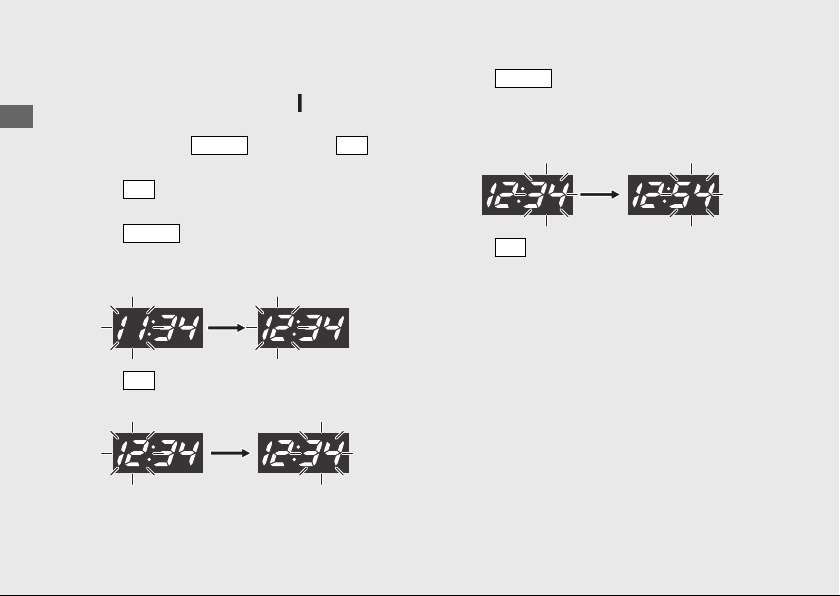

1 Clock setting:
a
Turn the ignition switch to the (On)
Operation Guide
position.
b
Press and hold
button, all clock digits start flashing.
Press
SET
button, the hour digits start
c
flashing.
Press
SELECT
button until the desired hour
d
is displayed.
u
Press and hold to advance the hour fast.
SELECT
button and
SET
Press
SELECT
button until the desired
f
minute is displayed.
u Press and hold to advance the minute
fast.
Press
SET
button. The clock is set, and then
g
the display moves to the interval value of
OIL CHANGE indicator.
26
e
Press
flashing.
SET
button. The minute digits start
Page 31
2 OIL CHANGE indicator setting:
The indicator is turned on whenever the
running distance reaches the programmed
oil change interval.
You can adjust the interval value of OIL
CHANGE indicator.
Press
SET
button. The OIL CHANGE
c
indicator is set.
The established setting can also be set by
turning the ignition switch to the (Off)
position.
Operation Guide
Press
SET
button. The OIL CHANGE
a
indicator start flashing.
Press
SELECT
button until the desired value
b
is displayed.
u The oil change interval can be set every
500 km (300 miles) within the range 500
to 6,000 km (300 to 4,000 miles).
The control is automatically switched from
the setting mode to the ordinary display if
the switch is not pressed for about 30
seconds.
In this case, undecided settings will not be
maintained.
27
Page 32
Indicators

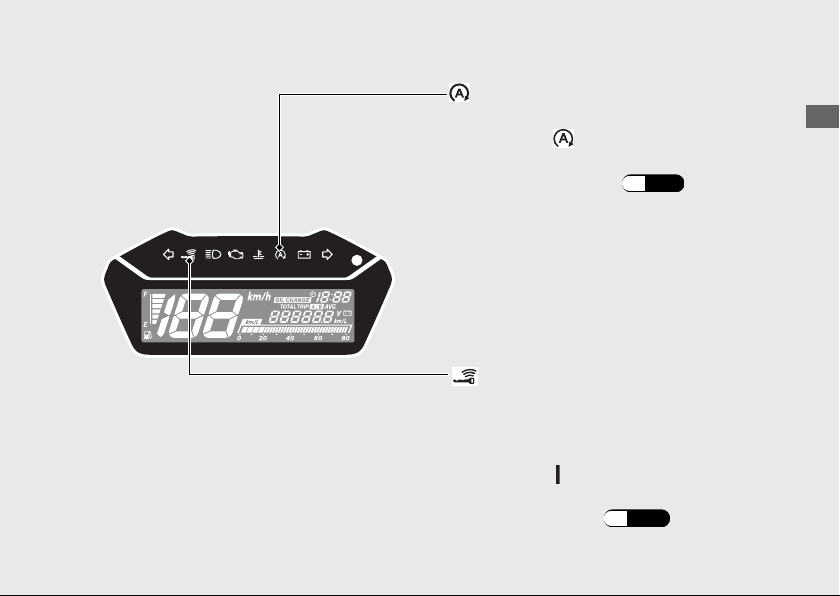

If one of these indicators does not come on when it should, have your dealer check for
problems.
Operation Guide
28
High beam indicator
High coolant temperature indicator
If it comes on while riding: (P.110)
Alarm indicator
Anti-theft Alarm system: (P.44)
PGM-FI (Programmed Fuel
Injection) malfunction
indicator lamp (MIL)
Comes on briefly when the ignition
switch is turned to the (On) position
If it comes on while engine is
running:
(P.111
)
Page 33
Idling Stop indicator
Comes on briefly when the Idling Stop
switch in the
(Idling stop) with the
ignition switch turned on.
Idling Stop system: (P.56)
Honda SMART Key Indicator
Comes on when vehicle and Honda
SMART Key verification is complete, and
the ignition switch can be operated.
Goes off when the ignition switch is
turned to the (On) position.
When the Honda SMART Key
Indicator Flashes:
(P.112
)
Operation Guide
Continued
29
Page 34

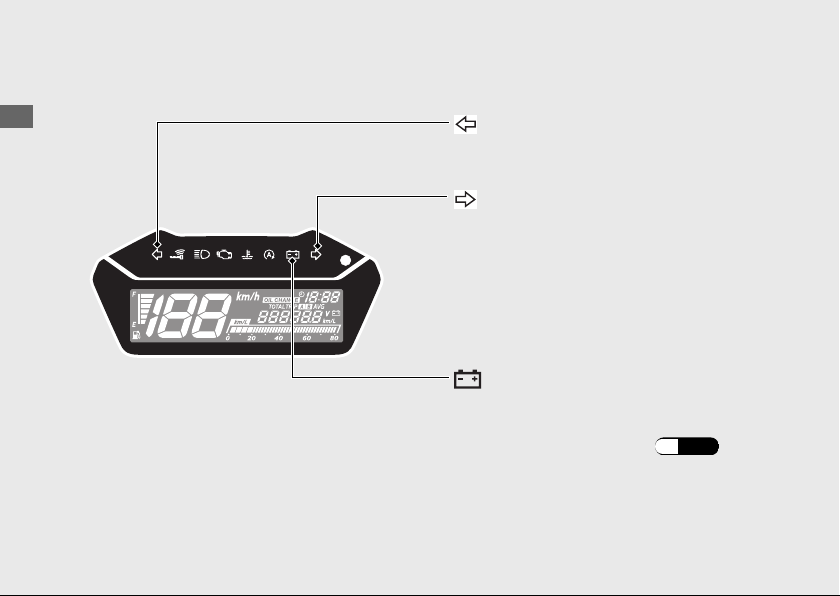

Indicators (Continued)
Operation Guide
30
Left turn signal indicator
Right turn signal indicator
Battery Charging Condition
indicator
When the Battery Charging
Condition indicator on:
(P.111
)
Page 35
Operation Guide
31
Page 36
Switches
Operation Guide

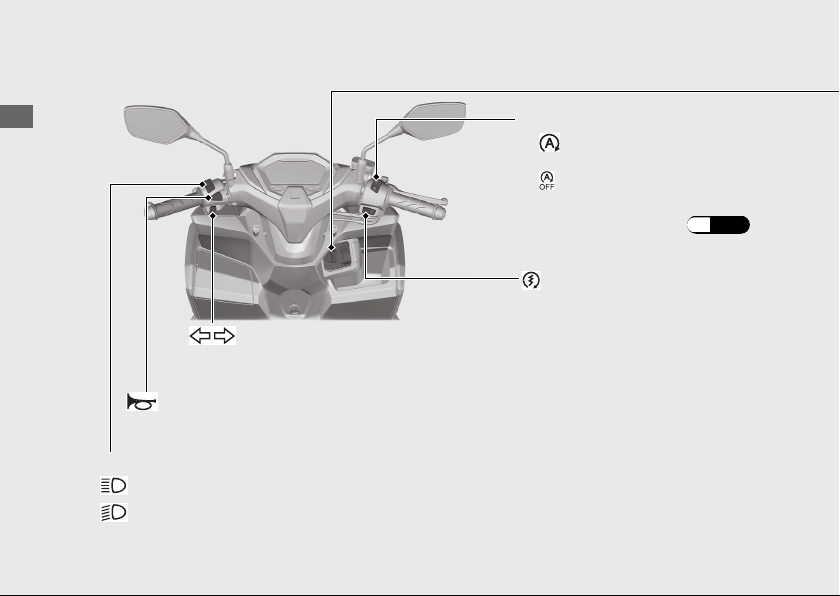

Headlight dimmer switch
• : High beam
• : Low beam
32

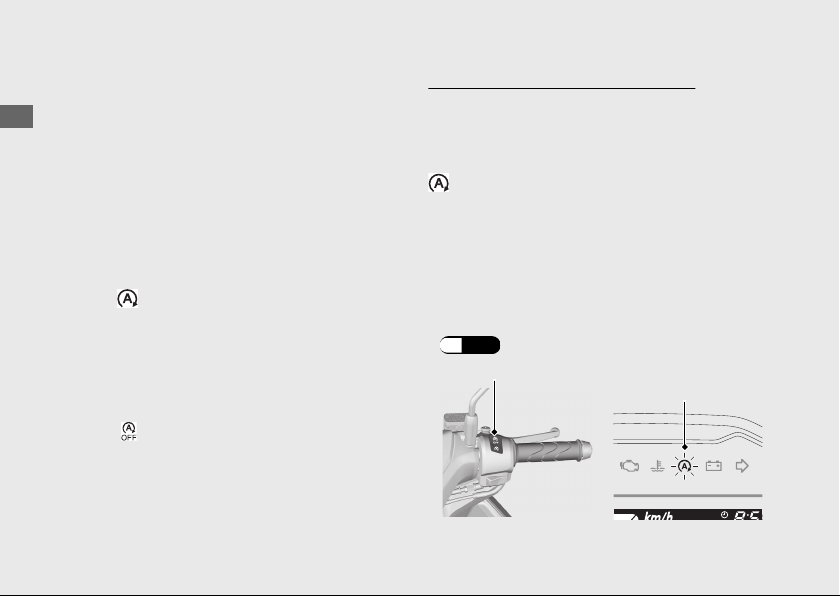

Idling stop switch
• : The Idling Stop system is
on.
• : The Idling Stop system is
off.
Idling Stop system: (P.56)
Start button
Turn signal switch
u Pressing the switch turns the
turn signal off.
Horn button
Page 37
P
USH
Ignition switch
Switches the electrical system on/off,
locks the steering, and operates the
seat opener switch.
To unlock the ignition switch:
)
(P.40
Turns electrical system on for
(On)
starting/riding.
SEAT
Operates the seat opener
switch.
(Off)
Turns engine off.
(Lock)
Locks steering.
Continued
Operation Guide
33
Page 38
PUSH
Switches (Continued)
Steering Lock
Lock the steering when parking to help
Operation Guide
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
a
34
Ignition switch
b
Push
Turn
Locking
#
a
Turn the handlebar all the way to the left or
right.
b
Push the ignition switch down, and turn it to
the (Lock) position.
u To unlock the ignition switch (P.40
u Jiggle the handlebar if the lock is difficult
to engage.
c
Lock the ignition switch.
Unlocking
#
)
Push the ignition switch in, and turn it to the
(Off) position.
u To unlock the ignition switch (P.40)
Page 39
Honda SMART Key System

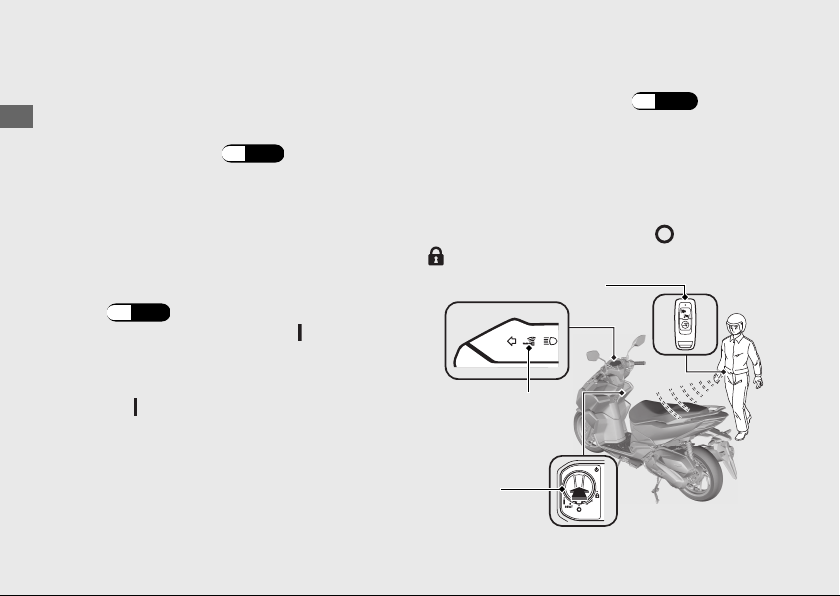

The Honda SMART Key system allows you to
operate the ignition switch without inserting
a key into a keyhole.
The system runs a two-way authentication
between the vehicle and the Honda SMART
Key to verify if it is the registered Honda
SMART Key.
The Honda SMART Key system uses lowintensity radio waves. It may affect medical
equipment such as a cardiac pacemaker.
Operation Guide
Continued
35
Page 40
Honda SMART Key System (Continued)
Switching the Honda SMART Key
System
Operation Guide
To switch the Honda SMART Key
#
system to activation or deactivation
Press the ON/OFF button until the Honda
SMART Key LED changes colour.
To check the Honda SMART Key
#
system status
Lightly press the ON/OFF button. The Honda
SMART Key LED will show the status.
When the Honda SMART Key LED is:
Green:
(active)
Red:
(inactive)
36
Honda SMART Key system
authentication can be
performed.
Honda SMART Key system
authentication cannot be
performed.
LED
ON/OFF button
Page 41
Operating Range
The operating range varies when the ignition
switch is locked or unlocked.
The Honda SMART Key system uses lowintensity radio waves. Therefore, the
operating range may be wider or narrower,
or the Honda SMART Key system may not
work properly in the following situations:
When the Honda SMART Key battery is
●
depleted.
● When there are facilities nearby that
generate strong radio waves or noise,
such as TV towers, power stations, radio
stations, or airports.
●
When you carry the Honda SMART Key
with a laptop or wireless communication
device such as a radio or mobile phone.
●
When the Honda SMART Key comes into
contact with or is covered by metal
objects.

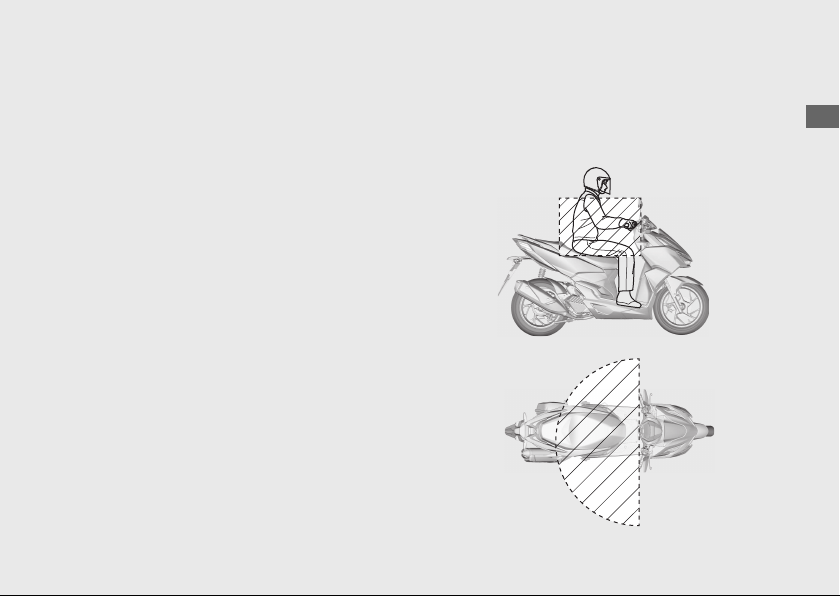

When the ignition switch is unlocked:
#
The system can be operated within the
shaded area shown in the illustration.
Operation Guide
Continued
37
Page 42
Honda SMART Key System (Continued)
When the ignition switch is locked:
#
The system can be operated within the
Operation Guide
shaded area shown in the illustration.
About 2 m (6.6 ft)
38
Anyone can unlock the ignition switch and
start the engine if your Honda SMART Key is
within operating range of your vehicle, even
if you are on the other side of a wall or
window. If you are away from your vehicle
but your Honda SMART Key is still within
operating range, deactivate the Honda
SMART Key system.
To switching the Honda SMART Key
system
(P.36)
Page 43
Anyone in possession of the Honda SMART
Key can perform the following operations if
the Honda SMART Key is within operating
range:
● Starting the engine
● Unlocking the ignition switch
● Unlocking the seat lock
● Unlocking the steering lock
You should always keep the Honda SMART
Key on your person after you get on and off
the vehicle or while riding.
Do not store the Honda SMART Key in any
compartment.
If the ignition switch is in the (On) position,
the vehicle can be operated even by a
person who does not have a verified Honda
SMART Key.
Whenever you leave your vehicle, lock the
steering and lock the ignition switch.
(P.41)
Make sure the Honda SMART Key indicator
goes off, all turn signals flash once, and
buzzer rings at this time.
Operation Guide
Continued
39
Page 44
PUSH
Honda SMART Key System (Continued)
Switching the ignition switch
To Unlock the Ignition Switch
#
Operation Guide
a

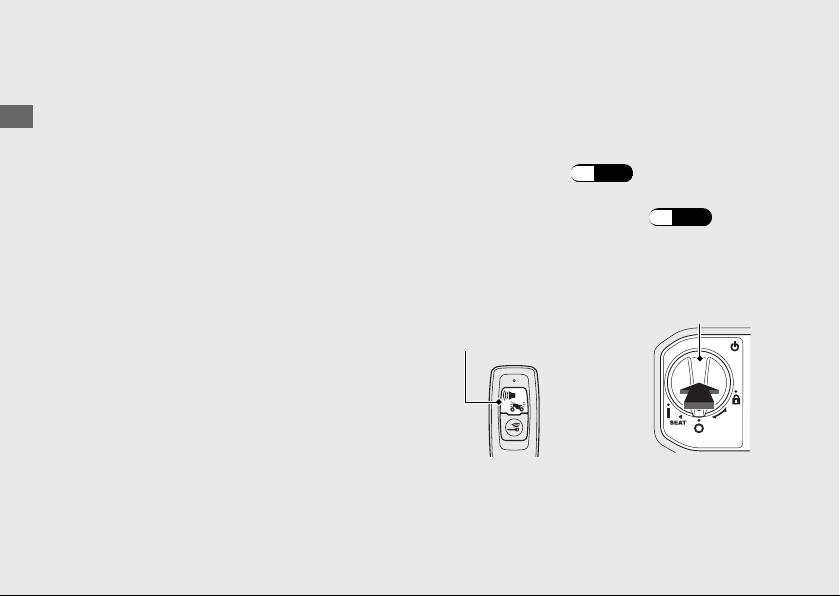

Make sure that the Honda SMART Key
system is activated. (P.36)
b
To authenticate the Honda SMART Key
system, push the ignition switch.
u
When properly authenticated and the
ignition switch is unlocked, the Honda
SMART Key indicator comes on. The
buzzer also rings 2 times at this time.
u The buzzer sound can be cancelled.
(P.42
c
Turn the ignition switch to the (On) position
while the Honda SMART Key indicator
comes on.
u If you do not turn the ignition switch to
)
the (On) position within 20 seconds
after pushing in the ignition switch in, the
Honda SMART Key indicator will go off,
the turn signals flash 1 time, and then the
ignition switch will be locked.
The buzzer also rings at this time.
When the Honda SMART Key system
does not work properly (P.117)
If someone without the Honda SMART Key
tries to turn the ignition switch, the ignition
switch rotates freely. If you notice the ignition
switch is in a different position, turn the
ignition switch to the original (
(Off) or
(Lock)) position.
Honda SMART Key
Honda SMART
Key indicator
Ignition
switch
40
Page 45
P
USH
To Lock the Ignition Switch
#
a
Turn the ignition switch to the SEAT, (Off)
or (Lock) position.
b
Lock the ignition switch by doing one of the
following:
● Leave the operating range with the
Honda SMART Key. (P.37)
Push the ignition switch.
●
Wait for approximately 20 seconds
●
after turning the ignition switch from
(On) to SEAT, (Off) or
(Lock) position.
● Switch the Honda SMART Key system
to inactive. (P.36
c
Make sure that the Honda SMART Key
)
indicator goes off, the turn signals flash
once, and the buzzer rings 1 time. This
indicates that the ignition switch is locked.
The buzzer sound can be cancelled.
u
(P.42
)
When the Honda SMART Key system
does not work properly (P.117)
Ignition
switch
(On)
SEAT
(Lock)
(Off)
Continued
Operation Guide
41
Page 46
Honda SMART Key System (Continued)
Always make sure the ignition switch position
is in the (Off) or (Lock) position when
you leave your vehicle.
Operation Guide
When the ignition switch is locked in the
SEAT position, the ignition switch can be
turned to the
When the ignition switch is locked in the
(Off) position, the steering cannot be
locked. To lock the steering, unlock the
ignition switch.
42
(Off) position only once.

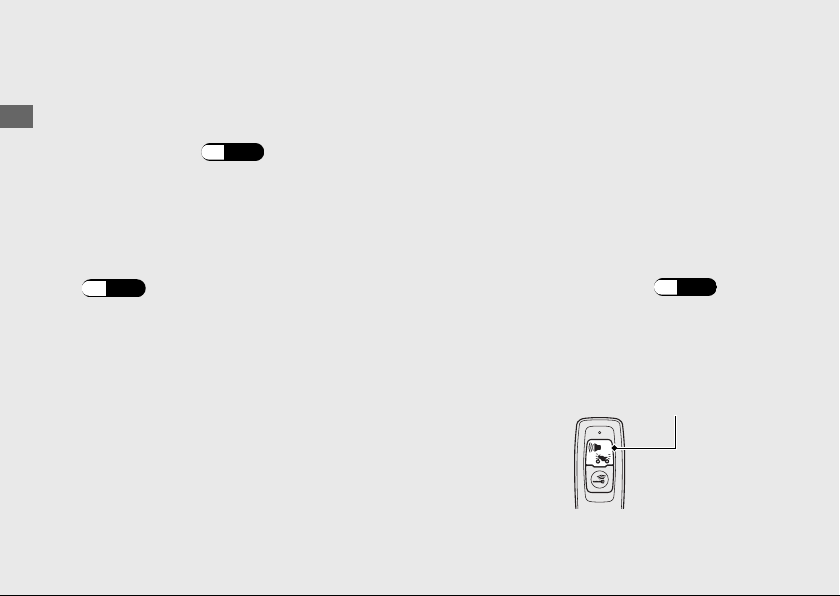

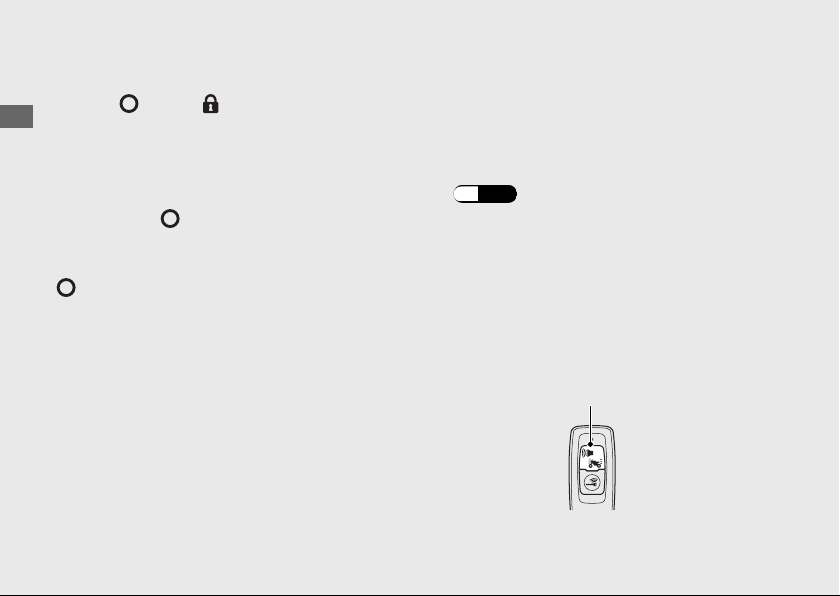

Switch the Buzzer Sound When the
#
Ignition Switch is Locked/Unlocked
Enable
a
Deactivate the Honda SMART Key system.
(P.36)
b
Lightly press the ON/OFF button. The red
Honda SMART Key LED comes on.
c
While the red LED is on, press the answer
back/alarm button.
u The red LED starts blinking when the
buzzer sound is properly enabled.
Answer back/
alarm button
Page 47
Disable
a
Deactivate the Honda SMART Key system.
(P.36)
b
Lightly press the ON/OFF button. The red
Honda SMART Key LED blinks.
c
While the red LED is blinking, press the
answer back/alarm button.
u The red LED stops blinking but stays on
when the buzzer sound is properly
disabled.
Operation Guide
43
Page 48

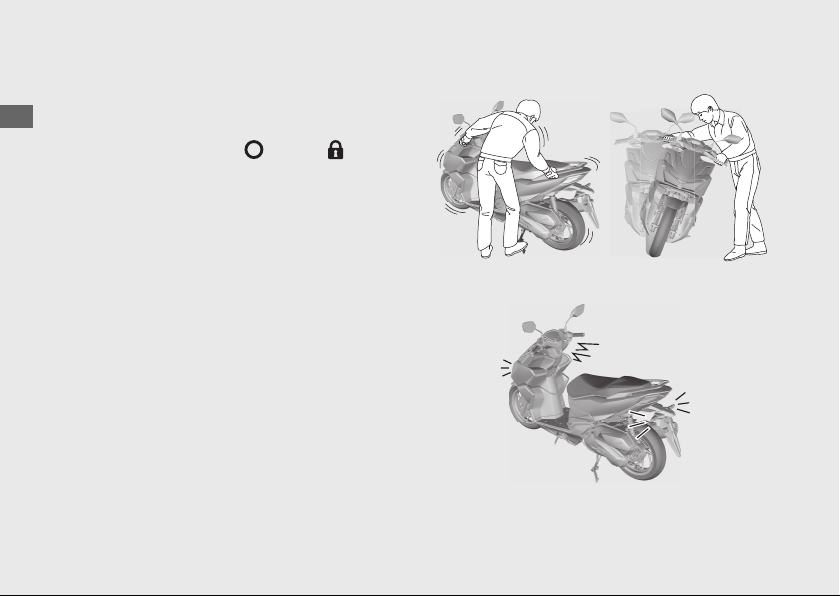

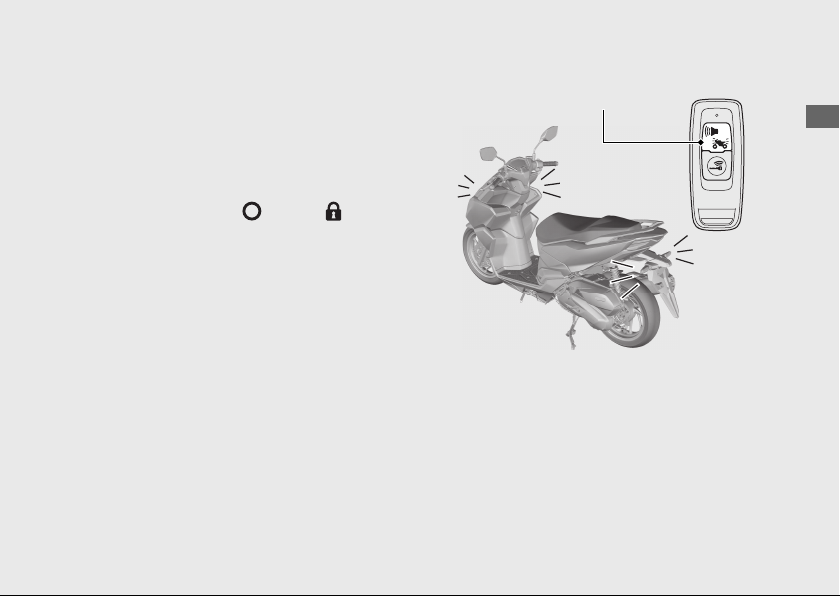

Anti-theft Alarm System
The anti-theft alarm system is a device to
reduce the likelihood of theft. When the
sensor detects vibration or movement with
Operation Guide
the ignition switch in the (Off) or (Lock)
position and the system is set, the alarm is
activated.
The buzzer rings and the turn signals blink
for about 10 seconds when the anti-theft
alarm system detects vibration caused by
contact or movement.
The buzzer rings and the turn signals blink
for about 60 seconds when the anti-theft
alarm system detects a substantial change in
the vehicle posture. After the buzzer rings for
60 seconds, the anti-theft alarm system will
be reset in that posture.
44
Page 49
If the ignition switch is left (Off) position
for more than 10 days, the anti-theft alarm
system will no longer operate.
When the system is active and the vehicle
receives a signal from pressing the answer
back/alarm button, system activation will be
extended for 10 days.
To reset the system, turn the ignition switch
to the
(On) position once.
The anti-theft alarm system uses lowintensity radio waves. It may affect medical
equipment such as a cardiac pacemaker.
When the battery in the vehicle is weak, the
anti-theft alarm system may not function.
Setting the Anti-theft Alarm System
#
a
Turn the ignition switch to (Off) or
(Lock) position.
b
Press the answer back/alarm button. Within
a second, the turn signals blink and the
buzzer rings 1 time. After 2.5 seconds, the
buzzer rings 1 time. The anti-theft alarm
system is activated.
The alarm indicator flashes while the antitheft alarm system is activated.
Answer back/
Alarm indicator
alarm button
Operation Guide
Continued
45
Page 50
Anti-theft Alarm System (Continued)
Cancelling the Anti-theft Alarm
#
System
Operation Guide
To cancel the anti-theft alarm system, unlock
the ignition switch. (P.40)
When the ignition switch is unlocked, the
buzzer rings 2 times and the alarm indicator
goes off.
u The buzzer sound can be cancelled.
(P.42)
46
Stopping the Anti-theft Alarm
#
Activation
To stop the anti-theft alarm activation, do
one of the following:
● Press the answer back/alarm button on
the Honda SMART Key.
u After stopping the anti-theft alarm
activation, the anti-theft alarm system
will be reset.
● Unlock the ignition switch. (P.40)
u
After stopping the anti-theft alarm
activation, the anti-theft alarm system
will be cancelled.
Answer back/
alarm button
Page 51
P
USH

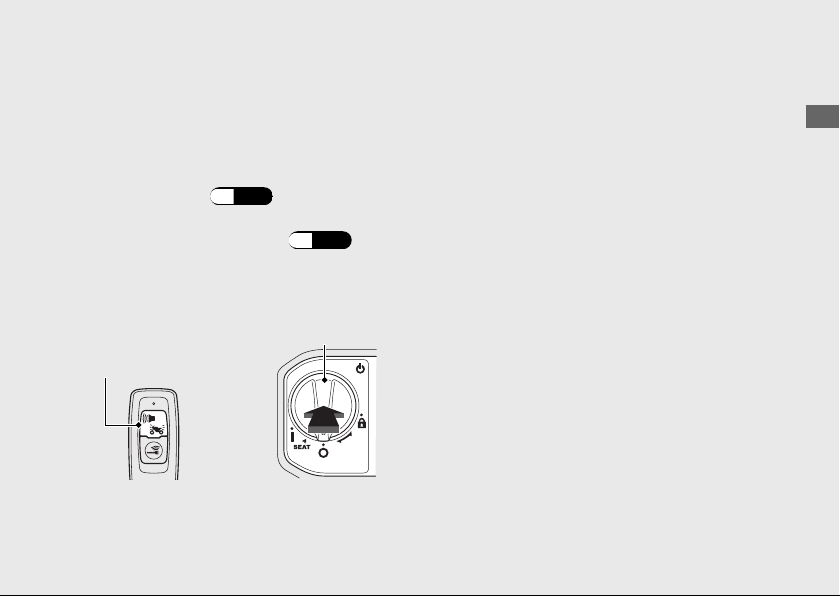

Adjusting the Sensitivity of Anti-theft
#
Alarm System
You can select from 3 sensitivity levels for the
anti-theft alarm system.
a
Make sure that the Honda SMART Key
system is active. (P.36)
b
Push the ignition switch to authenticate the
Honda SMART Key system. (P.40)
c
Press and hold the ignition switch for more
than 4 seconds.
u The Honda SMART Key indicator flashes.
Answer back/
Ignition switch
alarm button
d
Push the ignition switch 1 time while the
Honda SMART Key indicator is flashing.
u The Honda SMART Key indicator comes
on, and a buzzer sounds.
e
Repeat the following 3 times:
Press the answer back/alarm button on
the Honda SMART Key 4 times and the
ignition switch 1 time.
u When the ignition switch is pressed, the
Honda SMART Key indicator goes off,
and the buzzer sounds. When the
Honda SMART Key indicator light again,
do the next input.
u When the answer back/alarm button is
pressed, the Honda SMART Key LED
comes on. Make sure the LED goes off
before pressing the button again.
Continued
Operation Guide
47
Page 52
Anti-theft Alarm System (Continued)
u When the answer back/alarm button or
ignition switch is not pressed for 1
Operation Guide
48
minute, the Honda SMART Key indicator
flash 3 times, and then the buzzer
sounds and the mode is cancelled.
Return to a and do the procedure
again.
u If you press the answer back/alarm
button the wrong number of times
before you repeat the procedure 3
times, then repeat the procedure 3 times
again.
f
Press the answer back/alarm button to
select from 3 sensitivity levels.
3 alarm rings: high sensitivity
2 alarm rings: medium sensitivity
1 alarm ring: low sensitivity
The Honda SMART Key indicator comes on
while setting.
g
Press and hold the ignition switch for more
than 2 seconds. The sensitivity level is set.
u The Honda SMART Key indicator turn off,
and a buzzer sounds once.
u When the answer back/alarm button is
not pressed for 10 seconds, the Honda
SMART Key indicator flash 3 times, and
then the buzzer sounds, and the
sensitivity level is set.
If the Anti-Theft Alarm System Does
#
Not Operate Properly
If any of the following situations arise, the
battery ((P.90) ) in the vehicle may be
discharged or there is a system problem.
Remove the battery and see your dealer.
●
The alarm does not ring.
●
The alarm rings but fades out.
●
The alarm system does not stop.
Page 53
Answer Back System
The answer back system is a device to find
the location of your vehicle and to inform
you that the immobilizer function of the
Honda SMART key system is activated.
When you press the answer back/alarm
button on the Honda SMART key with the
ignition switch is in the (Off) or (Lock)
position and the anti-theft alarm system is
set, the turn signals light, and the buzzer
rings, informing you of your vehicle's location
and activation of the immobilizer function.
The answer back system uses low-intensity
radio waves. It may affect medical equipment
such as a cardiac pacemaker.
Answer back/
alarm button
Operation Guide
Continued
49
Page 54
P
USH
Answer Back System (Continued)
Operation
#
Press the answer back/alarm button on the
Operation Guide
Honda SMART Key.
u The answer back system will not function
when the ignition switch is (On) position.
If the ignition switch is left the (Off) or
(Lock) position for more than 10 days, the
answer back system will no longer operate.
When the system is active and the vehicle
receives a signal from pressing the answer
back/alarm button, system activation will be
extended for 10 days.
To reset the system, turn the ignition switch
(On) position once.
to the
To unlock the ignition switch (P.40
u
When the battery in the vehicle is weak, the
answer back system may not function.
50
Adjusting the Answer Back Buzzer
#
Sound Volume Level
You can select 3 buzzer sound volume levels.
a
Make sure that the Honda SMART Key
system is active. (P.36)
b
Push the ignition switch to authenticate the
Honda SMART Key system. (P.40)
c
Press and hold the ignition switch for more
than 4 seconds.
u
The Honda SMART Key indicator flashes.
Answer back/
Ignition switch
alarm button
)
Page 55
d
Push the ignition switch 1 time while the
Honda SMART Key indicator is flashing.
u The Honda SMART Key indicator comes
on, and a buzzer sounds.
e
Repeat the following 3 times:
Press the answer back/alarm button on
the Honda SMART Key 2 times and the
ignition switch 1 time.
u When the ignition switch is pressed, the
Honda SMART Key indicator goes off,
and the buzzer sounds. When the
Honda SMART Key indicator comes on
again, do the next input.
u When the answer back/alarm button is
pressed, the Honda SMART Key LED
comes on. Make sure the LED goes off
before pressing the button again.
u When the answer back/alarm button or
ignition switch is not pressed for 1
minute, the Honda SMART Key indicator
flash 3 times, and then the buzzer
sounds and the mode is cancelled.
Return to a and do the procedure
again.
u If you press the answer back/alarm
button the wrong number of times
before you repeat the procedure 3
times, then repeat the procedure 3 times
again.
f
Press the answer back/alarm button to
select from 3 levels for the sound volume.
The Honda SMART Key indicator comes
on while setting.
Operation Guide
Continued
51
Page 56
P
USH
Answer Back System (Continued)
g
Press and hold the ignition switch for more
than 2 seconds. The sound volume level is
Operation Guide
set.
u The Honda SMART Key indicator turn off,
and a buzzer sounds once.
u When the answer back/alarm button is
not pressed for 10 seconds, the Honda
SMART Key indicator flash 3 times, and
then the buzzer sounds, and the sound
volume level is set.
52
Changing the Answer Back Buzzer
#
Sound Pattern
You can select 3 buzzer sound patterns.
a
Make sure that the Honda SMART Key
system is active. (P.36)
b
Push the ignition switch to authenticate the
Honda SMART Key system. (P.40)
c
Press and hold the ignition switch for more
than 4 seconds.
u
The Honda SMART Key indicator flashes.
Answer back/
Ignition switch
alarm button
Page 57
d
Push the ignition switch 1 time while the
Honda SMART Key indicator is flashing.
u The Honda SMART Key indicator comes
on, and a buzzer sounds.
e
Repeat the following 3 times:
Press the answer back/alarm button on
the Honda SMART Key 3 times and the
ignition switch 1 time.
u When the ignition switch is pressed, the
Honda SMART Key indicator goes off,
and the buzzer sounds. When the
Honda SMART Key indicator comes on
again, do the next input.
u When the answer back/alarm button is
pressed, the Honda SMART Key LED
comes on. Make sure the LED goes off
before pressing the button again.
u When the answer back/alarm button or
ignition switch is not pressed for 1
minute, the Honda SMART Key indicator
flash 3 times, and then the buzzer
sounds and the mode is cancelled.
Return to a and do the procedure
again.
u If you press the answer back/alarm
button the wrong number of times
before you repeat the procedure 3
times, then repeat the procedure 3 times
again.
f
Press the answer back/alarm button to
select from 3 buzzer sound patterns.
The Honda SMART Key indicator comes
on while setting.
Operation Guide
Continued
53
Page 58
Answer Back System (Continued)
g
Press and hold the ignition switch for more
than 2 seconds. The sound pattern is set.
Operation Guide
u The Honda SMART Key indicator turn off,
and a buzzer sounds once.
u When the answer back/alarm button is
not pressed for 10 seconds, the Honda
SMART Key indicator flash 3 times, and
then the buzzer sounds, and the sound
pattern is set.
54
Temporary Silence Mode
#
Temporary silence mode is the immediate
way to turn off the answer back system
buzzer sound.
Enable:
Press and hold the answer back/alarm button
for about 2 seconds, the Honda SMART Key
LED changes to red.
Disable:
Re-press and hold the answer back/alarm
button for about 2 seconds, the Honda
SMART Key LED changes to green.
Page 59
Rear Brake Lock
Be sure the rear brake lock is applied while
starting and warming up the engine.
Locking
#
Squeeze the rear brake lever and set the rear
brake lock lever.
u The rear brake lock will not function if the
rear brake is not adjusted properly.
(P.101)
Rear brake
lock lever
Rear brake lever
Unlocking
#
Squeeze the rear brake lever.
u Before riding, make sure that the rear brake
lock is fully released so there is no drag on
the rear wheel.
Rear brake lever
Operation Guide
55
Page 60
Idling Stop System
Idling Stop system is designed to help reduce
the fuel consumption and noise, by idling
stop while making a stop such as waiting at
Operation Guide
an intersection.
Switching the Idling Stop System On
#
or Off
Switches the Idling Stop system on or off
using the Idling Stop switch.
ON: (Idling Stop)
●
u
Idling Stop indicator comes on when the
Idling Stop system becomes ready to
stop the engine while riding. Idling Stop
indicator flashes when the engine is
stopped by the Idling Stop system.
● OFF: (Idling)
Idling Stop indicator does not come on
u
when the Idling Stop system is off.
56
Activation of the Idling Stop System
The Idling Stop system becomes ready to
stop the engine and Idling Stop indicator
comes on when the following requirements
are satisfied with the Idling Stop switch in the
(Idling Stop) position:
● side stand is up
●
start the engine by pressing the start button
warm up the engine enough
●
ride the vehicle at speeds over 10 km/h (6
●
mph)
Idling Stop Indicator Does Not Come On:
#
)
(P.114
Idling Stop switch
Idling Stop
indicator
Page 61

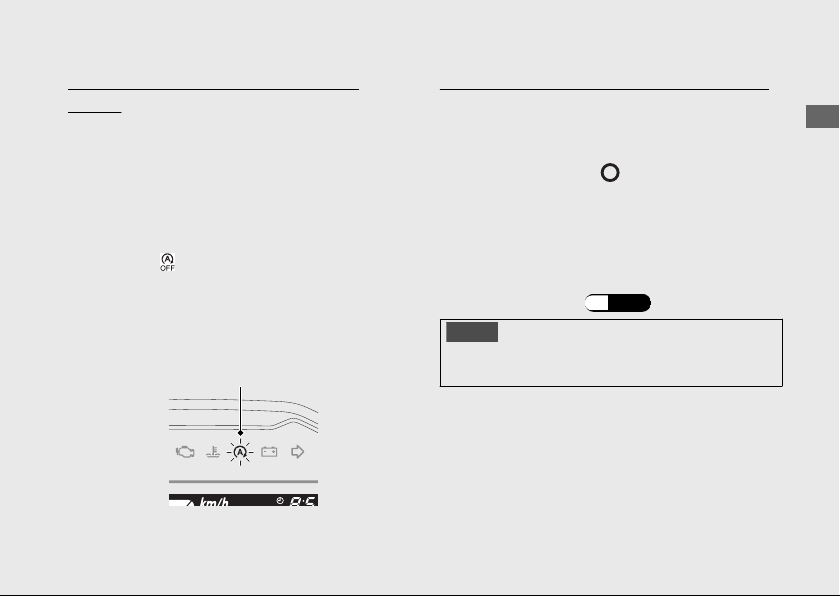

Stopping the engine by the Idling Stop
System
The engine stops and Idling Stop indicator
changes to flash after you close the throttle
completely and stop the vehicle while the
Idling Stop indicator is on.
u While the engine is stopped by the Idling
Stop system, if you press the Idling Stop
switch to (Idling), the Idling Stop system
will be cancelled. The engine will not restart
even when you open the throttle.
Idling Stop
indicator
Safety Precaution for the Idling Stop System
Do not go away from the vehicle while the
Idling Stop indicator is flashing. When you go
away from the vehicle, always turn the
ignition switch to the
u The engine may start unexpectedly if the
throttle is opened.
Engine is Not Stopped by the Idling
#
(Off) position.
Stop System While the Idling Stop
Indicator is On: (P.115)
NOTICE
Stopping by the Idling Stop system for a long
time may cause battery discharge.
Operation Guide
Continued
57
Page 62
Idling Stop System (Continued)
Restarting the Engine
Check that the Idling Stop indicator is
flashing, and then open the throttle.
Operation Guide
u If it is not flashing, you can't restart the
engine with the Idling Stop system, even if
you open the throttle.
u While the engine is stopped by the Idling
Stop system, if you operate the side stand,
the flashing Idling Stop indicator turns off or
stops flashing and stays on, then the engine
will not restart even when you open the
throttle.
Engine Does Not Start Even If the
#
Throttle is Opened: (P.116)
58
NOTICE
Headlights stay on after the engine is stopped by
the Idling Stop system. The battery may
discharge and you may not be able to restart
engine.
When the battery is weak, switch the Idling Stop
switch to (Idling) and do not to use the Idling
Stop system. See your dealer to check the
battery.
See your dealer for checking the battery as
specified in the maintenance schedule.
Maintenance Schedule: (P.77)
#
Page 63
Starting the Engine
Start your engine using the following procedure,
regardless of whether the engine is cold or warm.
This vehicle is equipped with a side stand
ignition cut-off system.
u If the side stand is down, the engine cannot
be started.
u
If you lower the side stand with the engine
running, it will automatically shut off.
This vehicle is equipped with a Honda SMART
Key system. Always keep Honda SMART Key on
you when you ride the vehicle. (P.37
If the engine of this vehicle is stopped while
the ignition switch is in the (On) position,
authentication will be disabled after a certain
amount of time or if you leave the
authentication range. Restart the engine by
performing step c - d under the starting
procedure.
)
u If the engine of this vehicle is stopped by the
Idling Stop System, authentication will not
be disabled.
NOTICE
•
If the engine does not start within 5 seconds,
turn the ignition switch to the (Off) position
and wait 10 seconds before trying to start the
engine again to recover battery voltage.
• Extended fast idling and revving the engine
can damage the engine and the exhaust
system.
If the vehicle is over-turned, you must first turn
•
the ignition switch to the (Off) position and
then inspect the vehicle carefully.
Operation Guide
Continued
59
Page 64
PUSH
Starting the Engine (Continued)
Consult your dealer for advice if you plan to
ride your vehicle at an altitude above 2,500
m (8,000 feet).
Operation Guide
NOTICE
If the vehicle is transported to a place 2,000 m
(6,500 feet) higher or lower than the start point,
you may not be able to achieve sufficient engine
performance at the new altitude. Consult your
dealer before transporting your vehicle.
60
a
Place the vehicle on its centre stand.

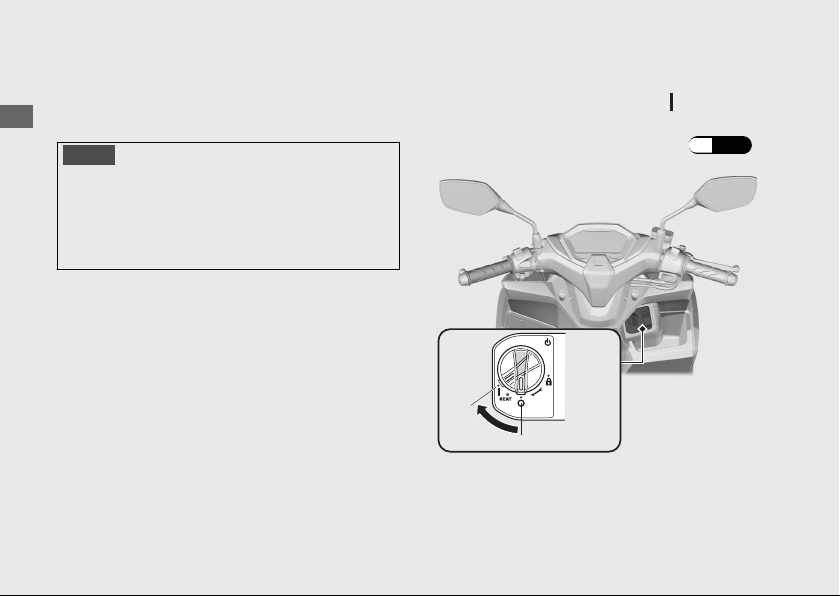

b
Turn the ignition switch to the (On)
position.
u To unlock the ignition switch. (P.40)
b
Page 65

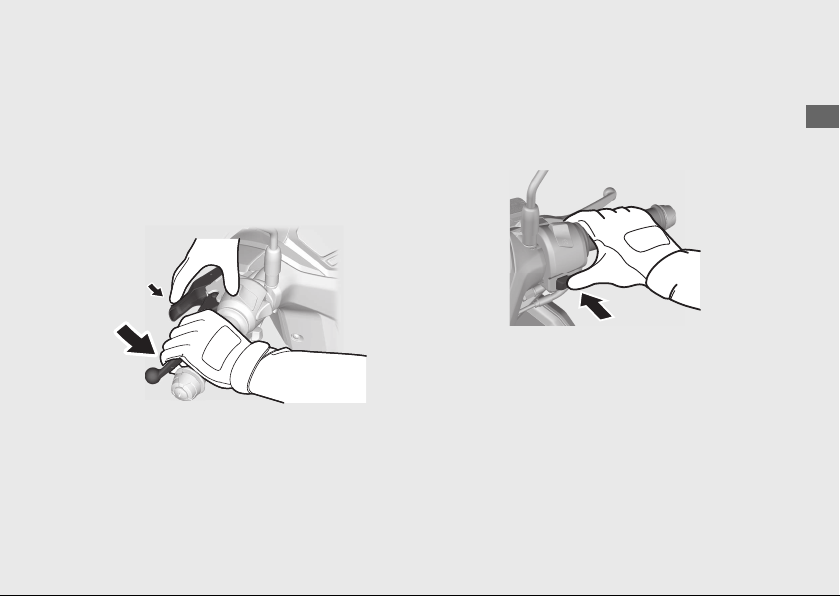

c
Lock the rear wheel by squeezing the rear
brake lever and setting the brake lock lever.
u The starter motor will only work when
the rear brake lever is squeezed and the
side stand is up.
c
d
Press the start button with the throttle
completely closed. Release the start button
as soon as the engine starts.
d
Operation Guide
Continued
61
Page 66
Starting the Engine (Continued)
If you cannot start the engine:
a
Place the vehicle on its centre stand.
Operation Guide
Lock the rear wheel by squeezing the rear
brake lever and setting the brake lock lever.
b
With the throttle slightly open (about 3 mm,
without freeplay), press the start button.

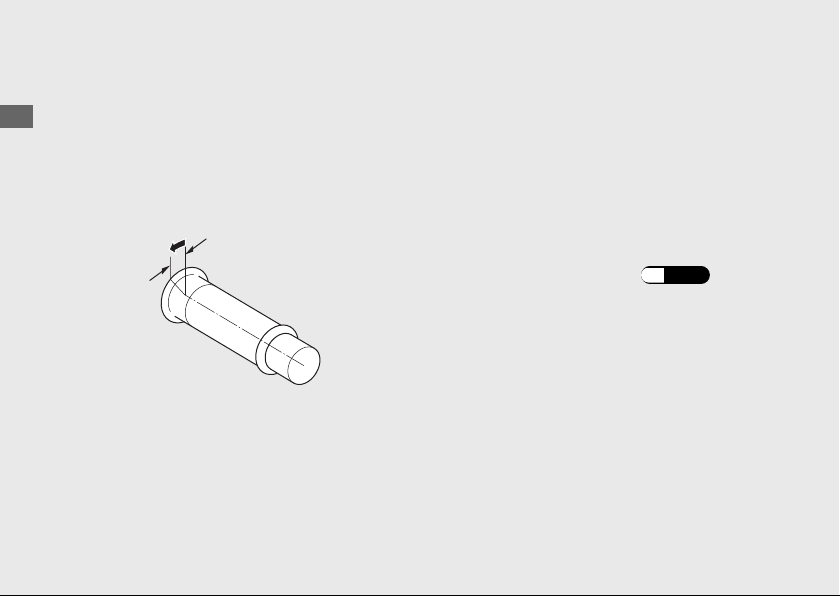

About 3 mm, without freeplay
62
If the engine does not start:
a
Open the throttle fully and press the start
button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly
if idling is unstable.
d
If the engine does not start, wait 10 seconds
before trying steps a & b again.
If Engine Will Not Start (P.109)
#
Page 67
Riding
Starting the Vehicle
a
Push the vehicle forward off the centre
stand.
u Lock the rear brake lock.
u Keep throttle closed.
Make sure the side stand and centre stand
are up.
b
Get on the vehicle.
u Mount the vehicle from the left side,
keeping at least one foot on the ground.
c
Release the rear brake lock.
d
Acceleration and deceleration
To accelerate: Open the throttle slowly.
To decelerate: Close the throttle.
Open (Accelerate)
Close (Decelerate)
Operation Guide
Continued
63
Page 68
Riding (Continued)
Braking
Close the throttle and apply the front and
rear brake levers together.
Operation Guide

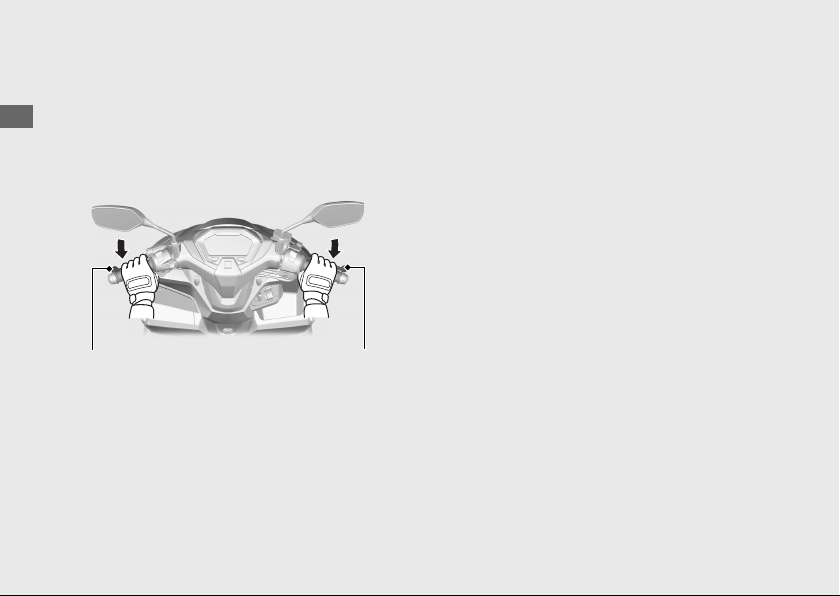

Rear brake lever Front brake lever
Do not apply the brake lock while riding.
It may cause the wheel to lock, reducing
control of the vehicle.
64
Page 69
Refuelling
Fuel type: Unleaded petrol only
Fuel octane number: Your vehicle is
designed to use Research Octane Number
(RON) 91 or higher.
Tank capacity: 5.5 L (1.45 US gal, 1.21 Imp
gal)
Refuelling and Fuel Guidelines (P.14)
#
Opening the Fuel Fill Cap
a
Open the seat. (P.69)
b
Turn the fuel fill cap counterclockwise until it
stops and remove the cap.

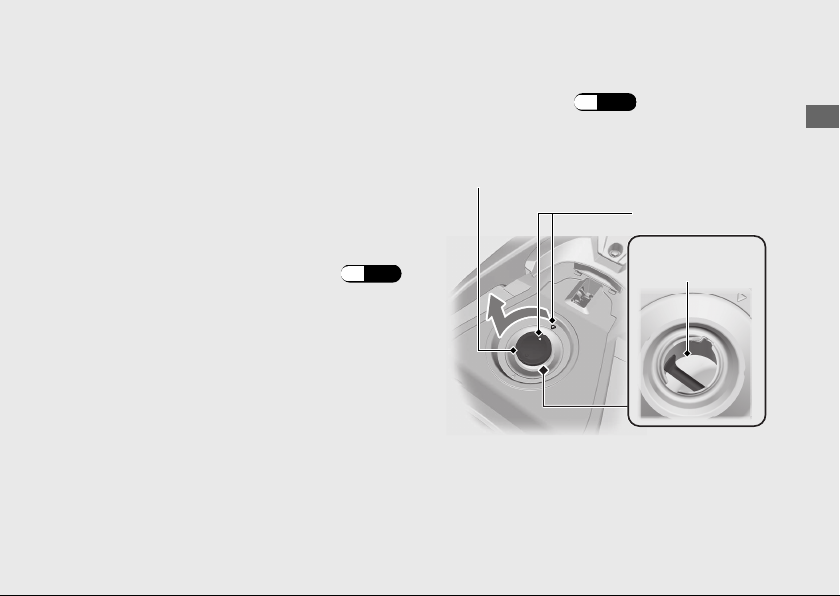

Fuel fill cap
Arrow marks
Lower edge of
filler neck
Do not fill with fuel above the lower edge of
the filler neck.
Operation Guide
Continued
65
Page 70
Refuelling (Continued)
Closing the Fuel Fill Cap
a
Install and tighten the fuel fill cap firmly by
Operation Guide
turning it clockwise.
u Make sure that the arrow marks on the
fuel fill cap and fuel tank are aligned.
b
Close the seat.
3WARNING
Petrol is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flames away.
• Only handle fuel outdoors.
• Wipe up spills immediately.
66
Page 71
USB Socket
The USB socket is located in the front box.
Use USB devices at your own risk. In no event
shall Honda be liable for any damage to your
USB device when in use.
Only USB devices within the following
specifications can be connected.
USB type-A connectors can be used.
Rated capacity is
10.5 W (5 V, 2.1 A).
u The USB socket is for charging only.
Do not connect USB devices that exceed the
rated capacity. They may not be charged or
work properly even if connected.
For information on usage or malfunction of
the USB device you connect, refer to its
instruction manual.
To connect your USB device
a
Open the front box lid. (P.73)
b
Open the cover to access the USB socket.
Cover
USB socket
Operation Guide
Continued
67
Page 72
USB Socket (Continued)
c
Connect a certified USB cable to the USB
socket.
u To prevent the battery from becoming weak
Operation Guide
(or dead), keep the engine running while
drawing current from the USB socket.
u To prevent entry of foreign matter into the
USB socket, be sure to close the cover when
the USB socket is not used.
u Carefully secure all connected devices, as
vibration may cause damage to them or
they could shift unexpectedly.
NOTICE
• Using any heat-generating USB devices or
improperly rated USB devices can damage
the USB socket.
• Do not use the USB socket in wet conditions,
when or while washing or any other wet
conditions as these will damage the USB
socket.
Do not allow the USB's harness to become
•
pinched or trapped.
68
Page 73

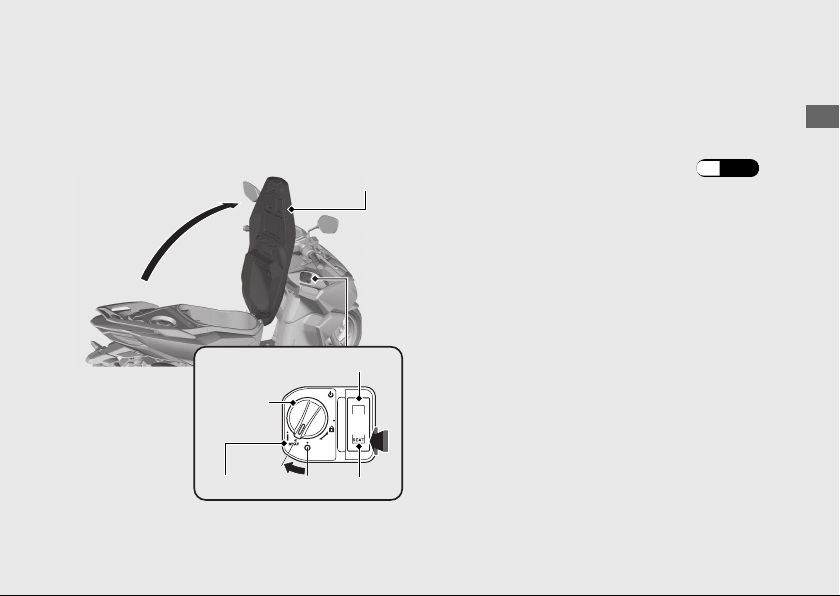

Storage Equipment
PUSH
Seat
Seat
Seat opener switch
Ignition
switch
Seat Open
a
Turn the handlebar pointed straight ahead.
b
Turn the ignition switch to the position of
SEAT.
u To unlock the ignition switch (P.40)
c
Push the SEAT side of the seat opener
switch.
d
Open the seat.
Seat Close
Close and push down on the rear of the seat
until it locks. Make sure that the seat is locked
securely by pulling it up lightly.
Take care not to lock your key in the
compartment under the seat.
Operation Guide
SEAT
SEAT
Continued
69
Page 74
Storage Equipment (Continued)
Helmet Holder
The helmet holders are located under the
seat.
Operation Guide
u Use the helmet holders only when parked.
Helmet holders
Helmet D-ring
70
3WARNING
Riding with a helmet attached to the
holder can interfere with your ability to
safely operate the vehicle and could
lead to a crash in which you can be
seriously hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Page 75
A helmet can be stored in the centre
compartment.
Set in the front of the helmet forward.
u Some helmets may not fit in the
compartment due to their size or design.
Helmet
Centre compartment
Centre compartment
Never exceed the maximum weight limit.
Maximum Weight: 10 kg (22 lb)
u Do not store any items that are flammable
or susceptible to heat damage.
u Do not store valuables or fragile articles.
Operation Guide
Continued
71
Page 76
Storage Equipment (Continued)

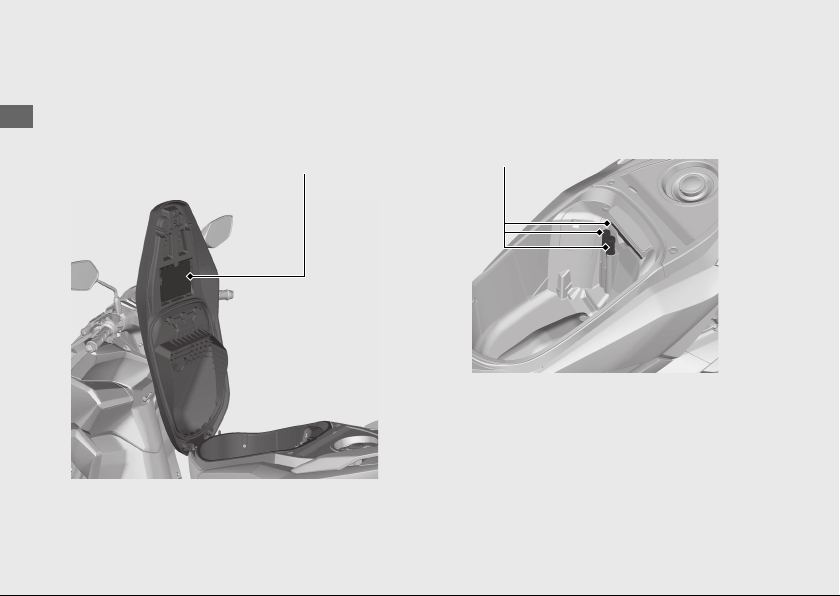

Document Bag
The document bag is in the document
compartment in the reverse side of the seat.
Operation Guide
Document bag
72
Tool
The tools are in the centre compartment.
Tools
Page 77

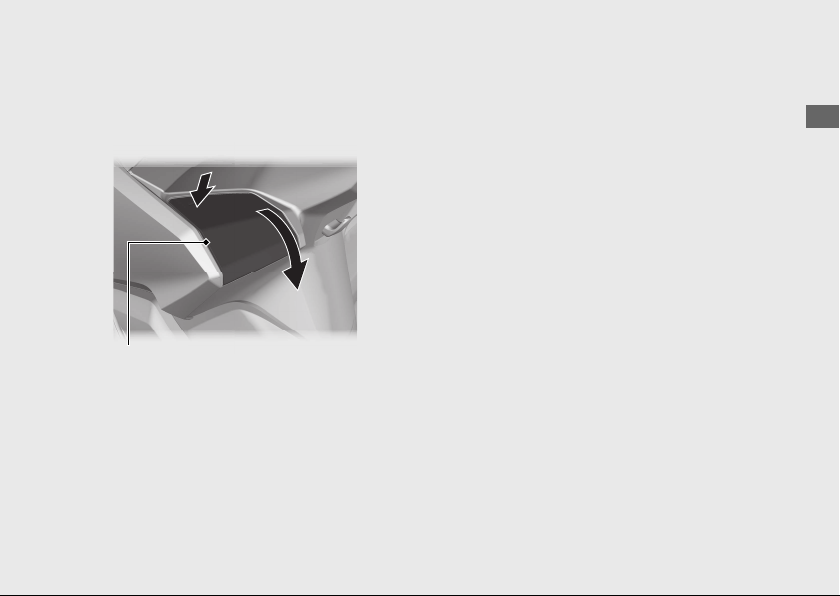

Front Box
Front box lid
Open
#
Push the front box lid, then open the front
box lid.
Close
#
Close the front box lid by pressing the front
box lid.
The maximum allowable load on the hook
and in the front box and inner rack shall be
no more than
1.5 kg (3.3 lb).
Make sure that the front box lid is closed
securely.
Do not store valuables or fragile articles.
u
Operation Guide
Continued
73
Page 78
Storage Equipment (Continued)
Hook/Inner Rack
The hook and inner rack are provided below
the handlebar.
Operation Guide
u Do not attach large luggage to the hook
that would hang out from the vehicle and/or
interfere with the movement of your feet.
The maximum allowable load on the hook
and in the front box and inner rack shall be
no more than
1.5 kg (3.3 lb).
74
Hook
Inner rack
Page 79
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
Importance of Maintenance ........................... P. 76
Maintenance Schedule..................................... P. 77
Maintenance Fundamentals ...........................P. 80
Tools ..................................................................... P. 89
Removing & Installing Body Components..P. 90
Battery.................................................................... P. 90
Clip.......................................................................... P. 92
Fuel Tank Cover................................................... P. 93
Engine Oil ............................................................ P. 94
Coolant................................................................. P. 96
Brakes................................................................... P. 98
Side Stand ......................................................... P. 104
Throttle .............................................................. P. 105
Other Replacement......................................... P. 106
Replacing the Honda SMART Key Battery .. P. 106
Page 80
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
Maintenance
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your vehicle
before each ride and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 77
3WARNING
Improperly maintaining your vehicle or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
76
Maintenance Safety
Always read the maintenance instructions
before you begin each task and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
●
Stop the engine and turn the ignition switch
to the (Off) position.
●
Place your vehicle on a firm, level surface
using the side stand, centre stand or a
maintenance stand to provide support.
●
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
●
Run the engine only when instructed, and
do so in a well-ventilated area.
Page 81
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to ensure
safe, dependable performance, and proper
emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. Keep an accurate record of
maintenance to help ensure that your vehicle is
properly maintained.
Make sure that whomever performs the
maintenance completes this record.
All scheduled maintenance is considered a
normal owner operating cost and will be
charged to you by your dealer. Retain all
receipts. If you sell the vehicle, these receipts
should be transferred with the vehicle to the
new owner.
Honda recommends that your dealer should
road test your vehicle after each periodic
maintenance is carried out.
Continued
Maintenance
77
Page 82

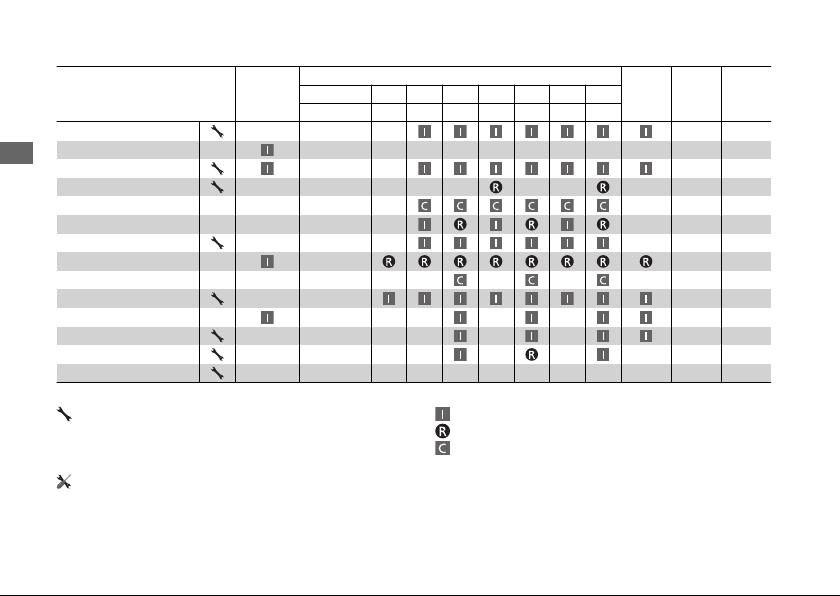

Maintenance Schedule
*1
Items
Fuel Line –
Fuel Level 65
Maintenance
Throttle Operation 105
Air Cleaner
Crankcase Breather
Spark Plug –
Valve Clearance –
Engine Oil –
Engine Oil Strainer Screen
Engine Idle Speed –
Radiator Coolant
Cooling System –
Drive Belt –
Final Drive Oil
*2
*3
*4
*4
Pre-ride
Check
× 1,000 km 1 6 12 18 24 30 36
2 P. 80
× 1,000 mi 0.6 4 8 12 16 20 24
Frequency
Annual
Check
Maintenance Level Maintenance Legend
:
Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are
mechanically skilled.
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
:
Replace
:
Clean
Procedures are provided in an official Honda Shop Manual.
:
Technical. In the interest of safety, have your vehicle
serviced by your dealer.
78
Regular
Refer to
Replace
page
3 Years 96
2 Years –
–
–
–
Page 83
Maintenance Schedule
*1
Items
Battery 90
Brake Fluid
Brake Pads/Shoes Wear
Brake System 80
Brake Lock Operation 55
Headlight Aim –
Lights/Horn –
Clutch Shoes Wear –
Side Stand 104
Suspension –
Nuts, Bolts, Fasteners –
Wheels/Tyres 86
Steering Head Bearings –
*4
Pre-ride
Check
× 1,000 km 1 6 12 18 24 30 36
2 P. 80
× 1,000 mi 0.6 4 8 12 16 20 24
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
Frequency
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : Replacement requires mechanical skill.
Annual
Check
Regular
Refer to
Replace
page
2 Years 98
99, 103
Maintenance
79
Page 84
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
Maintenance
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat
tyre, can be a major inconvenience.
Check the following items before you get on
your vehicle:
● Fuel level - Fill fuel tank when necessary
2 P. 65
●
Throttle - Check for smooth opening and
full closing in all steering positions 2 P. 105
●
Engine oil level - Add engine oil if necessary.
Check for leaks 2 P. 94
●
Coolant level - Add coolant if required.
Check for leaks 2 P. 96
80
● Brakes - Check operation;
Front: check brake fluid level and pads wear
2 P. 98, 2 P. 99
Rear: check shoes wear and freeplay, adjust
if necessary 2 P. 103, 2 P. 100
● Lights and horn - Check that lights,
indicators and horn function properly
● Side stand ignition cut-off system - Check
for proper function 2 P. 104
● Wheels and tyres - Check condition, air
pressure and adjust if necessary 2 P. 86
Page 85
Maintenance Fundamentals
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
3WARNING
Installing non-Honda parts may make
your vehicle unsafe and cause a crash in
which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your vehicle.
Battery
Your vehicle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
Your battery is a maintenance-free type and can be
permanently damaged if the cap strip is removed.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
Continued
Maintenance
81
Page 86
Maintenance Fundamentals
What to do in an emergency
#
If any of the following occur, immediately see
your doctor.
● Electrolyte splashes into your eyes:
Maintenance
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
Electrolyte splashes onto your skin:
●
u Remove affected clothing and wash your
skin thoroughly using water.
Electrolyte splashes into your mouth:
●
u Rinse mouth thoroughly with water, and
do not swallow.
82
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
Cleaning the Battery Terminals
#
1.
Remove the battery. 2 P. 90
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
Page 87
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Maintenance Fundamentals
Fuses
Fuses protect the electrical circuits on your
vehicle. If something electrical on your vehicle
stops working, check for and replace any blown
fuses. 2 P. 126
Inspecting and Replacing Fuses
#
Turn the ignition switch to the (Off) position
to remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 143
Blown fuse
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
Maintenance
Continued
83
Page 88
MB
Maintenance Fundamentals
If a fuse fails repeatedly, you likely have an
electrical fault. Have your vehicle inspected by
your dealer.
Engine Oil
Maintenance
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil or
old oil should be changed as soon as possible.
Selecting the Engine Oil
#
For recommended engine oil, see
“Specifications.”2 P. 142

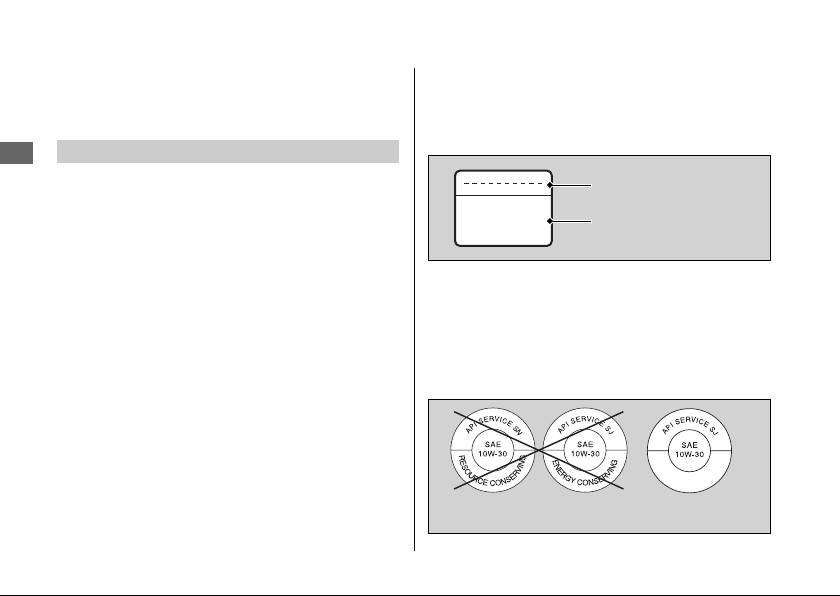

If you use non-Honda engine oil, check the label
to make sure that the oil satisfies all of the
following standards:
●
JASO T 903 standard*1: MB
●
SAE standard*2: 10W-30
●
API classification*3: SJ or higher
84
*1.
The JASO T 903 standard is an index for engine oils
for 4-stroke motorcycle engines. There are two
classes: MA and MB. For example, the following label
shows the MB classification.
Oil code
Oil classification
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SJ or higher
oils, excluding oils marked as “Energy Conserving”
or “Resource Conserving” on the circular API
service symbol.
Not recommended Recommended
Page 89
Maintenance Fundamentals
Brake Fluid
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
NOTICE
Brake fluid can damage plastic and painted
surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 3 or DOT 4 Brake Fluid or
equivalent
Recommended Coolant
Use only genuine HONDA PRE-MIX COOLANT
without diluting with water. Genuine HONDA
PRE-MIX COOLANT is excellent at preventing
corrosion and overheating.
The coolant should be inspected and replaced
properly by following the maintenance
schedule. 2 P. 77
NOTICE
Using coolant not specified for aluminium engines
or tap/mineral water can cause corrosion.
Maintenance
85
Page 90
Maintenance Fundamentals
Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the vehicle is washed or
overturned. Service if the deposit level can be
Maintenance
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil, causing
poor engine performance.
Tyres (Inspecting/Replacing)
Checking the Air Pressure
#
Visually inspect your tyres and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tyres look low. Always check air pressure when
your tyres are cold.
86
Inspecting for Damage
#
Inspect the tyres for
cuts, slits, or cracks that
expose fabric or cords,
or nails or other
foreign objects
embedded in the side
of the tyre or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tyres.
Inspecting for Abnormal Wear
#
Inspect the tyres for
signs of abnormal wear
on the contact surface.
Page 91

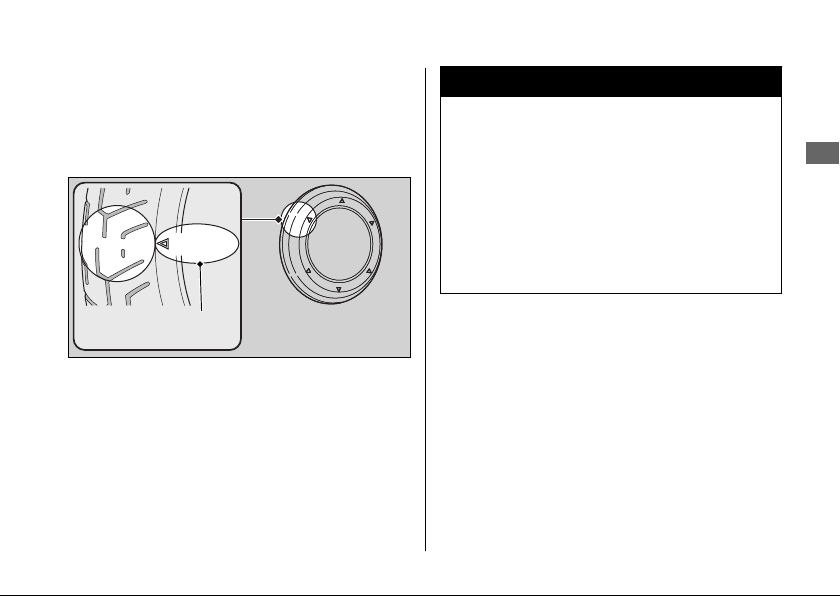

Inspecting Tread Depth
#
Inspect the tread wear indicators. If they
become visible, replace the tyres immediately.
For safe riding, you should replace the tyres
when the minimum tread depth is reached.
Maintenance Fundamentals
3WARNING
Riding on tyres that are excessively
worn or improperly inflated can cause a
crash in which you can be seriously hurt
or killed.
Maintenance
or TWI
Wear indicator
location mark
Follow all instructions in this owner's
manual regarding tyre inflation and
maintenance.
Continued
87
Page 92
Maintenance Fundamentals
Have your tyres replaced by your dealer.
For recommended tyres, air pressure, and
minimum tread depth, see “Specifications.”
2 P. 142
Follow these guidelines whenever you replace
Maintenance
tyres:
● Use the recommended tyres or their
equivalents of the same size, construction,
speed rating, and load range.
● Do not install a tube inside a tubeless tyre
on this vehicle. Excessive heat build-up can
cause the tube to burst.
●
Use only tubeless tyres on this vehicle.
The rims are designed for tubeless tyres,
and during hard acceleration or braking, a
tube-type tyre could slip on the rim and
cause the tyre to rapidly deflate.
88
3WARNING
Installing improper tyres on your
vehicle can adversely affect handling
and stability, and can cause a crash in
which you can be seriously hurt or
killed.
Always use the size and type of tyres
recommended in this owner's manual.
Page 93
Tools
The tools are stored in the centre compartment.
2 P. 72
You can perform some roadside repairs, minor
adjustments and parts replacement with the
provided tools.
● Spark plug wrench
● Standard/Phillips screwdriver
● Screwdriver handle
Maintenance
89
Page 94

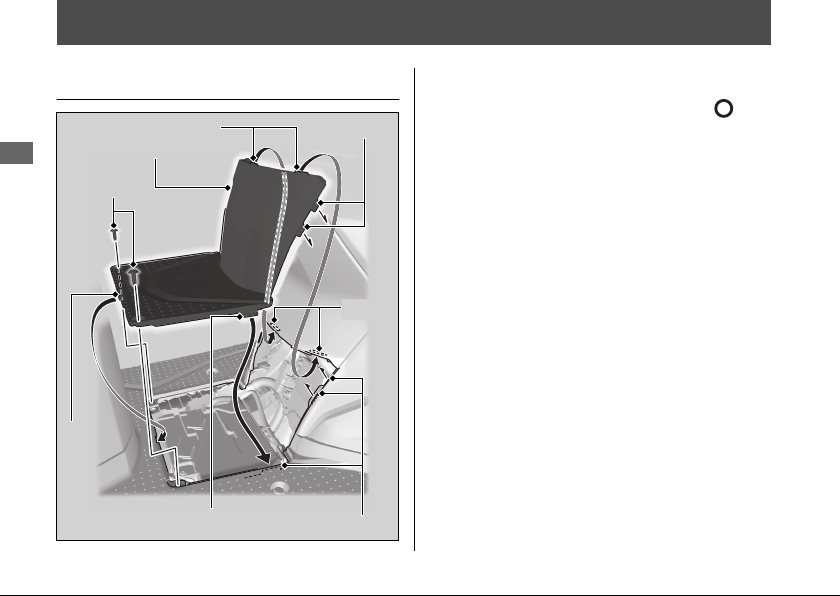

Removing & Installing Body Components
Battery
Battery lid
Tabs
Maintenance
Screws
Tab
Tabs
Slots
Removal
#
Make sure the ignition switch is in the
(Off) position.
Remove the screws from the battery lid.
1.
2.
Remove the battery lid by releasing the
tabs from the slots.
90
Tab
Slots
Page 95

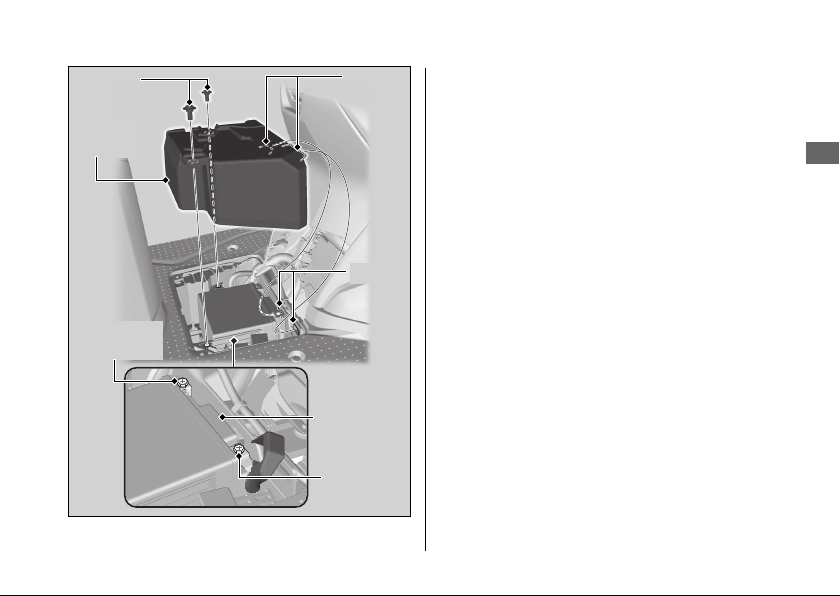

Screws
Battery
cover
Tabs
Removing & Installing Body Components u Battery
3.
Remove the battery cover by releasing
the tabs from the slots.
4.
Disconnect the negative - terminal from the
battery.
5.
Disconnect the positive + terminal from the
battery.
Remove the battery, taking care not to
6.
drop the terminal nuts.
Maintenance
Negative
terminal
Slots
Battery
Positive
terminal
Installation
#
Install the parts in the reverse order of removal.
Always connect the positive + terminal first. Make
sure bolts and nuts are tight.
Make sure the clock information is correct after
the battery is reconnected. 2 P. 26
The anti-theft alarm system will be
deactivated if the battery is disconnected.
The system will remain off when the battery is
reconnected.
Continued
91
Page 96
Removing & Installing Body Components u Clip
To activate the system, “Setting the Anti-theft
Alarm System.” 2 P. 45
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 81
Maintenance
“Battery Goes Dead.” 2 P. 125
92

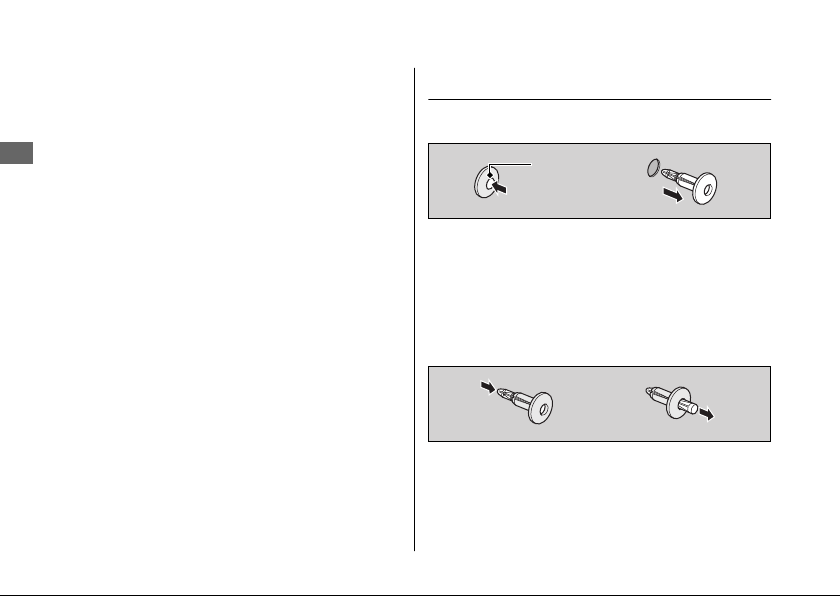

Clip
Removal
#
Centre pin
1.
Press down on the centre pin to release
the lock.
Pull the clip out of the hole.
2.
Installation
#
1.
Push the bottom of the centre pin.
2.
Insert the clip into the hole.
3.
Press down on the centre pin to lock the
clip.
Page 97
Fuel Tank Cover
Tab
Removing & Installing Body Components u Fuel Tank Cover
Removal
#
1.
Remove the clips. 2 P. 92
Tabs
2.
Slide the fuel tank cover forward.
Remove the fuel tank cover by releasing
the tabs and hooks.
Maintenance
Clips
Fuel tank
cover
Hooks
Installation
#
Install the parts in the reverse order of
removal.
u Make sure that all tabs and hooks are
installed securely in position.
93
Page 98

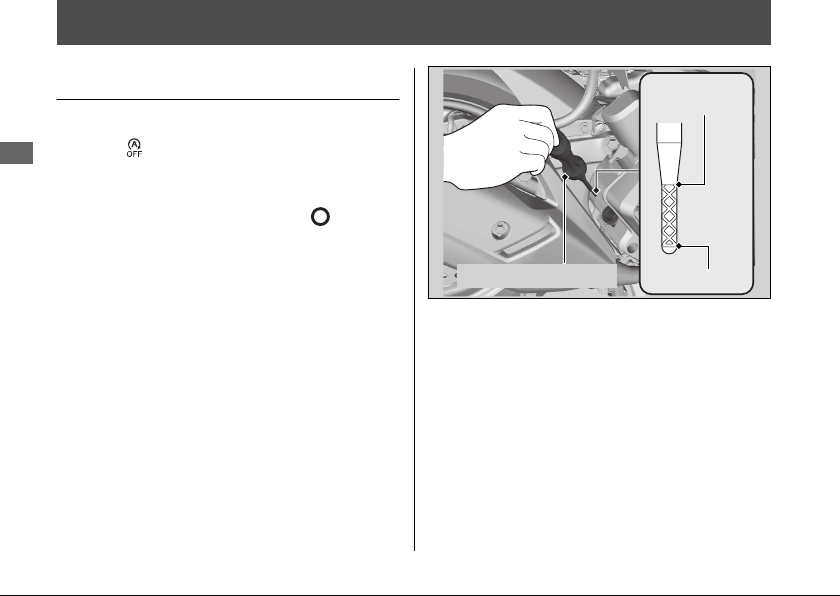

Engine Oil
Checking the Engine Oil
Check the engine oil with the Idling Stop
switch at (Idling).
Maintenance
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the (Off)
position and wait for 2 to 3 minutes.
Place your vehicle on its centre stand on a
3.
firm, level surface.
4.
Remove the oil fill cap/dipstick and wipe it
clean.
Insert the oil fill cap/dipstick until it seats,
5.
but don't screw it in.
6.
Check that the oil level is between the
upper level and lower level marks on the
oil fill cap/dipstick.
7.
Securely install the oil fill cap/dipstick.
94
Oil fill cap/dipstick
Upper level
Lower level
Page 99
Engine Oil u Adding Engine Oil
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 84, 2 P. 142
1.
Remove the oil fill cap/dipstick. Add the
recommended oil until it reaches the
upper level mark.
u Place your vehicle on its centre stand
on a firm, level surface when checking
the oil level.
Do not overfill above the upper level
u
mark.
u
Make sure no foreign objects enter the
oil filler opening.
Wipe up any spills immediately.
u
2.
Securely reinstall the oil fill cap/dipstick.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 84
Maintenance
95
Page 100
Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
Maintenance
1.
Place your vehicle on its centre stand on a
firm, level surface.
2.
Check that the coolant level is between
the UPPER level and LOWER level marks
on the reserve tank.
Reserve tank
UPPER level
mark
LOWER level
mark
96
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your vehicle inspected by
your dealer.
Adding Coolant
If the coolant level is below the LOWER level
mark, add the recommended coolant
(2 P. 85) until the level reaches the UPPER
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
1.
Remove the clip. 2 P. 92
2.
Slide and remove the maintenance lid
upward.
Loading...
