Owner’s Manual
CLICK125
Please read this manual carefully before riding
ACB125CBTP
Customer Relation Section’s Information
N.C.X Company Co., Ltd pleased to inform that Our company has created Customer
Relation Section in order to help customer easier to contact to our company in case that
they have any inquiries or questions related with company such as Product, Services, or
another information.
CR Section will kindly provide the discussion, answering to all kind of inquiries, and all
customer doubts with our experienced and professional staffs.
How can you contact to CR Section?
Customer can contact to CR by the following:
Tel
E-mail
Working Hours
Working Days
: 010 922 922
: cr@ncxhonda.com.kh
: 08:00AM-05:00PM
: Every Monday to Saturday
(except National Holidays and
Company Holiday)
cr@ncxhonda.com
Honda Cambodia – NCX
f
www.ncxhonda.com
This manual should be considered a permanent part of the vehicle
and should remain with the vehicle when it is resold.
This publication includes the latest production information available
before printing. Honda Motor Co., Ltd. reserves the right to make
changes at any time without notice and without incurring any
obligation.
No part of this publication may be reproduced without written
permission.
The vehicle pictured in this owner’s manual may not match your
actual vehicle.
© 2022 Honda Motor Co., Ltd.
Welcome
Congratulations on your purchase of a new
Honda vehicle. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda's
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
vehicle.
● The following codes in this manual
indicate the destination.
● The illustrations here in are based on the
ACB125CBT CA type.
Destination Codes
Code Destination
ACB125CBT
CA, II CA Cambodia
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this vehicle safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a vehicle. You must
use your own good judgement.
You will find important safety information in a
variety of forms, including:
● Safety labels on the vehicle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your vehicle, other
property, or the environment.
Contents
Vehicle Safety P. 2
Operation Guide P. 12
Maintenance P. 68
Troubleshooting P. 99
Information P. 120
Specifications P. 133
Vehicle Safety
This section contains important information for safe riding of your vehicle.
Please read this section carefully.
Safety Guidelines................................................. P. 3
Safety Precautions............................................... P. 6
Riding Precautions .............................................. P. 7
Accessories & Modifications........................... P. 10
Loading ................................................................ P. 11
Safety Guidelines
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flames
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved helmet and protective
apparel. 2 P. 6
Before Riding
Make sure that you are physically fit, mentally
focused, and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved helmet and protective apparel.
Instruct your passenger on holding onto the
grab rail or your waist, leaning with you in turns,
and keeping their feet on the footpegs, even
when the vehicle is stopped.
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice
riding in a safe area to become familiar with
how this vehicle works and handles, and to
become accustomed to the vehicle's size and
weight.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Continued
Vehicle Safety
3
Safety Guidelines
Make Yourself Easy to See
Vehicle Safety
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgement and ride safely.
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. The same is true for drug use. Don't drink
or use and ride, and don't let your friends do it
either.
4
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly
maintained and in safe riding condition.
Inspect your vehicle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 11), and do not modify
your vehicle or install accessories that would
make your vehicle unsafe (2 P. 10).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
Safety Guidelines
If you decide to continue riding, first turn the
ignition switch to the (Off) position, and
evaluate the condition of your vehicle. Inspect
for fluid leaks, check the tightness of critical nuts
and bolts, and check the handlebar, control
levers, brakes, and wheels. Ride slowly and
cautiously.
Your vehicle may have suffered damage that is
not immediately apparent. Have your vehicle
thoroughly checked at a qualified service facility
as soon as possible.
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colourless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in a confined or even
partly enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your vehicle inside a garage or other
enclosure.
3WARNING
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid buildup of toxic carbon monoxide gas.
Breathing this colourless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
Vehicle Safety
5
Safety Precautions
Safety Precautions
Vehicle Safety
● Ride cautiously and keep your hands on the
handlebar and feet on the floor.
● Instruct your passenger to keep their hands
on the grab rail or your waist and their feet
on the footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and
riders.
●
Face shield with unobstructed field of vision
or other approved eye protection
3WARNING
Not wearing a helmet increases the chance
of serious injury or death in a crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
Protective Apparel
Make sure that you and any passenger are
wearing an approved helmet, eye protection,
and high-visibility protective clothing. Avoid
wearing loose clothes that could get caught on
any part of the vehicle. Ride defensively in
response to weather and road conditions.
Helmet
#
Safety-standard certified, high-visibility, correct
size for your head
●
Must fit comfortably but securely, with the
chin strap fastened
6
Gloves
#
Full-finger leather gloves with high abrasion
resistance
Boots or Riding Shoes
#
Sturdy boots with non-slip soles and ankle
protection
Jacket and Trousers
#
Protective, highly visible, long-sleeved jacket and
durable trousers for riding (or a protective suit)
Riding Precautions
Riding Precautions
Running-in Period
During the first 500 km (300 miles) of running,
follow these guidelines to ensure your vehicle's
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
● Exercise caution on low traction surfaces.
u The tyres slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness.
● For full braking effectiveness, operate both
the front and rear brakes together.
Combi Brake
#
Your vehicle is equipped with a brake system
that distributes the braking force between the
front and rear brakes.
The distribution of the braking force applied to
the front and rear brakes when operating the
front brake lever only and when operating the
rear brake lever only is different.
For full braking effectiveness, operate both the
front and rear brakes together.
Continued
Vehicle Safety
7
Riding Precautions
Wet or Rainy Conditions
#
Vehicle Safety
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot
move or fall over.
●
Make sure that high-temperature parts cannot
come into contact with flammable materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
II CA type
● To reduce the likelihood of theft, always lock
the handlebar and remove the key and close
the shutter when leaving the vehicle
unattended.
8
Use of an anti-theft device is also
recommended.
CA type
●
To reduce the likelihood of theft, always lock
the handlebar, lock the ignition switch (2 P. 37)
and leave your vehicle while taking the Honda
SMART Key with you. Deactivate the Honda
SMART Key system if necessary. 2 P. 32
Also set the anti-theft alarm system.
Parking with the Side Stand or Centre
#
Stand
1.
Stop the engine.
2.
Using the side stand
Push the side stand down.
Slowly lean the vehicle to the left until its
weight rests on the side stand.
Using the centre stand
To lower the centre stand, stand on the left
side of the vehicle.
Hold the left handle grip and the left grab rail.
Press down on the tip of the centre stand with
your right foot and, simultaneously, pull up
and back.
Riding Precautions
Left handle grip
Centre stand
Grab rail

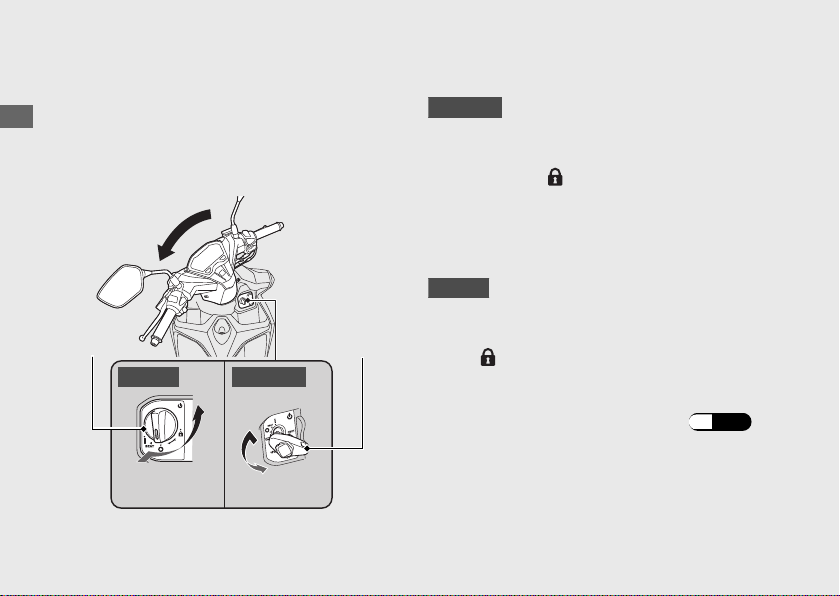

3.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
vehicle to fall.
II CA type
4.
Turn the ignition switch to the (Lock)
position (2 P. 28), remove the key and close
the shutter (2 P. 30).
CA type
4.
Turn the ignition switch to the (Lock)
position (2 P. 28) and lock the ignition
switch (2 P. 37).
5.
Set the anti-theft alarm system. 2 P. 39
Refuelling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded petrol.
● Use the recommended octane number.
Using lower octane petrol will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 131
● Do not use stale or contaminated petrol or
an oil/petrol mixture.
● Avoid getting dirt or water in the fuel tank.
Vehicle Safety
9
Accessories & Modifications
Accessories &
Vehicle Safety
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
for your vehicle by Honda or make
modifications to your vehicle from its original
design. Doing so can make it unsafe.
Modifying your vehicle may also void your
warranty and make your vehicle illegal to
operate on public roads. Before deciding to
install accessories on your vehicle, be certain
the modification is safe and legal.
10
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your vehicle. Your vehicle was not designed for
these attachments, and their use can seriously
impair your vehicle's handling.
Loading
Loading
● Carrying extra weight affects your vehicle's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity / Maximum
luggage weight 2 P. 133
● Tie all luggage securely, evenly balanced,
and close to the centre of the vehicle.
● Do not place objects near the lights or the
muffler.
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Vehicle Safety
11
Basic Operation Flow
Pre-ride Inspection (P.73)
#
Operation Guide
12
Carefully inspect your vehicle to
make sure that it is safe to ride.
How to use basic features.
• Instruments (P.16)
• Indicators (P.23)
• Switches (P.26)
•
Steering Lock (P.28)
•
Rear Brake Lock (P.50)
II CA type
•
Shutter (P.30)
•
Idling Stop System (P.51)
Starting the Engine (P.55)
#
Start and warm the engine.
Avoid revving the engine.
Acceleration (P.60)
#
Apply throttle gradually.
Obey the speed limit.
Before pulling away, indicate
your direction with the turn
signal switch, and check for
oncoming traffic.
Starting the Vehicle
#
(P.60)
Braking (P.61)
#
Stopping
#
If pulling off the road, signal early
enough to show traffic that you are
pulling over, and pull over smoothly.
Close the throttle and apply the
front and rear brakes together.
u
The brakelight will indicate that
you have applied the brakes.
Turning Corners
#
Do your braking
before entering
corners.
Gradually reapply throttle
when exiting turn.
Parking (P.8)
#
Park on a firm level surface.
Use the stand, lock the
steering.
Refuelling (P.62)
#
Operation Guide
13
Parts Location
Operation Guide
14
Document bag (P.66)
Tool (P.66)
Throttle grip (P.96)
Front brake fluid reservoir
)
(P.89
Inner rack (P.67)
Hook (P.67)
Helmet holder (P.65)
Coolant reserve tank (P.87)
Battery (P.83)
Fuse box (P.117)
Engine oil fill cap/dipstick
)
(P.85
Brake lock lever (P.50)
Rear brake lever (P.91)
Helmet holder (P.65)
Centre compartment (P.66)
Seat (P.64)
Fuel fill cap (P.62)
Inner rack (P.67)
II CA type
Kickstarter (P.58)
Centre stand (P.8)
Side stand (P.95)
Operation Guide
15
Instruments
Operation Guide
SELECT
button
Display Check
When the ignition switch is turned to the (On) position, the display will temporarily show all the
modes and digital segments so you can make sure the liquid crystal display is functioning properly.
If any part of these displays does not come on when it should, have your dealer check for
problems.
16
SET
button
Speedometer
This shows your speed in
kilometre per hour (km/h).
Fuel gauge
Remaining fuel when only 1st (E) segment starts flashing:
approximately 1.2 L (0.32 US gal, 0.26 Imp gal).
If the fuel gauge indicator flashes in a repeat
pattern or turns off:
(P.104
)
Clock (12-hour display)
To set the clock: (P.21)
Operation Guide
Current fuel mileage
Current instant fuel mileage. If your speed is
less than 3 km/h, “0” is displayed.
When “0” is displayed at speeds above 3 km/h,
go to your dealer for service.
Odometer [TOTAL]/Tripmeter [TRIP
A/B]/Average fuel mileage meter [AVG]/
Battery voltage meter [V] (P.18
)
Continued
17
Instruments (Continued)
Odometer [TOTAL]/Tripmeter [TRIP A/B]/Average fuel mileage meter [AVG]/Battery
voltage meter [V]
SELECT
Operation Guide
18
button selects the odometer, tripmeter A, tripmeter B, average mileage, and battery
voltage.
Odometer Tripmeter A Tripmeter B Average fuel
Battery voltage
mileage
• Odometer:
Total distance ridden.
• Tripmeter:
Distance ridden since tripmeter was reset.
u
To reset tripmeter, press and hold
SET
button with tripmeter displayed.
When to reset tripmeter A, the average fuel mileage is also reset.
• Average fuel mileage:
The average fuel mileage will be based on tripmeter A.
Average fuel mileage since tripmeter A was reset.
When “ ” is displayed except after the average fuel mileage has been reset, go to your
dealer for service.
• Battery voltage:
Current battery voltage.
OIL CHANGE indicator
The indicator is turned on whenever the running distance reaches the programmed oil
change interval.
u When the running distance reaches about 1,000 km:
Reset the indicator for the 1st time.
u When the running distance reaches about every 6,000 km after the 1st time resetting:
Reset the indicator whenever it is turned on.
After changing the engine oil, be sure to reset the indicator.
OIL CHANGE indicator
Operation Guide
To reset the indicator, press and hold the
(On) position, and keep holding the
SET
button while turning the ignition switch to the
SET
button for more than 3 seconds.
u The indicator does not go off until it is reset.
u If the oil is changed before the oil change indicator comes on, be sure to reset the oil change
indicator after changing the oil. When resetting the indicator during no indication, the
indicator will appear for 2 seconds, then disappear.
Continued
19
Instruments (Continued)
Display Setting
Following items can be changed sequentially.
Operation Guide
• Clock setting
• OIL CHANGE indicator setting
Press and hold
SET
button
SET
Press
Press
button
SELECT
SELECT
button
button and
Clock setting mode
OIL CHANGE
setting mode
The following moves the ordinary display at display setting.
• The button is not pressed for about 30 seconds
• Turn the ignition switch to the (Off) position and then to the (On) position
20
Ordinary display
Setting Mode
indicator
Clock setting
OIL CHANGE
indicator setting
1.
Clock setting:
a
Turn the ignition switch to the (On)
position.
b
Press and hold
SELECT
button and
button, all the clock digits start flashing.
Press
SET
button, the hour digits start
c
flashing.
Press
SELECT
button until the desired hour
d
is displayed.
u
Press and hold to advance the hour fast.
SET
Press
SELECT
button until the desired
f
minute is displayed.
u
Press and hold to advance the minute fast.
Press
SET
button. The clock is set, and then
g
the display moves to the interval value of
OIL CHANGE indicator.
Operation Guide
e
Press
flashing.
SET
button. The minute digits start
Continued
21
Instruments (Continued)
2.
OIL CHANGE indicator setting:
The distance until the OIL CHANGE indicator
comes on is displayed.
Operation Guide
You can adjust the interval value of OIL
CHANGE indicator.
a
b
22
SET
Press
indicator starts flashing.
Press
is displayed.
button. The OIL CHANGE
SELECT
button until the desired value
c
SET
Press
indicator is set.
button. The OIL CHANGE
The established setting can also be set by
turning the ignition switch to the (Off)
position.
The control is automatically switched from
the setting mode to the ordinary display if
the switch is not pressed for about 30
seconds. In this case, undecided settings will
not be maintained.
Indicators
If one of these indicators does not come on when it should, have your dealer check for
problems.
High beam indicator
High coolant temperature indicator
If it comes on while riding: (P.101)
Right turn signal indicator
CA type
Alarm indicator
CA type
Battery Charging Condition indicator
When the Battery Charging
Condition indicator on:
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)
Comes on briefly when the ignition switch is turned to the
(On) position.
If it comes on while engine is running: (P.102)
(P.102
Operation Guide
)
Continued
23
Indicators (Continued)
Operation Guide
24
Left turn signal indicator
Idling Stop indicator
Comes on briefly when the Idling Stop
switch in the
(Idling Stop) with the
ignition switch turned to the (On)
position. Flashes when the Idling Stop
system is activated.
Idling Stop system: (P.51)
Honda SMART Key indicator
CA type
Comes on briefly when vehicle and
Honda SMART Key verification is
complete, and the ignition switch can
be operated.
Goes off when the ignition switch is
turned to the
(On) position.
When the Honda SMART Key
indicator Flashes:
(P.103
)
Operation Guide
25
Switches
Operation Guide
u Pressing the switch turns the
turn signal off.
Horn button
Headlight dimmer switch
• : High beam
• : Low beam
26
Turn signal switch
Idling Stop switch
• (Idling Stop): The Idling Stop
system is on.
•
(Idling): The Idling Stop system is off.
Idling Stop system: (P.51)
Headlight switch
•
light and license plate light are on.
•
light and license plate light are off.
Start button
: Headlight, taillight, position
: Headlight, taillight, position
P
USH
Ignition Switch
Switches the electrical system on/off,
locks the steering, and operates the
seat opener switch.
II CA type
u Key can be removed when in the
(Off) or (Lock) position.
CA type
To unlock the ignition switch:
)
(P.36
(On)
Turns electrical system on for
starting/riding.
SEAT
Operates the seat opener switch.
(Off)
Turns engine off.
(Lock)
Locks steering.
(On)
Turns electrical system on for
starting/riding.
SEAT
Operates the seat opener switch.
(Off)
Turns engine off.
(Lock)
Locks steering.
II CA type
CA type
Continued
Operation Guide
27
PUSH
Switches (Continued)
Steering Lock
Lock the steering when parking to help
Operation Guide
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
a
Ignition
switch
CA type II CA type
Push
b
Turn
b
Push
28
Turn
Ignition
key
Locking
#
II CA type
a
Turn the handlebar all the way to the left or right.
b
Push the key down, and turn the ignition
switch to the (Lock) position.
u Jiggle the handlebar if the lock is difficult
to engage.
c
Remove the key.
CA type
a
Turn the handlebar all the way to the left or right.
b
Push the ignition switch down, and turn it to
the (Lock) position.
Jiggle the handlebar if the lock is difficult
u
to engage.
To unlock the ignition switch. (P.36
u
c
Lock the ignition switch.
)
Unlocking
#
II CA type
Insert the key, push it in, and turn the ignition
switch to the (Off) position.
CA type
Push the ignition switch in, and turn it to the
(Off) position.
u
To unlock the ignition switch. (P.36)
Operation Guide
Continued
29
Switches (Continued)
Shutter
II CA type
The ignition switch for this vehicle is equipped
Operation Guide
with an automatic shutter. After parking the
vehicle, close the shutter for theft prevention.
(Lock)
Open
Close
Shutter key
Ignition
key
The shutter will automatically close when you
remove the ignition key at the (Lock)
position.
Also you can close the shutter manually.
Close
#
a
Remove the ignition key from the ignition
switch.
b
Align the projection of the shutter key with
the slot of the shutter, and turn the shutter
key counterclockwise.
c
Remove the key.
Open
#
Align the projection of the shutter key with
the slot of the shutter, and turn the shutter
key clockwise.
30
Slot
Projection
Honda SMART Key System
CA type
The Honda SMART Key system allows you to
operate the main switch without inserting a
key into a keyhole.
The system runs a two-way authentication
between the vehicle and the Honda SMART
Key to verify if it is the registered Honda
SMART Key.
The Honda SMART Key system uses lowintensity radio waves. It may affect medical
equipment such as a cardiac pacemaker.
Operation Guide
Continued
31
Honda SMART Key System (Continued)
Switching the Honda SMART Key
System
Operation Guide
To switch the Honda SMART Key
#
system to activation or deactivation
Press the ON/OFF button until the Honda
SMART Key LED changes colour.
To check the Honda SMART Key
#
system status
Lightly press the ON/OFF button. The Honda
SMART Key LED will show the status.
When the Honda SMART Key LED is:
Green:
(active)
Red:
(inactive)
32
Honda SMART Key system
authentication can be
performed.
Honda SMART Key system
authentication cannot be
performed.
LED
ON/OFF button
Operating Range
The operating range varies when the ignition
switch is locked or unlocked.
The Honda SMART Key system uses lowintensity radio waves. Therefore, the
operating range may be wider or narrower,
or the Honda SMART Key system may not
work properly in the following situations:
● When the Honda SMART Key battery is
depleted.
● When there are facilities nearby that
generate strong radio waves or noise,
such as TV towers, power stations, radio
stations, or airports.
● When you carry the Honda SMART Key
with a laptop or wireless communication
device such as a radio or mobile phone.
●
When the Honda SMART Key comes into
contact with or is covered by metal
objects.
When the ignition switch is unlocked:
#
The system can be operated within the
shaded area shown in the illustration.
Operation Guide
Continued
33
Honda SMART Key System (Continued)
When the ignition switch is locked:
#
The system can be operated within the
Operation Guide
shaded area shown in the illustration.
About 2 m (6.6 ft)
34
Anyone can unlock the ignition switch and
start the engine if your Honda SMART Key is
within operating range of your vehicle, even
if you are on the other side of a wall or
window. If you are away from your vehicle
but your Honda SMART Key is still within
operating range, deactivate the Honda
SMART Key system.
To switching the Honda SMART Key
system
(P.32)
Anyone in possession of the Honda SMART
Key can perform the following operations if
the Honda SMART Key is within operating
range:
● Starting the engine
● Unlocking the ignition switch
● Unlocking the seat lock
● Unlocking the steering lock
You should always keep the Honda SMART
Key on your person after you get on and off
the vehicle or while riding.
Do not place the Honda SMART Key in any
compartment.
If the ignition switch is in the (On) position,
the vehicle can be operated even by a
person who does not have a verified Honda
SMART Key.
Whenever you leave your vehicle, lock the
steering and lock the ignition switch.
(P.37)
Make sure the Honda SMART Key indicator
goes off, all turn signals flash once, and the
buzzer rings at this time.
Operation Guide
Continued
35
PUSH
Honda SMART Key System (Continued)
Switching the ignition switch
To Unlock the Ignition Switch
#
Operation Guide
a
Make sure that the Honda SMART Key is
activated. (P.32)
b
To authenticate the Honda SMART Key system,
push the ignition switch.
u
When properly authenticated and the ignition
switch is unlocked, the Honda SMART Key
indicator comes on.
The buzzer also rings 2 times at this time.
u
The buzzer sound can be cancelled.
(P.38)
c
Turn the ignition switch to the (On) position
while the Honda SMART Key indicator comes on.
u
If you do not turn the ignition switch to the
(On) position within 20 seconds after
pushing in the ignition switch, the Honda
SMART Key indicator will go off, the turn
signals flash 1 time, and then the ignition
switch will be locked.
The buzzer also rings at this time.
When the Honda SMART Key system does
not work properly (P.108
36
)
If someone without the Honda SMART Key tries
to turn the ignition switch, the ignition switch
rotates freely. If you notice the ignition switch is
in a different position, turn the ignition switch to
the original ( (Off) or (Lock)) position.
Honda
SMART Key
indicator
Honda
SMART Key
Ignition
switch
P
USH
To Lock the Ignition Switch
#
a
Turn the ignition switch to the SEAT, (Off)
or (Lock) position.
b
Lock the ignition switch by doing one of the
following:
● Leave the operating range with the
Honda SMART Key.
Push the ignition switch.
●
Wait for approximately 20 seconds
●
(P.33)
after turning the ignition switch from
(On) to SEAT, (Off) or (Lock)
position.
●
Switch the Honda SMART Key system
to inactive. (P.32)
c
Make sure that the Honda SMART Key
indicator goes off, and the turn signals flash
once. This indicates that the ignition switch is
locked.
The buzzer also rings at this time.
The buzzer sound can be cancelled.
u
(P.38)
When the Honda SMART Key system
does not work properly (P.108)
Ignition
switch
(On)
SEAT
(Lock)
(Off)
Continued
Operation Guide
37
Honda SMART Key System (Continued)
Always make sure the ignition switch position
is in the (Off) or (Lock) position when
you leave your vehicle.
Operation Guide
When the ignition switch is locked in the
SEAT position, the ignition switch can be
turned to the
When the ignition switch is locked in the
(Off) position, the steering cannot be
locked.
To lock the steering, unlock the ignition
switch. (P.36)
38
(Off) position only once.
Switch the Buzzer Sound When the
#
Ignition Switch is Locked/Unlocked
Enable
a
Deactivate the Honda SMART Key system.
(P.32)
b
Lightly press the ON/OFF button. The red
Honda SMART Key LED comes on.
c
While the red LED is on, press the answer
back/alarm button.
u The red LED starts blinking when the
buzzer sound is properly enabled.
Disable
a
Deactivate the Honda SMART Key system.
(P.32)
b
Lightly press the ON/OFF button. The red
Honda SMART Key LED blinks.
c
While the red LED is blinking, press the
answer back/alarm button.
The red LED stops blinking but stays on
u
when the buzzer sound is properly disabled.
Anti-theft Alarm System
CA type
The anti-theft alarm system is a device to
reduce the likelihood of theft. When the
sensor detects vibration or movement with
the ignition switch in the
position and the system is set, the alarm is
activated.
The buzzer rings and the turn signals blink
for about 10 seconds when the anti-theft
alarm system detects vibration caused by
contact or movement.
The buzzer rings and the turn signals blink
for about 60 seconds when the anti-theft
alarm system detects a substantial change in
the vehicle posture. After the buzzer rings for
60 seconds, the anti-theft alarm system will
be reset in that posture.
(Off) or (Lock)
Operation Guide
Continued
39
Anti-theft Alarm System (Continued)
If the ignition switch is left the (Off) or
(Lock) position for more than 10 days, the
anti-theft alarm system will no longer
Operation Guide
operate.
When the system is active and the vehicle
receives a signal from pressing the answer
back/alarm button, system activation will be
extended for 10 days.
To reset the system, turn the ignition switch
to the
(On) position once.
The anti-theft alarm system uses lowintensity radio waves. It may affect medical
equipment such as a cardiac pacemaker.
When the battery in the vehicle is weak, the
anti-theft alarm system may not function.
40
Setting the Anti-theft Alarm System
#
a
Turn the ignition switch to (Off) or
(Lock) position.
b
Press the answer back/alarm button. Within
a second, the turn signal blinks and the
buzzer rings 1 time. After 2.5 seconds, the
buzzer rings 1 time. The anti-theft alarm
system is activated.
The alarm indicator flashes while the antitheft alarm system is activated.
Answer back/
Alarm indicator
alarm button
Cancelling the Anti-theft Alarm
#
System
To cancel the anti-theft alarm system, unlock
the ignition switch. (P.33)
When the ignition switch is unlocked, the
buzzer rings 2 times and the alarm indicator
goes off.
u The buzzer sound can be cancelled.
(P.38)
Stopping the Anti-theft Alarm
#
Activation
To stop the anti-theft alarm activation, do
one of the following:
● Press the answer back/alarm button on
the Honda SMART Key.
u
After stopping the anti-theft alarm
activation, the anti-theft alarm system
will be reset.
● Unlock the ignition switch. (P.36)
u After stopping the anti-theft alarm
activation, the anti-theft alarm system
will be cancelled.
Answer back/
alarm button
Operation Guide
Continued
41
P
USH
Anti-theft Alarm System (Continued)
Adjusting the Sensitivity of Anti-theft
#
Alarm System
Operation Guide
You can select from 3 sensitivity levels for the
anti-theft alarm system.
a
Make sure that the Honda SMART Key
system is active. (P.32)
b
Push the ignition switch to authenticate the
Honda SMART Key system. (P.36)
c
Press and hold the ignition switch for more
than 4 seconds.
u The Honda SMART Key indicator flashes.
Answer back/
alarm button
42
Ignition switch
d
Push the ignition switch 1 time while the
Honda SMART Key indicator is flashing.
u The Honda SMART Key indicator comes
on, and the buzzer sounds.
e
Repeat the following 3 times:
Press the answer back/alarm button on
the Honda SMART Key 4 times and the
ignition switch 1 time.
u When the ignition switch is pressed, the
Honda SMART Key indicator goes off,
and the buzzer sounds. When the
Honda SMART Key indicator lights again,
do the next input.
u When the answer back/alarm button is
pressed, the Honda SMART Key LED
comes on. Make sure the LED goes off
before pressing the button again.
u When the answer back/alarm button or
ignition switch is not pressed for 1
minute, the Honda SMART Key indicator
flashes 3 times, and then the buzzer
sounds and the mode is cancelled.
Return to a and do the procedure
again.
u If you press the answer back/alarm
button the wrong number of times
before you repeat the procedure 3
times, then repeat the procedure 3 times
again.
f
Press the answer back/alarm button to
select from 3 sensitivity levels.
3 alarm rings: high sensitivity
2 alarm rings: medium sensitivity
1 alarm ring: low sensitivity
The Honda SMART Key indicator comes on
while setting.
g
Press and hold the ignition switch for more
than 2 seconds. The sensitivity level is set.
u The Honda SMART Key indicator turns
off, and the buzzer sounds once.
u When the answer back/alarm button is
not pressed for 10 seconds, the Honda
SMART Key indicator flashes 3 times, and
then the buzzer sounds, and the
sensitivity level is set.
If the Anti-Theft Alarm System Does
#
Not Operate Properly
If any of the following situations arise, the
battery ((P.83) ) in the vehicle may be
discharged or there is a system problem.
Remove the battery and see your dealer.
The alarm does not ring.
The alarm rings but fades out.
The alarm system does not stop.
Operation Guide
43
Answer Back System
CA type
The answer back system is a device to find the
location of your vehicle and to inform you that
Operation Guide
the immobilizer function of the Honda SMART
Key system is activated.
When you press the answer back/alarm button
on the Honda SMART Key with the ignition
switch is in the (Off) or (Lock) position,
and the anti-theft alarm system is set, the turn
signals light, and the buzzer rings, informing
you of your vehicle's location and activation of
the immobilizer function.
The answer back system uses low-intensity
radio waves. It may affect medical equipment
such as a cardiac pacemaker.
44
Answer back/
alarm button
P
USH
Operation
#
Press the answer back/alarm button on the
Honda SMART Key.
u
The answer back system will not function when
the ignition switch is in the (On) position.
If the ignition switch is left the (Off) or
(Lock) position for more than 10 days, the
answer back system will no longer operate.
When the system is active and the vehicle
receives a signal from pressing answer back/
alarm button, the system activation will be
extended for 10 days.
To reset the system, unlock the ignition
switch and turn the ignition switch to the
(On) position once.
u To unlock the ignition switch (P.36)
When the battery in the vehicle is weak, the
answer back system may not function.
Adjusting the Answer Back Buzzer
#
Sound Volume Level
You can select 3 buzzer sound volume levels.
a
Make sure that the Honda SMART Key
system is active. (P.32)
b
Push the ignition switch to authenticate the
Honda SMART Key system. (P.36)
c
Press and hold the ignition switch for more
than 4 seconds.
u
The Honda SMART Key indicator flashes.
Answer back/
Ignition switch
alarm button
Continued
Operation Guide
45
Answer Back System (Continued)
d
Press the ignition switch 1 time while the
Honda SMART Key indicator is flashing.
Operation Guide
u The Honda SMART Key indicator comes
on, and the buzzer sounds.
e
Repeat the following 3 times:
Press the answer back/alarm button on
the Honda SMART Key 2 times and the
ignition switch 1 time.
u When the ignition switch is pressed, the
Honda SMART Key indicator goes off,
and the buzzer sounds. When the
Honda SMART Key indicator lights again,
do the next input.
u When the answer back/alarm button is
pressed, the Honda SMART Key LED
comes on. Make sure the LED goes off
before pressing the button again.
46
u When the answer back/alarm button or
ignition switch is not pressed for 1
minute, the Honda SMART Key indicator
flashes 3 times, and then the buzzer
sounds and the mode is cancelled.
Return to a and do the procedure
again.
u If you press the answer back/alarm
button the wrong number of times
before you repeat the procedure 3
times, then repeat the procedure 3 times
again.
f
Press the answer back/alarm button to
select from 3 levels for the sound volume.
The Honda SMART Key indicator comes on
while setting.
P
USH
g
Press and hold the ignition switch for more
than 2 seconds. The sound volume level is
set.
u The Honda SMART Key indicator turns
off, and the buzzer sounds once.
u When the answer back/alarm button is
not pressed for 10 seconds, the Honda
SMART Key indicator flashes 3 times, and
then the buzzer sounds, and the sound
volume level is set.
Changing the Answer Back Buzzer
#
Sound Pattern
You can select 3 buzzer sound patterns.
a
Make sure that the Honda SMART Key
system is active. (P.32)
b
Push the ignition switch to authenticate the
Honda SMART Key system. (P.36)
c
Press and hold the ignition switch for more
than 4 seconds.
u
The Honda SMART Key indicator flashes.
Answer back/
Ignition switch
alarm button
Continued
Operation Guide
47
Answer Back System (Continued)
d
Press the ignition switch 1 time while the
Honda SMART Key indicator is flashing.
Operation Guide
u The Honda SMART Key indicator comes
on, and the buzzer sounds.
e
Repeat the following 3 times:
Press the answer back/alarm button on
the Honda SMART Key 3 times and the
ignition switch 1 time.
u When the ignition switch is pressed, the
Honda SMART Key indicator goes off,
and the buzzer sounds. When the
Honda SMART Key indicator lights again,
do the next input.
u When the answer back/alarm button is
pressed, the Honda SMART Key LED
comes on. Make sure the LED goes off
before pressing the button again.
48
u When the answer back/alarm button or
ignition switch is not pressed for 1
minute, the Honda SMART Key indicator
flashes 3 times, and then the buzzer
sounds and the mode is cancelled.
Return to a and do the procedure
again.
u If you press the answer back/alarm
button the wrong number of times
before you repeat the procedure 3
times, then repeat the procedure 3 times
again.
f
Press the answer back/alarm button to
select from 3 buzzer sound patterns. The
Honda SMART Key indicator come on while
setting.
g
Press and hold the ignition switch for more
than 2 seconds. The sound pattern is set.
u The Honda SMART Key indicator turns
off, and the buzzer sounds once.
u When the answer back/alarm button is
not pressed for 10 seconds, the Honda
SMART Key indicator flashes 3 times, and
then the buzzer sounds, and the sound
pattern is set.
Temporary Silence Mode
#
Temporary silence mode is the immediate
way to turn off the answer back system
buzzer sound.
Enable:
Press and hold the answer back/alarm button
for about 2 seconds, the Honda SMART Key
LED is changes to red.
Disable:
Re-press and hold the answer back/alarm
button for about 2 seconds, the Honda
SMART Key LED changes to green.
Operation Guide
49
Rear Brake Lock
Be sure the rear brake lock is applied while
starting and warming up the engine.
Operation Guide

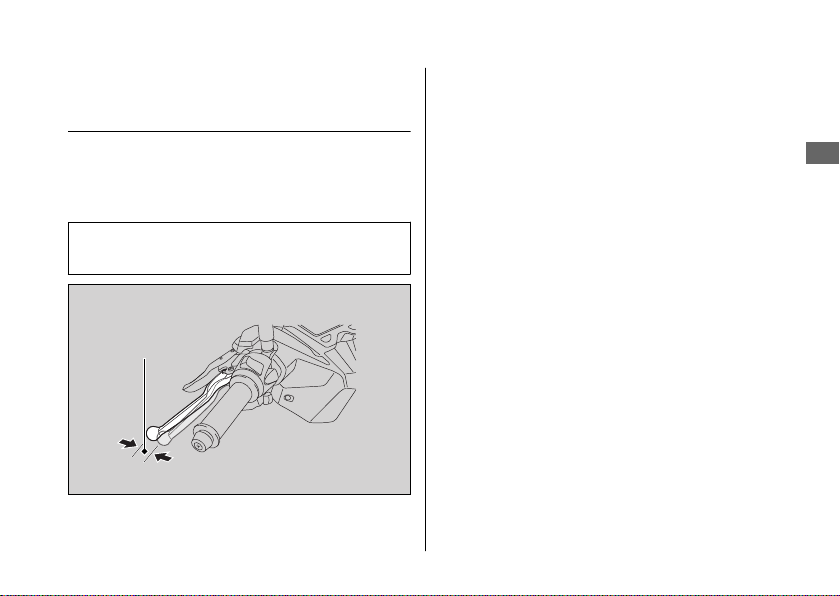

Locking
#
Squeeze the rear brake lever and set the rear
brake lock lever.
u The rear brake lock will not function if the
rear brake is not adjusted properly.
(P.92)
Rear brake lock lever
Rear brake lever
50
Unlocking
#
Squeeze the rear brake lever.
u Before riding, make sure that the rear brake
lock is fully released so there is no drag on
the rear wheel.
Idling Stop System
Idling Stop system is designed to help reduce
the fuel consumption and noise, by idling
stop while making a stop such as waiting at
an intersection.
Switching the Idling Stop System On
#
or Off
Switches the Idling Stop system on or off
using the Idling Stop switch.
ON: (Idling Stop)
•
u Idling Stop indicator comes on when the
Idling Stop system becomes ready to stop
the engine while riding. Idling Stop indicator
flashes when the engine is stopped by the
Idling Stop system.
• OFF: (Idling)
u Idling Stop indicator does not come on
when the Idling Stop system is off.
Activation of the Idling Stop System
The Idling Stop system becomes ready to
stop the engine and Idling Stop indicator
comes on when the following requirements
are satisfied with the Idling Stop switch in the
(Idling Stop) position:
start the engine by pressing the start
•
button
• warm up the engine enough
• ride the vehicle at speeds over 10 km/h (6
mph)
Operation Guide
Continued
51
Idling Stop System (Continued)
Idling Stop Indicator Does Not Come
#
On: (P.105)
Operation Guide
52
Idling Stop
switch
Idling Stop
indicator
Stopping the engine by the Idling Stop
System
The engine stops and Idling Stop indicator
changes to flash after you close the throttle
completely and stop the vehicle while the
Idling Stop indicator is on.
u While the engine is stopped by the Idling
Stop system, if you press the Idling Stop
switch to (Idling), the Idling Stop system
will be cancelled. The engine will not restart
even when you open the throttle.
Safety Precaution for the Idling Stop System
Do not go away from the vehicle while the
Idling Stop indicator is flashing. When you go
away from the vehicle, always turn the
ignition switch to the (Off) position.
u The engine may start unexpectedly if the
throttle is opened.
Engine is Not Stopped by the Idling
#
Stop System While the Idling Stop
Indicator is On: (P.106)
NOTICE
Stopping by the Idling Stop system for a long time may cause
battery discharge.
Restarting the Engine
Check that the Idling Stop indicator is
flashing, and then open the throttle.
u If it is not flashing, you can't restart the
u While the engine is stopped by the Idling
Idling Stop indicator
Engine Does Not Start Even If the
#
Throttle is Opened: (P.107)
Operation Guide
engine with the Idling Stop system, even if
you open the throttle.
Stop system, if you operate the side stand,
the flashing Idling Stop indicator turns off or
stops flashing and stays on, then the engine
will not restart even when you open the
throttle.
Continued
53
Idling Stop System (Continued)
NOTICE
Headlights stay on after the engine is stopped by
the Idling Stop system. The battery may
Operation Guide
discharge and you may not be able to restart
engine.
When the battery is weak, switch the Idling Stop
switch to (Idling) and do not to use the Idling
Stop system. See your dealer to check the
battery.
See your dealer for checking the battery as
specified in the maintenance schedule.
Maintenance Schedule: (P.70)
#
54
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
This vehicle is equipped with a side stand
ignition cut-off system.
u If the side stand is down, the engine cannot
be started.
u If you lower the side stand with the engine
running, it will automatically shut off.
CA type
This vehicle is equipped with a Honda
SMART Key system. Always keep Honda
SMART Key on you when you ride the
(P.33)
vehicle.
NOTICE
•
If the engine does not start within 5 seconds,
turn the ignition switch to the (Off) position
and wait 10 seconds before trying to start the
engine again to recover battery voltage.
•
Extended fast idling and revving the engine can
damage the engine and the exhaust system.
If the vehicle is over-turned, you must first turn
•
the ignition switch to the (Off) position and
then inspect the vehicle carefully.
II CA type
Do not operate the kickstarter while the engine
•
is running as engine damage could result. Do
not apply excessive force on the kickstarter.
•
Fold up the kickstarter after the kickstarter is
returned to the pedal stop.
Consult your dealer for advice if you plan to
ride your vehicle at an altitude above
2,500 m (8,000 feet).
Operation Guide
Continued
55
PUSH
Starting the Engine (Continued)
NOTICE
If the vehicle is transported to a place 2,000 m (6,500
feet) higher or lower than the start point, you may not
Operation Guide
be able to achieve sufficient engine performance at
the new altitude. Consult your dealer before
transporting your vehicle.
a
Place the vehicle on its centre stand.
b
Turn the ignition switch to the (On)
position.
Confirm the following:
• The PGM-FI malfunction indicator
lamp (MIL) is OFF.
• The high coolant temperature
indicator is OFF.
CA type II CA type
56
c
Lock the rear wheel by squeezing the rear
brake lever and setting the brake lock lever.
u The starter motor will only work when
the rear brake lever is squeezed and the
side stand is up.
To Start the Engine with Electric Starter
d
With the throttle completely closed, press
the start button.
Release the start button as soon as the
engine starts.
Operation Guide
Continued
57
Starting the Engine (Continued)
To Start the Engine with Kickstarter
II CA type
d
Operation Guide
Lightly depress the kickstarter until
resistance is felt. Then let the kickstarter
return to the top of its stroke.
With the throttle completely closed.
Operate the kickstarter starting from the
top of the stroke, kick through to the
bottom with a rapid and continuous
motion.
58
If you cannot start the engine:
Open the throttle slightly (about 3 mm,
without freeplay).
About 3 mm, without freeplay
If the engine does not start:
a
Open the throttle fully and press the start
button for 5 seconds.
b
Follow the normal starting procedure.
c
If the engine starts with unstable idle, open
the throttle slightly.
d
If the engine does not start, wait for 10
seconds, then follow steps a - c again.
If Engine Will Not Start (P.100)
#
Operation Guide
59
Riding
Starting the Vehicle
a
Push the vehicle forward off the centre
Operation Guide
stand.
u Lock the rear brake lock.
u Keep throttle closed.
Make sure the side stand and centre stand
are up.
b
Get on the vehicle.
u Mount the vehicle from the left side,
keeping at least one foot on the ground.
c
Release the rear brake lock.
u
To prevent unexpected movement,
squeeze both brake levers.
60
d

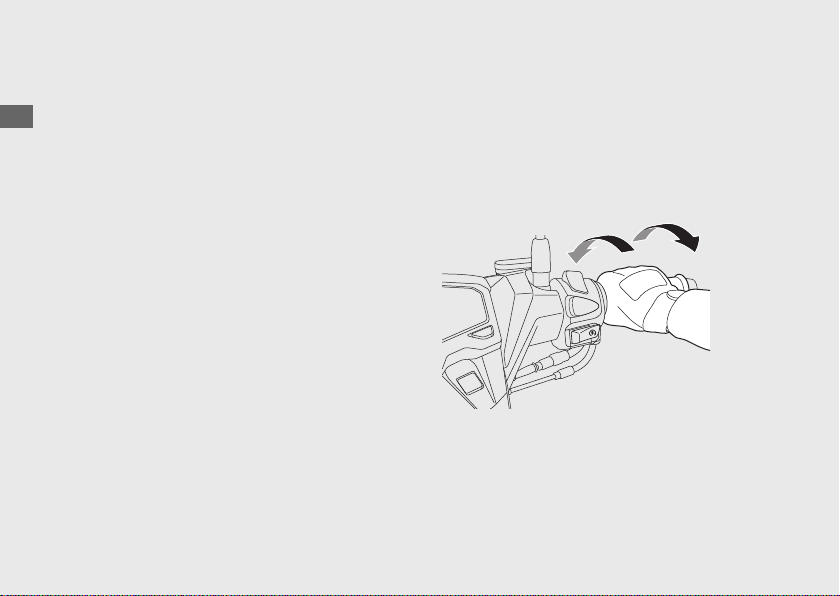

Acceleration and deceleration
To accelerate: Open the throttle slowly.
To decelerate: Close the throttle.
Open (Accelerate)
Close (Decelerate)
Braking
Close the throttle and apply the front and
rear brake levers together.
Do not apply the brake lock while riding.
It may cause the wheel to lock, reducing
control of the vehicle.
Rear brake lever Front brake lever
Operation Guide
61
Refuelling
Fuel type: Unleaded petrol only
Fuel octane number: Your vehicle is
designed to use Research Octane Number
Operation Guide
(RON) 91 or higher.
Tank capacity: 5.5 L (1.45 US gal, 1.21 Imp
gal)
Refuelling and Fuel Guidelines (P.9)
#
Opening the Fuel Fill Cap
a
Open the seat. (P.64)
b
Turn the fuel fill cap counterclockwise until it
stops and remove the cap.
62
Fuel fill cap
Do not fill with fuel above the lower edge of
the filler neck.
Arrow marks
Lower edge of
filler neck
Closing the Fuel Fill Cap
a
Install and tighten the fuel fill cap firmly by
turning it clockwise.
u Make sure that the arrow marks on the
fuel fill cap and fuel tank are aligned.
b
Close the seat.
3WARNING
Petrol is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flames away.
• Only handle fuel outdoors.
• Wipe up spills immediately.
Operation Guide
63
Storage Equipment
PUSH
Seat
Operation Guide
CA type
Ignition
switch
Seat
opener
switch
Seat opener
II CA type
SEAT
switch
Seat Open
a
Turn the handlebar pointed straight ahead.
b
Insert the ignition key and turn it to the
position of SEAT.
c
Push the SEAT of the seat opener switch.
d
Open the seat.
Seat Close
Close and push down on the rear of the seat
until locks. Make sure that the seat is locked
securely to pull it up lightly.
Take care not to lock your key in the
compartment under the seat.
64
SEAT
Ignition
key
SEAT sideSEAT side
Helmet Holder
The helmet holders are located under the
seat.
u Use the helmet holders only when parked.
Helmet holders
3WARNING
Riding with a helmet attached to the
holder can interfere with your ability to
safely operate the vehicle and could
lead to a crash in which you can be
seriously hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Operation Guide
Continued
65
Storage Equipment (Continued)
Tool
The tools are in the reverse side of the seat.
Operation Guide
Document bag
Document
compartment
Tools
Centre
compartment
66
Centre Compartment
Never exceed the maximum weight limit.
Maximum Weight: 10 kg (22 lb)
u Do not store any items that are flammable
or susceptible to heat damage.
u Do not store valuables or fragile articles.
Document Bag
The document bag is in the document
compartment in the reverse side of the seat.
Hook
The hook is provided below the handlebar.
u Do not attach large luggage to the hook
that would hang out from the vehicle and/or
interfere with the movement of your feet.
Hook
Inner Rack
The inner rack is provided below the
handlebar.
Inner Racks
The maximum allowable load on the hook
and in the inner racks shall be no more than
1.5 kg (3.3 lb).
Operation Guide
67
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
Importance of Maintenance ........................... P. 69
Maintenance Schedule..................................... P. 70
Maintenance Fundamentals ...........................P. 73
Tools ..................................................................... P. 82
Removing & Installing Body Components..P. 83
Battery.................................................................... P. 83
Engine Oil ............................................................ P. 85
Coolant................................................................. P. 87
Brakes................................................................... P. 89
Side Stand ........................................................... P. 95
Throttle ................................................................P. 96
Other Replacement...........................................P. 97
Replacing the Honda SMART Key Battery..... P. 97
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your vehicle
before each ride and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 70
3WARNING
Improperly maintaining your vehicle or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
Maintenance Safety
Always read the maintenance instructions
before you begin each task and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
●
II CA type
Stop the engine and remove the key.
●
CA type
Stop the engine and turn the ignition switch
to the
● Place your vehicle on a firm, level surface
using the side stand, centre stand or a
maintenance stand to provide support.
●
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
●
Run the engine only when instructed, and
do so in a well-ventilated area.
(Off) position.
Maintenance
69
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to ensure
safe, dependable performance, and proper
emission control.
Maintenance
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. Keep an accurate record of
maintenance to help ensure that your vehicle is
properly maintained.
Make sure that whomever performs the
maintenance completes this record.
70
All scheduled maintenance is considered a
normal owner operating cost and will be
charged to you by your dealer. Retain all
receipts. If you sell the vehicle, these receipts
should be transferred with the vehicle to the
new owner.
Honda recommends that your dealer should
road test your vehicle after each periodic
maintenance is carried out.
Maintenance Schedule
*1
Items
Fuel Line –
Fuel Level –
Throttle Operation 96
Air Cleaner
Crankcase Breather
Spark Plug –
Valve Clearance –
Engine Oil 85
Engine Oil Strainer
Screen
Engine Idle Speed –
Radiator Coolant
Cooling System –
Drive Belt –
Final Drive Oil
*2
*3
*4
*4
Pre-ride
Check
× 1,000 km 1 6 12 18 24 30 36
2 P. 73
× 1,000 mi 0.6 4 8 12 16 20 24
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your dealer, unless you
have the necessary tools and are mechanically skilled.
Procedures are provided in an official Honda Shop Manual.
: Technical. In the interest of safety, have your vehicle serviced by
your dealer.
Frequency
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
:
Replace
:
Clean
Annual
Check
Regular
Refer to
Replace
3 Years 87
2 Years –
page
Maintenance
–
–
–
Continued
71
Maintenance Schedule
*1
Items
Battery 74
Brake Fluid
Maintenance
Brake Shoes/Pads Wear 90, 94
Brake System 73
Brake Lock Operation –
Headlight Aim –
Lights/Horn –
Clutch Shoes Wear –
Side Stand 95
Suspension –
Nuts, Bolts, Fasteners –
Wheels/Tyres 79
Steering Head Bearings –
*4
Pre-ride
Check
× 1,000 km 1 6 12 18 24 30 36
2 P. 73
× 1,000 mi 0.6 4 8 12 16 20 24
Frequency
Annual
Check
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : Replacement requires mechanical skill.
72
Regular
Refer to
Replace
2 Years 89
page
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A preride inspection is a must, not only for safety, but
because having a breakdown, or even a flat
tyre, can be a major inconvenience.
Check the following items before you get on
your vehicle:
● Fuel level - Fill fuel tank when necessary
2 P. 62
●
Throttle - Check for smooth opening and
full closing in all steering positions 2 P. 96
●
Engine oil level - Add engine oil if necessary.
Check for leaks 2 P. 85
●
Coolant level - Add coolant if required.
Check for leaks 2 P. 87
● Brakes - Check operation;
Front: check brake fluid level and pads wear
2 P. 89, 2 P. 90
Rear: check shoes wear and freeplay, adjust
if necessary 2 P. 94, 2 P. 91
● Lights and horn - Check that lights,
indicators and horn function properly
● Side stand ignition cut-off system - Check
for proper function 2 P. 95
● Wheels and tyres - Check condition, air
pressure and adjust if necessary 2 P. 79
Maintenance
73
Maintenance Fundamentals
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
Maintenance
3WARNING
Installing non-Honda parts may make
your vehicle unsafe and cause a crash in
which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your vehicle.
74
Battery
Your vehicle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
Your battery is a maintenance-free type and can
be permanently damaged if the cap strip is
removed.
This symbol on the battery means
that this product must not be treated
as household waste.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
What to do in an emergency
#
If any of the following occur, immediately see
your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
Electrolyte splashes onto your skin:
●
u Remove affected clothing and wash your
skin thoroughly using water.
Electrolyte splashes into your mouth:
●
u Rinse mouth thoroughly with water, and
do not swallow.
Maintenance Fundamentals
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
Cleaning the Battery Terminals
#
1.
Remove the battery. 2 P. 83
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
Maintenance
Continued
75
Maintenance Fundamentals
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
Maintenance
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
76
Fuses
Fuses protect the electrical circuits on your
vehicle. If something electrical on your vehicle
stops working, check for and replace any blown
fuses. 2 P. 117
Inspecting and Replacing Fuses
#
Turn the ignition switch to the (Off) position
to remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 135
Blown fuse
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
MB
If a fuse fails repeatedly, you likely have an
electrical fault. Have your vehicle inspected by
your dealer.
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil
or old oil should be changed as soon as
possible.
Selecting the Engine Oil
#
For recommended engine oil, see
“Specifications.” 2 P. 134
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
●
SAE standard*2: 10W-30
● API classification
*1
: MB
*3
: SJ or higher
Maintenance Fundamentals
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MB classification.
Oil code
Oil classification
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SJ or higher
oils, excluding oils marked as “Energy Conserving”
or “Resource Conserving” on the circular API
service symbol.
Not recommended Recommended
Maintenance
77
Maintenance Fundamentals
Brake Fluid
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
Maintenance
brake system serviced by your dealer as soon as
possible.
NOTICE
Brake fluid can damage plastic and painted
surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 3 or DOT 4 Brake Fluid or
equivalent
78
Recommended Coolant
Use only genuine HONDA PRE-MIX COOLANT
without diluting with water. Genuine HONDA
PRE-MIX COOLANT is excellent at preventing
corrosion and overheating.
The coolant should be inspected and replaced
properly by following the maintenance
schedule. 2 P. 70
NOTICE
Using coolant not specified for aluminium
engines or tap/mineral water can cause
corrosion.
Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the vehicle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil, causing
poor engine performance.
Maintenance Fundamentals
Tyres (Inspecting/Replacing)
Checking the Air Pressure
#
Visually inspect your tyres and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tyres look low. Always check air pressure when
your tyres are cold.
Inspecting for Damage
#
Inspect the tyres for
cuts, slits, or cracks that
expose fabric or cords,
or nails or other
foreign objects
embedded in the side
of the tyre or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tyres.
Inspecting for Abnormal Wear
#
Inspect the tyres for
signs of abnormal wear
on the contact surface.
Continued
Maintenance
79
Maintenance Fundamentals
Inspecting Tread Depth
#
Inspect the tread wear indicators. If they
become visible, replace the tyres immediately.
Maintenance
or TWI
Wear indicator
location mark
80
3WARNING
Riding on tyres that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tyre inflation and
maintenance.
Maintenance Fundamentals
Have your tyres replaced by your dealer.
For recommended tyres and air pressure, see
“Specifications.” 2 P. 134
Follow these guidelines whenever you replace
tyres:
● Use the recommended tyres or their
equivalents of the same size, construction,
speed rating, and load range.
● Do not install a tube inside a tubeless tyre
on this vehicle. Excessive heat build-up can
cause the tube to burst.
● Use only tubeless tyres on this vehicle.
The rims are designed for tubeless tyres,
and during hard acceleration or braking, a
tube-type tyre could slip on the rim and
cause the tyre to rapidly deflate.
3WARNING
Installing improper tyres on your vehicle
can adversely affect handling and
stability, and can cause a crash in which
you can be seriously hurt or killed.
Always use the size and type of tyres
recommended in this owner's manual.
Maintenance
81
Tools
The tools are in reverse side of the seat. 2 P. 66
You can perform some roadside repairs, minor
adjustments and parts replacement with the
provided tools.
Maintenance
● Standard/Phillips screwdriver
● Screwdriver handle
● Spark plug wrench
82

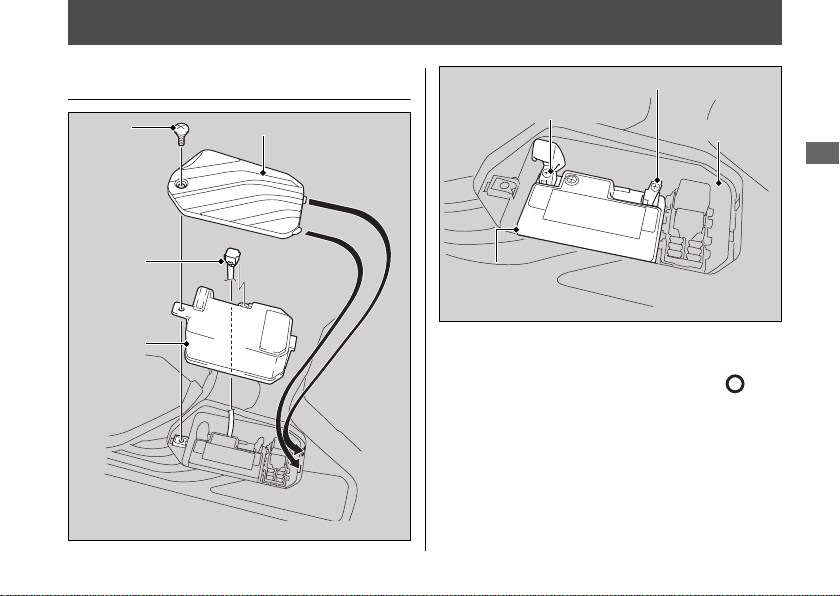

Removing & Installing Body Components
Battery
Screw
Service
coupler
Battery
cover
Battery lid
Negative terminal
Positive terminal
Battery box
Battery
Removal
#
Make sure the ignition switch is in the
(Off) position.
1.
Remove the battery lid from step floor by
removing the screw.
2.
Remove the service coupler from battery
cover by pull it up.
Continued
Maintenance
83
Removing & Installing Body Components u Battery
3.
Remove the battery cover from step floor.
4.
Disconnect the negative - terminal from
the battery.
Disconnect the positive + terminal from
5.
Maintenance
the battery.
Remove the battery, taking care not to
6.
drop the terminal nuts.
84
Installation
#
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure bolts and nuts are
tight.
Make sure the clock information is correct
after the battery is reconnected. 2 P. 21
The anti-theft alarm system will be
deactivated if the battery is disconnected.
The system will remain off when the battery is
reconnected.
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 74
“Battery Goes Dead.” 2 P. 116
Engine Oil
Checking the Engine Oil
Check the engine oil with the Idling Stop
switch at (Idling).
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the (Off)
position and wait for 2 to 3 minutes.
Place your vehicle on its centre stand on a
3.
firm, level surface.
4.
Remove the oil fill cap/dipstick and wipe it
clean.
Insert the oil fill cap/dipstick until it seats,
5.
but don't screw it in.
6.
Check that the oil level is between the
upper level and lower level marks on the
oil fill cap/dipstick.
7.
Securely install the oil fill cap/dipstick.
Oil fill cap/dipstick
Upper
level
Lower
level
Maintenance
85
Engine Oil u Adding Engine Oil
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
Maintenance
2 P. 77, 2 P. 134
1.
Remove the oil fill cap/dipstick. Add the
recommended oil until it reaches the
upper level mark.
u Place your vehicle on its centre stand
on a firm, level surface when checking
the oil level.
Do not overfill above the upper level
u
mark.
u
Make sure no foreign objects enter the
oil filler opening.
Wipe up any spills immediately.
u
2.
Securely reinstall the oil fill cap/dipstick.
86
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 77
Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
1.
Place your vehicle on a firm, level surface.
2.
Hold your vehicle in an upright position.
3.
Check that the coolant level is between
the UPPER level and LOWER level marks
on the reserve tank.
UPPER level
mark
LOWER level
mark
Reserve tank cap
Reserve tank
cover
Screw
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your vehicle inspected by
your dealer.
Adding Coolant
If the coolant level is below the LOWER level
mark, add the recommended coolant
(2 P. 78) until the level reaches the UPPER
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
1.
Remove the reserve tank cover by
removing the screw.
2.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
Do not overfill above the UPPER level
u
mark.
Make sure no foreign objects enter the
u
reserve tank opening.
Continued
Maintenance
87
Coolant u Adding Coolant
3.
Securely reinstall the reserve tank cap.
4.
Install the parts in the reverse order of
removal.
Reserve tank
cover
Maintenance
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
88
Reserve tank cap Screw
Brakes
Checking the Front Brake Fluid
1.
Place your vehicle in an upright position
on a firm, level surface.
2.
Check that the brake fluid reservoir is
horizontal and that the fluid level is above
the LWR level mark.
If the brake fluid reservoir is below the LWR
level mark or if the brake lever freeplay
becomes excessive, inspect the brake pads
for wear.
If the brake pads are not worn, you most
likely have a leak. Have your vehicle
inspected by your dealer.
Front brake fluid
reservoir
Maintenance
LWR mark
89
Brakes u Inspecting the Front Brake Pads
Inspecting the Front Brake Pads
Check the condition of the brake pad wear
indicators.
Maintenance
The pads need to be replaced if a brake pad
is worn to the indicator.
Inspect the brake pads from the bottom of
the brake caliper.
If necessary, have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
90
Brake pads
Disc
Wear
indicators
Brakes u Inspecting the Rear Brake Lever Freeplay
Inspecting the Rear Brake Lever
Freeplay
1.
Place the vehicle on its centre stand.
2.
Measure the distance the rear brake lever
moves before the brake takes hold.
Freeplay at the tip of the brake lever:
10 - 20 mm (0.4 - 0.8 in)
Freeplay
Check the brake cable for kinks or signs of
wear. If necessary, have it replaced by your
dealer.
Lubricate the brake cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
Make sure the brake arm, spring and fastener
are in good condition.
Maintenance
91
Brakes u Adjusting the Rear Brake Lever Freeplay
Adjusting the Rear Brake Lever
Freeplay
1.
Adjust by turning the rear brake adjusting
nut a half-turn at a time.
Adjust the freeplay of the brake lever with the
Maintenance
front wheel pointed straight ahead.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
Brake arm pin
If proper adjustment cannot be obtained by
this method, see your dealer.
92
Adjusting nut
Brake arm pin
Increase
Freeplay
Decrease
Adjusting nut
Apply the brake several times and check
2.
for free wheel rotation after the brake
lever is released.
Freeplay
3.
Push the brake arm to confirm that there
is a gap between the rear brake adjusting
nut and brake arm pin.
Brake arm
Push
Brake arm pin
Gap Adjusting nut
After adjustment, confirm the freeplay of the
brake lever.
Make sure the brake arm, spring and fastener
are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
Brakes u Adjusting the Rear Brake Lever Freeplay
Maintenance
93
Brakes u Inspecting the Rear Brake Shoe Wear
Inspecting the Rear Brake Shoe
Wear
The rear brake is equipped with a brake wear
Maintenance
indicator.
Brake arm
Arrow
Reference
mark
94
When the brake is applied, an arrow attached
to the brake arm moves toward a reference
mark on the brake panel. If the arrow aligns
with the reference mark on full application of
the brake, the brake shoes must be replaced.
See your dealer for this service.
When brake service is necessary, see your
dealer. Use only Honda Genuine Parts or
their equivalent.
Loading...
