Page 1
CGX125SH / CGX125TF
CGX1255SH / CGX1256SH
Parts No. are not shown in this book.
If you need any parts, please kindly contact the
nearest Honda Authorized Dealer/Parts shop.
CGX125SH
CGX125SH
CGX125SH
CGX125SH
CGX125SH
CGX125TF
CGX125TF
CGX1255SH
CGX1256SH
C
D
E
F
H
H
K
L
L
13KYYC08
8
© Honda Motor Co., Ltd. 2020
Page 2
FOREWORD INDEX
1
ENGINE GROUP
FRAME GROUP
PART NUMBER INDEX
2
3
4
PART NAME INDEX
5
Page 3
1
123
4
5
Instruction for use of parts catalogue
CONTENTS
Page
• This parts catalogue has been created as of January 01, 2020.
• Since this date, the sales practice for repair parts may have been
changed or the parts may have been eliminated (listed for those
not for sale).
• The modified information is reflected on the latest Electronic
Parts Catalogue (EPC).
Also, refer to the parts catalogue news for any cha n ge.
• See the parts catalogue news for any revision that is made after
January 01, 2020.
• Always specify the part number when ordering a part.
• Check the model, type, serial numbers, color, maker, and the
size as needed before ordering a part.
• Note that the illustrations (part drawings) can differ from the actual parts in shape.
They are given just to help you to refer to the parts.
• When modifications or additions to this parts catalogue are
made, a revised edition will be issued at an appropriate time,
with successively progressing revision numbers on the cover. We recommend obtaining such revisions in order to keep
your parts catalogue up-to-date at all times. To chec k whether
a parts catalogue revision has been issued, please contact
your Honda distributor.
Instruction for use of parts catalogue .................................... 1
How to refer to the part information....................................... 2
Part catalogue structure ............................................... ... .... .. 3
When the parts were revised.................................................5
Abbreviations used in the parts catalogue............................. 5
Part block and serial number check ...................................... 6
Color label attachment position check................................... 6
Models, parts catalogue codes and applicable serial
numbers................................................................................ 7

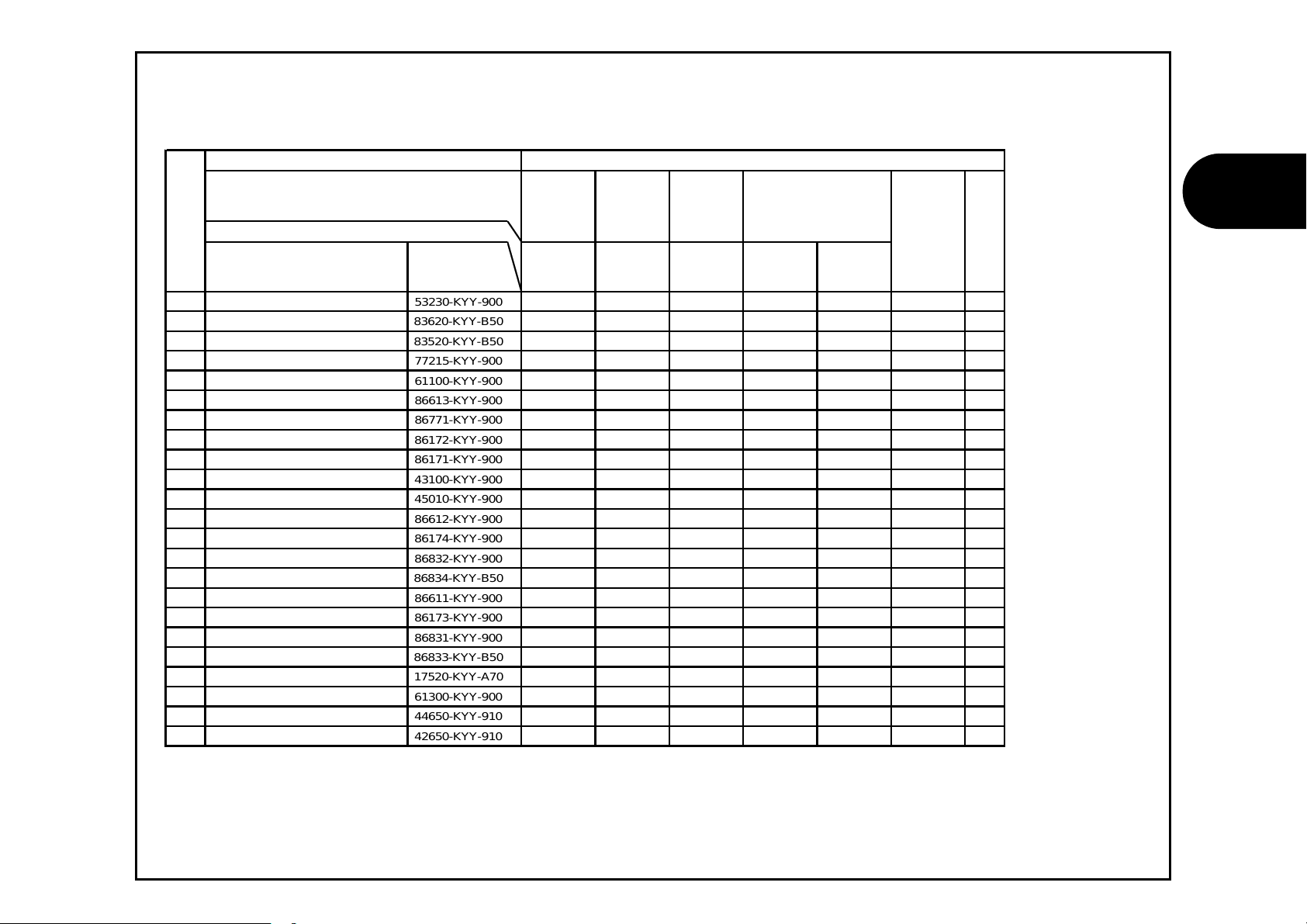

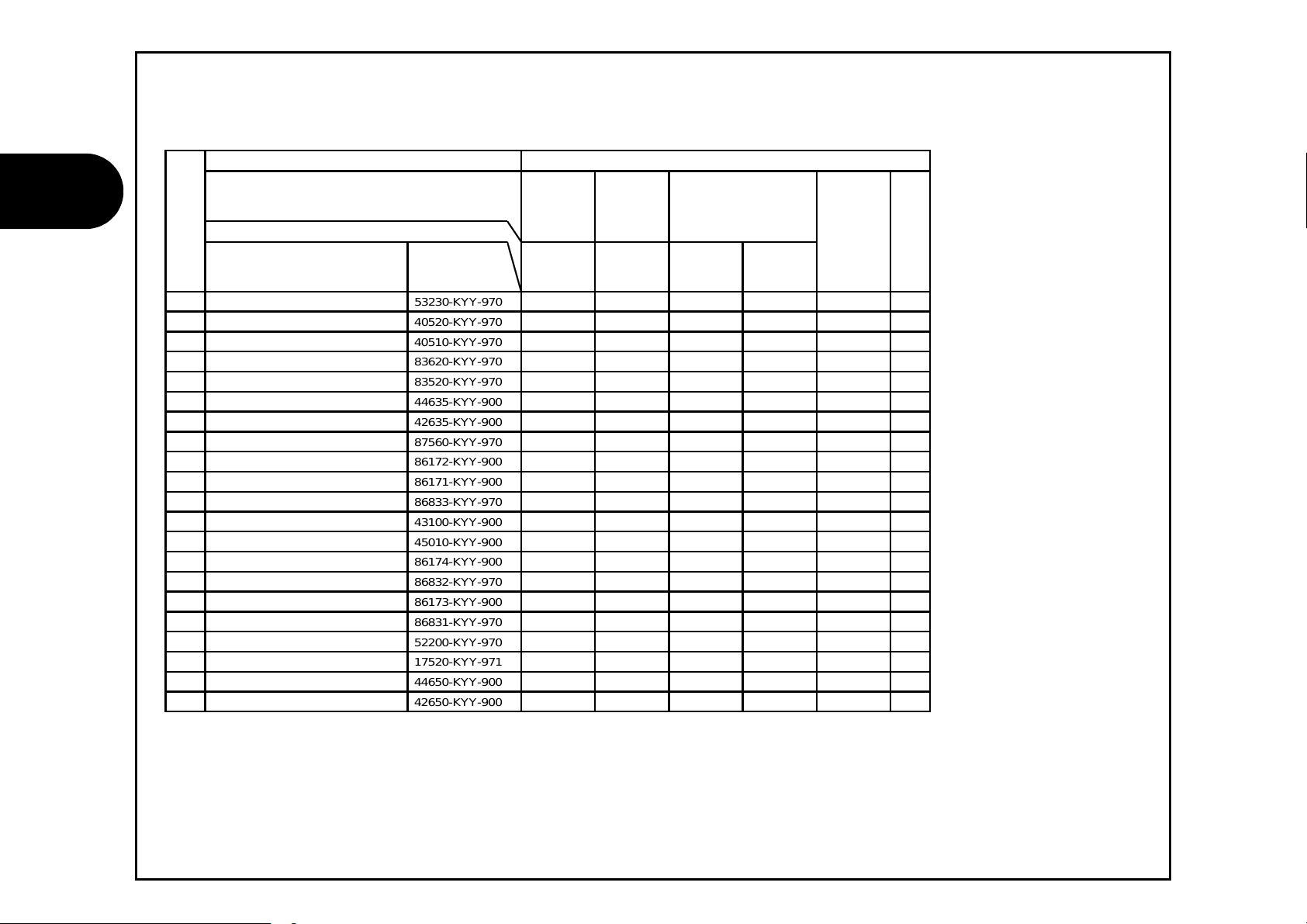

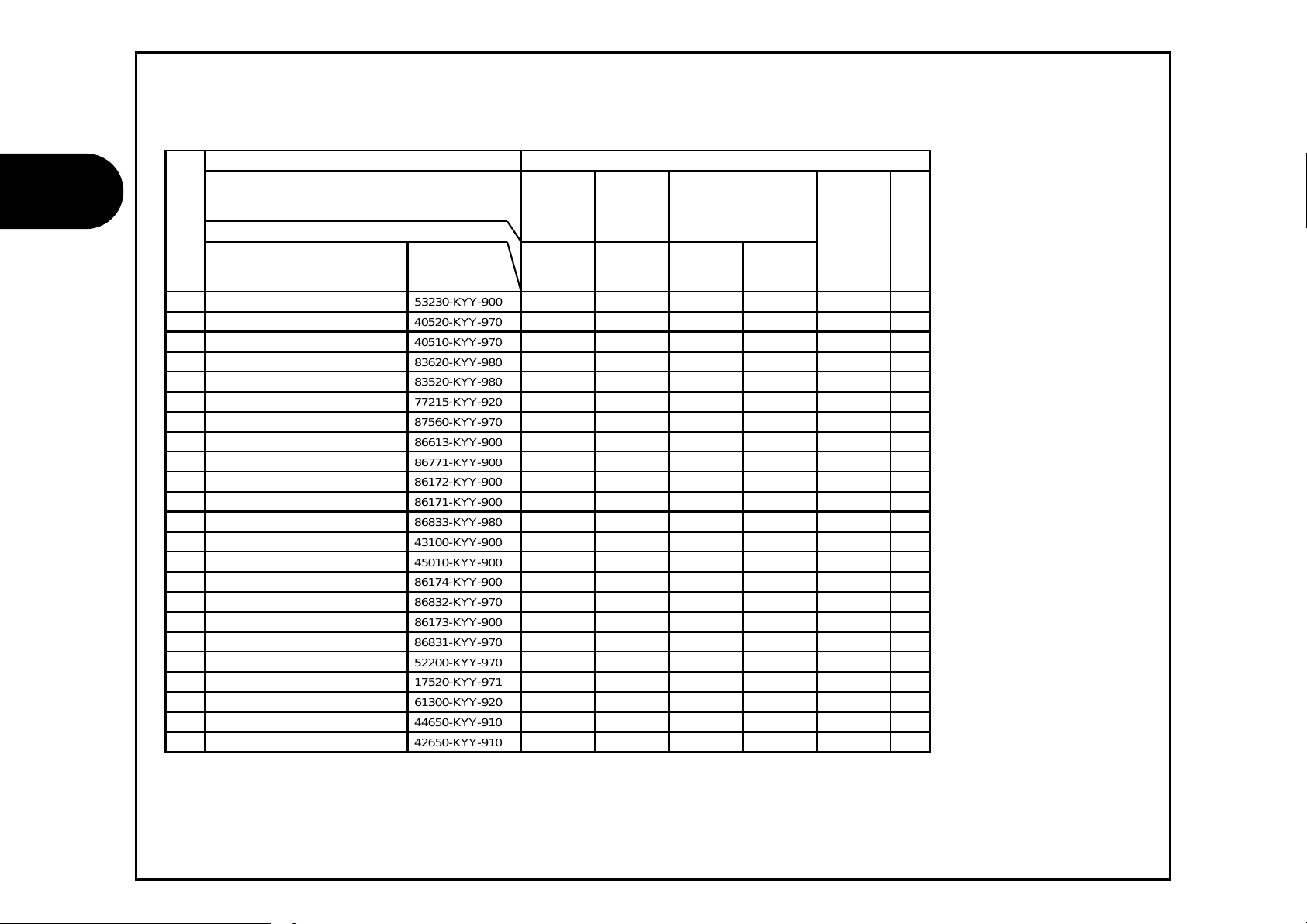

Color label ........................................................................... 10
Color chart........................................................................... 11
Fuel hose, general purpose hoses and vinyl hose .............. 55
FLAT RATE SERVICE TIME............................................... 59

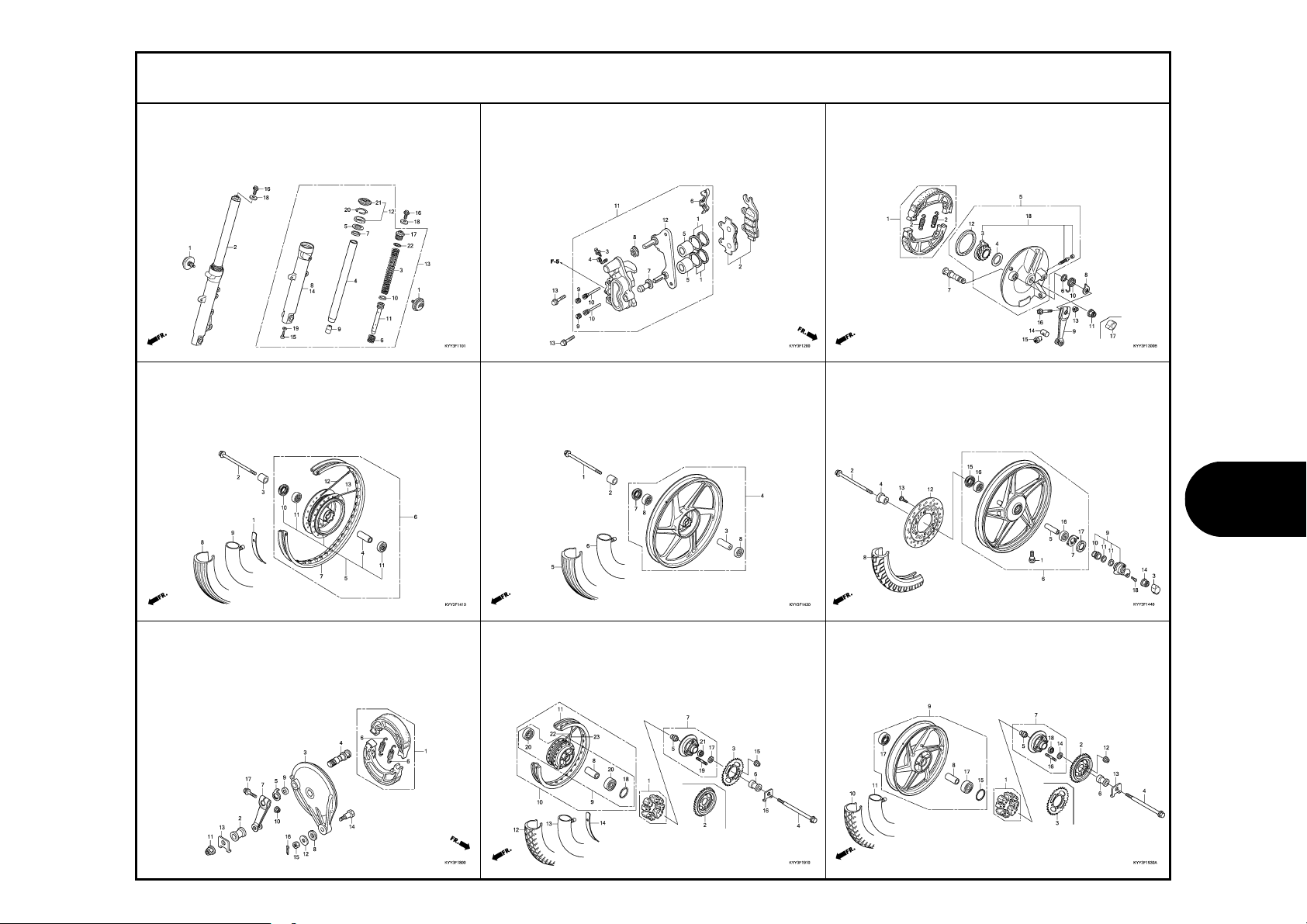

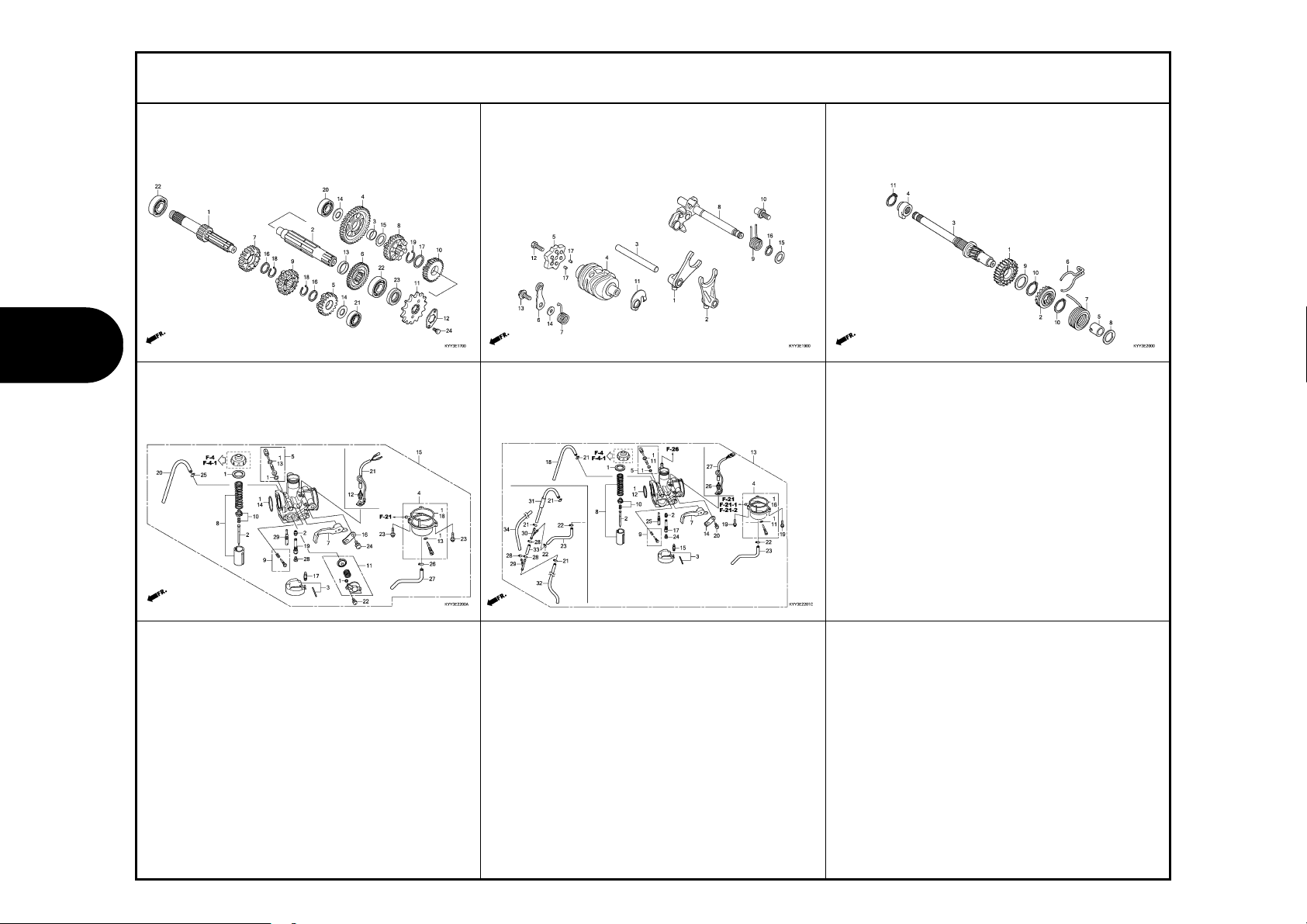

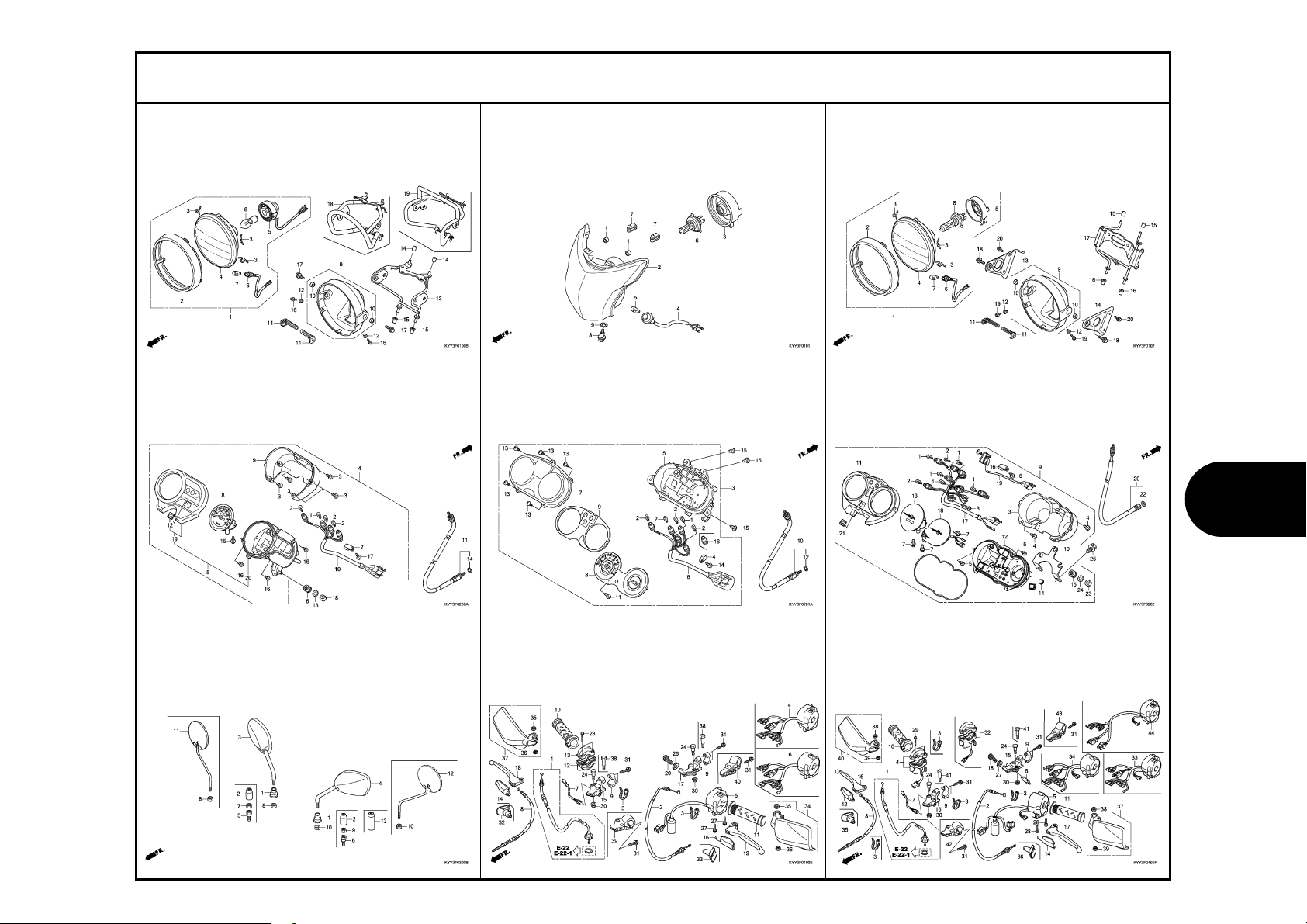

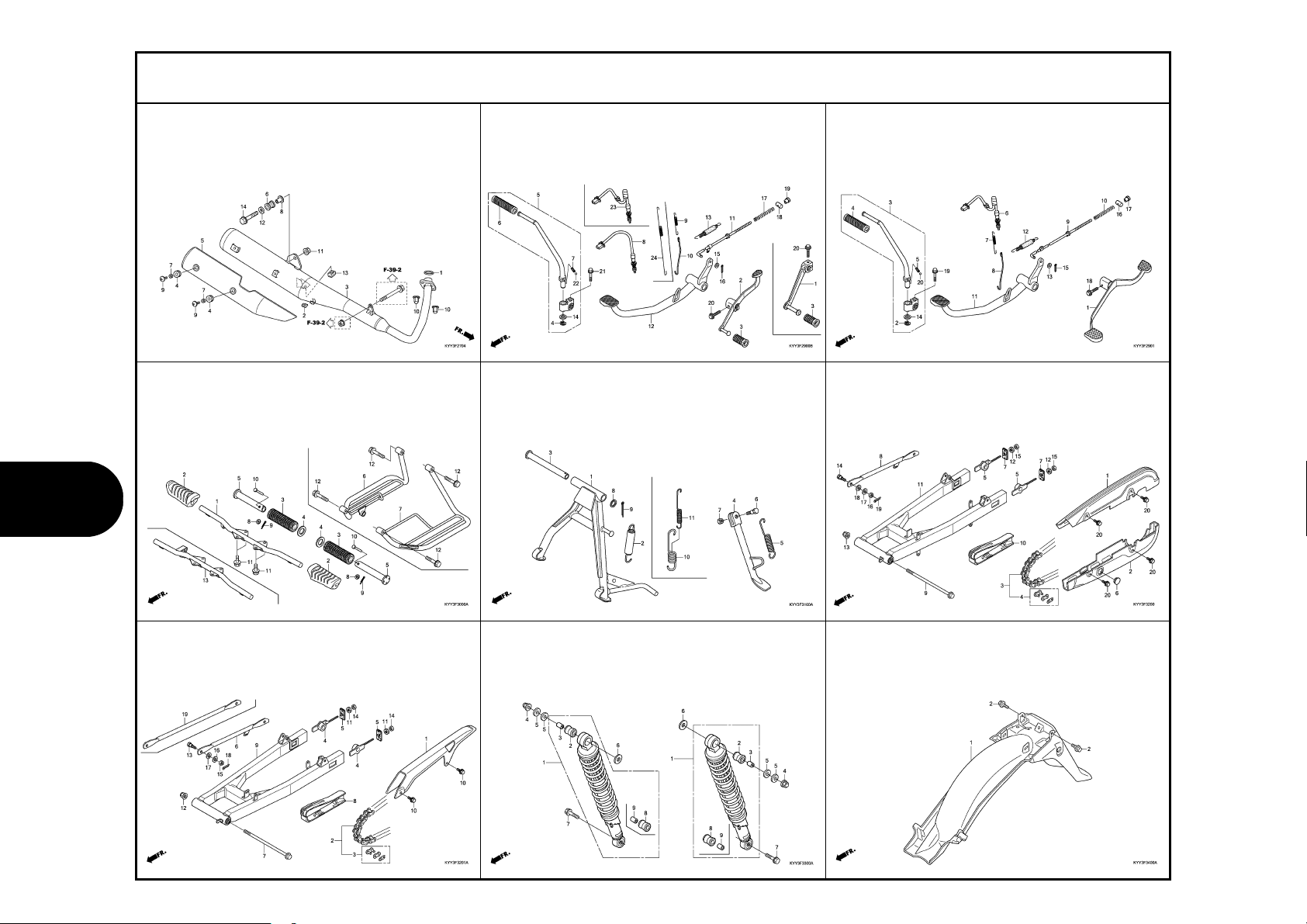

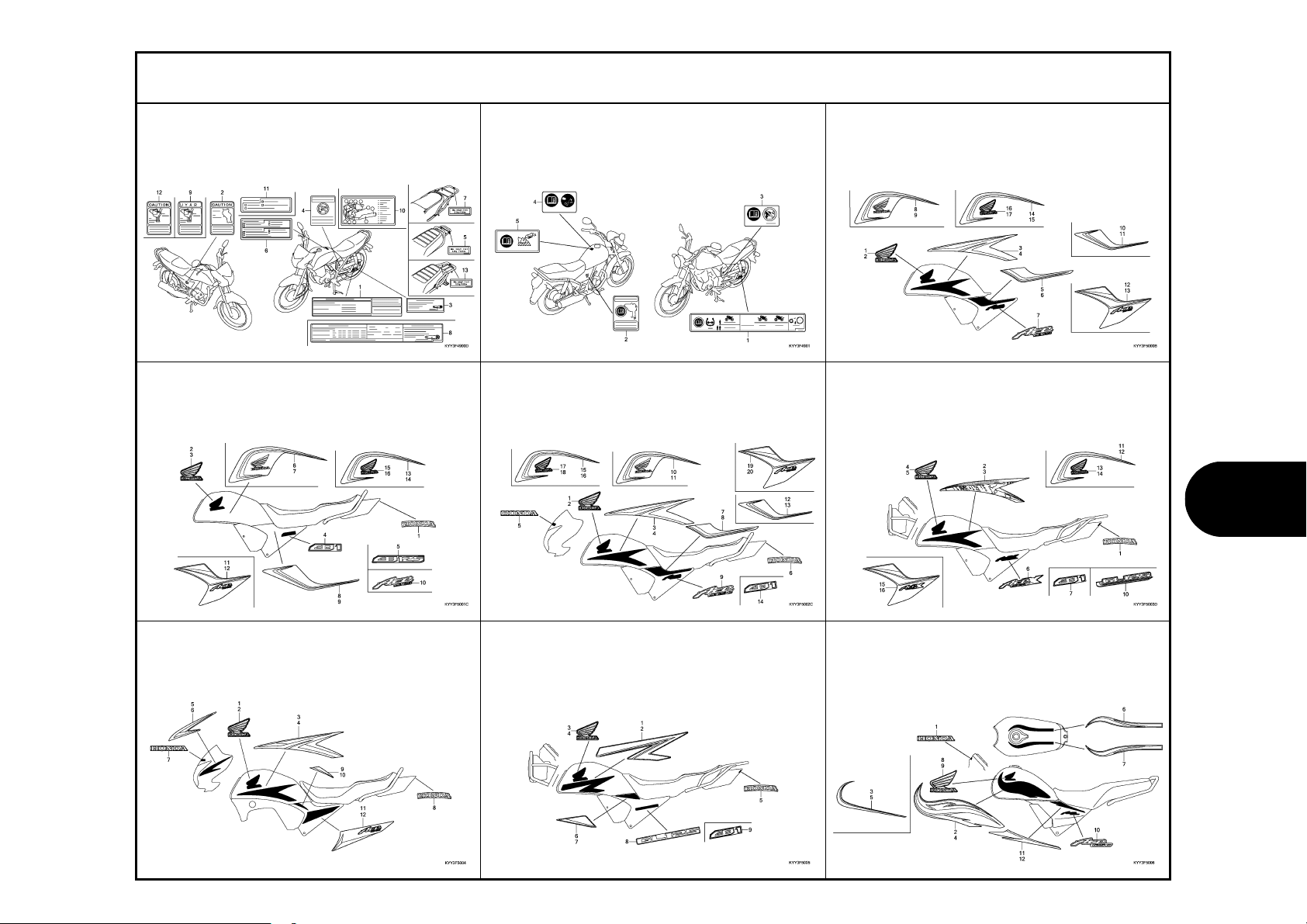

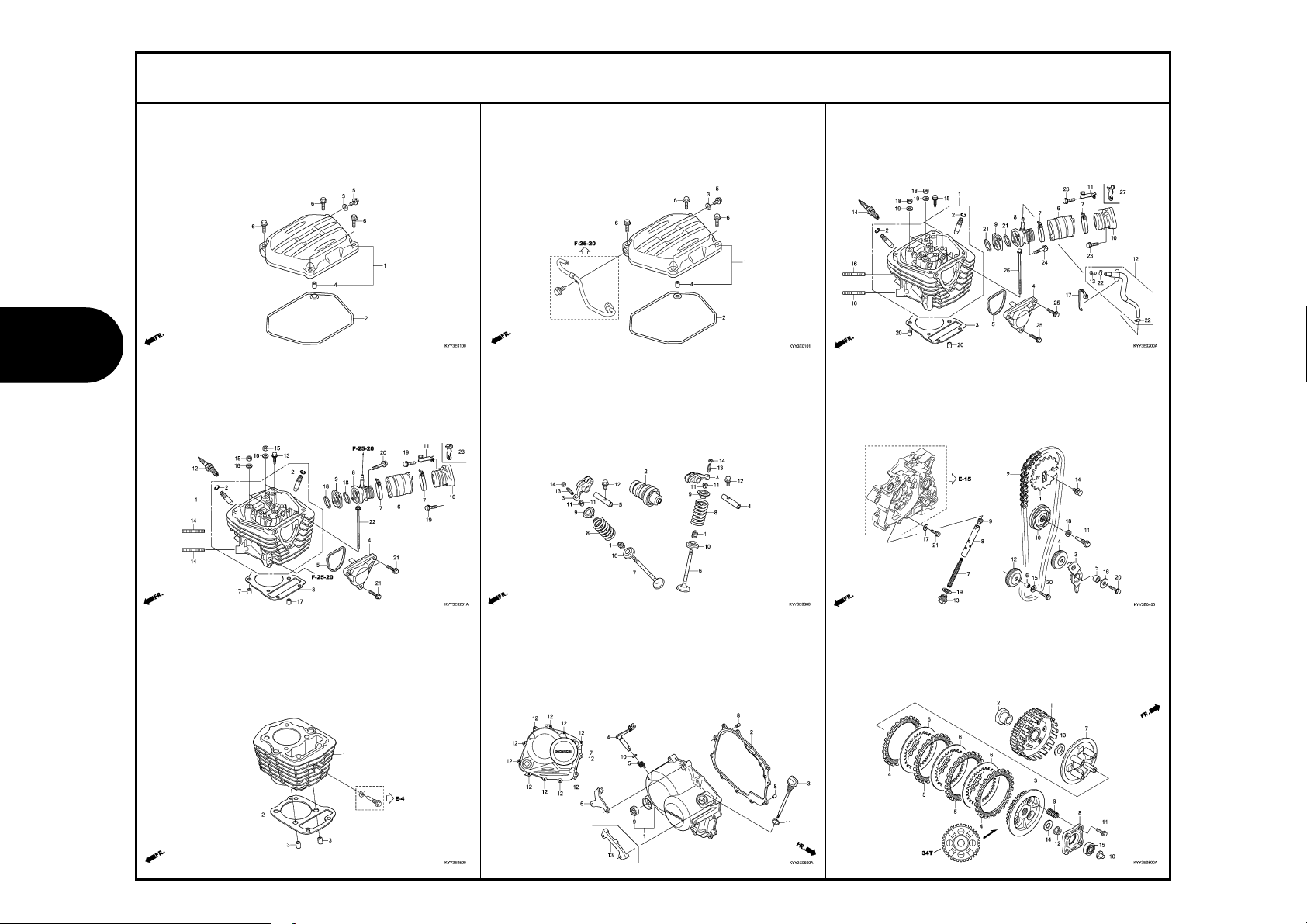

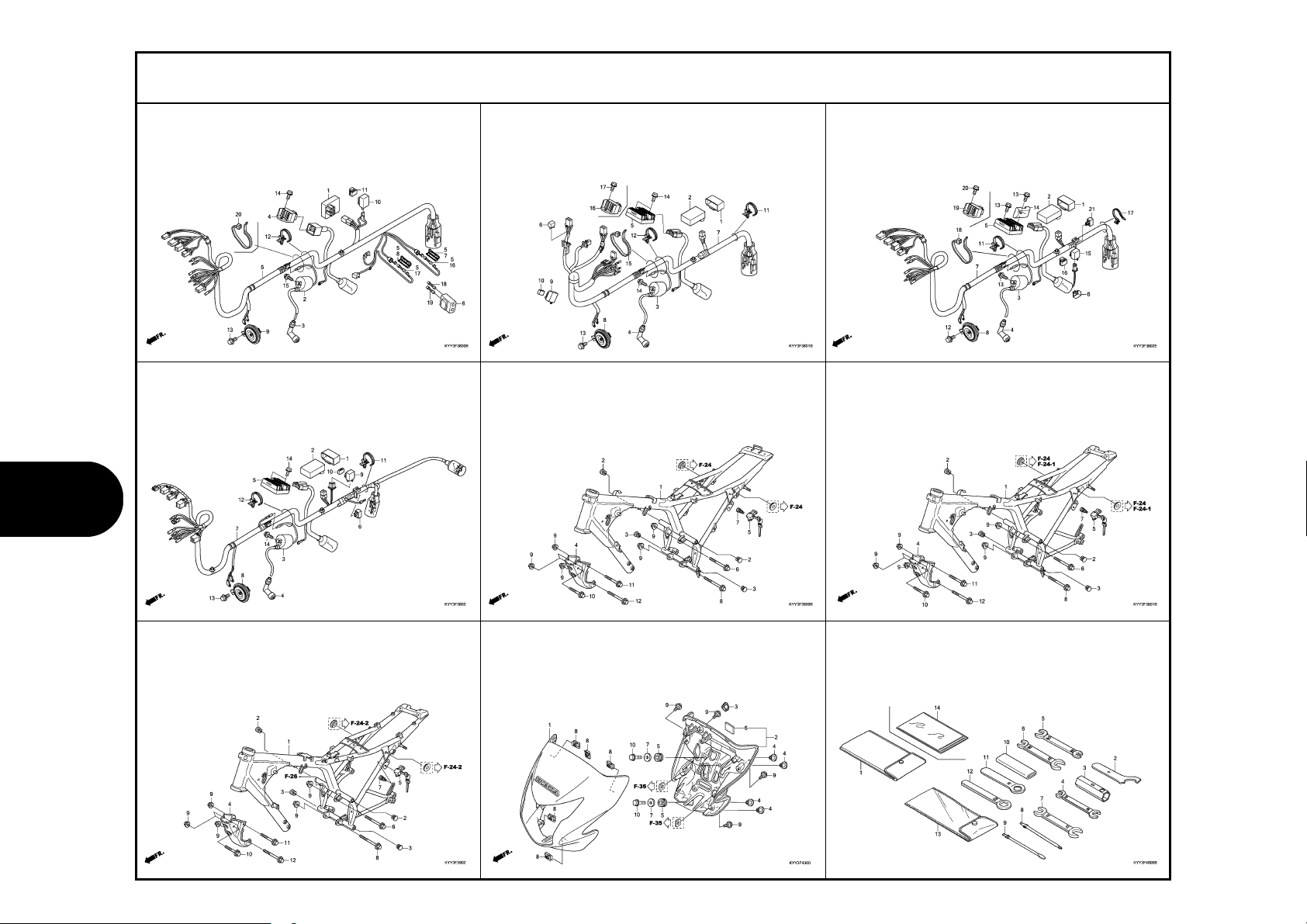

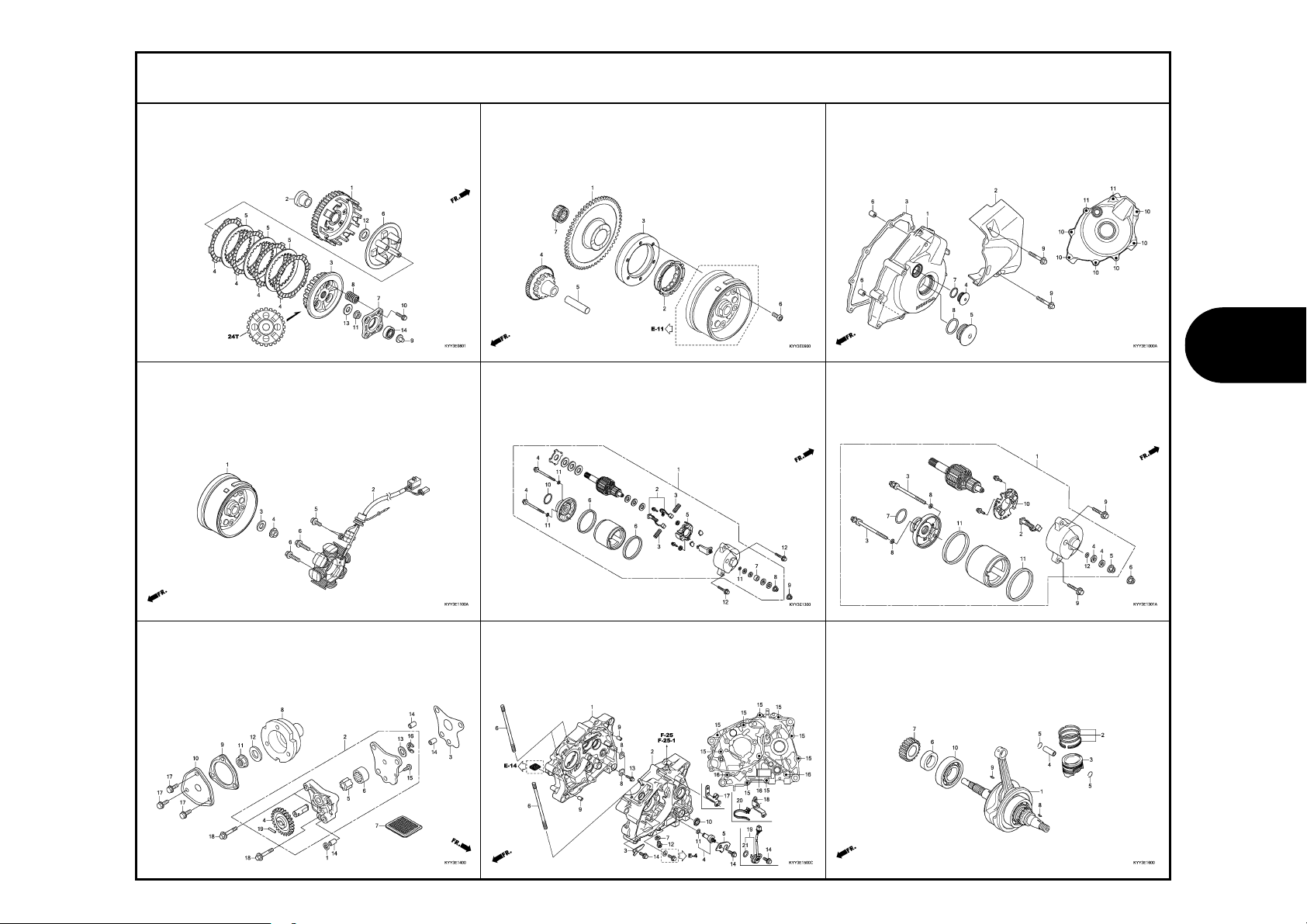

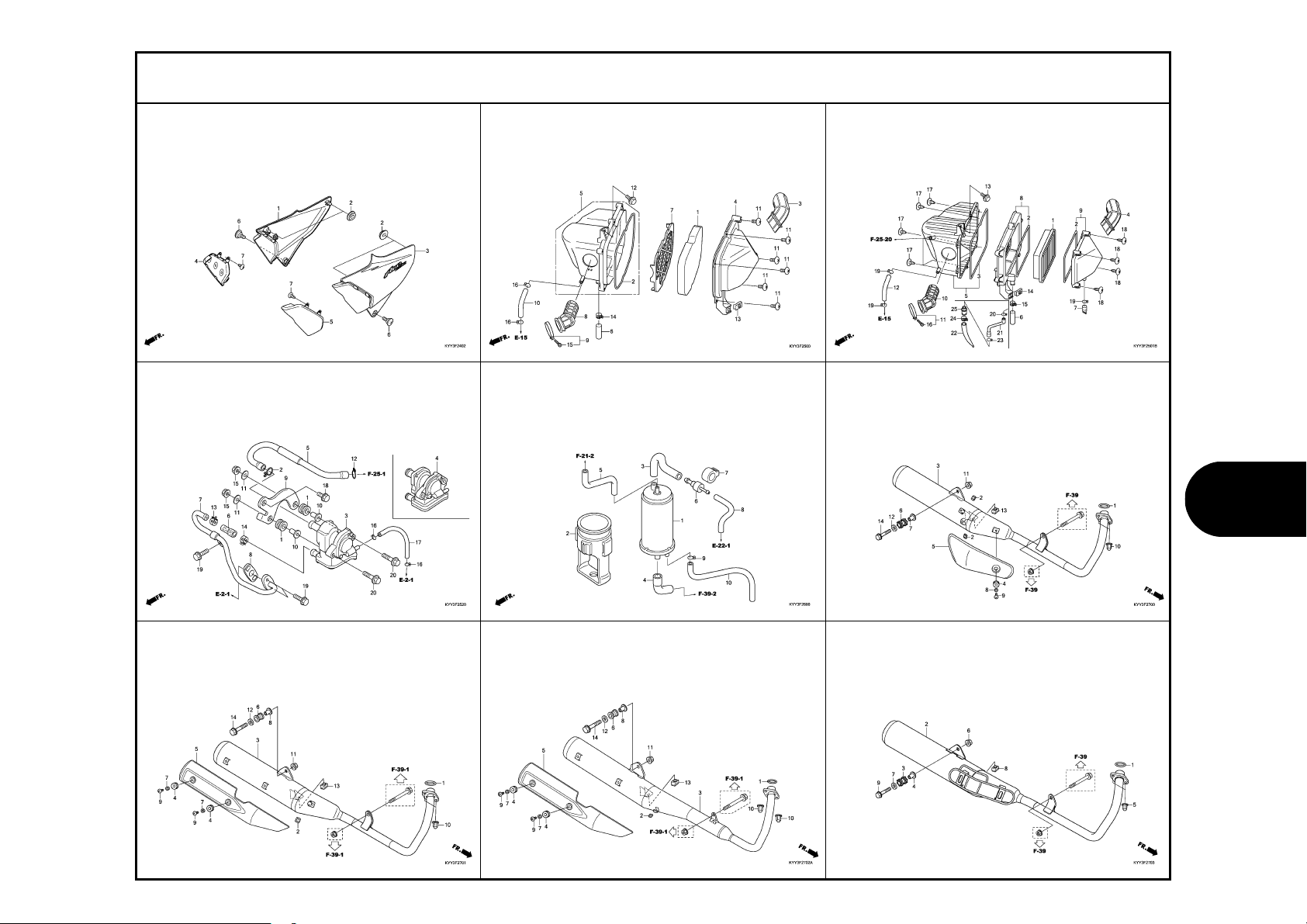

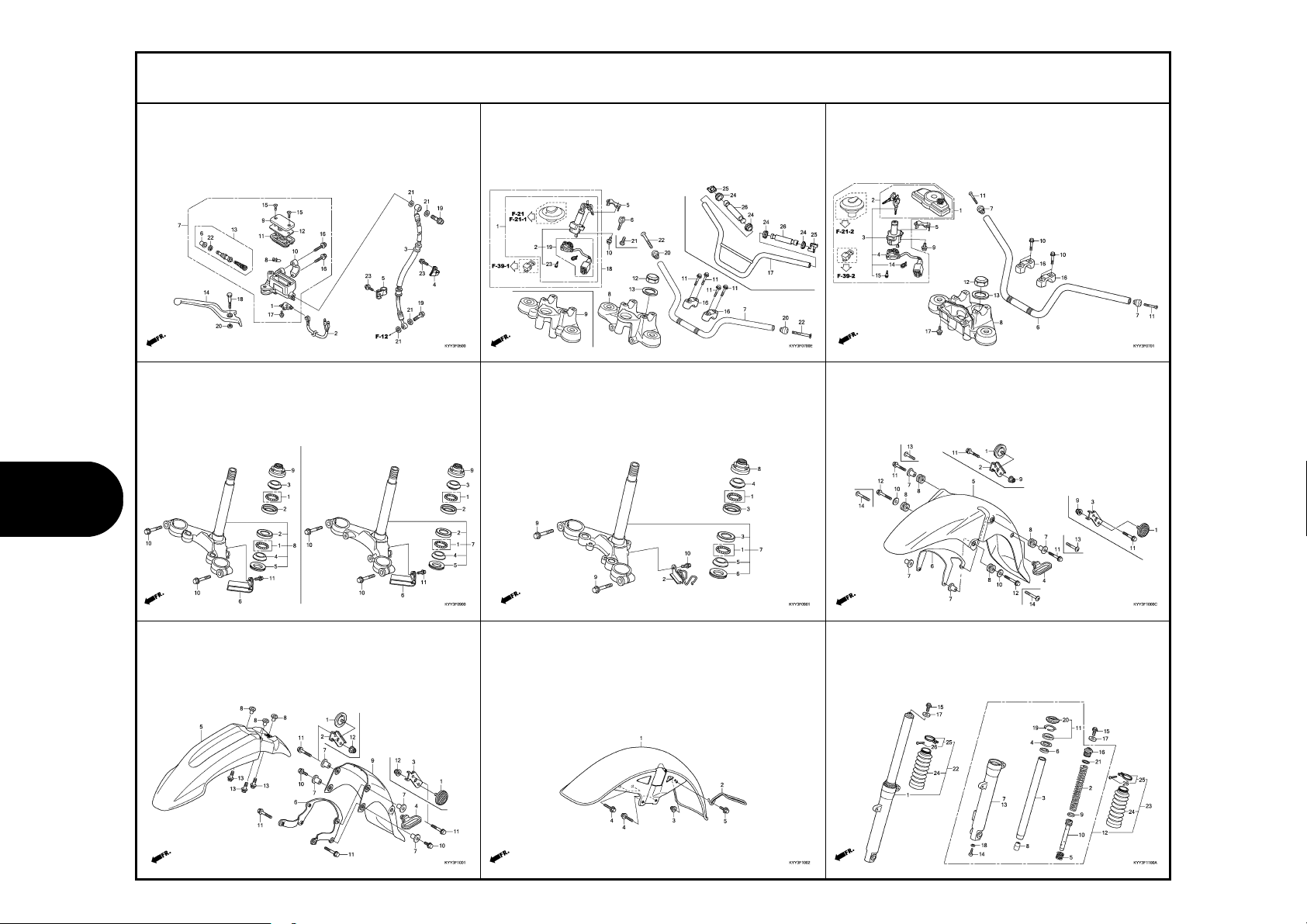

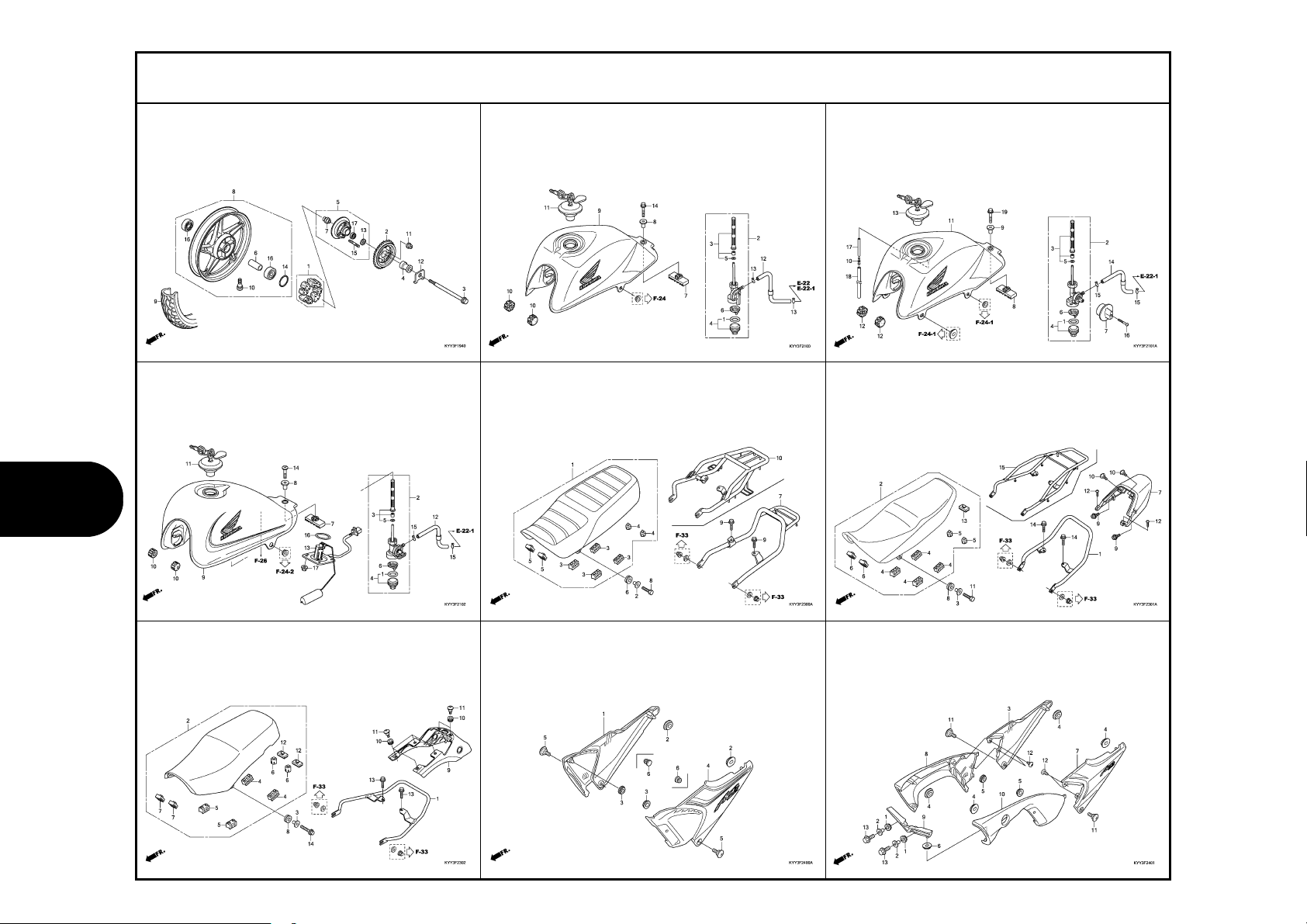

Illustrated index ................................................................... 64

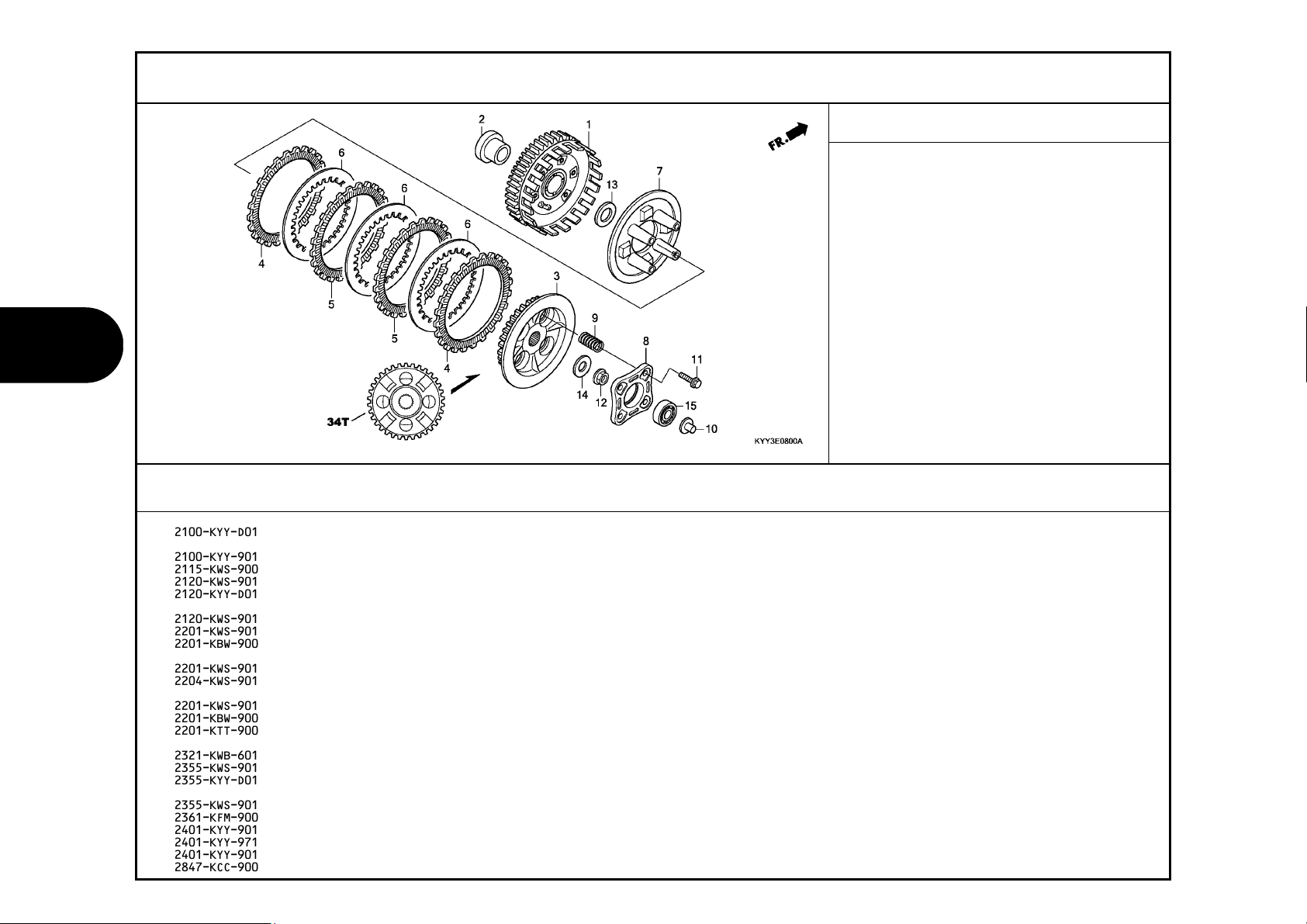

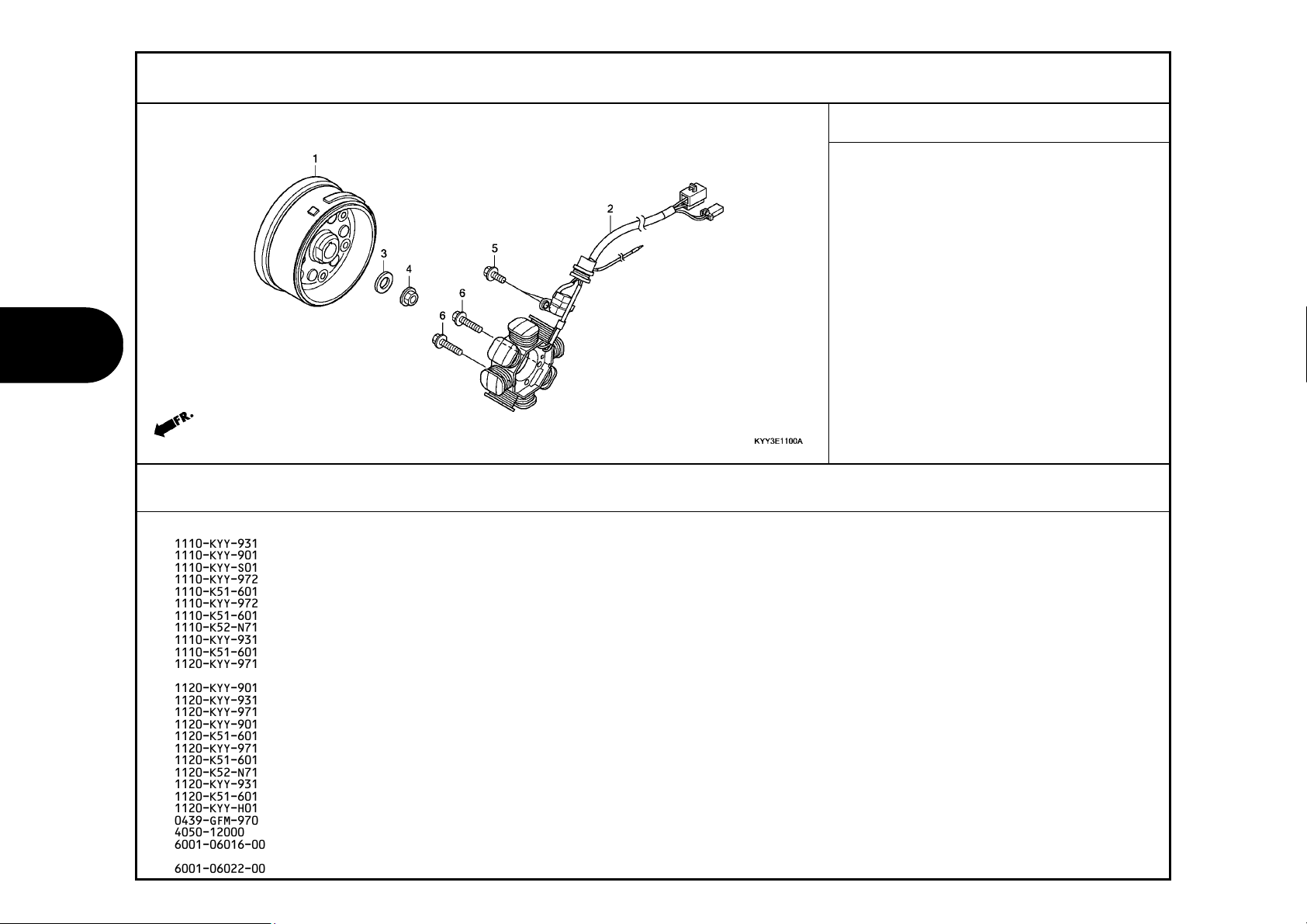

ENGINE GROUP................................................................ 76
FRAME GROUP............................................................... 116
PART NO. INDEX.............................................................. 280
PART NAME INDEX.......................................................... 288
Initial version issue date
December 10, 2011
Honda Motor Co., Ltd.
1
2020.01.01 E
Page 4
Reference with “Part number index”
Reference with “Part name index”

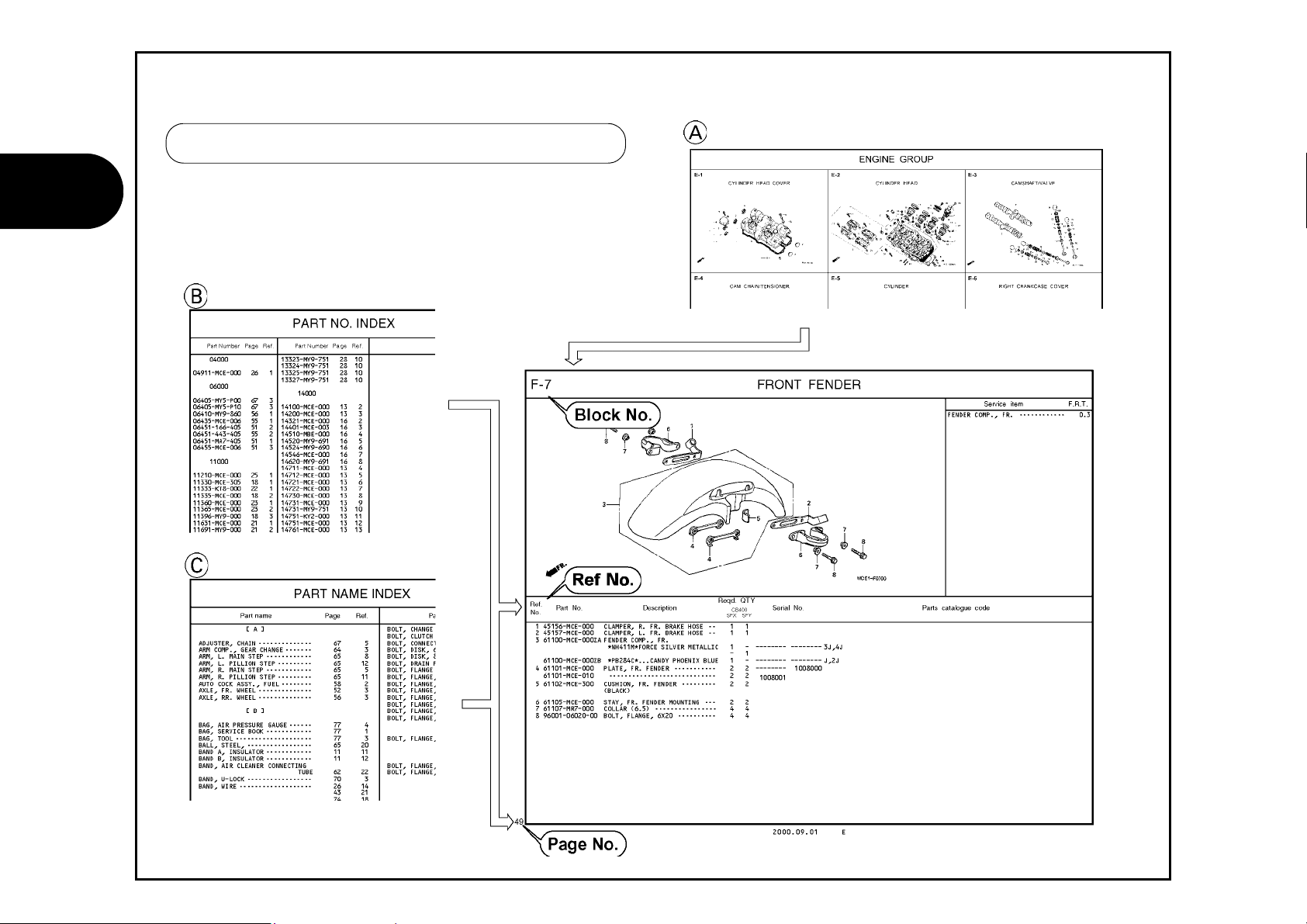

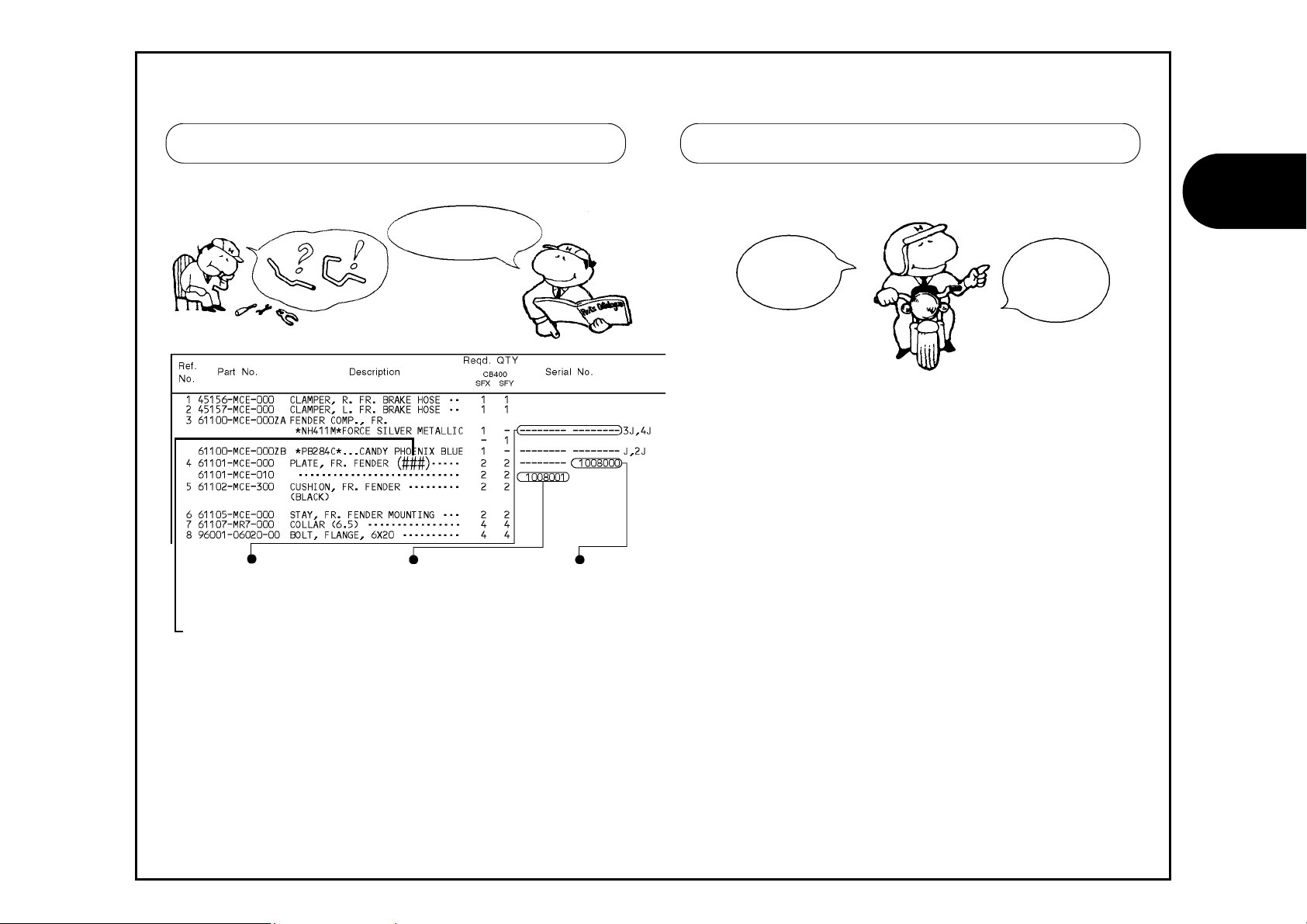

How to refer to the part information
1
Reference with “Illustrated index”
2
2020.01.01 E
Page 5

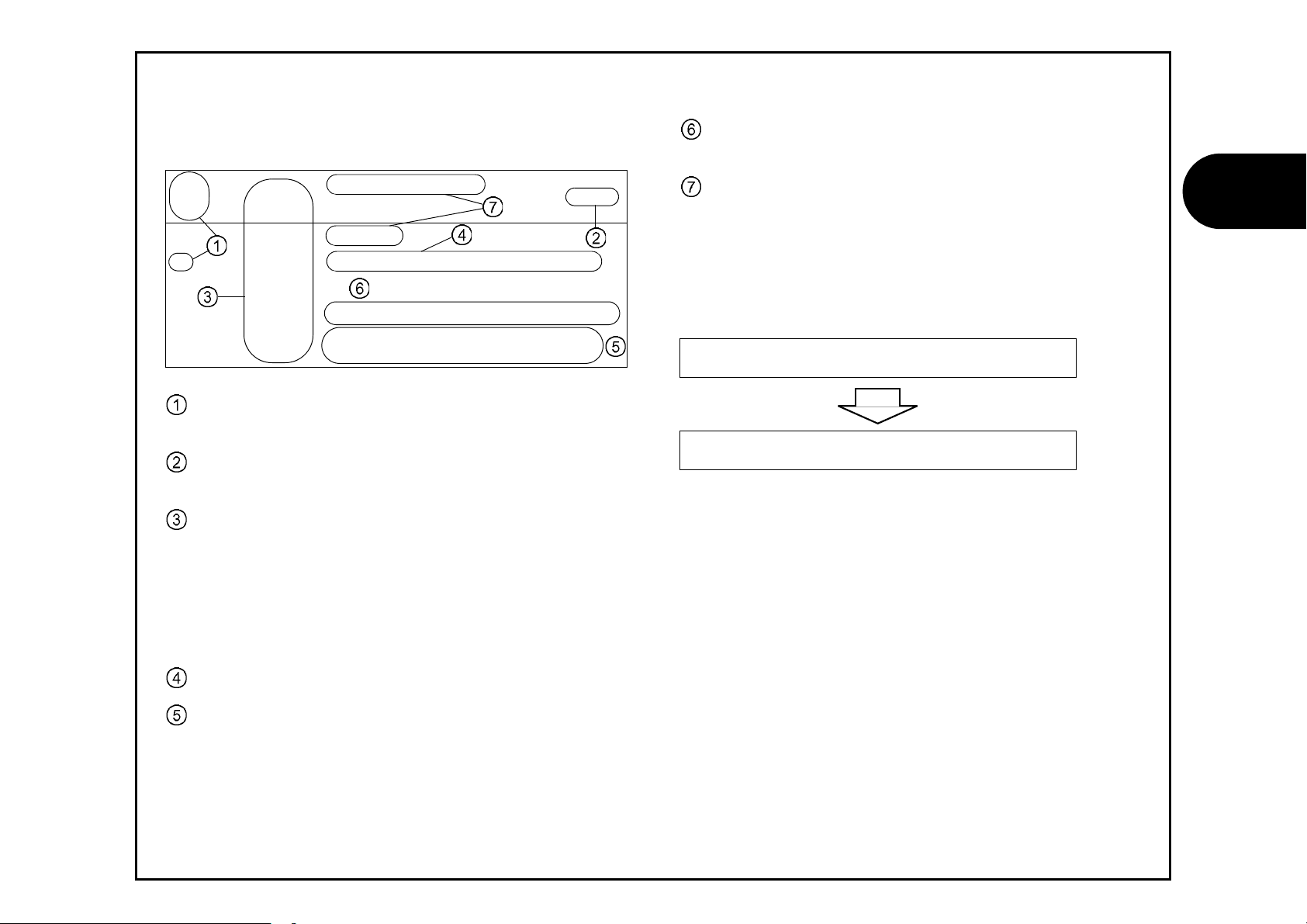

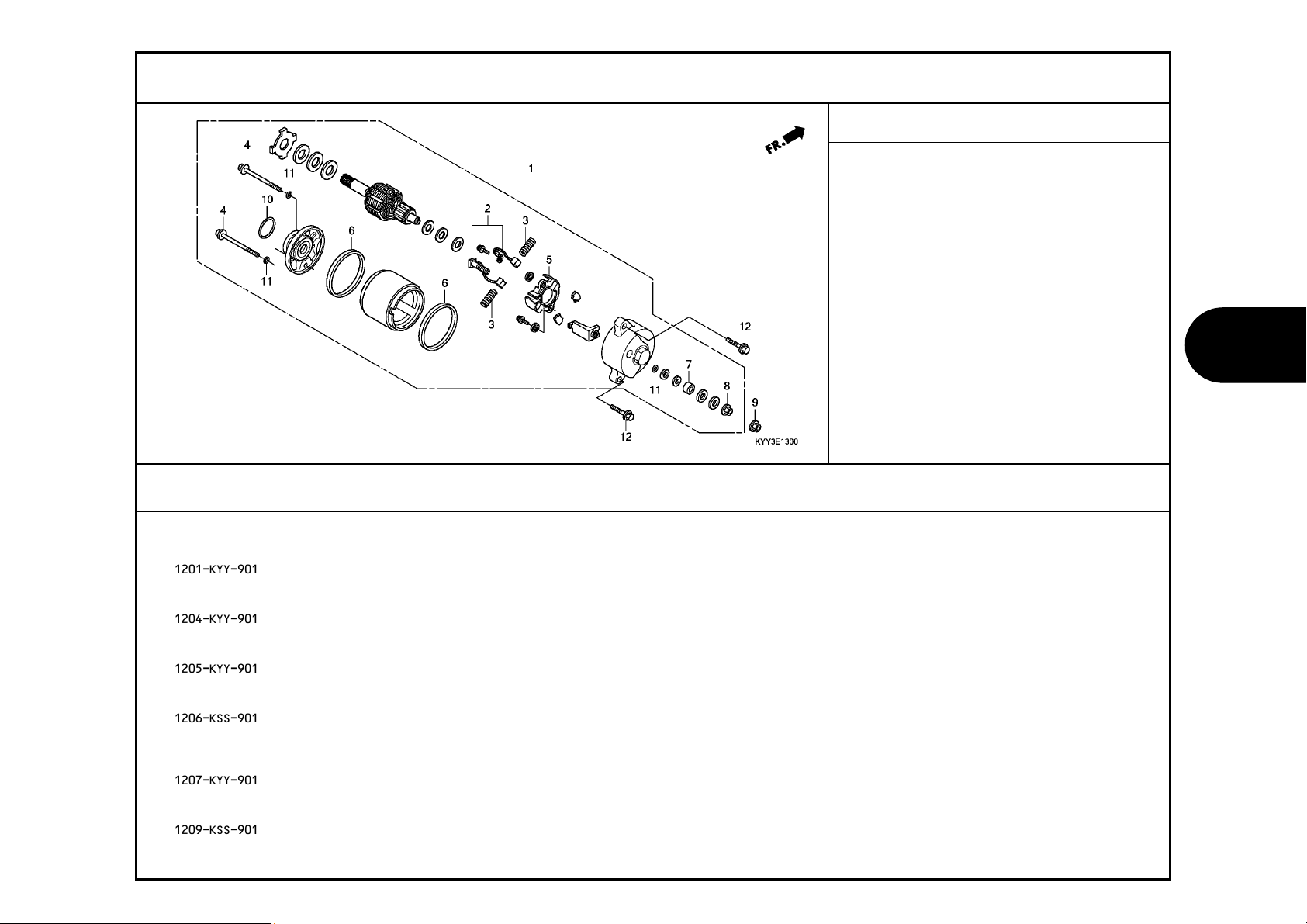

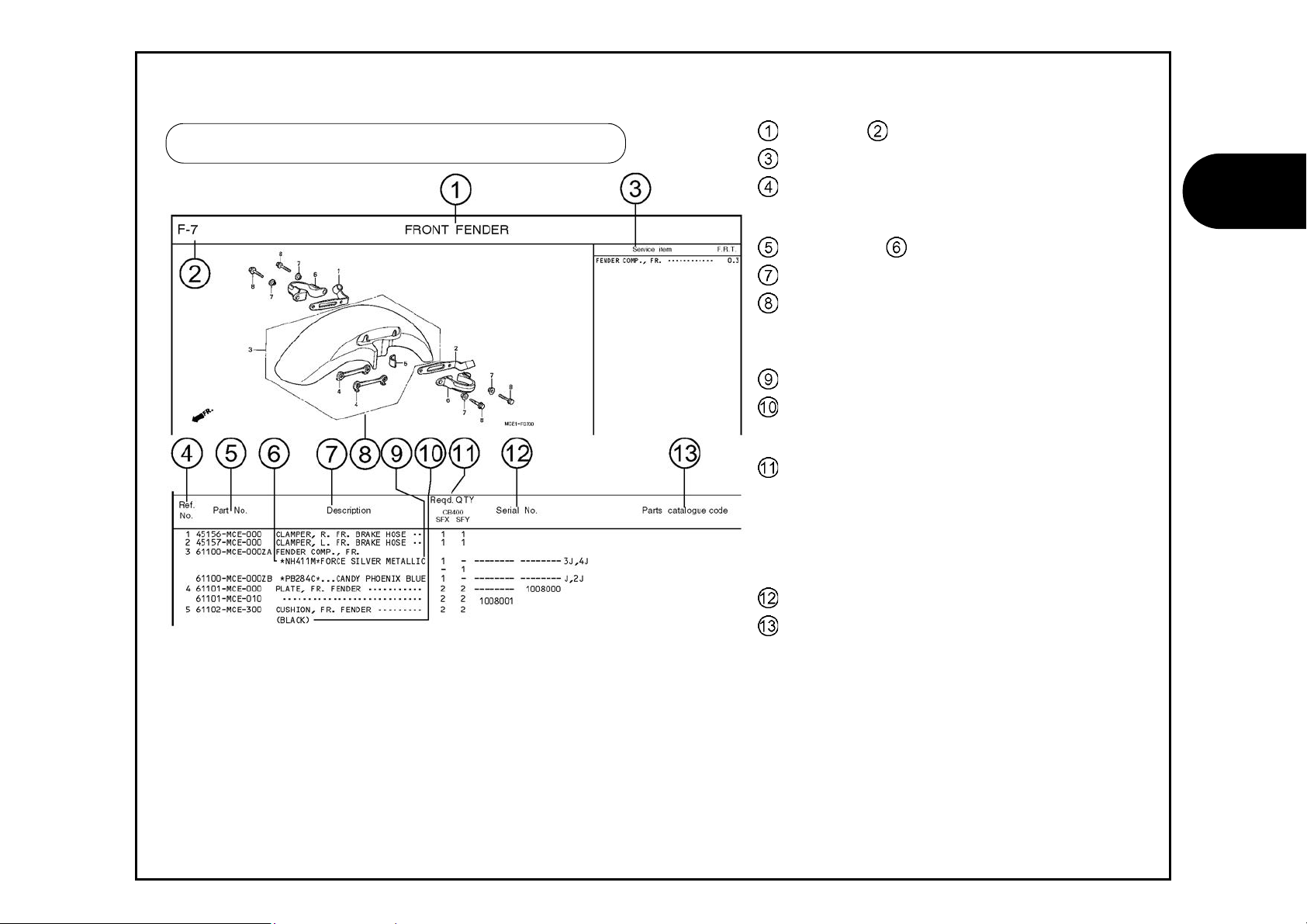

Part catalogue structure
Block title Block number
Service item/Flat rate time
Reference number
• Ti tle number marked with th e parenthesis or paren theses
indicates that it continues from the previous page.
Part number Honda color code
Description
As semblies
• Sections framed with broken lines in the exploded view
drawings are available as complete assemblies. (Their individual parts can also be obtained.)
Color description
Note
• Notes a re shown with the parentheses in the part name
column.
Required quantity
• Reqd. QTY shown in the parenthesis or parentheses indicates the optional part.
• Reqd. QTY marked with “N” indicates the optional part that
should be selected as needed.
• Reqd . QTY indicates the number of the part used in the
block.
Serial number
1
Parts catalogue code
• Whe n the parts catalogue code column is blank, it indicates that the part is applicable to all codes.
3
2020.01.01 E

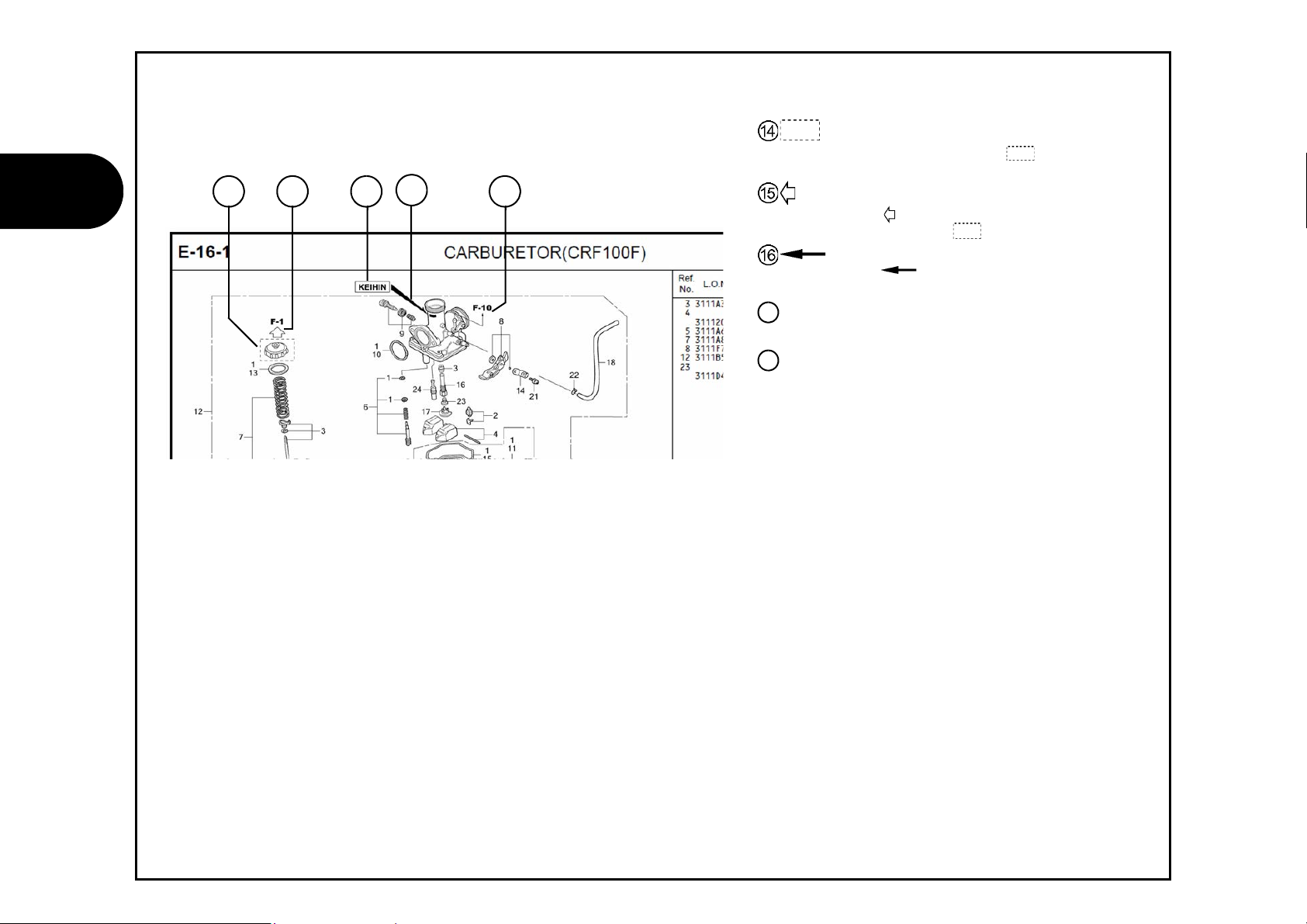

Page 6
17
18
14 15 17
18
16
• Parts enclose d within a dotted line are covered in a
different block.
1
• A hollow arrow indicates the block No. for the parts enclosed within a dotted line .
• A so lid arrow
question is connected to.
indicates the block No. the part in
Replacement Identification Information for
Designated Part No.
Location of Replacement Identification Infor-
mation for Designated Part No.
• If an arrow mark is indicated in 18, the part is incompatible
with a different part No.
• Make su re to order the part of the same manufacture, including the component part.
• To make an order, indicate the part No., which includes
the symbol displayed on the applicable section of the part
to be replaced.
4
2020.01.01 E
Page 7
When the parts were revised
Be sure to check the
serial number!!
The number has been
used from the initial model
without revision.
When shown at the left side,
it is applicable to the models
of No.1008001 and the
subsequent numbers.
When shown at the right side,
it is applicable to the models
up to No.1008000.
•The parts listed with "###" at the end of the parts name have limited supply period
(parts not for sale).
Abbreviations used in the parts catalogue
RIGHT is
abbreviated
as “R.”
“L.” stands
for LEFT
1
* “L.” or “R.” in the description of a part stands for the LEFT hand
side or the RIGHT hand side. Determine the left or right as if you
were in the motorcycle seat.
• The following abbreviations are used in this parts catalogue.
A ........... Ampere
ABS ....... Anti-lock brake
system
A.C. ....... Alternating current
A.M. ...... Attaching mark
ASSY. .... Assembly
C.D.I. ..... Capacitive discharge
ignition
COMP. ... Complete
CP. ........ Candle power
D.C. ....... Direct current
EX. ........ Exhaust
FR. ........ Front
G ........... Gram
HEX. ..... Hexagonal
IN. ......... Inlet
L. ............Left
(
100L) .Link (100 Links)
L
L.E.D. .....Light emitted diode
MM .........Millimeter
MPH .......Miles per hour
R. ...........Right
RR. .........Rear
STD. .......Standard
T (22T) ...Tooth (22 Teeth)
TCS ........Traction control
system
T.M. ........Transcript mark
V ............Volt
W ...........Watt
WL .........With labelling
WOL .......Without labelling
KPH ...... Kilometers per hour
5
2020.01.01 E
Page 8

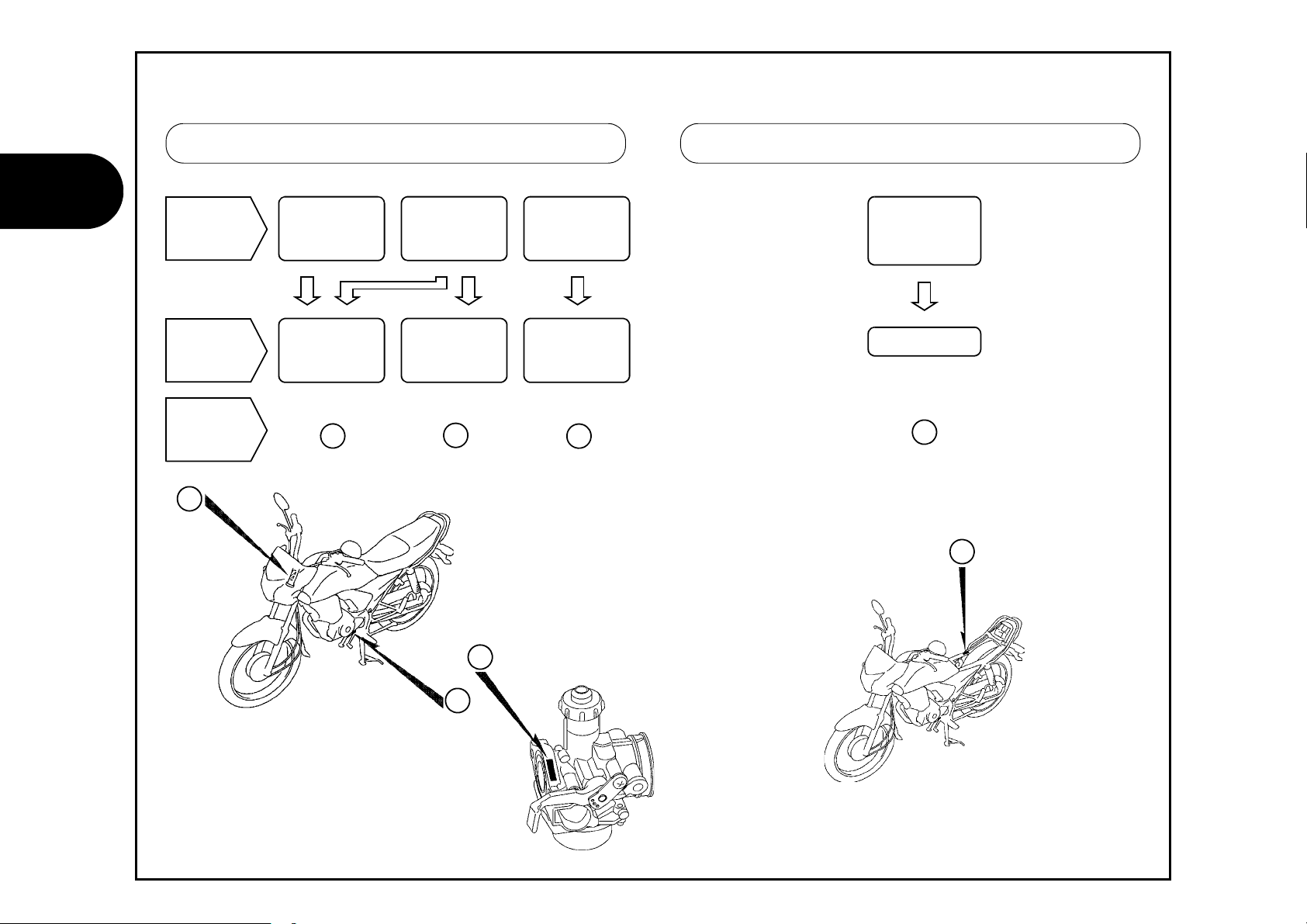

Part block and serial number check
1
2
3
Required
serial
number
Engine parts
E-1~
Engine serial
number
Carburetor parts
E-22~
Carburetor serial
number
Frame parts
F-1~
Frame serial
number
Part block
Check
point
1
2
3

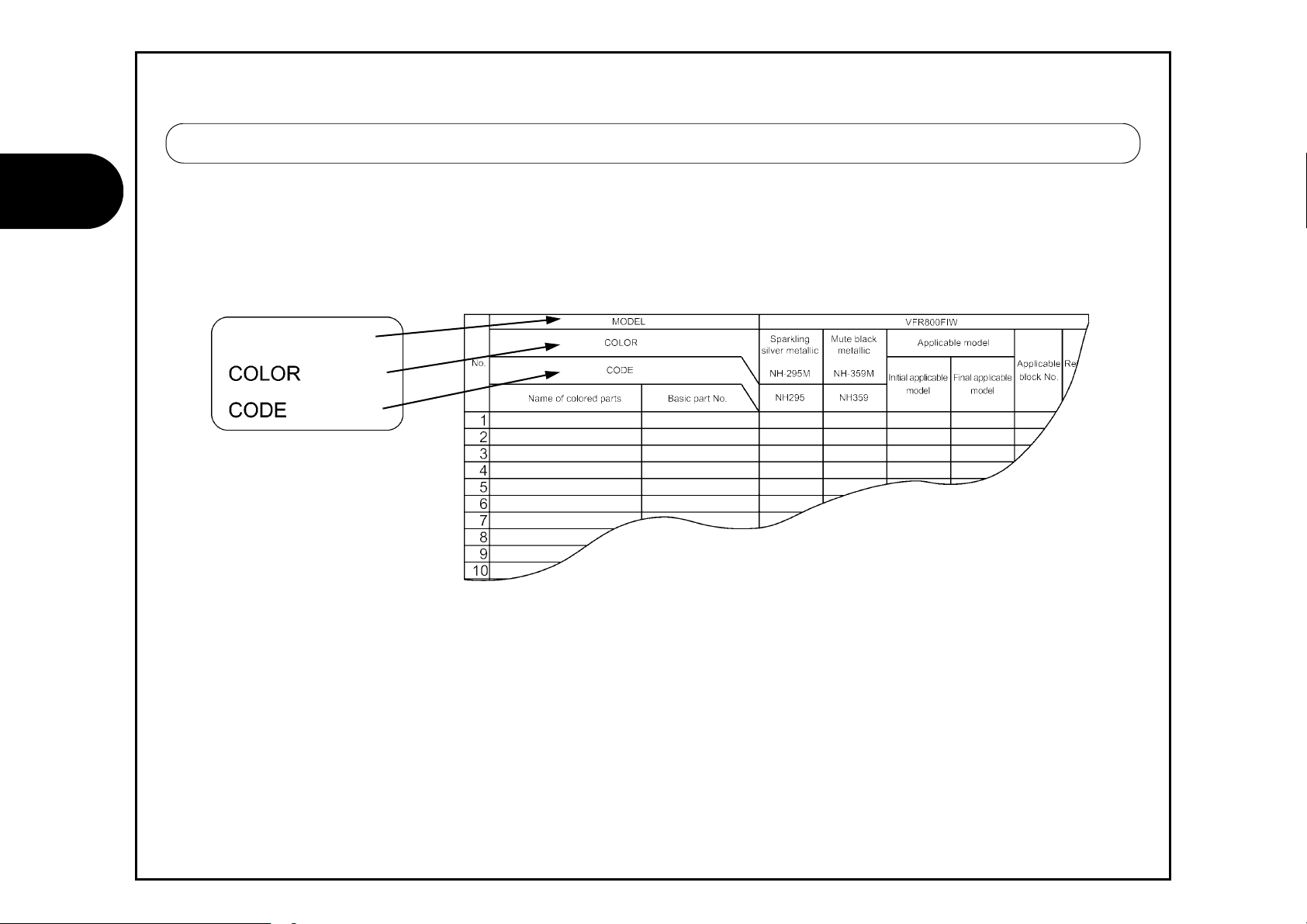

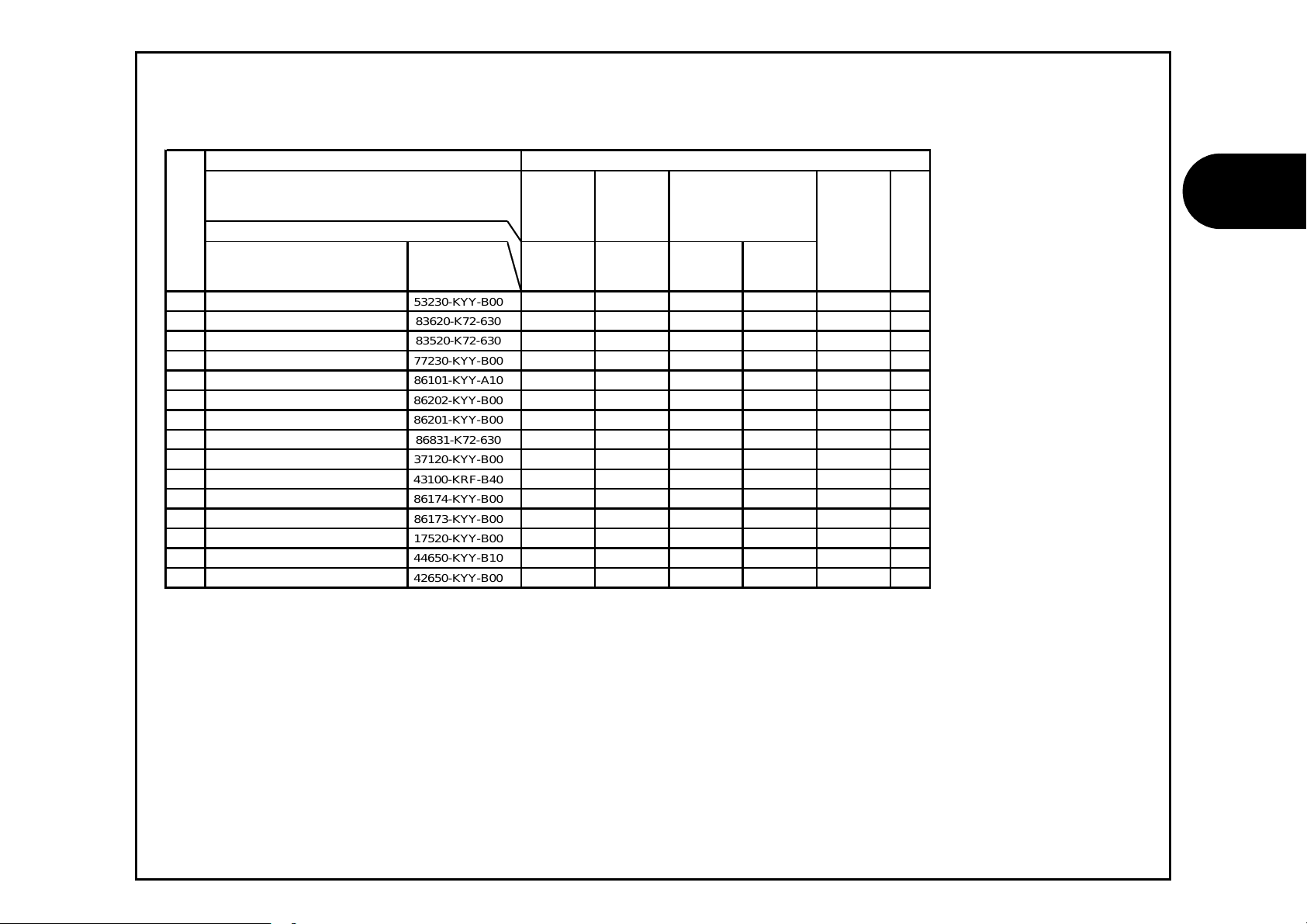

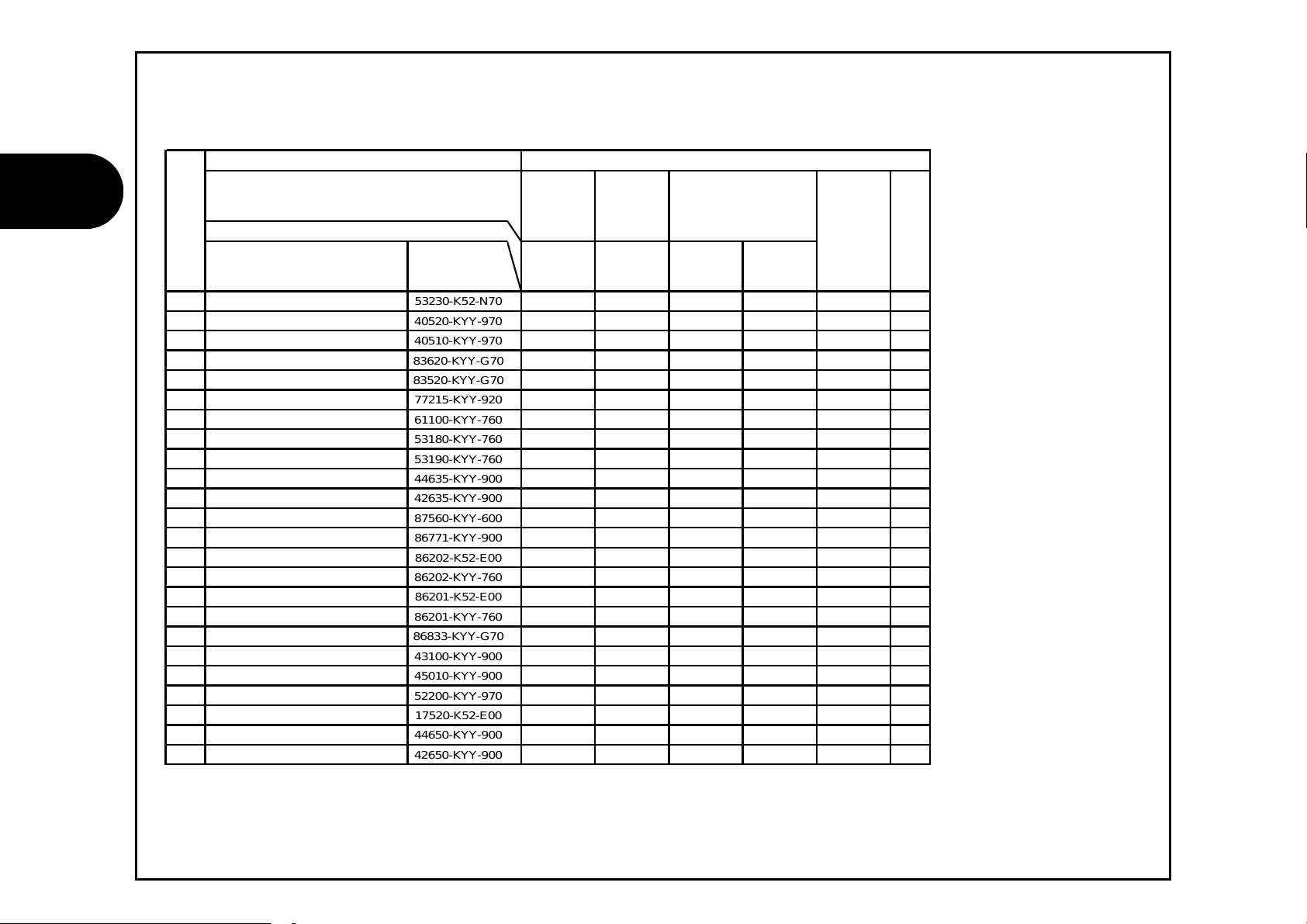

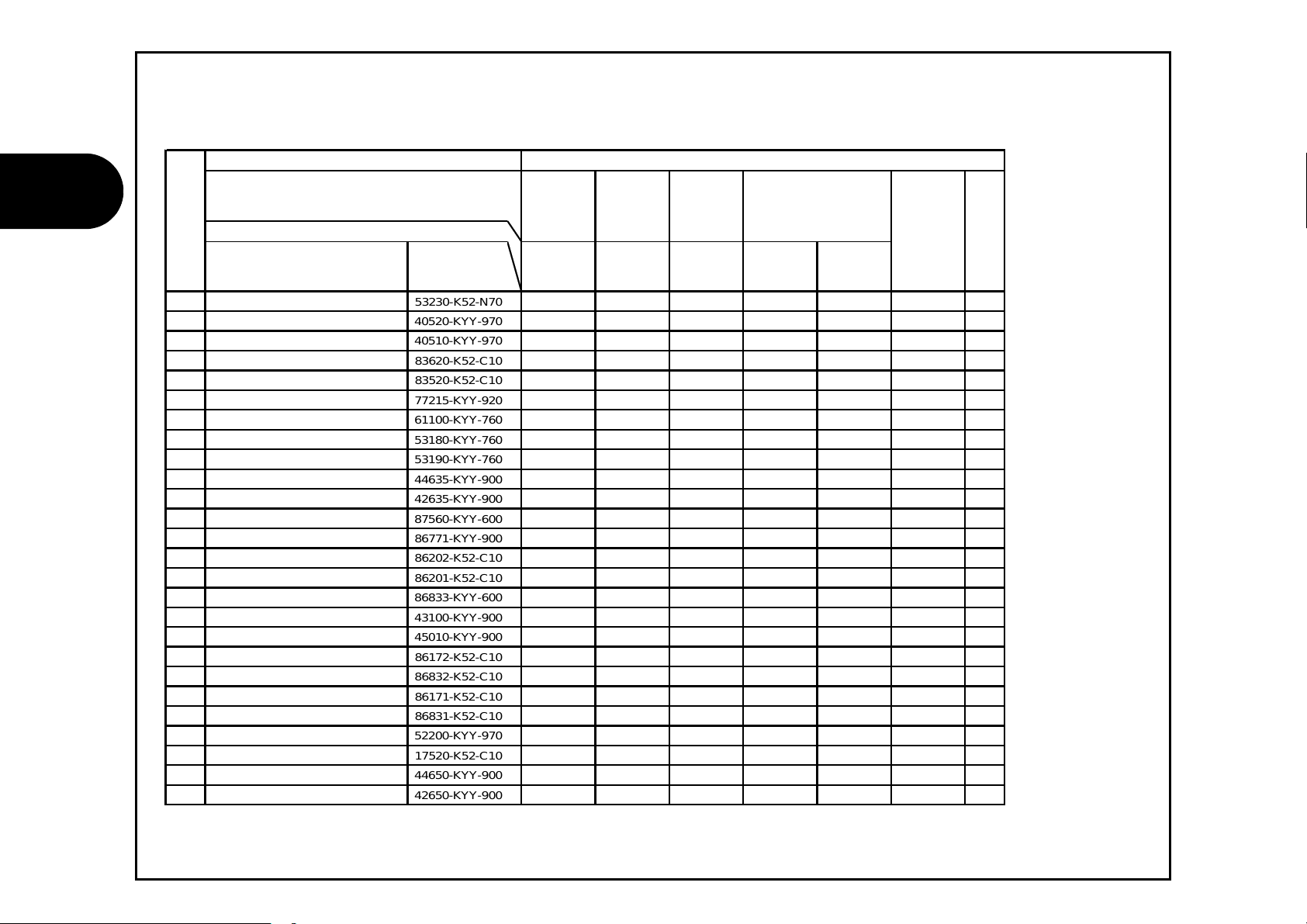

Color label attachment position check
4
Colored parts
Color label
4
1
6
2020.01.01 E
Page 9
Models, parts catalogue codes and applicable serial Nos. given in this parts catalogue can be identified as follows.
Models, parts catalogue codes and applicable serial numbers
Model
Area
code
Type
Parts
catalogue
code
Applicable engine
serial No.
Applicable frame
serial No.
Applicable
carburetor
serial No.
2AG Argentina 2AG
2CL Chili 2CL SDH152FMIB3350003~B3399999 LALPCJ0E3B3301454~B3399999
2PE Peru 2PE SDH152FMIB3250002~B3999999 LALPCJ0E9B3301457~B3999999 PB 7RJA
3DK General export (KPH) 3DK SDH152FMIB3400623~B3499999 LALPCJ0E8C3006304~C3099999 PB 7RMA
AG Argentina AG
CL Chili CL SDH152FMIB3350001~B3399999 LALPCJ0EXB3301452~B3399999
DK General export (KPH) DK SDH152FMIB3400059~B3499999 LALPCJ0D5C3004260~C3099999 PB 7RMA
MX Mexico MX SDH152FMIB3300001~B3399999 LALPCJ0E5B3301455~B3399999 PB 7RKA
PE Peru PE SDH152FMIC3300128~C3999999 LALPCJ0E4C3013590~C3199999 PB 7RJA
2CL Chili 2CL PB 7RPA
2PE Peru 2PE SDH152FMIC3306544~C3999999 LALPCJ099D3000001~D3999999 PB 7RJA
2TU Turkey 2TU JA25E2000001~2999999 LALJA25B*D3000001~D3999999 PB 7RTA
3AG Argentina 3AG SDH152FMY0000001~0999999 8CHPCJ0E1DL000001~DL999999 PB 7RHA
3CO Colombia 3CO SDH152FMIC3800113~C3999999 9FMPCJ016DF000002~DF999999 PB 7RKA
3DK General export (KPH) 3DK PB 7RMA
4AG Argentina 4AG SDH152FMY0000001~0999999 8CHPCJ091DL000001~DL999999 PB 7RHA
4CO Colombia 4CO SDH152FMIC3800113~C3999999 9FMPCJ016DF000002~DF999999 PB 7RKA
5AG Argentina 5AG SDH152FMIC700001~C799999 8CHPCJ091DL000001~DL999999
CL Chili CL SDH152FMIC3700001~C3999999 LALPCJ092C3000002~C3999999
CGX125SH
C
PB 7RPA
CGX125SH
D
PB 7RHA
PB 7RHA
Parts with parts catalogue codes are exclusive for models destined for countries designated.
If no area codes are listed, parts are for common use.
1
2020.01.01 E
7
Page 10
1
Model
Area
code
Type
Parts
catalogue
code
Applicable engine
serial No.
Applicable frame
serial No.
Applicable
carburetor
serial No.
DK General export (KPH) DK SDH152FMIC360270~C399999 LALPCJ09*C3000001~C3999999 PB 7RMA
PE Peru PE SDH152FMIC3602701~C3999999 LALPCJ09*C3000001~C3999999 PB 7RJA
TU Turkey TU JA25E2000001~2999999 LALJA25B*D3000001~D3999999 PB 7RTA
2DK General export (KPH) 2DK SDH152FMID3330681~D3999999 LALPCJ0F*E3000001~E3999999 PB 7RMA
2KE Kenya 2KE SDH152FMI0000001~0999999 BF0JA309*DS000001~DS999999 PB 7RYA
2PE Peru 2PE SDH152FMIE3300857~E3999999 LALPCJ0H*E3001692~E3999999 PB 7RJA
3DK General export (KPH) 3DK SDH152FMID3330681~D3999999 LALPCJ0G*E3000001~E3999999 PB 7RMA
3PE Peru 3PE PB 7RJA
4CO Colombia 4CO SDH152FMI30001~ 9FMPCJ02XFF000001~FF999999 PB 7RKA
CL Chili CL SDH152FMID3630001~ D3999999 LALPCJ0J*E3000001~E3999999 PB 7RPA
DK General export (KPH) DK SDH152FMID3631001~D3999999 LALPCJ0K*E3000001~E3999999 PB 7RMA
KE Kenya KE SDH152FMI0000001~0999999 BF0JA309*DS000001~DS999999 PB 7RYA
PE Peru PE SDH152FMID3610001~D3999999 LALPCJ0H*E3000001~E3999999 PB 7RJA
SA South Africa SA JA25E-2000001~2999999 LALJA25B*E3000001~E3999999 PB 7RZA
2DK General export (KPH) 2DK PB 7RMB
2KE Kenya 2KE PB 7RYB
2SA South Africa 2SA JA25E-4100009~4999999 LALJA25B*F3000001~F3999999 PB 7RZB
3DK General export (KPH) 3DK PB 7RMB
3KE Kenya 3KE PB 7RYB
4DK 4DK SDH152FMIF3550001~F3999999 LALPCJ0F*F3000001~F3999999
5DK 5DK SDH152FMIF3550004~F3999999 LALPCJ0G*F3000001~F3999999
KE Kenya KE PB 7RYB
General export (KPH) PB 7RMB
CGX125SH
F
CGX125SHE
CGX125SHD
8
2020.01.01 E
Page 11
1
Model
Area
code
Type
Parts
catalogue
code
Applicable engine
serial No.
Applicable frame
serial No.
Applicable
carburetor
serial No.
2DK General export (KPH) 2DK SDH152FMIG3650002~ LALPCJ0F*H3000008~ PB 7RMB
2KE Kenya 2KE PB 7RYB
2SA South Africa 2SA PB 7RZB
2TU Turkey 2TU PB 7RTB
3DK General export (KPH) 3DK PB 7RMB
4KE 4KE
5KE 5KE
KE KE
2PE Peru 2PE PB 7YMA
3LA Latin America 3LA JA25E-4300004~ LALJA259*H3100004~ PB 7YPA
CL Chili CL JA25E-4300003~ LALJA259*H3100003~ PB 7YNA
DK General export (KPH) DK SDH152FMIG3650001~ LALJA259*H3000001~ PB 7RMB
KE Kenya KE PB 7RYB
PE Peru PE JA25E-4300001~ LALJA259*H3100001~ PB 7YMA
2PE Peru 2PE JA25E-4405101~ LALJA259*K3380001~ PB 7YMA
3LA Latin America 3LA PB 7YPA
CL Chili CL PB 7YNA
PE Peru PE PB 7YMA
CGX1255SH
L DK General export (KPH) DK5SH JA25E- 3000001~ LALJA259*L3400001~ PB 7RVB
CGX1256SH
L DK General export (KPH) DK6SH JA25E- 3000001~ LALJA259*L3400001~ PB 7RVB
CGX125TF
K
CGX125SHH
Kenya PB 7RYB
CGX125TF
H
* Of carburetor/throttle body identification numbers, only the portions underlined in the example below are used for registration.
PB 7RH
KC
2020.01.01 E
9
Page 12
Color label
VFR800FIW
R-157
R157
1
• When ordering parts, check the model name, main color, and code by observing the “COLOR LABEL” on the vehicle.
• When ordering a colored part, use the color chart in the instruction for use of parts catalogue.
10
2020.01.01 E
Page 13
Color chart
CGX125SH (CGX125SHC)............2AG,2CL,2PE
Pearl
procyon
black
Candy
aruja
blue
Candy
lucid
red
NH-A06P PB-323C R-264C
No. Name of colored parts Basic part No. NHA06BE PB323HE R264KE
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB ZB F-7 9
2 COVER SET, L. SIDE 83620-KYY-600 ZA ZA ZA F-24 4
3 COVER SET, R. SIDE 83520-KYY-600 ZA ZA ZA F-24 1
4 COWL SET, RR. 77215-KYY-900 ZC ZB ZA F-23-1 7
5 FENDER, FR. 61100-KYY-900 ZB ZC ZD F-10 5
6 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB ZB F-49 6
7 MARK, HONDA 86771-KYY-900 ZC ZB ZA F-50-1 1
8 MARK, L. WING 86172-KYY-900 ZC ZB ZA F-50-1 3
9 MARK, R. WING 86171-KYY-900 ZC ZB ZA F-50-1 2
10 MARK, SIDE COVER 86833-KYY-600 ZA ZA ZA F-50-1 4
11 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB ZB F-18 3
12 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB ZB F-13 5
13 TANK SET, FUEL 17520-KYY-601 ZC ZD ZE F-21 9
14 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA ZA F-14-30 4
15 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA ZA F-19-30 9
MODEL CGX125SHC
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
• When ordering a colored part, refer to the chart below and use a part number consisting of the relevant basic part number to which has been
added a part color code.
2020.01.01 E
1
11
Page 14
1
CGX125SH (CGX125SHC)............3DK
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323B R264B
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-900 ZB ZB F-7 8
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-980 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-KYY-980 ZA ZB F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA F-23-1 7
7 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
8 MARK, HONDA 86613-KYY-900 ZB ZA F-50-2 5
9 MARK, HONDA 86771-KYY-900 ZF ZF F-50-2 6
10 MARK, L. WING 86172-KYY-900 ZB ZA F-50-2 2
11 MARK, R. WING 86171-KYY-900 ZB ZA F-50-2 1
12 MARK, SIDE COVER 86833-KYY-980 ZA ZA F-50-2 9
13 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
14 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
15 STRIPE, L. FUEL TANK 86174-KYY-900 ZB ZA F-50-2 4
16 STRIPE, L. SIDE COVER 86832-KYY-970 ZA ZB F-50-2 8
17 STRIPE, R. FUEL TANK 86173-KYY-900 ZB ZA F-50-2 3
18 STRIPE, R. SIDE COVER 86831-KYY-970 ZA ZB F-50-2 7
19 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
20 TANK SET, FUEL 17520-KYY-971 ZA ZB F-21 9
21 VISOR SET, FR. 61300-KYY-920 ZB ZA F-43 1
22 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
23 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHC
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
12
2020.01.01 E
Page 15
CGX125SH (CGX125SHC)............AG,CL,PE
Pearl
procyon
black
Candy
aruja
blue
Candy
lucid
red
NH-A06P PB-323C R-264C
No. Name of colored parts Basic part No. NHA06B PB323H R264K
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB ZB F-7 9
2 COVER SET, L. SIDE 83620-KYY-600 ZA ZA ZA F-24 4
3 COVER SET, R. SIDE 83520-KYY-600 ZA ZA ZA F-24 1
4 COWL SET, RR. 77215-KYY-900 ZC ZB ZA F-23-1 7
5 FENDER, FR. 61100-KYY-900 ZB ZC ZD F-10 5
6 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA ZA F-14-10 5
7 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA ZA F-19-10 9
8 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB ZB F-49 6
9 MARK, HONDA 86771-KYY-900 ZC ZB ZA F-50-1 1
10 MARK, L. WING 86172-KYY-900 ZC ZB ZA F-50-1 3
11 MARK, R. WING 86171-KYY-900 ZC ZB ZA F-50-1 2
12 MARK, SIDE COVER 86833-KYY-600 ZA ZA ZA F-50-1 4
13 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB ZB F-18 3
14 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB ZB F-13 5
15 TANK SET, FUEL 17520-KYY-601 ZC ZD ZE F-21 9
16 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB ZB F-14-10 6
17 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB ZB F-19-10 10
MODEL CGX125SHC
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
13
Page 16
1
CGX125SH (CGX125SHC)............DK
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-970 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-KYY-970 ZA ZB F-24 1
6 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
7 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
8 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
9 MARK, L. WING 86172-KYY-900 ZB ZA F-50 2
10 MARK, R. WING 86171-KYY-900 ZB ZA F-50 1
11 MARK, SIDE COVER 86833-KYY-970 ZA ZA F-50 7
12 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
13 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
14 STRIPE, L. FUEL TANK 86174-KYY-900 ZB ZA F-50 4
15 STRIPE, L. SIDE COVER 86832-KYY-970 ZA ZB F-50 6
16 STRIPE, R. FUEL TANK 86173-KYY-900 ZB ZA F-50 3
17 STRIPE, R. SIDE COVER 86831-KYY-970 ZA ZB F-50 5
18 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
19 TANK SET, FUEL 17520-KYY-971 ZA ZB F-21 9
20 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
21 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125SHC
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
14
2020.01.01 E

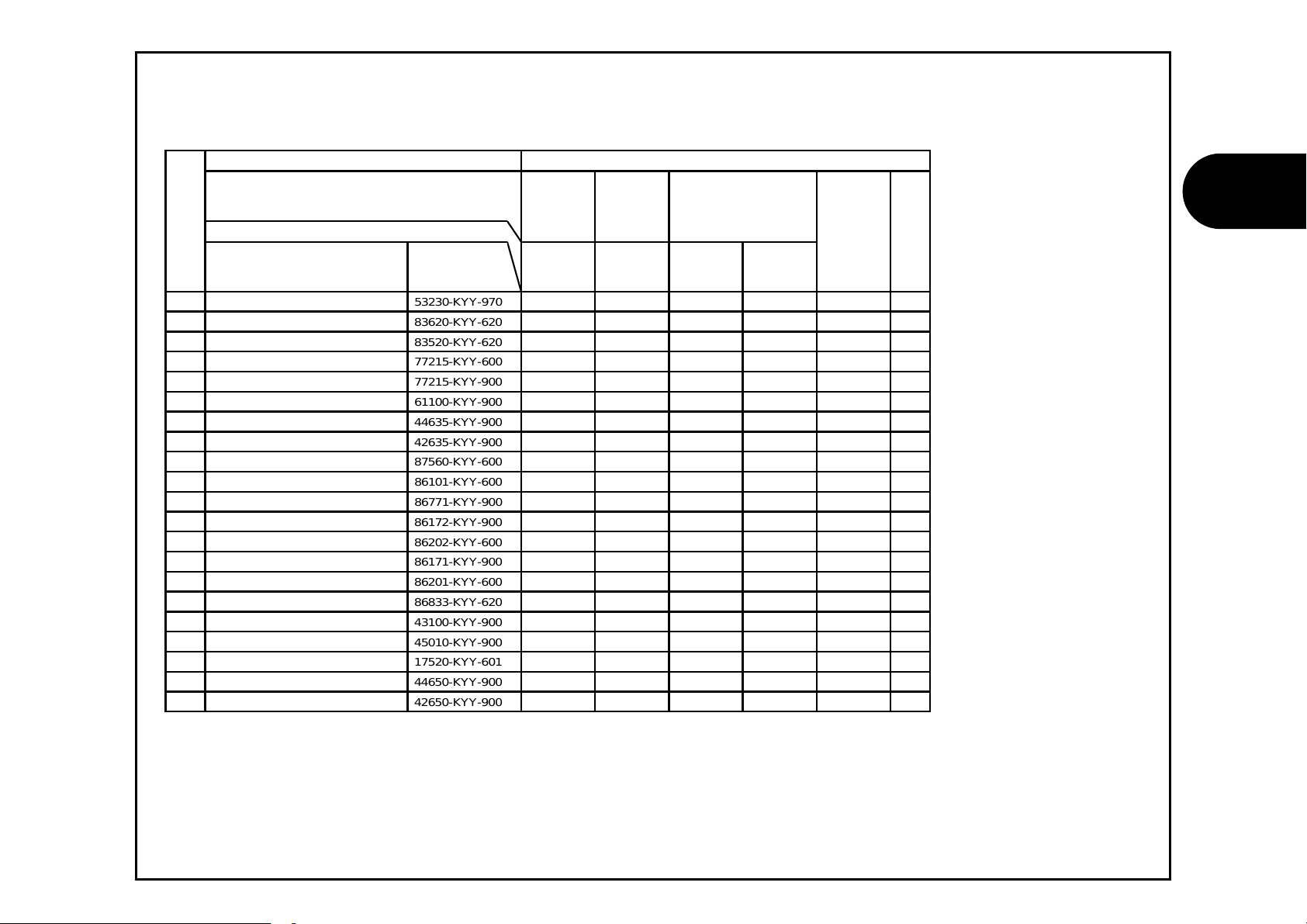

Page 17
CGX125SH (CGX125SHC)............MX
Pearl
cancer
white
Candy
lucid
red
NH-495P R-264C
No. Name of colored parts Basic part No. NH495 R264E
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB F-7 9
2 COVER SET, L. SIDE 83620-KYY-620 ZA ZA F-24 4
3 COVER SET, R. SIDE 83520-KYY-620 ZA ZA F-24 1
4 COWL SET, RR. 77215-KYY-600 ZD - F-23-1 7
5 COWL SET, RR. 77215-KYY-900 - ZA F-23-1 7
6 FENDER, FR. 61100-KYY-900 ZK ZD F-10 5
7 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
8 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
9 LABEL, DRIVE CAUTION 87560-KYY-600 ZA ZB F-49 6
10 MARK, HONDA 86101-KYY-600 ZB - F-50-1 1
11 MARK, HONDA 86771-KYY-900 - ZA F-50-1 1
12 MARK, L. WING 86172-KYY-900 - ZA F-50-1 3
13 MARK, L. WING 86202-KYY-600 ZF - F-50-1 3
14 MARK, R. WING 86171-KYY-900 - ZA F-50-1 2
15 MARK, R. WING 86201-KYY-600 ZF - F-50-1 2
16 MARK, SIDE COVER 86833-KYY-620 ZA ZA F-50-1 5
17 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
18 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
19 TANK SET, FUEL 17520-KYY-601 ZK ZE F-21 9
20 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
21 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125SHC
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
15
Page 18
1
CGX125SH (CGX125SHD)............2CL,2PE
Black
Fighting
red
NH-1 R-134
No. Name of colored parts Basic part No. NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-600 ZA ZA F-24 4
5 COVER SET, R. SIDE 83520-KYY-600 ZA ZA F-24 1
6 COWL SET, RR. 77215-KYY-760 ZA ZB F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4 34
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4 37
10 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB F-49 6
11 MARK, HONDA 86101-KYY-760 ZA ZB F-50-3 1
12 MARK, L. WING 86202-KYY-760 ZA ZB F-50-3 5
13 MARK, R. WING 86201-KYY-760 ZA ZB F-50-3 4
14 MARK, SIDE COVER 86833-KYY-600 ZA ZA F-50-3 7
15 PANEL COMP., RR. BRAKE 43100-KYY-900 ZA ZA F-18 3
16 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZA ZA F-13 5
17 STRIPE, L. FUEL TANK 86174-KYY-760 ZA ZB F-50-3 3
18 STRIPE, R. FUEL TANK 86173-KYY-760 ZB ZC F-50-3 2
19 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
20 TANK SET, FUEL 17520-KYY-861 ZD ZC F-21 9
21 WHEEL SUB ASSY., FR. 44650-KYY-910 ZB ZB F-14-30 4
22 WHEEL SUB ASSY., RR. 42650-KYY-910 ZB ZB F-19-30 9
MODEL CGX125SHD
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
16
2020.01.01 E
Page 19
CGX125SH (CGX125SHD)............2TU,TU
Pearl
procyon
black
Candy
aruja
blue
Candy
lucid
red
NH-A06P PB-323C R-264C
No. Name of colored parts Basic part No. NHA06 PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-900 ZA ZA ZA F-7 8
2 COVER SET, L. SIDE 83620-KYY-B50 ZA ZB ZC F-24-1 7
3 COVER SET, R. SIDE 83520-KYY-B50 ZA ZB ZC F-24-1 3
4 COWL SET, RR. 77215-KYY-900 ZC ZB ZA F-23-1 7
5 FENDER, FR. 61100-KYY-900 ZB ZC ZD F-10 5
6 MARK, HONDA 86613-KYY-900 ZC ZB ZA F-50-4 7
7 MARK, HONDA 86771-KYY-900 ZC ZB ZA F-50-4 8
8 MARK, L. WING 86172-KYY-900 ZC ZB ZA F-50-4 2
9 MARK, R. WING 86171-KYY-900 ZC ZB ZA F-50-4 1
10 PANEL COMP., RR. BRAKE 43100-KYY-900 ZA ZA ZA F-18 3
11 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZA ZA ZA F-13 5
12 STRIPE, L. FR. VISOR 86612-KYY-900 ZC ZB ZA F-50-4 6
13 STRIPE, L. FUEL TANK 86174-KYY-900 ZC ZB ZA F-50-4 4
14 STRIPE, L. SIDE COVER A 86832-KYY-900 ZC ZB ZA F-50-4 10
15 STRIPE, L. SIDE COVER B 86834-KYY-B50 ZA ZB ZC F-50-4 12
16 STRIPE, R. FR. VISOR 86611-KYY-900 ZC ZB ZA F-50-4 5
17 STRIPE, R. FUEL TANK 86173-KYY-900 ZC ZB ZA F-50-4 3
18 STRIPE, R. SIDE COVER A 86831-KYY-900 ZC ZB ZA F-50-4 9
19 STRIPE, R. SIDE COVER B 86833-KYY-B50 ZA ZB ZC F-50-4 11
20 TANK SET, FUEL(WL) 17520-KYY-A70 ZC ZD ZE F-21-1 11
21 VISOR SET, FR. 61300-KYY-900 ZC ZB ZA F-43 1
22 WHEEL SUB ASSY., FR. 44650-KYY-910 ZB ZB ZB F-14-30 4
23 WHEEL SUB ASSY., RR. 42650-KYY-910 ZB ZB ZB F-19-30 9
MODEL CGX125SHD
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
17
Page 20
1
CGX125SH (CGX125SHD)............3AG,3CO
Pearl
procyon
black
Candy
aruja
blue
Candy
lucid
red
NH-A06P PB-323C R-264C
No. Name of colored parts Basic part No. NHA06B PB323H R264K
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB ZB F-7 9
2 COVER SET, L. SIDE 83620-KYY-600 ZA ZA ZA F-24 4
3 COVER SET, R. SIDE 83520-KYY-600 ZA ZA ZA F-24 1
4 COWL SET, RR. 77215-KYY-900 ZC ZB ZA F-23-1 7
5 FENDER, FR. 61100-KYY-900 ZB ZC ZD F-10 5
6 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA ZA F-14-10 5
7 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA ZA F-19-10 9
8 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB ZB F-49 6
9 MARK, HONDA 86771-KYY-900 ZC ZB ZA F-50-1 1
10 MARK, L. WING 86172-KYY-900 ZC ZB ZA F-50-1 3
11 MARK, R. WING 86171-KYY-900 ZC ZB ZA F-50-1 2
12 MARK, SIDE COVER 86833-KYY-600 ZA ZA ZA F-50-1 4
13 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB ZB F-18 3
14 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB ZB F-13 5
15 TANK SET, FUEL 17520-KYY-601 ZC ZD ZE F-21 9
16 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB ZB F-14-10 6
17 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB ZB F-19-10 10
MODEL CGX125SHD
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
18
2020.01.01 E
Page 21
CGX125SH (CGX125SHD)............3DK
Black
Fighting
red
NH-1 R-134
No. Name of colored parts Basic part No. NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-860 ZA ZA F-24 4
5 COVER SET, R. SIDE 83520-KYY-860 ZA ZA F-24 1
6 COWL SET, RR. 77215-KYY-760 ZA ZB F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4 34
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4 37
10 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
11 MARK, HONDA 86101-KYY-760 ZA ZB F-50-3 1
12 MARK, L. WING 86202-KYY-760 ZA ZB F-50-3 5
13 MARK, R. WING 86201-KYY-760 ZA ZB F-50-3 4
14 MARK, SIDE COVER 86833-KYY-860 ZA ZA F-50-3 6
15 PANEL COMP., RR. BRAKE 43100-KYY-900 ZA ZA F-18 3
16 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZA ZA F-13 5
17 STRIPE, L. FUEL TANK 86174-KYY-760 ZA ZB F-50-3 3
18 STRIPE, R. FUEL TANK 86173-KYY-760 ZB ZC F-50-3 2
19 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
20 TANK SET, FUEL 17520-KYY-861 ZD ZC F-21 9
21 WHEEL SUB ASSY., FR. 44650-KYY-910 ZB ZB F-14-30 4
22 WHEEL SUB ASSY., RR. 42650-KYY-910 ZB ZB F-19-30 9
MODEL CGX125SHD
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
1
2020.01.01 E
19
Page 22
1

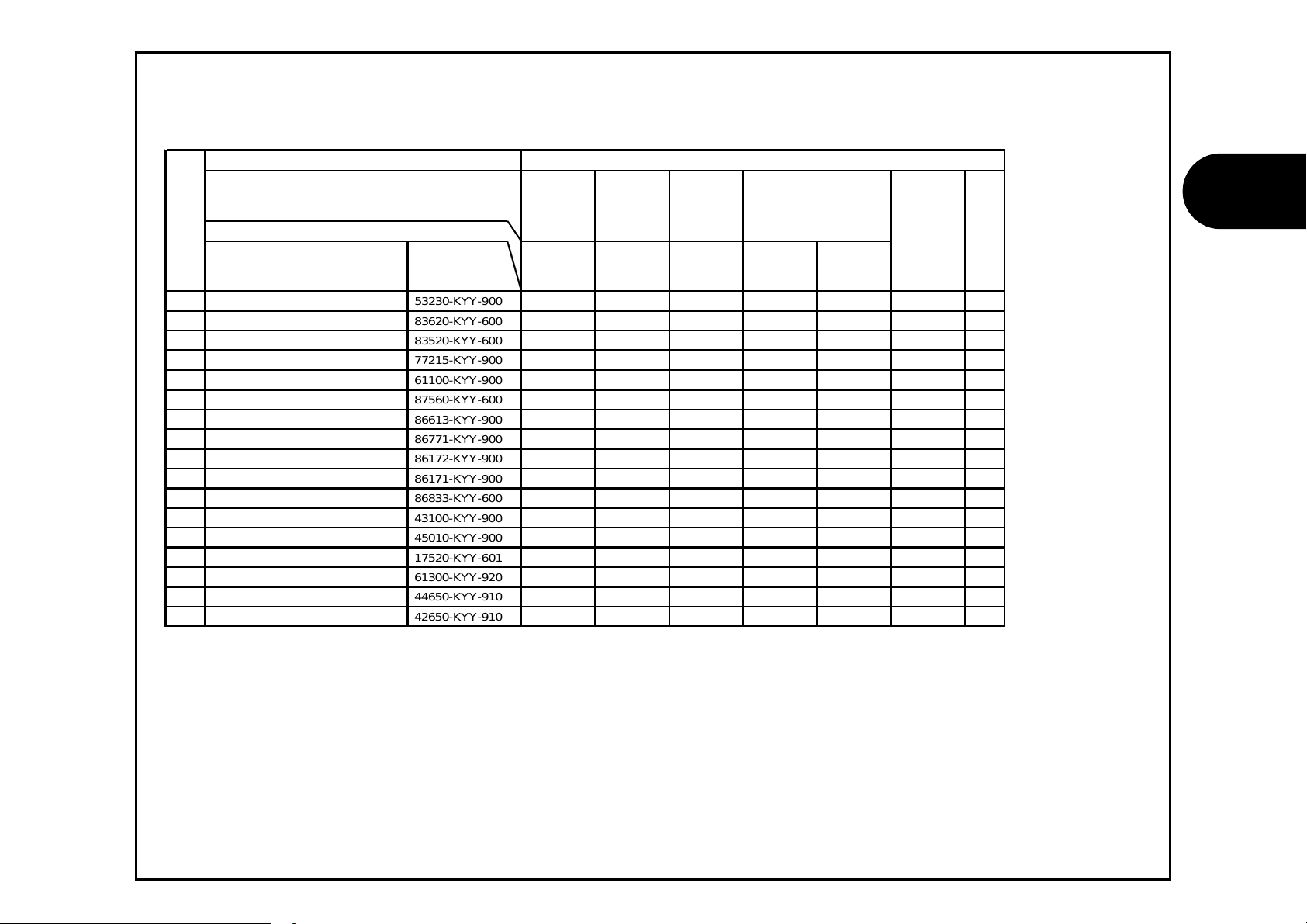

CGX125SH (CGX125SHD)............4AG,4CO
Pearl
procyon
black
Candy
aruja
blue
Candy
lucid
red
NH-A06P PB-323C R-264C
No. Name of colored parts Basic part No. NHA06BE PB323HE R264KE
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB ZB F-7 9
2 COVER SET, L. SIDE 83620-KYY-600 ZA ZA ZA F-24 4
3 COVER SET, R. SIDE 83520-KYY-600 ZA ZA ZA F-24 1
4 COWL SET, RR. 77215-KYY-900 ZC ZB ZA F-23-1 7
5 FENDER, FR. 61100-KYY-900 ZB ZC ZD F-10 5
6 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB ZB F-49 6
7 MARK, HONDA 86771-KYY-900 ZC ZB ZA F-50-1 1
8 MARK, L. WING 86172-KYY-900 ZC ZB ZA F-50-1 3
9 MARK, R. WING 86171-KYY-900 ZC ZB ZA F-50-1 2
10 MARK, SIDE COVER 86833-KYY-600 ZA ZA ZA F-50-1 4
11 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB ZB F-18 3
12 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB ZB F-13 5
13 TANK SET, FUEL 17520-KYY-601 ZC ZD ZE F-21 9
14 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA ZA F-14-30 4
15 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA ZA F-19-30 9
MODEL CGX125SHD
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
20
2020.01.01 E
Page 23

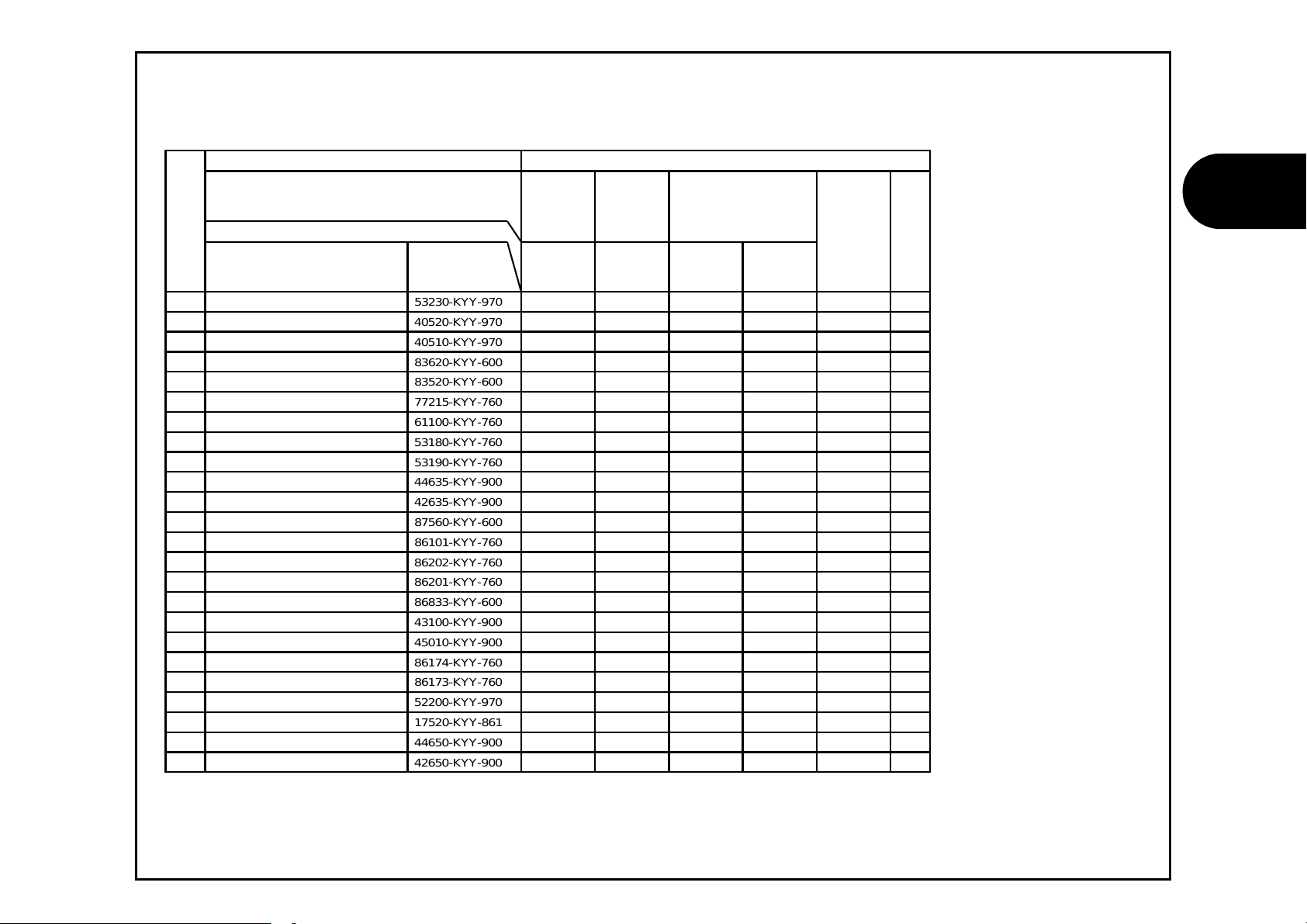

CGX125SH (CGX125SHD)............5AG,CL,PE
Black
Fighting
red
NH-1 R-134
No. Name of colored parts Basic part No. NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-600 ZA ZA F-24 4
5 COVER SET, R. SIDE 83520-KYY-600 ZA ZA F-24 1
6 COWL SET, RR. 77215-KYY-760 ZA ZB F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4 34
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4 37
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB F-49 6
13 MARK, HONDA 86101-KYY-760 ZA ZB F-50-3 1
14 MARK, L. WING 86202-KYY-760 ZA ZB F-50-3 5
15 MARK, R. WING 86201-KYY-760 ZA ZB F-50-3 4
16 MARK, SIDE COVER 86833-KYY-600 ZA ZA F-50-3 7
17 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
18 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
19 STRIPE, L. FUEL TANK 86174-KYY-760 ZA ZB F-50-3 3
20 STRIPE, R. FUEL TANK 86173-KYY-760 ZB ZC F-50-3 2
21 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
22 TANK SET, FUEL 17520-KYY-861 ZD ZC F-21 9
23 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
24 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125SHD
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
1
2020.01.01 E
21
Page 24
1
CGX125SH (CGX125SHD)............DK
Black
Fighting
red
NH-1 R-134
No. Name of colored parts Basic part No. NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-860 ZA ZA F-24 4
5 COVER SET, R. SIDE 83520-KYY-860 ZA ZA F-24 1
6 COWL SET, RR. 77215-KYY-760 ZA ZB F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4 34
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4 37
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
13 MARK, HONDA 86101-KYY-760 ZA ZB F-50-3 1
14 MARK, L. WING 86202-KYY-760 ZA ZB F-50-3 5
15 MARK, R. WING 86201-KYY-760 ZA ZB F-50-3 4
16 MARK, SIDE COVER 86833-KYY-860 ZA ZA F-50-3 6
17 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
18 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
19 STRIPE, L. FUEL TANK 86174-KYY-760 ZA ZB F-50-3 3
20 STRIPE, R. FUEL TANK 86173-KYY-760 ZB ZC F-50-3 2
21 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
22 TANK SET, FUEL 17520-KYY-861 ZD ZC F-21 9
23 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
24 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125SHD
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
22
2020.01.01 E
Page 25
CGX125SH (CGX125SHE)............2DK
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N00 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N00 ZA ZB F-24 1
6 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
7 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
8 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
9 MARK, SIDE COVER 86833-KYY-970 ZA ZA F-50 7
10 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
11 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
12 STRIPE, L. FUEL TANK 86172-K52-N00 ZC ZD F-50 9
13 STRIPE, L. SIDE COVER 86832-K52-N00 ZA ZB F-50 11
14 STRIPE, R. FUEL TANK 86171-K52-N00 ZC ZD F-50 8
15 STRIPE, R. SIDE COVER 86831-K52-N00 ZA ZB F-50 10
16 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
17 TANK SET, FUEL 17520-K52-N00 ZC ZD F-21 9
18 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
19 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125SHE
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
23
Page 26
1
CGX125SH (CGX125SHE)............2KE
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323B R264B
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-900 ZB ZB F-7 8
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N10 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N10 ZA ZB F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA F-23-1 7
7 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
8 MARK, HONDA 86613-KYY-900 ZB ZA F-50-2 5
9 MARK, HONDA 86771-KYY-900 ZF ZF F-50-2 6
10 MARK, SIDE COVER 86833-KYY-980 ZA ZA F-50-2 9
11 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
12 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
13 STRIPE, L. FUEL TANK 86172-K52-N00 ZA ZB F-50-2 11
14 STRIPE, L. SIDE COVER 86832-K52-N10 ZA ZB F-50-2 13
15 STRIPE, R. FUEL TANK 86171-K52-N00 ZA ZB F-50-2 10
16 STRIPE, R. SIDE COVER 86831-K52-N10 ZA ZB F-50-2 12
17 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
18 TANK SET, FUEL 17520-K52-N00 ZA ZB F-21 9
19 VISOR SET, FR. 61300-KYY-920 ZB ZA F-43 1
20 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
21 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHE
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
24
2020.01.01 E
Page 27
CGX125SH (CGX125SHE)............2PE,3PE
Black
Fighting
red
NH-1 R-134
No. Name of colored parts Basic part No. NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-G70 ZA ZA F-24 4
5 COVER SET, R. SIDE 83520-KYY-G70 ZA ZA F-24 1
6 COWL SET, RR. 77215-KYY-760 ZA ZB F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4-1 37
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4-1 40
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB F-49 6
13 MARK, HONDA 86101-KYY-760 ZA ZB F-50-3 1
14 MARK, L. WING 86202-KYY-760 ZA ZB F-50-3 5
15 MARK, R. WING 86201-KYY-760 ZA ZB F-50-3 4
16 MARK, SIDE COVER 86833-KYY-G70 ZA ZA F-50-3 10
17 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
18 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
19 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
20 TANK SET, FUEL 17520-KYY-G00 ZA ZB F-21 9
21 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
22 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125SHE
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
1
2020.01.01 E
25
Page 28
1
CGX125SH (CGX125SHE)............3DK
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-900 ZB ZB F-7 8
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N10 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N10 ZA ZB F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA F-23-1 7
7 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
8 MARK, HONDA 86613-KYY-900 ZB ZA F-50-2 5
9 MARK, HONDA 86771-KYY-900 ZF ZF F-50-2 6
10 MARK, SIDE COVER 86833-KYY-980 ZA ZA F-50-2 9
11 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
12 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
13 STRIPE, L. FUEL TANK 86172-K52-N00 ZA ZB F-50-2 11
14 STRIPE, L. SIDE COVER 86832-K52-N10 ZA ZB F-50-2 13
15 STRIPE, R. FUEL TANK 86171-K52-N00 ZA ZB F-50-2 10
16 STRIPE, R. SIDE COVER 86831-K52-N10 ZA ZB F-50-2 12
17 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
18 TANK SET, FUEL 17520-K52-N00 ZA ZB F-21 9
19 VISOR SET, FR. 61300-KYY-920 ZB ZA F-43 1
20 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
21 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHE
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
26
2020.01.01 E
Page 29
CGX125SH (CGX125SHE)............4CO
Pearl
procyon
black
Candy
aruja
blue
Candy
lucid
red
NH-A06P PB-323C R-264C
No. Name of colored parts Basic part No. NHA06 PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-900 ZB ZB ZB F-7 8
2 COVER SET, L. SIDE 83620-KYY-600 ZA ZA ZA F-24 4
3 COVER SET, R. SIDE 83520-KYY-600 ZA ZA ZA F-24 1
4 COWL SET, RR. 77215-KYY-900 ZC ZB ZA F-23-1 7
5 FENDER, FR. 61100-KYY-900 ZB ZC ZD F-10 5
6 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB ZB F-49 6
7 MARK, HONDA 86613-KYY-900 ZC ZB ZA F-50-2 5
8 MARK, HONDA 86771-KYY-900 ZC ZB ZA F-50-2 6
9 MARK, L. WING 86172-KYY-900 ZC ZB ZA F-50-2 2
10 MARK, R. WING 86171-KYY-900 ZC ZB ZA F-50-2 1
11 MARK, SIDE COVER 86833-KYY-600 ZA ZA ZA F-50-2 14
12 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB ZB F-18 3
13 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB ZB F-13 5
14 TANK SET, FUEL 17520-KYY-601 ZC ZD ZE F-21 9
15 VISOR SET, FR. 61300-KYY-920 ZC ZB ZA F-43 1
16 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA ZA F-14-30 4
17 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA ZA F-19-30 9
MODEL CGX125SHE
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
27
Page 30
1
CGX125SH (CGX125SHE)............CL,PE
Black
Fighting
red
NH-1 R-134
No. Name of colored parts Basic part No. NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-G00 ZB ZB F-24 4
5 COVER SET, R. SIDE 83520-KYY-G00 ZB ZB F-24 1
6 COWL SET, RR. 77215-KYY-760 ZA ZB F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4-1 37
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4-1 40
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB F-49 6
13 MARK, HONDA 86101-KYY-760 ZA ZB F-50-3 1
14 MARK, L. WING 86202-KYY-760 ZA ZB F-50-3 5
15 MARK, R. WING 86201-KYY-760 ZA ZB F-50-3 4
16 MARK, SIDE COVER 86833-KYY-600 ZA ZA F-50-3 7
17 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
18 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
19 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
20 TANK SET, FUEL 17520-KYY-G00 ZA ZB F-21 9
21 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
22 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125SHE
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
28
2020.01.01 E
Page 31
CGX125SH (CGX125SHE)............DK
Black
Fighting
red
NH-1 R-134
No. Name of colored parts Basic part No. NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-G30 ZB ZB F-24 4
5 COVER SET, R. SIDE 83520-KYY-G30 ZB ZB F-24 1
6 COWL SET, RR. 77215-KYY-760 ZA ZB F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4-1 37
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4-1 40
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
13 MARK, HONDA 86101-KYY-760 ZA ZB F-50-3 1
14 MARK, L. WING 86202-KYY-760 ZA ZB F-50-3 5
15 MARK, R. WING 86201-KYY-760 ZA ZB F-50-3 4
16 MARK, SIDE COVER 86833-KYY-860 ZA ZA F-50-3 6
17 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
18 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
19 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
20 TANK SET, FUEL 17520-KYY-G00 ZA ZB F-21 9
21 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
22 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125SHE
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
1
2020.01.01 E
29
Page 32
1
CGX125SH (CGX125SHE)............KE
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N00 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N00 ZA ZB F-24 1
6 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
7 MARK, SIDE COVER 86833-KYY-970 ZA ZA F-50 7
8 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
9 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
10 STRIPE, L. FUEL TANK 86172-K52-N00 ZC ZD F-50 9
11 STRIPE, L. SIDE COVER 86832-K52-N00 ZA ZB F-50 11
12 STRIPE, R. FUEL TANK 86171-K52-N00 ZC ZD F-50 8
13 STRIPE, R. SIDE COVER 86831-K52-N00 ZA ZB F-50 10
14 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
15 TANK SET, FUEL 17520-K52-N00 ZC ZD F-21 9
16 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
17 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHE
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
30
2020.01.01 E
Page 33
CGX125SH (CGX125SHE)............SA
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 COVER SET, L. SIDE 83620-K52-N00 ZA ZB F-24 4
3 COVER SET, R. SIDE 83520-K52-N00 ZA ZB F-24 1
4 COWL SET, RR. 77215-KYY-900 ZB ZA F-23-1 7
5 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
6 MARK, HONDA 86771-KYY-900 ZB ZA F-50-1 1
7 MARK, SIDE COVER 86833-KYY-970 ZA ZA F-50-1 10
8 PANEL COMP., RR. BRAKE 43100-KYY-900 ZA ZA F-18 3
9 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZA ZA F-13 5
10 STRIPE, L. FUEL TANK 86172-K52-N00 ZC ZD F-50-1 7
11 STRIPE, L. SIDE COVER 86832-K52-N00 ZA ZB F-50-1 9
12 STRIPE, R. FUEL TANK 86171-K52-N00 ZC ZD F-50-1 6
13 STRIPE, R. SIDE COVER 86831-K52-N00 ZA ZB F-50-1 8
14 TANK SET, FUEL 17520-K52-N00 ZC ZD F-21 9
15 WHEEL SUB ASSY., FR. 44650-KYY-910 ZB ZB F-14-30 4
16 WHEEL SUB ASSY., RR. 42650-KYY-910 ZB ZB F-19-30 9
MODEL CGX125SHE
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
31
Page 34
1
CGX125SH (CGX125SHF)............2DK
Black
Fighting
red
NH-1 R-134
No. Name of colored parts Basic part No. NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-G30 ZB ZB F-24 4
5 COVER SET, R. SIDE 83520-KYY-G30 ZB ZB F-24 1
6 COWL SET, RR. 77215-KYY-760 ZA ZB F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4 34
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4 37
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
13 MARK, HONDA 86101-KYY-760 ZA ZB F-50-3 1
14 MARK, L. WING 86202-KYY-760 ZA ZB F-50-3 5
15 MARK, R. WING 86201-KYY-760 ZA ZB F-50-3 4
16 MARK, SIDE COVER 86833-KYY-860 ZA ZA F-50-3 6
17 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
18 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
19 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
20 TANK SET, FUEL 17520-KYY-G00 ZA ZB F-21 9
21 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
22 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125SHF
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
32
2020.01.01 E
Page 35
CGX125SH (CGX125SHF)............2KE
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N00 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N00 ZA ZB F-24 1
6 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
7 MARK, SIDE COVER 86833-KYY-970 ZA ZA F-50 7
8 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
9 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
10 STRIPE, L. FUEL TANK 86172-K52-N00 ZC ZD F-50 9
11 STRIPE, L. SIDE COVER 86832-K52-N00 ZA ZB F-50 11
12 STRIPE, R. FUEL TANK 86171-K52-N00 ZC ZD F-50 8
13 STRIPE, R. SIDE COVER 86831-K52-N00 ZA ZB F-50 10
14 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
15 TANK SET, FUEL 17520-K52-N00 ZC ZD F-21 9
16 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
17 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHF
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
33
Page 36
1
CGX125SH (CGX125SHF)............2SA
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 COVER SET, L. SIDE 83620-K52-N00 ZA ZB F-24 4
3 COVER SET, R. SIDE 83520-K52-N00 ZA ZB F-24 1
4 COWL SET, RR. 77215-KYY-900 ZB ZA F-23-1 7
5 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
6 MARK, HONDA 86771-KYY-900 ZB ZA F-50-1 1
7 MARK, SIDE COVER 86833-KYY-970 ZA ZA F-50-1 10
8 PANEL COMP., RR. BRAKE 43100-KYY-900 ZA ZA F-18 3
9 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZA ZA F-13 5
10 STRIPE, L. FUEL TANK 86172-K52-N00 ZC ZD F-50-1 7
11 STRIPE, L. SIDE COVER 86832-K52-N00 ZA ZB F-50-1 9
12 STRIPE, R. FUEL TANK 86171-K52-N00 ZC ZD F-50-1 6
13 STRIPE, R. SIDE COVER 86831-K52-N00 ZA ZB F-50-1 8
14 TANK SET, FUEL 17520-K52-N00 ZC ZD F-21 9
15 WHEEL SUB ASSY., FR. 44650-KYY-910 ZB ZB F-14-30 4
16 WHEEL SUB ASSY., RR. 42650-KYY-910 ZB ZB F-19-30 9
MODEL CGX125SHF
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
34
2020.01.01 E
Page 37
CGX125SH (CGX125SHF)............3DK
Black
Fighting
red
NH-1 R-134
No. Name of colored parts Basic part No. NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-G30 ZB ZB F-24 4
5 COVER SET, R. SIDE 83520-KYY-G30 ZB ZB F-24 1
6 COWL SET, RR. 77215-KYY-760 ZA ZB F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4 34
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4 37
10 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
11 MARK, HONDA 86101-KYY-760 ZA ZB F-50-3 1
12 MARK, L. WING 86202-KYY-760 ZA ZB F-50-3 5
13 MARK, R. WING 86201-KYY-760 ZA ZB F-50-3 4
14 MARK, SIDE COVER 86833-KYY-860 ZA ZA F-50-3 6
15 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
16 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
17 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
18 TANK SET, FUEL 17520-KYY-G00 ZA ZB F-21 9
19 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
20 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHF
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
1
2020.01.01 E
35
Page 38
1
CGX125SH (CGX125SHF)............3KE
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323B R264B
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-900 ZB ZB F-7 8
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N10 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N10 ZA ZB F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA F-23-1 7
7 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
8 MARK, HONDA 86613-KYY-900 ZB ZA F-50-2 5
9 MARK, HONDA 86771-KYY-900 ZF ZF F-50-2 6
10 MARK, SIDE COVER 86833-KYY-980 ZA ZA F-50-2 9
11 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
12 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
13 STRIPE, L. FUEL TANK 86172-K52-N00 ZA ZB F-50-2 11
14 STRIPE, L. SIDE COVER 86832-K52-N10 ZA ZB F-50-2 13
15 STRIPE, R. FUEL TANK 86171-K52-N00 ZA ZB F-50-2 10
16 STRIPE, R. SIDE COVER 86831-K52-N10 ZA ZB F-50-2 12
17 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
18 TANK SET, FUEL 17520-K52-N00 ZA ZB F-21 9
19 VISOR SET, FR. 61300-KYY-920 ZB ZA F-43 1
20 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
21 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHF
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
36
2020.01.01 E
Page 39
CGX125SH (CGX125SHF)............4DK
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N00 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N00 ZA ZB F-24 1
6 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
7 MARK, SIDE COVER 86833-KYY-970 ZA ZA F-50 7
8 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
9 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
10 STRIPE, L. FUEL TANK 86172-K52-N00 ZC ZD F-50 9
11 STRIPE, L. SIDE COVER 86832-K52-N00 ZA ZB F-50 11
12 STRIPE, R. FUEL TANK 86171-K52-N00 ZC ZD F-50 8
13 STRIPE, R. SIDE COVER 86831-K52-N00 ZA ZB F-50 10
14 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
15 TANK SET, FUEL 17520-K52-N00 ZC ZD F-21 9
16 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
17 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHF
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
37
Page 40
1
CGX125SH (CGX125SHF)............5DK
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-900 ZB ZB F-7 8
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N10 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N10 ZA ZB F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA F-23-1 7
7 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
8 MARK, HONDA 86613-KYY-900 ZB ZA F-50-2 5
9 MARK, HONDA 86771-KYY-900 ZF ZF F-50-2 6
10 MARK, SIDE COVER 86833-KYY-980 ZA ZA F-50-2 9
11 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
12 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
13 STRIPE, L. FUEL TANK 86172-K52-N00 ZA ZB F-50-2 11
14 STRIPE, L. SIDE COVER 86832-K52-N10 ZA ZB F-50-2 13
15 STRIPE, R. FUEL TANK 86171-K52-N00 ZA ZB F-50-2 10
16 STRIPE, R. SIDE COVER 86831-K52-N10 ZA ZB F-50-2 12
17 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
18 TANK SET, FUEL 17520-K52-N00 ZA ZB F-21 9
19 VISOR SET, FR. 61300-KYY-920 ZB ZA F-43 1
20 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
21 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHF
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
38
2020.01.01 E
Page 41
CGX125SH (CGX125SHF)............KE
Candy
aruja
blue
Candy
lucid
red
PB-323C R-264C
No. Name of colored parts Basic part No. PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-970 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N00 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N00 ZA ZB F-24 1
6 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
7 MARK, SIDE COVER 86833-KYY-970 ZA ZA F-50 7
8 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
9 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
10 STRIPE, L. FUEL TANK 86172-K52-N00 ZC ZD F-50 9
11 STRIPE, L. SIDE COVER 86832-K52-N00 ZA ZB F-50 11
12 STRIPE, R. FUEL TANK 86171-K52-N00 ZC ZD F-50 8
13 STRIPE, R. SIDE COVER 86831-K52-N00 ZA ZB F-50 10
14 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
15 TANK SET, FUEL 17520-K52-N00 ZC ZD F-21 9
16 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
17 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHF
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
39
Page 42
1
CGX125SH (CGX125SHH)............2DK
Glint
wave blue
metallic
Candy
lucid
red
B-197M R-264C
No. Name of colored parts Basic part No. B197 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N70 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N70 ZA ZB F-24 1
6 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
7 MARK, L. WING 86202-K52-N70 ZA ZB F-50 17
8 MARK, R. WING 86201-K52-N70 ZA ZB F-50 16
9 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
10 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
11 STRIPE, L. FUEL TANK 86172-K52-N70 ZA ZB F-50 15
12 STRIPE, L. SIDE COVER 86832-K52-N70 ZA ZB F-50 13
13 STRIPE, R. FUEL TANK 86171-K52-N70 ZA ZB F-50 14
14 STRIPE, R. SIDE COVER 86831-K52-N70 ZA ZB F-50 12
15 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
16 TANK SET, FUEL 17520-K52-N70 ZA ZB F-21 9
17 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
18 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
40
2020.01.01 E
Page 43
CGX125SH (CGX125SHH)............2KE,5KE
Glint
wave blue
metallic
Candy
lucid
red
B-197M R-264C
No. Name of colored parts Basic part No. B197 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N70 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N70 ZA ZB F-24 1
6 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
7 MARK, L. WING 86202-K52-N70 ZA ZB F-50 17
8 MARK, R. WING 86201-K52-N70 ZA ZB F-50 16
9 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
10 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
11 STRIPE, L. FUEL TANK 86172-K52-N70 ZA ZB F-50 15
12 STRIPE, L. SIDE COVER 86832-K52-N70 ZA ZB F-50 13
13 STRIPE, R. FUEL TANK 86171-K52-N70 ZA ZB F-50 14
14 STRIPE, R. SIDE COVER 86831-K52-N70 ZA ZB F-50 12
15 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
16 TANK SET, FUEL 17520-K52-N70 ZA ZB F-21 9
17 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
18 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
41
Page 44
1
CGX125SH (CGX125SHH)............2SA
Glint
wave blue
metallic
Candy
lucid
red
B-197M R-264C
No. Name of colored parts Basic part No. B197 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZB ZB F-7 9
2 COVER SET, L. SIDE 83620-K52-N70 ZA ZB F-24 4
3 COVER SET, R. SIDE 83520-K52-N70 ZA ZB F-24 1
4 COWL SET, RR. 77215-K52-S10 ZA - F-23-1 7
5 COWL SET, RR. 77215-KYY-900 - ZA F-23-1 7
6 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
7 MARK, HONDA 86102-K52-S10 ZA - F-50-1 1
8 MARK, HONDA 86771-KYY-900 - ZA F-50-1 1
9 MARK, L. WING 86202-K52-N70 ZA ZB F-50-1 16
10 MARK, R. WING 86201-K52-N70 ZA ZB F-50-1 15
11 PANEL COMP., RR. BRAKE 43100-KYY-900 ZA ZA F-18 3
12 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZA ZA F-13 5
13 STRIPE, L. FUEL TANK 86172-K52-N70 ZA ZB F-50-1 14
14 STRIPE, L. SIDE COVER 86832-K52-N70 ZA ZB F-50-1 12
15 STRIPE, R. FUEL TANK 86171-K52-N70 ZA ZB F-50-1 13
16 STRIPE, R. SIDE COVER 86831-K52-N70 ZA ZB F-50-1 11
17 TANK SET, FUEL 17520-K52-S10 ZA ZB F-21 9
18 WHEEL SUB ASSY., FR. 44650-KYY-910 ZB ZB F-14-30 4
19 WHEEL SUB ASSY., RR. 42650-KYY-910 ZB ZB F-19-30 9
MODEL CGX125SHH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
42
2020.01.01 E
Page 45
CGX125SH (CGX125SHH)............2TU
Pearl
procyon
black
Candy
aruja
blue
Candy
lucid
red
NH-A06P PB-323C R-264C
No. Name of colored parts Basic part No. NHA06 PB323 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-900 ZA ZA ZA F-7 8
2 COVER SET, L. SIDE 83620-KYY-B50 ZA ZB ZC F-24-1 7
3 COVER SET, R. SIDE 83520-KYY-B50 ZA ZB ZC F-24-1 3
4 COWL SET, RR. 77215-KYY-900 ZC ZB ZA F-23-1 7
5 FENDER, FR. 61100-KYY-900 ZB ZC ZD F-10 5
6 MARK, HONDA 86613-KYY-900 ZC ZB ZA F-50-4 7
7 MARK, HONDA 86771-KYY-900 ZC ZB ZA F-50-4 8
8 MARK, L. WING 86172-KYY-900 ZC ZB ZA F-50-4 2
9 MARK, R. WING 86171-KYY-900 ZC ZB ZA F-50-4 1
10 PANEL COMP., RR. BRAKE 43100-KYY-900 ZA ZA ZA F-18 3
11 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZA ZA ZA F-13 5
12 STRIPE, L. FR. VISOR 86612-KYY-900 ZC ZB ZA F-50-4 6
13 STRIPE, L. FUEL TANK 86174-KYY-900 ZC ZB ZA F-50-4 4
14 STRIPE, L. SIDE COVER A 86832-KYY-900 ZC ZB ZA F-50-4 10
15 STRIPE, L. SIDE COVER B 86834-KYY-B50 ZA ZB ZC F-50-4 12
16 STRIPE, R. FR. VISOR 86611-KYY-900 ZC ZB ZA F-50-4 5
17 STRIPE, R. FUEL TANK 86173-KYY-900 ZC ZB ZA F-50-4 3
18 STRIPE, R. SIDE COVER A 86831-KYY-900 ZC ZB ZA F-50-4 9
19 STRIPE, R. SIDE COVER B 86833-KYY-B50 ZA ZB ZC F-50-4 11
20 TANK SET, FUEL(WL) 17520-KYY-A70 ZC ZD ZE F-21-1 11
21 VISOR SET, FR. 61300-KYY-900 ZC ZB ZA F-43 1
22 WHEEL SUB ASSY., FR. 44650-KYY-910 ZB ZB ZB F-14-30 4
23 WHEEL SUB ASSY., RR. 42650-KYY-910 ZB ZB ZB F-19-30 9
MODEL CGX125SHH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
43
Page 46
1
CGX125SH (CGX125SHH)............3DK
Glint
wave blue
metallic
Candy
lucid
red
B-197M R-264C
No. Name of colored parts Basic part No. B197 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-930 ZB ZB F-7 8
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N90 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N90 ZA ZB F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA F-23-1 7
7 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
8 MARK, HONDA 86101-K52-N90 ZA - F-50-2 5
9 MARK, HONDA 86613-KYY-900 - ZA F-50-2 5
10 MARK, HONDA 86771-KYY-900 ZF ZF F-50-2 6
11 MARK, L. WING 86202-K52-N70 ZA ZB F-50-2 18
12 MARK, R. WING 86201-K52-N70 ZA ZB F-50-2 17
13 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
14 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
15 STRIPE, L. FUEL TANK 86172-K52-N70 ZA ZB F-50-2 16
16 STRIPE, L. SIDE COVER 86832-K52-N90 ZA ZB F-50-2 20
17 STRIPE, R. FUEL TANK 86171-K52-N70 ZA ZB F-50-2 15
18 STRIPE, R. SIDE COVER 86831-K52-N90 ZA ZB F-50-2 19
19 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
20 TANK SET, FUEL 17520-K52-N70 ZA ZB F-21 9
21 VISOR SET, FR. 61300-K52-N90 ZA - F-43 1
22 VISOR SET, FR. 61300-KYY-920 - ZA F-43 1
23 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
24 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
44
2020.01.01 E
Page 47
CGX125SH (CGX125SHH)............4KE,KE
Glint
wave blue
metallic
Candy
lucid
red
B-197M R-264C
No. Name of colored parts Basic part No. B197 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-N70 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-N70 ZA ZB F-24 1
6 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
7 MARK, L. WING 86202-K52-N70 ZA ZB F-50 17
8 MARK, R. WING 86201-K52-N70 ZA ZB F-50 16
9 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
10 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
11 STRIPE, L. FUEL TANK 86172-K52-N70 ZA ZB F-50 15
12 STRIPE, L. SIDE COVER 86832-K52-N70 ZA ZB F-50 13
13 STRIPE, R. FUEL TANK 86171-K52-N70 ZA ZB F-50 14
14 STRIPE, R. SIDE COVER 86831-K52-N70 ZA ZB F-50 12
15 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
16 TANK SET, FUEL 17520-K52-N70 ZA ZB F-21 9
17 WHEEL SUB ASSY., FR. 44650-KYY-910 ZA ZA F-14-30 4
18 WHEEL SUB ASSY., RR. 42650-KYY-910 ZA ZA F-19-30 9
MODEL CGX125SHH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
45
Page 48
1
CGX125TF (CGX125TFH)............2PE
Black
Candy
lucid
red
NH-1 R-264C
No. Name of colored parts Basic part No. NH1 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-G70 ZA ZA F-24 4
5 COVER SET, R. SIDE 83520-KYY-G70 ZA ZA F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4-1 37
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4-1 40
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB F-49 6
13 MARK, HONDA 86771-KYY-900 ZF ZF F-50-3 1
14 MARK, L. WING 86202-K52-E00 - ZA F-50-3 5
15 MARK, L. WING 86202-KYY-760 ZA - F-50-3 5
16 MARK, R. WING 86201-K52-E00 - ZA F-50-3 4
17 MARK, R. WING 86201-KYY-760 ZA - F-50-3 4
18 MARK, SIDE COVER 86833-KYY-G70 ZA ZA F-50-3 10
19 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
20 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
21 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
22 TANK SET, FUEL 17520-K52-E00 ZA ZB F-21 9
23 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
24 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125TFH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
46
2020.01.01 E
Page 49
CGX125TF (CGX125TFH)............3LA,CL
Black
Candy
lucid
red
NH-1 R-264C
No. Name of colored parts Basic part No. NH1 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-G00 ZB ZB F-24 4
5 COVER SET, R. SIDE 83520-KYY-G00 ZB ZB F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4-1 37
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4-1 40
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB F-49 6
13 MARK, HONDA 86771-KYY-900 ZF ZF F-50-3 1
14 MARK, L. WING 86202-K52-E00 - ZA F-50-3 5
15 MARK, L. WING 86202-KYY-760 ZA - F-50-3 5
16 MARK, R. WING 86201-K52-E00 - ZA F-50-3 4
17 MARK, R. WING 86201-KYY-760 ZA - F-50-3 4
18 MARK, SIDE COVER 86833-KYY-600 ZA ZA F-50-3 7
19 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
20 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
21 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
22 TANK SET, FUEL 17520-K52-E00 ZA ZB F-21 9
23 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
24 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125TFH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
47
Page 50
1
CGX125TF (CGX125TFH)............DK
Glint
wave blue
metallic
Candy
lucid
red
B-197M R-264C
No. Name of colored parts Basic part No. B197 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-D70 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-D70 ZA ZB F-24 1
6 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
7 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4-1 37
8 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4-1 40
9 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
10 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
11 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
12 MARK, L. WING 86202-K52-N70 ZA ZB F-50-3 14
13 MARK, R. WING 86201-K52-N70 ZA ZB F-50-3 13
14 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
15 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
16 STRIPE, L. FUEL TANK 86172-K52-D70 ZA ZB F-50-3 12
17 STRIPE, L. SIDE COVER 86832-K52-D70 ZA ZB F-50-3 16
18 STRIPE, R. FUEL TANK 86171-K52-D70 ZA ZB F-50-3 11
19 STRIPE, R. SIDE COVER 86831-K52-D70 ZA ZB F-50-3 15
20 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
21 TANK SET, FUEL 17520-K52-D70 ZA ZB F-21 9
22 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
23 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125TFH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
48
2020.01.01 E
Page 51
CGX125TF (CGX125TFH)............KE
Glint
wave blue
metallic
Candy
lucid
red
B-197M R-264C
No. Name of colored parts Basic part No. B197 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZB ZB F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-D70 ZA ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-D70 ZA ZB F-24 1
6 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
7 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4-1 37
8 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4-1 40
9 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
10 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
11 LABEL, DRIVE CAUTION 87560-KYY-970 ZA ZA F-49 6
12 MARK, L. WING 86202-K52-N70 ZA ZB F-50-3 14
13 MARK, R. WING 86201-K52-N70 ZA ZB F-50-3 13
14 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
15 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
16 STRIPE, L. FUEL TANK 86172-K52-D70 ZA ZB F-50-3 12
17 STRIPE, L. SIDE COVER 86832-K52-D70 ZA ZB F-50-3 16
18 STRIPE, R. FUEL TANK 86171-K52-D70 ZA ZB F-50-3 11
19 STRIPE, R. SIDE COVER 86831-K52-D70 ZA ZB F-50-3 15
20 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
21 TANK SET, FUEL 17520-K52-D70 ZA ZB F-21 9
22 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
23 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125TFH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
49
Page 52
1
CGX125TF (CGX125TFH)............PE
Black
Candy
lucid
red
NH-1 R-264C
No. Name of colored parts Basic part No. NH1 R264
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-KYY-G70 ZA ZA F-24 4
5 COVER SET, R. SIDE 83520-KYY-G70 ZA ZA F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB F-4-1 37
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB F-4-1 40
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB F-49 6
13 MARK, HONDA 86771-KYY-900 ZF ZF F-50-3 1
14 MARK, L. WING 86202-K52-E00 - ZA F-50-3 5
15 MARK, L. WING 86202-KYY-760 ZA - F-50-3 5
16 MARK, R. WING 86201-K52-E00 - ZA F-50-3 4
17 MARK, R. WING 86201-KYY-760 ZA - F-50-3 4
18 MARK, SIDE COVER 86833-KYY-G70 ZA ZA F-50-3 10
19 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB F-18 3
20 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB F-13 5
21 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA F-32 11
22 TANK SET, FUEL 17520-K52-E00 ZA ZB F-21 9
23 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB F-14-10 6
24 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB F-19-10 10
MODEL CGX125TFH
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
50
2020.01.01 E
Page 53
CGX125TF (CGX125TFK)............2PE,PE
Water
blue
metallic
Black
Fighting
red
B-225M NH-1 R-134
No. Name of colored parts Basic part No. B225 NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZA ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-E20 ZA ZC ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-E20 ZA ZC ZB F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA ZA F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB ZA F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB ZA F-4-1 37
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB ZA F-4-1 40
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB ZB F-49 6
13 MARK, HONDA 86771-KYY-900 ZF ZF ZF F-50-5 5
14 MARK, L. WING 86202-K52-C10 ZA ZC ZB F-50-5 4
15 MARK, R. WING 86201-K52-C10 ZA ZC ZB F-50-5 3
16 MARK, SIDE COVER 86833-K52-E20 ZA ZC ZB F-50-5 8
17 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB ZB F-18 3
18 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB ZB F-13 5
19 STRIPE, L. FUEL TANK 86172-K52-C10 ZA ZC ZB F-50-5 2
20 STRIPE, L. SIDE COVER 86832-K52-C10 ZA ZC ZB F-50-5 7
21 STRIPE, R. FUEL TANK 86171-K52-C10 ZA ZC ZB F-50-5 1
22 STRIPE, R. SIDE COVER 86831-K52-C10 ZA ZC ZB F-50-5 6
23 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA ZA F-32 11
24 TANK SET, FUEL 17520-K52-C10 ZA ZC ZB F-21 9
25 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB ZB F-14-10 6
26 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB ZB F-19-10 10
MODEL CGX125TFK
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
51
Page 54
1
CGX125TF (CGX125TFK)............3LA,CL
Water
blue
metallic
Black
Fighting
red
B-225M NH-1 R-134
No. Name of colored parts Basic part No. B225 NH1 R134
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-K52-N70 ZA ZA ZA F-7 9
2 CASE, DRIVE CHAIN LOWER 40520-KYY-970 ZB ZB ZB F-32 2
3 CASE, DRIVE CHAIN UPPER 40510-KYY-970 ZB ZB ZB F-32 1
4 COVER SET, L. SIDE 83620-K52-C10 ZA ZC ZB F-24 4
5 COVER SET, R. SIDE 83520-K52-C10 ZA ZC ZB F-24 1
6 COWL SET, RR. 77215-KYY-920 ZA ZA ZA F-23-1 7
7 FENDER, FR. UPPER 61100-KYY-760 ZB ZB ZA F-10-1 5
8 GUARD, L. KNUCKLE 53180-KYY-760 ZB ZB ZA F-4-1 37
9 GUARD, R. KNUCKLE 53190-KYY-760 ZB ZB ZA F-4-1 40
10 HUB SUB ASSY., FR. 44635-KYY-900 ZA ZA ZA F-14-10 5
11 HUB SUB ASSY., RR. 42635-KYY-900 ZA ZA ZA F-19-10 9
12 LABEL, DRIVE CAUTION 87560-KYY-600 ZB ZB ZB F-49 6
13 MARK, HONDA 86771-KYY-900 ZF ZF ZF F-50-5 5
14 MARK, L. WING 86202-K52-C10 ZA ZC ZB F-50-5 4
15 MARK, R. WING 86201-K52-C10 ZA ZC ZB F-50-5 3
16 MARK, SIDE COVER 86833-KYY-600 ZA ZA ZA F-50-5 9
17 PANEL COMP., RR. BRAKE 43100-KYY-900 ZB ZB ZB F-18 3
18 PANEL SUB COMP., FR. BRAKE 45010-KYY-900 ZB ZB ZB F-13 5
19 STRIPE, L. FUEL TANK 86172-K52-C10 ZA ZC ZB F-50-5 2
20 STRIPE, L. SIDE COVER 86832-K52-C10 ZA ZC ZB F-50-5 7
21 STRIPE, R. FUEL TANK 86171-K52-C10 ZA ZC ZB F-50-5 1
22 STRIPE, R. SIDE COVER 86831-K52-C10 ZA ZC ZB F-50-5 6
23 SWINGARM SUB ASSY., RR. 52200-KYY-970 ZA ZA ZA F-32 11
24 TANK SET, FUEL 17520-K52-C10 ZA ZC ZB F-21 9
25 WHEEL SUB ASSY., FR. 44650-KYY-900 ZB ZB ZB F-14-10 6
26 WHEEL SUB ASSY., RR. 42650-KYY-900 ZB ZB ZB F-19-10 10
MODEL CGX125TFK
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
52
2020.01.01 E
Page 55
CGX1255SH (CGX1255SHL)
Pearl
procyon
black
Bordeaux
red
metallic
NH-A06P R-337M
No. Name of colored parts Basic part No. NHA06 R337
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-B00 ZA ZA F-7-1 8
2 COVER SET, L. SIDE 83620-K72-630 ZB ZA F-24-2 3
3 COVER SET, R. SIDE 83520-K72-630 ZB ZA F-24-2 1
4 COWL, RR. 77230-KYY-B00 ZB ZA F-23-2 9
5 MARK, HONDA 86101-KYY-A10 ZA ZA F-50-6 1
6 MARK, L. WING 86202-KYY-B00 ZB ZA F-50-6 9
7 MARK, R. WING 86201-KYY-B00 ZB ZA F-50-6 8
8 MARK, SIDE COVER 86831-K72-630 ZA ZA F-50-6 10
9 METER SET, COMBINATION 37120-KYY-B00 ZA ZA F-2-2 9
10 PANEL COMP., RR. BRAKE 43100-KRF-B40 ZB ZB F-18 3
11 STRIPE, L. FUEL TANK 86174-KYY-B00 ZB ZA F-50-6 5
12 STRIPE, R. FUEL TANK 86173-KYY-B00 ZB ZA F-50-6 3
13 TANK SET, FUEL 17520-KYY-B00 ZB ZA F-21-2 9
14 WHEEL SUB ASSY., FR. 44650-KYY-B10 ZA ZA F-14-40 6
15 WHEEL SUB ASSY., RR. 42650-KYY-B00 ZA ZA F-19-40 8
MODEL CGX1255SHL
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
2020.01.01 E
1
53
Page 56
1
CGX1256SH (CGX1256SHL)
Pearl
procyon
black
Candy
flowery
orange
NH-A06P YR-309C
No. Name of colored parts Basic part No. NHA06E YR309
Initial
applicable
model
Final
applicable
model
1 BRIDGE, FORK TOP 53230-KYY-B00 ZA ZA F-7-1 8
2 COVER SET, L. SIDE 83620-K72-640 ZB ZA F-24-2 3
3 COVER SET, R. SIDE 83520-K72-640 ZB ZA F-24-2 1
4 COWL, RR. 77230-KYY-B00 ZB ZC F-23-2 9
5 MARK, HONDA 86101-KYY-A10 ZA ZA F-50-6 1
6 MARK, L. WING 86202-K72-620 ZC ZB F-50-6 9
7 MARK, R. WING 86201-K72-620 ZC ZB F-50-6 8
8 MARK, SIDE COVER 86831-K72-630 ZA ZA F-50-6 10
9 METER SET, COMBINATION 37120-KYY-B00 ZA ZA F-2-2 9
10 PANEL COMP., RR. BRAKE 43100-KRF-B40 ZB ZB F-18 3
11 STRIPE A, L. FUEL TANK 86174-K72-620 ZC ZB F-50-6 4
12 STRIPE A, R. FUEL TANK 86173-K72-620 ZC ZB F-50-6 2
13 STRIPE B, L. FUEL TANK 86176-K72-620 ZC ZB F-50-6 7
14 STRIPE B, R. FUEL TANK 86175-K72-620 ZC ZB F-50-6 6
15 STRIPE, L. SIDE COVER 86834-K72-620 ZC - F-50-6 12
16 STRIPE, L. SIDE COVER 86834-K72-640 - ZA F-50-6 12
17 STRIPE, R. SIDE COVER 86833-K72-620 ZC - F-50-6 11
18 STRIPE, R. SIDE COVER 86833-K72-640 - ZA F-50-6 11
19 TANK SET, FUEL 17520-K72-620 ZC ZB F-21-2 9
20 WHEEL SUB ASSY., FR. 44650-KYY-B10 ZA ZA F-14-40 6
21 WHEEL SUB ASSY., RR. 42650-KYY-B00 ZA ZA F-19-40 8
MODEL CGX1256SHL
COLOR
Applicable model
Applicable
block
No.
Ref.
No.
CODE
Please
askto
Authorized
Shops
54
2020.01.01 E
Page 57
1
(Example)
9 5 0 0 1 - 7 5 0 0 1 - 5 0 M
Bulk part number: Refers to the bulk part.
Marking code (hose type): (fuel hose and general purpose hose)
Change code (for added hose): (Vinyl hose)
• Indicates number mark or change sequence, however, the code for the bulk part must be strictly
0 (zero).
Types of code:
• Fuel hose 2: Red outside braid
(3 mm inside dia. only)
5: Black inside braid
3: Red (3 mm inside dia. only)
4: Ash gray with red stripe
(3 mm inside dia. only)
6: Black
• Vinyl hose 1: Clear
2: Black
3: Light red
6: Light red
7: Pale black
• General hose 1: Ash gray
2: Ash gray
3: Black
5: Black
Lengths: 001: 1 m (standard)
003: 3 m
008: 8 m
I.D code: (fuel hose and general purpose hose)
30: 3.0 mm 11: 11 mm
35: 3.5 mm 91: 12 mm (outside dia. 15) mm
45: 4.5 mm 92: 12 mm (outside dia. 16) mm
50: 5.0 mm 12: 12 mm (outside dia. 17) mm
55: 5.3 mm, 5.5 mm 14: 14 mm
65: 6.5 mm 17: 17 mm
70: 7.0 mm
75: 7.3 mm, 7.5 mm
80: 8.0 mm
ID./OD. code: (vinyl hose)
01: ID. 2.9, OD. 6.8 mm 14: ID. 6.0, OD. 9.0 mm 37: ID. 11.0, OD. 15.0 mm
03: ID. 3.0, OD. 6.0 mm 17: ID. 7.0, OD. 9.0 mm 38: ID. 12.0, OD. 13.0 mm
05: ID. 3.5, OD. 6.5 mm 19: ID. 7.0, OD. 11.0 mm 39: ID. 12.0, OD. 14.0 mm
07: ID. 4.0, OD. 7.0 mm 21: ID. 8.0, OD. 9.0 mm 40: ID. 12.0, OD. 16.0 mm
08: ID. 4.5, OD. 6.5 mm 23: ID. 8.0, OD. 12.0 mm 43: ID. 13.0, OD. 15.0 mm
09: ID. 4.5, OD. 8.0 mm 25: ID. 9.0, OD. 11.0 mm 45: ID. 14.0, OD. 18.0 mm
12: ID. 5.0, OD. 7.0 mm 27: ID. 9.0, OD. 13.0 mm 50: ID. 16.0, OD. 19.0 mm
10: ID. 5.0, OD. 8.0 mm 33: ID. 10.0, OD. 14.0 mm 55: ID. 17.5, OD. 20.5 mm
11: ID. 5.0, OD. 9.0 mm 36: ID. 11.0, OD. 13.0 mm 60: ID. 22.0, OD. 27.0 mm
Hose type: 1: Fuel hose
3: Vinyl hose
5: General hose
• Bulk part number of fuel hose, general purpose hose and vinyl hose.
58
2020.01.01 E
Page 58
FLAT RATE SERVICE TIME
Net service time
FRT setting system
Removal, Disassembly/reassembly, Installation
Diagnosis/troubleshooting (Electric system)
Completion inspection
Inspection, Measurement, Adjustment, Confirmation
Float time
Preparation
(Process check, Confirmation arrangement for
necessary tools)
Related work (Transfer of vehicles)
Flat rate service time (FRT) means the standard time required to
service a MC, which is listed in this manual to help the dealers
control the actual working process and calculate the service charge
by using it as a guide.
* Float time is set by multiplying the net service time by a given
coefficient.
Editorial style
The service items shown in the text are listed with the exchange
work time for the repair sales parts as the subject. Other
representative service items not using repair parts (removal/
installation, adjustment, inspection/measuring, and other work) are
listed collectively in the list in the preface, classified according to the
work.
FRT setting standard
• Decimal system (in unit of 0.1) is adopted to set FRT as it is
convenient to calculate the wage.
Example: (0.1) 6 minutes, (0.2) 12 minutes
[Labor cost per hour] x [FRT] = [Wage]
• FRT is set with a hand tool.
• Service items and FRT can be subject to change depending on
development of tools and service equipment and improvement in
service procedure.
1
59
2020.01.01 E
Page 59
Work procedure
Service item whose FRT is not presented
1
• As the work procedure is set with the work time according to the
method in the separate Service Manual, refer to this Manual as
required.
• Work methods permitting servicing in the shortest time still
permitting assurance of safe work and product warranty are used
for the setting of service items not listed in the Service Manual.
• Work basically is to be performed by one person, and when two or
more people are required, setting is done as the total time for the
number of people.
• The set value for the technological level of the workers uses a
person with three years of experience in the repair of Honda
vehicles as the standard.
• Special tools and service equipment used to set FRT are those
specified or recommended in Service Manual.
• Accessories and service parts that are not listed to use in this
manual.
• Locations with little aging deterioration or breakage during normal
use.
• Service work that can be finished by one touch.
• Service work that is seldom done (i.e. extremely small causes of
trouble and service frequency).
* When FRT is not presented, please calculate wages based on ap-
propriate actual work time
Operation not included of FRT
• Oil and coolant water draining, Waiting time for warming up
operation and etc..
• Additional operation that involves removal/installation of standard
exterior equipment.
• Indirect time spent for service by visiting the customer, trade-in,
and delivery of a MC.
• Indirect time required for ordering and delivery of parts.
• Cost for grease, adhesive agent, etc. used for service work.
60
2020.01.01 E
Page 60
Explanation of FRT by using an example
Ref.
L.O.N.
(Relative ref. Number)
F.R.T.
No.
Description
(1, 3, 4, 7)
2 111118 CAMSHAFT • • • • • • • • • • • • • • 4.5
• Includes: Valve clearance adjustment
111118A Replace rocker arm add
• • • • • • • • • • • • • • • • • • • • • • • • • 1.0
(The example may differ from the actual presented items)
Indicating work contents that are included in the service
item.
Reference No. of the illustration of part that shows location
of the replacement work.
FRT is an abbreviation of Flat Rate Time indicating the
standard service time required for the replacement.
LON is an abbreviation of Labor Operation Number, and it
is a classification of the service items by the work unit code.
The same operation code is used regardless of the models.
Standard operation is indicated with 6 digits code, and
additional operation is indicated with 7 digits code.
Indicating a reference No. whose operation and time are
the same as FRT4.5 for the camshaft.
1
(The application range is limited to the service items
without an LON setting within a same block.)
How to refer to the service item by using the sample
(camshaft replacement)
Open to the page of the block where the camshaft's
spare part illustration is shown.
Look for the camshaft illustration, and refer to the service item and FRT that agree with the reference No.
Indicating the camshaft replacement and FRT4.5.
Indicating FRT1.0 that will be added when additional
operation (replace rocker arm) is done in association with
camshaft replacement.
61
2020.01.01 E
Page 61
Indication mark for the listing of service items that continues to
Ref.
L.O.N.
(Relative ref. Number)
F.R.T.
No.
Description
2 111118 CAMSHAFT • • • • • • • • • • • • • • • 4.5
•••
•••
+
Mark indicated at the last line.
a
a) Category code..................... Engine
1 11 1 18 A
bcde
b) Location/function code........ Engine upper
c) Operation code.................... Replace
d) Operation sequence number (Unit code can be shown
with alphabet)
......................... camshaft
(No regular rule of code)
e) Additional code ................... replace rocker arm
(No regular rule of code)
a
1 11 1 18 A
c
a) Category codes and classification
c) Operation codes and classification
Code Category
1Engine
2 Transmission
3 Fuel & Exhaust
4 Frame & Body
5 Steering/Suspension
6 Electrical
7 Wheels/Brakes
8 Controls/instrument
90-
Code Operation category
1 Replace, Removal/Installation, Change
2 Overhaul
3 Adjust, Balance
4 (Paint-related work: Top-coat)
5 Test, Inspect/diagnose, Measurement, Check
6 (Overhaul-related work: Rebore)
7 (Overhaul-related work: Reseal)
8 (Resurface)
9 (Paint-related work: Refinish)
0 Repair, Cleaning, Air bleeding
the following page
1
Indication of the block with no setting of FRT
Ref.
No.
• LON code system
L.O.N.
NO INFORMATION • • • • • • • • • • • • • • • • • • •
(Relative ref. Number)
Description
F.R.T.
62
2020.01.01 E
Page 62
Major service items without using spare parts
E: Engine, F: Frame
Removal/Installation, Adjustment, Inspection/Measurement, Overhaul, Other work
* OPERATIONS OTHER THAN REPLACING PARTS
• Removal/installation
Set for the configuration with the parts removed from the vehicle.
LON DESCRIPTION FRT
TILTING ENGINE ASSEMBLY-
E
1101E5
3111D6
1101E6
REMOVAL/INSTALLATION
INCLUDES: All necessary adjustment
CARBURETOR ASSEMBLY-
REMOVAL/INSTALLATION
CRANKCASE SEPARATION
INCLUDES: Engine removal and installation
1.5
0.4
3.2
• Adjustment
LON DESCRIPTION FRT
3113A0 CARBURETOR IDLE-ADJUSTMENT 0.1
2123A0
E
6143A1 SPARK PLUG-ADJUSTMENT/CLEANING 0.1
1113A0
6163A0 HEADLIGHT-AIMING 0.1
CLUTCH-ADJUSTMENT
INCLUDES: Clutch lever adjustment
VALVE CLEARANCE-ADJUSTMENT
NOTE: For 1 vehicle
0.1
0.5
• Inspection/Measurement
LON DESCRIPTION FRT
1115A0 COMPRESSION PRESSURE-MEASUREMENT 0.1
E
3115A0
6145A0 IGNITION TIMING-INSPECTION 0.2
F 6105A0
CARBURETOR FLOAT LEVEL-
MEASUREMENT
BATTERY-CHARGE
INCLUDES: In case of open type battery,
checking electrolyte level and charge.
0.6
0.2
• Overhaul
Work condition: The required Measurements, inspections,
adjustments, and cleaning/washing of each part are performed,
including the main body removal/installation work and the
replacement of defective parts.
LON DESCRIPTION FRT
E 311200
CARBURETOR-OVERHAUL
INCLUDES: All necessary adjustment
0.8
• Other work
1
2133A0 DRIVE CHAIN-ADJUSTMENT 0.1
7113A0
F
7113A1
3113A3 THROTTLE OPERATION-ADJUSTMENT 0.1
FRONT BRAKE-ADJUSTMENT
EXCLUDES: Front brake shoe adjustment
REAR BRAKE-ADJUSTMENT
EXCLUDES: Rear brake shoe adjustment
0.1
0.1
2020.01.01 E
E 1130A1 OIL FILTER SCREEN-CLEANING 0.3
F
LON DESCRIPTION FRT
3120A0 CLEANER ELEMENT-CLEANING 0.2
7110A0 FRONT BRAKE-AIR BLEEDING 0.2
63
Page 63
2
ENGINE GROUP
E-1
E-2-1
CYLINDER HEAD COVER(1)
CYLINDER HEAD(2)
E-1-1
E-3
CYLINDER HEAD COVER(2)

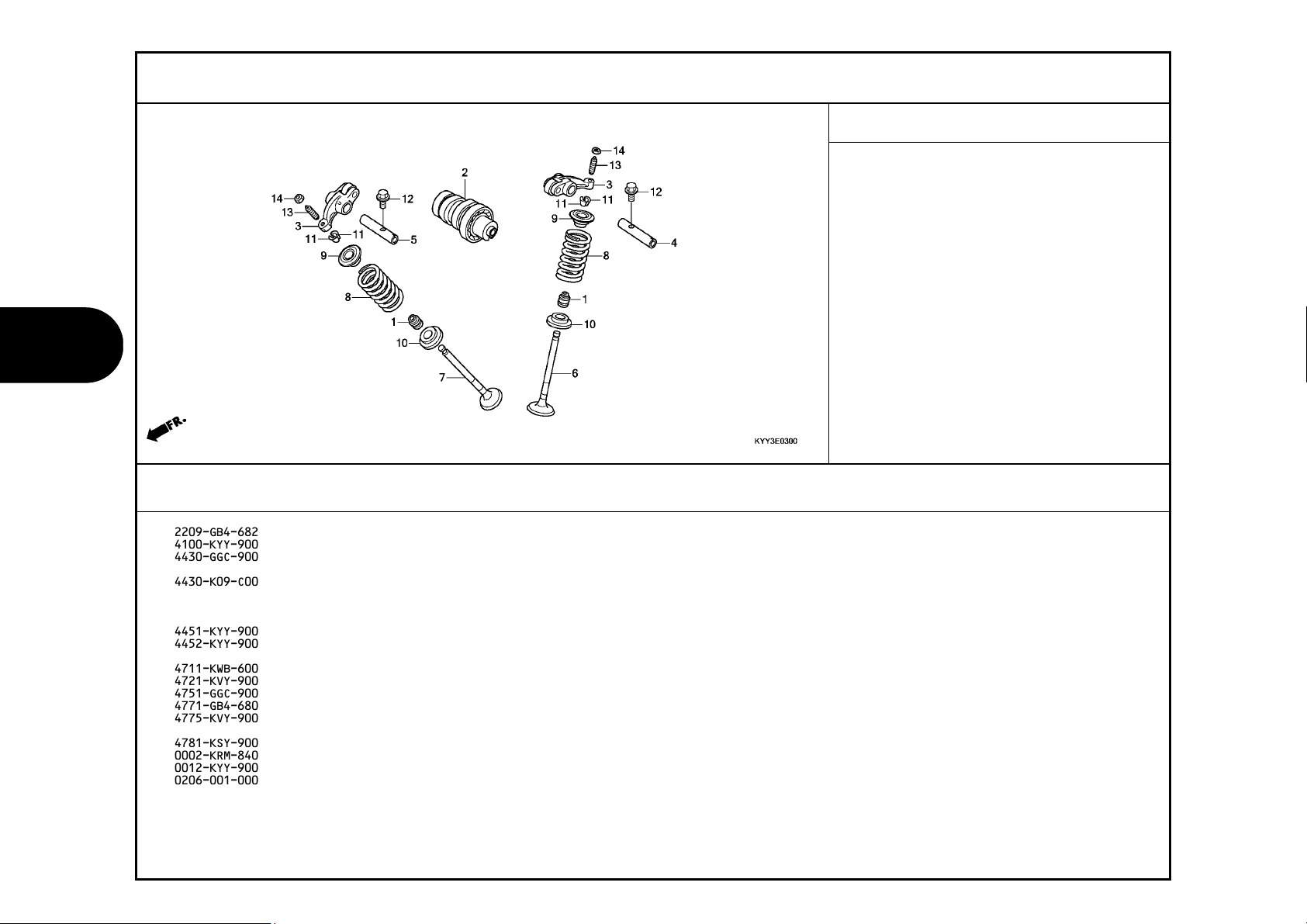

CAMSHAFT/VALVE
E-2
CYLINDER HEAD(1)
E-4
CAM CHAIN/TENSIONER
64
E-5
CYLINDER
E-6
RIGHT CRANKCASE COVER
2020.01.01 E
E-8
CLUTCH(1)
Page 64
2
E-8-1
CLUTCH(2)
E-9
ENGINE GROUP

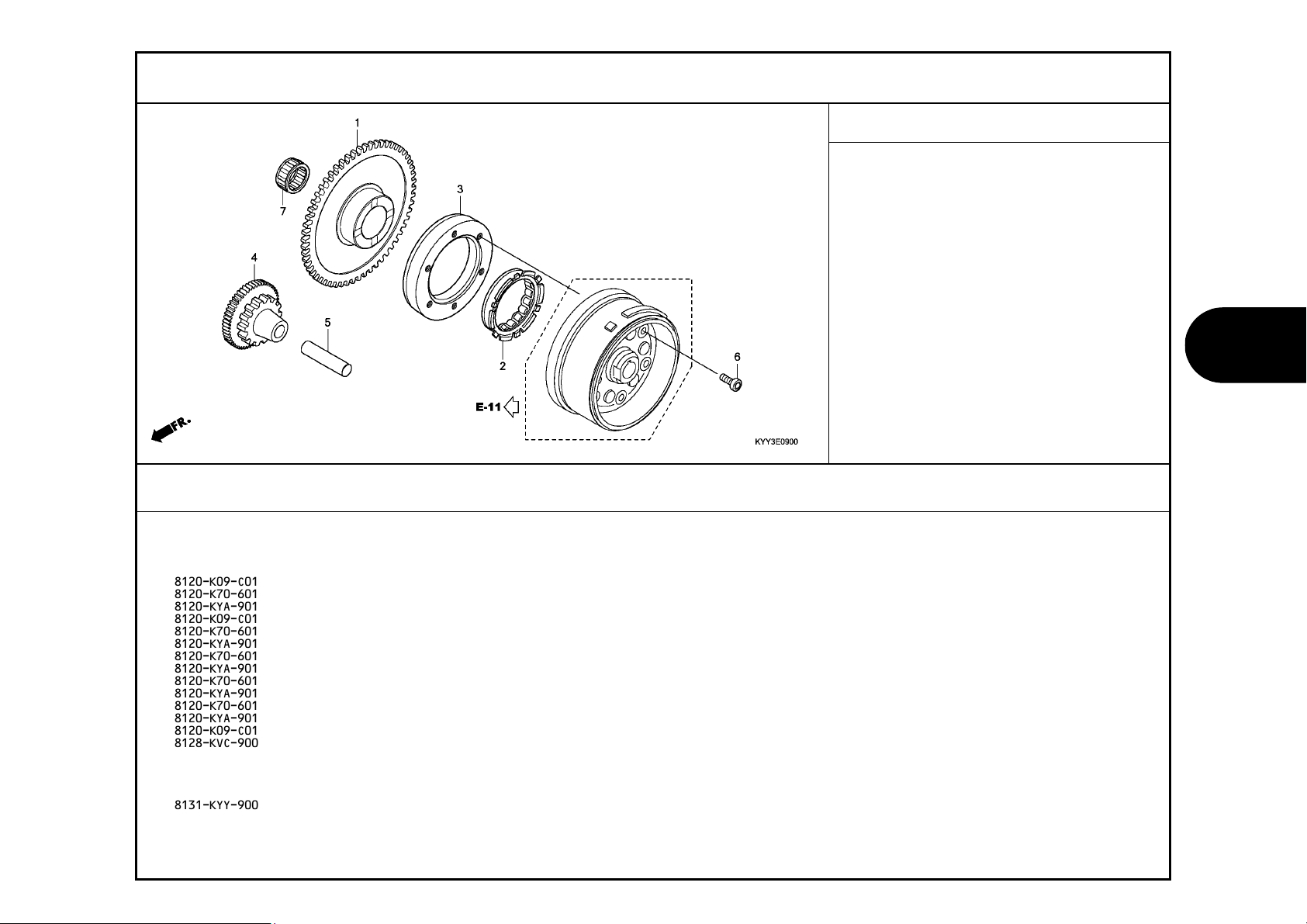

STARTING CLUTCH
E-10
LEFT CRANKCASE COVER
E-11
E-14
GENERATOR

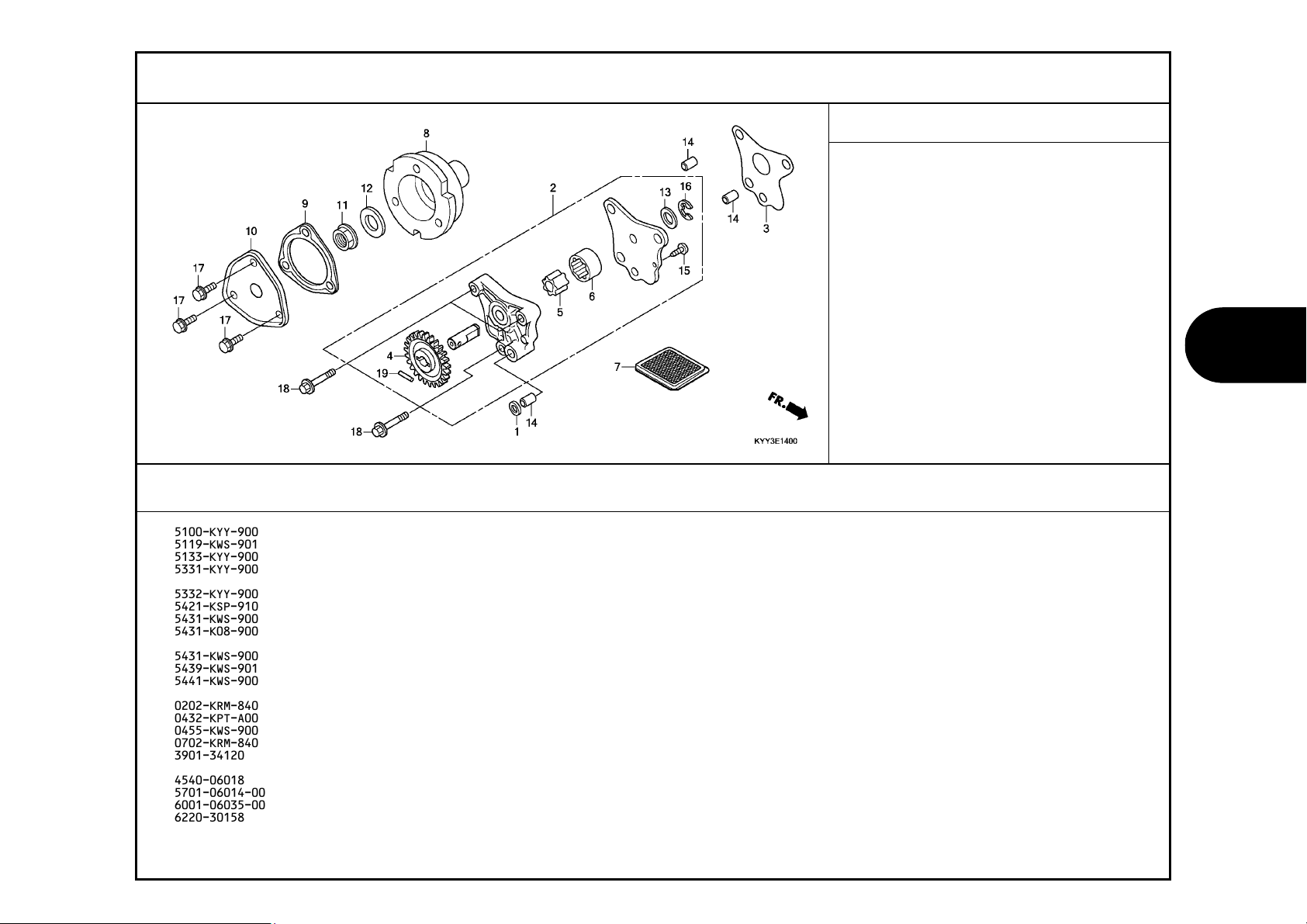

OIL PUMP
E-13
E-15

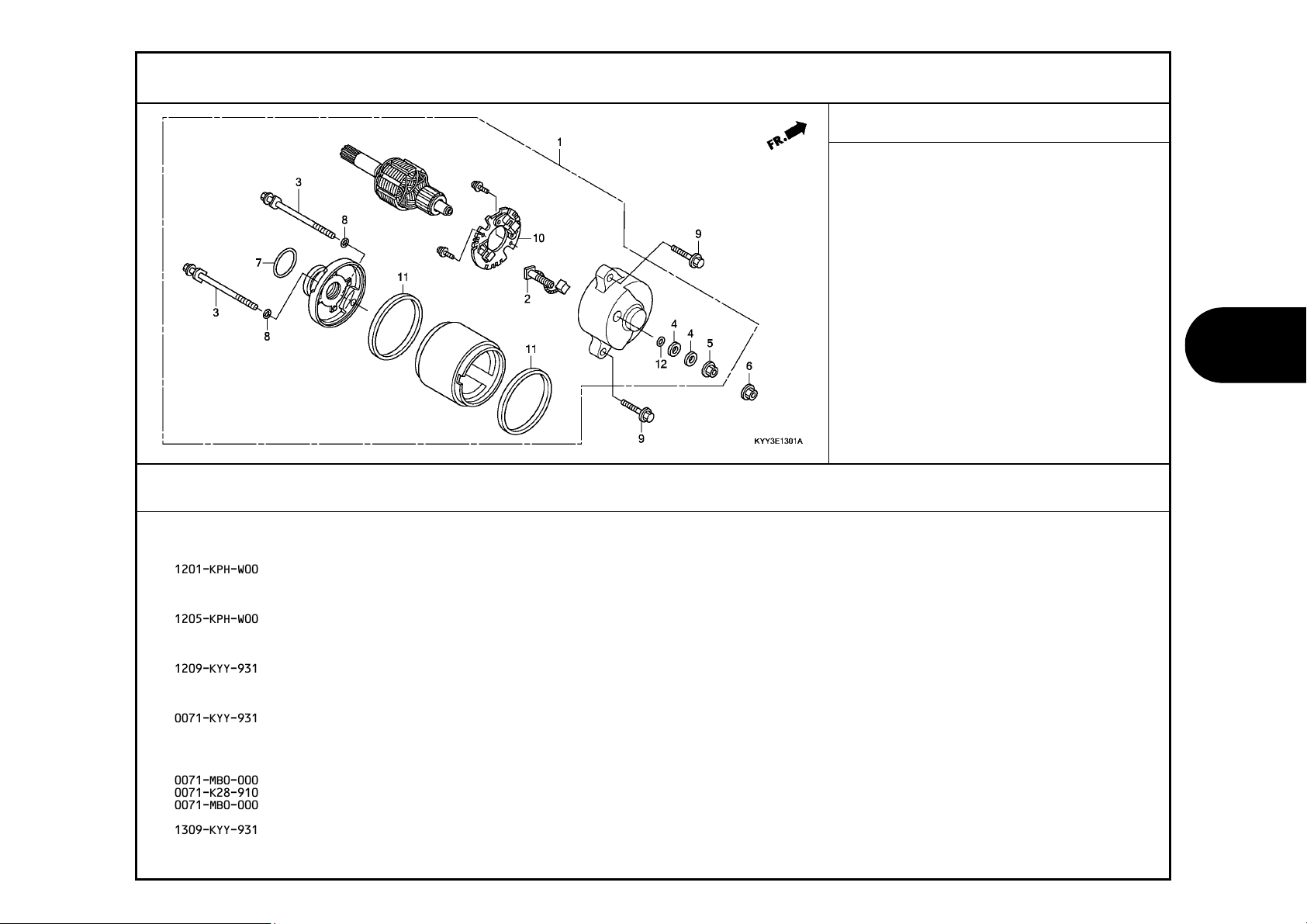

STARTER MOTOR(MITSUBA)
CRANKCASE
E-13-1
E-16
STARTER MOTOR(YUHUAN AVIATION
MACHINARY)
CRANKSHAFT/PISTON
65
2020.01.01 E
Page 65
2
E-17
TRANSMISSION
E-19
ENGINE GROUP
GEARSHIFT DRUM
E-20
KICK STARTER SPINDLE
E-22
CARBURETOR(1)
E-22-1
CARBURETOR(2)
66
2020.01.01 E
Page 66
3
FRAME GROUP
F-1
F-2
HEADLIGHT(1)
METER(1)
F-1-1
F-2-1
HEADLIGHT(2)
METER(2)
F-1-2
HEADLIGHT(3)
F-2-2
METER(3)
F-3
MIRROR
F-4
HANDLE LEVER/SWITCH/CABLE(1)
2020.01.01 E
F-4-1
HANDLE LEVER/SWITCH/CABLE(2)
67
Page 67
3
F-5
FRONT BRAKE MASTER CYLINDER
F-7
FRAME GROUP
HANDLE PIPE/TOP BRIDGE(1)
F-7-1
HANDLE PIPE/TOP BRIDGE(2)
F-9
F-10-1
STEERING STEM(1)
FRONT FENDER(2)
F-9-1
F-10-2
STEERING STEM(2)
FRONT FENDER(3)
F-10
FRONT FENDER(1)
F-11
FRONT FORK(1)
68
2020.01.01 E
Page 68
3
F-11-1
FRONT FORK(2)
F-12
FRAME GROUP
FRONT BRAKE CALIPER
F-13
FRONT BRAKE PANEL
F-14-10
F-18
FRONT WHEEL(SPOKE/DRUM BRAKE)
REAR BRAKE PANEL
F-14-30
F-19-10
FRONT WHEEL(CAST/DRUM BRAKE)
REAR WHEEL(SPOKE/DRUM BRAKE)
F-14-40
FRONT WHEEL(CAST/DISK BRAKE)
F-19-30
REAR WHEEL(CAST/DRUM BRAKE)
69
2020.01.01 E
Page 69
3
F-19-40
REAR WHEEL(CAST/DISK BRAKE)
F-21
FRAME GROUP
FUEL TANK(1)
F-21-1
FUEL TANK(2)
F-21-2
F-23-2
FUEL TANK(3)
SEAT/REAR CARRIER(3)
F-23
F-24
SEAT/REAR CARRIER(1)
SIDE COVER(1)
F-23-1
SEAT/REAR COWL(2)
F-24-1
SIDE COVER(2)
70
2020.01.01 E
Page 70
3
F-24-2
SIDE COVER(3)
F-25
FRAME GROUP
AIR CLEANER(1)
F-25-1
AIR CLEANER(2)
F-25-20
F-27-1
AIR SUCTION VALVE
EXHAUST MUFFLER(2)
F-26
F-27-2
CANISTER
EXHAUST MUFFLER(3)
F-27
EXHAUST MUFFLER(1)
F-27-3
EXHAUST MUFFLER(4)
71
2020.01.01 E
Page 71
3
F-27-4
EXHAUST MUFFLER(5)
F-29
FRAME GROUP
PEDAL/KICK STARTER(1)
F-29-1
PEDAL/KICK STARTER(2)
F-30
F-32-1
STEP
SWINGARM(2)
F-31
F-33
STAND
REAR CUSHION
F-32
SWINGARM(1)
F-34
REAR FENDER(1)
72
2020.01.01 E
Page 72
3
F-34-1
REAR FENDER(2)
F-34-2
FRAME GROUP
REAR FENDER(3)
F-35
WINKER(1)
F-35-1
F-36-2
WINKER(2)
TAILLIGHT(3)
F-36
F-37
TAILLIGHT(1)
BATTERY(1)
F-36-1
TAILLIGHT(2)
F-37-1
BATTERY(2)
73
2020.01.01 E
Page 73
3
F-38
WIRE HARNESS(1)
F-38-1
FRAME GROUP
WIRE HARNESS(2)
F-38-2
WIRE HARNESS(3)
F-38-3
F-39-2
WIRE HARNESS(4)
FRAME BODY(3)
F-39
F-43
FRAME BODY(1)
FRONT VISOR
F-39-1
FRAME BODY(2)
F-48
TOOLS
74
2020.01.01 E
Page 74
3
F-49
CAUTION LABEL(1)
F-49-1
FRAME GROUP
CAUTION LABEL(2)
F-50
MARK/STRIPE(1)
F-50-1
F-50-4
MARK/STRIPE(2)
MARK/STRIPE(5)
F-50-2
F-50-5
MARK/STRIPE(3)
MARK/STRIPE(6)
F-50-3
MARK/STRIPE(4)
F-50-6
MARK/STRIPE(7)
75
2020.01.01 E
Page 75
2

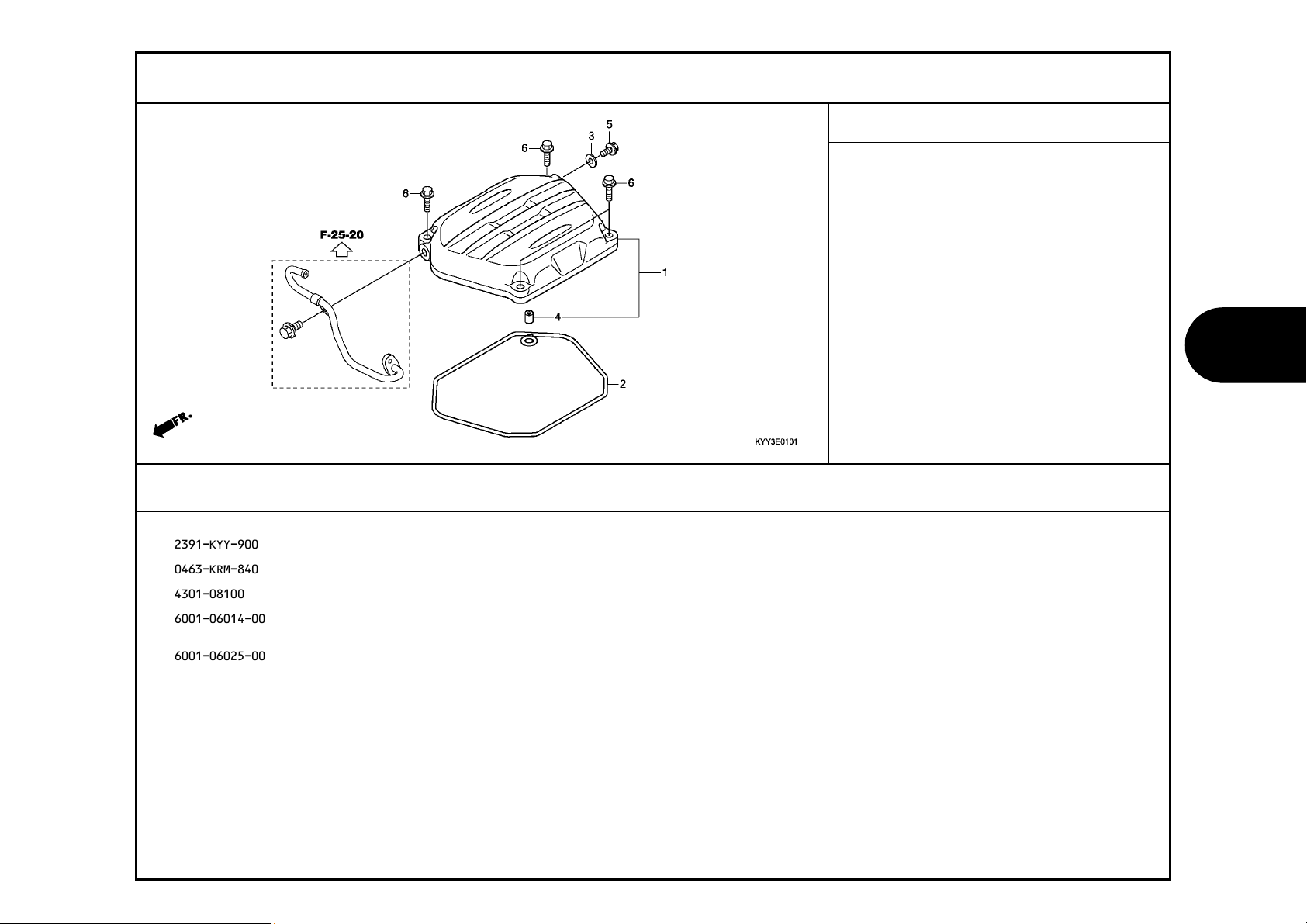

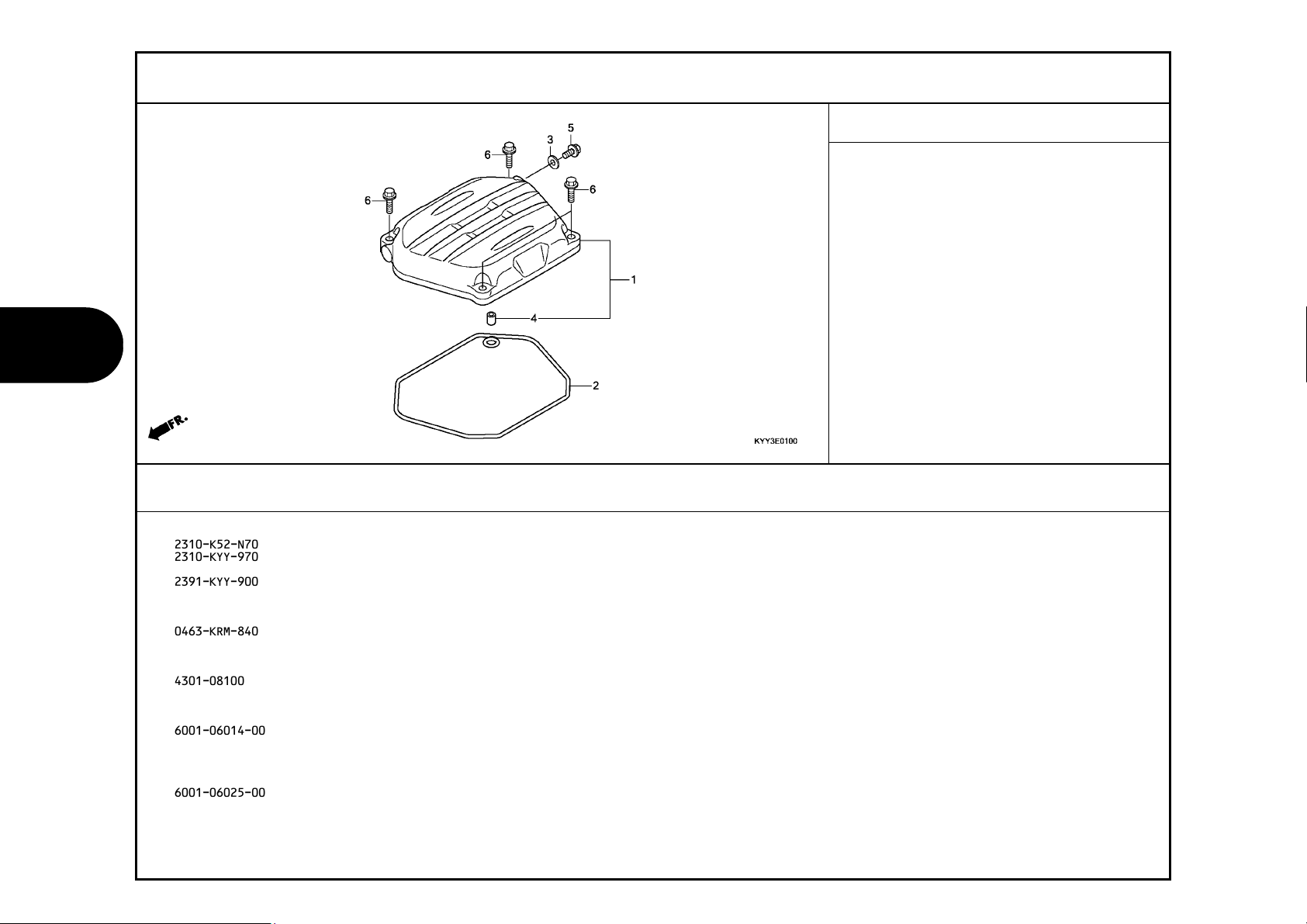

E-1
CYLINDER HEAD COVER(1)
Ref.
No.
1 1111C4 COVER, CYLINDER HEAD ••••••••• 0.2
2 1111D2 GASKET, CYLINDER HEAD COVER •• 0.2
Ref.
No.
Part No. Description
1 12310-KYY-970 COVER COMP., CYLINDER HEAD •• 1 1 1 1 - - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
12310-K52-N70 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2DK,2KE,3DK,4KE,5KE,DK,KE
12310-KYY-970 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2SA,3LA
2 12391-KYY-900 GASKET, HEAD COVER •••••••••• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
3 90463-KRM-840 WASHER, SEALING, 6.2X12X1.2 • 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
4 94301-08100 DOWEL PIN, 8X10 ••••••••••••• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
5 96001-06014-00 BOLT, FLANGE, 6X14 •••••••••• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
6 96001-06025-00 BOLT, FLANGE, 6X25 •••••••••• 4 4 4 4 4 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - - - - - 1 - -------- -------- 3LA
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - - - 4 4 - -------- -------- 3LA,DK,KE
Reqd. QTY
Serial No.
4AG,4CO,4DK,5AG,5DK,AG,CL,DK,KE,MX,PE,SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
(Relative ref. Number)
L.O.N.
Description
Parts catalogue code
F.R.T.
76
2020.01.01 E
Page 76
2
E-1-1
CYLINDER HEAD COVER(2)
Ref.
No.
1 1111C4 COVER, CYLINDER HEAD ••••••••• 0.2
1111AS COVER, CYLINDER HEAD(A) •••••• 0.3
2 1111D2 GASKET, CYLINDER HEAD COVER •• 0.2
1111BV GASKET, CYLINDER HEAD COVER(A) 0.3
Ref.
No.
Part No. Description
1 12310-KYY-900 COVER COMP., CYLINDER HEAD •• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
2 12391-KYY-900 GASKET, HEAD COVER •••••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
3 90463-KRM-840 WASHER, SEALING, 6.2X12X1.2 • - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
4 94301-08100 DOWEL PIN, 8X10 ••••••••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
5 96001-06014-00 BOLT, FLANGE, 6X14 •••••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
6 96001-06025-00 BOLT, FLANGE, 6X25 •••••••••• - 4 - - 4 - - 4 -------- -------- 2TU,DK5SH,DK6SH,TU
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 4 4 - -------- -------- 2PE,CL,PE
Reqd. QTY
Serial No.
(Relative ref. Number)
L.O.N.
.NOTE: 2TU/TU type
.NOTE: 2TU/TU type
Description
Parts catalogue code
F.R.T.
77
2020.01.01 E
Page 77
2

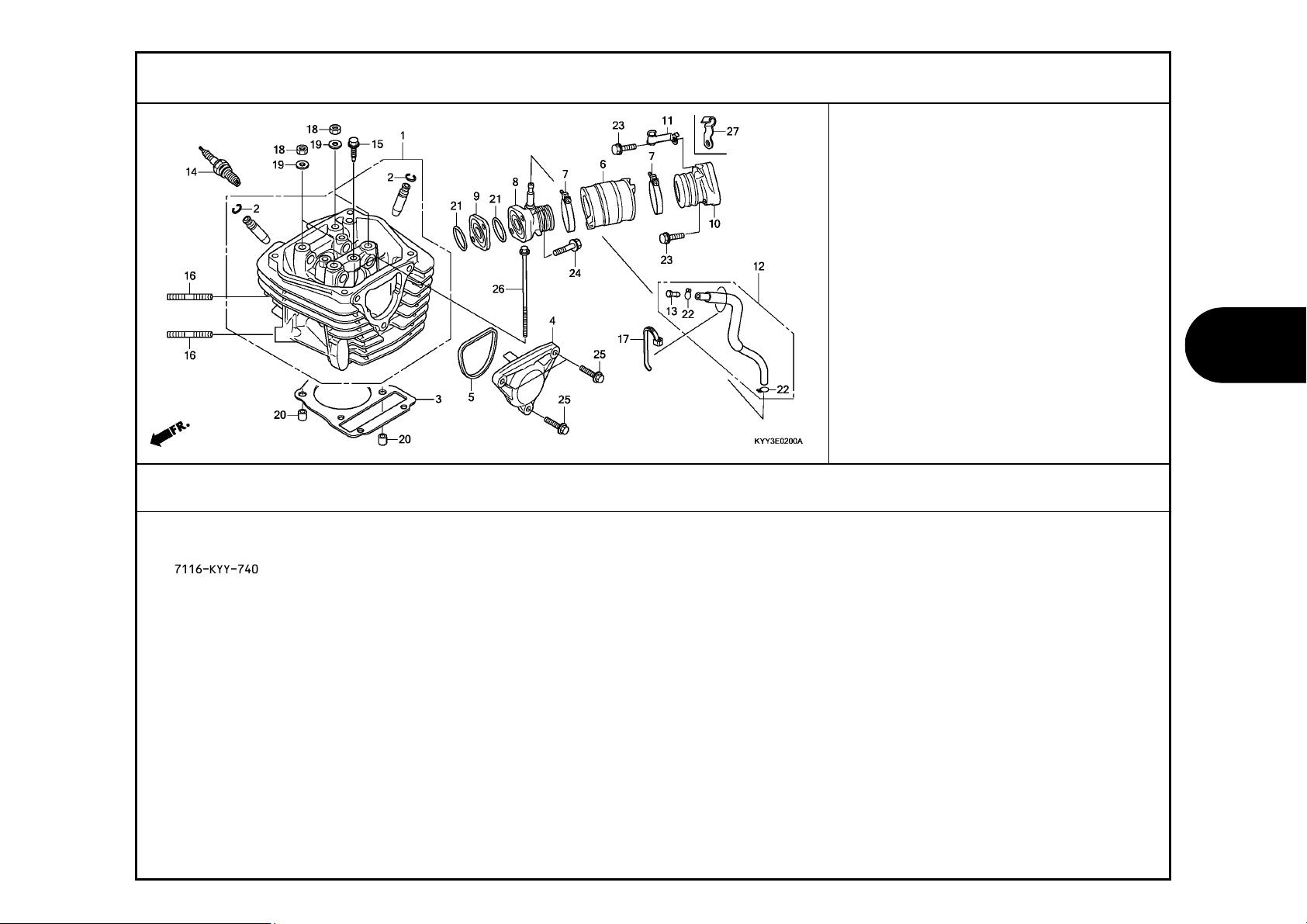

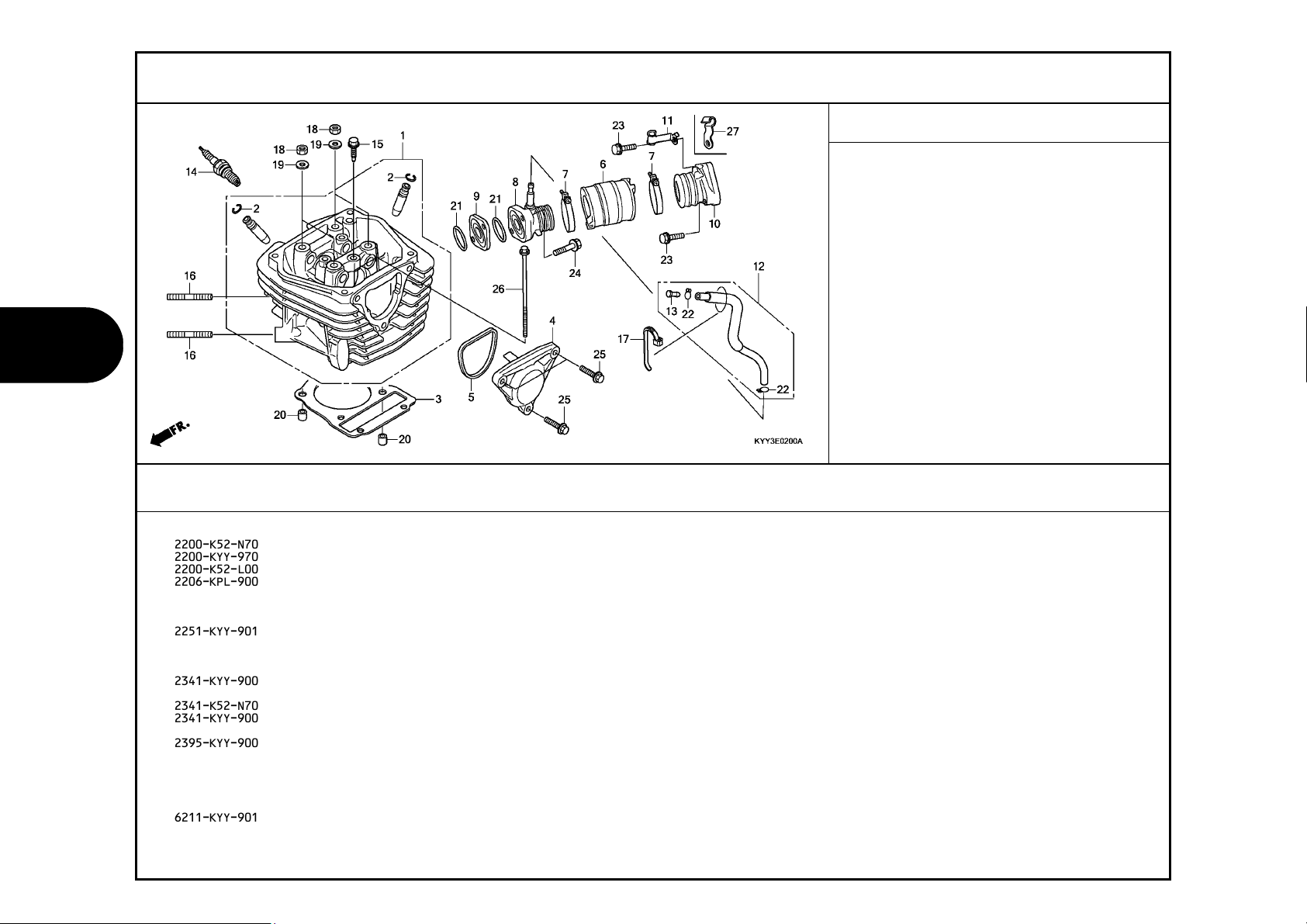

E-2
CYLINDER HEAD(1)
Ref.
No.
1 111106 HEAD, CYLINDER ••••••••••••••• 2.6
3 111115 GASKET, CYLINDER HEAD •••••••• 1.7
4 (5)
1111D0 COVER, CYLINDER HEAD SIDE
6 (8,9,21)
311131 INSULATOR, THROTTLE BODY/
10 111107 MANIFOLD, INTAKE ••••••••••••• 0.5
14 614130 PLUG, SPARK •••••••••••••••••• 0.1
Ref.
No.
Part No. Description
1 12200-KYY-970 HEAD COMP., CYLINDER •••••••• 1 1 1 1 - - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
12200-K52-N70 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2DK,2KE,3DK,4KE,5KE,DK,KE
12200-KYY-970 •••••••••••••••••••••••••••• - - - - 1 - - - -------- -------- 2SA
12200-K52-L00 •••••••••••••••••••••••••••• - - - - - 1 1 - -------- -------- 3LA
2 12206-KPL-900 CLIP, VALVE GUIDE ••••••••••• 2 2 2 2 2 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
3 12251-KYY-901 GASKET, CYLINDER HEAD ••••••• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
4 12341-KYY-900 COVER, CYLINDER HEAD L. SIDE 1 1 1 1 - - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
12341-K52-N70 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2DK,2KE,3DK,4KE,5KE,DK,KE
12341-KYY-900 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2SA,3LA
5 12395-KYY-900 GASKET, L. CYLINDER HEAD SIDE
6 16211-KYY-901 INSULATOR, CARBURETOR ••••••• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - - - - 2 2 - -------- -------- 3LA,DK,KE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - - - - 1 - -------- -------- 3LA
COVER 1 1 1 1 1 - - - -------- --------2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
Reqd. QTY
Serial No.
4AG,4CO,4DK,5AG,5DK,AG,CL,DK,KE,MX,PE,SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,5AG,5DK,AG,CL,DK,KE,MX,PE,SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
(Relative ref. Number)
L.O.N.
.INCLUDES: Engine removal and
installation
.INCLUDES: Valve adjust and
reface
.INCLUDES: Engine removal and
installation
:LEFT ••••••••••••••••••••••• 0.1
CARBURETOR •••••••••••••••••• 0.4
Description
Parts catalogue code
78
2020.01.01 E
F.R.T.
Page 78
E-2
2
Ref.
No.
Part No. Description
7 16217-KYY-900 BAND, INSULATOR ••••••••••••• 2 2 2 2 2 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
8 17110-KYY-904 PIPE COMP A, INLET •••••••••• 1 1 1 - - - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,3AG,3CO,3DK,3PE,4AG,4CO
17110-KYY-D00 •••••••••••••••••••••••••••• - - - 1 - 1 - - -------- -------- 2KE,2SA,3KE,4DK,5DK,DK,KE
9 17113-KYY-901 INSULATOR, INLET PIPE A ••••• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
10 17115-KYY-901 PIPE B, INLET ••••••••••••••• 1 1 1 - - - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,3AG,3CO,3DK,3PE,4AG,4CO
17115-KYY-D00 •••••••••••••••••••••••••••• - - - 1 - 1 - - -------- -------- 2KE,2SA,3KE,4DK,5DK,DK,KE
11 17116-KYY-902 CLAMPER, FUEL HOSE •••••••••• 1 1 - - - - - - -------- -------- 2AG,2CL,2PE,3AG,3CO,3DK,4AG,4CO,5AG,AG,CL,DK
12 18611-KYY-970 TUBE ASSY., INTAKE •••••••••• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
13 18612-KYY-970 CAP, INTAKE ••••••••••••••••• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
14 31916-KPH-901 PLUG, SPARK(CPR6EA-9)(NGK) •• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
31917-KPH-901 PLUG, SPARK(CPR7EA-9)(NGK) •• (1) (1) (1) (1) (1) - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
31916-KPH-901 PLUG, SPARK(CPR6EA-9)(NGK) •• - - - - - 1 1 - -------- -------- 3LA,DK,KE
31917-KPH-901 PLUG, SPARK(CPR7EA-9)(NGK) •• - - - - - (1) (1) - -------- -------- 3LA,DK,KE
15 90014-KYY-900 BOLT, SPECIAL, 6X21 ••••••••• 1 1 1 1 1 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
16 90035-KRM-840 BOLT, STUD, 8X22 •••••••••••• 2 2 2 2 2 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
17 90111-GFC-J31 BAND, WIRE HARNESS •••••••••• 1 1 - - - - - - -------- -------- 2AG,2CL,2PE,3AG,3CO,3DK,4AG,4CO,5AG,AG,CL,DK
18 90201-GCC-000 NUT, HEX., 7MM •••••••••••••• 4 4 4 4 4 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - - - - 2 2 - -------- -------- 3LA,DK,KE
- - - 1 - 1 1 - -------- -------- 2DK,3DK,3LA
- - - - 1 - - - -------- -------- 2DK,2KE,2SA,3DK,4KE,5KE,KE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - 1 - 1 1 - -------- -------- 2DK,3DK,3LA
- - - - 1 - - - -------- -------- 2DK,2KE,2SA,3DK,4KE,5KE,KE
- - 1 - - - - - -------- -------- 4CO
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
- - - - - 2 2 - -------- -------- 3LA,DK,KE
- - 1 - - - - - -------- -------- 2DK,2KE,3DK,KE,SA
- - - 1 - - - - -------- -------- 2DK,3DK
- - - - - 4 4 - -------- -------- 3LA,DK,KE
CYLINDER HEAD(1)
Reqd. QTY
Serial No.
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
5AG,AG,CL,DK,KE,MX,PE,SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
5AG,AG,CL,DK,KE,MX,PE,SA
MX,PE
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
MX,PE
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
Parts catalogue code
79
2020.01.01 E
Page 79

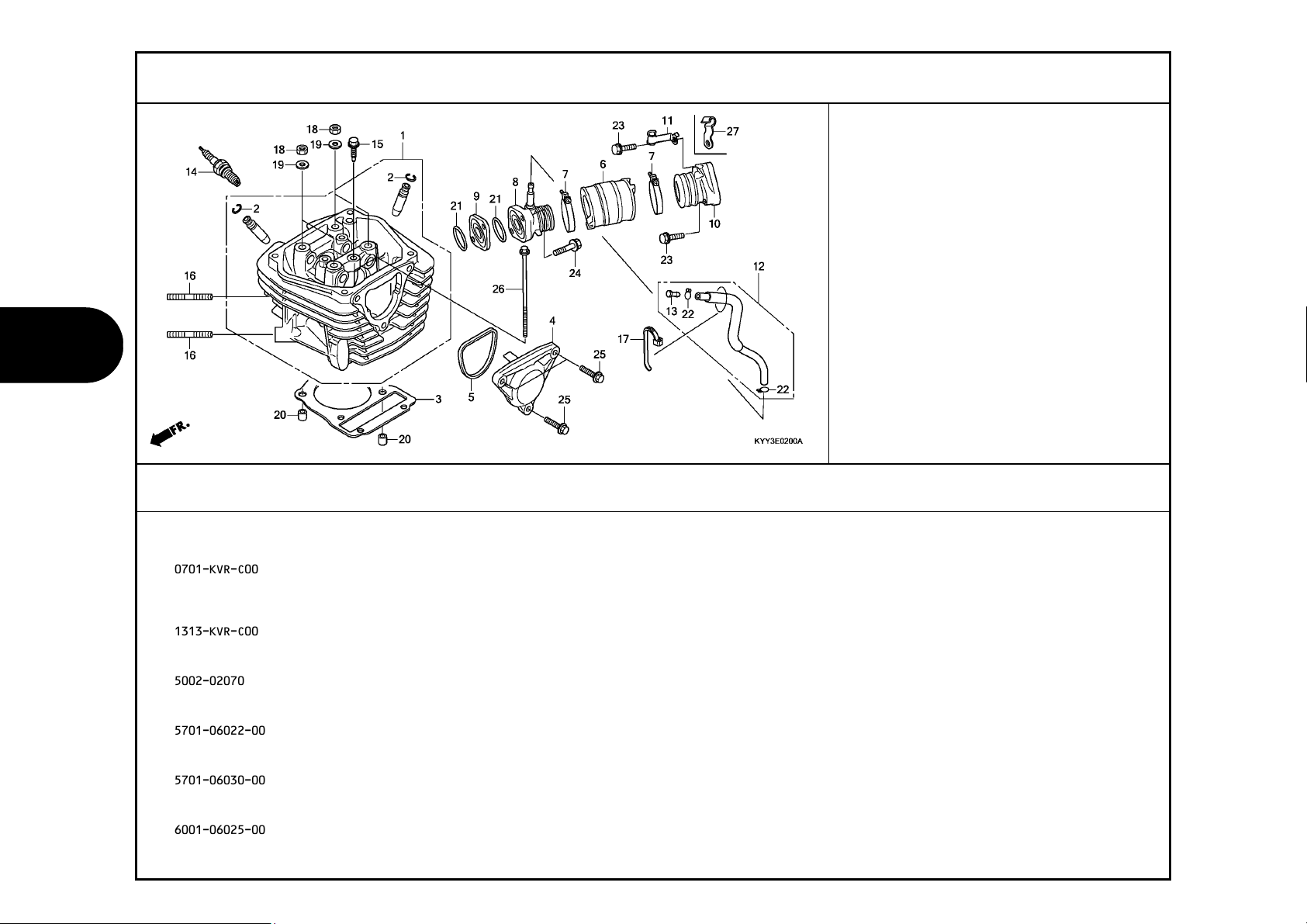

E-2
2
CYLINDER HEAD(1)
Ref.
No.
Part No. Description
19 90401-GFM-900 WASHER, 7.2X16X2.5 •••••••••• 4 4 4 4 4 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
20 90701-KVR-C00 DOWEL PIN, SPECIAL, 8X14 •••• 2 2 2 2 2 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
21 91313-KVR-C00 O-RING, 27X2.0 •••••••••••••• 2 2 2 2 2 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
22 95002-02070 CLIP, TUBE(B7) •••••••••••••• 2 2 2 2 2 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
23 95701-06022-00 BOLT, FLANGE, 6X22 •••••••••• 2 2 2 2 2 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
24 95701-06030-00 BOLT, FLANGE, 6X30 •••••••••• 2 2 2 2 2 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
25 96001-06025-00 BOLT, FLANGE, 6X25 •••••••••• 3 3 3 3 3 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
80
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - - - - 4 4 - -------- -------- 3LA,DK,KE
- - - - - 2 2 - -------- -------- 3LA,DK,KE
- - - - - 2 2 - -------- -------- 3LA,DK,KE
- - - - - 2 2 - -------- -------- 3LA,DK,KE
- - - - - 2 2 - -------- -------- 3LA,DK,KE
- - - - - 2 2 - -------- -------- 3LA,DK,KE
- - - - - 3 3 - -------- -------- 3LA,DK,KE
Reqd. QTY
2020.01.01 E
Serial No.
Parts catalogue code
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
Page 80
E-2
2
CYLINDER HEAD(1)
Ref.
No.
Part No. Description
26 96001-06110-00 BOLT, FLANGE, 6X110 ••••••••• 2 2 2 2 2 - - - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3PE
27 17116-KYY-740 CLAMPER, FUEL TUBE •••••••••• - - 1 1 1 - - - -------- -------- 2DK,2KE,2PE,2SA,3DK,3KE,3PE,4DK,4KE,5DK,5KE,CL
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - - - - 2 2 - -------- -------- 3LA,DK,KE
- - - - - 1 1 - -------- -------- 3LA,DK,KE
Reqd. QTY
2020.01.01 E
Serial No.
Parts catalogue code
4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX,PE
SA
DK,KE,PE,SA
81
Page 81
2
E-2-1

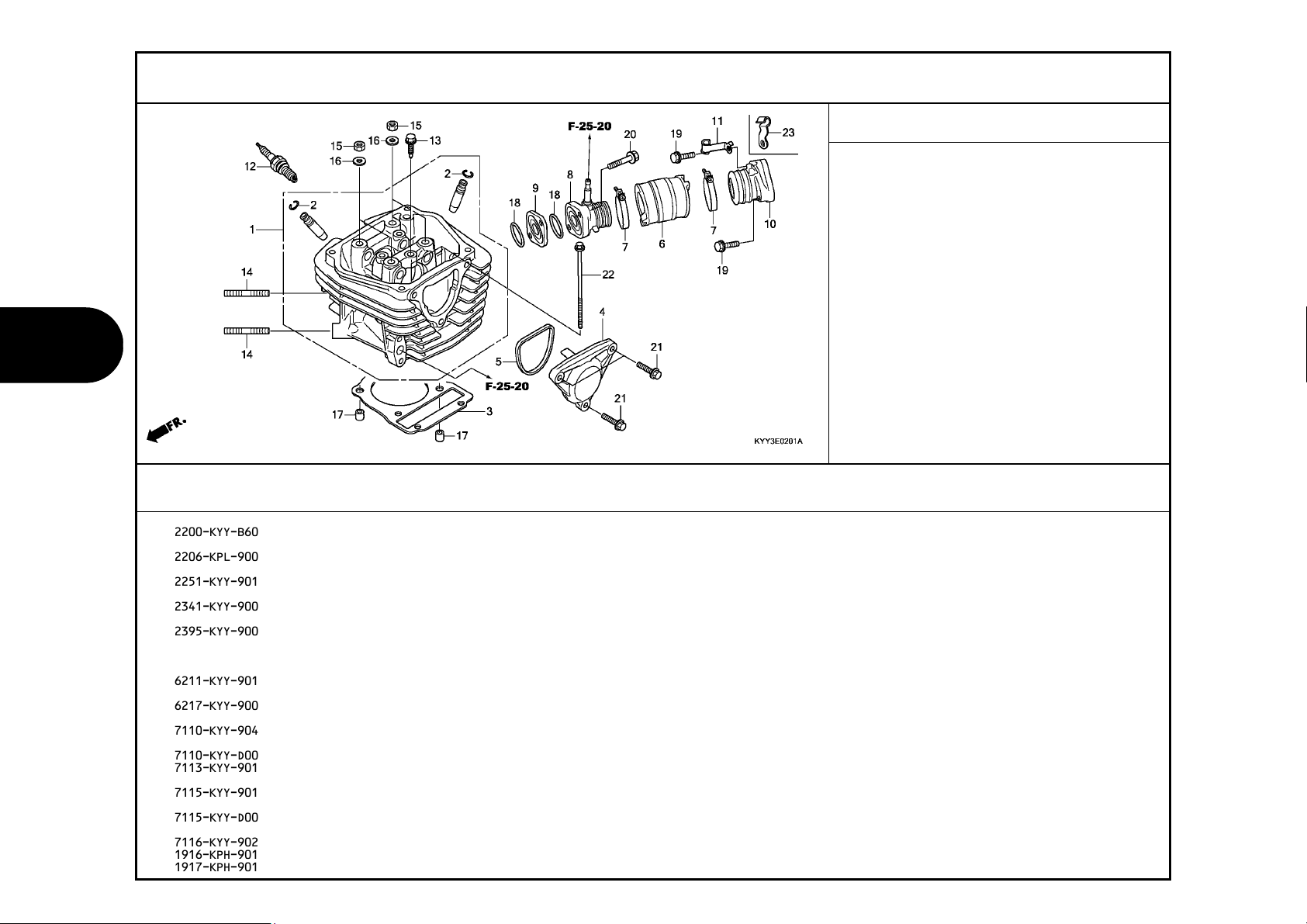

CYLINDER HEAD(2)
Ref.
L.O.N.
No.
1 111106 HEAD, CYLINDER ••••••••••••••• 2.6
3 111115 GASKET, CYLINDER HEAD •••••••• 1.7
4 (5)
1111D0 COVER, CYLINDER HEAD SIDE
6 (8,9,18)
311131 INSULATOR, THROTTLE BODY/
10 111107 MANIFOLD, INTAKE ••••••••••••• 0.5
12 614130 PLUG, SPARK •••••••••••••••••• 0.1
Ref.
No.
82
Part No. Description
1 12200-KYY-902 HEAD COMP., CYLINDER •••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
12200-KYY-B60
2 12206-KPL-900 CLIP, VALVE GUIDE ••••••••••• - 2 - - 2 - - 2 -------- -------- 2TU,DK5SH,DK6SH,TU
3 12251-KYY-901 GASKET, CYLINDER HEAD ••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
4 12341-KYY-900 COVER, CYLINDER HEAD L. SIDE - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
5 12395-KYY-900 GASKET, L. CYLINDER HEAD SIDE
6 16211-KYY-901 INSULATOR, CARBURETOR ••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
7 16217-KYY-900 BAND, INSULATOR ••••••••••••• - 2 - - 2 - - 2 -------- -------- 2TU,DK5SH,DK6SH,TU
8 17110-KYY-904 PIPE COMP A, INLET •••••••••• - 1 - - 1 - - - -------- -------- 2TU,TU
17110-KYY-D00 •••••••••••••••••••••••••••• - - - - - - - 1
9 17113-KYY-901 INSULATOR, INLET PIPE A ••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
10 17115-KYY-901 PIPE B, INLET ••••••••••••••• - 1 - - 1 - - - -------- -------- 2TU,TU
17115-KYY-D00 •••••••••••••••••••••••••••• - - - - - - - 1
11 17116-KYY-902 CLAMPER, FUEL HOSE •••••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
12 31916-KPH-901 PLUG, SPARK(CPR6EA-9)(NGK) •• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
31917-KPH-901 PLUG, SPARK(CPR7EA-9)(NGK) •• - (1) - - (1) - - (1) -------- -------- 2TU,DK5SH,DK6SH,TU
•••••••••••••••••••••••••••• - 1 - - 1 - - - -------- -------- 2TU
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 2 2 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
COVER - 1 - - 1 - - 1 -------- --------2TU,DK5SH,DK6SH,TU
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 2 2 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 1 1 - -------- -------- 2PE,CL,PE
Reqd. QTY
Serial No.
2020.01.01 E
(Relative ref. Number)
Description
.INCLUDES: Engine removal and
installation
.INCLUDES: Valve adjust and
reface
.INCLUDES: Engine removal and
installation
:LEFT ••••••••••••••••••••••• 0.1
CARBURETOR •••••••••••••••••• 0.4
Parts catalogue code
F.R.T.
Page 82

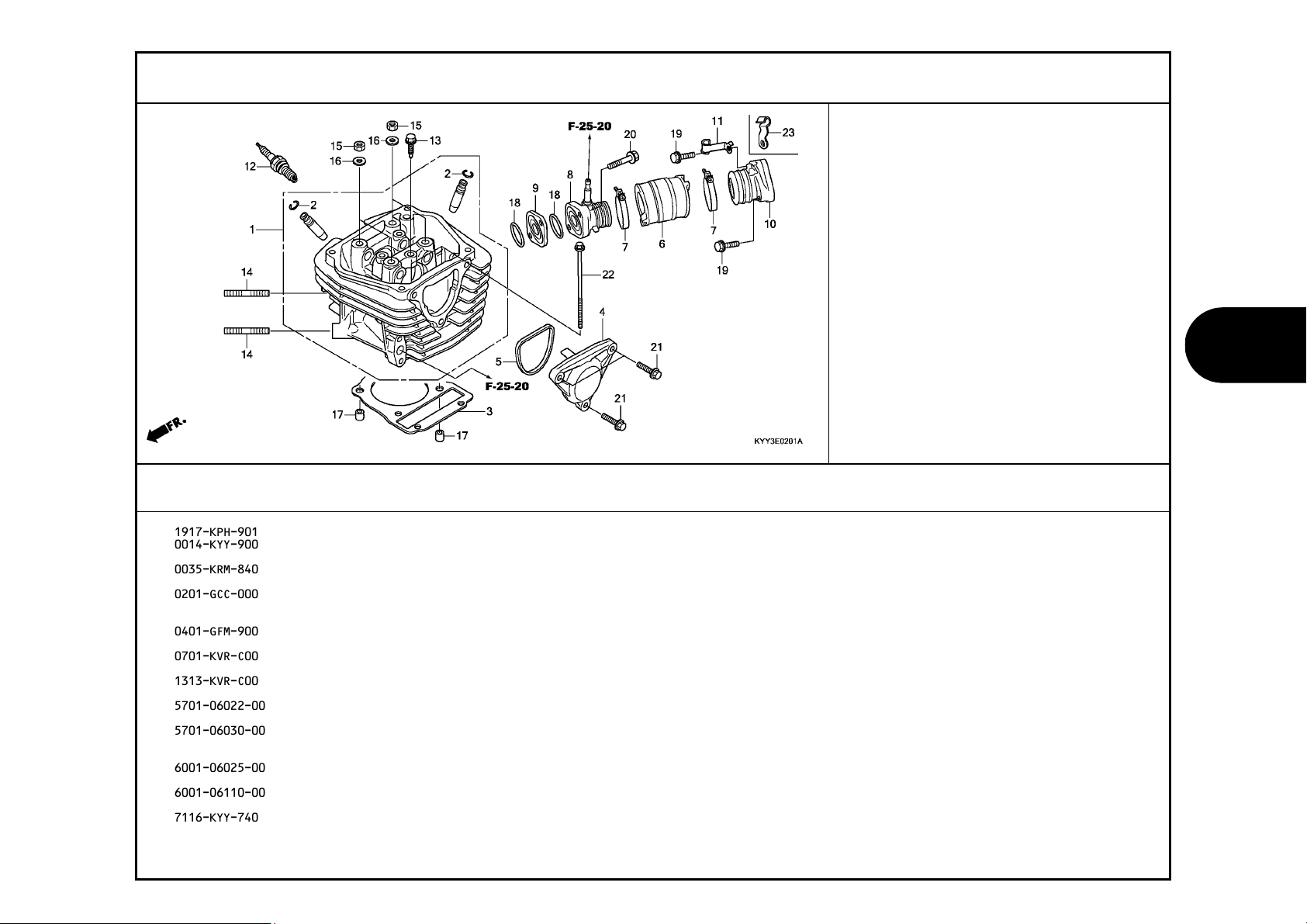

E-2-1
2
CYLINDER HEAD(2)
Ref.
No.
12) 31916-KPH-901 PLUG, SPARK(CPR6EA-9)(NGK) •• - - - - - 1 1 - -------- -------- 2PE,CL,PE
Part No. Description
31917-KPH-901 PLUG, SPARK(CPR7EA-9)(NGK) •• - - - - - (1) (1) - -------- -------- 2PE,CL,PE
13 90014-KYY-900 BOLT, SPECIAL, 6X21 ••••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
14 90035-KRM-840 BOLT, STUD, 8X22 •••••••••••• - 2 - - 2 - - 2 -------- -------- 2TU,DK5SH,DK6SH,TU
15 90201-GCC-000 NUT, HEX., 7MM •••••••••••••• - 4 - - 4 - - 4 -------- -------- 2TU,DK5SH,DK6SH,TU
16 90401-GFM-900 WASHER, 7.2X16X2.5 •••••••••• - 4 - - 4 - - 4 -------- -------- 2TU,DK5SH,DK6SH,TU
17 90701-KVR-C00 DOWEL PIN, SPECIAL, 8X14 •••• - 2 - - 2 - - 2 -------- -------- 2TU,DK5SH,DK6SH,TU
18 91313-KVR-C00 O-RING, 27X2.0 •••••••••••••• - 2 - - 2 - - 2 -------- -------- 2TU,DK5SH,DK6SH,TU
19 95701-06022-00 BOLT, FLANGE, 6X22 •••••••••• - 2 - - 2 - - 2 -------- -------- 2TU,DK5SH,DK6SH,TU
20 95701-06030-00 BOLT, FLANGE, 6X30 •••••••••• - 2 - - 2 - - 2 -------- -------- 2TU,DK5SH,DK6SH,TU
21 96001-06025-00 BOLT, FLANGE, 6X25 •••••••••• - 3 - - 3 - - 3 -------- -------- 2TU,DK5SH,DK6SH,TU
22 96001-06110-00 BOLT, FLANGE, 6X110 ••••••••• - 2 - - 2 - - 2 -------- -------- 2TU,DK5SH,DK6SH,TU
23 17116-KYY-740 CLAMPER, FUEL TUBE •••••••••• - - - - - 1 1 - -------- -------- 2PE,CL,PE
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - - - - 1 1 - -------- -------- 2PE,CL,PE
- - - - - 2 2 - -------- -------- 2PE,CL,PE
- - - - - 4 4 - -------- -------- 2PE,CL,PE
- - - - - 4 4 - -------- -------- 2PE,CL,PE
- - - - - 2 2 - -------- -------- 2PE,CL,PE
- - - - - 2 2 - -------- -------- 2PE,CL,PE
- - - - - 2 2 - -------- -------- 2PE,CL,PE
- - - - - 2 2 - -------- -------- 2PE,CL,PE
- - - - - 3 3 - -------- -------- 2PE,CL,PE
- - - - - 2 2 - -------- -------- 2PE,CL,PE
Reqd. QTY
Serial No.
2020.01.01 E
Parts catalogue code
83
Page 83
2

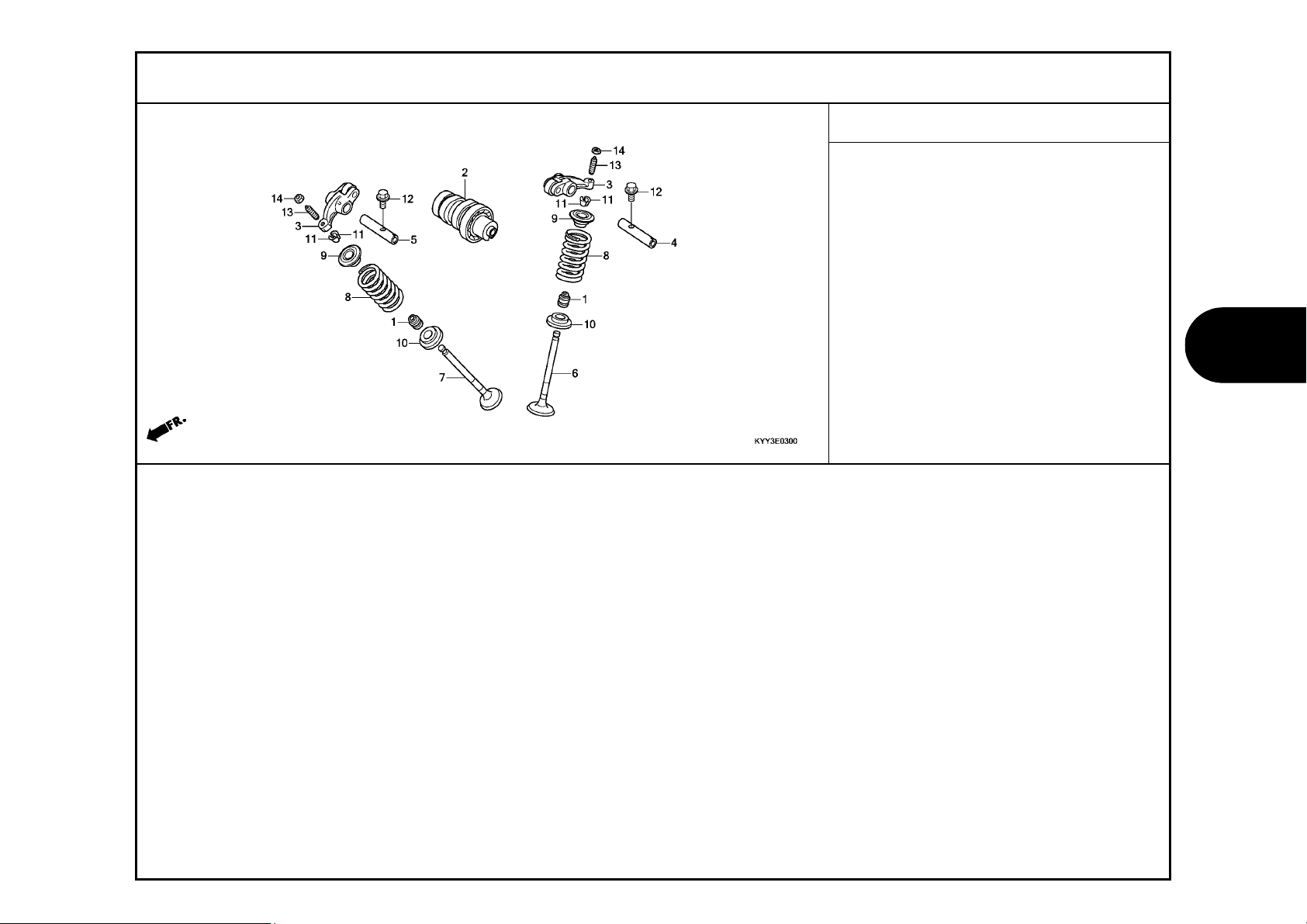

E-3
CAMSHAFT/VALVE
Ref.
No.
Part No. Description
1 12209-GB4-681 SEAL, VALVE STEM(NOK) ••••••• 2 2 2 2 2 2 2 2
12209-GB4-682 SEAL, VALVE STEM(ARAI) •••••• 2 2 2 2 2 2 2 2
2 14100-KYY-900 CAMSHAFT COMP. •••••••••••••• 1 1 1 1 1 1 1 1
3 14430-GGC-900 ARM COMP., IN. VALVE ROCKER •
14430-K09-C00 ••••••••••••••••••••••••••••
4 14451-KYY-900 SHAFT, IN. ROCKER ARM ••••••• 1 1 1 1 1 1 1 1
5 14452-KYY-900 SHAFT, EX. ROCKER ARM ••••••• 1 1 1 1 1 1 1 1
6 14711-KWB-600 VALVE, IN. •••••••••••••••••• 1 1 1 1 1 1 1 1
7 14721-KVY-900 VALVE, EX. •••••••••••••••••• 1 1 1 1 1 1 1 1
8 14751-GGC-900 SPRING, VALVE ••••••••••••••• 2 2 2 2 2 2 2 2
9 14771-GB4-680 RETAINER, VALVE SPRING •••••• 2 2 2 2 2 2 2 2
10 14775-KVY-900 SEAT, VALVE SPRING •••••••••• 2 2 2 2 2 2 2 2
11 14781-KSY-900 COTTER, VALVE ••••••••••••••• 4 4 4 4 4 4 4 4
12 90002-KRM-840 BOLT, FLANGE, 5X14 •••••••••• 2 2 2 2 2 2 2 2
13 90012-KYY-900 SCREW, TAPPET ADJUSTING ••••• 2 2 2 2 2 2 2 2
14 90206-001-000 NUT, TAPPET ADJUSTING ••••••• 2 2 2 2 2 2 2 2
(IN./EX.)
(IN./EX.)
,, - - 2 - - 2 2 - -------- -------- 2DK,2KE,2PE,3DK,3LA,3PE,4CO,CL,DK,KE,PE
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
2 2 2 2 2 2 2 2
2 2 - 2 2 - - 2 -------- --------2DK,2KE,2SA,2TU,3DK,3KE,4DK,4KE,5DK,5KE,DK
Reqd. QTY
Serial No.
Ref.
No.
2 111118 CAMSHAFT ••••••••••••••••••••• 0.7
3 (4,5)
1111K8 ARM, INTAKE VALVE ROCKER(ONE) 1.9
1111K9 ARM, EXHAUST VALVE ROCKER(ONE) 1.9
1111L8 ARM, VALVE ROCKER
6 1111N0 VALVE, INTAKE(ONE) ••••••••••• 2.2
7 1111N1 VALVE, EXHAUST(ONE) •••••••••• 2.2
+ 1111P0 VALVE :FOR 1 VEHICLE ••••••••• 2.4
DK5SH,DK6SH,KE
(Relative ref. Number)
L.O.N.
.INCLUDES: Valve adjustment
.INCLUDES: Engine removal and
installation
.INCLUDES: Valve adjustment
.INCLUDES: Engine removal and
installation
.INCLUDES: Valve adjustment
:FOR 1 VEHICLE •••••••••••••• 1.9
.INCLUDES: Engine removal and
installation
.INCLUDES: Valve adjustment
.INCLUDES: Engine removal and
installation
.INCLUDES: Refacing
.INCLUDES: Engine removal and
installation
.INCLUDES: Refacing
Description
Parts catalogue code
F.R.T.
84
2020.01.01 E
Page 84
E-3
2
CAMSHAFT/VALVE
Ref.
No.
+ 7 .INCLUDES: Engine removal and
8 (1,9,10,11)
1111P2 INTAKE VALVE SPRING AND/OR
1111P3 EXHAUST VALVE SPRING AND/OR
1111Q2 VALVE SPRING AND/OR STEM SEAL
(Relative ref. Number)
L.O.N.
installation
.INCLUDES: Refacing
STEM SEAL(ONE) •••••••••••••• 2.0
.INCLUDES: Engine removal and
installation
STEM SEAL(ONE) •••••••••••••• 2.0
.INCLUDES: Engine removal and
installation
:FOR 1 VEHICLE •••••••••••••• 2.1
.INCLUDES: Engine removal and
installation
Description
F.R.T.
85
2020.01.01 E
Page 85
2
E-4

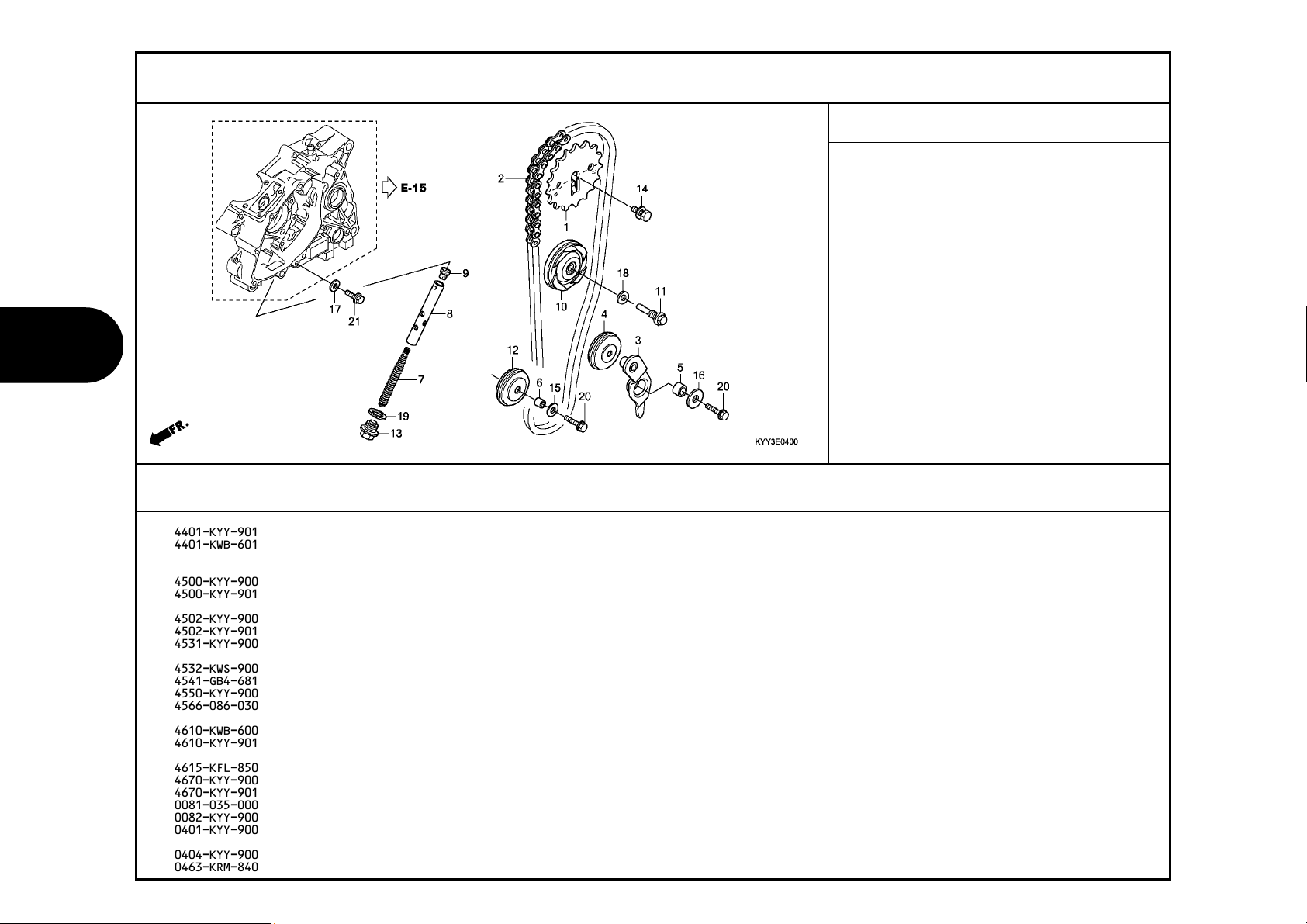

CAM CHAIN/TENSIONER
Ref.
No.
86
Part No. Description
1 14321-KYY-900 SPROCKET, CAM(32T) •••••••••• 1 1 1 1 1 1 1 1
2 14401-KYY-901 CHAIN, CAM(90L)(BEIJI) •••••• 1 1 1 1 1 1 1 1
14401-KWB-601 CHAIN, CAM(90L)(DAIDO) •••••• 1 1 - 1 1 - - 1 -------- -------- 2DK,2KE,2SA,2TU,3CO,3DK,3KE,4CO,4DK,4KE,5DK
3 14500-KYY-900 ARM COMP., CAM CHAIN TENSIONER 1 1 1 1 1 1 - -
14500-KYY-901 •••••••••••••••••••••••••••• - - - - - 1 - 1 -------- -------- DK5SH,DK6SH,KE
4 14502-KYY-900 ROLLER, CAM CHAIN TENSIONER • 1 1 - - - - - -
14502-KYY-901 •••••••••••••••••••••••••••• - - 1 1 1 1 1 1
5 14531-KYY-900 COLLAR, CAM CHAIN TENSIONER • 1 1 1 1 1 1 1 1
6 14532-KWS-900 COLLAR, CAM CHAIN ROLLER •••• 1 1 1 1 1 1 1 1
7 14541-GB4-681 SPRING, CAM CHAIN TENSIONER • 1 1 1 1 1 1 1 1
8 14550-KYY-900 ROD COMP., TENSIONER PUSH ••• 1 1 1 1 1 1 1 1
9 14566-086-030 HEAD, CAM CHAIN TENSIONER PUSH
10 14610-KWB-600 ROLLER COMP., CAM CHAIN GUIDE 1 1 - - - - - -
14610-KYY-901 •••••••••••••••••••••••••••• - - 1 1 1 1 1 1
11 14615-KFL-850 PIN, GUIDE ROLLER ••••••••••• 1 1 1 1 1 1 1 1
12 14670-KYY-900 ROLLER COMP., CAM CHAIN GUIDE 1 1 - - - - - -
14670-KYY-901 •••••••••••••••••••••••••••• - - 1 1 1 1 1 1
13 90081-035-000 BOLT, SEALING, 14MM ••••••••• 1 1 1 1 1 1 1 1
14 90082-KYY-900 BOLT-WASHER, 8X22 ••••••••••• 1 1 1 1 1 1 1 1
15 90401-KYY-900 WASHER, PLAIN, 6.5X15 ••••••• 1 1 1 1 1 1 1 1
16 90404-KYY-900 WASHER, 6.5X26X2.3 •••••••••• 1 1 1 1 1 1 1 1
17 90463-KRM-840 WASHER, SEALING, 6.2X12X1.2 • 1 1 1 1 1 1 1 1
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - 1 - - 1 1 -
- - - - - - 1 -
ROD 1 1 1 1 1 1 1 1
Reqd. QTY
2020.01.01 E
Serial No.
Ref.
No.
1 1111Q4 SPROCKET, CAM •••••••••••••••• 0.5
2 110140 CHAIN, CAM ••••••••••••••••••• 0.9
3 111151 ARM, CAM CHAIN TENSIONER ••••• 0.4
4 111148 ROLLER(S), CAM CHAIN TENSIONER 0.4
7 111136 SPRING, CAM CHAIN TENSIONER •• 0.1
8 (9)
1111Q3 ROD, CAM CHAIN TENSIONER PUSH 0.2
10 1111G4 ROLLER, CAM CHAIN GUIDE •••••• 0.4
12 1111J0 SPROCKET, CAM CHAIN GUIDE •••• 0.4
5KE,DK,DK5SH,DK6SH,KE,TU
(Relative ref. Number)
L.O.N.
Description
Parts catalogue code
F.R.T.
Page 86

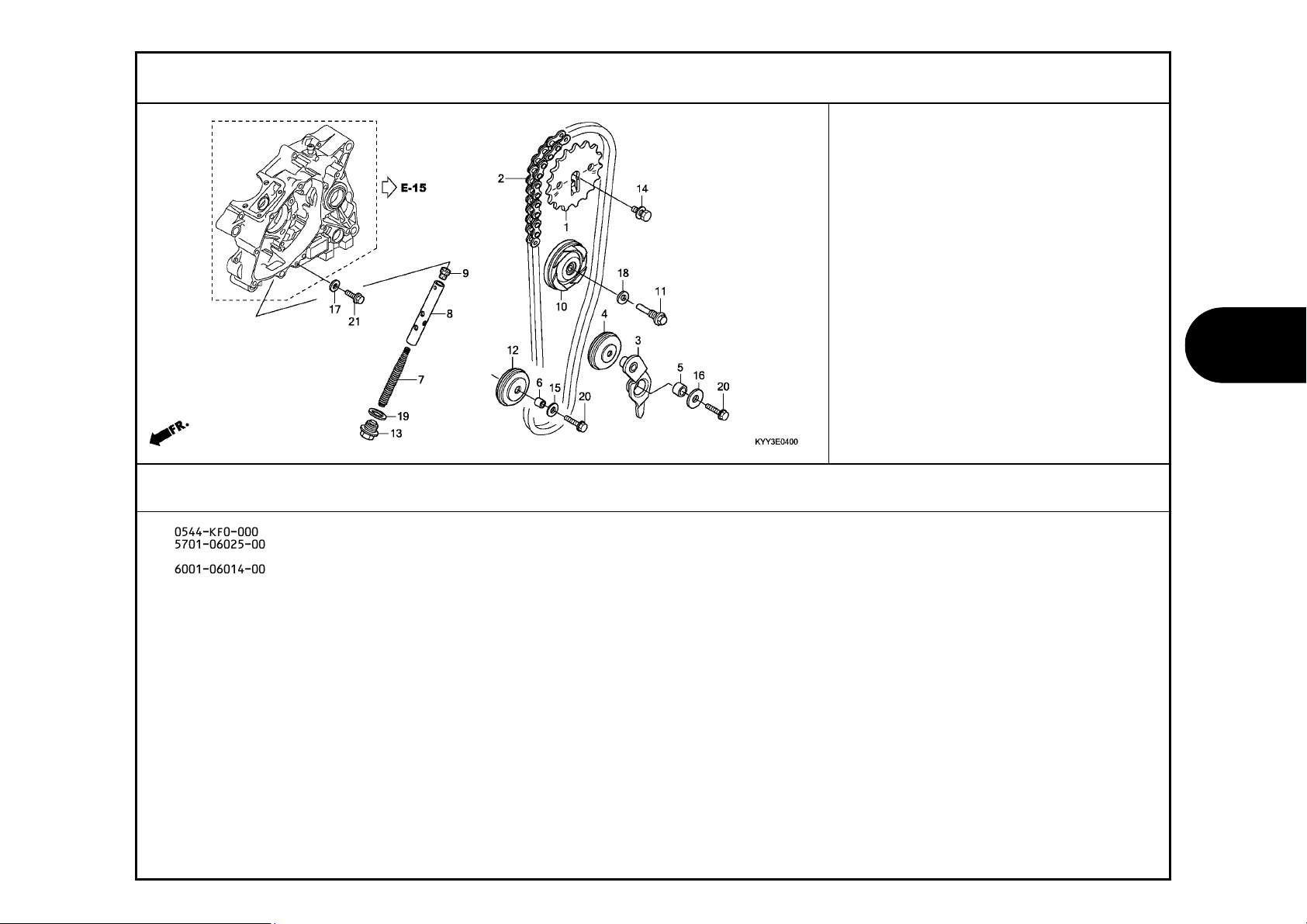

E-4
2
CAM CHAIN/TENSIONER
Ref.
No.
Part No. Description
18 90475-KWB-600 WASHER, 8MM ••••••••••••••••• 1 1 1 1 1 1 1 1
19 90544-KF0-000 WASHER, SEALING, 14MM ••••••• 1 1 1 1 1 1 1 1
20 95701-06025-00 BOLT, FLANGE, 6X25 •••••••••• 2 2 2 2 2 2 2 2
21 96001-06014-00 BOLT, FLANGE, 6X14 •••••••••• 1 1 1 1 1 1 1 1
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
Reqd. QTY
2020.01.01 E
Serial No.
Parts catalogue code
87
Page 87
2

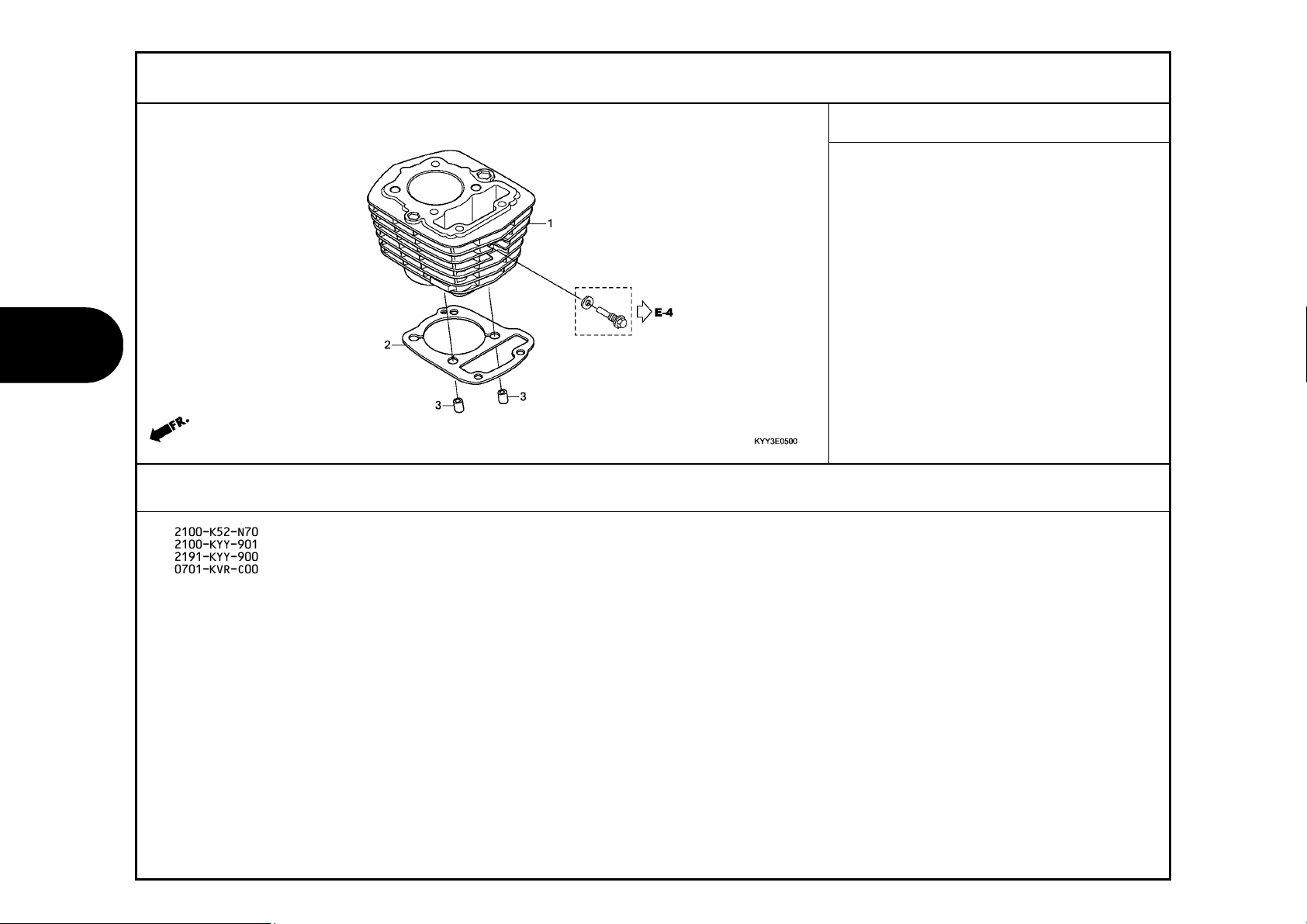

E-5
CYLINDER
Ref.
No.
1 1111A5 CYLINDER ••••••••••••••••••••• 1.9
2 111102 GASKET, CYLINDER ••••••••••••• 1.8
Ref.
No.
Part No. Description
1 12100-KYY-901 CYLINDER COMP. •••••••••••••• 1 1 1 1 - - 1 1
12100-K52-N70
12100-KYY-901 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2PE,2SA,2TU,3LA,CL,PE
2 12191-KYY-900 GASKET, CYLINDER •••••••••••• 1 1 1 1 1 1 1 1
3 90701-KVR-C00 DOWEL PIN, SPECIAL, 8X14 •••• 2 2 2 2 2 2 2 2
•••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2DK,2KE,3DK,4KE,5KE,DK,KE
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
Reqd. QTY
Serial No.
(Relative ref. Number)
L.O.N.
.INCLUDES: Engine removal and
installation
.INCLUDES: Engine removal and
installation
Description
Parts catalogue code
F.R.T.
88
2020.01.01 E
Page 88
2

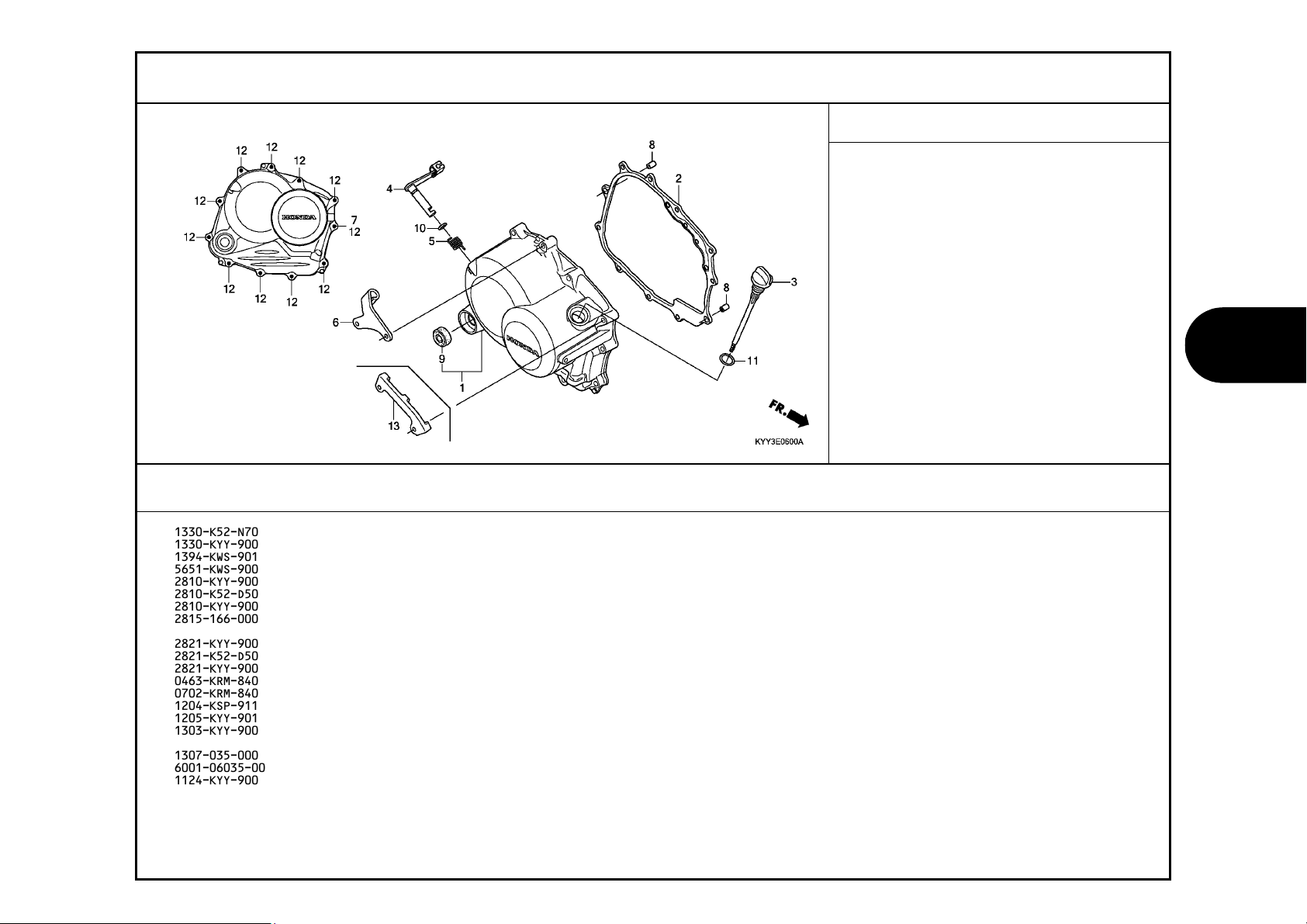

E-6
RIGHT CRANKCASE COVER
Ref.
No.
1 110159 COVER, CRANKCASE :RIGHT •••••• 0.4
2 110158 GASKET, CRANKCASE COVER :RIGHT 0.3
4 (5)
2121A7 LEVER, CLUTCH •••••••••••••••• 0.4
9 112105 OIL SEAL, KICK STARTER SPINDLE 0.3
Ref.
No.
Part No. Description
1 11330-KYY-900 COVER COMP., R. CRANKCASE ••• 1 1 1 1 - - 1 1
11330-K52-N70
11330-KYY-900 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2PE,2SA,2TU,3LA,CL,PE
2 11394-KWS-901 GASKET, R. CRANKCASE COVER •• 1 1 1 1 1 1 1 1
3 15651-KWS-900 GAUGE, OIL LEVEL •••••••••••• 1 1 1 1 1 1 1 1
4 22810-KYY-900 LEVER COMP., CLUTCH ••••••••• 1 1 1 1 - - 1 1
22810-K52-D50 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2DK,2KE,3DK,4KE,5KE,DK,KE
22810-KYY-900 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2PE,2SA,2TU,3LA,CL,PE
5 22815-166-000 SPRING, CLUTCH LEVER •••••••• 1 1 1 1 1 1 1 1
6 22821-KYY-900 RECEIVER, CLUTCH CABLE •••••• 1 1 1 1 - - 1 1
22821-K52-D50 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2DK,2KE,3DK,4KE,5KE,DK,KE
22821-KYY-900 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2PE,2SA,2TU,3LA,CL,PE
7 90463-KRM-840 WASHER, SEALING, 6.2X12X1.2 • 1 1 1 1 1 1 1 1
8 90702-KRM-840 DOWEL PIN, 8X14 ••••••••••••• 2 2 2 2 2 2 2 2
9 91204-KSP-911 OIL SEAL, 16X28X7(ARAI) ••••• 1 1 1 1 1 1 1 1
91205-KYY-901 OIL SEAL, 16X28X7 ••••••••••• 1 1 1 1 1 1 1 1
10 91303-KYY-900 O-RING, 8.8X1.9 ••••••••••••• 1 1 1 1 1 1 1 1
11 91307-035-000 O-RING, 18X3 •••••••••••••••• 1 1 1 1 1 1 1 1
12 96001-06035-00 BOLT, FLANGE, 6X35 •••••••••• 11 11 11 11 11 11 11 11
13 31124-KYY-900 CLAMPER, STARTER CABLE •••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
•••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2DK,2KE,3DK,4KE,5KE,DK,KE
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - 1 - - - 1 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2DK,2KE,2SA,2TU,3DK,5KE
- - - - - 1 - -
Reqd. QTY
Serial No.
(Relative ref. Number)
L.O.N.
Parts catalogue code
Description
F.R.T.
89
2020.01.01 E
Page 89
2
E-8
CLUTCH(1)
Ref.
No.
90
Part No. Description
1 22100-KYY-901 OUTER COMP., CLUTCH ••••••••• 1 1 1 1 - - - -
22100-KYY-D01
22100-KYY-901 •••••••••••••••••••••••••••• - - - - 1 - - - -------- -------- 2SA,2TU
2 22115-KWS-900 GUIDE, CLUTCH OUTER ••••••••• 1 1 1 1 1 1 1 1
3 22120-KWS-901 CENTER, CLUTCH •••••••••••••• 1 1 1 1 - - - -
22120-KYY-D01 •••••••••••••••••••••••••••• - - - - 1 1 1 1 -------- -------- 2DK,2KE,2PE,3DK,3LA,4KE,5KE,CL,DK,DK5SH,DK6SH
22120-KWS-901 •••••••••••••••••••••••••••• - - - - 1 - - - -------- -------- 2SA,2TU
4 22201-KWS-901 DISK, CLUTCH FRICTION ••••••• 2 2 2 2 - - - -
22201-KBW-900 •••••••••••••••••••••••••••• - - - - 2 2 2 2 -------- -------- 2DK,2KE,2PE,3DK,3LA,4KE,5KE,CL,DK,DK5SH,DK6SH
22201-KWS-901 •••••••••••••••••••••••••••• - - - - 2 - - - -------- -------- 2SA,2TU
5 22204-KWS-901 DISK B, CLUTCH FRICTION ••••• 2 2 - - - - - -
22201-KWS-901 DISK, CLUTCH FRICTION ••••••• - - 2 2 - - - - -------- -------- 2DK,2KE,3DK,3KE,4DK,5DK,DK,KE
22201-KBW-900 •••••••••••••••••••••••••••• - - - - 2 2 - - -------- -------- 2DK,2KE,3DK,4KE,5KE,DK,KE
22201-KTT-900 •••••••••••••••••••••••••••• - - - - - 2 2 2 -------- -------- 2PE,3LA,CL,DK5SH,DK6SH,PE
6 22321-KWB-601 PLATE, CLUTCH ••••••••••••••• 3 3 3 3 3 3 3 3
7 22355-KWS-901 PLATE, CLUTCH PRESSURE •••••• 1 1 1 1 - - - -
22355-KYY-D01 •••••••••••••••••••••••••••• - - - - 1 1 1 1 -------- -------- 2DK,2KE,2PE,3DK,3LA,4KE,5KE,CL,DK,DK5SH,DK6SH
22355-KWS-901 •••••••••••••••••••••••••••• - - - - 1 - - - -------- -------- 2SA,2TU
8 22361-KFM-900 PLATE, CLUTCH LIFTER •••••••• 1 1 1 1 1 1 1 1
9 22401-KYY-901 SPRING, CLUTCH •••••••••••••• 4 4 - - - - 4 4
22401-KYY-971 •••••••••••••••••••••••••••• - - 4 4 4 4 - - -------- -------- 2DK,2KE,3DK,3KE,4DK,4KE,5DK,5KE,DK,KE
22401-KYY-901 •••••••••••••••••••••••••••• - - 4 4 4 4 - - -------- -------- 2PE,2SA,2TU,3LA,3PE,4CO,CL,PE,SA
10 22847-KCC-900 ROD, CLUTCH LIFTER •••••••••• 1 1 1 1 1 1 1 1
•••••••••••••••••••••••••••• - - - - 1 1 1 1 -------- -------- 2DK,2KE,2PE,3DK,3LA,4KE,5KE,CL,DK,DK5SH,DK6SH
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - 2 2 2 - - - -------- -------- 2PE,2SA,2TU,3PE,4CO,CL,PE,SA
Reqd. QTY
2020.01.01 E
Serial No.
Ref.
No.
1 2121A0 OUTER, CLUTCH •••••••••••••••• 0.7
3 212112 CENTER, CLUTCH ••••••••••••••• 0.7
4 (5,6)
2121A1 DISC, CLUTCH FRICTION •••••••• 0.7
7 2121A3 PLATE, CLUTCH PRESSURE ••••••• 0.7
8 2121A4 PLATE, CLUTCH LIFTER ••••••••• 0.4
9 212107 SPRING, CLUTCH ••••••••••••••• 0.4
10 2121B6 ROD, CLUTCH LIFTER ••••••••••• 0.3
15 2121B4 BEARING, CLUTCH LIFTER ••••••• 0.4
KE,PE
KE,PE
KE,PE
KE,PE
(Relative ref. Number)
L.O.N.
.NOTE: Same time for two units
or more
.NOTE: Same time for two units
or more
Description
Parts catalogue code
F.R.T.
Page 90

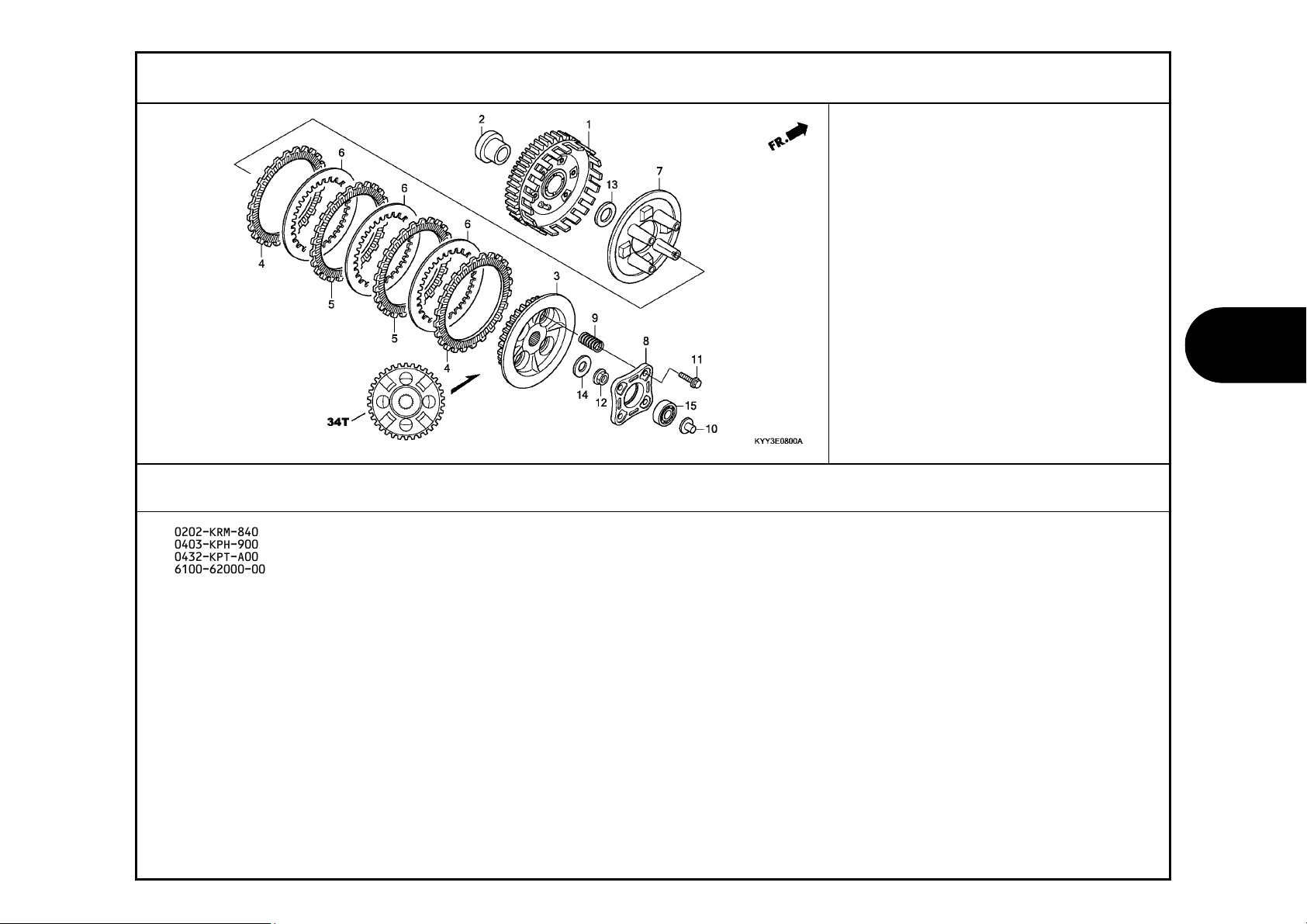

E-8
2
CLUTCH(1)
Ref.
No.
Part No. Description
11 90050-KFL-850 BOLT, SPECIAL FLANGE, 6X25 •• 4 4 4 4 4 4 4 4
12 90202-KRM-840 NUT, SPECIAL FLANGE, 14MM ••• 1 1 1 1 1 1 1 1
13 90403-KPH-900 WASHER, THRUST, 17MM •••••••• 1 1 1 1 1 1 1 1
14 90432-KPT-A00 WASHER, 14.2X26X3 ••••••••••• 1 1 1 1 1 1 1 1
15 96100-62000-00 BEARING, RADIAL BALL, 6200 •• 1 1 1 1 1 1 1 1
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
Reqd. QTY
2020.01.01 E
Serial No.
Parts catalogue code
91
Page 91
2
E-8-1

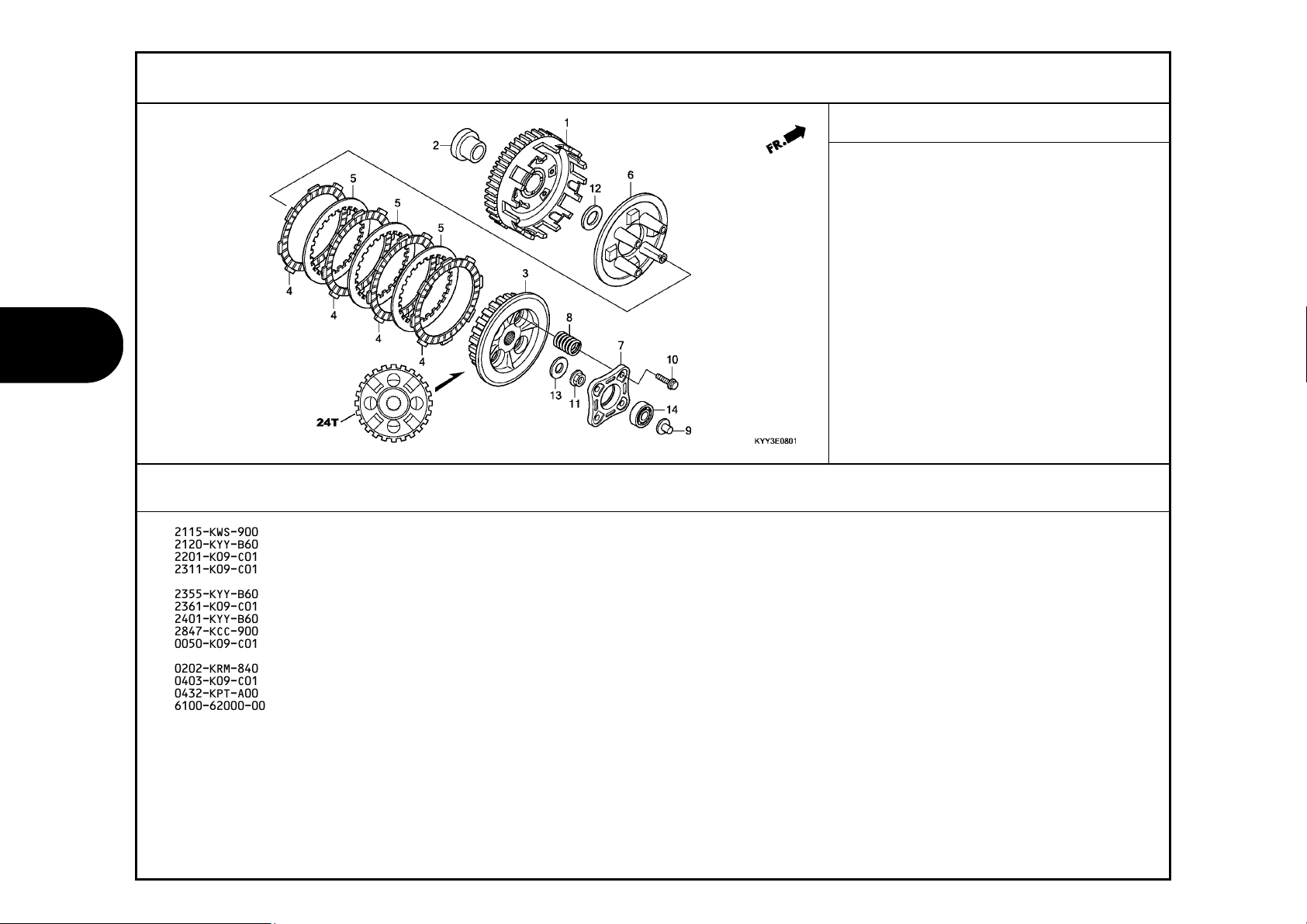

CLUTCH(2)
Ref.
No.
Part No. Description
1 22100-KYY-B60 OUTER COMP., CLUTCH ••••••••• - - - - - - - 1
2 22115-KWS-900 GUIDE, CLUTCH OUTER ••••••••• - - - - - - - 1
3 22120-KYY-B60 CENTER, CLUTCH •••••••••••••• - - - - - - - 1
4 22201-K09-C01 DISK, CLUTCH FRICTION ••••••• - - - - - - - 4
5 22311-K09-C01 PLATE, CLUTCH ••••••••••••••• - - - - - - - 3
6 22355-KYY-B60 PLATE, CLUTCH PRESSURE •••••• - - - - - - - 1
7 22361-K09-C01 PLATE, CLUTCH LIFTER •••••••• - - - - - - - 1
8 22401-KYY-B60 SPRING, CLUTCH •••••••••••••• - - - - - - - 4
9 22847-KCC-900 ROD, CLUTCH LIFTER •••••••••• - - - - - - - 1
10 90050-K09-C01 BOLT, SPECIAL FLANGE, 6X25 •• - - - - - - - 4
11 90202-KRM-840 NUT, SPECIAL FLANGE, 14MM ••• - - - - - - - 1
12 90403-K09-C01 WASHER, THRUST, 17MM •••••••• - - - - - - - 1
13 90432-KPT-A00 WASHER, 14.2X26X3 ••••••••••• - - - - - - - 1
14 96100-62000-00 BEARING, RADIAL BALL, 6200 •• - - - - - - - 1
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
Reqd. QTY
Serial No.
Ref.
No.
1 2121A0 OUTER, CLUTCH •••••••••••••••• 0.7
3 212112 CENTER, CLUTCH ••••••••••••••• 0.7
4 (5)
2121A1 DISC, CLUTCH FRICTION •••••••• 0.7
6 2121A3 PLATE, CLUTCH PRESSURE ••••••• 0.7
7 2121A4 PLATE, CLUTCH LIFTER ••••••••• 0.4
8 212107 SPRING, CLUTCH ••••••••••••••• 0.4
9 2121B6 ROD, CLUTCH LIFTER ••••••••••• 0.3
14 2121B4 BEARING, CLUTCH LIFTER ••••••• 0.4
(Relative ref. Number)
L.O.N.
.NOTE: Same time for two units
or more
.NOTE: Same time for two units
or more
Description
Parts catalogue code
F.R.T.
92
2020.01.01 E
Page 92
2
E-9
STARTING CLUTCH
Ref.
No.
1 (7)
612120 GEAR, STARTER DRIVEN ••••••••• 0.4
3 (2)
612131 OUTER, STARTING CLUTCH ••••••• 0.5
4 612125 GEAR, STARTER REDUCTION •••••• 0.4
Ref.
No.
Part No. Description
1 28111-KYY-901 GEAR, STARTER DRIVEN(58T) ••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
2 28120-K09-C01 CLUTCH, ONE WAY ••••••••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH
28120-K70-601 •••••••••••••••••••••••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
28120-KYA-901 •••••••••••••••••••••••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
28120-K09-C01 •••••••••••••••••••••••••••• - - 1 - - - 1 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE
28120-K70-601 •••••••••••••••••••••••••••• - - 1 - - - 1 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE,SA
28120-KYA-901 •••••••••••••••••••••••••••• - - 1 - - - 1 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE,SA
28120-K70-601 •••••••••••••••••••••••••••• - - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
28120-KYA-901 •••••••••••••••••••••••••••• - - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
28120-K70-601 •••••••••••••••••••••••••••• - - - - 1 - - - -------- -------- 2DK,2KE,2SA,2TU,3DK,5KE
28120-KYA-901 •••••••••••••••••••••••••••• - - - - 1 - - - -------- -------- 2DK,2KE,2SA,2TU,3DK,5KE
28120-K70-601 •••••••••••••••••••••••••••• - - - - - 1 - -
28120-KYA-901 •••••••••••••••••••••••••••• - - - - - 1 - -
28120-K09-C01 •••••••••••••••••••••••••••• - - - - - 1 - - -------- -------- 2PE,3LA,CL,PE
3 28128-KVC-900 OUTER, STARTING CLUTCH •••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
4 28131-KYY-900 GEAR, STARTER REDUCTION
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - 1 - - - 1 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2DK,2KE,2SA,2TU,3DK,5KE
- - - - - 1 - -
- - 1 - - - 1 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2DK,2KE,2SA,2TU,3DK,5KE
- - - - - 1 - -
(13T/43T) - 1 - - - - - 1 -------- --------2TU,DK5SH,DK6SH,TU
- - 1 - - - 1 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2DK,2KE,2SA,2TU,3DK,5KE
- - - - - 1 - -
Reqd. QTY
Serial No.
2020.01.01 E
(Relative ref. Number)
L.O.N.
Parts catalogue code
Description
F.R.T.
93
Page 93
E-9
2
STARTING CLUTCH
Ref.
No.
Part No. Description
5 28132-KWS-900 SHAFT, REDUCTION GEAR ••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
6 90085-KTC-920 BOLT, SOCKET, 6X14 •••••••••• - 6 - - - - - 6 -------- -------- 2TU,DK5SH,DK6SH,TU
7 91011-KYY-901 BEARING, NEEDLE, 21X27X18(NRB) - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH,TU
91011-K03-C21 BEARING, NEEDLE, 21X27X18 ••• - - - - - - - 1
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - 1 - - - 1 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2DK,2KE,2SA,2TU,3DK,5KE
- - - - - 1 - -
- - 6 - - - 6 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE,SA
- - - 6 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 6 - - - -------- -------- 2DK,2KE,2SA,2TU,3DK,5KE
- - - - - 6 - -
- - 1 - - - 1 - -------- -------- 2PE,3LA,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2DK,2KE,2SA,2TU,3DK,5KE
- - - - - 1 - -
Reqd. QTY
Serial No.
94
2020.01.01 E
Parts catalogue code
Page 94
2
E-10

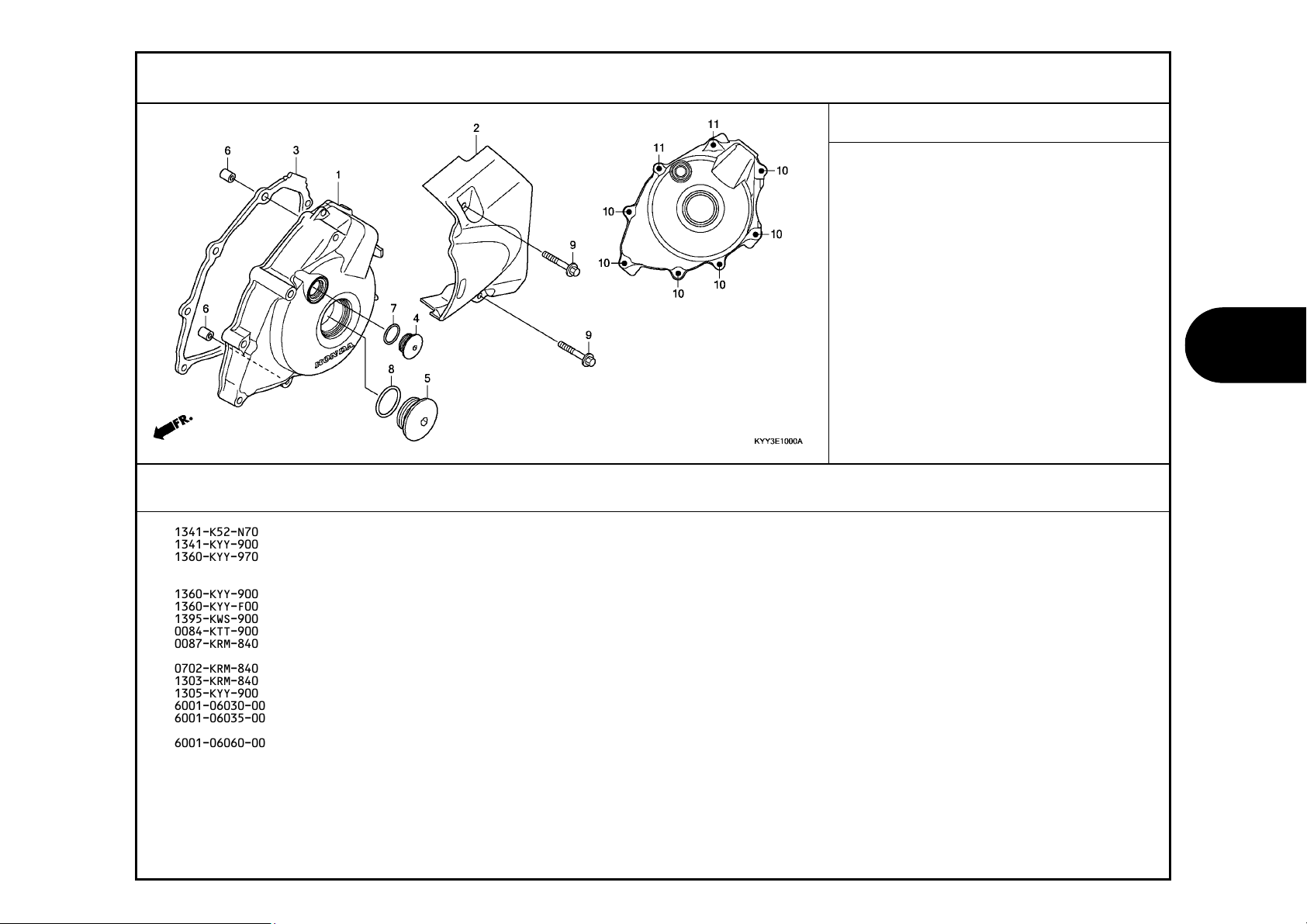

LEFT CRANKCASE COVER
Ref.
No.
1 1101A6 COVER, CRANKCASE :LEFT ••••••• 0.4
2 1101B0 COVER, CRANKCASE :LEFT REAR •• 0.1
3 1101A3 GASKET, CRANKCASE COVER :LEFT 0.3
Ref.
No.
Part No. Description
1 11341-KYY-900 COVER, L. CRANKCASE ••••••••• 1 1 1 1 - - 1 1
11341-K52-N70
11341-KYY-900 •••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2PE,2SA,2TU,3LA,CL,PE
2 11360-KYY-970 COVER COMP., L. RR. ••••••••• 1 1 1 1 1 1 1 - -------- -------- 2AG,2CL,2DK,2KE,2PE,2SA,3AG,3CO,3DK,3KE,3LA
11360-KYY-900 •••••••••••••••••••••••••••• - 1 1 - 1 - - - -------- -------- 2TU,SA,TU
11360-KYY-F00 •••••••••••••••••••••••••••• - - - - - - - 1
3 11395-KWS-900 GASKET, L. CRANKCASE COVER •• 1 1 1 1 1 1 1 1
4 90084-KTT-900 CAP, 14MM ••••••••••••••••••• 1 1 1 1 1 1 1 1
5 90087-KRM-840 CAP, 32MM ••••••••••••••••••• 1 1 1 1 1 1 1 1
6 90702-KRM-840 DOWEL PIN, 8X14 ••••••••••••• 2 2 2 2 2 2 2 2
7 91303-KRM-840 O-RING, 13.8X2.5 •••••••••••• 1 1 1 1 1 1 1 1
8 91305-KYY-900 O-RING, 31.7X2.4 •••••••••••• 1 1 1 1 1 1 1 1
9 96001-06030-00 BOLT, FLANGE, 6X30 •••••••••• 2 2 2 2 2 2 2 2
10 96001-06035-00 BOLT, FLANGE, 6X35 •••••••••• 6 6 6 6 6 6 6 6
11 96001-06060-00 BOLT, FLANGE, 6X60 •••••••••• 2 2 2 2 2 2 2 2
•••••••••••••••••••••••••••• - - - - 1 1 - - -------- -------- 2DK,2KE,3DK,4KE,5KE,DK,KE
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
Reqd. QTY
Serial No.
3PE,4AG,4CO,4DK,4KE,5AG,5DK,5KE,AG,CL,DK,KE,MX
PE
(Relative ref. Number)
L.O.N.
Description
Parts catalogue code
F.R.T.
95
2020.01.01 E
Page 95
2
E-11
GENERATOR
Ref.
No.
1 613105 ROTOR OR FLYWHEEL •••••••••••• 0.5
2 6131A3 STATOR ••••••••••••••••••••••• 0.6
Ref.
No.
96
Part No. Description
1 31110-KYY-972 FLYWHEEL COMP.(MITSUBA) ••••• 1 1 - - - - - - -------- -------- 2AG,2CL,2PE,3AG,3CO,3DK,4AG,4CO,5AG,AG,CL,DK
31110-KYY-931 FLYWHEEL COMP.(GCE) ••••••••• - 1 - - 1 - - 1 -------- -------- 2TU,DK5SH,DK6SH
31110-KYY-901 FLYWHEEL COMP.(MITSUBA) ••••• - 1 - - 1 - - - -------- -------- 2TU,TU
31110-KYY-S01 •••••••••••••••••••••••••••• - - 1 1 1 - - - -------- -------- 2PE,2SA,3PE,4CO,CL,DK,PE,SA
31110-KYY-972 •••••••••••••••••••••••••••• - - 1 - - - - - -------- -------- 2DK,2KE,3DK,KE
31110-K51-601 FLYWHEEL COMP. •••••••••••••• - - - 1 - - 1 - -------- -------- 2KE,3KE,3LA,4DK,5DK
31110-KYY-972 FLYWHEEL COMP.(MITSUBA) ••••• - - - 1 - - - - -------- -------- 2DK,3DK,KE
31110-K51-601 FLYWHEEL COMP. •••••••••••••• - - - - 1 - - - -------- -------- 2DK,2KE,3DK,5KE
31110-K52-N71 •••••••••••••••••••••••••••• - - - - 1 - - - -------- -------- 4KE,KE
31110-KYY-931 FLYWHEEL COMP.(GCE) ••••••••• - - - - - 1 1 - -------- -------- 2PE,CL,PE
31110-K51-601 FLYWHEEL COMP. •••••••••••••• - - - - - 1 - - -------- -------- 3LA,DK,KE
2 31120-KYY-971 STATOR COMP.(MITSUBA) ••••••• 1 1 - - - - - - -------- -------- 2AG,2CL,2PE,3AG,3CO,3DK,4AG,4CO,5AG,AG,CL,DK
31120-KYY-901 •••••••••••••••••••••••••••• - 1 - 1 1 - - - -------- -------- 2SA,2TU,TU
31120-KYY-931 STATOR COMP.(GCE) ••••••••••• - 1 - - 1 - - - -------- -------- 2TU
31120-KYY-971 STATOR COMP.(MITSUBA) ••••••• - - 1 - - - - - -------- -------- 2DK,2KE,3DK,KE
31120-KYY-901 •••••••••••••••••••••••••••• - - 1 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
31120-K51-601 STATOR COMP. •••••••••••••••• - - - 1 - - 1 - -------- -------- 2KE,3KE,3LA,4DK,5DK
31120-KYY-971 STATOR COMP.(MITSUBA) ••••••• - - - 1 - - - - -------- -------- 2DK,3DK,KE
31120-K51-601 STATOR COMP. •••••••••••••••• - - - - 1 - - - -------- -------- 2DK,2KE,3DK,5KE
31120-K52-N71 •••••••••••••••••••••••••••• - - - - 1 - - - -------- -------- 4KE,KE
31120-KYY-931 STATOR COMP.(GCE) ••••••••••• - - - - - 1 1 - -------- -------- 2PE,CL,PE
31120-K51-601 STATOR COMP. •••••••••••••••• - - - - - 1 - - -------- -------- 3LA,DK,KE
31120-KYY-H01 •••••••••••••••••••••••••••• - - - - - - - 1
3 90439-GFM-970 WASHER, 12X24X2.3 ••••••••••• 1 1 1 1 1 1 1 1
4 94050-12000 NUT, FLANGE, 12MM ••••••••••• 1 1 1 1 1 1 1 1
5 96001-06016-00 BOLT, FLANGE, 6X16 •••••••••• 2 2 2 2 2 2 2 2
6 96001-06022-00 BOLT, FLANGE, 6X22 •••••••••• 3 3 3 3 3 3 3 3
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
Reqd. QTY
Serial No.
MX,PE
MX,PE
2020.01.01 E
(Relative ref. Number)
L.O.N.
Description
Parts catalogue code
F.R.T.
Page 96
2
E-13
STARTER MOTOR(MITSUBA)
Ref.
No.
1 (10)
2 (3,6)
5 6121A5 HOLDER, BRUSH(STARTER) ••••••• 0.6
Ref.
No.
Part No. Description
1 31200-KYY-901 MOTOR ASSY., STARTER •••••••• - 1 - - - - - - -------- -------- 2TU,TU
2 31201-KYY-901 BRUSH SET, TERMINAL ••••••••• - 1 - - - - - - -------- -------- 2TU,TU
3 31204-KYY-901 SPRING, BRUSH ••••••••••••••• - 2 - - - - - - -------- -------- 2TU,TU
4 31205-KYY-901 BOLT, SETTING ••••••••••••••• - 2 - - - - - - -------- -------- 2TU,TU
5 31206-KSS-901 HOLDER SET, BRUSH ••••••••••• - 1 - - - - - - -------- -------- 2TU,TU
6 31207-KYY-901 RING •••••••••••••••••••••••• - 2 - - - - - - -------- -------- 2TU,TU
7 31209-KSS-901 COLLAR •••••••••••••••••••••• - 1 - - - - - - -------- -------- 2TU,TU
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - 1 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2SA,2TU
- - 1 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2SA,2TU
- - 2 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 2 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 2 - - - -------- -------- 2SA,2TU
- - 2 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 2 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 2 - - - -------- -------- 2SA,2TU
- - 1 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2SA,2TU
- - 2 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 2 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 2 - - - -------- -------- 2SA,2TU
- - 1 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2SA,2TU
Reqd. QTY
Serial No.
2020.01.01 E
(Relative ref. Number)
L.O.N.
612105 MOTOR, STARTING •••••••••••••• 0.4
6121A4 TERMINAL, BRUSH(STARTER) ••••• 0.6
Description
Parts catalogue code
F.R.T.
97
Page 97

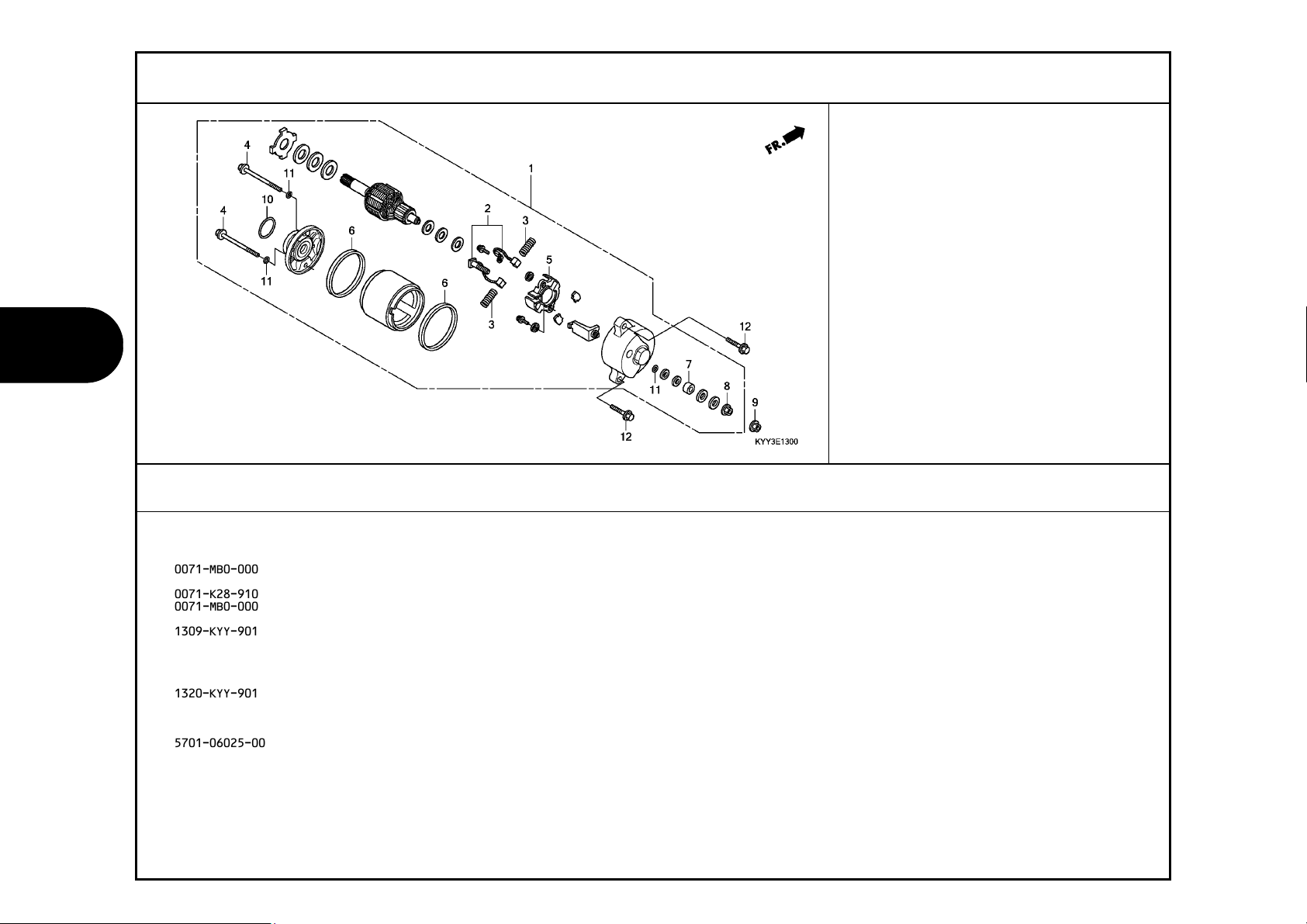

E-13
2
STARTER MOTOR(MITSUBA)
Ref.
No.
Part No. Description
8 90071-KYY-901 NUT-WASHER, 6MM ••••••••••••• - 1 - - - - - - -------- -------- 2TU,TU
9 90071-MB0-000 NUT-WASHER, 6MM ••••••••••••• - 1 - - - - - - -------- -------- 2TU,TU
90071-K28-910 •••••••••••••••••••••••••••• - - 1 - - - - - -------- -------- 4CO
90071-MB0-000 •••••••••••••••••••••••••••• - - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
10 91309-KYY-901 O-RING •••••••••••••••••••••• - 1 - - - - - - -------- -------- 2TU,TU
11 91320-KYY-901 O-RING •••••••••••••••••••••• - 3 - - - - - - -------- -------- 2TU,TU
12 95701-06025-00 BOLT, FLANGE, 6X25 •••••••••• - 2 - - - - - - -------- -------- 2TU,TU
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - 1 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2SA,2TU
- - 1 - - - - - -------- -------- 2PE,3PE,CL,DK,PE,SA
- - - - 1 - - - -------- -------- 2SA,2TU
- - 1 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 1 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 1 - - - -------- -------- 2SA,2TU
- - 3 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 3 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 3 - - - -------- -------- 2SA,2TU
- - 2 - - - - - -------- -------- 2PE,3PE,4CO,CL,DK,PE,SA
- - - 2 - - - - -------- -------- 2KE,2SA,3KE,4DK,5DK
- - - - 2 - - - -------- -------- 2SA,2TU
Reqd. QTY
Serial No.
98
2020.01.01 E
Parts catalogue code
Page 98
2
E-13-1
STARTER MOTOR(YUHUAN AVIATION MACHINARY)
Ref.
No.
1 (7)
612105 MOTOR, STARTING •••••••••••••• 0.4
2 (11)
6121A4 TERMINAL, BRUSH(STARTER) ••••• 0.6
10 6121A5 HOLDER, BRUSH(STARTER) ••••••• 0.6
Ref.
No.
Part No. Description
1 31200-KYY-931 MOTOR ASSY., STARTER •••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH
2 31201-KPH-W00 BRUSH SET, TERMINAL ••••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH
3 31205-KPH-W00 BOLT, SETTING ••••••••••••••• - 2 - - - - - 2 -------- -------- 2TU,DK5SH,DK6SH
4 31209-KYY-931 COLLAR •••••••••••••••••••••• - 2 - - - - - 2 -------- -------- 2TU,DK5SH,DK6SH
5 90071-KYY-931 NUT-WASHER, 6MM ••••••••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH
6 90071-MB0-000 NUT-WASHER, 6MM ••••••••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH
90071-K28-910 •••••••••••••••••••••••••••• - - 1 - - - - - -------- -------- 4CO
90071-MB0-000 •••••••••••••••••••••••••••• - - - - 1 - 1 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
7 91309-KYY-931 O-RING, 24.4X3.1 •••••••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - 1 - - - - - -------- -------- 4CO
- - - - 1 - 1 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 1 - - -------- -------- 2PE,3LA,CL,KE,PE
- - 1 - - - - - -------- -------- 4CO
- - - - 1 - 1 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 1 - - -------- -------- 2PE,3LA,CL,KE,PE
- - 2 - - - - - -------- -------- 4CO
- - - - 2 - 2 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 2 - - -------- -------- 2PE,3LA,CL,KE,PE
- - 2 - - - - - -------- -------- 4CO
- - - - 2 - 2 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 2 - -
- - 1 - - - - - -------- -------- 4CO
- - - - 1 - 1 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 1 - -
- - - - - 1 - -
- - 1 - - - - - -------- -------- 4CO
- - - - 1 - 1 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 1 - -
Reqd. QTY
Serial No.
2020.01.01 E
(Relative ref. Number)
L.O.N.
Description
Parts catalogue code
F.R.T.
99
Page 99

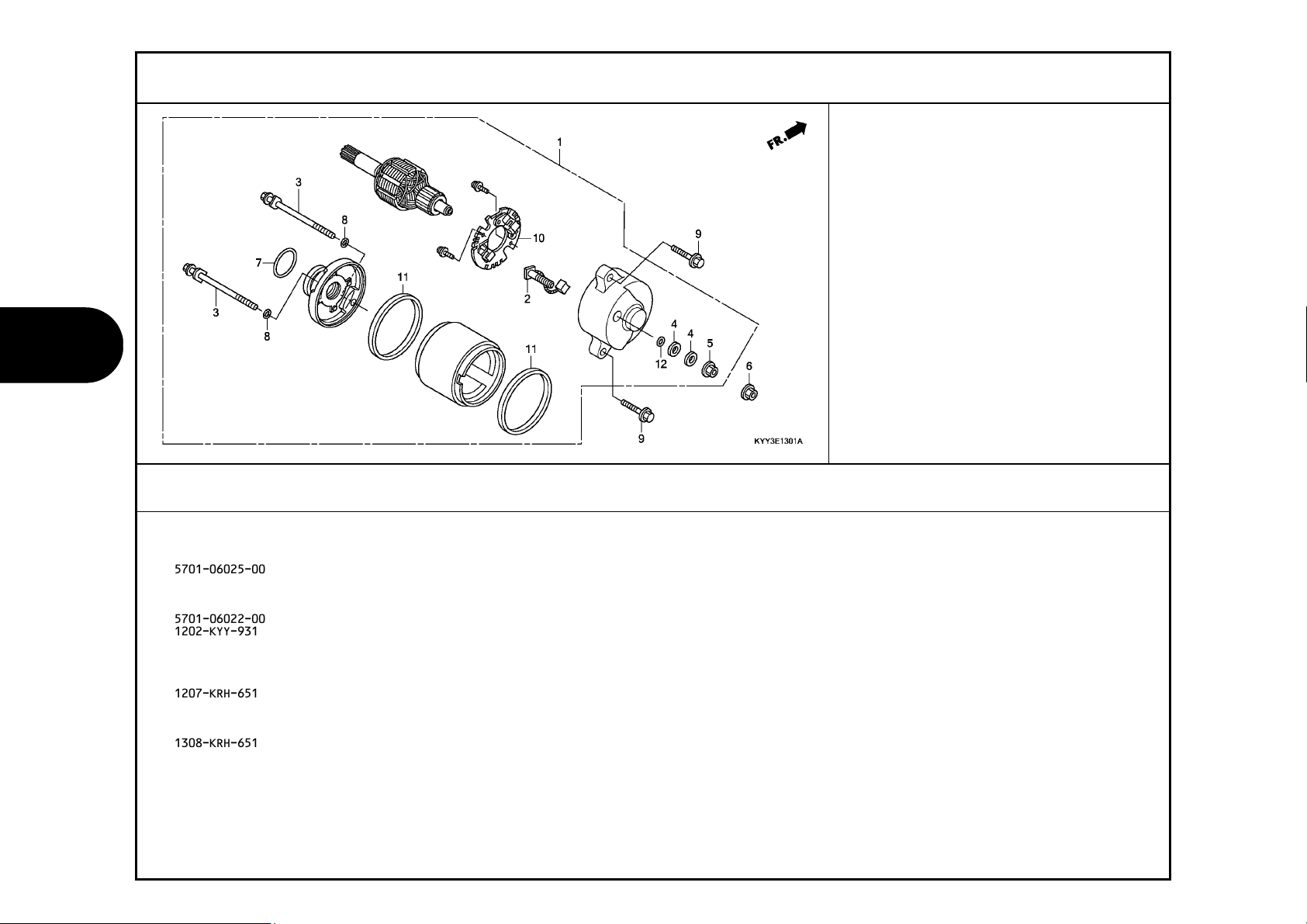

E-13-1
2
STARTER MOTOR(YUHUAN AVIATION MACHINARY)
Ref.
No.
Part No. Description
8 91320-KPH-W00 O-RING •••••••••••••••••••••• - 2 - - - - - 2 -------- -------- 2TU,DK5SH,DK6SH
9 95701-06025-00 BOLT, FLANGE, 6X25 •••••••••• - 2 - - - - - - -------- -------- 2TU
95701-06022-00 BOLT, FLANGE, 6X22 •••••••••• - - - - - - - 2
10 31202-KYY-931 HOLDER ASSY., BRUSH ••••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH
11 31207-KRH-651 RING •••••••••••••••••••••••• - 2 - - - - - 2 -------- -------- 2TU,DK5SH,DK6SH
12 91308-KRH-651 PACKING ••••••••••••••••••••• - 1 - - - - - 1 -------- -------- 2TU,DK5SH,DK6SH
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
- - 2 - - - - - -------- -------- 4CO
- - - - 2 - 2 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 2 - - -------- -------- 2PE,3LA,CL,KE,PE
- - 2 - - - - - -------- -------- 4CO
- - - - 2 - 2 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 2 - -
- - 1 - - - - - -------- -------- 4CO
- - - - 1 - 1 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 1 - - -------- -------- 2PE,3LA,CL,KE,PE
- - 2 - - - - - -------- -------- 4CO
- - - - 2 - 2 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 2 - - -------- -------- 2PE,3LA,CL,KE,PE
- - 1 - - - - - -------- -------- 4CO
- - - - 1 - 1 - -------- -------- 2DK,2KE,2PE,2TU,3DK,3LA,5KE,CL,PE
- - - - - 1 - - -------- -------- 2PE,3LA,CL,KE,PE
Reqd. QTY
Serial No.
100
2020.01.01 E
Parts catalogue code
Page 100
2
E-14
OIL PUMP
Ref.
No.
2 (3)
113105 PUMP ASSY., OIL •••••••••••••• 0.4
5 (6)
1131C7 ROTOR, OIL PUMP •••••••••••••• 0.5
7 1131B5 SCREEN, OIL FILTER ••••••••••• 0.3
8 1101L0 ROTOR, OIL FILTER •••••••••••• 0.5
10 (9)
1101L1 CAP, OIL FILTER ROTOR •••••••• 0.4
Ref.
No.
Part No. Description
1 12396-KRM-840 GASKET B, HEAD COVER •••••••• 1 1 1 1 1 1 1 1
2 15100-KYY-900 PUMP ASSY., OIL ••••••••••••• 1 1 1 1 1 1 1 1
3 15119-KWS-901 GASKET, OIL PUMP •••••••••••• 1 1 1 1 1 1 1 1
4 15133-KYY-900 GEAR, OIL PUMP DRIVEN(23T) •• 1 1 1 1 1 1 1 1
5 15331-KYY-900 ROTOR, OIL PUMP INNER ••••••• 1 1 1 1 1 1 1 1
6 15332-KYY-900 ROTOR, OIL PUMP OUTER ••••••• 1 1 1 1 1 1 1 1
7 15421-KSP-910 SCREEN, OIL FILTER •••••••••• 1 1 1 1 1 1 1 1
8 15431-KWS-900 ROTOR, OIL FILTER ••••••••••• 1 1 1 1 - - - -
15431-K08-900 •••••••••••••••••••••••••••• - - - - 1 1 1 1 -------- -------- 2DK,2KE,2PE,2SA,3DK,3LA,4KE,5KE,CL,DK,DK5SH
15431-KWS-900 •••••••••••••••••••••••••••• - - - - 1 - - - -------- -------- 2TU
9 15439-KWS-901 GASKET, OIL FILTER COVER •••• 1 1 1 1 1 1 1 1
10 15441-KWS-900 COVER, OIL FILTER ••••••••••• 1 1 1 1 1 1 1 1
11 90202-KRM-840 NUT, SPECIAL FLANGE, 14MM ••• 1 1 1 1 1 1 1 1
12 90432-KPT-A00 WASHER, 14.2X26X3 ••••••••••• 1 1 1 1 1 1 1 1
13 90455-KWS-900 WASHER, 9.2MM ••••••••••••••• 1 1 1 1 1 1 1 1
14 90702-KRM-840 DOWEL PIN, 8X14 ••••••••••••• 3 3 3 3 3 3 3 3
15 93901-34120 SCREW, TAPPING, 4X8 ••••••••• 1 1 1 1 1 1 1 1
16 94540-06018 E-RING, 6MM ••••••••••••••••• 1 1 1 1 1 1 1 1
17 95701-06014-00 BOLT, FLANGE, 6X14 •••••••••• 3 3 3 3 3 3 3 3
18 96001-06035-00 BOLT, FLANGE, 6X35 •••••••••• 3 3 3 3 3 3 3 3
19 96220-30158 ROLLER, 3X15.8 •••••••••••••• 1 1 1 1 1 1 1 1
CGX125
SH SH SH SH SH TF TF 5/6SH
C D E F H H K L
Reqd. QTY
Serial No.
DK6SH,KE,PE
(Relative ref. Number)
L.O.N.
Description
Parts catalogue code
F.R.T.
101
2020.01.01 E
Loading...
