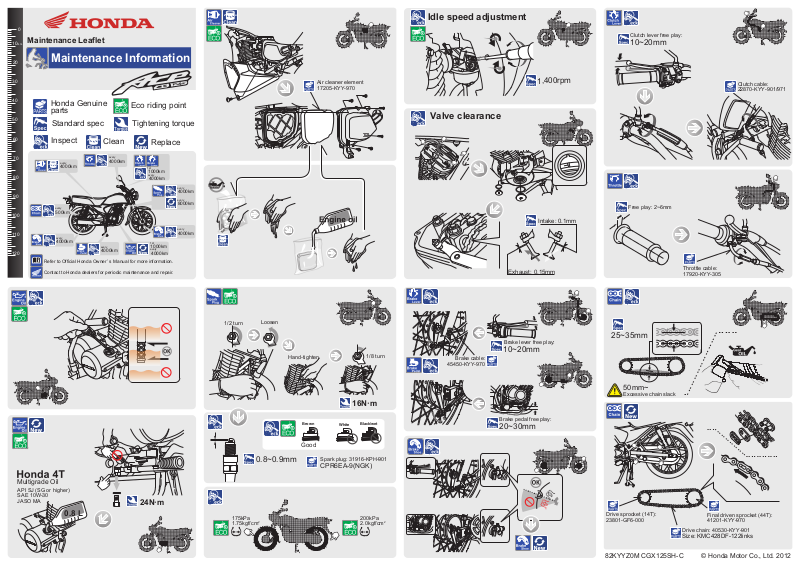

Maintenance Leaflet
mm
10
Idle speed adjustment
Clutch lever free play:
10~20mm
20
30
40
50
60
70
80
90
100
110
120
Maintenance Information
Honda Genuine
parts
Standard spec Tightening torque
Inspect
every
4000km
every
500km
every
4000km
Refer to Official Honda Owner’ s Manual for more information.
Contact to Honda dealers for periodic maintenance and repair.
Clean
every
4000km
every
4000km
Eco riding point
Replace
1st
1000km
every
4000km
1st
1000km
every
4000km
every
4000km
every
8000km
every
4000km
Air cleaner element
17205-KYY-970
Valve clearance
1,400rpm
Intake: 0.1mm
Exhaust: 0.15mm
Clutch cable:
22870-KYY-901/971
Free play: 2~6mm
Throttle cable:
17920-KYY-305
Multigrade Oil
API SJ (SG or higher)
SAE 10W-30
JASO MA
0.8 L
24N·m
1/2 turn
175kPa
1.75kgf/cm
Loosen
Hand-tighten
0.8~0.9mm
2
Brown
White
Good
Spark plug: 31916-KPH-901
CPR6EA-9(NGK)
1/8 turn
16N·m
Black/wet
200kPa
2.0kgf/cm
Brake lever free play:
10~20mm
25~35mm
Brake cable:
45450-KYY-970
50mm~
Excessive chain slack
Brake pedal free play:
20~30mm
Drive sprocket (14T):
2
23801-GF6-000
Drive chain: 40530-KYY-901
Size: KMC428DF-122links
Final driven sprocket (44T):
41201-KYY-970
© Honda Motor Co., Ltd. 201282KYYZ0M CGX125SH-C
