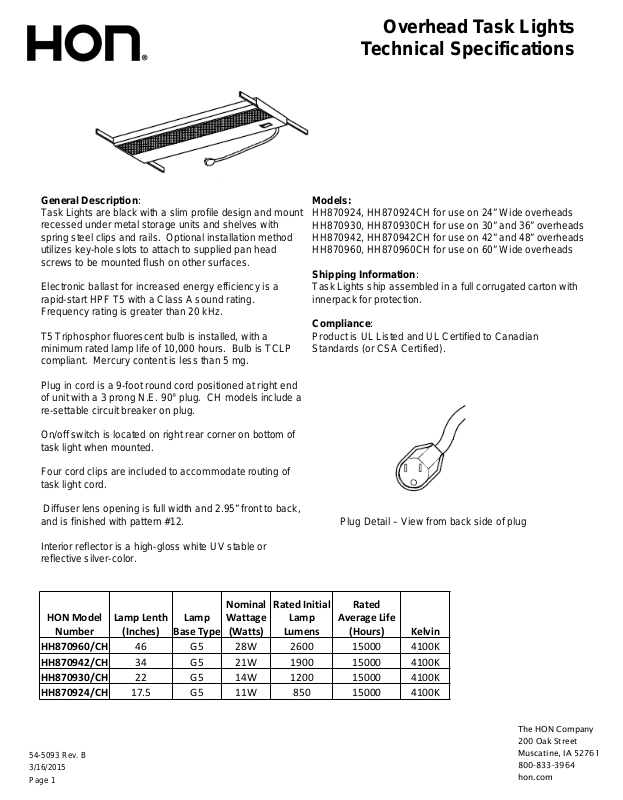

Overhead Task Lights
Technical Specifications
General Description:
Task Lights are black with a slim profile design and mount
recessed under metal storage units and shelves with
spring steel clips and rails. Optional installation method
utilizes key-hole slots to attach to supplied pan head
screws to be mounted flush on other surfaces.
Electronic ballast for increased energy efficiency is a
rapid-start HPF T5 with a Class A sound rating.
Frequency rating is greater than 20 kHz.
T5 Triphosphor fluorescent bulb is installed, with a
minimum rated lamp life of 10,000 hours. Bulb is TCLP
compliant. Mercury content is less than 5 mg.
Plug in cord is a 9-foot round cord positioned at right end
of unit with a 3 prong N.E. 90° plug. CH models include a
re-settable circuit breaker on plug.
On/off switch is located on right rear corner on bottom of
task light when mounted.
Four cord clips are included to accommodate routing of
task light cord.
Diffuser lens opening is full width and 2.95” front to back,
and is finished with pattern #12.
Interior reflector is a high-gloss white UV stable or
reflective silver-color.
Models:
HH870924, HH870924CH for use on 24” Wide overheads
HH870930, HH870930CH for use on 30” and 36” overheads
HH870942, HH870942CH for use on 42” and 48” overheads
HH870960, HH870960CH for use on 60” Wide overheads
Shipping Information:
Task Lights ship assembled in a full corrugated carton with
innerpack for protection.
Compliance:
Product is UL Listed and UL Certified to Canadian
Standards (or CSA Certified).
Plug Detail – View from back side of plug
HON Model
Number
HH870960/CH
HH870942/CH
HH870930/CH
HH870924/CH
54-5093 Rev. B
3/16/2015
Page 1
Lamp Lenth
(Inches)
Lamp
Base Type
Nominal
Wattage
(Watts)
Rated Initial
Lamp
Lumens
Rated
Average Life
(Hours) Kelvin
46 G5 28W 2600 15000 4100K
34 G5 21W 1900 15000 4100K
22 G5 14W 1200 15000 4100K
17.5 G5 11W 850 15000 4100K
