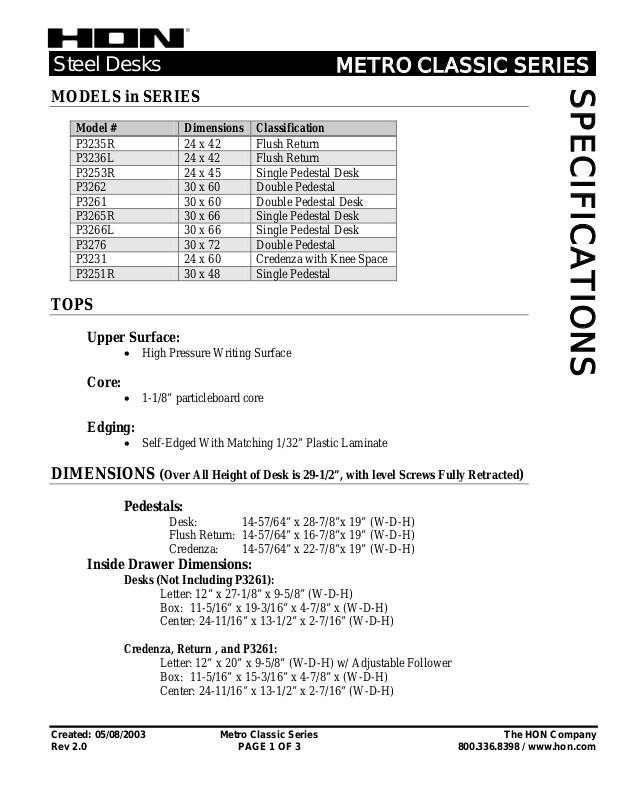

Page 1
S
Steel Desks
MODELS in SERIES
Model # Dimensions Classification
P3235R 24 x 42 Flush Return
P3236L 24 x 42 Flush Return
P3253R 24 x 45 Single Pedestal Desk
P3262 30 x 60 Double Pedestal
P3261 30 x 60 Double Pedestal Desk
P3265R 30 x 66 Single Pedestal Desk
P3266L 30 x 66 Single Pedestal Desk
P3276 30 x 72 Double Pedestal
P3231 24 x 60 Credenza with Knee Space
P3251R 30 x 48 Single Pedestal
TOPS
Upper Surface:
• High Pressure Writing Surface
Core:
• 1-1/8” particleboard core
Edging:
• Self-Edged With Matching 1/32” Plastic Laminate
METRO CLASSIC SERIE
SPECIFICATIONS
DIMENSIONS (Over All Height of Desk is 29-1/2”, with level Screws Fully Retracted)
Pedestals:
Desk: 14-57/64” x 28-7/8”x 19” (W-D-H)
Flush Return: 14-57/64” x 16-7/8”x 19” (W-D-H)
Credenza: 14-57/64” x 22-7/8”x 19” (W-D-H)
Inside Drawer Dimensions:
Desks (Not Including P3261):
Letter: 12” x 27-1/8” x 9-5/8” (W-D-H)
Box: 11-5/16” x 19-3/16” x 4-7/8” x (W-D-H)
Center: 24-11/16” x 13-1/2” x 2-7/16” (W-D-H)
Credenza, Return , and P3261:
Letter: 12” x 20” x 9-5/8” (W-D-H) w/ Adjustable Follower
Box: 11-5/16” x 15-3/16” x 4-7/8” x (W-D-H)
Center: 24-11/16” x 13-1/2” x 2-7/16” (W-D-H)
Created: 05/08/2003 Metro Classic Series The HON Company
Rev 2.0 PAGE 1 OF 3 800.336.8398 / www.hon.com
Page 2
S
Steel Desks
Knee Space:
Models P3253
Models P3251R
Models P3262, P3261, P3231
Model P3265R/66L
Model P3265R/66L
CONSTRUCTION
Leg Assembly
Pedestal Construction:
• Vertical Channels: 4
• Case Slides: Suspension and Non-Suspension
• Wire Tray: HIP Black
End Panel Construction:
• Outside/ Inside steel panels
• Composite Core: Honeycomb Panel 69-33-69 (69 lb. Backers, 33 lb. Inner
• Adhesive: Polyurethane Reactive Hotmelt
• Level Screw: 7/8” Hex Base with 3/8” x 16” Thread Stem
Drawer Construction
DOUBLE WALL BOX DRAWER (NON-SUSPENSION)
• Operation: Nylon Rollers for Desks and Credenzas, Nylon Glides for Returns
• Rails Formed by side
LETTER DRAWER - DESK
• Rails Formed by side
LETTER DRAWER- RETURN
• Rails Formed by side
Suspension – Full triple tied cradle
• Leg Locators: Nylon Rollers
• Leg: 1 x 1 welded steel tubing painted to match color of unit
• Level Screw: 7/8” Hex Base with 3/8” x 16 Thread Stem
o 27-11/16”
o 30-11/16”
o 27-13/16”
o 48-11/16”
o 36-13/16”
Medium, 69 lb. Backer)
METRO CLASSIC SERIE
SPECIFICATIONS
Created: 05/08/2003 Metro Classic Series The HON Company
Rev 2.0 PAGE 2 OF 3 800.336.8398 / www.hon.com
Page 3
S
Steel Desks
FEATURES
Hardware:
• Injection Molded Plastic Drawer Pull and Wire Management
• Grommets in matching paint color
Follower:
• Automatic Positive Locking Side Action Follower, Adjustable on 5/8” Centers.
Lock:
Suspension:
Finish:
• Follower Slides Easily in Channels at Top of Drawer Slides
• Overall Pedestal Locking, Controlled Paracentric Two-Point Center Drawer
Lock, Lock Bar
•
Full Cradle Triple Tied Suspension with 10 Nylon Rollers
• Baked enamel over phosphatizing prime rust-proofing treatment.
• Sound Deadening Material on Inside of Pedestal
METRO CLASSIC SERIE
SPECIFICATIONS
CARTONING
Model Weight Cubes Carton # Cartons Outside dimensions
P3235R 89 lbs. 14.47 42-3172 44-9/16” x 26-9/16” x 21-1/8” (W-D-H)
P3236L 89 lbs. 14.47 42-3172 44-9/16” x 26-9/16” x 21-1/8” (W-D-H)
P3253R 109 lbs. 15.46 42-3570 47-3/4” x 26-1/2” x 21-1/8” (W-D-H)
P3262 176 lbs. 24.83 42-3502 62-3/8” x 32-9/16” x 21-1/8” (W-D-H)
P3261 155 lbs. 24.82 42-3502 62-3/8” x 32-9/16” x 21-1/8” (W-D-H)
P3265R 162 lbs. 27.29 42-3495 68-9/16” x 32-9/16” x 21-1/8” (W-D-H)
P3266L 162 lbs. 27.29 42-3495 68-9/16” x 32-9/16” x 21-1/8” (W-D-H)
P3276 208 lbs. 35.83 42-3529 74-3/4” x 38-3/4” x 21-3/8” (W-D-H)
P3231 160 lbs. 20.25 42-3501 62-3/8” x 26-9/16” x 21-1/8” (W-D-H)
P3251R 131 lbs. 20.23 42-3509 50-13/16” x 32-9/16” x 21-1/8” (W-D-H)
REVISIONS
Number Date What was Changed
Rev 2.0 5/18/05 Updated Specifications
Created: 05/08/2003 Metro Classic Series The HON Company
Rev 2.0 PAGE 3 OF 3 800.336.8398 / www.hon.com
