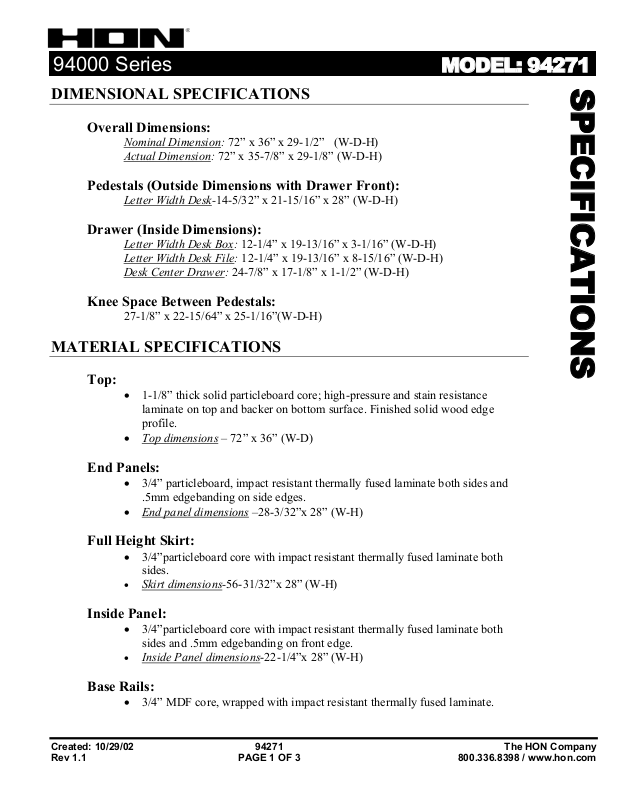

Page 1
94000 Series
DIMENSIONAL SPECIFICATIONS
Overall Dimensions:
Nominal Dimension: 72” x 36” x 29-1/2” (W-D-H)
Actual Dimension: 72” x 35-7/8” x 29-1/8” (W-D-H)
Pedestals (Outside Dimensions with Drawer Front):
Letter Width Desk-14-5/32” x 21-15/16” x 28” (W-D-H)
Drawer (Inside Dimensions):
Letter Width Desk Box: 12-1/4” x 19-13/16” x 3-1/16” (W-D-H)
Letter Width Desk File
Desk Center Drawer
Knee Space Between Pedestals:
27-1/8” x 22-15/64” x 25-1/16”(W-D-H)
MATERIAL SPECIFICATIONS
Top:
• 1-1/8” thick solid particleboard core; high-pressure and stain resistance
laminate on top and backer on bottom surface. Finished solid wood edge
profile.
• Top dimensions – 72” x 36” (W-D)
End Panels:
• 3/4” particleboard, impact resistant thermally fused laminate both sides and
.5mm edgebanding on side edges.
• End panel dimensions –28-3/32”x 28” (W-H)
Full Height Skirt:
• 3/4”particleboard core with impact resistant thermally fused laminate both
sides.
• Skirt dimensions-56-31/32”x 28” (W-H)
Inside Panel:
• 3/4”particleboard core with impact resistant thermally fused laminate both
sides and .5mm edgebanding on front edge.
• Inside Panel dimensions-22-1/4”x 28” (W-H)
Base Rails:
• 3/4” MDF core, wrapped with impact resistant thermally fused laminate.
: 12-1/4” x 19-13/16” x 8-15/16” (W-D-H)
: 24-7/8” x 17-1/8” x 1-1/2” (W-D-H)
MODEL: 94271
SPECIFICATIONS
Created: 10/29/02 94271 The HON Company
Rev 1.1 PAGE 1 OF 3 800.336.8398 / www.hon.com
Page 2
94000 Series
False Ped Back:
• 3/4”particleboard core with impact resistant thermally fused laminate both
sides.
• False Ped Back Panel dimensions-15-11/16”x 28” (W-H)
False Ped Side Panel:
• 3/4”particleboard core with impact resistant thermally fused laminate both
sides and .5mm edgebanding on back edge
• False Ped Side Panel dimensions-5-3/32”x 28” (W-H)
Box Drawer Material:
FRONTS-3/4” thick particleboard with melamine both front and back .5mm PVC
edgebanding on both sides and top.
SIDES-7/16” thick fiberboard, 3-5/8” high.
BACK-7/16” thick fiberboard, 3-5/8” high.
BOTTOM-3/16” thick printed hardboard.
SUBFRONT-7/16” thick fiberboard, 3-5/8” high.
CONSTRUCTION-Sides mortise/tenon into drawer front, stapled to back and
subfront at corners. Bottom fits into slots on sides.
File Drawer Material:
FRONTS-3/4”thick particleboard with melamine both front and back .5mm
edgebanding on both sides and top.
SIDES-7/16”thick fiberboard, 9-1/2” high.
BACK-7/16”thick fiberboard, 9-1/2” high.
BOTTOM-3/16”thick printed hardboard.
SUBFRONT-7/16”thick fiberboard, 9-1/2” high.
CONSTRUCTION-Sides mortise/tenon into drawer front, stapled to back and
subfront at corners. Bottom fits into slots on sides.
Hardware:
Hardware Pack
Hangrial Pack-262-4107
Divider Pack
Product Pack-262-9120
Hangrail Instruction Sheet-242-7404
-251-4555
-262-4003
MODEL: 94271
SPECIFICATIONS
Created: 10/29/02 94271 The HON Company
Rev 1.1 PAGE 2 OF 3 800.336.8398 / www.hon.com
Page 3
94000 Series
MODEL FEATURES
• 7” Conference Overhang on visitor’s side.
• 6-3/4” Conference Overhang on each end.
• 3/4” Adjustable Glides (Must Be Installed By Customer)
• ¾” Extension Ball Bearing Box Drawer Slide
• Full Extension ball Bearing File Drawer Slide
• File Drawer
to back filing. Hangrails are provided for all file drawers. Use Hanging
folders with a maximum height of 9-3/4”.
• Lock Assy
• 94000
PARTICLEBOARD: All particleboard is ANSI grade IM3 or better.
Series wood produce meets or exceeds ISTA shipping and
ANIS/BIFMA X5.5 (latest Rev.) testing requirements for office furniture.
CARTONING INFORMATION
Carton-Outside Dimensions: 74-3/8” x 38-3/8” x 32” (W-H-D)
Cubes: 52.9
Carton #: 242-5710
Weight: 316lbs
: Letter and legal width side-to-side filing, letter width front
-50-6703
MODEL: 94271
SPECIFICATIONS
REVISIONS
1.1-Corrected carton size and cube. (1-19-04)
Created: 10/29/02 94271 The HON Company
Rev 1.1 PAGE 3 OF 3 800.336.8398 / www.hon.com
