Page 1

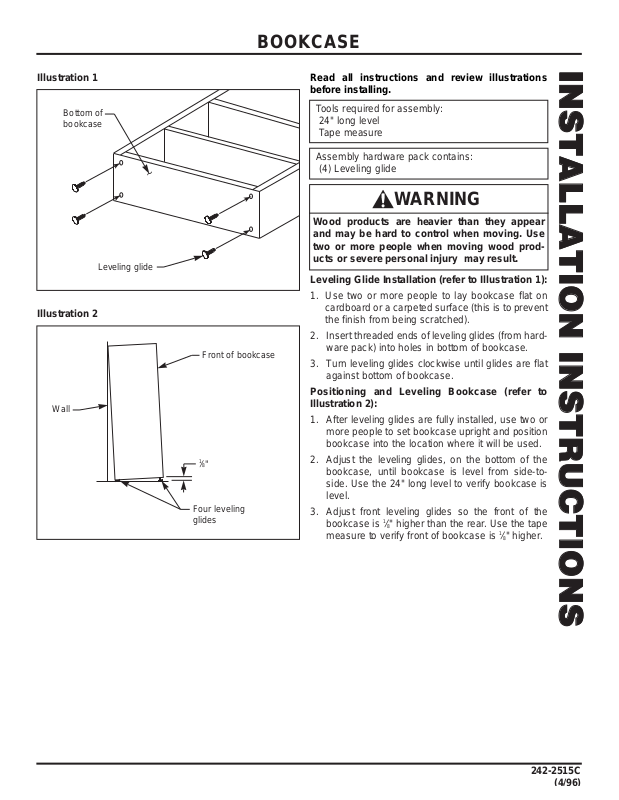

BOOKCASE
Wood products are heavier than they appear
and may be hard to control when moving. Use
two or more people when moving wood products or severe personal injury may result.
WARNING
Read all instructions and review illustrations
before installing.
Tools required for assembly:
24" long level
Tape measure
Assembly hardware pack contains:
(4) Leveling glide
Illustration 1
Illustration 2
Leveling Glide Installation (refer to Illustration 1):
1. Use two or more people to lay bookcase flat on
cardboard or a carpeted surface (this is to prevent
the finish from being scratched).
2. Insert threaded ends of leveling glides (from hard-
ware pack) into holes in bottom of bookcase.
3. Turn leveling glides clockwise until glides are flat
against bottom of bookcase.
Positioning and Leveling Bookcase (refer to
Illustration 2):
1. After leveling glides are fully installed, use two or
more people to set bookcase upright and position
bookcase into the location where it will be used.
2. Adjust the leveling glides, on the bottom of the
bookcase, until bookcase is level from side-toside. Use the 24" long level to verify bookcase is
level.
3. Adjust front leveling glides so the front of the
bookcase is 1⁄8" higher than the rear. Use the tape
measure to verify front of bookcase is 1⁄8" higher.
242-2515C
Leveling glide
Bottom of
bookcase
~
Four leveling
glides
Wall
Front of bookcase
1
⁄8"
INSTALLATION INSTRUCTIONS
